Type of Product	UV Vacuum Cleaner
Model	KC101
Brand	Xiaomi
Power	100W (Max 120W)
Voltage	21.6V
Battery Capacity	2200mAh
Working Time	≥25 minutes
Charging Time	2.5 hours
Dust Cup Capacity	≥0.4 L
UV Lamp Power	6W
Net Weight	1.3 kg
Adapter Input	100-240V~ 50/60Hz 1A
Adapter Output	DC 26V 1A
UV Sterilization	Yes, with infrared sensor safety switch
Flap Mode	Yes, synchronizes with UV light
Filtration System	HEPA filter, metal mesh, exhaust sponge
Washable Components	Dust cup, metal filter, exhaust sponge (air-dry before reinsert)
Safety Features	UV cut-off when lifted, infrared sensor, avoid water/humidity
Suitable Environments	Dry surfaces (beds, sofas, carpets)
Not Suitable For	Water, sharp objects, high temperature, fine dust, chemicals

Frequently Asked Questions - Deerma UV Xiaomi

How should I charge the Deerma UV vacuum?

Plug the adapter into the charging base and the other end into the power socket. Place the machine on the base; the indicator lights will flash in turn during charging. A full charge (indicator solid) takes about 2.5 hours. Do not turn on the vacuum while charging.

How do I use the UV sterilization function?

Press the power switch once to start the vacuum. The UV light and flap mode activate automatically when the infrared sensor detects contact with a surface. When lifted off the surface, both UV and flap stop for safety. Do not look directly at the UV light.

What should I do if the suction power is weak?

Weak suction is often due to blockage. Check and clean the dust cup, metal mesh, or HEPA filter. Also inspect the suction inlet for obstructions. Ensure all filter components are installed correctly.

How do I clean the dust cup and filters?

Press the dust cup release button to remove the cup. Empty it and clean with the included brush. For the metal filter, twist open clockwise and rinse with water. The HEPA filter can be brushed. The exhaust sponge is behind the rear hood. All washable parts must be completely dried before reassembly.

Is it safe to use the vacuum on wet surfaces?

No. This product is not waterproof. Do not inhale water or damp dust. Only use on dry surfaces to avoid electric shock or damage.

What does the UV indicator light mean?

The UV and flap indicator light works synchronously with the UV lamp. It turns on when the machine contacts a surface and the UV is active. If the machine is lifted, the UV turns off and the indicator goes out.

How long does the battery last on a full charge?

Under normal use, the battery provides 25 minutes of continuous operation. The indicator shows battery level: 3 lights (100%), 2 lights (65%), 1 light (30%), 1 flashing light (needs charging).

Can I use the vacuum to clean fine dust like cement or ash?

No. Avoid using on ultra-fine materials such as lime, cement, wood chips, gypsum, or toner. These can damage the motor and filters. The vacuum is designed for household dust and bed mites.

What should I do if the UV light does not turn on?

First, ensure the machine is in contact with a flat surface (the infrared sensor must detect it). If the surface is uneven, it may not activate. If the problem persists, the lamp tube may be damaged and needs replacement.

How should I store the vacuum when not in use?

Store in a cool, dry place away from direct sunlight and moisture. For long-term storage, charge and discharge the battery at least once every three months to maintain battery health.

USER MANUAL Deerma UV Xiaomi

UV Vacuum Cleaner User Manual

KC101

C 油圭地CE

爱上洁净的家

Please read this instruction manual carefully before using the product and keep it properly.

Important safety instruction 1

Product Description 3

Operating Instruction 5

Cleaning & Maintenance 7

Trouble Shooting 9

Technical Parameters 10

Company Information 12

Important safety instruction

About this user manual

• Please read all the contents of this manual carefully before using this product.
• Keep this manual in a safe place. If you transfer the product to a third party, please attach this manual together with the machine.
• Any operation that does not comply with the instructions of the manual may result in serious personal injury, property damage or damage to the product itself.
• Our company does not bear the relevant legal liabilities for losses caused by failure to follow the instructions in this product description.

Attention

This product is not waterproof, please do not inhale water and damp dust.

This product is a household bed smashing device. Do not use it to absorb construction waste or heavy metal dust.

Personnel Safety

• For instructions on your personal safety, please read these carefully to avoid accidents and possible damage to the product.
• This product is not intended for use by people who have no experience and knowledge of bed mites, including children at home, unless they are supervised and responsible for their safety
• When working on the product, please be careful to avoid danger.
• Do not stand or sit on this product.
• Keep this product in a safe place, and keep it out of reach of children and those who are unable to judge the environmental risks.
• Do not store this product in a high place to avoid the risk of accidental fall.

Product safety instructions

- This product is not intended for use by persons with physical, sensory or intellectual disabilities or those who lack experience and common sense (including children) unless they are supervised or directed to ensure that they are safe to use.

• This product is only suitable for working in a dry environment. Do not use it in a humid environment.

- Do not pump high temperature substances (cigarettes, matches or hot ash), ultra-fine materials (such as lime, cement, wood chips, gypsum powder, ash, toner, etc.), large pieces of sharp pieces (such as glass, nails, pins, etc.), dangerous goods (such as solvents, detergents, etc.), chemicals (such as acidic substances, detergents, etc.), flammable and explosive liquids (gasoline, alcohol products).

- Keep the crystal flow passage and moving parts away from the hair, loose clothing, fingers and body parts. Do not point the air passage or tool at the eyes or ears.

- Please check the clear area before use. If you find tall paper, paper balls, plastic cloth or sharp objects, and things that are thicker than the straw diameter, please pre-exclude it to avoid the use of the pipeline is blocked and the use is severe

- If it is found, if it is found to be leaking or the motor temperature is too high and abnormal sound, such as hot body, abnormal sound, different sputum, weak service, etc., should stop immediately.

- Please check the dust cup regularly. If there is more garbage inside, please clean it up in time, keep the ventilation hole unobstructed to avoid the blockage and cause the force to drop. The motor will start the ship and reduce the service life of the hand-held wireless dust collector

- When cleaning the crystal, do not use lubricants, detergents, polishes, etc. to clean any parts.

- When the machine malfunctions, do not repair it yourself. Please call our after-sales department for assistance.

- This product is a power tool. Do not let the wireless vacuum cleaner run alone without being taken care of.

- Avoid getting the vacuum cleaner close to the heating appliance or violent to avoid a fire.

- Do not disassemble the dust cup, the UV lamp cover and open the air hood when the machine is powered or running to avoid injury or machine damage

- If the adapter is damaged, you need to purchase the original adapter

Warning About UV Rays

• This product is equipped with ultraviolet sterilizing lamp, please avoid to watch the bottom of the machine when the power is on and the ultraviolet sterilizing function is on to prevent ultraviolet radiation from causing harm to human body
• Please don't expose animals and plants to ultraviolet rays to avoid damage
• Please do not concentrate uv rays in one place for continuous use, which may cause damage to cleaning objects
• When the ultraviolet sterilization lamp is opened, the eye cannot direct the ultraviolet ray lamplight, also cannot illuminate human body skin, lest cause damage to human body.
• Ultraviolet germicidal lamp is open, not with strong light, or direct sunlight photosensitive components at the bottom of the machine, lest cause performance obstacle, affect the normal use and life, cause accident harm to humans or animals
• If used for a long time, the position of the protective lampshade will accumulate dust, causing the UV lamp to keep on and lose the protection function to human body. In this case, dust the surface of the sensor probe with a clean cloth

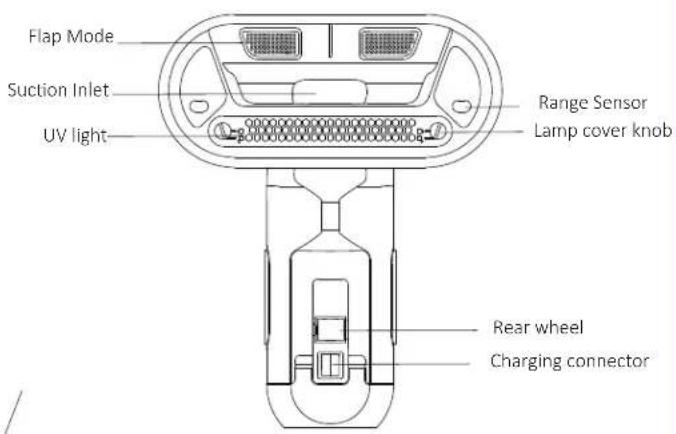

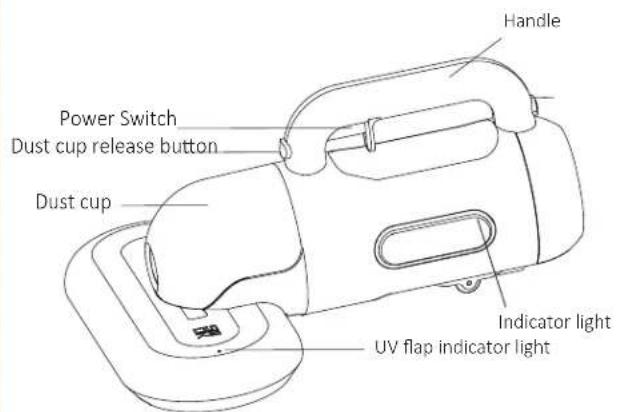

Product Description

Accessories List

Simple line drawing of a mechanical device with no text or symbols

Machine

Charging Base

Dust cup accessories (has been assembled)

Adaptor

Before assembling the product, please check the accessories list and confirm that all parts have been received

Operating instruction

Preparation before using

- Make sure the components of the UV vacuum cleaner are assembled in place.

- Check whether the power is sufficient to ensure the product works normally

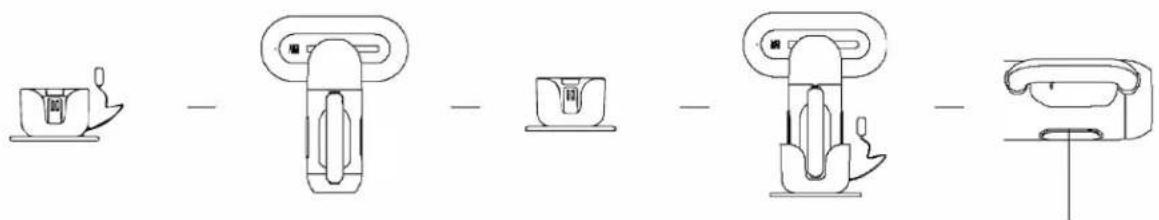

Charging Instructions

- Plug the adapter into the charging base and the other end into the power socket

- Do not turn on when charging

The power indicator light is fully charged when it is on in all three cases.

Line drawings of mechanical components or assemblies, showing sequential assembly steps (no text or symbols)

The power indicator flashes in turn when charging

Attention

- Put the machine into the charging base, and the power indicator will flash in turn to start charging

- Please charge the battery fully when you use a new battery or first use it after long-term storage

- Please charge more than 3 hours before the first use

How to use

Indicator light

Switch button shortly, the light is on after starting up, the machine is started, all functions are started with one key, and the short button is pressed to turn off (all functions are stopped)

• 3 lights 100%
- 2 lights 65%
- 1 light 30%
- 1 light to flash, need to be charged

Attention

To avoid accidental pet injury, UV lamp equipped with infrared sensor probe safety switch, off the surface of the object automatically UV off.

UV and Flap Instructions

- When the machine touches the object surface, the infrared sensor detects the object. When the UV light is on, the flap mode starts. Away from the surface of the concealment object, the infrared induction probe cannot sense the object, the UV light and the flap mode is closed, the UV and the flap indicator work synchronously

Line drawing of a handheld device with labeled component 'UV and I' (no other text or symbols)

UV and Flap indicator light

Cleaning & Maintenance

Clean Dust Cup

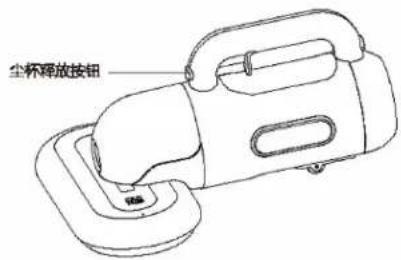

Press the release button to remove the cup

Two technical line drawings of a mechanical component, one with a curved edge and the other with a rectangular base (no text or symbols)

Remove the dust cup

Clean the dust cup with the brush

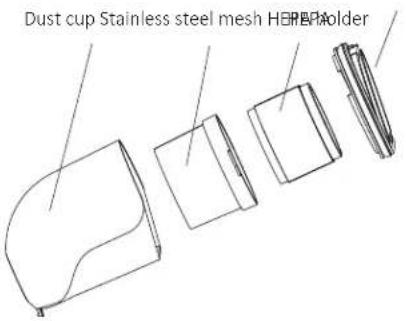

Line drawings of three mechanical components: cylindrical, cylindrical housing, and curved housing (no text or symbols)

Open the mesh in the main clockwise direction

Clean the metal filter cover, washable

Clean HEPA with brush

Exhaust Sponge

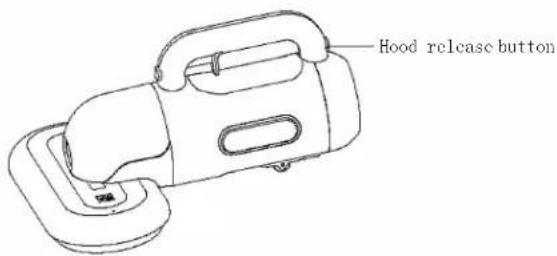

Press the release button to open the hood

Remove the air filter sponge, washable

ATTENTION

All washable parts can be put into the main machine after they are dried.

Daily storage

• When not using the machine for a long time, please put the machine in a cool and dry place, do not put the machine in direct sunlight or moist environment
• When you do not use the machine for a long time, please make sure to charge and discharge at least once every three months

Trouble shooting

When there is malfunction of the machine, please refer to the following chart for trouble shooting.

Details	Possible Reasons	Treatment
Machine not work	1 Low battery	please charge battery in time
	2 Do not press the power switch	Press the switch
Less suction	1 Metal mesh or the HEPA filter is blocked	Clean the dust cup, mesh or HEPA filter
	2 The suction of the machine is blocked	Clean the suction
UV light not work	1 Object surface is not smooth or the machine bottom does not fully touch the object, resulting in the induction probe in a protective state	Keep the surface flat or the machine bottom the in full contact with the cleaned object
	2 lamp tube damaged	Change the lamp tube
Too much noise	1 Full dust cup	Stop using and clean up the blockage
	2 The machine suction is blocked
	3 The dust cup filter or HEPA filter is blocked
	4 No filtering component is installed	Install the filter component

Technical Parameters

Product Type	UV Vacuum Cleaner
Product model	KC101
Voltage	21.6V
Power	100w
Max Power	120w
Capacity	≥0.4L
UV lamp power	6w
N.W.	1.3kg
Charging time	2.5h
Adapter voltage Input	100-240V~ 50/60Hz 1A
Adapter voltage Output	DC 26V 1A
Working time	≥25min
Battery capacity	2200mAh

Hazardous Substances Contained in Components

The chart is based on the regulation of SJ/T11364
O: Means the content of the hazardous substance indicated in contained in the component is within the limits set by GB/T26572.
X: Means the content of the hazardous substance indicated in contained in the component is higher than the limits set by GB/T26572.
(All components labeled with X met the requirement of European Union RoHS, Or no substitutes can be found due to current technology level)
(This chart covers all the products of SWDK. However, not every products contain all 11
components described in the charts)
