Grand Citrus Juicer Deluxe - Citrus juicers Bourgini - Free user manual and instructions

USER MANUAL Grand Citrus Juicer Deluxe Bourgini

Exterior view of a modern stainless steel coffee maker with a glass lid and handle (no visible text or symbols)

20.6000.00.00 Grand Citrus Juicer Deluxe

Technical diagram of a kitchen appliance with numbered parts for identification

BOURGINI®

Bourgini service and warranty EN 9

Mode d'emploi FR 10

BESCHRIJVING (FIG. A, P.2)

★ Read these instructions carefully before use and keep them in a safe place.
★ This appliance may be used, cleaned and serviced by children older than 8 years of age provided they are supervised by a person responsible for their safety. Keep the appliance and the power cord away from children younger than 8. Children are not allowed to play with the appliance. Children should always be monitored to prevent them from playing with the appliance.
★ The appliance may be used by persons with a physical, sensory, mental or motor disability and by persons without the necessary experience and knowledge, provided they are supervised by a person responsible for their safety, or when they are given instructions on how to safely use the appliance and if understand the dangers that come with the use of the appliance.

• This appliance is only intended for normal household use.
• Never leave the appliance unattended when in use.
• Only use the appliance and accessories for their intended purposes. Do not use the appliance and accessories for any other purposes than those described in the instructions.
• Do not use the appliance when a part, accessory, the power cord or plug is damaged or defective. Only let the supplier or an acknowledged service centre replace a damaged or defective part, accessory, power cord or plug.
• Do not use the appliance near facilities containing water, such as bath tubs, showers and wash basins.
• Do not immerse the appliance in water or any other liquid. If this nevertheless happens, unplug the appliance from the wall socket as soon as possible. Never remove the appliance from water or other liquids before unplugging it from the wall socket. You can no longer use an appliance that has been immersed in water or other liquids.
• Make sure that water cannot get into the connection points of the power cord nor the extension cord.
• Always keep the power cord away from heat sources, oil and sharp edges.
  • Always check, before use, that the mains voltage corresponds to the voltage on the rating plate of the appliance.
• For extra safety, connect the appliance to a group protected by a residential current operated circuit breaker with a nominal operating current of max. 30 mA.
• Never operate the appliance by means of an external time switch or a separate remote control system.
• Always unroll the power cord and extension cord (when applicable) fully. Make sure that the power cord and extension cord (when applicable) do not dangle over the edge of the worktop to prevent them from becoming entangled or somebody accidentally tripping over them.
• Do not unplug the appliance by pulling the power cord.
  • Always unplug the appliance when not in use.
• Do not use the appliance outdoors. Place the appliance on a stable and level surface.

• Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.

• Make sure your hands are dry before you touch the appliance.

• Unplug the appliance before assembling or disassembling it and before cleaning or servicing the unit.
• Engine driven appliances: beware of sharp and/or moving parts. Always keep your hands away from the moving parts when using, cleaning or servicing the appliance.
• Heating devices: wait until the appliance has cooled down before you touch the housing and parts of the unit.

Be extra careful during cleaning and servicing.

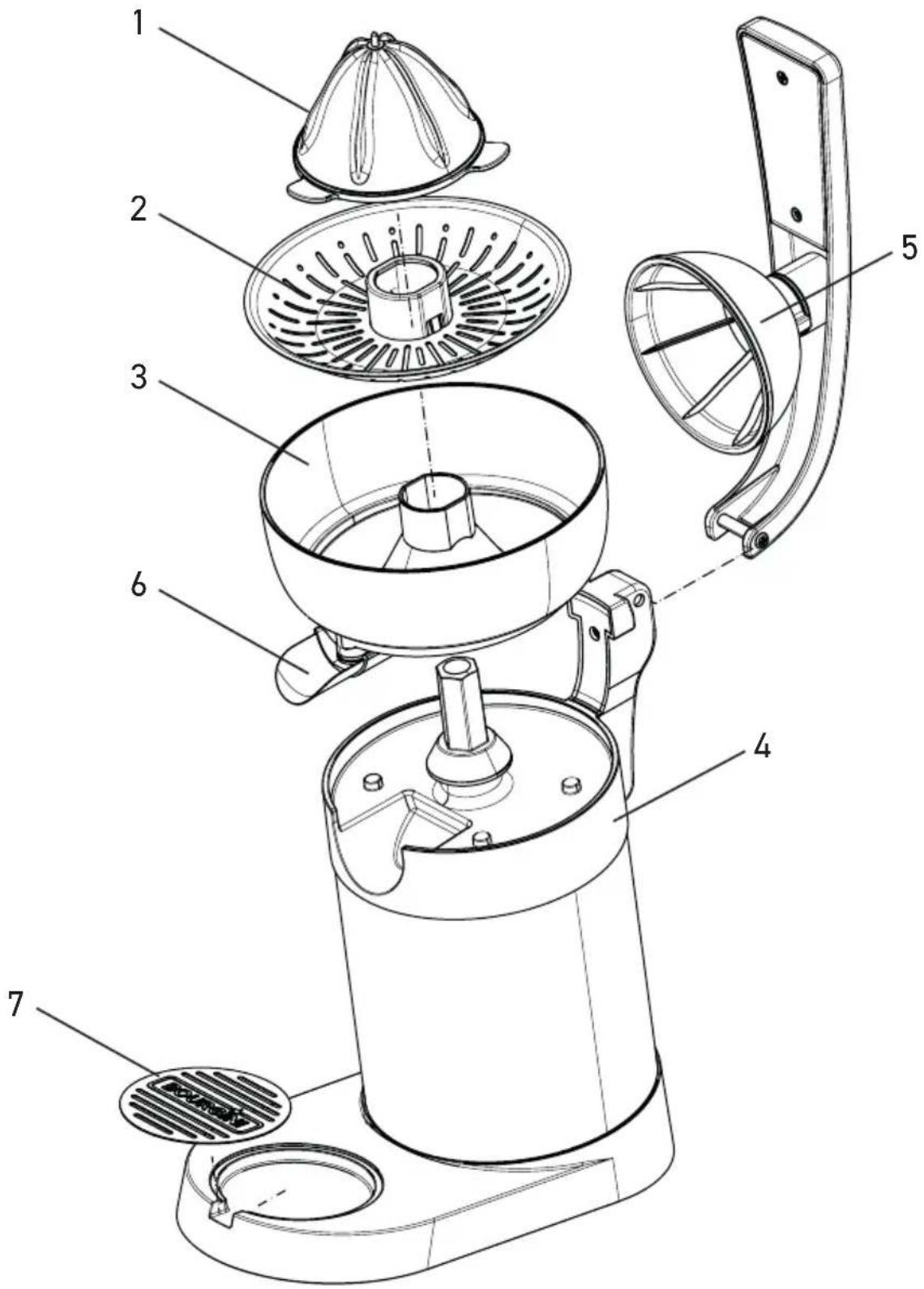

DESCRIPTION (FIG. A, P.2)

Your BOURGINI juicer has been designed for rapidly pressing citrus fruits. The appliance is suitable for domestic use only.

1. Pressing cone
2. Pulp collector
3. Juice collector
4. Motor housing with lever
5. Juicer cone cup
6. Spout with drip stop
7. Leaking plate

INITIAL USE

Preparation

- Clean the appliance. Refer to the section "Cleaning and maintenance".

ASSEMBLY (FIG. A)

Warning!

• Before assembly, remove the mains plug from the wall socket and wait for the motor to stop running.
• Place the juice collector (3) onto the motor housing (4).
• Place the pulp collector (2) onto the juice collector (3)
• Place the pressing cone (1) onto the pulp collector (2).

USE

WARNING!

• Do not use the appliance without the juice catcher (3), the juice may then penetrate the motor.
• Never leave the appliance on continuously for more than three minutes.
• Let the appliance cool down for about five

BOURGÍNI.

minutes after every ten press sessions.

- Assemble the citrus press. See the section titled "Assembly".

- Cut the citrus fruit in half.

- Place the cut part of one half in the juicer head or on the press cone.

- Place a glass under the spout.

- Push the spout downwards to open it. Push the spout upwards to close it (drip stop).

- Press the citrus fruit with the handle. The appliance will automatically begin to press the citrus fruit. The juice will automatically flow into the glass.

- The "wings" on the sides of the press cone spread the pulp across the pulp guard so that the filter will not clog.

- When there is a lot of pulp on the pulp guard, clean it in order to prevent clogging.

- Press the citrus fruit until hardly any juice comes out of it. The appliance will automatically stop when pressure is no longer applied.

Note: The appliance will automatically change directions when turned on/off to ensure that more juice is released.

• Stop pressing the citrus fruit in one of the following situations:
• No more juice is coming out of the citrus fruit
• The glass is filled with the desired amount of juice.
  • After use, remove the mains plug from the wall socket.

CLEANING AND MAINTENANCE

The appliance must be cleaned after each use.

Warning!

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait for the motor to stop running.
• Do not immerse the appliance in water or other liquids.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not clean the appliance in the dishwasher. It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.
• Regularly check the appliance for possible damage.
• Clean the motor housing with a soft, damp cloth.
• Clean the accessories:

• Clean the pressing cone, the pulp collector and the juice collector in soapy water.

• Rinse the accessories under running water.

• Thoroughly dry the accessories.
• Store the appliance in a dry and frost-free place, out of the reach of children.

WASTE DISPOSAL

Electrical appliances, accessories and their packaging must be reused as much as possible in an environmentally sound manner. Do not dispose of these items together with your normal rubbish. Only for EU countries:

According to the European 2002/96/EG WEEE Guideline on the disposal of old electric and electronic appliances, the appliances that are no longer used must be collected and recycled in an environmentally sound manner.

BOURGINI SERVICE AND WARRANTY

The warranty is valid for a period of 2 years from the date of purchase as stated on your purchase receipt, which also your proof of warranty. Please turn to your retailer to claim your warranty. The warranty shall not apply if the product is subjected to incorrect use,, improperly disassembled, damaged by falls, impacts or similar, or if damage is caused due to failure to descale in good time products that are manufactured for use with water. Should a certain product be provided with specific warranty terms and conditions, these shall receive priority over general terms and conditions. The warranty shall not apply to indirect damages. Should you have any questions regarding the use of the product, please consult our website at www.bourgini.com

DISCLAIMER

Changes reserved; specifications are subject to change without stating grounds for doing so.

CONSIGNES DE SÉCURITÉ

November 2018 V0 20.6000.00.00
