Product type	Electric supplementary heater
Brand	Klarstein
Model	10029980
Dimensions (L x H x D)	30 x 40 x 20 cm
Weight	3.5 kg
Heating power	2000 W
Power supply	220-240 V, 50 Hz
Heating type	Convection
Adjustable thermostat	Yes
Timer	Yes, up to 24 h
Oscillation function	Yes
Integrated fan	Yes
Automatic safety shut-off	Yes, in case of overheating
Tip-over protection	Yes
Noise level	≤ 45 dB
Recommended heating area	20-30 m²
Housing material	Heat-resistant plastic
Cleaning	Dust with a soft, dry cloth
Storage	In a dry place protected from dust
Included accessories	User manual, power cable

Frequently Asked Questions - 10029980 Klarstein

How to turn on the heater?

Plug the device into a power outlet, then press the on/off switch. Adjust the desired temperature with the thermostat.

How to set the timer?

Use the timer button to select the desired duration (up to 24 hours). The device will turn off automatically after this time.

What to do if the device does not heat?

Check that the device is plugged in and the thermostat is set above room temperature. Make sure the fuse or circuit breaker has not tripped.

How to clean the device?

Unplug the device and let it cool down. Use a soft, dry cloth to dust the grilles and surface. Do not use water or abrasive products.

The device turns off by itself, is this normal?

Yes, if the overheat protection is activated or if the timer is set. Check that the device is not blocked and that there is adequate air circulation.

Can you use the device in a bathroom?

No, this device is not designed for humid rooms. Use it only in dry and well-ventilated rooms.

How to use the oscillation function?

Press the oscillation button to activate the left-right movement. Press again to deactivate.

What is the recommended power for my room?

For a room of 20 to 30 m², a power of 2000 W is suitable. Adjust the thermostat according to your comfort.

The device makes noise, is this normal?

A slight ventilation noise is normal. If the noise is abnormal, check that the device is stable and that nothing obstructs the fan blades.

Where to find spare parts?

Contact Klarstein customer service or visit their official website to order spare parts such as the power cord or thermostat.

USER MANUAL 10029980 Klarstein

Row of white icons representing kitchen appliances including blender, blender, keyboard, fan, air conditioner, and microwave (no text or symbols)

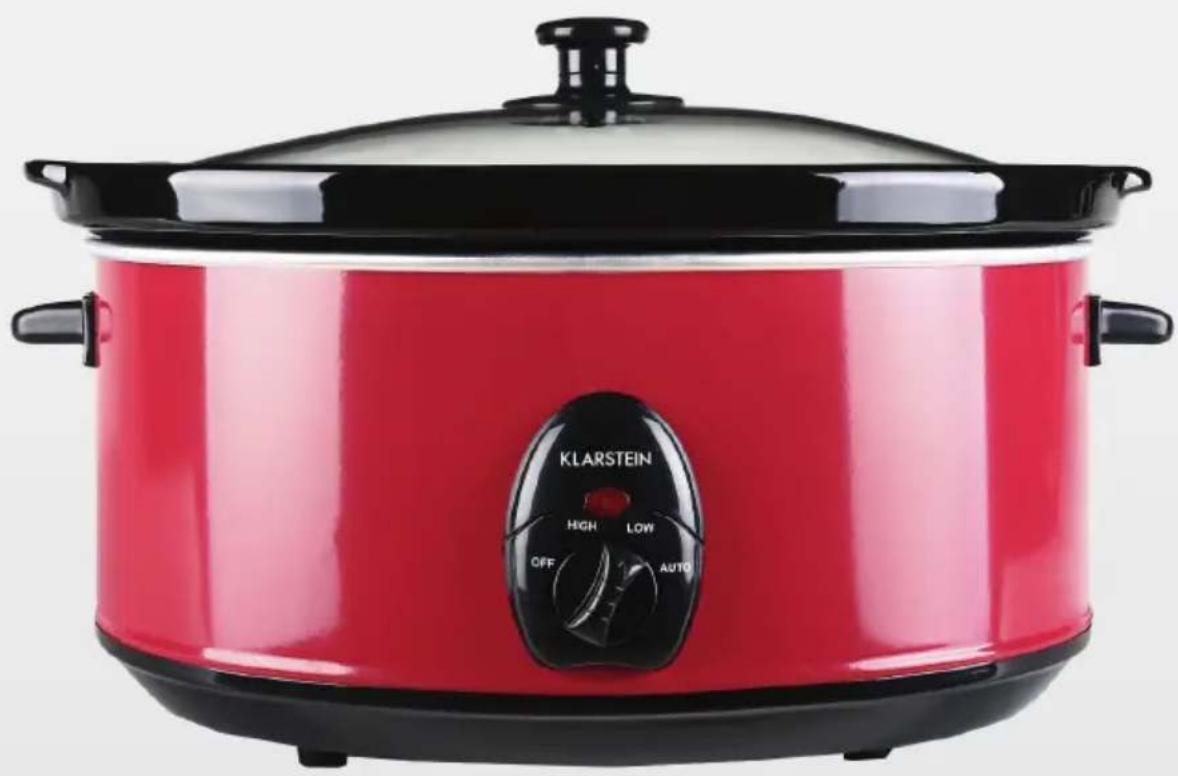

Red Klarstein cookware with black lid and control knob (no visible text or symbols on body)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10029669, 10029670 10029980
Power supply 220-240 V ~ 50-60 Hz
Power consumption 300 W 200 W
Capacity 6,5 L 3,5 L

Safety Instructions

Read all the safety and operating instructions carefully and retain them for future reference.

• To protect against the risk of electrical shock do not put base in water or in any other liquid.
- Close supervision is necessary when appliance is used near children.
- Never allow a child to use this product.
- Unplug from the socket when not in use, before putting on or taking off attachments, and before cleaning.
- The use of attachments or tools not recommended by supplier may cause fire, electric shock or injury.
- Do not use outdoors.
- Do not let the power cord hang over the edge of the table or kitchen countertop. Keep it away form any hot surfaces.
- Keep your appliance away from any hot plates, burners and heated ovens.
- Extreme caution must be used when moving the slow cooker when it contains hot food, water, or other hot liquids.
- Do not use the slow cooker other than for its intended use.
- Do not switch on the slow cooker if the ceramic pot is empty.
- Allow lid and ceramic pot to cool down first before cleaning with water.
- Never touch the outer enclosure of the slow cooker during its operation or before it cools. Use the handles or knobs. Do not touch hot surfaces. Use oven gloves or a cloth when removing lid or handling contents.
- Never cook directly in the base unit. Use the ceramic pot.
- Do not use ceramic pot or glass lid if cracked or chipped.
- Do not leave the slow cooker connected to the socket outlet when not in use.
- Do not switch on the slow cooker when it is upside down or laid on its side.
- The glass lid and ceramic pot are fragile. Handle them with care.
- The appliance must not be immersed in water.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacture or its service agent.

Use and Operation

Befor first Use

• Remove all labels and tags from the product.
• Wash the ceramic pot and glass lid in hot soapy water with a sponge or a dish cloth, rinse thoroughly and dry. Do not immerse the slow cooker base in water.

How to use

1. Place the base on a dry, level, heat resistant surface, away from the edge of the work surface.
2. Place food and other ingredients into the ceramic pot, and place the pot into the base.
3. Cover with the glass lid. If you need to pre-cook or brown foods prior to slow cooking, this must be done in a pan. Do not try to brown or pre-cook food in the slow cooker.
4. Set the control knob the OFF position before plugging the unit into the main socket.
5. Switch off and unplug the health cooker after cooking and remove the crock pot using oven gloves.

Auto Setting

• The AUTO setting allows the user to set the slow cooker to cook frozen food for the day and be ready to server 8-10 hours later. When set to AUTO, the Slow Cooker will cook on HIGH until the food defrosts and reaches a pre-set temperature, then switches to LOW and maintains a constant low cooking temperature.
• However if you wish to extend the cooking period, you can use the LOW setting and if you wish to shorten the cooking period you can use the HIGH setting.

About Slow Cooking

Most foods are suited to slow cooking methods; however there are a few guidelines that need to be followed:

• Cut root vegetables into small, even pieces, as they take longer to cook than meat. They should be gently sautéed for 2-3 minutes before slow cooking. Ensure that root vegetables are always placed at the bottom of the pot and all ingredients are immersed in the cooking liquid.
• Trim all excess fat from meat before cooking, since the slow cooking method does not allow fat to evaporate.
• If adapting an existing recipe from conventional cooking, you may need to cut down on the amount of liquid used. Liquid will not evaporate from the slow cooker to the same extent as with conventional cooking.
• Uncooked red beans must be soaked and boiled for at least 10 minutes to remove toxins before use in a health cooker.
• Authentic stoneware is fired at high temperatures; therefore the ceramic pot may have minor surface blemishes and the glass lid may rock slightly due to these imperfections. Low heat cooking does not produce steam so there will be little heat loss. Due to normal wear and tear through the products life, the outer surface may start appearing “crazed”.
• Do not put the ceramic pot or glass lid in an oven, freezer, and microwave or on a gas/electrical hob. Do not subject the ceramic pot to sudden changes in temperature. Adding cold water to a very hot pot could cause it to crack.

• The slow cooker pot must be at least half full for best results. Slow cooking retains moisture. If you wish to reduce moisture in the cooker, remove the lid after cooking and turn the control to high (if set to low or auto) and simmer for 30 to 45 minutes.

• The lid is not a sealed fit. Don't remove unnecessarily as the built up heat will escape. Each time you remove the lid, allow an additional 10 minutes to the cooking time. If cooking soups, leave a 5cm space between the top of the cook pot and the food surface to allow simmering.

• Most meat and vegetable recipes require 8-10 hours on low. 4-6 hours on high and 5-7 hours on auto.
• Some ingredients are not suitable for slow cooking. Pasta, seafood, milk, and cream should be added towards the end of the cooking time. Many things can affect how quickly a recipe will cook, water and fat content, initial temperature of the food and the size of the food.
• Food cut into small pieces will cook more quickly. A degree of ‘trial and error’ will be required to fully optimize the potential of your slow cooker. Root vegetables usually take longer to cook than meat, so try and arrange vegetables in the lower half of the pot.

Cleaning and Care

Always make sure the slow cooker is unplugged and in the OFF position before storing away or cleaning. Make sure the unit has cooled down completely before cleaning. The stoneware insert is not dishwasher safe but it can be cleaned with warm soapy water. To remove any foods that have been cooked onto the bottom of the pot, simply soak overnight in soapy water and rinse the next day. The exterior of the slow cooker can be wiped with a damp cloth and dried. DO NOT use harsh abrasive cleaner or scouring pad to clean any part of the slow cooker as this will damage the surface.

• Never submerge the entire cooker into water or any other liquid, otherwise it may damage the slow cooker.
• Never put the glass lid and ceramic pot into the dishwasher to clean, otherwise both of them may crack
• Never put the glass lid in the refrigerator, otherwise it may crack.
• When the ceramic pot taken out from refrigerator, please do not use it immediately until it drying after about 40min., Otherwise it may crack.
• Never put the ceramic pot on the gas stove to use, otherwise it may crack.

Disposal Considerations

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)
