Klarstein 50L1-SG 10006674 - Fridge

50L1-SG 10006674 - Fridge Klarstein - Free user manual and instructions

Find the device manual for free 50L1-SG 10006674 Klarstein in PDF.

📄 28 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Klarstein 50L1-SG 10006674 - page 9
9 / 28
View the manual : Français FR Deutsch DE English EN Italiano IT
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Refrigerator with freezer compartment
Brand Klarstein
Model 50L1-SG 10006674
Article numbers 10006674, 10006675
Capacity 50 liters
Power supply 220-240 V ~ 50/60 Hz
Thermostat Adjustable
Reversible door Yes
Removable shelves Yes
Bottle compartment Yes
Water drip tray Yes
Adjustable feet Yes
Ventilation openings Must be cleared regularly
Cleaning Damp cloth with mild detergent
Defrosting Regular, without mechanical tools
Safety Earth connection required, do not use extension cord
Child safety Children aged 3 to 8 allowed to load/unload
Ambient temperature Install away from heat sources
Ventilation space 5 cm sides, 10 cm back
Recycling Complies with directive 2012/19/EU

Frequently Asked Questions - 50L1-SG 10006674 Klarstein

How to reverse the door opening direction?
It is possible to reverse the door opening direction. Refer to the 'Reversing the door opening direction' section of the manual. You will need to unscrew the hinges and reposition the insert piece, fixings, and handle on the other side.
How to clean the interior of the refrigerator?
Turn off and unplug the appliance. Use a damp cloth with a little mild detergent to clean the interior and exterior. Rinse with clean water and dry. The shelves and accessories can be washed in warm soapy water.
What to do if the appliance is not cooling?
Check that the plug is properly inserted and the fuse has not tripped. Ensure the temperature is set to a cold value. Avoid opening the door too often and do not put hot food inside.
Why is my refrigerator making noise?
Noises can be caused by an uneven appliance. Adjust the leveling feet to ensure it is level. Make sure it is not touching the wall or another object, and that interior components are not touching each other.
What is the minimum clearance around the appliance?
Allow at least 5 cm of free space on the sides and 10 cm at the back to ensure good air circulation. Do not place the appliance near a heat source or in direct sunlight.
Can I freeze food in the freezer compartment?
Yes, the freezer compartment allows freezing small amounts of food. Follow safety instructions: do not place hot food, do not overload, and defrost regularly.
How to adjust the temperature?
Use the thermostat located inside the refrigerator. Turn the knob to adjust the temperature: generally, the higher the number, the colder it gets. Adjust as needed.
What to do in case of a power outage?
In case of outage, avoid opening the door to keep the cold as long as possible. When power returns, wait 5 minutes before turning the appliance back on to avoid damaging the compressor.
Is it safe for children?
Children aged 3 to 8 may load and unload the refrigerator under adult supervision. Younger children should not play with the appliance. Always supervise children nearby.
How to recycle this appliance at end of life?
Do not dispose of the appliance with household waste. According to directive 2012/19/EU, take it to a collection point for electrical and electronic appliances. Recycling helps protect the environment.

User questions about 50L1-SG 10006674 Klarstein

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Fridge in PDF format for free! Find your manual 50L1-SG 10006674 - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 50L1-SG 10006674 by Klarstein.

USER MANUAL 50L1-SG 10006674 Klarstein

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of two separate bars] * [sum of the bars] * [values from the 'bar' in the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table]. The sum of the bars is calculated by subtracting the sum of the bars from the 'box' table. Note: The total bar length is based on the sum of the bars. The sum of the bars is calculated as the sum of the bars. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar lengths.

INHALTSVERZEICHNIS

INSTALLATION

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Product Overview 11

Installation 12

Before First Use 12

Door Reversal 12

Cleaning and Care 13

Troubleshooting 13

Hints on Disposal 14

TECHNICAL DATA

Item number10006674, 10006675
Power supply220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

C€

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

Special Notes

  • Children between the ages of 3 and 8 are allowed to load and unload refrigerators.
  • When positioning the unit, make sure that the power cord is not pinched or damaged.
  • Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

  • A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
  • Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
  • Store raw meat and fi sh in suitable containers in the refrigerator so that meat and fi sh do not come into contact with or drip on other foods.

Klarstein 50L1-SG 10006674 - Special Notes - 1

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

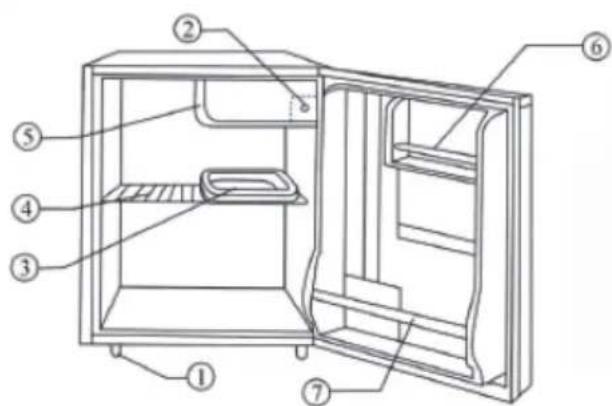

PRODUCT OVERVIEW

1 Adjustable Foot
2 Temperature Control
3 Drip Tray
4 Removable Shelves
5 Freezer Compartment
6 Dairy Rack
7 Bottle Rack

Labeled diagram of an open refrigerator interior showing numbered components for identification.

INSTALLATION

• Install refrigerator in a convenient location away from extreme heat and cold.
- Allow sufficient clearance between the refrigerator and side wall so the door will open without obstruction. Refrigerator is not designed for recessed installation.
- Select a space with strong level floor.
- Allow 5 cm of space between the refrigerator's side & wall and 10 cm between back and the wall.

BEFORE FIRST USE

  • Clean the appliance, and be thorough, especially in the interior (see „Cleaning and Care“).
  • In case the interior accessories are not correctly placed, rearrange them as described in chapter „Product Overview“.

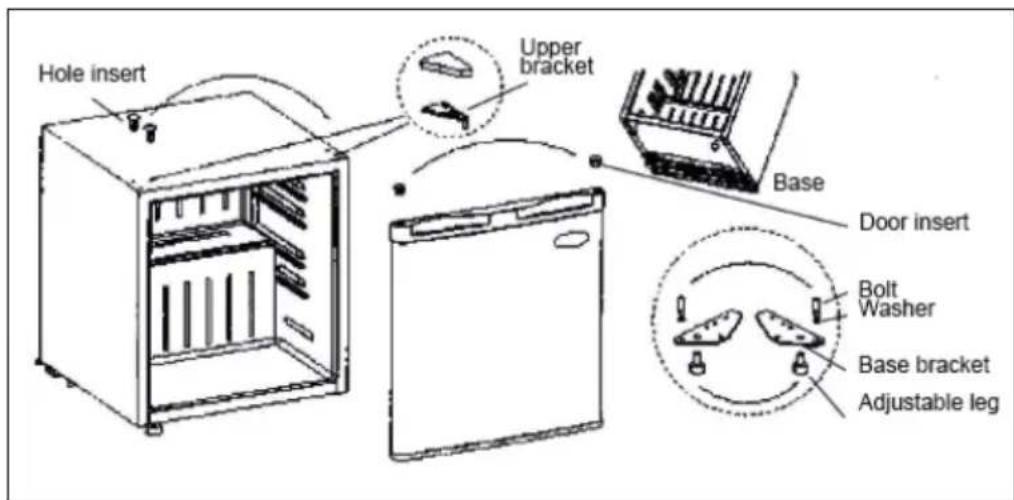

DOOR REVERSAL

In order to reverse the opening direction of your door, please follow these simple instructions.

Hole insert Upper bracket Base Door insert Bolt Washer Base bracket Adjustable leg

CLEANING AND CARE

  • Do not use chemical cleaners, abrasives or solvents for cleaning.
  • Switch off the refrigerator by turning down the temperature control knob and pulling the plug out of the stretch socket.
  • Wipe the inside and outside of the refrigerator with a damp cloth and a little detergent, wipe with clear water and then dry.
  • Clean the storage compartments, accessories and gasket in warm soapy water, rinse them clean and then dry them thoroughly.
  • Clean the door seals with warm soapy water.
  • Replace all parts, plug in the plug and turn the thermostat to the desired temperature.

TROUBLESHOOTING

Problem Possible cause Solution
Appliance does not work. Mainsplug is not plugged in or is looseInsert mains plug.
Fuse has blown or is defective Ccheck fuse, replace if necessary.
The food is too warm. Temperatureure is not properly adjusted.Please look in the initial Temperature Setting section.
Door was open for an extended period.Open the door only as long as necessary.
A large quantity of warm food was placed in the appliance within the last 24 hours.Turn the temperature regulation to a colder setting temporarily.
The appliance is near a heat source.Please look in the installation location section.
Appliance cools too much. Temperatureperature is set too cold. Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises. Appliance is not level. Re-adjust the feet.
The appliance is touching the wall or other objects.
A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.

HINTS ON DISPOSAL

Klarstein 50L1-SG 10006674 - HINTS ON DISPOSAL - 1

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
