SHK 100 C3 - Couverture chauffante / Coussin chauffant SILVERCREST - Free user manual and instructions

Product Type	Heating Pad / Cushion
Model	SHK 100 C3
Brand	SilverCrest
Dimensions (approx.)	47 x 36 cm
Power Supply	220-240V~ 50/60Hz
Power Consumption	100 W
Temperature Settings	6 levels (0 off, 1 minimum, 6 maximum)
Automatic Switch-Off	After approx. 90 minutes
Safety System	Electronic sensor with automatic shut-off in case of fault
Material	100% Polyester
Cleaning	Machine washable at 30°C delicate cycle, max. 10 washes
Drying Instructions	Do not tumble dry, do not iron, do not dry clean
Intended Use	Applying heat to human body (not for hospitals or commercial use)
Contraindications	Not for infants, helpless persons, heat-insensitive persons, or animals
Certification	Oeko-Tex Standard 100
Protection Class	II
Electric Field Strength	Max. 5000 V/m
Magnetic Field Strength	Max. 80 A/m
Magnetic Flux Density	Max. 0.1 millitesla
Rapid Heating	Yes, within first 10 minutes
Warranty	3 years
Manufacturer	MGG Elektro GmbH, 01099 Dresden, Germany
Model Type	P10

Frequently Asked Questions - SHK 100 C3 SILVERCREST

How do I switch on the heating pad and select a temperature?

Connect the control to the heating pad via the plug-in connector. Turn the control to a level between 1 and 6. Level 6 is maximum heat for rapid warming; level 1 is minimum for extended use. The function indicator lights up when on. To switch off, set to level 0.

How does the automatic switch-off feature work?

The heating pad automatically switches off after approximately 90 minutes. The function indicator then starts flashing. To restart, set the control to '0' for about 5 seconds, then select your desired temperature setting again.

Can I wash the heating pad?

Yes, the heating pad is machine-washable. Use an extra gentle cycle at 30°C. Disconnect the control unit first. Do not use bleach, fabric softener, or dry clean. Wash max. 10 times over its lifespan.

Is it safe to use this heating pad if I have a pacemaker?

Consult your doctor and pacemaker manufacturer before use. The electric and magnetic fields generated are below permissible limits, but may interfere with some pacemakers.

Can I use the heating pad while sleeping?

It is not recommended to fall asleep while the heating pad is on, as prolonged use may cause skin burns. The automatic switch-off after 90 minutes provides some protection, but you should remain awake.

What should I do if the safety system activates?

If the heating pad stops heating and the function indicator is off even when switched on, the safety system has detected a fault. Discontinue use and return the pad to the service address. Do not attempt to use it again.

What are the temperature levels?

Level 0: off. Level 1: minimum heat. Levels 2-5: custom settings. Level 6: maximum heat.

Can children use this heating pad?

The heating pad must not be used by infants or helpless persons. Children may only use it if a parent or responsible person has preset the control and instructed them on safe use. Risk of burns.

How should I store the heating pad when not in use?

Allow the pad to cool completely. Store it in its original packaging in a dry environment. Avoid creasing by not placing heavy items on top. Do not fold tightly.

What is the warranty period and what does it cover?

The warranty is 3 years from purchase date, covering material or manufacturing faults. It does not cover damage from improper use, normal wear, or known defects. Proof of purchase is required.

USER MANUAL SHK 100 C3 SILVERCREST

Operating instructions and safety advice

FR

CoussinCHAuffAnt

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operating instructions and safety advice Page 37

01099 Dresden, Germany

RISQuE D'ÉLECTROCuTION!

Intended Use Page 38

Description of parts and features......Page 39

Scope of delivery....Page 39

Technical data....Page 39

Important safety instructions....Page 39

Safety system....Page 41

Preparations for use......Page 41

Switching on/off/Selecting the temperature....Page 41

Temperature levels....Page 41

Automatic switch-off Page 41

Cleaning and Care......Page 41

Storage Page 42

Disposal Page 42

Warranty / Service centre Page 43

Declaration of conformity....Page 43

The following icons / symbols are used in this instruction manual / on this heating pad:
	Read the instructions!		The textiles used in this heating pad meet the strict human ecological requirements of Öko-Tex Standard 100, as verified by the German Hohenstein Research Institute.
	Volt (AC) Do not use folded or rucked!
	Hertz (mains frequency) Caution - electri	k! Danger to life!
	Watts (effective power)		The heating pad is machine-washable. Set the washing machine to an extra gentle washing program at 30 °C.
	Safety class II Do not use bleach.
	Observe caution and safety notes!		Do not dry the heating pad in a tumbler dryer.
	Keep the heating pad out of the reach of children!		Do not iron the heating pad.
	Risk of loss of life by electric shock from damaged mains power cable or mains plug!		Do not dry clean.
	Do not insert pins!		Dispose of the packaging and the heating pad in an environmentally friendly way!

Heat Pad

●Introduction

Please familiarise yourself with the heating pad before getting started and using it for the first time. Please read the following

operating instructions and the important safety instructions carefully. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.

IntendedUse

This heating pad is intended for applying heat to the human body. It can be used to apply heat to specific areas. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer accepts no liability for any damage caused by improper use.

• Description of parts and features

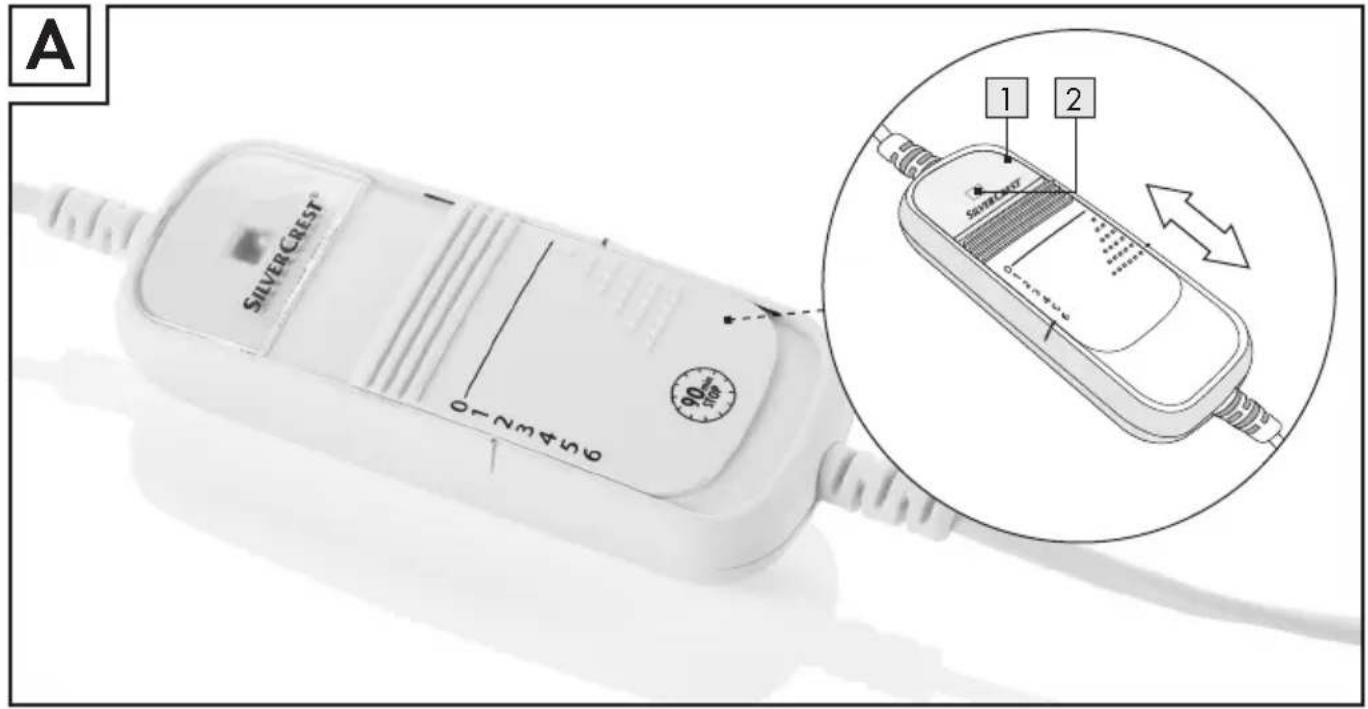

1 Control (see fig. A)
2 Function indicator (see fig. A)

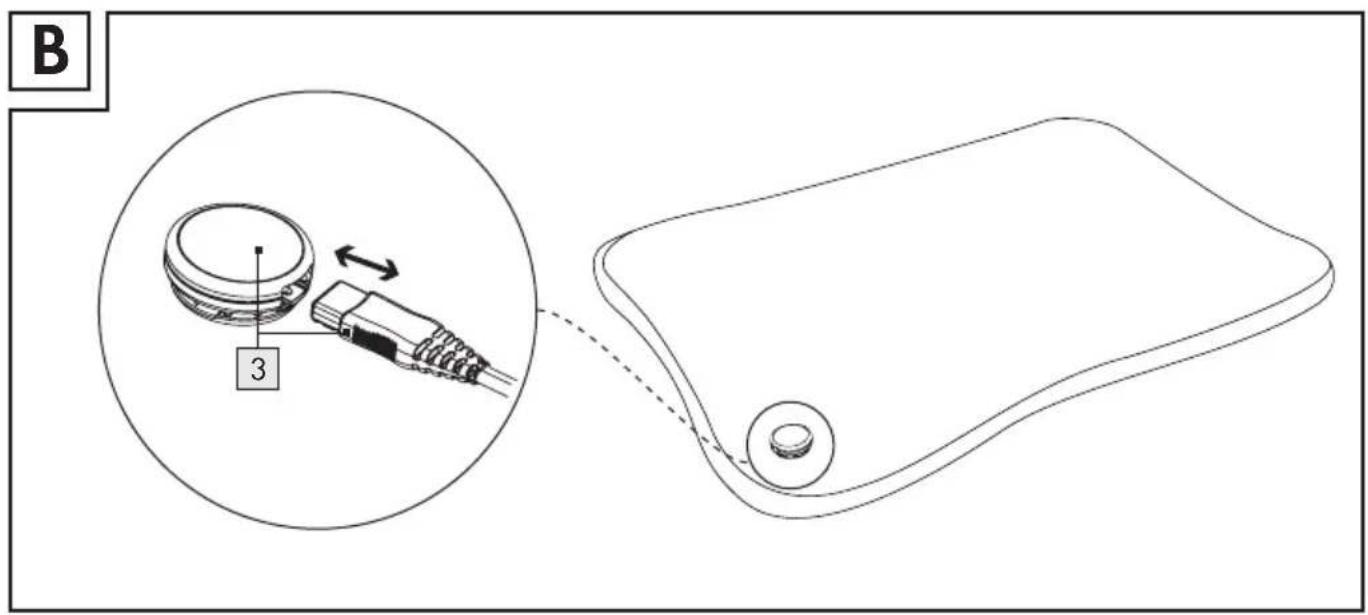

3 Plug-in connector (see fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.

1 Heat Pad
1 Control unit / Plug-in connector with mains plug
1 Operating manual

●Technicaldata

Model: SHK 100 C3

Type:P10

Power supply: 220-240V/50-60Hz

Powerinput: 100 W

Dimensions: Approx. 47 x 36 cm

Protectionclass: II/☐

Electric field strength: max. 5000V/m

Magnetic field strength: max. 80 A/m

Magnetic flux density: max. 0.1 millitesla

Material:

Top/underside: 100% Polyester

Manufacturer:

MGG Elektro GmbH

01099 Dresden, Germany

IMPORTANT ADVICE – KEEP THIS SAFE FOR FUTURE USE!

Important safety instructions

Failure to comply with the following instructions can cause personal injury or material damage (electric shock, skin burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.

WARNING! RISK OF FATAL INJURY AND ACCIDENTS FOR INFANTS AND SMALL CHIL-

DREN! Never leave children unsupervised with the packaging materials. Danger of suffocation.

WARNING! DANGER OF ELECTRIC

SHOCK! Do not use the heating pad if it is damp. There is a risk of electric shock.

Do not use the mains power cable for purposes for which it was not intended, e.g. for hanging up the

electric heating pad, carrying it or to pull the plug out of the mains socket. Keep the mains power cable away from heat, oil and sharp edges. If the mains power cable is damaged or severed, do not touch the mains power cable, but pull the mains plug out of the mains socket immediately. Damaged or tangled mains power cables increase the risk of electric shock.

RISK OF INJURY! The heating pad must be regularly checked for signs of wear or damage. If signs of

wear or damage are detected or if the heating pad has been used improperly, you must cease using the heating pad and return it to your dealer or to his customer service centre. Risk of injury!

DANGER OF ELECTRIC SHOCK!

Do not stick needles or sharp objects into the heating pad. There is a risk of electric shock.

If you use a cardiac pacemaker, please consult your doctor and the manufacturer of the pacemaker

before using this heating pad. The electric and magnetic fields generated by this electric heating pad may under certain circumstances interfere with the operation of cardiac pacemakers. However, the levels are far below the permissible limits: details of these levels can be found in the "Technical data" chapter.

WARNING! Have the heating pad repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that the heating pad remains safe to use.

WARNING! If the mains power cable of the heating pad is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards. Risk of injury!

Children or anyone lacking the knowledge or experience to use the heating pad, or anyone with restricted physical, sensory or mental capacities, must not use the heating pad without supervision or instruction by a person responsible for their safety. Children must be supervised to ensure that they do not play with the heating pad. Risk of injury!

RISK OF INJURY FROM BURNS! Do not use this heating pad for helpless persons, infants or persons who are insensitive to heat (e.g. diabetics, people with disease-related changes to the skin or scarred skin in the area of use, or after taking pain-relieving medication or consuming alcohol). There is a risk of receiving skin burns.

The textiles used in this CONFIDENCE IN TEXTILES Tested for harmful substances according to Oeko-Tex® Standard 100 06.0.43510 Hohenstein neck & shoulder heating pad the high human ecological requirements of Öko-Tex Standard

100, as verified by the German Hohenstein Research Institute.

RISK OF INJURY FROM BURNS!

This heating pad must not be used by children unless the control 1 has

been preset by a parent or other responsible person, or unless the child has been instructed sufficiently in how to use this heating pad safely. There is a risk of receiving skin burns.

CAUTION! Take care that you do not fall asleep while the heating pad is in operation. Excessively long use can cause skin burns.

Do not use the heating pad on any part of the body that is inflamed, injured or swollen. Seek medical advice before using the heating pad if in doubt. Such inflammation, injuries and / or swelling may otherwise worsen.
■ Repairs must only be carried out by specially trained personnel or at a repair shop authorised by the manufacturer, since special tools are necessary. Improper repairs may result in considerable dangers for the user.

Avoid damage to the heating pad!

■ Please ensure that you:

• only connect the heating pad to the voltage indicated on the heating pad (label),
• only use the heating pad in conjunction with the control 1 indicated on the heating pad (label),
• do not operate the heating pad without supervision,

do not switch the heating pad on if it is folded or bunched up,

• do not cause any sharp creases in the heating pad,
• do not place any objects, e.g. suitcase or washing basket, on the heating pad when it is switched on,
• do not place any sources of heat, e.g. hot water bottle or similar, on the heating pad when it is switched on.

These may all damage the heating pad.

Safety system / Preparations for use / Cleaning and Care

Do not cover the control 1 and do not place it on the heating pad when the pad is in operation. The electronic components in the control 1 of the heating pad cause the control 1 to heat up slightly during operation.
- Do not pull, twist or crease the cables.

●Safetysystem

Note: the heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.

☐ Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.

● Preparations for use

Note: the heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.

☐ To begin, first connect the control 1 to the heating pad with the plug-in connector 3 (see fig. B).

- Switching on / off / Selecting the temperature

Switching on:

☐ Set Level 1, 2, 3, 4, 5 or 6 on the control 1 to switch the heating pad on.

Note: The function display 2 illuminates after the heating pad is switched on.

Note: this heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.

Switching off:

☐ Set Level 0 on the control ☐ to switch the heating pad off.

Note: the function display 2 ceases to illuminate.

Selecting the temperature:

☐ Just before using the heating pad, set it to the highest temperature setting (level 6). This will cause the heating pad to warm up quickly.
☐ If you wish to leave the heated pad on for several hours, set the lowest temperature (level 1).

●Temperaturelevels

☐ Set the required temperature level on the control 1 (see fig. A).

Level0:off

Level1:minimumheat

Level2-5: customisedsettings

Level6:maximumheat

●Automaticswitch-off

Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.

☐ Then select the setting "0" and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.
☐ Switch the heating pad off (setting "0") if the heating pad is not to be used after it has switched itself off automatically.

- Cleaning and Care

WARNING! RISK TO LIFE FROM ELECTRIC SHOCK! Alway

remove the mains plug from the socket and the plug-in connector 3 with the control 1 from the heating pad (see fig. B) before cleaning

the heating pad. There is otherwise a risk of an electric shock.

DANGER OF ELECTRIC SHOCK!

Do not reconnect the control 1 to the heating pad until the plug-in

connector 3 and the heating pad are completely dry. There is otherwise a risk of an electric shock.

DANGER OF ELECTRIC SHOCK! DANGER OF MATERIAL

DAMAGE! Do not under any circum-

stances switch the heating pad on to dry help it dry. There is otherwise a risk of an electric shock.

☐ Use a dry, lint-free cloth for the cleaning and care of the heating pad and control 1.
☐ You can dampen the cloth and use a little mild liquid detergent to remove more stubborn dirt from the heating pad.

RISK OF DAMAGE TO THE

PRODUCT AND / OR OTHER

PROPERTY! Do not use chemical

cleaning or scouring agents to clean the heating pad and control 1. The heating pad may otherwise be damaged.

RISK OF DAMAGE TO THE

PRODUCT AND/OR OTHER

PROPERTY! Never immerse the

control unit 1 in water or other liquids. It may otherwise be damaged.

☐ The heating pad is machine-washable.

Set the washing machine at an extra washing cycle for delicate items at

30^ C.

For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
☐ Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.

RISK OF DAMAGE TO THE

PRODUCT AND/OR OTHER

PROPERTY! Please note that the

heating pad may not be dry cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.

RISK OF DAMAGE TO THE

PRODUCT AND / OR OTHER

PROPERTY! Do not hang the

heating pad up to dry with pegs or similar.

The heating pad may otherwise be damaged.

Note: Non-observance of the following warnings may damage the heating pad.

Do not use bleach. Do not use any

cleaning agents containing bleach (such as heavy duty detergents).

Do not dry in a tumbler dryer.

Do not iron.

Do not dry clean.

Storage

RISK OF DAMAGE TO THE

PRODUCT AND/OR OTHER

PROPERTY! Let the heating pad

cool before putting it away. Otherwise material damage could occur.

RISK OF DAMAGE TO THE

PRODUCT AND/OR OTHER

PROPERTY! Do not crease the

heating pad by placing items on top of it during storage. Otherwise material damage could occur.

do not intend to use the heating pad for length of time, store it in the original package a dry environment and without weighing up.

Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electrical devices with the household rubbish!

In accordance with European Directive 2002 / 96 / EC (covering waste electrical and electronic equipment) and its transposition into national legislation, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out heating pad.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the product from the purchase date.

The warranty does not cover:

• Damage resulting from improper use.
  ·Wearparts.
• Defects that were known to the customer at the time of purchase.
• Damage for which the customer was responsible.

This warranty does not affect the customer's legal rights.

The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Claims under the warranty within a period of 3 years from the date of purchase are honoured by

89129 Langenau, Germany.

In the event of a warranty claim, the customer has the right to have the goods repaired by our own workshop or a workshop authorised by use. The heating pad must not be opened for any reason. Opening or modifying the device invalidates the warranty. This warranty does not grant any additional

rights to the customer. Complaints are often initiated by difficulties encountered during use. Many of these complaints can be resolved by telephone or e-mail. Please contact our Service Hotline in the first instance, before you return the device to the manufacturer.

IAN 92434

GB

∅ 020 30249050

● Declaration of conformity C€

This heat pad complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.
