Product Type	Cordless Food Chopper
Model	KFCB519
Brand	KitchenAid
Capacity	5 cups (1.18 liters)
Battery Voltage	12 Volts
Battery Type	Lithium-ion
Charging Time (Full)	2 hours
Charging Time (Quick)	10 minutes
Full Charge Usage	Approximately 40 onions (90-110g each)
Quick Charge Usage	Approximately 11 onions (90-110g each)
Charger Input	120V, 60Hz
Speed Settings	2 (1 and 2) plus Pulse
Main Blade	Multipurpose blade
Accessories Included	Whisking accessory, Drizzle basin, Storage case
Safety Features	Cover interlock, Locking lid and bowl, Blade guard
Cleaning	Hand wash with mild dish soap; do not use abrasive cleaners
Warranty	1 year hassle-free replacement (US/Canada)
Weight	Approximately 2.2 lbs (1 kg)
Dimensions (approx.)	7 x 6 x 9 inches (18 x 15 x 23 cm)

Frequently Asked Questions - KFCB519 KITCHENAID

How long does it take to fully charge the KFCB519?

The full charge time is 2 hours. The battery status indicator pulses during charging and turns solid green when fully charged.

How many onions can I chop on a full charge?

You can chop approximately 40 onions (each weighing 90-110g) on a full charge when following recommended battery maintenance.

What is the capacity of the bowl?

The bowl holds up to 5 cups (1.18 liters).

How do I use the pulse function?

Press and release the Pulse/On button rapidly. A quick pulse is one second on, one second off. Use for coarse chopping.

Can I wash the parts in the dishwasher?

The manual recommends hand washing with mild dish soap. Do not use abrasive cleaners. The base should never be submerged in water.

Is the blade sharp? How do I handle it safely?

Yes, the multipurpose blade is very sharp. Always handle carefully, never place the blade on the base without the bowl in place, and keep hands away while operating.

Can I grind nuts or meat with this chopper?

Yes, you can chop nuts (up to 2.5 cups) and beef (0.7 lb cut into 1-inch cubes) using high speed with quick pulses.

What should I do if the chopper doesn't start?

First, ensure the battery is charged (status indicator not red). Also check that the bowl and lid are properly locked into place, as the safety interlock prevents operation otherwise.

Does it come with a whisk attachment?

Yes, an optional whisking accessory is included. Use it instead of the multipurpose blade for whisking tasks.

How should I store the chopper?

Store at room temperature. The included storage case is designed for convenient storage. Always reassemble after cleaning.

USER MANUAL KFCB519 KITCHENAID

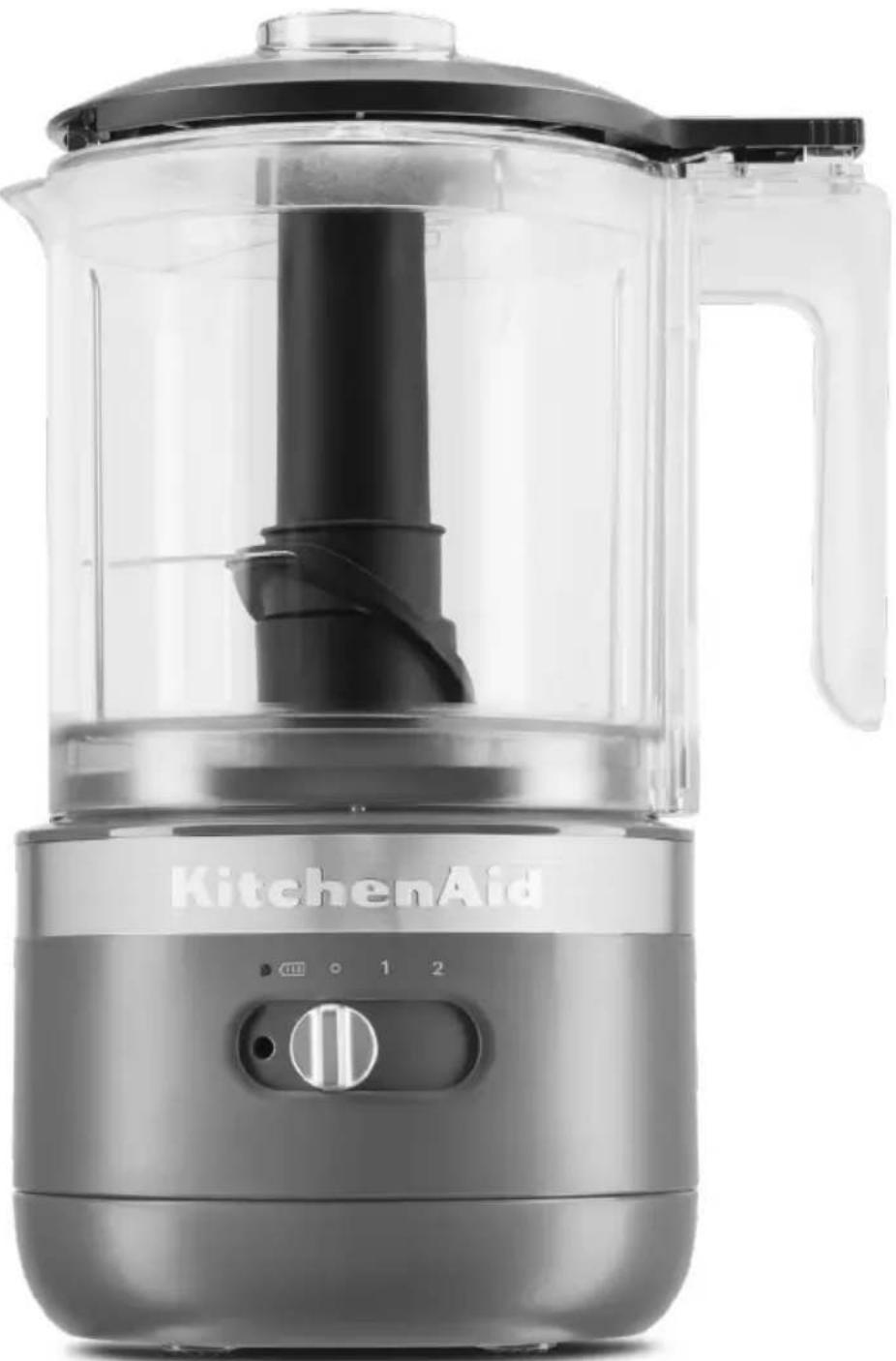

5 Cup Cordless Food Chopper

KFCB519

Exterior view of a KitchenAid blender with clear glass and black interior (no text or symbols on the device itself)

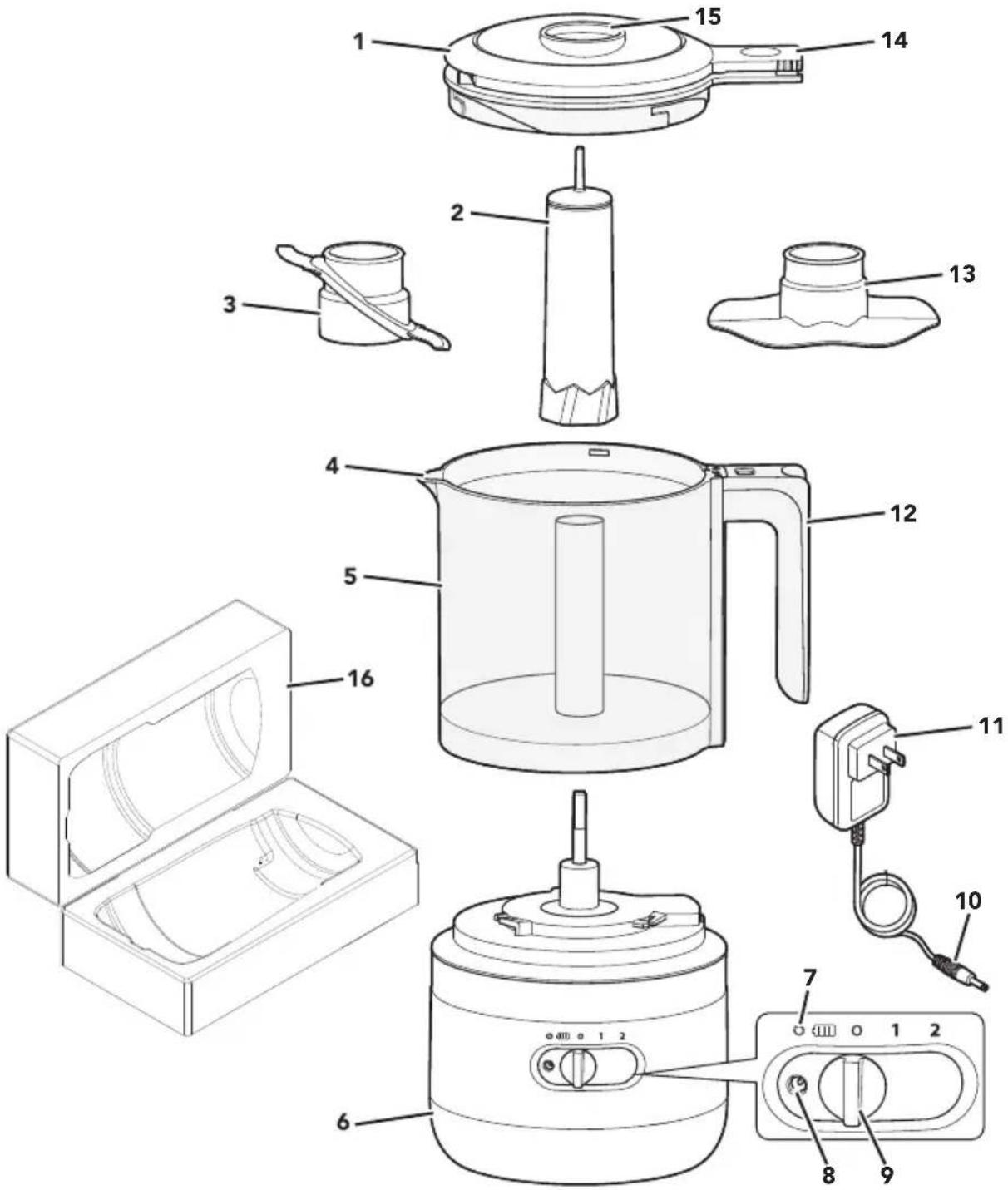

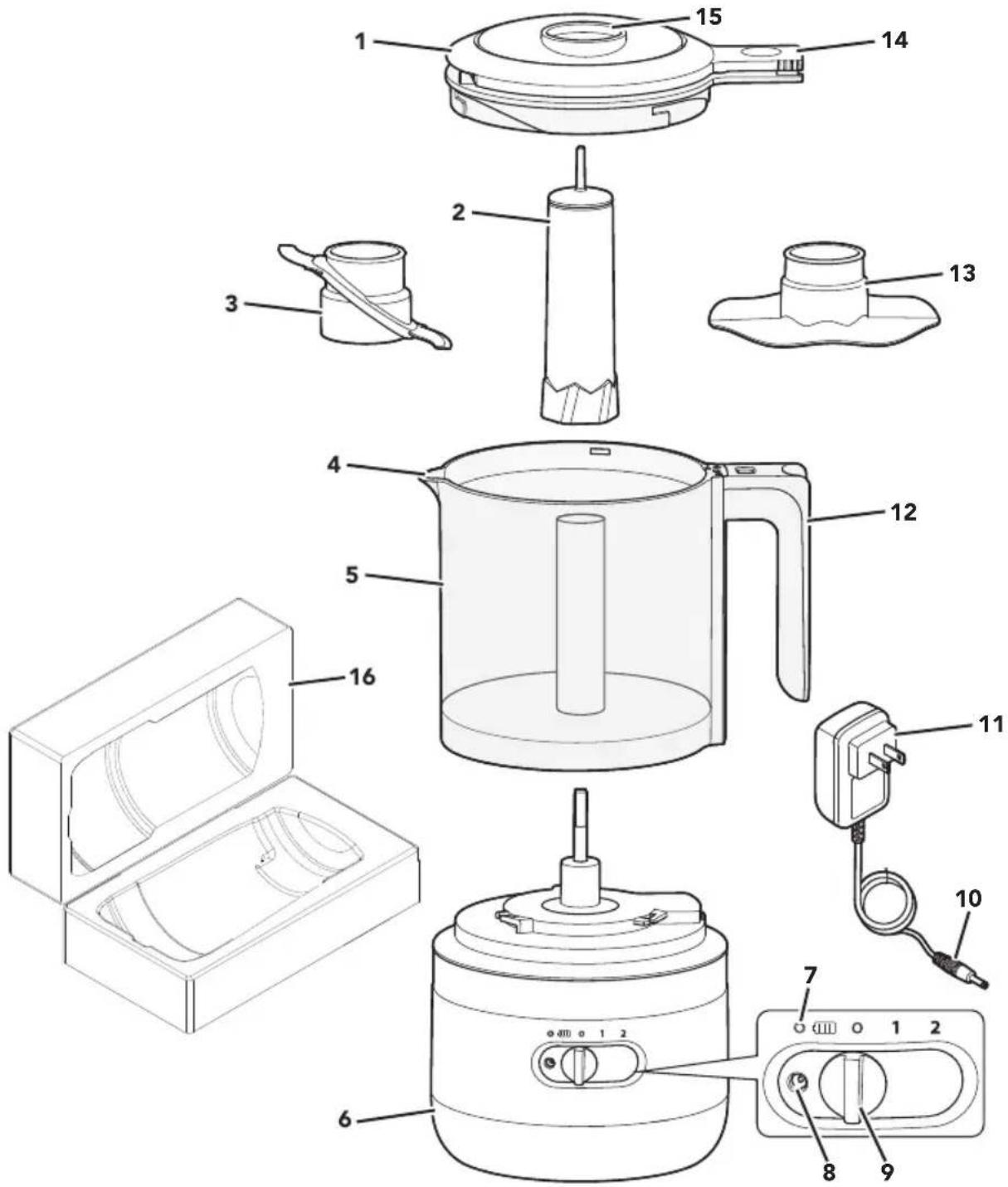

PARTS AND FEATURES

1 Lid
2 Drive adapter
3 Multipurpose blade
4 Pour spout
5 Bowl (5 Cup/1.18 Liter)
6 Base
7 Battery status indicator
8 Charging port

9 Speed controller
10 Charger adapter pin
11 Charger adapter
12 Handle
13 Whisking accessory
14 Pulse/On button
15 Drizzle basin
16 Storage case

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put the Base of Cordless Food Chopper, Charger adapter, cord, or electrical plug in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF before assembling or disassembling parts and before cleaning. To unplug the charger, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance or Charger adapter with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
8. Do not use the appliance outdoors.

PRODUCT SAFETY

1. Do not let cord hang over edge of table or counter.
2. Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to person, or damage to the Cordless Food Chopper. A scraper may be used, but only when the Cordless Food Chopper is not running.
3. Blades are sharp. Handle carefully.
4. To reduce the risk of injury, never place cutting blade on Base without first putting bowl properly in place.
5. Be certain cover is securely locked in place before operating the Cordless Food Chopper.
6. Do not attempt to defeat the cover interlock mechanism.
7. Do not use an extension cord. Plug charger directly into an electric outlet.
8. Use only with the charger provided with the appliance. Do not attempt to use this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.
9. Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
10. Refer to the “Care and Cleaning” section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Charger adapter:

Input: 120 Volts 60 Hz

Cordless Food Chopper:

Voltage: 12 Volts

NOTE: If the plug does not fit fully in the outlet, contact a qualified electrician. Do not modify the plug in any way.

LITHIUM-ION BATTERY OPERATED PRODUCT DISPOSAL

Always dispose the battery operated products according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

1. Charge the battery until the Battery status indicator turns solid green.
2. Clean all the parts (see "Care and Cleaning" section).
3. Remove all packaging materials, if present.

BATTERY STATUS

Battery status	% Battery status Full charge*	Quick charge**
Green 30	% to 100 %	40 Onions 11	OnionsYellow 15 % to 30 %
Red Lower than 15 % (Need to charge soon)

\*Full Charge:

The Cordless Food Chopper will be fully charged in 2 hours. The Battery status indicator pulses when it charges and turns to solid green with a full charge. The Cordless Food Chopper will chop approximately 40 onions (weighing around 90 - 110 grams each) when following the recommended battery maintenance.

\*\*Quick Charge:

In 10 minutes, the Cordless Food Chopper will quick charge. The Cordless Food Chopper will chop approximately 11 onions (weighing around 90 - 110 grams each) with one quick charge when following the recommended battery maintenance.

NOTE: Make sure to charge the battery, when the Battery status indicator is yellow.

NOTE: It is best to store your Cordless Food Chopper at room temperature.

SUGGESTED FOOD ITEMS

Food Quantity Preparation Speed Pulse*
Beef 0.7 lb	(317 gm) Cut into	1" (2.5 cm) cubes High		Quick pulse 10 to 15 times
Bread, Cookies, or Crackers	up to 4 cups	Break bread, crackers, or cookies into pieces that fit into Bowl before processing.	High	Quick pulse 20 to 30 times
Cooked fruits and vegetables	up to 2.5 cups	Cut into 1" (2.5 cm) cubes	High	Quick pulse 10 to 15 times
Herbs and Spices	up to 4 cups	Add herbs and spices as they are; no preparation needed.	High	Quick pulse 20 to 30 times
Nuts	up to 2.5 cups	Place in whole nuts	High	Quick pulse 15 to 20 times
Raw fruits and vegetables	up to 3 cups	Cut into 1" (2.5 cm) cubes	High	Quick pulse 6 to 10 times

*Processing settings are approximate.
Actual settings may vary depending on quality of food and desired chop size.

TIP: A Quick Pulse is one second On and one second Off operation.

BATTERY CHARGING

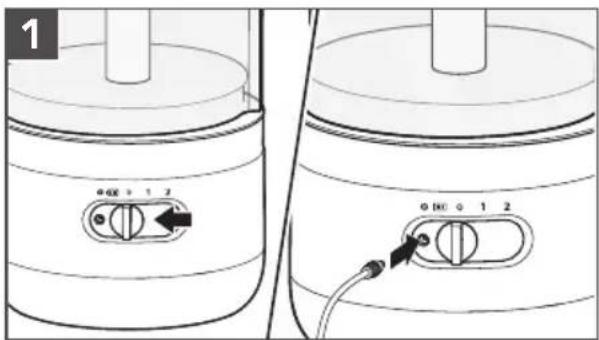

First, slide the Speed controller to "O". Then, insert the Charger adapter pin into the Charging port.

Illustration of a wall socket connected to a power outlet (no text or symbols)

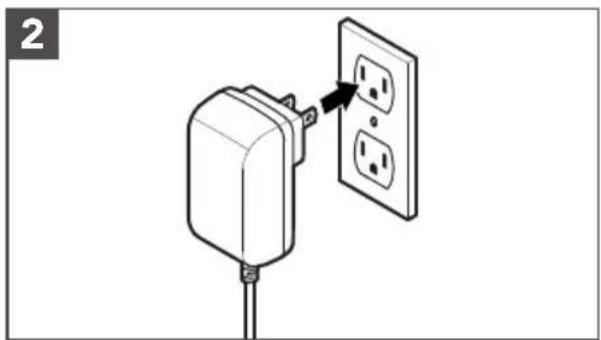

Plug the Charger adapter into a grounded electrical outlet.

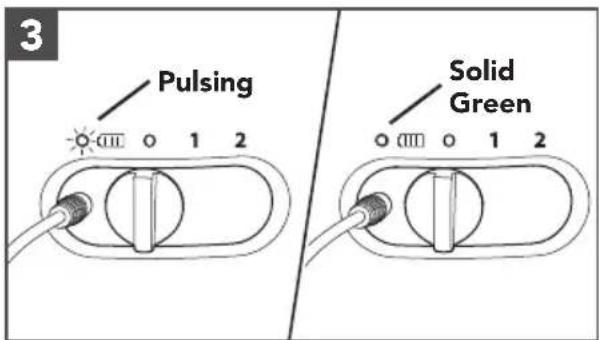

The battery status indicator pulses when it charges. It will be fully charged in 2 hours and the Battery status indicator turns solid green.

PRODUCT USAGE

IMPORTANT: Make sure the Cordless Food Chopper is charged before using.

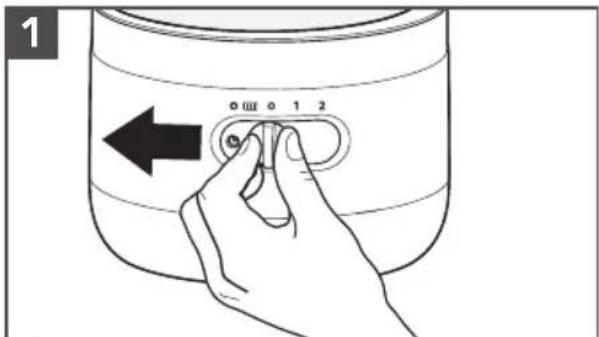

Make sure that the Speed controller is at "O" position before attaching or removing any parts.

Line drawing of a portable water heater with a cylindrical inlet and side arm (no text or symbols)

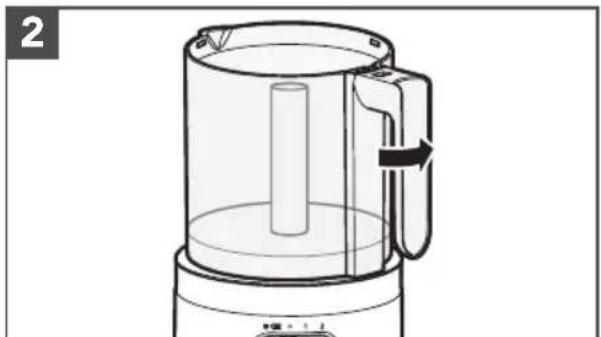

Hold the Handle facing front on the Base. Twist and lock the Bowl in the slots of the Base.

PRODUCT USAGE

Two-step illustration of a blender with a handle and lid, showing the process from top view to side view (no text or symbols)

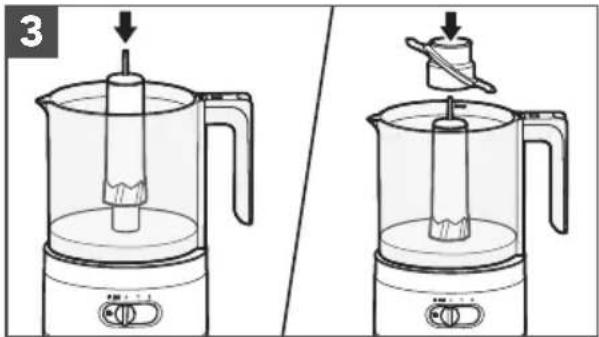

Rotate and lower the Drive adapter and then Multipurpose blade or optional Whisking accessory in the center of the Bowl until it rests at the bottom.

Two-step illustration of a food blender with banana filling, showing the process from top to side (no text or symbols)

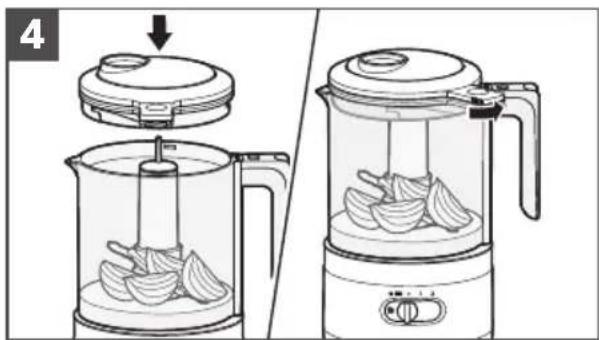

Add ingredients to the Bowl. Place the Lid on the Bowl. Twist and lock it into place. The Lid will click when properly locked into place.

NOTE: The Cordless Food Chopper will operate with either the Multipurpose blade or the Whisking accessory in place, not both. Do not try to use both at the same time.

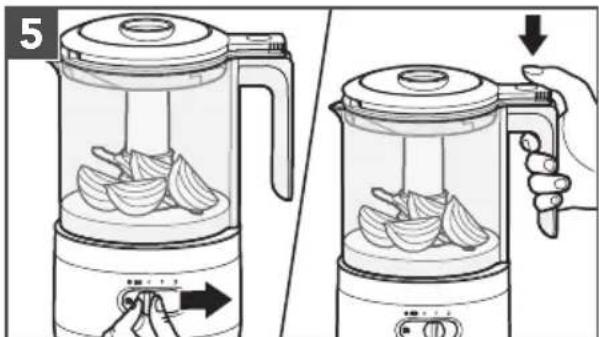

Slide the Speed controller to your desired setting (1 or 2).

Press down the Pulse/On button to start.

Illustration of a hand holding a blender with banana slices inside, showing the lid and handle (no text or symbols)

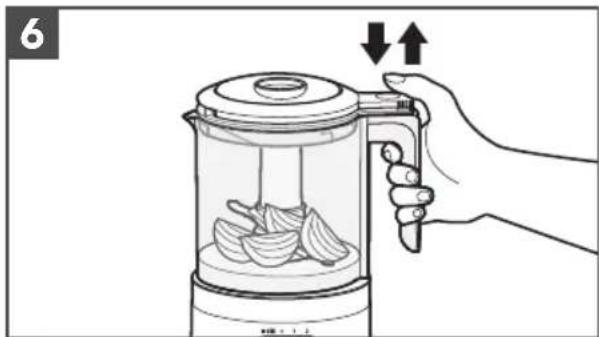

For a coarse chop, use a pulsing motion to rapidly press and release the Pulse/On button until your desired results are achieved.

IMPORTANT: The Bowl and Lid must be locked into place for the Cordless Food Chopper to operate.

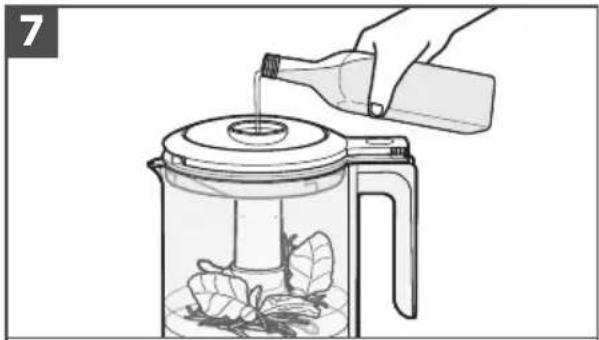

Use the Drizzle basin to conveniently add liquid ingredients while processing dressings, mayonnaises, sauces, and more. Use the Pour spout for easier serving.

Illustration of a hand pouring liquid into a glass teapot containing leafy plants (no text or symbols)

Slowly pour liquids, such as oil, in the Drizzle basin. The liquid will be efficiently and thoroughly mixed into the ingredients as they spin inside the Bowl.

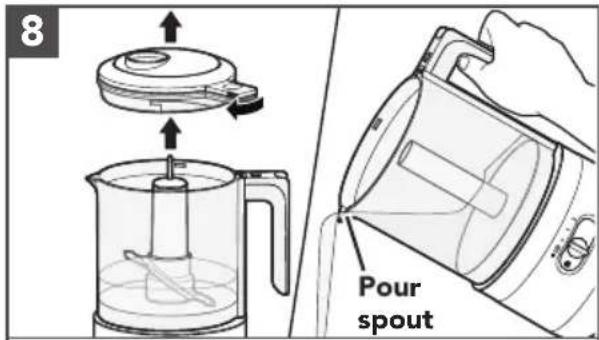

Once processing is complete, remove the Lid, Drive adapter, and Multipurpose blade to use the Pour spout.

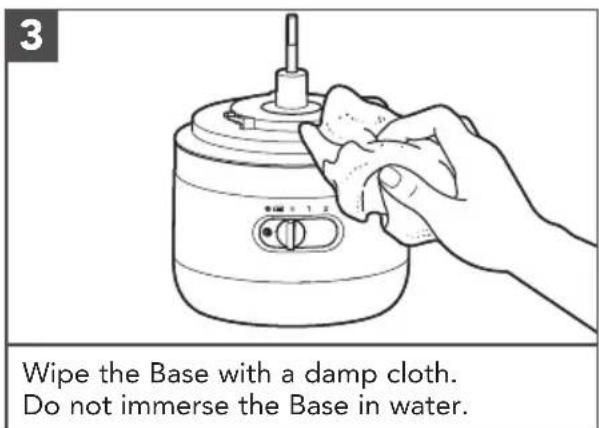

CARE AND CLEANING

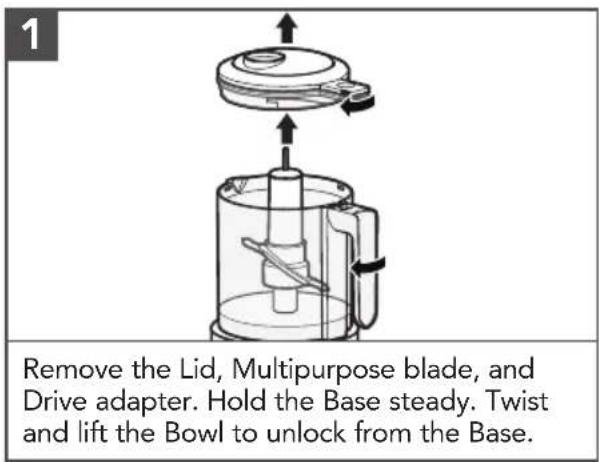

IMPORTANT: Make sure that the Speed controller is at "O" position. Unplug before removing, attaching parts, or before cleaning.

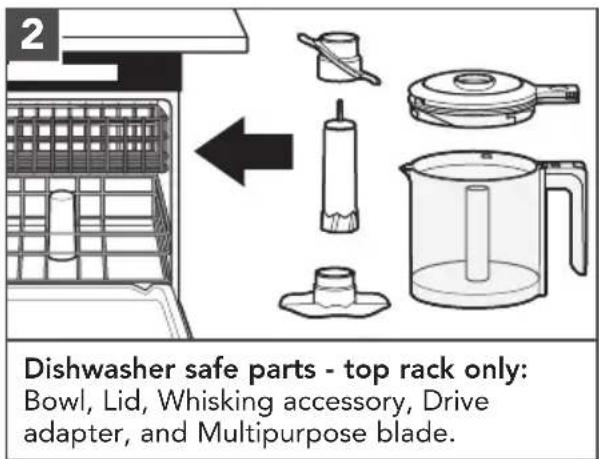

NOTE: Mild dish soap may be used, but do not use abrasive cleaners.

NOTE: For convenient storage, always reassemble the Cordless Food Chopper after cleaning.

TIP: You can use the Storage case of the Cordless Food Chopper to store your product.

For detailed information on the Cordless Food Chopper:

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Cordless Food Chopper.

TROUBLESHOOTING GUIDE

Problem Solution
If the Cordless Food Chopper fails to start:	Check if the Cordless Food Chopper is charged. Charge the battery when the Battery status indicator is red or when the battery is completed drained.
	Make sure that the Bowl and Lid are properly aligned and locked into place.
If the Cordless Food Chopper is not getting charged:	If you have a circuit breaker box, check to make sure that the circuit is closed.
If the problem cannot be corrected:	See the “Warranty and Service” sections. Do not return the Cordless Food Chopper to the retailer – retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® CORDLESS FOOD CHOPPER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Cordless Food Choppers operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Cordless Food Chopper. See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.
[KitchenAid Will Not Pay for:	A. Repairs when your Cordless Food Chopper is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Cordless Food Chopper to an Authorized Service Center.D. Replacement parts or repair labor costs for Cordless Food Choppers operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Cordless Food Chopper should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cordless Food Chopper returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Cordless Food Chopper should fail within the first year of ownership, simply

call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address (no P.O. Box numbers, please).

When you receive your replacement Cordless Food Chopper, use the carton, packing materials, and prepaid shipping label to pack up your original Cordless Food Chopper and send it back to.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cordless Food Chopper should fail within the first year of ownership, we will replace your Cordless Food Chopper with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Cordless Food Chopper should fail within the first year of ownership, simply call our toll-free Customer eXperience

Center at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Cordless Food Chopper, use the carton, packing materials, and prepaid shipping label to pack up your original Cordless Food Chopper and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call tollfree at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the

store where you purchased the Cordless Food Chopper for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to:

Customer eXperience Center KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7
