USER MANUAL SVF1885NFDX SVAN

Two simple rectangular shapes with horizontal lines and a minus symbol, no text or labels present.

Índice

Cartoon illustration of an angry plug with a lightning bolt, no text or symbols present

Illustration of four hands holding ropes and a cable, showing different hand positions (no text or symbols present)

Cartoon illustration of a character inside a door, showing arms and legs (no text or symbols)

Diagram showing a server rack with ventilation grilles and a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a vehicle interior layout with no visible text or symbols

04°C Δupper -18°C M

Modo de ahorro

¿Cómo se utiliza?

04°C -18°C M

Illustration of a hand pressing a button on a smartphone screen (no text or symbols)

04°C -18°C M

04°C -18°C M

Accesorios

Illustration showing three hand positions: one using a tray with a tool, another handling a grid, and a third holding a tray with a cross (no text or symbols)

Technical line drawing of a multi-level cabinet or rack structure (no text or symbols)

Technical line drawing of a multi-level cabinet or rack unit with no visible text or symbols

Cajón del
Congelador boxes

Selector de alimentos frescos

Technical line drawing of a door frame with two red components, no text or symbols present

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

Cartoon illustration of a smiling refrigerator and two surprised pears (no text or symbols)

Line drawing of an open refrigerator with shelves and doors, showing internal compartments and doorways (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Illustration of three hands holding wires with different angles and contact points (no text or symbols)

Cartoon illustration of an electric plug with a sad face and lightning bolt (no text or symbols)

Simple line drawing of two bottles and a container with bubbles, no text or symbols present

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram of a server rack with heat exchangers and a directional arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

04°C -8°C Super M

Modo super frio

Como será usado?

04°C -18°C M

Illustration of a hand pressing a button on a smartphone screen (no text or symbols visible)

04°C -18°C M

0.4°C -1.8°C O M

Diagram of a wall-mounted air conditioner unit with two vented outlets and an arrow indicating airflow direction (no text or symbols)

Diagram of a mechanical device with two circular components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a multi-level storage or lifting mechanism (no text or symbols)

Technical line drawing of a door frame with horizontal shelves and mounting brackets (no text or symbols)

Diagram of a mechanical or architectural component with layered structure and directional arrows (no text or symbols)

(1)(2) Fig.1

Cartoon illustration of a smiling cube character giving thumbs up, next to a bowl with brushes (no text or symbols)

Line drawing of a multi-tiered storage unit with horizontal shelves and a base, intersected by red diagonal lines (no text or symbols)

Cartoon illustration of a smiling refrigerator and two puffer characters (no text or symbols)

Illustration of a hand cleaning a bicycle frame with a tool (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Reposicionar a porta

Old and out-of-order fridges or freezer....58

Safety warnings....58

Installing and operating your fridge 59

Before Using your Fridge 60

THE VARIOUS FUNCTION AND POSSIBILITIES....60

Information about New Generation Cooling Technology 60

Display and control panel....61

Operating your fridge....62

Super freeze mode....62

Super cool mode....62

Economy mode 62

Holliday mode 63

Drink cool mode 63

Function of Child lock....63

Screen saver mode....64

Cooler temperature settings....64

Freezer temperature settings....64

Warnings about Temperature Adjustments....65

Accessories 65

Icematic (Making ice cubes)......65

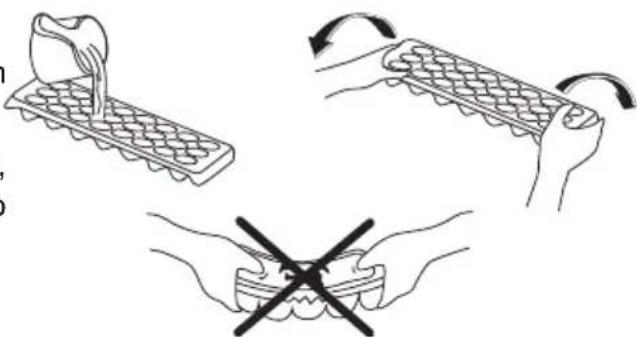

Ice tray 66

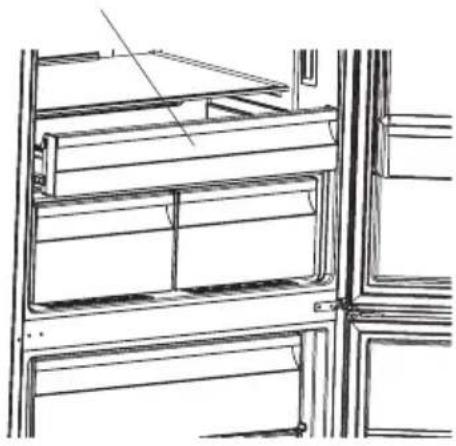

Chiller Shelf....66

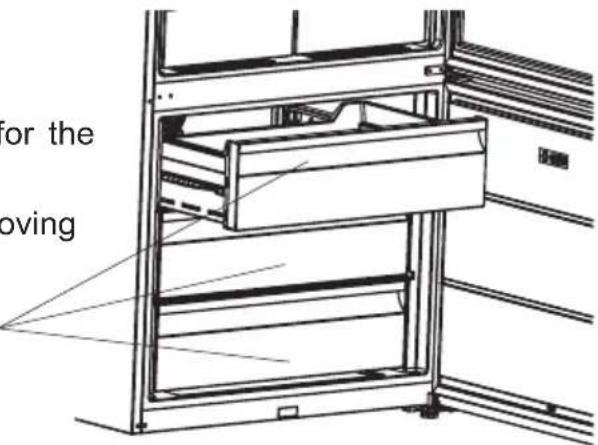

Freezer box....66

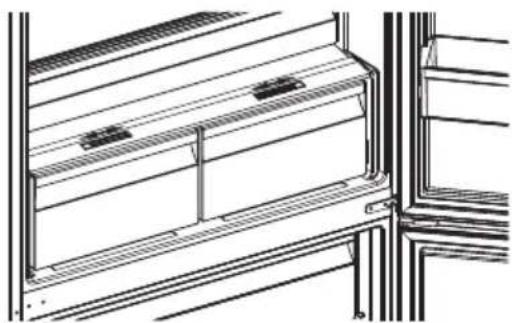

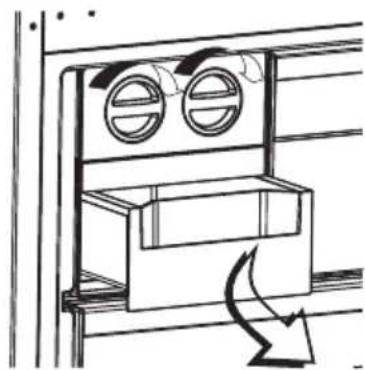

Fresh dial 67

ARRANGING FOOD IN THE APPLIANCE 69

Refrigerator compartment 69

Freezer compartment 69

CLEANING AND MAINTENANCE....74

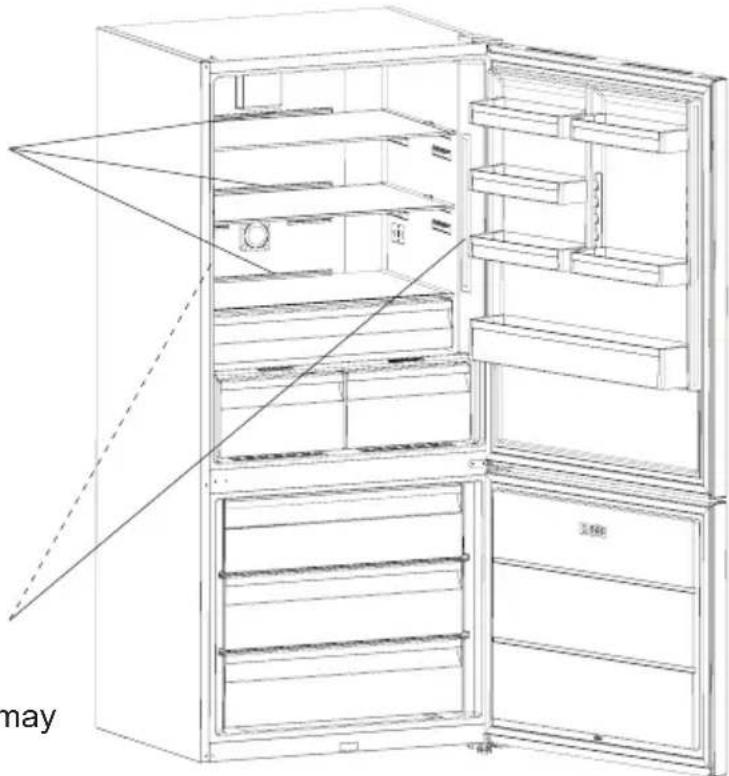

Replacing LED Lighting....74

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 75

Repositioning the door 75

BEFORE CALLING YOUR AFTER SALES SERVICE .... 75

Tips for saving energy 78

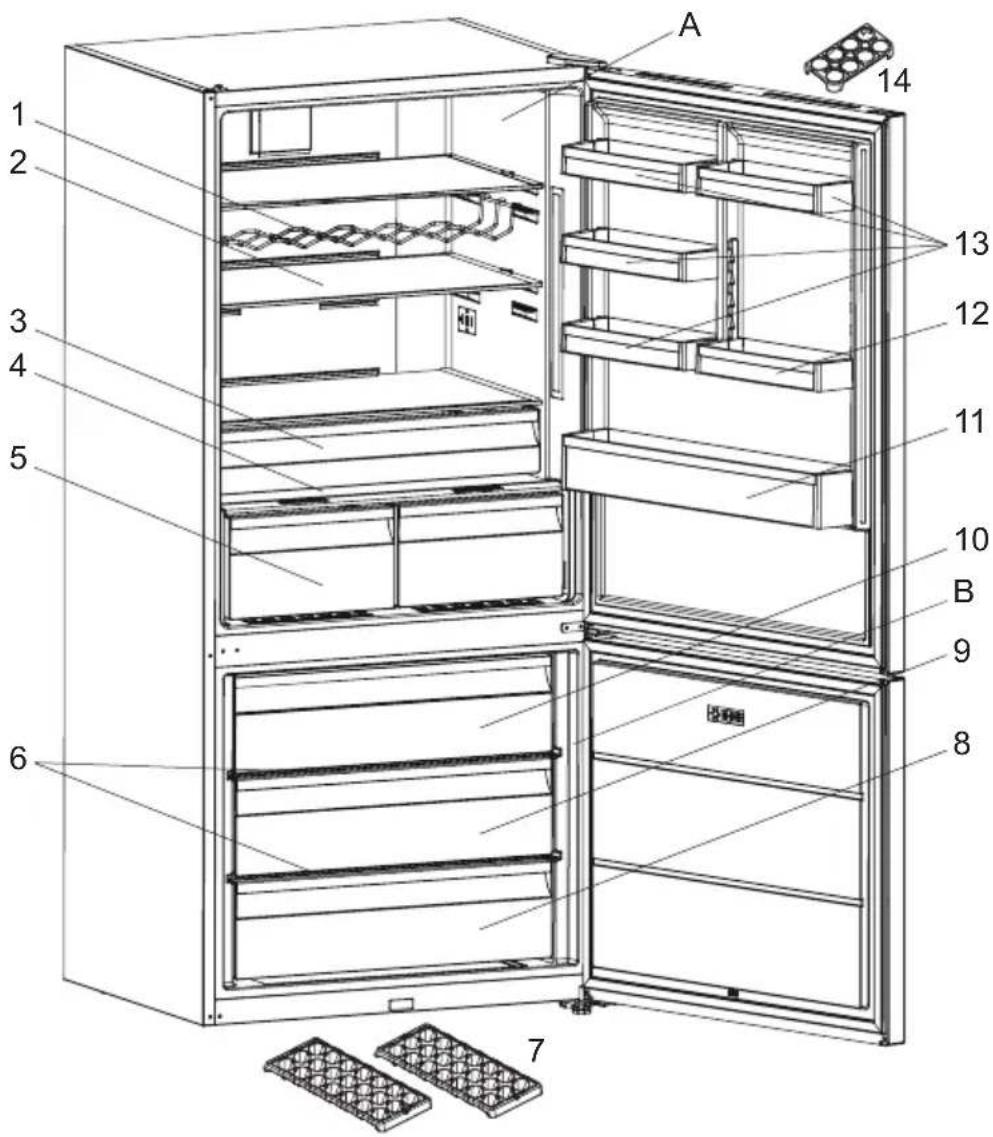

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 79

Symbol ISO 7010 W021

Warning; Risk of fire / flammable materials

The operating instructions apply to several models. Differences may therefore occur.

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

- staff kitchen areas in shops, offices and other working environments.

- farm houses and by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

The water dispenser is available

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Old and out-of-order fridges or freezer

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and plug, showing electrical shock (no text or symbols)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making

Cartoon illustration of a person peeking out of a door, no text or symbols present

Illustration showing a hand holding a prohibition symbol, a smiling face icon, and a crossed-out hand gesture.

• compartment as they can burst as the contents freeze.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Secure any accessories in the fridge during transportation to prevent damage to the accessories.

- Do not use plug adapter.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores and at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or exposed to rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.

Cartoon illustration of a distressed container with a label 'KG' on top, showing a sad face and limbs (no text beyond label)

- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

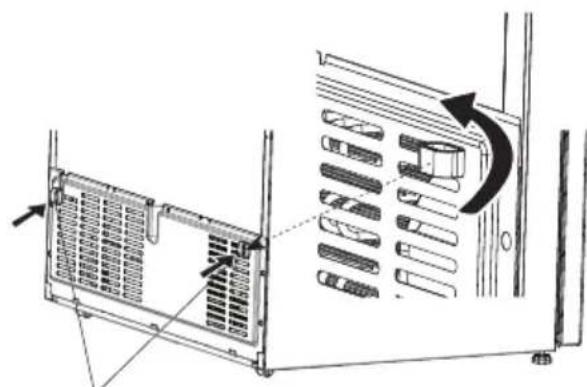

If your refrigerator has a fan condenser:

The condenser of your fridge is placed at the bottom of cabinet. As a result of that, assemble the spacer by fixing it to holes on the cover bottom panel and turn 90° that's shown below figure for arranging the distance between the refrigerator and the back wall at where you place the fridge. You can move the fridge towards the back wall until that point.

Diagram showing a rack-mounted server unit with internal components and a curved arrow indicating rotation (no text or symbols present)

Plastic for distance setting

Before Using your Fridge

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

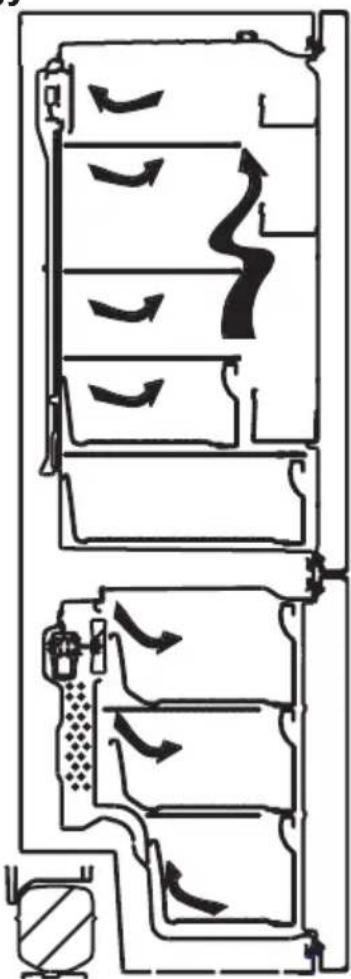

Information about New Generation Cooling Technology

Fridges with new generation cooling technology have a different working system than static fridges. Other fridges may experience ice build up in the freezer compartment due to door openings and humidity in the food. In such fridges regular defrosting is required; the fridge has to be periodically turned off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed.

In fridges with new generation cooling technology, dry cold air is pumped evenly into the fridge and freezer compartments using a fan. The cold air cools your food evenly and uniformly, preventing humidity and ice build up.

In the refrigerator compartment, air blown by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct evenly spreading cool air throughout the refrigerator compartment.

As there is no air passage between the freezer and refrigerator compartments there will be no odor mixing.

As a result of this, your fridge with new generation cooling technology gives you ease of use as well as huge volume and aesthetic appearance.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

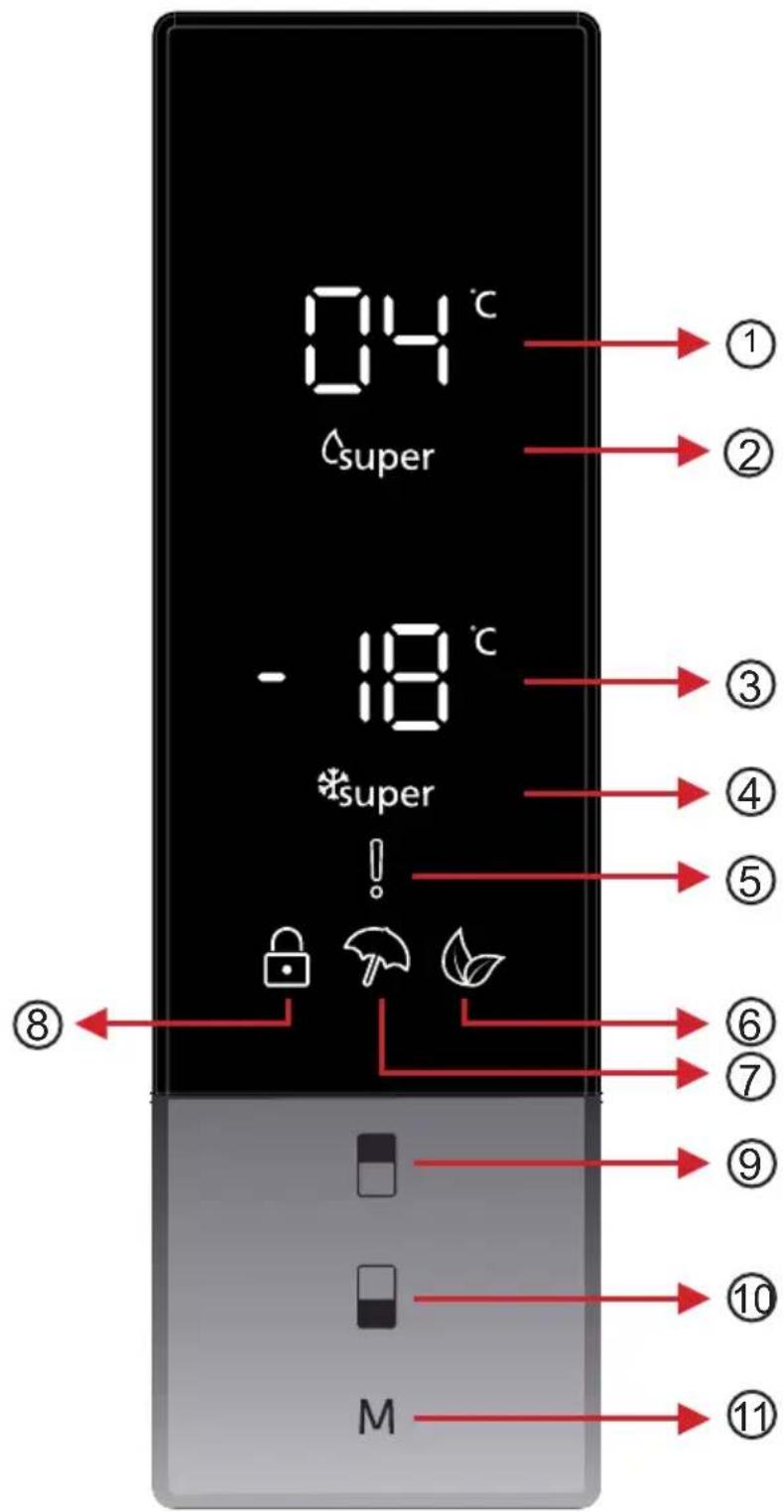

Display and control panel

04°C super -18°C *super ! ⑧ M ① ② ③ ④ ⑤ ⑥ ⑦ ⑨ ⑩ ⑪

Use of control panel

1. It is cooler set value screen.

2. It is super cooling indicator.

3. It is freezer set value screen.

4. It is super freeze indicator.

5. It is alarm symbol.

6. It is economy mode symbol.

7. It is holiday mode symbol.

8. It is child-lock symbol.

9. It enables the setting value of cooler to be modified and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super cool.

10. It enables the setting value of freezer to be modified and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24°C super freeze.

11. It enables the modes (economy, holiday...) to be activated if desired.

Operating your fridge

Super freeze mode

How would it be used?

- Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.

Note: “Super Freeze” mode will be automatically cancelled after 24 hours or if the freezer sensor temperature is lower than -25^ C.

04°C -18°C #super M

Super cool mode

How would it be used?

- Press cooler set button until Super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During this mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.

04°C Δuser -18°C M

Economy mode

How would it be used?

• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Economy symbol and E will light till mode finishes.

During this mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

E E

Holliday mode

How would it be used?

• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode finishes.

During this mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

- Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

- Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

- To cancel, you will just need to press on mode button.

Drink cool mode

When would it be used?

This mode is used to cool the drinks within adjustable time.

How would it be used?

• Press freezer button for 5 seconds.
• Special animation will start on freezer set value screen and 05 will blink on cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 5 seconds.

Function of Child lock

When would it be used?

To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance.

Activating Child Lock

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Deactivating Child Lock

Press on Freezer and Cooler buttons simultaneously for 5 seconds.

Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

-18°C ✓

05 +

04°C -18°C M

Screen saver mode

How to use?

• This mode will be activated when you press on mode button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can make the adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.

Illustration of a hand pressing a button on a smartphone screen (no text or symbols)

Door open alarm function

If cooler or freezer door is opened more than 2 minutes, appliance sounds 'beep beep'.

Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is +4 °C.
• Press cooler button once.
• When you first push this button, the last value appears on the setti indicator of the cooler.
• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool symbol appears, and if you do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8^ C .

- The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when

the mode is over or cancelled. The appliance continues to operate with this temperature value.

04°C - 18°C M

Freezer temperature settings

• Initial temperature value for Freezer Setting Indicator is -18^ .
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze symbol appears, and if you do not push any button in 1 seconds Super Freeze will flash.
• If you continue to press, it will restart from -16^ .
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

04°C -18°C M

Warnings about Temperature Adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the

standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

- This appliance is designed for use at an ambient temperature within the 10^ - 43^ range.

Climate class	Ambient ( °C)
T 16 to 4	3 ( °C)
ST 16 to	38 ( °C)
N 16 to 3	2 ( °C)
SN 10 to	32 ( °C)

Accessories

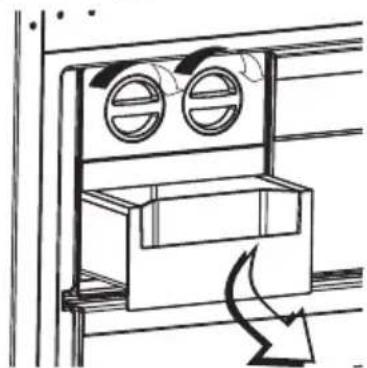

Icematic (Making ice cubes) (In some models)

• Take out the ice making tray
- Fill the water to the line.
- Place the ice making tray in its original position
- When ice cubes are formed, twist the lever to drop ice cubes into the icebox.

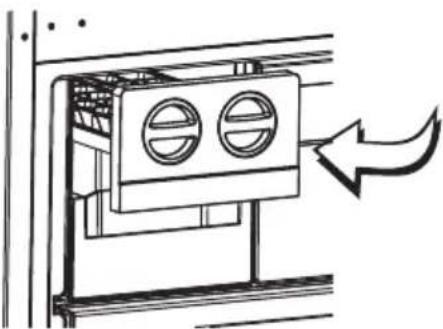

Note:

• Do not fill the icebox with water to make ice. This may damage it.
• The movement of the ice maker may be difficult while the refrigerator is running. In such a case it should be cleaned by removing the glass shelves.

Diagram of a wall-mounted air conditioner unit with two vented outlets and an arrow indicating airflow direction (no text or symbols)

Diagram of a mechanical device with two circular components and an arrow indicating rotation (no text or symbols)

Ice tray(In some models)

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a robotic arm handling a tray with a mouse, no text or symbols present

Chiller Shelf (In some models)

Technical line drawing of a multi-level storage or lifting mechanism (no text or symbols)

Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food to retain freshness and flavour longer, while preserving its fresh appearance. When the chiller tray becomes dirty, remove it and wash it with water.

(Water freezes at 0^ C, but foods containing salt or sugar freeze at temperatures lower than that)

Normally the chiller compartment is used to store raw fish, lightly pickled food, rice, etc...

Do not put foods you want to freeze or ice trays onto the chiller shelf.

Removing the Chiller shelf

• Pull the chiller shelf towards you by sliding it on the rails.
• Pull the chiller shelf up from the rail and remove it from the fridge.

Freezer box

The freezer box allows foods are maintained more regularly.

Removing The freezer box;

• Pull the box out as far as possible
• Pull the front of box up and out.

! Make the inverse of the same operation for the resetting the sliding compartment.

Note: Always Keep the handle of box while removing the box.

Freezer boxes

for the moving

Fresh dial

When the humidity controller is in the closed position, it allows fresh fruit and vegetables to be stored for longer.

If the crisper is completely full, open the fresh dial located in front of the crisper. This allows the air in the crisper and humidity rate to be controlled and the storage life of the food in the crisper will be increased.

If you see any condensation on the glass shelf, the humidity control should be set in the open position.

Technical line drawing of a cabinet or rack unit with two compartments and mounting brackets (no text or symbols)

Adjustable door shelf (In some models)

Five different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf;

Lift up front of the shelf (1) and move up or down adjustable door shelf (2) with both hands(Fig 1)

Before releasing the door shelf make sure the door shelf is located at door positions.

Diagram of a mechanical or architectural component with horizontal shelves and directional arrows, no visible text or symbols

(1)(2) Fig.1

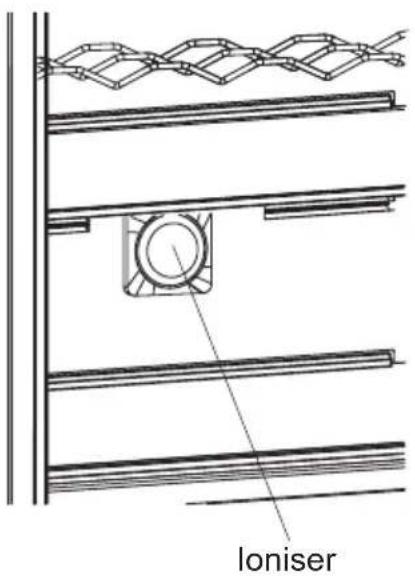

Natural Ion Tech / Ionisier (In some models)

Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air.

By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.
• The location of your ioniser device may vary from product to product.

loniser

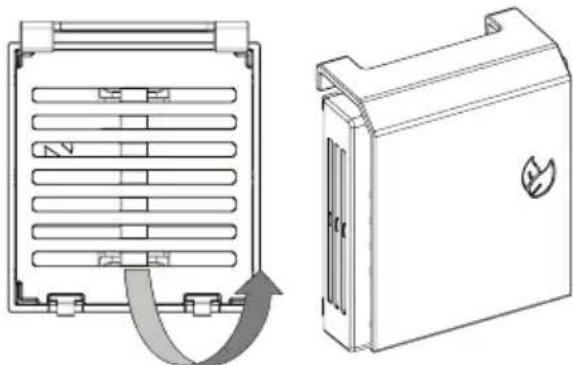

Maxi-fresh preserver (In some models)

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

Technical line drawing of a device rear panel and its internal casing, showing internal structure and mounting bracket (no text or symbols)

• Maxi Fresh Preserver must be cleaned once in a year. The filter should be waited for 2 hours at 65^ C in a oven.
• To clean the filter, please remove the back cover of the filter box by pulling it in the direction of the arrow (A).
• The filter should not be washed with water or any detergent.

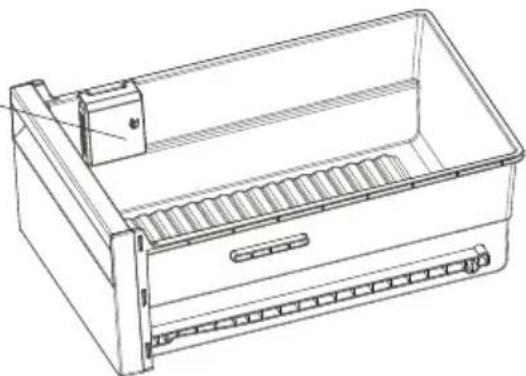

Maxi Fresh Preserver (In some models)

Notes: The assembly position of the filter may vary depending on the crisper design. Please see the related images. For some models, the filter cannot be attached as shown in the images. In this case it can be simply put into the drawer.

Line drawing of a 3D rectangular device with internal compartments and a small battery (no text or symbols)

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4^ will be enough.
• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Food Maximum	Storing time	Where to place in the fridge compartment
Vegetables and fruits 1	week Vegetable bin
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container(on the glass shelf)
Fresh cheese 3 - 4 Days	In special door shelf
Butter and margarine 1	week In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg	shelf
Cooked food All shelves

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

Freezer compartment

• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.
• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.
• Please do not place the food you shall newly freeze nearby the already frozen food.
• You should freeze the food to be frozen (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.

- Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

- Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.

- When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

- While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

- If there had been humidification in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

- The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

Important note:

- Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.

- The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

- The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

- The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

Meat and fish Preparation	tion	Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8	8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar In 2.5 kg portions and as fillets 6 - 8
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags 4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.

Vegetables and Fruits Preparation		Maximum Storing time (months)
String beans and beans		Wash and cut to small pieces and boil in water	10 - 13
Beans Hull and wash and boil in water 12
Cabbage Cleaned and boil in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper		Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Washed and boil in water 6 - 9
Cauliflower		Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of 2 cm after washing 10 - 12
Corn		Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and s ice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry		Wash and hull	8 - 12
Cooked fruits		Adding 10 % of sugar in the container	12
Plum, cherry, sourberry		Wash and hull the stems 8 - 12
Dairy Products Preparation		Maximum Storing time (months)	Storing Conditions
Packet (Homogenize) Milk	In its own packet 2	-3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In	its package 6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6 1 -	1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3	5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4	5-8 (190-200 °C)
Phyllo dough 2 -	3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4	15-20 (200 °C)

PART - 4. CLEANING AND MAINTENANCE

- Unplug the fridge before starting to clean it.

Illustration of three hand gestures: a smiling face, a small box with a knife, and a hand holding a tool (no text or symbols)

- Do not wash your fridge by pouring water into it.

- Wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

- Remove the parts individually and clean with soapy water. Do not wash in a dishwasher.

- Never use flammable, explosive or corrosive material, such as thinner, gas or acid for cleaning.

as

Make sure that your fridge is unplugged while cleaning.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

Led strip lamps (In some models)

Line drawing of an open refrigerator with doors, shelves, and a door (no text or symbols)

Led strip lamps (In some models)

Note: Numbers and location of led strips may be changed according to the model.

PART - 5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packaging and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Always carry your fridge in the upright position.

s, dge g

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge can be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

Check Warnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators.

ERROR TYPE MEANING WHY WHAT TO DO
SR	"Failure Warning"	There is/are some part(s) Out of order or there is a failure in cooling process	Call Service for assistance as soon as possible.
SR – Set value blink on freezer set value screen	Freezer comp. Not Cold enough	This caution will be seen especially after long term of power failure	1. Do not freeze the foods that are thaw and use in short time period.2. Set the freezer temperature to colder values or set the super freeze, until the compartment gets to normal temperature.3. Do not put fresh food until this failure is off.
SR – Set value Blink on cooler set value screen	"Refrigerator comp. Not Cold enough"	Ideal temperature for Ref. Compartment is +4 °C. If you see this warning your foods have risk of spoiling.	1. Set the refrigerator temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.2. Do not open the door much until this failure is off.
SR – Set value blink on freezer and cooler set value screen	"not cold enough Warning"	It is combination of "not cool enough" error for both of the compartments.	You will see this failure when first starting the appliance. It will be off after the compartments gets normal temperature
SR – Set value blink on cooler set value screen	Refrigerator comp. too Cold	The foods starts to freeze because of the too much cold temperature	1. Check if the “Super cooling mode” is on2. Decrease the refrigerator temperature values
“--”	"Low voltage Warning"	When the power supply gets lower than 170 V the appliance gets to steady position.	This is not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level

If your fridge is not operating;

• Is there a power failure?
- Is the plug connected to the socket correctly?
- Is the fuse of the socket to which the plug is connected or the main fuse blown?
- Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating.

If your fridge is not cooling enough;

• Is the temperature adjustment right?
- Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
- Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
- Is there adequate distance between your fridge and the rear and side walls?
- Is the ambient temperature within the range of values specified in the operating manual?

If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?
- Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

If your fridge is operating too loudly;

To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
  • Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating?

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
  • Is your fridge on a level surface?

If the edges of fridge cabinet that the door joint contact are warm;

Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal.

IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat sources (radiator, cooker.. etc.). If you install it near heat sources, use an insulating plate.
2- Allow warm food and drinks to cool down before putting them in the refrigerator or freezer compartment.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment while it is thawing, reducing the energy required.
4- When placing liquids in the appliance, make sure they are covered. Otherwise humidity increases inside the appliance and the time taken to cool them is longer. Also covering drinks and liquids helps preserve the smell and taste.
5- When placing food and drinks in the appliance, open and close the appliance door as quickly as possible to keep the temperature inside the appliance stable.
6- Keep the covers closed of any compartments with different temperature requirements in the appliance (crisper, chiller ...etc.).
7- Make sure the door gasket is clean and pliable. Replace gaskets if they are worn or damaged.

PART - 7. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

1 2 3 4 5 6 7 A 14 13 12 11 10 B 9 8

This illustration is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A. Fridge compartment
B. Freezer compartment

1. Bottle shelf / Wine rack *
2. Fridge compartment shelves
3. Chiller shelf *
4. Crisper cover
5. Crispers *

6. Freezer glass shelves

7. Ice trays *

8. Freezer bottom basket
9. Freezer middle basket
10. Freezer top basket
11. Bottle shelf
12. Adjustable door shelf * / Door shelf
13. Fridge compartment door shelves
14. Egg holder

* In some models

SVAN TRADING S.L.

C/Ciudad de Cartagena,20. Paterna (46988) SPAIN.

[e-mail]

52296907
