Type	Fridge-Freezer with No Frost Technology
Brand	Nordmende
Model	RFA91IX
Energy Supply	220-240 V ~ 50 Hz, 13 A fuse
Climate Class	SN, N, ST, T (10 °C to 43 °C ambient)
Refrigerant	R600a
No Frost Technology	Yes, automatic defrost in freezer
LED Lighting	Yes, gradual illumination

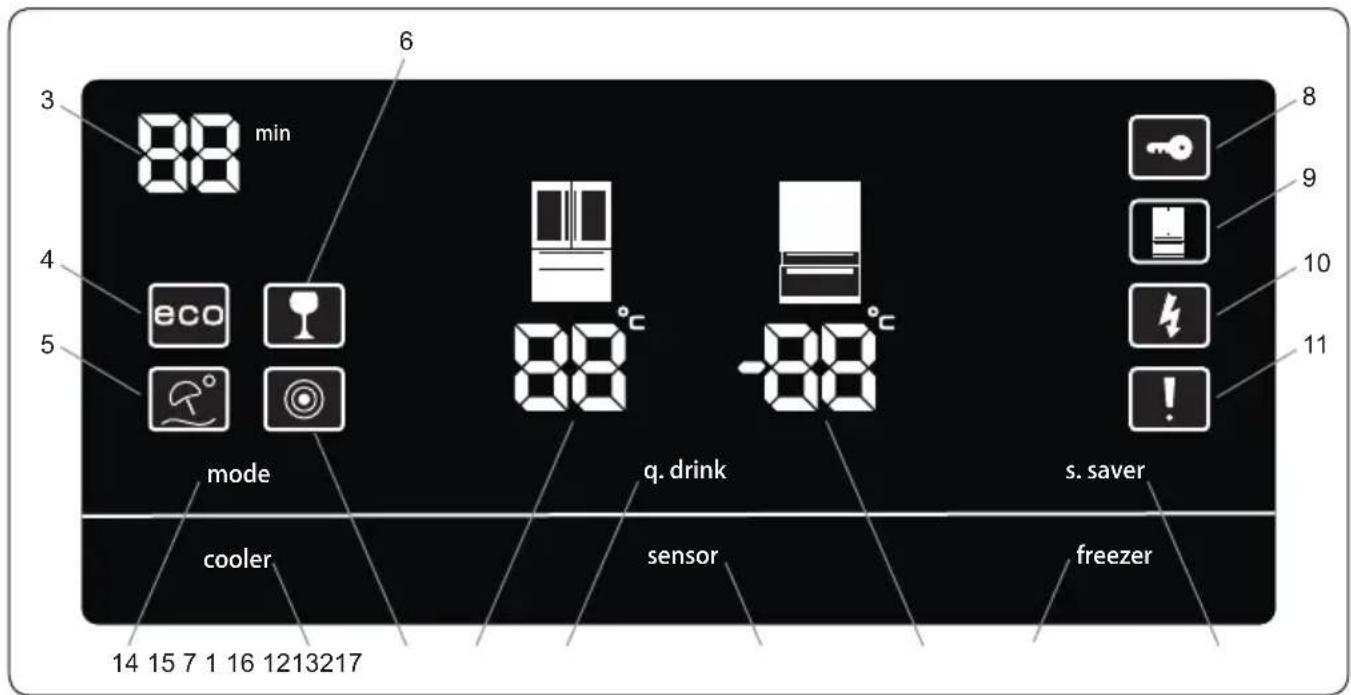

Electronic Display	Touch-operated panel with temperature settings
Child Lock	Yes, activate by pressing Cooler + Freezer for 5 seconds
Holiday Mode	Yes, for long absence
Eco Mode	Yes, optimized temperature
Super Freeze (Quick Freeze)	Yes, automatic deactivation after 24 h
Super Cool (Quick Cool)	Yes, automatic deactivation after 4-6 h
QDRINK Beverage Cooling	Timer up to 30 minutes
Night Sensor	Yes, turns off lights in sufficient ambient light
Screensaver	Yes, turns off display after 3 seconds press
Anti-fingerprint Doors	Yes
Self-closing Chiller Door	Yes
Telescopic Chiller Rail	Yes, smooth and quiet operation

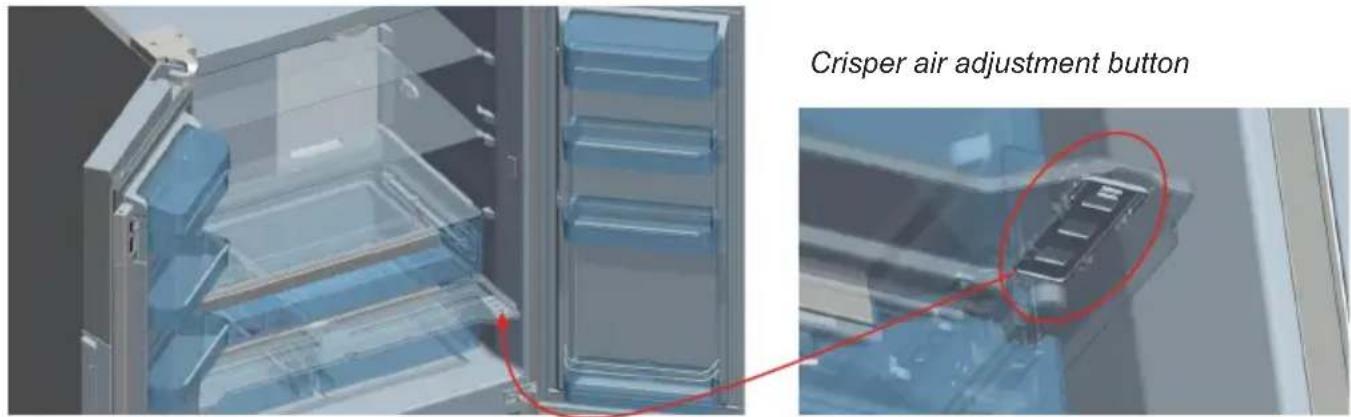

Crisper Air Setting	Adjustable knob for air intake

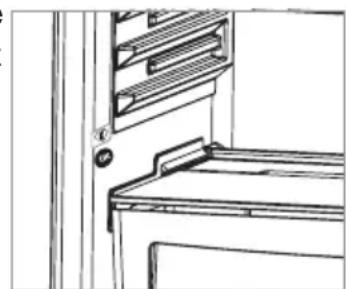

Temperature Indicator	Shows "OK" in coldest zone
Adjustable Front Legs	Yes, for leveling
Icebox	Yes, fill 3/4 with water
Chiller Compartment (0 °C)	Yes, for defrosting or short-term storage
Freezer Baskets	Top, bottom, and hidden baskets

Frequently Asked Questions - RFA91IX NORDMENDE

How do I activate the child lock?

Press the Cooler and Freezer buttons simultaneously for 5 seconds. The child lock icon will appear, disabling other buttons. To deactivate, repeat the same action.

What is the QDRINK function and how do I use it?

QDRINK is a timer for cooling beverages quickly. Press the QDRINK button to set a time from 5 to 30 minutes (each press increments by 5 minutes). After the set time, an audible alert sounds. Do not leave bottles in the freezer beyond the set time to avoid explosion.

How do I use Super Freeze mode?

Press the Freezer button until SF appears on the display. A beep confirms activation. This mode freezes large amounts of food quickly and automatically deactivates after 24 hours or when the freezer reaches the optimal temperature.

How do I adjust the temperature in the fridge and freezer?

Use the Cooler button to set the fridge temperature from 2 °C to 8 °C. Use the Freezer button to set the freezer temperature from -16 °C to -24 °C. The selected temperature is shown on the display.

What does the Night Sensor do?

When activated by pressing the Night Sensor button for 3 seconds, the interior lights turn off if the ambient light is sufficient, saving energy. The sensor automatically controls the lighting.

How should I clean the refrigerator?

Unplug the appliance. Clean the interior and exterior with a soft cloth and warm soapy water. Do not use abrasive or flammable cleaners. Clean the condenser (black grille at the back) with a vacuum or dry brush at least once a year. LED lights should be replaced only by authorized service.

What should I do if the alarm sounds?

The alarm indicates a temperature problem or a malfunction. Press the Screensaver button to mute the sound, but the exclamation mark remains until the issue is resolved. Check if the doors are closed properly and if the appliance is overloaded. If the problem persists, contact authorized service.

Can I turn off the fridge compartment if I don't need it?

Yes. Press and hold the Mode and Cooler buttons simultaneously for 5 seconds. The fridge temperature indicators will disappear, and the compartment will turn off. Repeat to reactivate.

Why is my refrigerator making unusual noises?

Many noises are normal: cracking during defrosting, clicking when the compressor starts, ticking from valves, humming from the compressor, gurgling from refrigerant flow, and fan noise from the No Frost system. A short vacuum sound after door opening is normal due to pressure equalization.

Does this refrigerator require manual defrosting?

No. The No Frost Technology automatically defrosts the freezer compartment. Moisture is removed by the fan and collected in an evaporation tray. No manual defrosting is needed.

USER MANUAL RFA91IX NORDMENDE

Freezer-Fridge Intruction booklet

General features of your appliance ....3

BEFORE USING YOUR FRIDGE ....4

1.1 General warnings ....4
1.2 Old and out-of-order fridges ....6
1.3 Safety warnings....6
1.4 Installing and Operating your Fridge 7
1.5 Before Operating your Fridge....8
1.6 Electrical connection (For UK type plug)....8
1.7 General information about new NO FROST Technology....9

USE OF APPLIANCE ....10

2.1 Introducing parts....10
2.2 Electronic display and usage....12
2.2.1 Beverage cooling (QDRINK)....13
2.2.2 Economic mode (ECO)....13
2.2.3 Holiday mode (H)....13
2.2.4 Quick freezing (SF SUPERFREEZE)....13
2.2.5 Quick cooling (SC SUPERCOOL) 13
2.2.6 Cooler (COOLER)....13
2.2.7 Freezer 13
2.2.8 Child lock (Key Symbol)....14
2.2.9 Screensaver (SCREEN SAVER) 14
2.2.10 Night sensor (NIGHT SENSOR)....14
2.2.11 Dealer Demo mode....14
2.3.12 Alarm....14
2.2.13 Compartment On-Off mode 14

2.3 Warnings about Temperature Adjustments....15

2.4 Accessories 15

2.4.1 Icebox 15

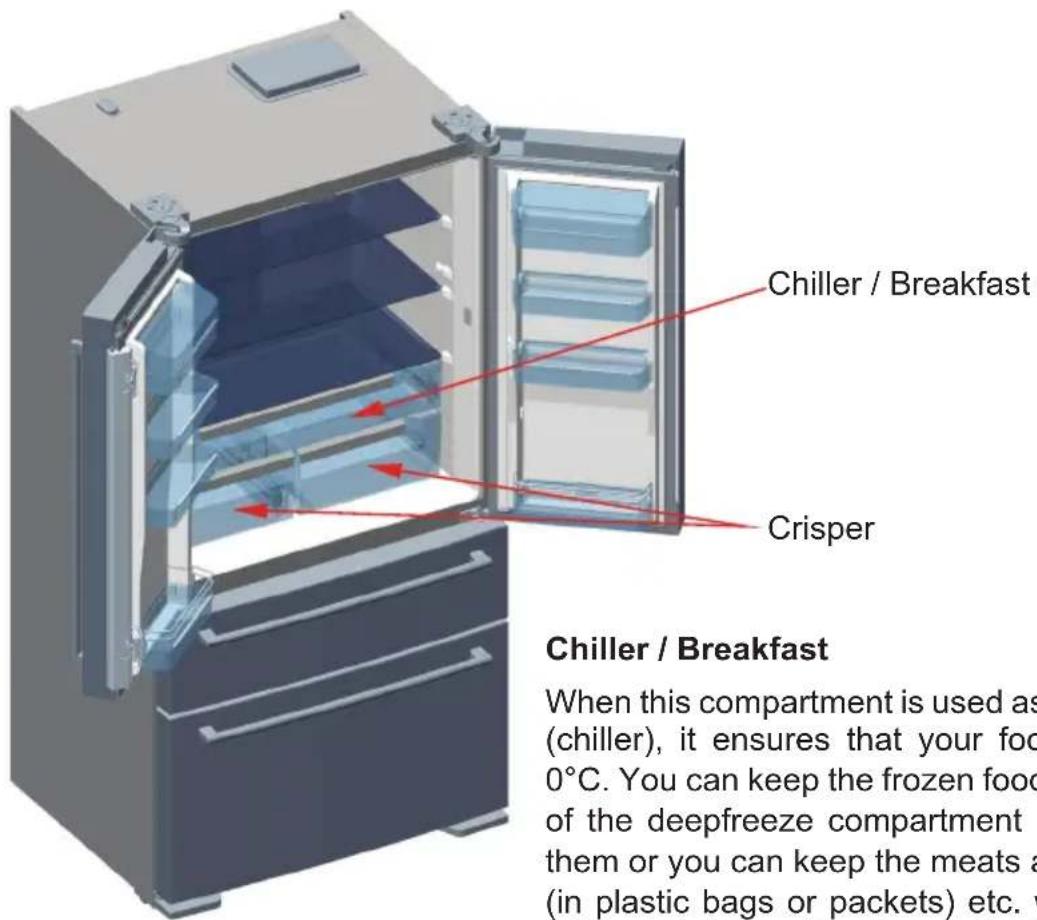

2.4.2 Vegetable Bowl and Chiller (Breakfast)....16
2.4.3 Crisper Air Setting Button 16
2.4.4 Temperature indicator....17

PLACING THE FOOD....18

3.1 Cooler Compartment ...... 18
3.2 Deep-Freeze Compartments ....19

CLEANING & MAINTENANCE....23

4.1 Replacing LED lights used for illumination ....23

SHIPMENT AND REPOSITIONING....24

BEFORE CALLING SERVICE....25

6.1 Recommendations for Energy Saving 27

General features of your appliance

1. When the doors are closed, please check if there are any gaps between the door gasket and the body. If there are any gaps, please fix them.
2. When the freezer door is closed, there will be a vacuum. Do not force the door open again immediately. Please wait until the pressure has stabilized.
3. Thanks to patented trizbar design, fracture risk occurring due to misuse by users, which is common for opponent manufacturers has been eliminated.
4. Air circulation of cooler and freezer compartments are not mixed with other compartments thanks to new No-Frost technology. With this smart solution, no odor passes through compartments, and vegetables remain fresh for longer periods.
5. The fan ensuring energy efficiency maintains air circulation by running independently even if the compressor does not run. Thus, a uniform and balanced air circulation is created between cooler shelves.
6. Hidden LEDs and hidden air conduit holes have given the cooler an aesthetical appearance.
7. Through specific air conduit design, fans give out cold air from multiple outlets on all shelf levels.
8. With special patented application, display edges and corners form a smooth surface against the door and ensure a perfect aesthetical appearance. Thanks to the touch-operated electronic instrument panel, temperature controls can be carried out easily and an even view is ensured aesthetically.
9. LED lighting that comes on gradually instead of with a sudden flash is available in interior body illumination. The LED lights up to 100% brightness within a few seconds after the door is opened.
10. Telescopic rail used in chiller compartment ensures that the chiller operates easily and quietly.
11. In order to avoid slamming the door when it stays open, a self-closing function has been added to the chiller. This function has eliminated the risk of chiller doors being left open.
12. Anti-finger print inox doors do not leave finger prints thanks to a special sheet layered over the doors.

1.1 General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during transport and installation to prevent your appliance's cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage occurring due to cooler damage remove your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as;
• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels and other residential type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

BEFORE USING YOUR FRIDGE

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 13 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000m.

BEFORE USING YOUR FRIDGE

1.2 Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges.

Symbolic illustration of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for any damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

1.3 Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a rope knotting operation (no text or symbols present)

Cartoon illustration of a plug with an angry face and a lightning bolt, no text or symbols present

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by a crossed-out 'no' symbol and a hand gesture (no text or symbols present)

• In case your supply cord is damaged, it should be replaced by authorized service in order to avoid any danger.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang over the door.
• Do not break or scrape the ice with a sharp object such as a knife.

BEFORE USING YOUR FRIDGE

• Do not plug-in or out the plug from the socket with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their lids tightly in the fridge department.
• When removing ice made in the freezer department, do not touch it, ice may cause iceburns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department.
• Do not re-freeze frozen goods after defrosting. This may cause health issues like food poisoning.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.

1.4 Installing and Operating your Fridge

Before unpacking and manoeuvring your fridge freezer please take some time to familiarise yourself with the following points.

- The operating voltage for your fridge is 220-240 V at 50Hz.

- CAUTION! Never replace any electrical parts inside the refrigerator. In cases requiring replacement, contact Authorised Technical Service.

- We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ (as shown in the figure) to prevent the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical oves.

- Your fridge should never be used outdoors or exposed to rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.

- Do not place heavy items on the appliance.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.

Cartoon illustration of a distressed container character holding a paper labeled 'KG', with expressive faces and motion lines (no text or symbols beyond the label)

BEFORE USING YOUR FRIDGE

• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.
• No carpets, rugs, etc. which may obstruct air circulation should be laid under the refrigerator.

1.5 Before Operating your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours before plugging it in to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Illustration of a hand holding a smiling face next to a smiling square (no text or symbols)

1.6 Electrical connection (For UK type plug)

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

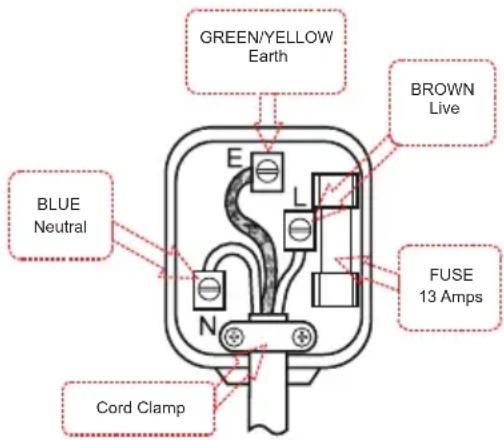

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

BEFORE USING YOUR FRIDGE

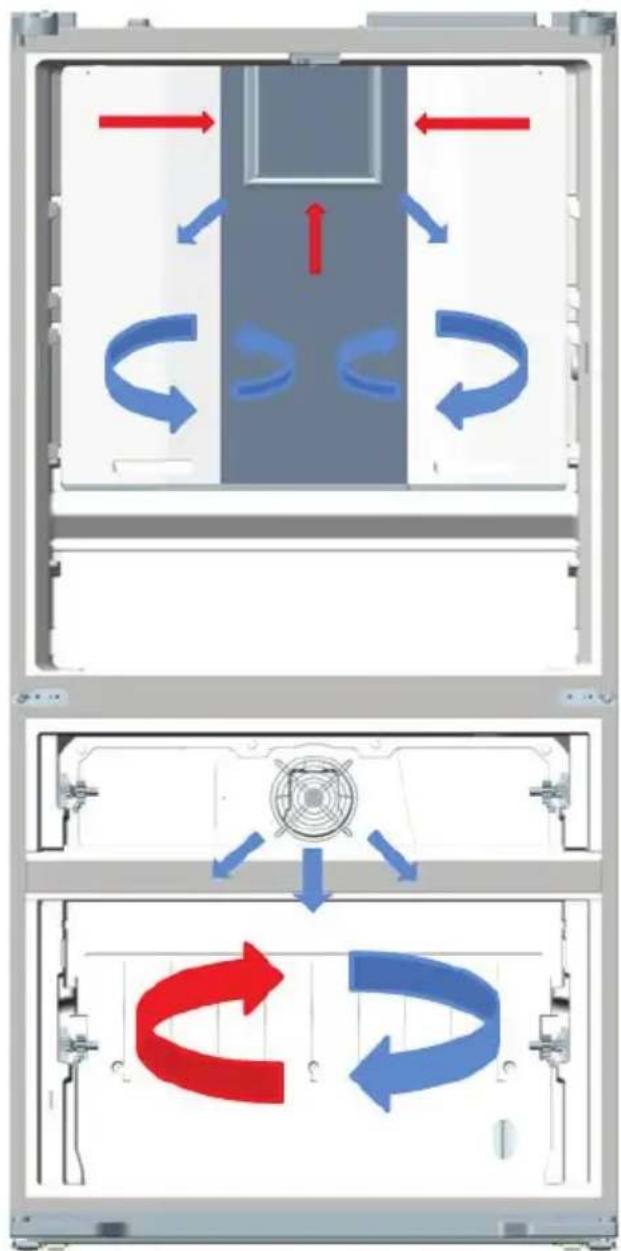

1.7 General information about new NO FROST Technology

New No-Frost fridges differ from other static fridges in their operating principle.

In normal fridges, the humidity entering the fridge through the door openings and the humidity of the food causes freezing in the freezer compartment. To defrost the ice in the freezer department, you should turn off the fridge, take the food that needs to be kept in a constant temperature out of the fridge, and remove the ice gathered in the freezer compartment periodically.

The situation in the freezer compartment is completely different in no-frost fridges. Dry and cool air is blown through the freezer compartments via fan. Cold air dispersed homogeneously between the shelves cools all your food equally and uniformly, thus prevents humidity and freezing. The freezer compartment is cooled by statically. The air is distributed homogeneously between the racks in the cooling section with the fan, and all your foods can be cooled evenly and properly.

As there is no air passage between the sections, the smells on the 2 different parts of your refrigerator do not mix.

Therefore your New No-Frost fridge allows you ease of use, besides its huge volume and stylish appearance.

PART 2. USE OF APPLIANCE

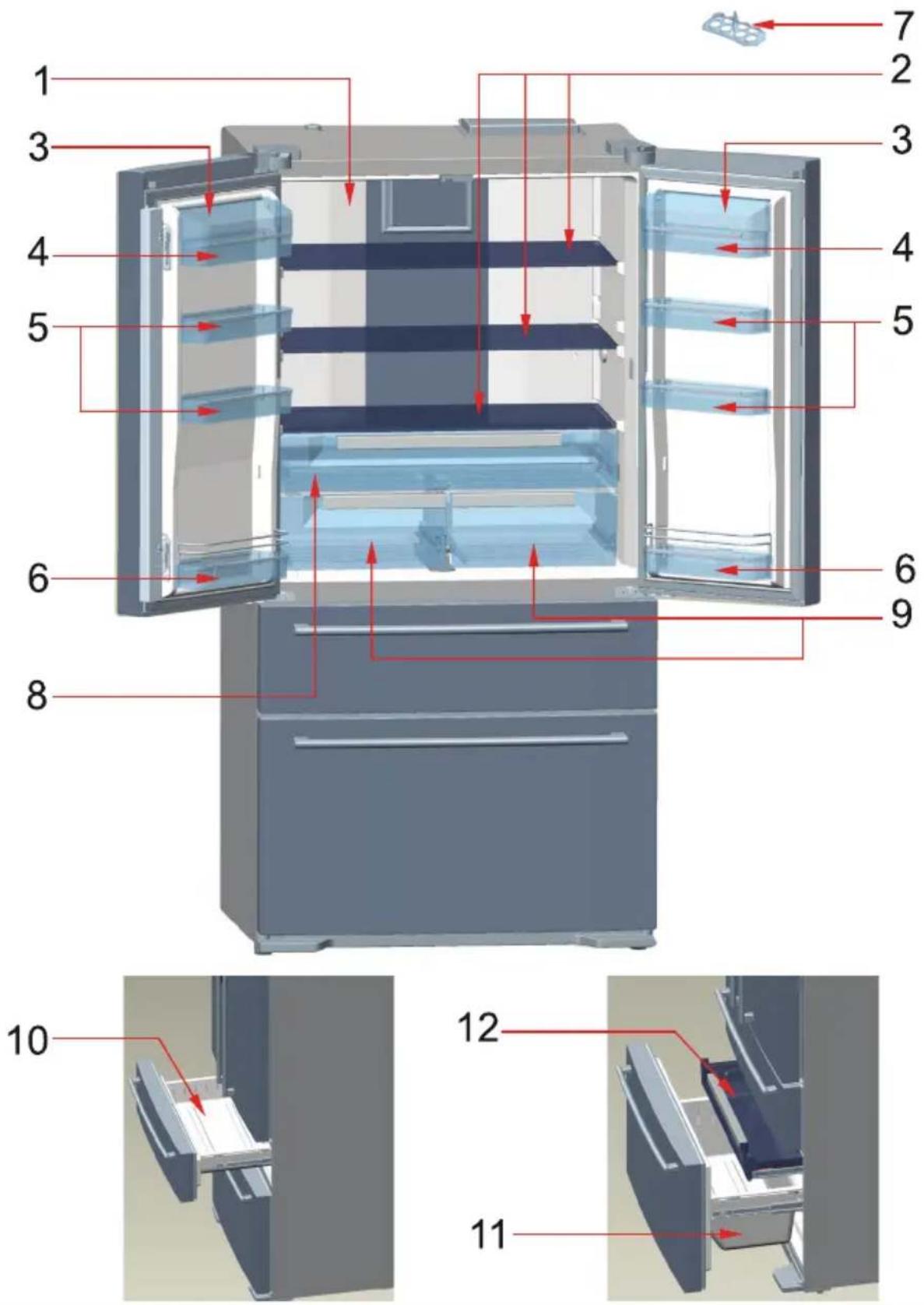

2.1 Introducing parts

The purpose of this presentation is to inform you about the parts of your appliance. The parts may vary depending on the model of the appliance.

USE OF APPLIANCE

1) Cooler Compartment
2) Fridge Compartment Shelves
3) Cheese-Butter Shelf Covers
4) Cheese, Butter Shelf
5) Door Shelves
6) Door Bottle Shelves
7) Eggcups
8) Chiller (Breakfast) Compartment
9) Crispers
10) Freezer Top Basket
11) Freezer Bottom Basket
12) Freezer Hidden Basket

The purpose of this presentation is to inform you about the parts of your appliance. The parts may vary depending on the model of the appliance.

USE OF APPLIANCE

2.2 Electronic display and usage

1. Fridge Compartment Temperature Indicator
2. Freezer Compartment Temperature Indicator
3. Qdrink Alarm Counter
4. Economy Mode
5. Holiday Mode
6. Qdrink Light
7. Night Sensor Indicator

8. Child Lock

9. Dealer-Demo mode

10. Low voltage warning
11. Alarm
12. Screensaver button
13. Freezer
14. Mode button
15. Cooler
16. Qdrink mode
17. Night sensor button

The values on the screen indicate temperature values specified by the consumer.

USE OF APPLIANCE

2.2.1 Beverage cooling (QDRINK)

[q.drink] button should be pressed to activate beverage cooling mode. Each press will increment the time for 5 minutes up to 30 minutes, and then it returns to zero. You can view the time zone you want to set on "Qdrink alarm counter" section. Qdrink mode only lets the refrigerator release an audible alert after a specific period.

Important: It should not be confused with cooling.

You must adjust the time according to the temperature of the bottles before you put them in freezer compartment. For example, you can set the time as "5 minutes" in the beginning. After this time, if the cooling is insufficient, you might set another 5 or 10 minutes. While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance. If you forget bottles in Q.DRINK mode, bottles may explode.

2.2.2 Economic mode (ECO)

It ensures that your refrigerator runs within ideal temperatures. In order to activate "ECO" mode, you should just press [mode] button until "eco and e" light comes on.

2.2.3 Holiday mode (H)

It is represented by an umbrella and sun. If you will go on holiday for a long time during which you will not use cooler compartment, you may activate this mode. To switch the appliance to holiday mode, you should just press [mode] button until “holiday symbol and H” light comes on.

2.2.4 Quick freezing (SF SUPERFREEZE)

You should press the Freezer button until "sf" letters are displayed on the display. Once "sf" letters are viewed, a beep sound will be released if you press no button and the mode will be selected. You can use this mode to freeze prepared meals or freeze large amounts of food quickly. Quick freezing mode will automatically be deactivated after 24 hours or once the freezer compartment temperature sensor reaches the sufficient temperature.

Note: Using the super freeze mode, freezing capacity will reach the maximum value.

2.2.5 Quick cooling (SC SUPERCOOL)

Press cooler button until “sc” letters are viewed on the display. Once “sc” letters are viewed, a beep sound will be released if you press no button and the mode will be selected. You can use this mode to cool prepared meals or cool large amounts of food quickly. Quick cooling mode will be automatically cancelled after 4 or 6 hours depending on the environmental temperature or when the cooler compartment reaches a sufficiently low temperature.

2.2.6 Cooler (COOLER)

This is used for temperature setting of cooler compartment. By pressing [cooler] button, you can set the values of cooler part to 2, 3, 4, 5, 6, 7, 8 Celsius temperature values.

2.2.7 Freezer

This is used for temperature setting of freezer compartment. By pressing [freezer] button, you can set the values of freezer part to -16, -17, -18, -19, -20, -21, -22, -23, -24 Celcius temperature values.

USE OF APPLIANCE

2.2.8 Child lock (Key Symbol)

In order to activate child lock, you need to press [cooler]+[freezer] buttons simultaneously for 5 seconds. When the child lock is active, other buttons will be deactivated, and therefore changing the settings you have made will be prevented. In order to deactivate child lock, you, again, need to press [cooler]+[freezer] buttons simultaneously for 5 seconds.

2.2.9 Screensaver (SCREEN SAVER)

Thanks to this function that is activated when you press [s.saver] button for 3 seconds, you save energy by utilizing digital indicator panel with its lights off. In order to deactivate the mode, repress [s.saver] button for 3 seconds.

2.2.10 Night sensor (NIGHT SENSOR)

Thanks to this function that is activated when you press night sensor [sensor] button for 3 seconds, your refrigerator's lights will be OFF in case of sufficient illumination, therefore you will save energy.

2.2.11 Dealer Demo mode

It is a mode used by service and not related to the use of refrigerator.

2.3.12 Alarm

Once an alarm light comes on, you should contact the service team.

If you press [s.saver] button when there is an alarm and an exclamation mark on the display, the alarm sound will turn off, however the exclamation mark will stay on the digital indicator panel until error is fixed.

2.2.13 Compartment On-Off mode

You can turn off a compartment you do not need or want to use by checking through indicator panel.

In order to turn off the cooler, hold [mode] and [cooler] buttons pressed simultaneously for 5 seconds, and all figures indicating the part turned off will disappear on the digital indicator panel.

In order to reactivate the turned-off compartment, use the same combination of buttons.

USE OF APPLIANCE

2.3 Warnings about Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and ambient temperature of the place of your fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you unplug it and then plug it in again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

- This equipment is designed for use at an ambient temperature within the 16^ - 43^ range.

Climate Class	Ambient temperature oC
T 16 to	43°C
ST 16 to	38°C
N 16 to	32°C
SN 10 to	32°C

Note: If the ambient temperature is higher

than 38^ C, the compartment temperature cannot be set to -22^ C, -23^ C or -24^ C. It can only be set to -16^ C, -17^ C, -18^ C, -19^ C, -20^ C or -21^ C.

2.4 Accessories

2.4.1 Icebox

• Fill 34 of icebox with water and insert it.
• You can remove ice after approximately 2 hours. You can service by extracting icebox.

(It applies to the refrigerators having the feature.)

Note: When placing the icebox after filling with water, make sure that you position it horizontally without tilting. Otherwise, water inside icebox may pour out into the basket.

USE OF APPLIANCE

2.4.2 Vegetable Bowl and Chiller (Breakfast)

Chiller / Breakfast

When this compartment is used as 0^ C compartment (chiller), it ensures that your food is preserved at 0^ C. You can keep the frozen foods that you take out of the deepfreeze compartment in order to defrost them or you can keep the meats and cleaned fishes (in plastic bags or packets) etc. which you will use within 1-2 days without need for freezing.

Note: Water is frozen in 0^ C but the foods including salt or sugar can be frozen in colder environments.

! Please do not put the food you would like frozen or iceboxes in this partition.

2.4.3 Crisper Air Setting Button

Turn the air adjustment knob between crisper and chiller to open position when the crisper is filled excessively. This way, the air intake into the crisper is adjusted and food remains fresh for a longer period of time.

USE OF APPLIANCE

2.4.4 Temperature indicator

In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area.

To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly

It may be difficult to see the indicator, make sure it is properly lit. Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change.

NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication "OK" not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again.

Store food in the coldest area of the refrigerator.

Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper.

This symbol indicates the coldest area of your

refrigerator.

To ensure low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration.

Line drawing of a cabinet or rack with a door and shelf, no text or symbols present

The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level.

As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

PART 3. PLACING THE FOOD

3.1 Cooler Compartment

• Under normal operation conditions, it is enough to set the temperature of cooler compartment to +4 / +6^ .
• In order to avoid frosting, humidification and odour, food should be placed in the fridge in closed containers or covered with appropriate material.
• Hot food and beverages should be cooled to room temperature before being placed in the fridge.
  • Vegetables and fruits can be placed into crisper without packaging.

Important Note:

- Cover the liquid and stews when you put them on fridge. Otherwise, the humidity amount inside the fridge increases. This causes the fridge to operate more efficiently. Covering the food and beverages also allow you to protect their taste and flavour. Potatoes, onion and garlic shouldn't be kept in the fridge.

Some suggestions on the placing and storing of your food in the fridge compartment are supplied below.

Food Maximum	Storage time	Where to place in the fridge department
Vegetables and fruits 1	week Vegetable bin
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container(on the glass shelf)
Fresh cheese 3 - 4 Days	In special door shelf
Butter and margarine 1	week In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg	shelf
Cooked food All shelves

STORING THE FOOD

3.2 Deep-Freeze Compartments

• The freezer compartment is used for storing frozen foods for a long time or for producing ice.
• If you leave the door of freezer open for a long time, frosting will appear on the lower stage of freezer. Thus, air circulation will be obstructed. In order to avoid this, first unplug the cord and wait until thawed. After ice melts, you should clean the freezer.
• You can remove baskets, cover, etc. to increase storing volume of freezer.
  • Volume specified on the product label shows the value without baskets, covers, etc.

IMPORTANT

Never refreeze frozen food after thawing them.

It may be hazardous to your health as it may lead to food poisoning.

• Do not place hot food to the freezer before cooling them. This may cause other frozen food in the freezer to decay.
• When buying frozen food, make sure that it was frozen under appropriate conditions and its package is not torn.
• In case of humidification on package of frozen food and a smelly odour, food may have been stored under inappropriate conditions beforehand and it may have gotten decayed. Do not buy those kinds of food.
• Storing time for frozen food may differ according to the ambient temperature, frequency of door openings, thermostat adjustments, type of food and the time between the buying of the food and placing of the food in the freezer. Always follow instructions on the package and do not exceed storing period.
• Note: If frozen food taken out of freezer or refrigerator is placed into bottom compartment one day before, it promotes refrigerator by preserving its temperature there, so energy will be saved. If you put the material in the deep freeze to an open area, energy loss occurs.

Some spices in cooked food (aniseed, basil, dill, vinegar, spice mix, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, bologna sausage etc.) may have a foul taste when stored for a long time. Therefore, frozen food should be spiced just a little or spice should be added after the food is thawed.

The storing time for the food depends on the oil used. Margarines, veal fat, olive oil and butter are suitable, peanut oil and lard are not suitable.

Cooked food in liquid form should be frozen in plastic containers, other food should be frozen wrapped in plastic foil or in plastic bags.

Some suggestions on the placing and storing of your food in the freezer compartment are supplied pages 20, 21 and 22.

STORING THE FOOD

Meat and fish Preparation		Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets	6 - 8
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut off the tail and head.	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2 - 4
Shellfish	Cleaned and in bags	4 - 6
Caviar	In its package, aluminium or plastic container	2 - 3
Snail	In salty water, aluminum or plastic container	3

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, do not re-freeze it.

STORING THE FOOD

Vegetables and Fruits Preparation		Maximum Storing time (months)
String beans and beans	Wash, cut into small pieces and boil in water 10	- 13
Beans Hull, wash and boil	in water 12
Cabbage Clean and boil in	water 6 - 8
Carrot Clean, cut into slices	and boil in water 12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8 - 10
Spinach Wash and boil in	water 6 - 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Aubergine Cut into 2cm pieces after washing 10 - 12
Corn	Clean and pack with its stem or as sweetcorn	12
Apple and pear Peel and slice 8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits	Add 10 % of sugar in the container	12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

STORING THE FOOD

Dairy Products Preparation		Maximum Storing time (months)	Storing Conditions
Packet (Homogenized) Milk	In its own packet 2	-3	Pure Milk – In its own packet
Cheese-excluding white cheese	In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In its package 6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6 1	- 1.5 5-8 (190-200 °C)
Pastry 1 - 3 2 -	3 5-10 (200-225 °C)
Pie 1 - 1.5 3 - 4	5-8 (190-200 °C)
Phyllo dough 2	- 3 1 - 1.5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4	15-20 (200 °C)

PART 4.

CLEANING & MAINTENANCE

Make sure to unplug the fridge before starting to clean it.

Cartoon illustration of a hand using a tool to clean or store items, with no visible text or symbols.

- Do not wash your fridge with running water.

- You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

- Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

- The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your freezer to operate more efficiently and will enable you to save energy.

Cartoon illustration of a refrigerator with a spoon and a bottle beside it (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands giving thumbs up, next to a mortar and pestle (no text or symbols)

Cartoon illustration of a smiling refrigerator and two bowling pins (no text or symbols)

Illustration of a hand cleaning a bicycle rear cage (no text or symbols)

Cleaning evaporation bowl

- Your fridge defrosts automatically. Water produced by defrosting flows to evaporating container passing through water collecting groove, and vaporizes here by itself.

4.1 Replacing LED lights used for illumination

For replacing LED lights used for illumination, contact an authorized service.

PART 5. SHIPMENT AND REPOSITIONING

- Original package and foam may be kept for re-transportation (optionally).

- You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

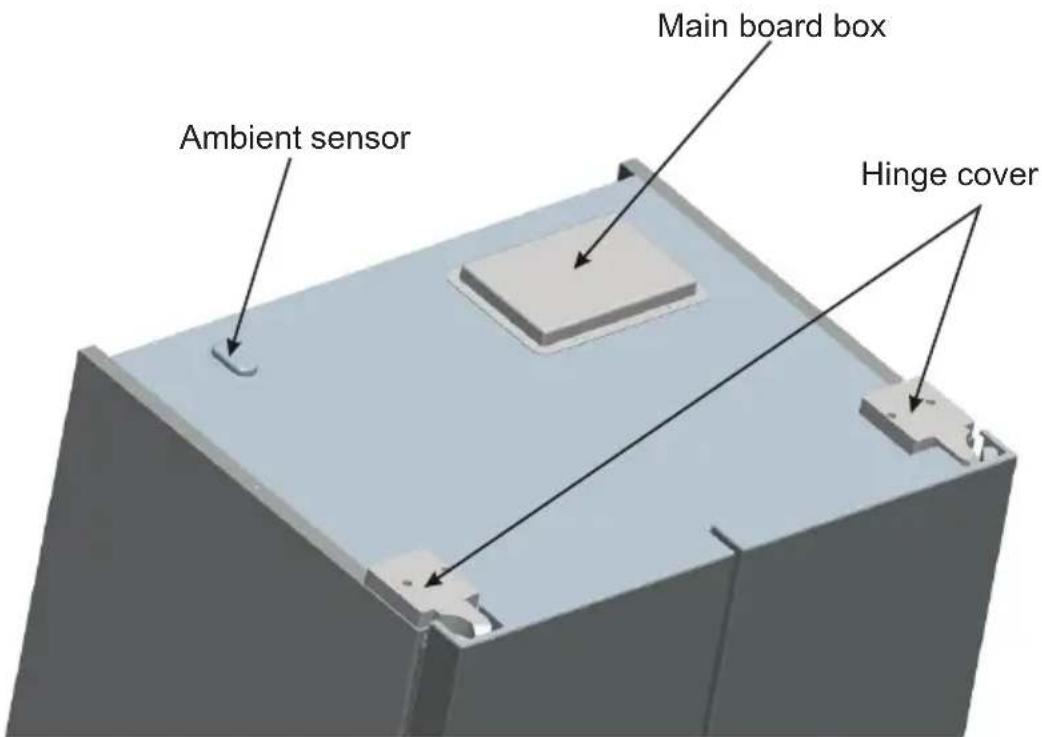

- An ambient sensor, main board and hinge covers are available on your refrigerator. During cleaning, make sure no fluid enters this area.

Carry your refrigerator with 4 people as indicated in the figure.

Illustration of four workers in red uniforms assembling or handling a large refrigerator (no text or symbols visible)

EN-24-

Check Warnings;

Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. You can see these warnings on the indicator display.

ERROR DISPLAY	ERROR TYPE REMARK DO'S
audible warning	Error warning.	One or more equipment of the product has been deactivated or there is cooling problem.	Contact the service team as soon as possible.
	Freezer department is not cold enough.	May arise due to long-period energy cut-off or failure of cooling equipment.	1. In case of melted product in compartment, do not refill and consume up as soon as possible.2. Until temperature of compartment returns to normal (warning disappears), operate in a lower temperature or in Super Freeze Mode.3. Do not place fresh food in compartment unless this warning disappears.
	Cooler compartment is not cold enough.	Cooler has lost its ideal temperature.	1. Until temperature of compartment returns to normal (warning disappears), operate in a lower temperature or in Super Cool Mode.2. Do not open door until this error disappears.
	Cooler compartment is too cold.	Our product in cooler compartment are in risk of freezing.	1. If Super Cool is active, cancel it.2. Operate under lower setting value.
	Mains voltage has decreased under 170V.	This is not an error, it is intended for warning and precaution.When mains voltage restores to normal value, the warning will disappear.	-

BEFORE CALLING SERVICE

Check Warnings;

If your fridge is not operating;

• Are there any electrical faults?
  • Is your appliance plugged in?
• Is the fuse of the receptacle that the plug is plugged or the main fuse blown?
• Is there any fault in the socket? Examine this by plugging your fridge into a socket outlet which you are sure that is working.

If your fridge is operating too loudly

Normal Noises;

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking: Heard when the thermostat switches the compressor on/off.

Valve sound: Ticking sound is normal when your refrigerator runs. This sound is released from a valve behind your refrigerator.

Vacuuming sound: After your refrigerator's doors are opened and closed, a short sound may be heard due to pressure difference. That is normal.

Normal motor noise: This noise means that the compressor operates normally. Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air blow noise: Normal fan noise. This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air.

If humidity builds up inside the fridge;

• Is all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door joints broken or torn?
  • Is your fridge on a level surface?

BEFORE CALLING SERVICE

IMPORTANT NOTES:

- After sudden power breakdowns or after unplugging the appliance, Thermal protector will cut off the power of compressor temporarily because the gas in the cooling system is not stabilized yet. Your fridge will start after 4 or 5 minutes, this is nothing to worry about.

• If you will not use your fridge for a long time (e.g. during summer holidays) unplug it. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorized Service.
• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
• The lifetime of your appliance stated and declared by the Consumer Protection and Market Surveillance General Directorate under T.R. Ministry of Customs and Ministry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.

6.1 Recommendations for Energy Saving

1. Place your appliance in a cool and well-ventilated room, avoid placing towards direct sunlight or near heat radiators (radiator, oven, etc.). Otherwise, use insulation plate.
2. Allow hot food and drinks to cool down outside the appliance.
3. Place frozen food in refrigerator for thawing. When frozen food is thawed, its lower temperature will help refrigerator cool down. Thus, energy will be saved. Putting frozen food outside will cause waste of energy.
4. When putting drinks and homemade food into refrigerator, make sure that they are in an enclosed bowl. Otherwise, humidity in the appliance will rise. This will make operation time longer. Preserving drinks and homemade food in enclosed bowls will also avoid deterioration of odours and tastes.
5. When putting drinks and food in the refrigerator, leave door of appliance open for some time as short as possible.
6. Keep compartments with different temperature values in the appliance closed. (crisper, chiller compartment, etc.)
7. Door gasket should be clean and flexible. Replace old gaskets.
8. Night sensor in active mode will lead to energy saving.

Inhaltsverzeichnis

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Illustration of hands using a tool to tie a knot, showing three different positions (no text or symbols present)

Cartoon illustration of a smiling open door with electric plugs and a hand holding a crossed-out electrical plug (no text or symbols)

Two abstract diagrams showing a mechanical or electrical component inside a coiled spring, with no visible text or symbols.

Cartoon illustration of a distressed box with arms and legs, showing facial expressions (no text or symbols)

Simple line drawing of a hand holding a smiling face icon next to a square (no text or symbols)

Line drawing of a refrigerator interior with no text or symbols

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Cartoon illustration of a smiling refrigerator and two bowling pins (no text or symbols)

Illustration of a hand cleaning a metal basket (no text or symbols)

Illustration of four workers in red caps assembling or lifting a large refrigerator (no text or symbols present)

Staubsauggeräusch: After your refrigerator's doors are opened and closed, a short sound may be heard due to pressure difference. Das ist normal.
