Before using the device

After unpacking and before every use, check whether the item shows any signs of damage. Should this be the case, do not use the item, but notify your retailer.

The operating manual is based on the norms and regulations that are applicable in the European Union. In non-EU countries, observe country-specific directives and laws!

Before start-up, first read through the safety information and the operating manual carefully. Only by doing so will you be able to use all of the functions safely and reliably.

Keep the operating manual and pass it on to any third party that might own the BBQ after you.

Scope of delivery

No.	Description Quantity
1 Lid	handle 1
2 Thermometer	1
3 Lid	1
4 BBQ	grate insert (removable)	1
5 BBQ	grate 1
6 BBQ	grate handle 2
7 Charcoal	grate 1
8 Fire	bowl handle 1
9 Fire	bowl 1
10 Left wheel leg
11 Base rack
12 Front leg		1
13 Right wheel leg
14 Wheel		2
15 Wheel hub cap		2
16 Charcoal dividers		4
17 Functional part		4

No.	Description Quantity
18	Ventilation and cleaning system	1
19	Ventilation lever	1
20	Ash collecting tray	1
21	Lid holder	1
22	Assembly tool	1

Please check that the delivery is complete and undamaged. Should a part be missing or defective, please contact your dealer.

Claims relating to damages or missing parts made after assembly has taken place or commenced will not be recognised.

Intended use

Use this BBQ to heat, cook and grill food.

This BBQ is intended exclusively for private, outdoor use and not for indoor or commercial use.

Only use the item as described in this operating manual. All other uses are considered improper and can lead to material damage or even to personal injuries.

The manufacturer accepts no liability for damages caused by improper use.

For your safety

Signal symbols

Danger High risk!

Failure to observe the warning can lead to potentially fatal injuries.

Attention Moderate risk!

Disregarding this warning can lead to property damage.

Caution Low risk!

Facts that should be respected when handling the device.

GENERAL SAFETY INSTRUCTIONS

- to be observed in each use

• Do not use indoors!
• WARNING! Do not use spirit or petrol for lighting or relighting!
• Use only firelighters complying to EN 1860-3!
• WARNING! This barbecue will become very hot, do not move it during operation!
• WARNING! Keep children and pets away!

Safety instructions

Danger Fire hazard!

Live coals and BBQ components get very hot during operation and can start fires.

• It is essential that you have a fire extinguisher and first-aid kit ready and be prepared for an accident or fire.
• Place the BBQ on an even, horizontal, secure, heat-resistant and clean surface.
• Set up the BBQ with at least 1 m clearance from highly flammable materials such as awnings, wooden patios or furniture.
• Do not move the BBQ during use.
• Ignite the charcoal only in a sheltered location.
• Fill the BBQ with a max. 1 kg of charcoal.

GB

• Some foods produce flammable fats and juices. Clean the BBQ regularly, preferably after each use.
• Only tip out the ash once the charcoal has completely burned out and cooled down.
  – Never leave the BBQ unattended during use.

Danger Risk of burning and accidents!

This device is not intended for use by persons (incl. children) with limited physical, sensory, or mental capacities or lacking experience and/or lacking knowledge.

• Such persons must be informed about the dangers of the device and supervised by a person responsible for their safety.
  – Any modifications to the product represent a large safety risk and are forbidden. Do not undertake any unauthorised interventions yourself. In case of damages, repairs or other problems with the BBQ, contact our service point or a professional in your area.
• Keep children and pets away from the device.

The BBQ, the charcoal and BBQ meat become very hot during use. Any contact can result in serious burns.

- Keep sufficient distance from the hot parts, since any contact can lead to severe burns.

– Always wear oven or BBQ gloves when grilling.
- Use only long-handled utensils with heat-resistant grips.
- Do not wear any clothing with wide sleeves.
- Use only dry lighters or special fluid lighters compliant with EN 1860-3 as firelighters.
- Let the BBQ cool down completely before cleaning and/or storage.

Danger Risk of deflagration!

Flammable liquids that are poured on the embers cause flash flames or deflagrations.

– Never use flammable liquids such as petrol or spirits.
– Nor put pieces of charcoal soaked in flammable liquid onto the embers.

Danger Risk of poisoning!

When burning charcoal, barbecue briquettes, etc., carbon monoxide is formed. This gas is odourless and can be fatal in closed spaces!

– Use the grill outdoors only!

Danger Health risk!

Do not use any decolourants or thinners to remove stains. These are harmful to health and must not come into contact with food.

Danger Risks to children!

While playing, children can become caught in the packaging film and choke.

• Do not let children play with the packaging films.
• Make sure that children do not put any small assembly parts into their mouths. They could swallow the parts and choke on them.

Danger Risk of injury!

Both the BBQ and individual parts have some sharp edges.

• Be careful with individual parts to prevent accidents and/or injury during assembly and use. Wear protective gloves if necessary.
• Do not set up the BBQ near entryways or high-traffic zones.
  – Always exercise extreme caution while grilling. If distracted, you can lose control of the device.
• Always be attentive to and aware of what you are doing. Do not use this product if you are unfocussed or tired, or if you are under the influence of drugs, alcohol, or medications. Just one moment of carelessness during use of the product can lead to serious injuries.

Attention Risk of damage!

During use, the screws can loosen slowly and impair the BBQ's stability.

- Check the stability of the screws prior to each use. If necessary, tighten all of the screws again to ensure the BBQ is standing securely.

Attention Risk of damage!

Do not use any strong or grinding solvents or abrasive pads, since these can attack the surfaces and leave behind scrape marks.

Assembly

Preparation

Danger Risk of injury!

Failure to follow these instructions can lead to problems and risks while using the BBQ.

– Follow all of the assembly instructions listed here.

1. First read through the assembly instructions completely.
2. Take sufficient time for the assembly and establish an even work surface of one to two square metres.
3. Small parts such as handles will probably be preassembled.
4. Look out for sharp corners and wear protective gloves for assembly.

Required tools

The assembly tool (22) is included in the product contents.

GB

Assembling the BBQ

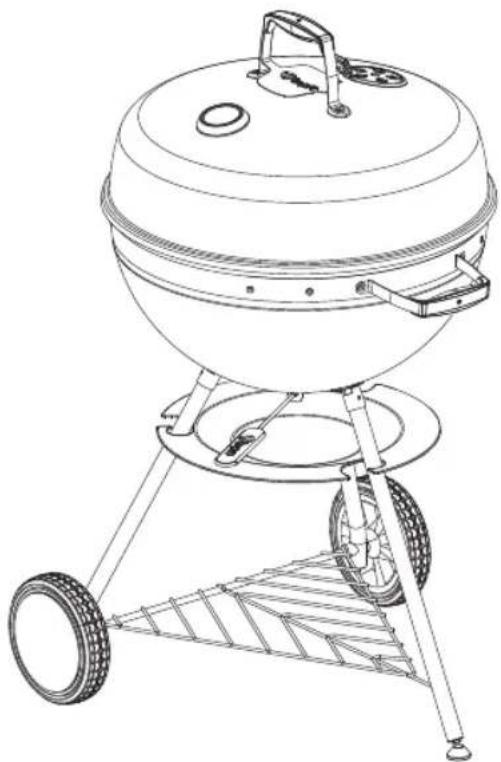

1. Unpack BBQ

Unpack the BBQ and dispose of all packaging materials. Keep the packaging materials out of the reach of children and dispose of them according to regulations after BBQ assembly. Pay attention to the illustration of the BBQ during assembly.

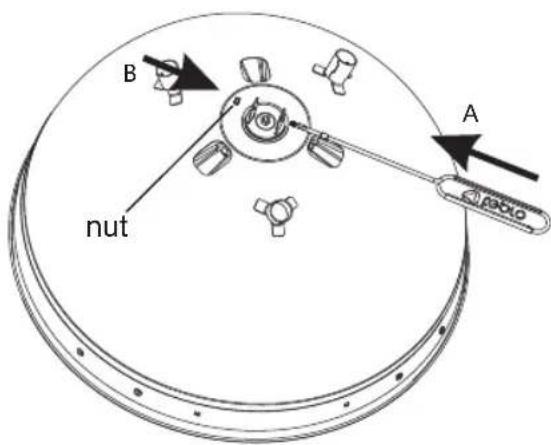

2. Thread the ventilation lever (19) under the fire bowl (9) and secure with the nut.

B A nut

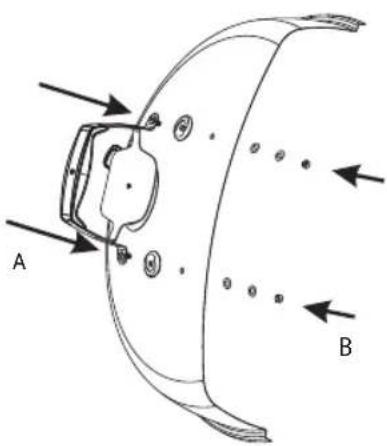

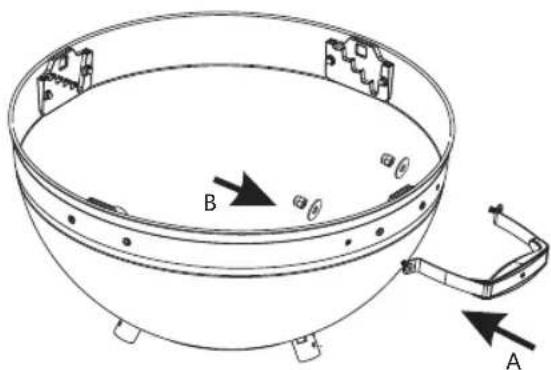

3. Attach the fire bowl handle (8) to the fire bowl (9).

B A

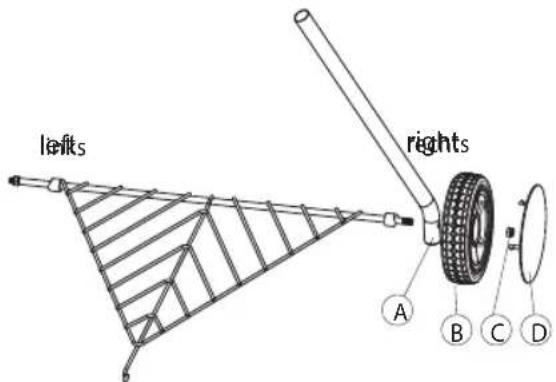

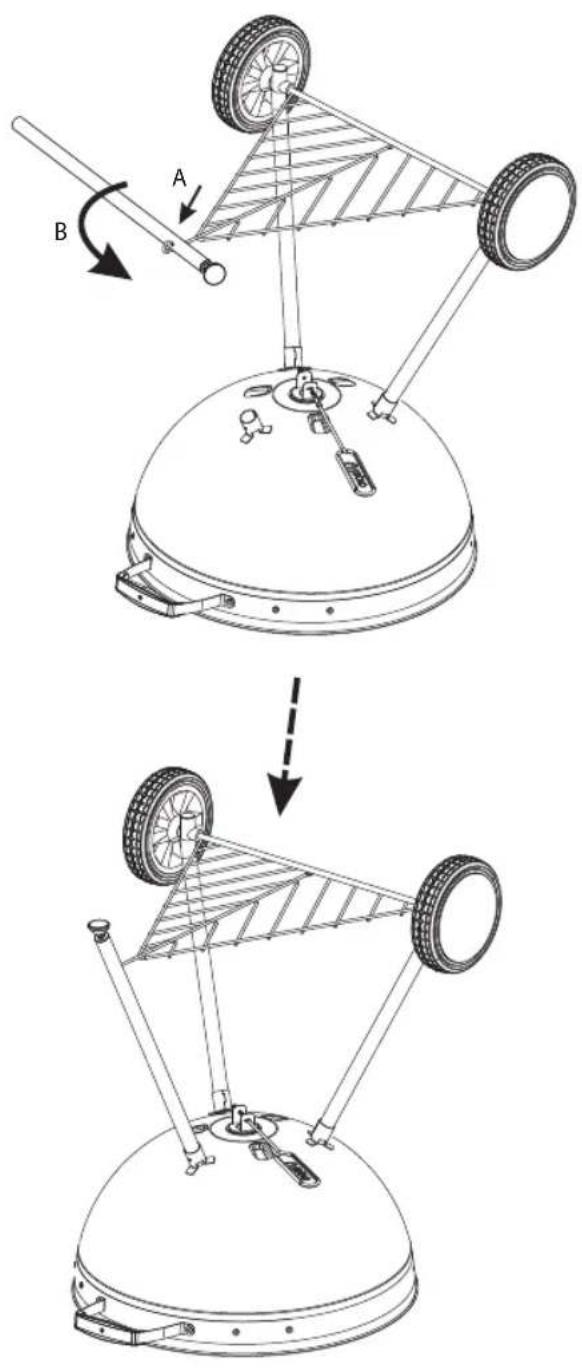

1. Attach the wheel legs (10,13), wheels (14) and wheel hub caps (15) to the base rack (11). Note the R and L markings on the legs and place the wheels with the wedge toward the inside.

lefts rights A B C D

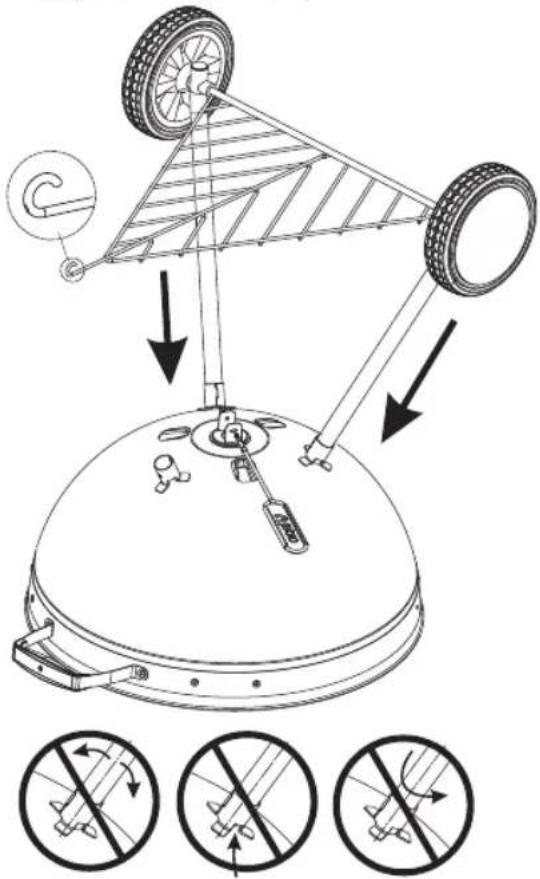

1. Attach the wheel legs (10,13) and base rack (11) to the fire bowl (9). Attention! Just plug in the wheel legs, do not turn them.

Diagram illustrating the mechanical assembly of a satellite or spacecraft with labeled components and directional arrows indicating rotational motion.

24

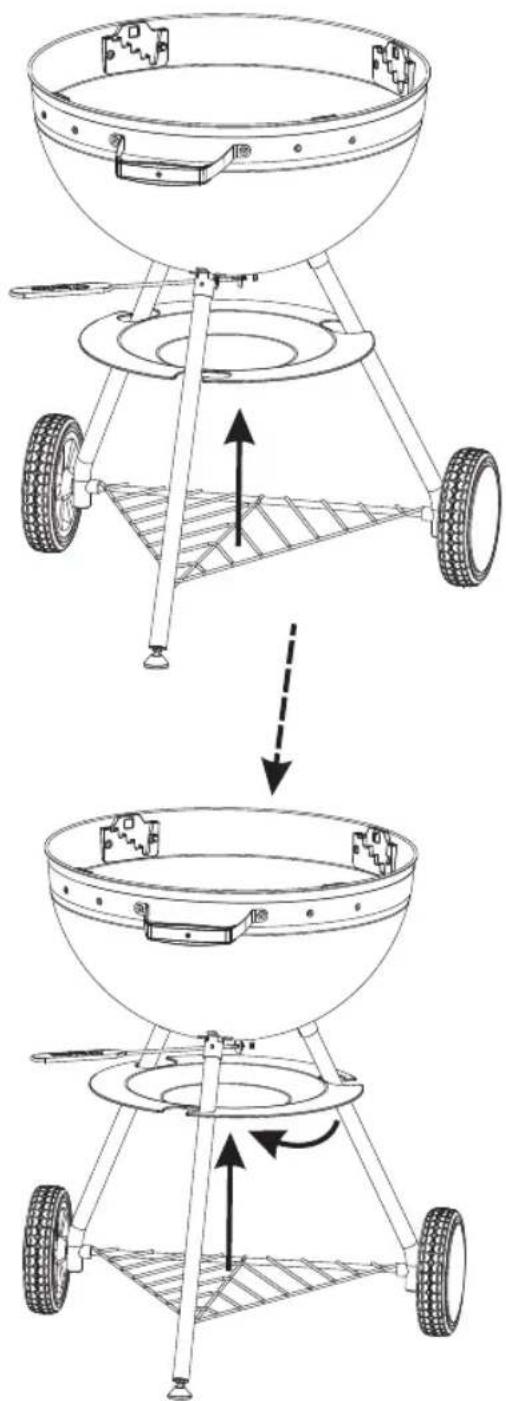

1. Hook the front leg (12) to the base rack and then plug it under the fire bowl. Attention! Just plug in the front leg, do not turn it.

2. Insert the ash collecting tray (20) with the "Front" marking towards the front leg.

Diagram illustrating the mechanical assembly of a satellite or spacecraft, showing wheel positioning and rotation steps labeled A and B.

Diagram illustrating the step-by-step installation of a portable grill with wheels and a roof structure, showing motion direction and assembly.

GB

1. Put in the charcoal grate (7).

Line drawing of a portable grill with wheels and a lid, showing structural components (no text or symbols)

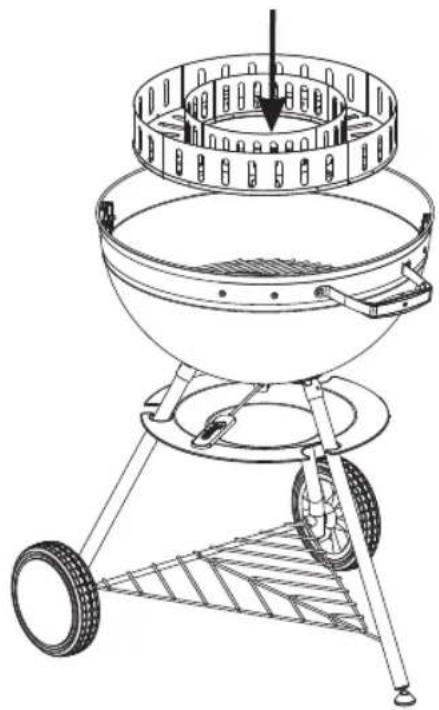

1. Put in the charcoal dividers (16).

Line drawing of a portable grill with a circular top and wheels, no text or symbols present

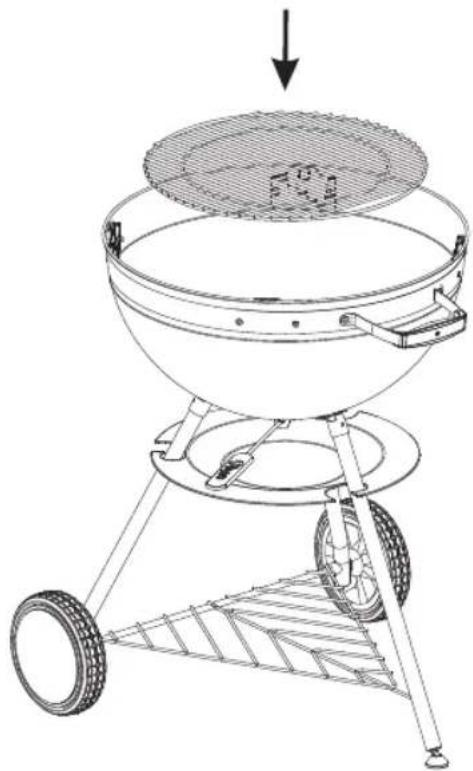

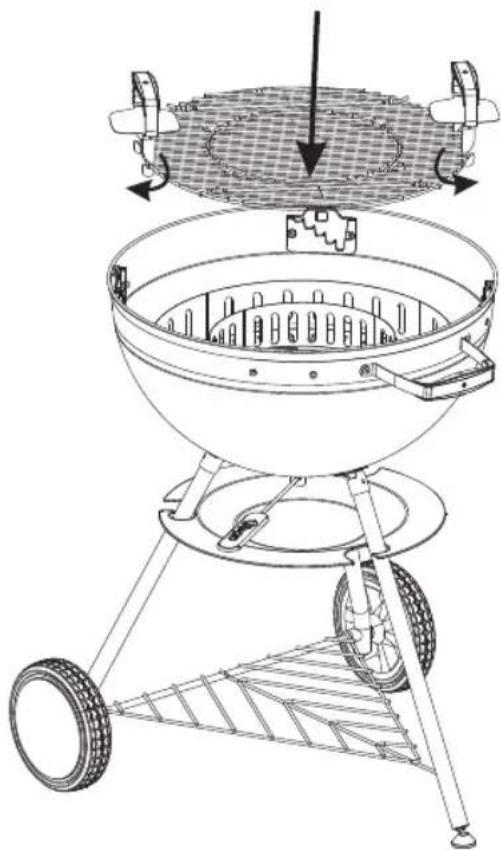

1. Place the BBQ grate (5) with the BBQ grate handles (6) on the functional part (17).

Line drawing of a portable grill with a gridded lid and wheels, showing structural components (no text or symbols)

1. Attach the lid handle (1).

A B

26

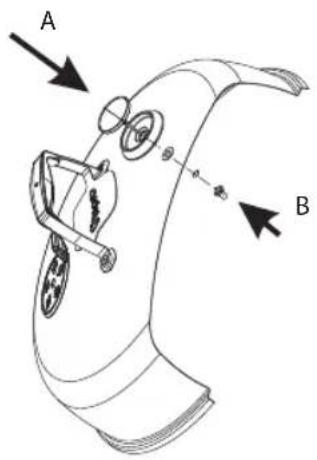

1. Attach the thermometer (2) to the lid (3).

Attach the parts to the inside of the cover in the following order: washer, snap ring, thumbscrew.

A B

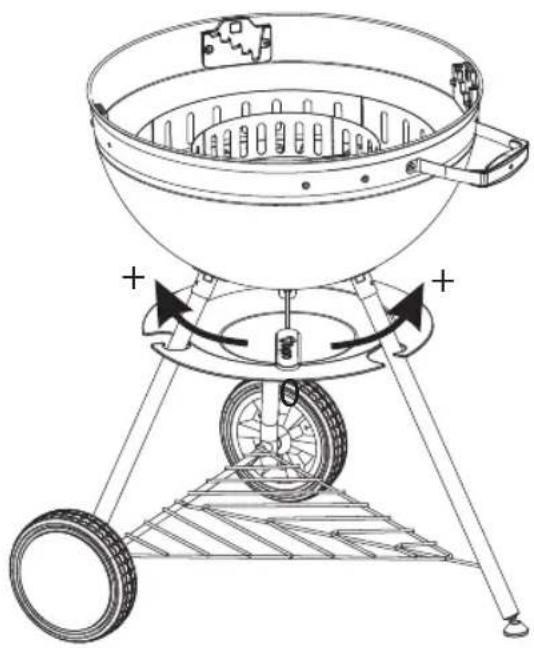

1. Test the ventilation system.

Line drawing of a portable grill with wheels and a central dish, showing heat transfer arrows (no text or symbols)

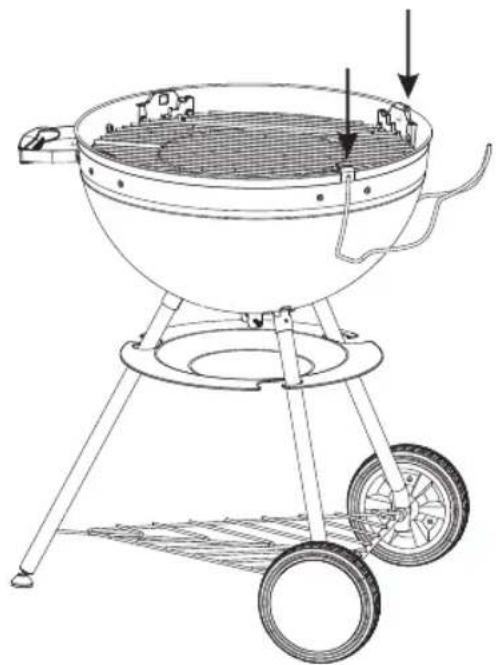

1. Hook the lid holder (21) into the grooves of the functional part (17) at the fire bowl.

Line drawing of a portable grill with wheels and a side-mounted dish (no text or symbols)

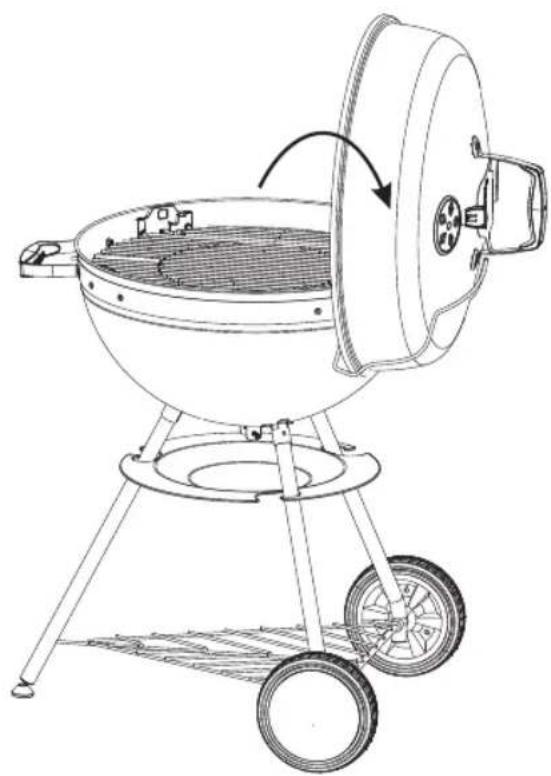

1. Hook in the lid (3).

Line drawing of a portable grill with wheels and a lid, showing heat transfer or cooling mechanism (no text or symbols)

GB

Line drawing of a simple outdoor grill with a dome-shaped top and wheels (no text or symbols)

Important: All screws must be tightly fastened.

Setting up the BBQ

Attention Risk of damage!

During use, the screws can loosen slowly and impair the BBQ's stability.

- Check the stability of the screws prior to each use. If necessary, tighten all of the screws again to ensure the BBQ is standing securely.

- Before use, place the BBQ on an even, sturdy surface outdoors.

Before grilling

- Prior to first use, wash the BBQ grate insert and the BBQ grate (4,5) in warm soapy water.

- Pre-firing

Prior to the first grilling, the BBQ must be pre-fired for a minimum of 30 minutes at a temperature of 100 °C - 200 °C.

This is necessary in order to make the inside ready for barbecuing.

Operation

Danger Risk of burning!

The BBQ, the charcoal and BBQ meat become very hot during use. Any contact can result in serious burns.

- Keep sufficient distance from the hot parts, since any contact can lead to severe burns. Always wear oven or BBQ gloves when grilling.

- Use only long-handled utensils with heat-resistant grips.

- Do not wear any clothing with wide sleeves.

- Use only dry lighters or special fluid lighters compliant with EN 1860-3 as firelighters.

1. Remove the lid, and the BBQ grate with the BBQ grate insert.

2. Place 1-2 solid firelighters in the middle of the charcoal grate (7). Pay attention to the manufacturer's instructions on the packaging. Light the firelighters with a match.

3. Layer a maximum of 1 kg of charcoal around the firelighters.

4. Prior to first use, the BBQ must be pre-fired for a minimum of 30 minutes. See section Before grilling.
5. As soon as the charcoal is glowing, spread them as needed on the charcoal dividers (16). To do this, use a suitable fireproof tool with a long, fireproof handle.
6. The ventilation lever (19) is used to regulate the air supply and this can thereupon be controlled. To do this, look for the "+" and "-" signs on the ash collecting tray (20). The more the ventilation lever is set to "-", the less air is supplied.
7. Only place the BBQ meat on the grate when the charcoal is covered with a bright layer of ash.
8. Place the BBQ grate on the bracket in the fire bowl.
9. In the direct grilling method, the BBQ meat is placed directly over the evenly distributed coals on the BBQ grate and cooked at high temperatures of approx. 280 °C to 320 °C. This method is suitable for sausages and meats that are grilled for no longer than 25 minutes.

10. Set the lid on the BBQ to prevent the formation of flames. Regulate the air supply with the ventilation disc on the lid and on the ash tray. From time to time, check the BBQ meat and turn it around. Prevent the BBQ meat from becoming too dark.

11. In the indirect grilling method, the charcoal is separated with the help of the charcoal dividers (16) and placed laterally on the charcoal grate. The BBQ meat is placed in the centre of the BBQ grate insert. If necessary, place an aluminium tray between the charcoal dividers to collect fat or gravy. All 4 charcoal dividers plugged together make up a ring. This method is suitable, for example, for whole chicken and roasts, but also for bread and pizza. Always close the lid for indirect grilling and regulate the air supply with the ventilation disc. It is not necessary to turn the BBQ meat. The temperature should be between 180 °C and 220 °C.

12. With matching inserts, the BBQ grate can be used for different purposes. You can find further information in the chapter 'Matching Accessories' starting page 32.

Maintenance and Cleaning

Your grill is made of high-quality materials. To clean and maintain the surfaces, please heed the following instructions:

Danger Risk of burning!

Let the grill cool down completely before cleaning.

- Only tip out the ash when the fuel has completely burned out.

Danger Health risk!

Do not use any decolourants or thinners to remove stains. These are harmful to health and must not come into contact with food.

Attention Risk of damage!

Do not use any strong or grinding solvents or abrasive pads, since these can attack the surfaces and leave behind scrape marks.

• Let the fuel burn out completely after grilling. This eases the cleaning effort by burning away excess fat and BBQ residues.
• Remove the cold ashes. It is very important you remove the ash before moisture comes into contact with the cold ash. Ash contains salt and affects the inside of the ash collection tray when damp. Therefore the ash collection tray can be damaged by rust over the years.
• Clean the BBQ regularly, at best after every use.
• Remove the BBQ grate insert and the BBQ grate (4,5) and clean the parts thoroughly with soapy water. Rinse the parts with clear water. Dry the BBQ grate insert and the BBQ grate thoroughly.
• Use a wet sponge to remove loose residue from the grill.
• Use a soft, clean cloth for drying. Do not scratch the surfaces when wiping them dry.
• Clean the internal and external surfaces generally with warm, soapy water.
• Tighten all screws before every use to guarantee the stability of your BBQ at all times.
• IMPORTANT: The BBQ should always be stored somewhere where it is protected from moisture.

Disposal

The packaging is made from environmentally friendly materials, which you can dispose of at your local recycling points.

Do not under any circumstance dispose of the BBQ in normal household waste! Dispose of it at an approved disposal business or at your community disposal facility. Respect the currently valid regulations. If in doubt, get in touch with your disposal facility.

Declaration of conformity

This product is in compliance with the applicable European and national Directives (DIN EN 1860-1).

Technical details

Product: Item No. 1116

"Pensacola" Kettle Grill

Weight: approx. 17.5 kg

Overall dimension,

BBQ assembled: approx. 66 x 60 x 102

cm (W x D x H)

Grill surface: approx. ∅ 43.5 cm

Max. amount of

fuel: 1 kg max.

Service

Please contact our service point for assistance with technical questions. This product was carefully manufactured and packaged. Should you nevertheless have a complaint, our employees are more than happy to assist.

Subject to technical modifications and typographical errors.

Distributor

tepro Garten GmbH

Matching accessories (not included in the delivery scope)

Available over-the-counter and online.

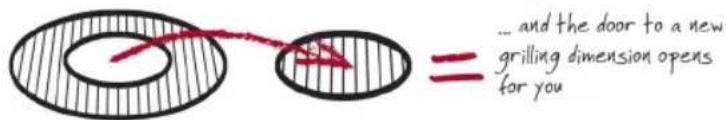

Step 1: Remove the centre of the grid

... and the door to a new grilling dimension opens for you

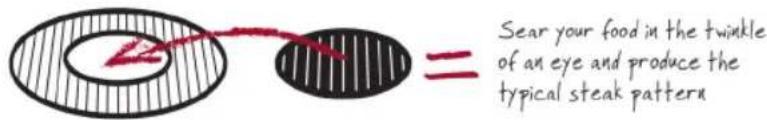

Step 2: Attach the desired rack inlay

Sear your food in the twinkle of an eye and produce the typical steak pattern

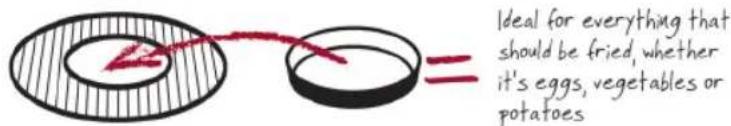

Ideal for everything that should be fried, whether it's eggs, vegetables or potatoes

Cast Iron BBQ Grate Insert

tepro Item Number 8574

Circular object with horizontal parallel lines, resembling a mesh or filter (no text or symbols)

Cast Iron Pan Insert

tepro Item Number 8576

Black oval-shaped baking pan with side handles (no text or symbols visible)

• For inserting into the grate in the grate system, approx. 47 ~cm
• Cast iron BBQ grate, approx. 23.6 cm ∅

- For inserting into the grate in the grate system, approx. 47 cm ∅

- Cast iron pan, approx. 23.5 ∅ x 3.5 cm

GB

Further matching accessories (not included in the delivery scope)

Available over-the-counter and online.

Universal Dust Cover for Kettle Grill (Small)

tepro Item Number 8602

White plastic bag with rounded edges and a small hole at the bottom (no visible text or symbols)

• Made from high-quality, durable, polyester fabric 300 x 250D
  – with water-repellent PVB coating
• resistant to UV rays
• ventilation holes
  – with Velcro fastener
  – Material: Exterior: PVB (polyvinyl butyral) Interior: 100% polyester
• Hood dimensions approx. 57 x 85 cm (∅xH)

Warming rack ∅ 47 cm, set of 2

tepro Item Number 8582

Simple curved line drawing with parallel lines, no text or symbols present

• For hooking into the Pensacola (Item 1116) and Philadelphia (Item 1118) 47~cm
• 2 chrome-plated warming racks, surface approx. 28.1 × 10.8 cm each
