Product Type	Freestanding Dishwasher
Capacity	12 place settings
Dimensions (H x W x D)	850 x 598 x 598 mm
Net Weight	47 kg
Operating Voltage / Frequency	220-240 V, 50 Hz
Total Current	10 A
Total Power	900 W
Water Supply Pressure	0.03 – 1 MPa
Energy Efficiency Class	A++
Annual Energy Consumption	258 kWh/year (based on 280 cycles)
Annual Water Consumption	3360 L/year (based on 280 cycles)
Drying Efficiency Class	A
Noise Level	52 dB(A) re 1 pW
Programs	Prewash, Quick 40°C, Eco 50°C, Super 50', Intensive 65°C, Hygiene 70°C
Control Panel	Buttons with LED indicators for program, delay, half load, child lock, salt and rinse aid warnings
Water Softener	Adjustable hardness level (1-6) with test strip
Rinse Aid Dispenser	Adjustable dosage (5 levels)
Salt Dispenser	Approx. 1 kg capacity; refill every 20-30 cycles
Safety Features	Child lock, auto shut-off on door opening, overflow protection, anti-flood system
Cleaning and Maintenance	Removable filters (micro, coarse, metal); clean weekly; spray arms removable for cleaning
Special Features	Half load option, delay timer (3/6/9h), tablet detergent option, mini active drying unit
Warranty	Subject to installation by authorised agent; use only original spare parts

Frequently Asked Questions - LC12A15BIX VOX

What should I do if the dishwasher does not start?

Check that the appliance is plugged in and switched on via the On/Off button. Ensure the door is properly closed, the water tap is open, and the fuse hasn't blown. If still not starting, inspect the water inlet hose and filters for blockages.

Why is water remaining inside the dishwasher after a cycle?

This may be due to a clogged or kinked drain hose, or dirty filters. Check the drain hose for obstructions and clean the filters. Also ensure the programme has fully completed.

How can I adjust the water softener setting?

Turn on the machine, then immediately press and hold the Up button for at least 3 seconds until all LEDs blink once. Use Up/Down to change the hardness level (default 3). Turn off the machine to save the setting. Refer to the water hardness table in the manual.

What type of detergent should I use?

Only use detergents specifically designed for domestic dishwashers. For combined detergents (e.g., 2-in-1, 3-in-1), activate the Tablet option on the control panel. Do not use combined detergents in short programmes.

Why are there white stains on my dishes?

White stains are usually due to insufficient detergent, low rinse aid dosage, or high water hardness. Increase the rinse aid setting and check the water softener level. Ensure the salt compartment cap is tightly closed.

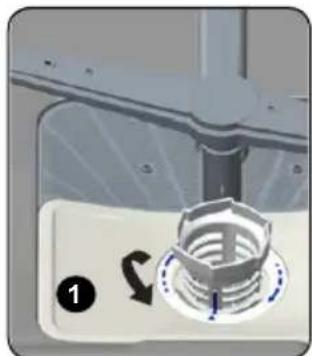

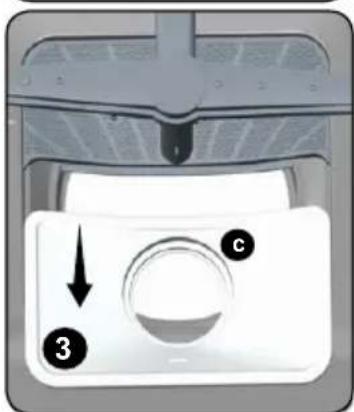

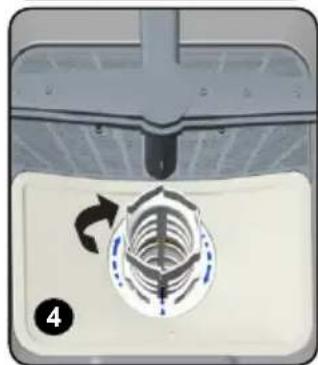

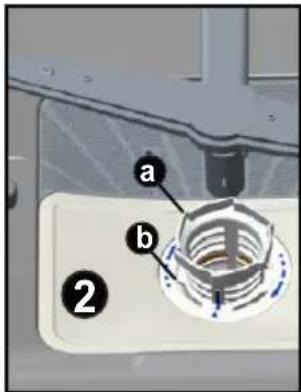

How do I clean the filters and spray arms?

Clean filters at least once a week. Remove the filter assembly by turning counterclockwise, separate the coarse and micro filters, and rinse under water. For spray arms, check for clogged holes and clean with a thin object. Remove upper spray arm by turning the nut clockwise.

Why are dishes not drying properly?

Ensure a programme with a drying step is selected (short programmes may not include drying). Increase the rinse aid dosage. For better drying, leave the door slightly open at the end of the cycle. The mini active drying unit improves performance.

Can I open the door during a cycle?

Press Start/Pause to pause the machine before opening. If opened during operation, hot water may spill. The machine stops automatically when the door is opened. Close the door and press Start/Pause to resume.

How do I activate the child lock?

Simultaneously press and hold the Tablet and Delay buttons for 3 seconds. The child lock LED will illuminate. When active, pressing any button causes all LEDs to blink. Repeat the same action to deactivate.

What does the error code mean when Wash, Dry, and End LEDs are flashing?

Check the troubleshooting section: for insufficient water, ensure tap is open and inlet hose filter is clean. For continuous water input, close tap and contact service. For inability to drain, check drain hose and filters. For other codes, contact an authorised service agent.

USER MANUAL LC12A15BIX VOX

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

SRB

MKD

SVN

HRV

PRT

LC12A15-BIX

OPERATING INSTRUCTIONS DISHWASHER UPUTSTVO ZA UPOTREBU MAŠINA ZA SUDOVE УПАТСТВА ЗА РАКУВАНЬЕ МАШИНА ЗА МИЕНЬЕ САДОВИ NAVODILA ZA UPORABO POMIVALNI STROJ UPUTE ZA UPORABU PERILICA POSUĐA MANUAL DO USUÁRIO MÁQUINA DE LAVAR LOUÇA

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

LC12A15-BIX

OPERATING INSTRUCTIONS DISHWASHER

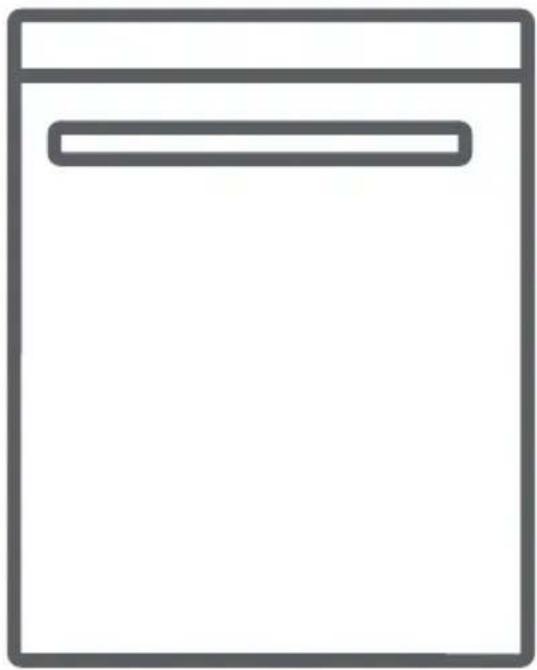

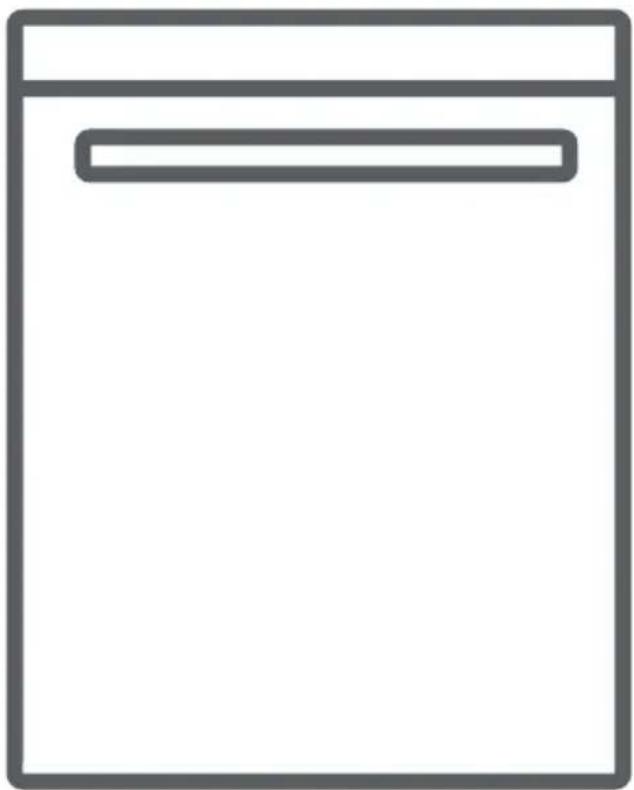

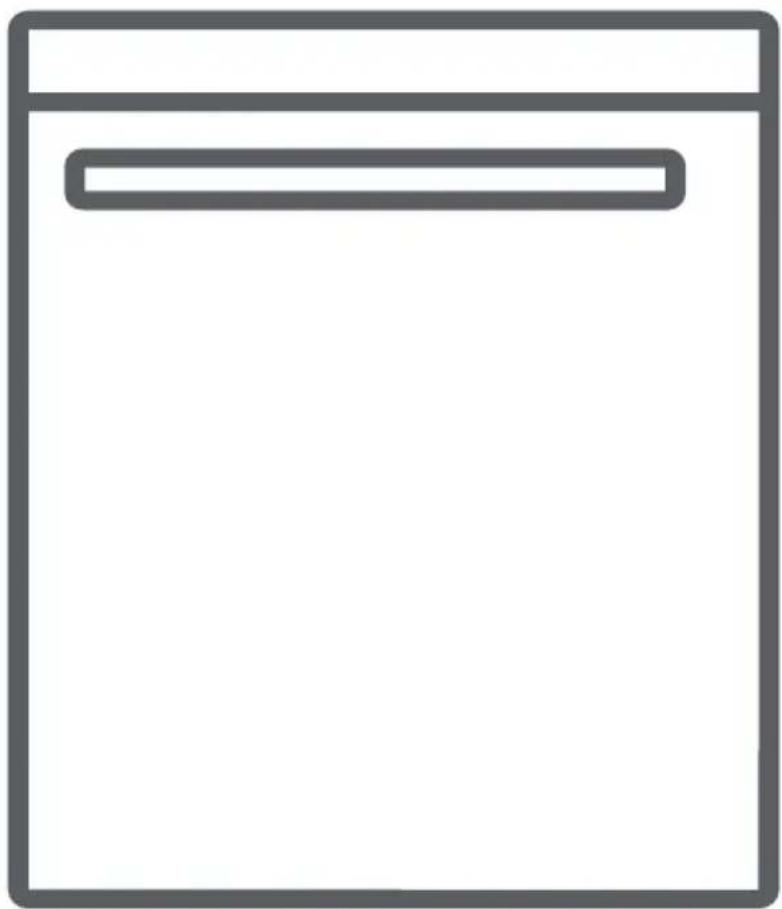

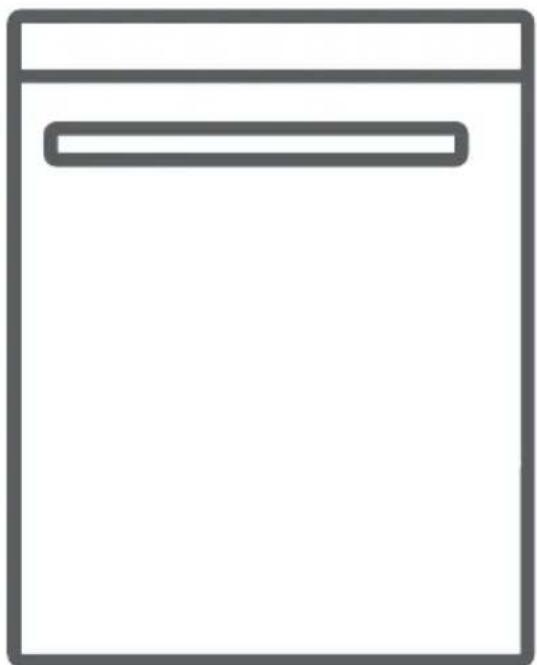

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Fire risk
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings .... 1
1.2. Installation Warnings .... 1
1.3. During Use....2

2.INSTALLATION....6

2.1. Machine Positioning ....6
2.2. Water Connection....6
2.3. Water Inlet Hose....6
2.4. Drain Hose....6
2.5. Electrical Connection ....7
2.6. Fitting the Machine Undercounter .....7

3.TECHNICAL SPECIFICATIONS......8

3.1. General Appearance....8
3.2. Technical Specifications 8

4.BEFORE USING THE APPLIANCE 9

4.1.Preparing your Dishwasher for first use 9
4.2. Fill the Salt....9
4.3. Test Strip 10
4.4. Water Hardness Table 10
4.5. Water Softener System 10
4.6. Setting 10
4.7. Detergent Usege 10

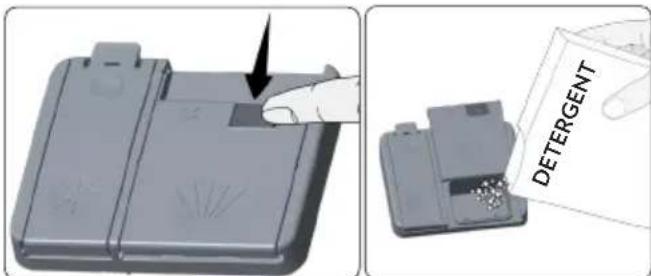

4.8. Filling the Detergent 11
4.9. Using Combined Detergents ...... 11
4.10. Rinse-aid Usege 11

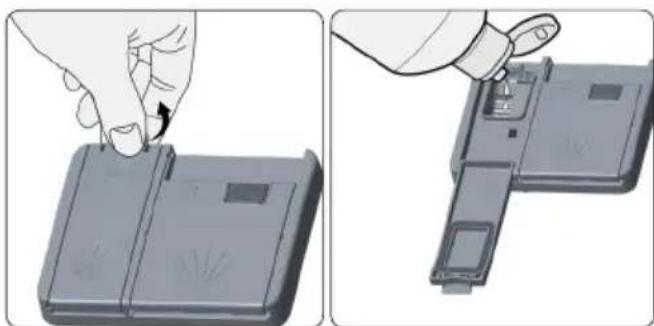

4.11. Filling the Rinse-aid and Setting.... 11

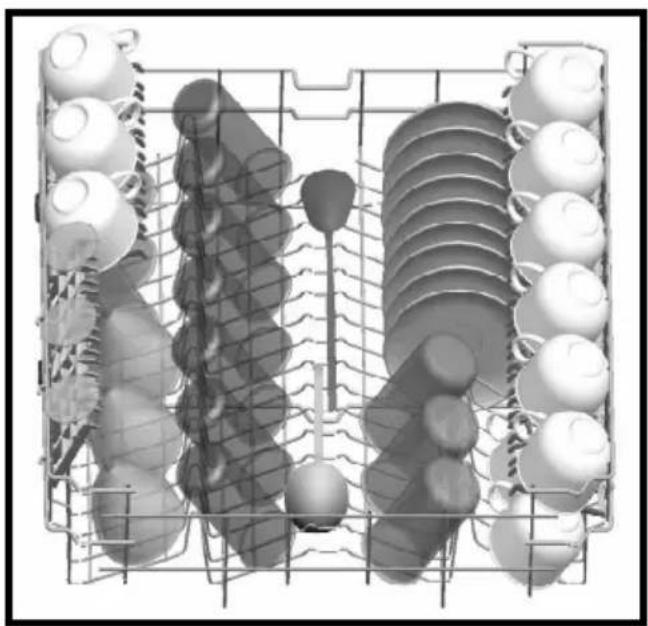

5.LOADING YOUR DISHWASHER 12

5.1. Recommendations....12

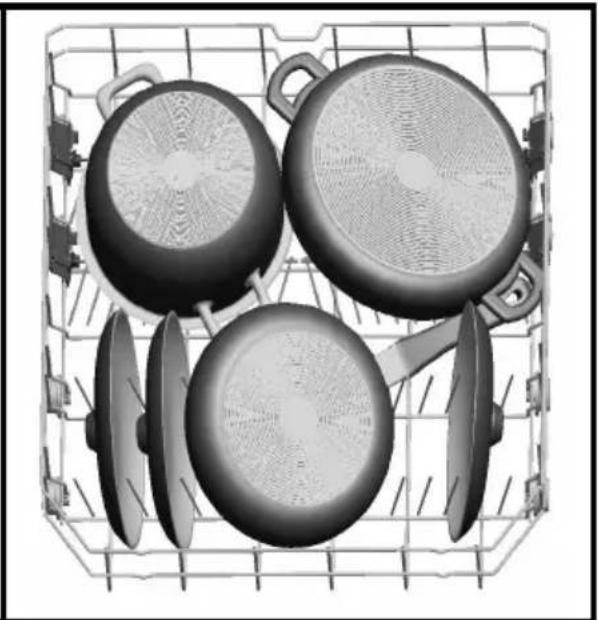

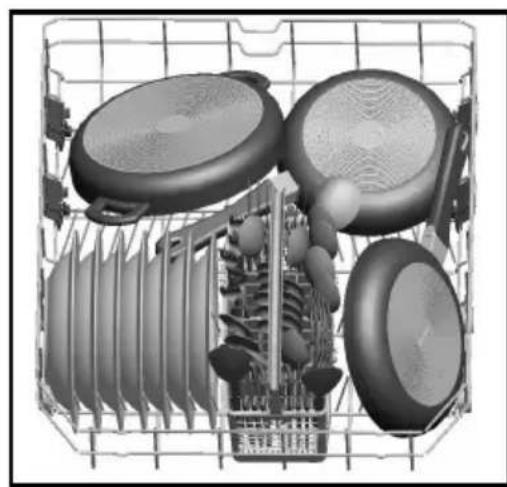

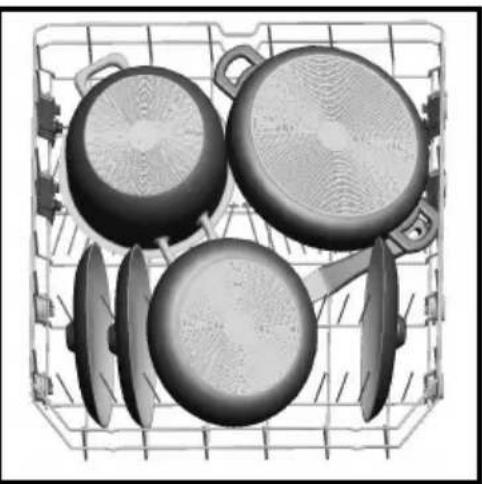

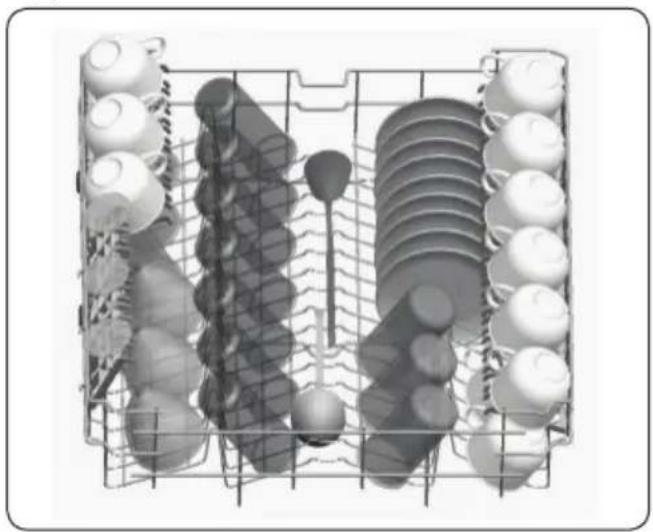

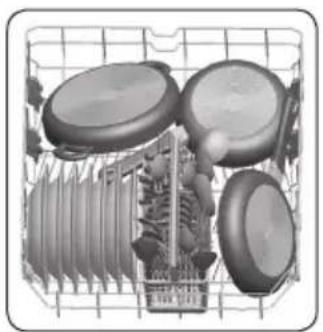

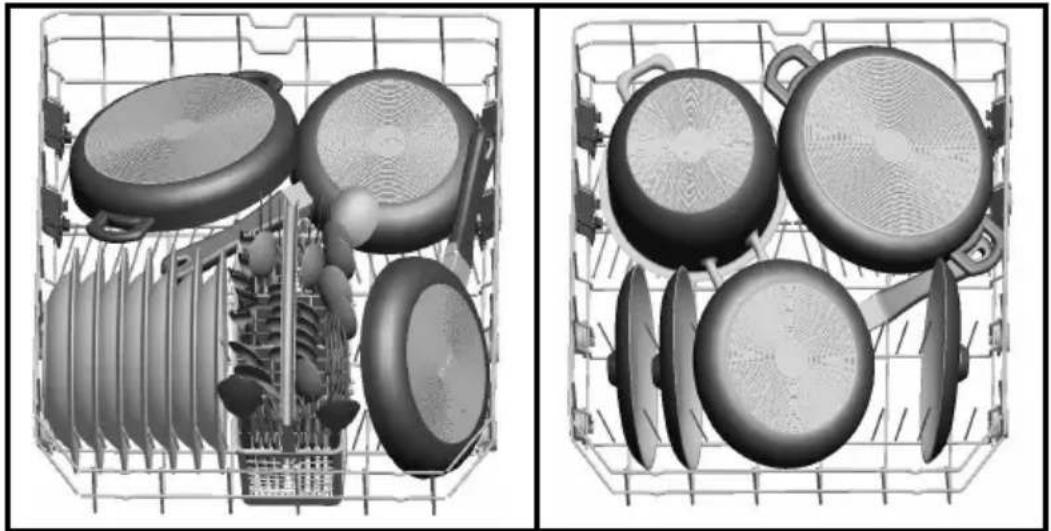

5.2. Alternative Basket Loads....13

6.PROGRAMME TABLE....14

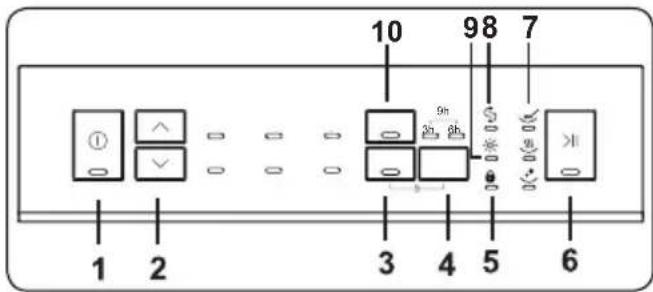

7. THE CONTROL PANEL.... 16

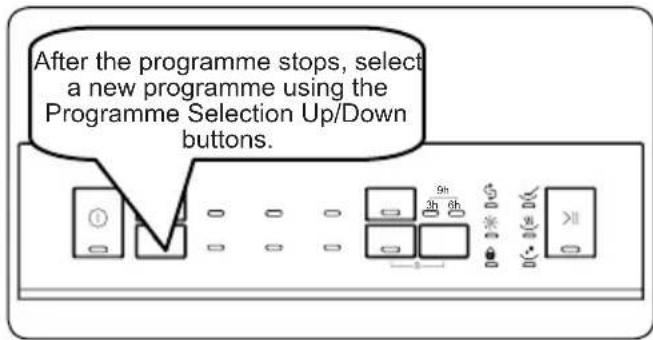

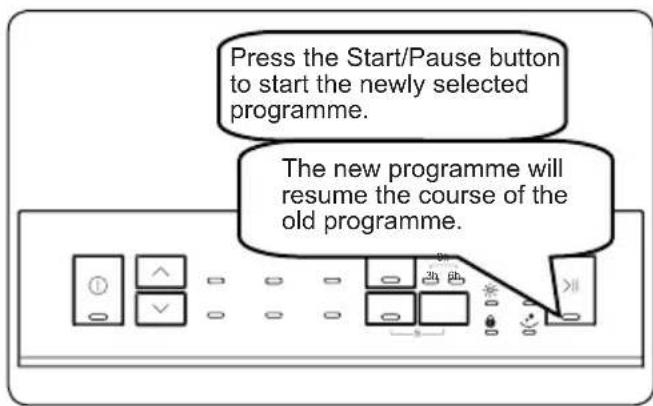

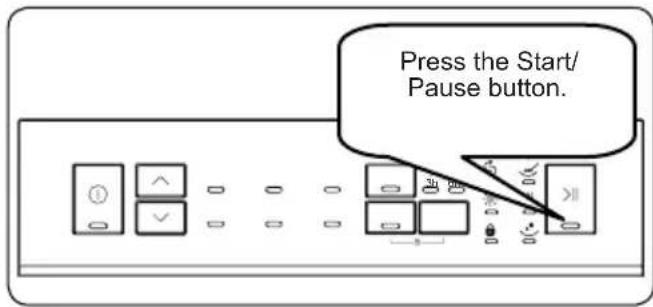

7.1. Changing a Programme.... 17

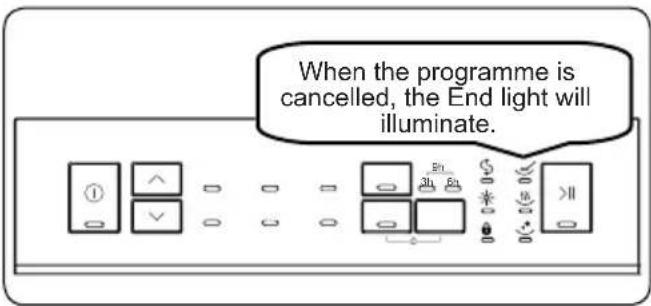

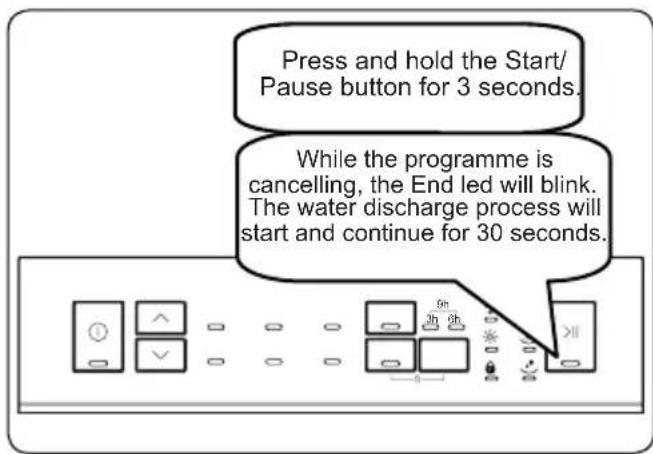

7.2. Cancelling a Programme.... 17

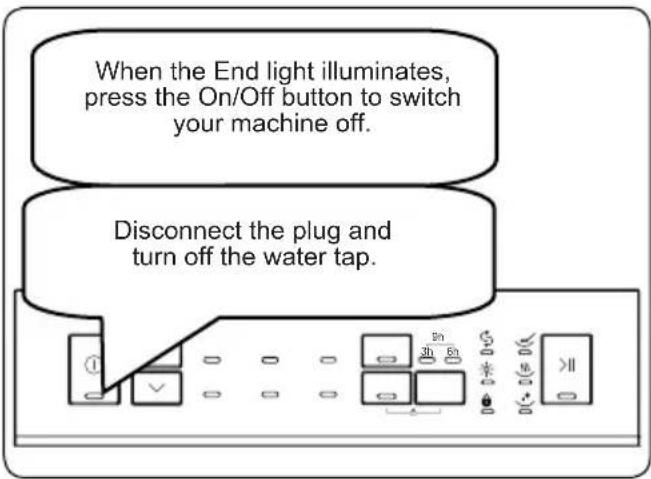

7.3. Switching the Machine Off....17

8.CLEANING AND MAINTENANCE 18

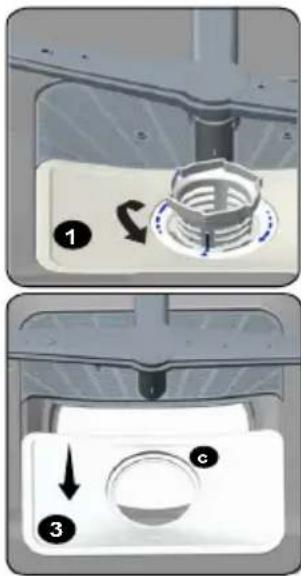

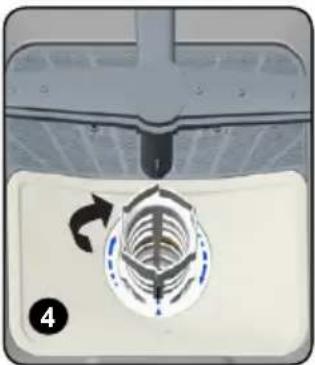

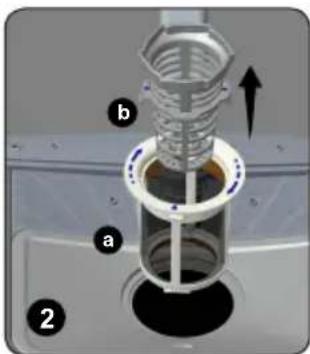

8.1. Cleaning the Machine and Filters.... 18

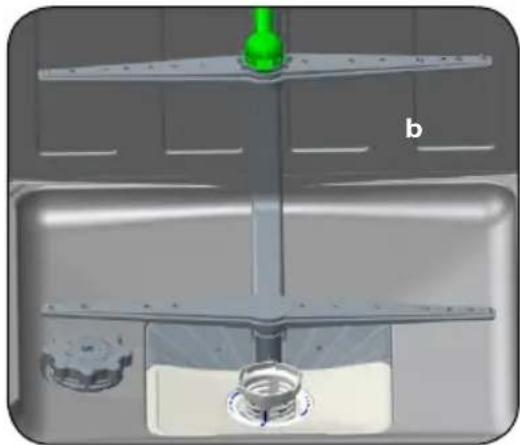

8.2. Spray Arms.... 18
9.TROUBLESHOOTING....19
10.PRACTICAL INFORMATION......21
11. THE PRODUCT FICHE....22

1.1. General Safety Warnings

- Read these instructions carefully before using your appliance and keep this manual for future reference.

⚠️ Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

⚠️ Remove packaging and keep it out of reach of children.

⚠️ Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

1.2. Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️ Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

⚠️ Always use the coated plug supplied with your machine.

△△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

1.3. During Usage

- This machine is for domestic use only; do not use

- it for other purposes. Commercial use will void the guarantee.

Do not stand, sit or place loads on the open door of the dishwasher.

⚠️ Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

Do not drink water from the machine.

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

- Check the heat-resistance of plastic items before washing them in the machine.

⚠️ Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

⚠️ Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

⚠️ The machine door should not be left open. It may cause accidents.

⚠️ Place knives and other sharp objects in the cutlery basket in a blade-down position.

⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only

be performed by an authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️ For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where the product was purchased.

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

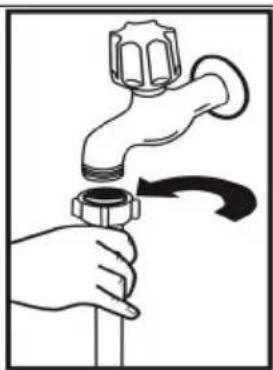

2.3. Water inlet hose

Illustration of a hand holding a faucet with a valve, no text or symbols present

WARNING: Use the new water inlet supplied with your machine, do not an old machine's hose.

WARNING: Run water through the new hose before connecting.

WARNING: Connect the hose ly to the water inlet tap. The pressure ied by the tap should be a minimum 3 MPa and a maximum of 1 MPa. If pressure exceeds 1 MPa, a pressure valve must be fitted between the ection.

WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the inlet tap after a wash program has need.

Simple line drawing of a faucet with a valve and base (no text or symbols)

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or ed.

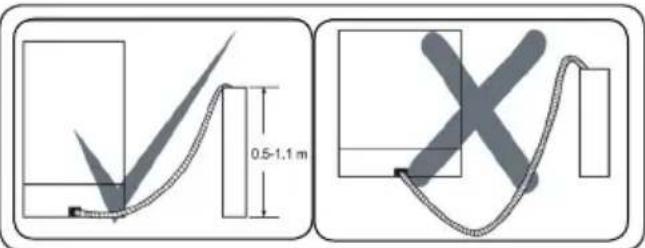

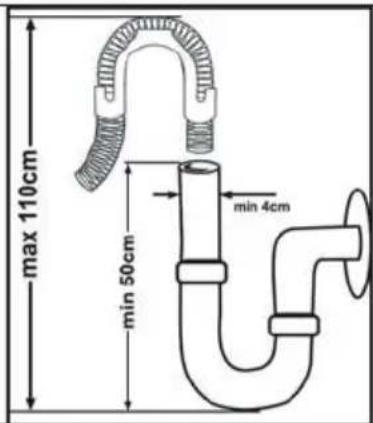

2.4. Drain Hose

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from flor plane.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.

2.5. Electrical connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 connect a transformer of 110/220 V and W between the electrical connection.

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The indoor fuse current value should be 10-16 A.

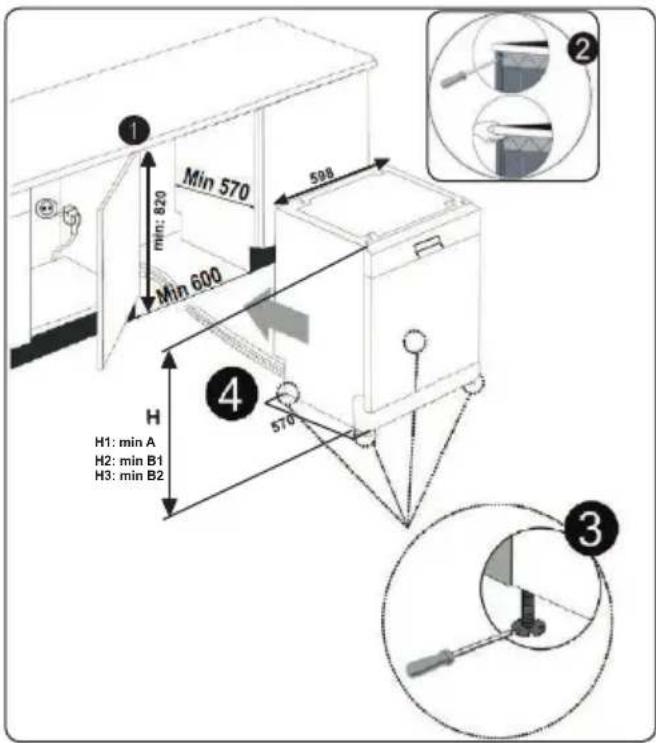

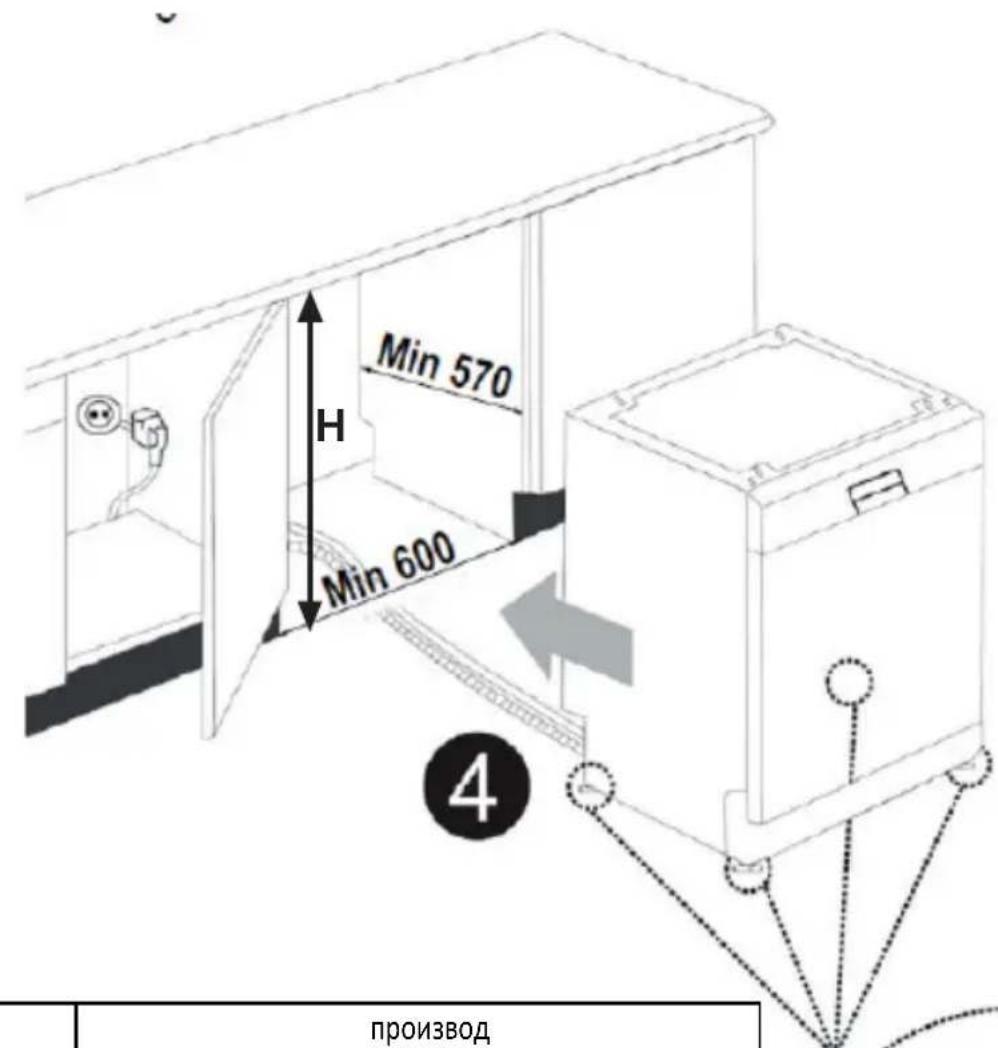

2.6. Fitting the machine undercounter

If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

WARNING: The countertop, of which the machine will be placed under, must be stable in order to prevent imbalance.

The top panel of the dishwasher must be removed to fit the machine under the countertop.

To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).

WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.

	A	B
	All Products	B_1	B_2
Product's Height (±2 mm) 820 mm	30 mm 835 mm

A: If there is no felt on the top of the product; you should take into account this product's height.

B1: If there is felt on the top of the product with 2nd basket; you should take into account this product's height.

B2: If there is felt on the top of the product with 3rd basket; you should take into account this product's height.

3. TECHNICAL SPECIFICATIONS

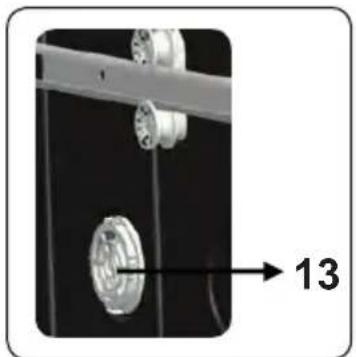

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

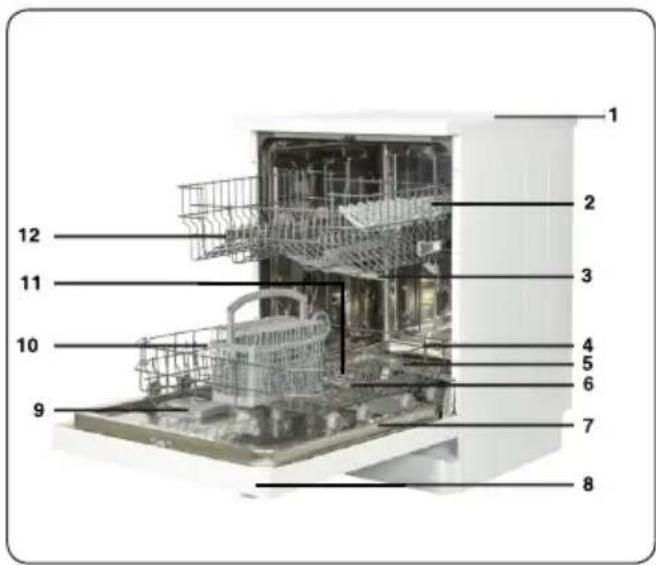

3.1. General appearance

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch
13. Mini Active Drying Unit: This system provides better drying performance for your dishes.

3.2. Technical specifications

Capacity	12 place settings
Dimensions
Height	850(mm)
Width	598(mm)
Depth	598(mm)
Net weight	47 kg
Operating voltage / frequency	220-240V50 Hz,
Total current	10(A)
Total power 1	900(W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

4. BEFORE USING THE APPLIANCE

4.1. Preparing your Dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
  • Fill the rinse aid compartment.

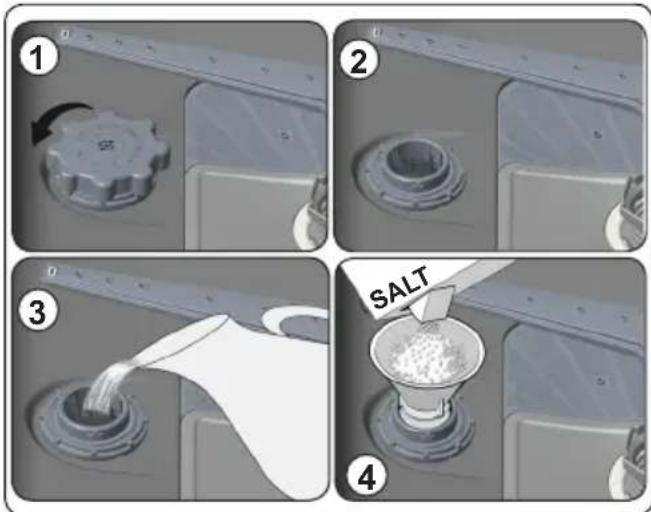

4.2. Fill the salt (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.E

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

4.3. Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip.	Wait (1min.)	Set the hardness level of your machine.

NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.4. Water Hardness Table

Level	German dH	French dF	British dE	Indicator
1 0-5	0-9 0-6 Wash LED is on.
2 6-11	10-20 7-14 Dry LED is on.
3 12-17	21-30 15-21 End button is on.
4 18-22	31-40 22-28	Wash and Dry LEDs are on.
5 23-34	41-60 29-42	Wash and End LEDs are on.
6 35-50	61-90 43-63			Dry and End LEDs are on.

4.5. Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use the test strip (if available).

4.6. Setting

• Turn on the machine by pressing On/Off button.
- Press Up button at least for 3" immediately after machine is turned on.
- Release Up button when all leds blink once. The last setting level is viewed.
- Press Up or Down button to increase or decrease the hardness level respectively.
• Turn off the machine to save the setting.

4.7. Detergent usage

Only use detergents specifically designed for domestic dishwashers.

Add the recommended amount of detergent for the selected programme to ensure the best performance.

Keep your detergents in cool, dry places out of reach of children.

See the detergent manufacturer's instructions for a further information.

4.8. Filling the detergent

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

4.9. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to correct level.

4.10. Rinse-aid usage

Rinse-aid makes dishes sparkle and helps them to dry without spotting. Rinse-aid is required for stain-free utensils and clear glasses. Use only rinse-aid for domestic dishwashers.

4.11. Filling the rinse-aid and setting

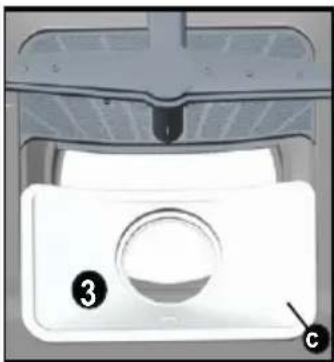

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Turn on the machine by pressing On/Off button.
• Press Up button at least for 5" immediately after machine is turned on.
• Release Up button when all leds blinks twice. The last setting level is viewed.
• Press Up or Down button to increase or decrease the hardness level respectively.
• Turn off the machine to save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration showing a hand inserting a component into a device, with no visible text or symbols.

Level Brightener Dose Indicator
1 Rinse-aid not dispensed		Wash LED is on.
2 1 dose is dispensed		Dry LED is on.
3 2 doses are dispensed		End LED is on.
4 3 doses are dispensed		Wash and Dry LEDs are on.
5 4 doses are dispensed		Wash and End LEDs are on.

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

We recommend that you place lare items (pots, pans, lids, plates and bowls) which are heavily soiled in the lower basket.

The upper basket is designed for delicate and lighter dishware such as glasses, coffee and tea cups and saucers. Position the dishes so that they will not get moved by the spray of water.

Cutlery should be placed in the cutlery basket. Items should be loaded individually into the appropriate slots with their handles downwards. Long utensils should be placed horizontally on the baskets.

WARNING: Take care not to obstruct rotation of spray arms.

5.1. Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

NOTE: Do not overload the drawers or e dishes in the wrong basket.

WARNING: Always place sharp sils with the sharp point down and open sils with their openings down.

Top basket

Fixed Rack

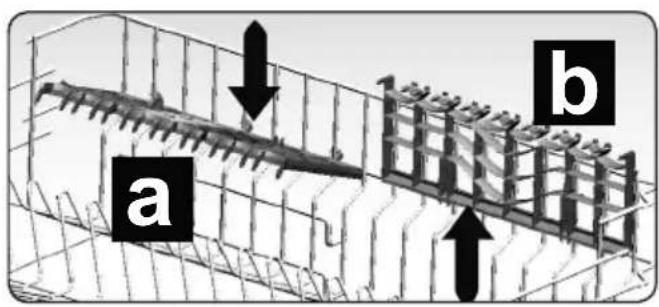

Upper basket racks have two positions: open (a) and closed (b). You can place cups on the racks to be washed. You can also place long forks, knives and spoons on the racks laterally.

Upper Basket

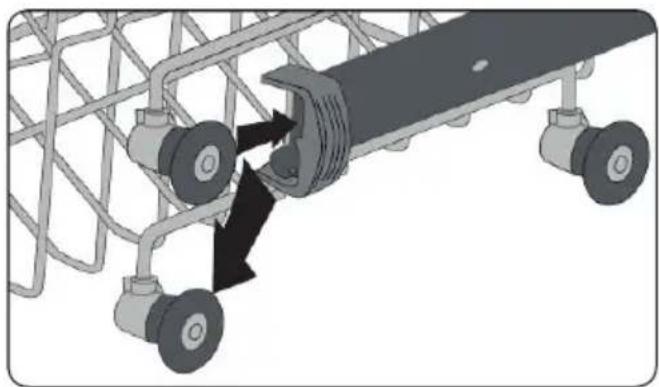

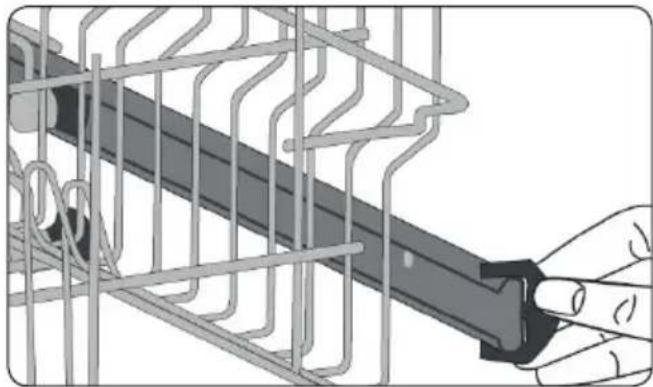

Height adjustment

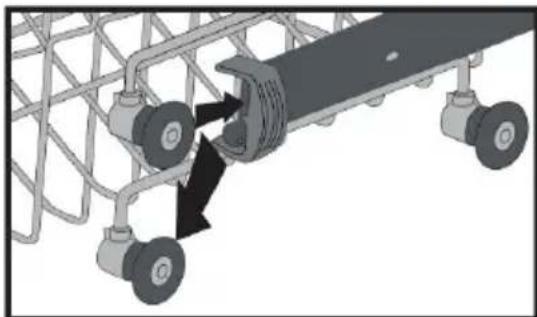

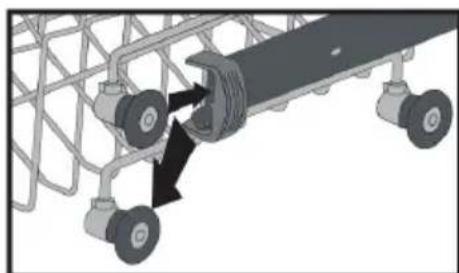

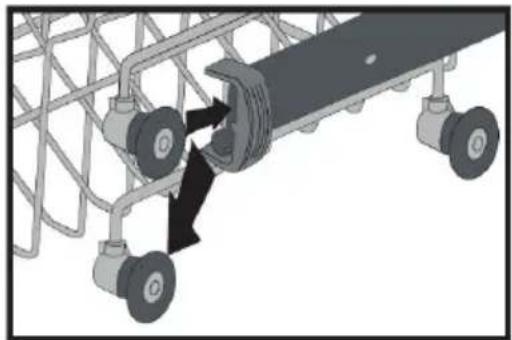

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a tool interacting with a wire mesh structure (no text or symbols visible)

Diagram of a mechanical assembly with wheels and a central component, showing directional arrows (no text or symbols)

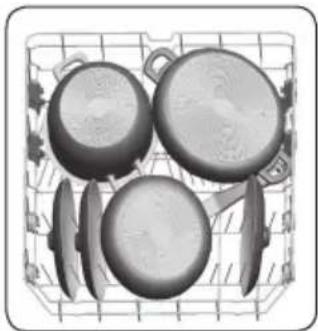

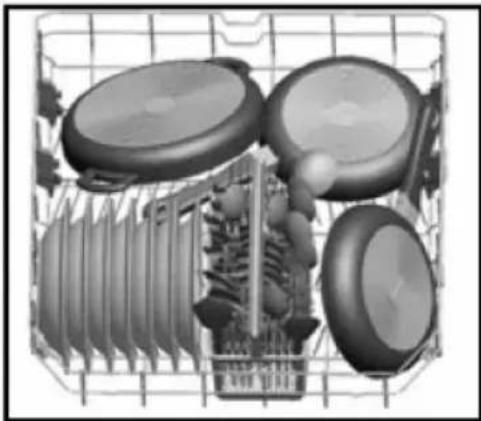

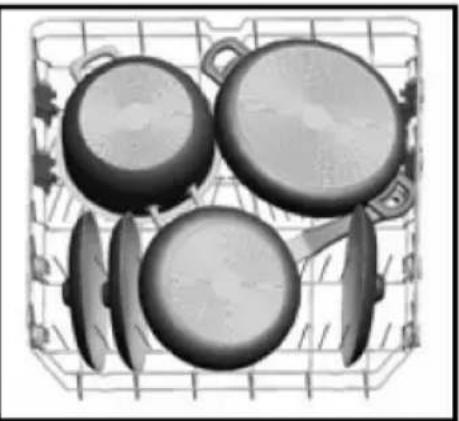

5.2. Alternative basket loads Lower basket

Illustration of a multi-tiered kitchen appliance in a grid box (no text or symbols visible)

Illustration of four cooking pots arranged in a grid (no text or symbols)

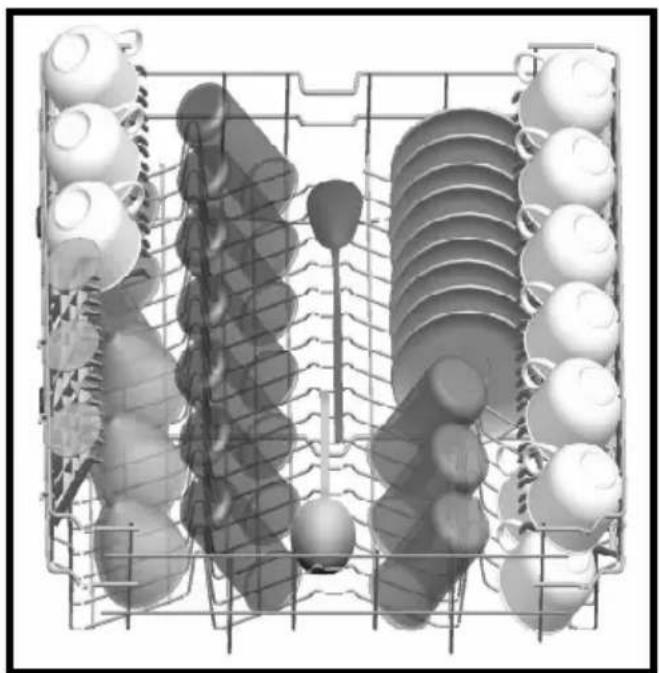

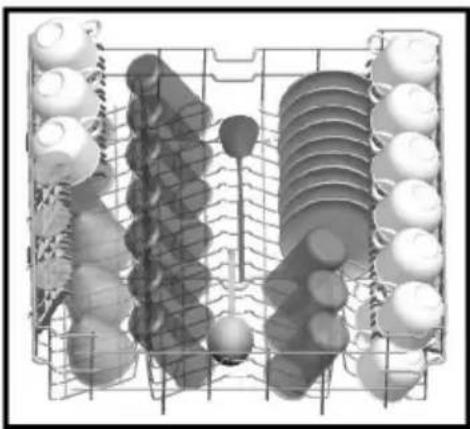

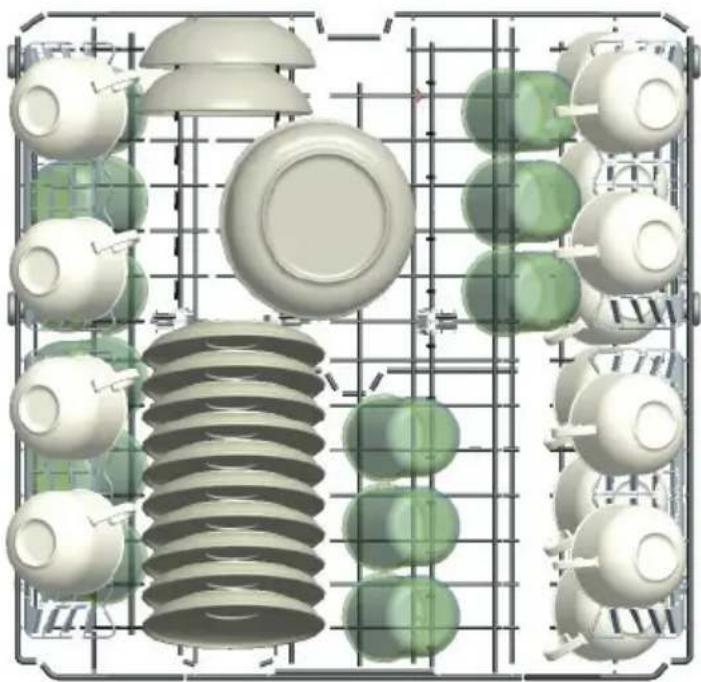

Upper basket

3D rendering of a grid-based storage or rack system with multiple cylindrical components and a central rod (no text or symbols visible)

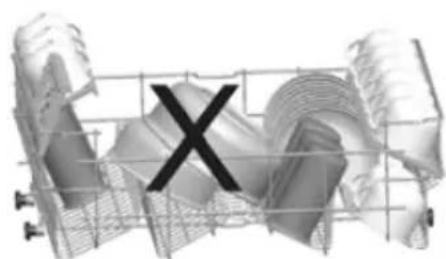

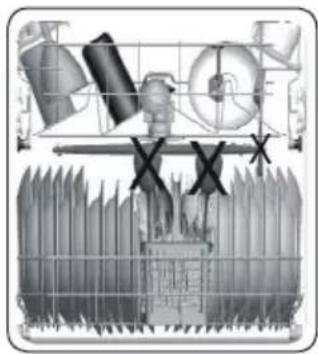

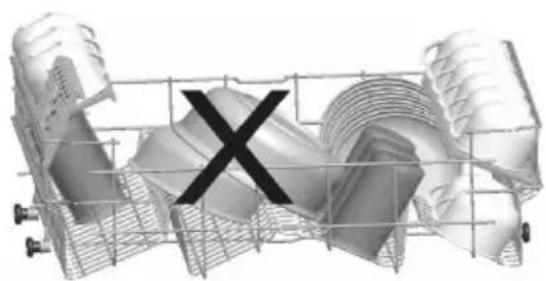

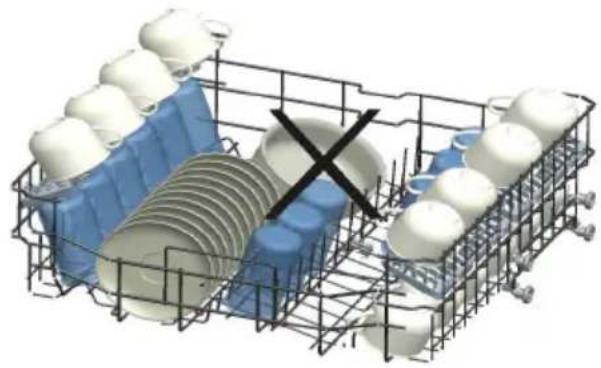

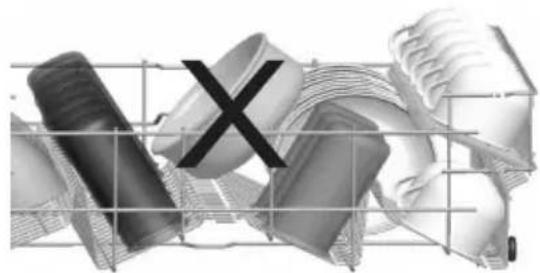

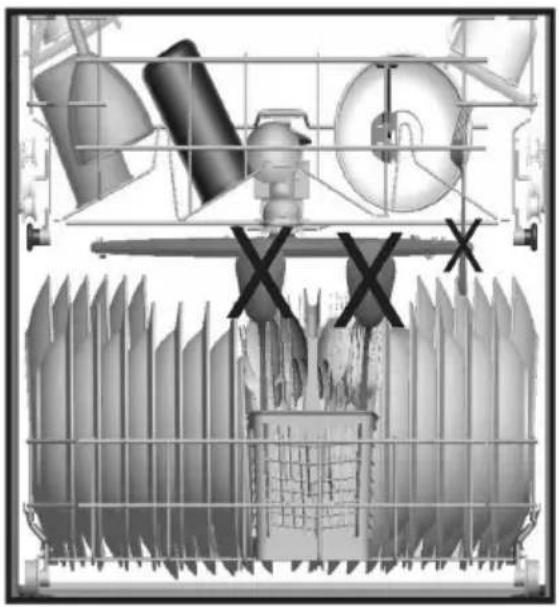

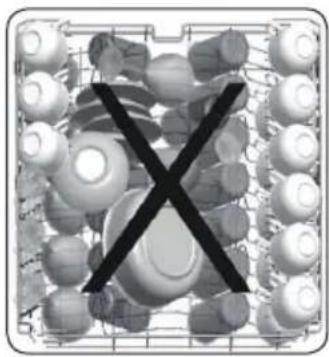

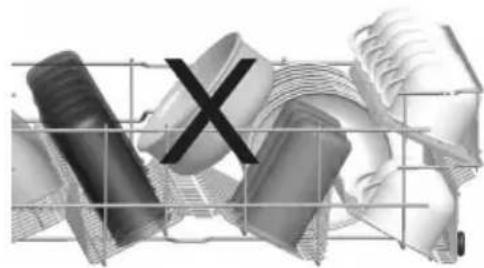

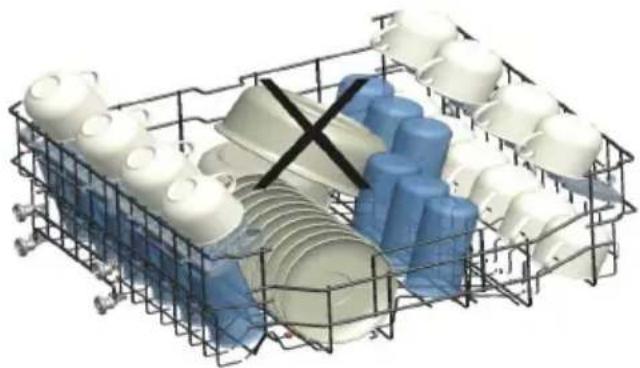

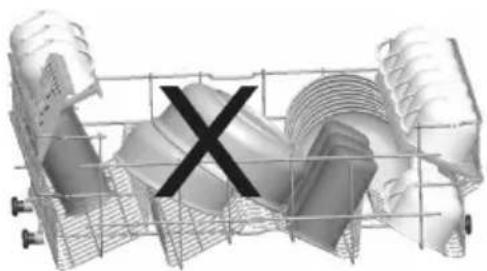

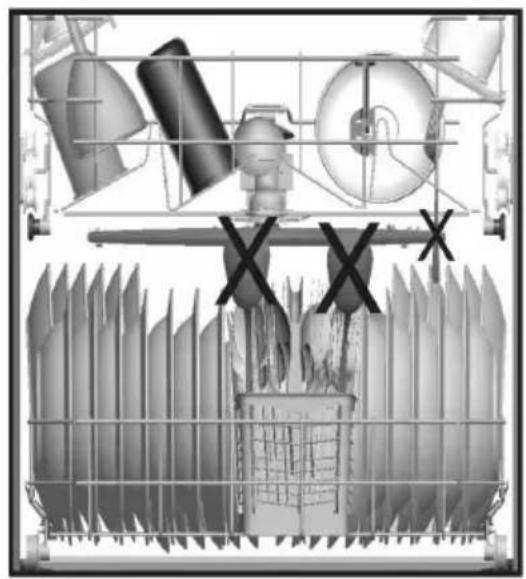

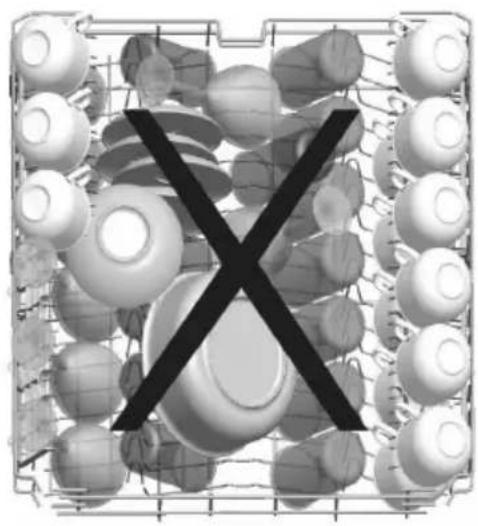

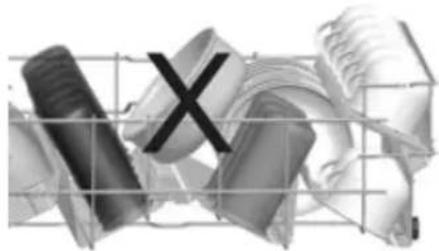

Incorrect loads

Black X symbol crossed over a grid of circular objects, no text or symbols present

Illustration of industrial machinery components with no visible text or symbols

Abstract grayscale image of fragmented 3D shapes with a central 'X' mark, no text or symbols present.

Abstract 3D wireframe structure with a large 'X' symbol overlay (no text or symbols present)

Unsuitable items for dishwashing

- Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials.

• Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
  • Temperature-sensitive plastics, copper or tincoated containers.
  • Aluminium and silver objects.
• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
  • Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase

dishwasher-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

6. PROGRAMME TABLE

Programme
Programme names and temperatures	Prewash Quick 40°C Eco 50°C
Type of food waste	Suitable to rinse dishes that you plan to wash later	Suitable for lightly soiled dishes and quick wash	Standard program for normally soiled daily using dishes with reduced energy and water consumptions.
Level of soil - small medium
Detergent amountB: 25 cm3 /15 cm3A: 5 cm3	- B A+B
	Prewash 40°C W	ash Prewash
	End Cold Rinse 50°C Wash
		Hot rinse Hot rinse
		End Dry
			End
Programme duration (min.) 15 30			205
Electricity consumption (kW hours)	0,02	0,90	0,90
Water consumption (litres)	4,5	12,4 12,0

WARNING: Short programs do not include a drying step. The values declared above

are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

6. PROGRAMME TABLE

Programme
Programme names and temperatures	Super 50' Intensive 65°C Hygiene 70°C
Type of food waste	Suitable for normally soiled daily dishes with faster program.	Suitable for heavily soiled dishes	Suitable for heavily soiled dishes requiring hygienic washing
Level of soil medium high high
Detergent amountB: 25 cm3 /15 cm3A: 5 cm3	A+B A+B A+B
	65°C Wash 45°C Prewash 50°C Prewash
	Warmish rinse 65°C Wash 70°C Wash
	Hot rinse Cold Rinse Cold Rinse
	End Hot rinse Hot rinse
		Dry	Dry
		End	End
Programme duration (min.)	50	117	127
Electricity consumption (kW hours)	1,35	1,61	1,8
Water consumption (litres)	12,7 17,2	16,5

7. THE CONTROL PANEL

1. On/Off Button

It turns on/off the energy of the machine when it is pushed, The On-Off lamp lights as long as the machine is on.

2. Program Selection Buttons

It is used for program selection with up/down buttons.

3. Tablet Option Button

It is used for selection for tablat option. If tablet option is activated, tablet lamp turns on. Select the Tablet Detergent option when using a combined detergent that contains salt, rinse aid or other extras. The Tablet Detergent Indicator will remain on for as long as it is selected.

4. Delay Button

It is used for activation of delay timer. When it is pushed once, 3h timer is activated. 6h and 9h delay timer is activated during consecutive pushes, respectively. If both delay leds are active, it means that 9h delay timer is active.

5. Child Lock Feature Led

This feature is activated by pressing both tablet and delay timer buttons at the same time during 3 seconds. If any button is pushed when the child lock feature is active, all leds blink.

6. Start/Pause Key

When you press the Start/Pause key, the programme you have selected with the programme selection button will start operating and the washing light will be on. After the programme has started, the Start/Pause light will go off. In the Stop (Hold) position, the Start/Pause light blinks while the washing light is lit.

7. Programme Monitoring Lights

You can monitor the programme flow with the programme lights on the control panel.

• W ash
• Rinse
• Dry
• End

8. Salt Missing Warning Indicator

Check the salt missing warning indicator light on the display to have an idea whether the softening salt in your machine is enough. When the salt missing warning indicator is lit, fill the salt compartment.

9. Rinse Aid Missing Warning Indicator

Check the rinse aid missing warning indicator light on the display to have an idea whether the amount of the rinse aid in your machine is enough. When the rinse aid missing warning indicator is lit, fill the rinse aid compartment.

10. Half Load Button

Thanks to the half load function in your machine, you can shorten the durations of the programmes that you have selected and reduce the energy and water consumption by using half load electricity and water.

7.1. Changing a Programme

Follow the steps below to change a programme while in operation.

7.2. Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

7.3. Switching the Machine Off

NOTE: Do not open the door before the programme is complete.

NOTE: Leave the door slightly open at the end of a wash programme to speed up the drying process.

NOTE: If the door of the machine is opened or the power is cut off during a wash programme, the programme will continue when the door is closed or when the power returns.

NOTE: If the power is interrupted or if the machine door is opened during the drying process, the programme will terminate and your machine will now be ready for a new programme selection.

8. CLEANING AND MAINTENANCE

Cleaning your Dishwasher is important to maintain the machine's service life.

Oil and lime may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue.

8.1. Cleaning machine and filters

Clean the filters and spray arms at least once a week. If any food waste remains on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter b) Coarse Filter
c) Metal Filter

Close-up of a mechanical component with a circular dial and directional arrow, no visible text or symbols

Close-up of a mechanical component with a circular component and directional arrow, no visible text or symbols

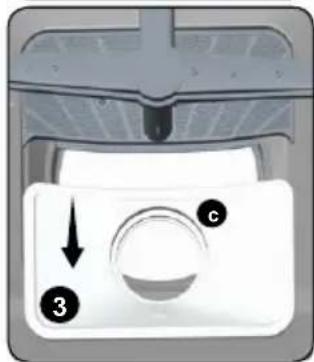

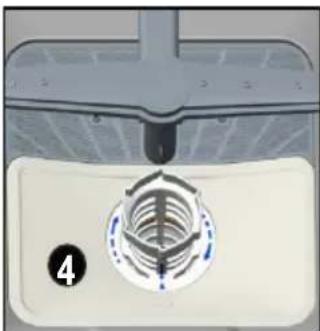

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble

the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your Dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

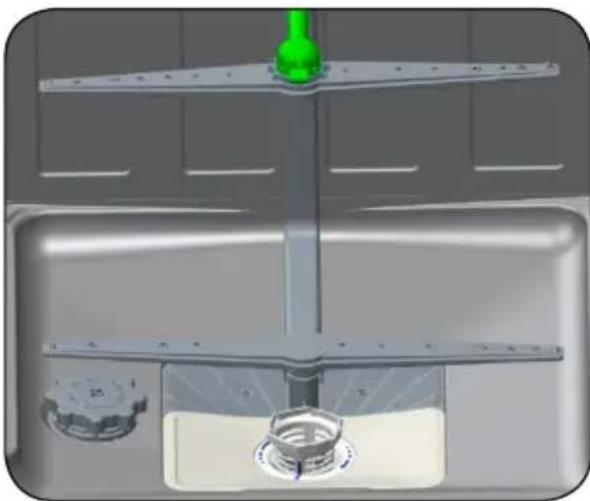

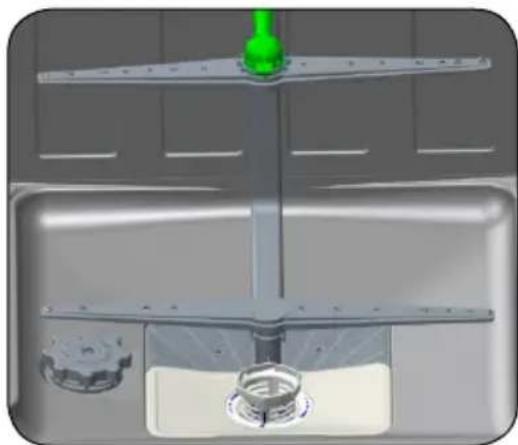

8.2. Spray arms

Make sure that the spray holes are not clogged and that no food waste is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

3D rendering of a mechanical assembly with a green component and labeled part 'b' (no text or symbols on the main structure)

9. TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softerner level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE				POSSIBLE FAULT WHAT TO DO
Start/Pause	Wash Dry End
				Insufficient waterMake sure the water inlet tap is open and water is flowing.
				Separate the inlet hose from the tap and clean the filter of the hose.
				Contact for service if the error continues.
				Continuous water inputClose the tap and contact for service.
				Inability to discharge waterWater discharge hose and filters may be clogged.
				Cancel the program.
				If the error continues, contact for service.
				Contact for service.
				Faulty heater and heater sensorContact for service.
				OverflowUnplug the machine and close the tap.
				Contact for service.
				Faulty electronic card Contact for service.

10. PRACTICAL INFORMATION

1. When the machine isn't in operation:
2. Disconnect the plug and close the tap.

3. Leave the door slightly open to prevent odour formation.

4. Select the dry option to remove water droplets.

5. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the programme and consumption table for more information.

6. Rinse dirty dishes before placing them in the dishwasher.
7. Only use the Prewash programme when necessary.
8. Do not place the machine near a refrigerator because it will reach high temperatures.
9. If the machine is located in an area that is at risk of freezing, close the tap, disconnect the inlet hose from the tap and drain the water inside the hose and the machine completely.

11. THE PRODUCT FICHE

Supplier's trade mark	VOX
Supplier's model	LC12A15-BIX
Capacity of dishwasher 12
The energy efficiency class A++
Annual energy consumption in kWh per year (AEc) (280 Cycle)* 258
Energy consumption (Et) (kWh per cycle)	0,90
Off-mode power consumption (W) (Po) 0,50
Left-on mode power consumption (W) (Pi) 1,00
Annual water consumption in litres per year (AWc) (280 Cycle)** 3360
Drying efficiency class*** A
Standard programme name**** Eco
Programme time for standard cycle (min) 205
Duration of the left-on mode (Ti) (min) -
Airborne acoustical noise emissions (dB(A) re 1 pW)	52
Freestanding/Built-in Freestanding

* Energy consumption 258 kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes. Actual energy consumption will depend on how the appliance is used.
** Water consumption 3360 litres per year based on 280 standard cleaning cycles. Actual water consumption will depend on how appliance is used.
*** Drying efficiency class A on a scale from G (least efficient) to A (most efficient).
**** The “Eco” is the standard cleaning cycle to which the information in the label and the fiche relates. This programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

LC12A15-BIX

UPUTSTVO ZA UPOTREBU MAŠINA ZA SUDOVE

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

SADRŽAJ

- Tehničke karkateristike .... 3

Preporuke i mere bezbednosti ....5

Close-up of mechanical components with no visible text or symbols

13

Upozorenje: Do not stand in front of the door after the signal sounds belonging auto-open.

Bezbednost dece

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Crevo za dovod vode

Preporučujemo upotrebu creva za dovod vode koje ste dobili sa mašinom; nemojte da koristite crevo za dovod vode od stare mašine. Ukoliko spajate mašinu na dovod vode koji niste koristili duži period vremena, pre spajanja pustite vodu Crevo za dovod vode spojite direktno na priključak. Preporučeni pritisak na priključku je od minimalnih 0,03 Mpa do maksimalnih 1 Mpa. Ukoliko je pritisak vode veći od 1 Mpa potrebno je da između creva i priključka postavite sigurnosni ventil koji se otvara na povišeni pritisak-.

Diagram showing two different pipe fittings: one with a handle and the other with a valve (no text or symbols present)

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Running in low voltage will cause a decline in washing quality.

Eventualna promena kabla za napajanje mora da bude izvedena od strane kvalifikovanog električara. U suprotnom, može doći do nesrećnih slučajeva.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

Kako bi izbegli opasnost od strujnog udara, ne iskopčavajte uređaj sa napajanja ukoliko su vam ruke mokre.

Upozorenje: The stand part which we will settle our machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

Deo, ispod kojeg postavljamo mašinu nakon skidanja njene radne ploče, mora biti stabilan, tako da eventualno izbacivanje iz ravnoteže bude onemoguceno.

Nivelirajuće nogice mašine podesite zavisno od kosine poda.3 Najbolji položaj za smeštaj mašine je ispod radne ploče. Pritom pazite da ne savijete odvodno crevo i priključak napajanja.4

Diagram showing a screwdriver inserted into a circular component, with a numbered circle highlighting the number 3 (no text or symbols present)

Upozorenje: Nakon što ste uklonili gornji poklopac mašina obavezno mora biti smeštena u zatvorenom prostoru, dimenzija kao što je prikazano na slici. 3

Ukoliko mašinu koristite prvi put

• Proverite da li napajanje i priključak vode odgovaraju zahtevima i vrednostima navedenim na natpisnoj pločici uređaja i uputstvima za upotrebu.
• Uklonite delove ambalaže iz unutrašnjosti mašine.
• Podesite tvrdoću vode
• U odeljak za sol dodajte 1 kilograma soli za mašine posuđa i napunite vodom do ruba.
• Usipajte tekućinu za ispiranje u za to predviđeni odeljak.

PRIPREMA MAŠINE ZA UPOTREBU

Close-up of a mechanical knob with a circular dial and arrow indicator (no text or symbols)

Close-up of a mechanical component with a circular bolt and flange (no visible text or symbols)

Close-up of a mechanical component with a pipe pouring into a circular tank (no visible text or symbols)

Odeljak za sol napunite vodom samo prilikom prve upotrebe mašine.

Illustration of a hand pressing a button on a device component (no text or symbols visible)

Kombinovani deterdženti

Proizvođači deterdženata za mašine osim običnih proizvode i kombinacije deterdženata nazvanih "2 u 1", "3 u 1" ili "5 u 1" itd.

"2 u 1" deterdženti sadrže deterdžent u kombinaciji sa soli ili sredstvom za ispiranje. Pre korištenja ovih deterdženta proverite specifikacije i sadržaj na pakovanju.

Two-step illustration showing a hand inserting a component into a device, with no visible text or symbols.

Nivo Doza sredstva za izbeljivanje Indikator
1 Sredstvo za ispiranje nije oslobodeno LED lampice za pranje su uključene.
2 1 doza je oslobodena LED lampica za sušenje je uključena.
3 2 doze su oslobodene LED lampica za kraj je uključena.
4 3 doze su oslobodene Lampice za pranje i sušenje su uključene.
5 4 doze su oslobodene Lampice za pranje i kraj su uključene.

PUNJENJE MAŠINE POSUĐEM

Illustration of a hand holding a metal bracket with internal wiring (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with two wheels and directional arrows indicating motion (no text or symbols)

Donja korpa

Two grayscale images showing a kitchen appliance cage with cutouts and cooking utensils, no text or symbols visible.

Gornja korpa

3D rendering of a grid-based storage or processing unit with multiple cylindrical components and a central rod (no text or symbols visible)

Abstract 3D graphic with a large 'X' symbol overlaid on a grid of circular objects (no text or symbols)

Industrial machinery diagram with no visible text, numbers, or symbols

Abstract 3D rendered mechanical parts with a black 'X' mark overlay (no text or symbols)

3D rendered mechanical component with grid structure and X mark, no visible text or symbols

Važna napomena za testiranje labaratorije.

Close-up of a mechanical component with a circular dial and directional arrow indicator (no text or symbols)

Odstranite metalno/plastični filter (slika 3). Nakon toga odstranite grubi filter iz mikro filtera kao što je prikazano na slici 2. Operite ih pod jakim mlazom vode. Vratite grubi filter u mikro filter. Umetnite grubi filter u mikro filter na način da oznake odgovaraju jedne drugima. Pričvrstite mikro filter na metalno/plastični filter i okrenite u smeru strelice kao što je prikazano na slici 4. Filter je u pravilnom položaju i zaključan kada je preko njega vidljiva strelica mikro filtera.

Top-down view of a mechanical component with a circular component and directional arrow (no text or symbols)

• Nikada ne koristite mašinu bez bilo kojeg od filtera.
• Nepravilno postavljeni filteri smanjuju efikasnost pranja mašine.
• Čišćenje filtera je vrlo važno za pravilan i efikasan rad mašine.

3D rendering of a stainless steel kitchen sink with a green handle and circular drain (no text or symbols visible)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

LC12A15-BIX

УПАТСТВА ЗА РАКУВАНЬЕ МАШИНА ЗА МИЕНЬЕ САДОВИ

Simple line drawing of a rectangular container with a horizontal bar at the top (no text or symbols)

СОДРЖИНА

Close-up of a mechanical component with a metallic ring and circular base (no visible text or symbols)

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Црево за довод

Diagram showing two different pipe fittings: one with a handle and one with a valve, both without any text or symbols.

Diagram showing a curved path with a shaded X-shaped region and a rectangular box, no text or symbols present.

Close-up of a mechanical knob with a circular dial and arrow indicator (no text or symbols)

Close-up of a mechanical component with a circular bolt and flange (no visible text or symbols)

Close-up of a mechanical component with a pipe pouring into a circular opening (no visible text or symbols)

Illustration of a hand pressing a button on a device component (no text or symbols visible)

Two-step illustration showing a hand inserting a component into a device, with no visible text or symbols.

Technical illustration of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle with wheels and a mechanical component (no text or symbols)

Долна корпа

Cross-sectional diagram of a multi-camera device showing internal components like fans, speakers, and motors (no text or labels)

Black-and-white illustration of a basket containing four cooking pots (no text or symbols visible)

Горна корпа

3D rendering of a grid with various objects and shapes, no visible text or symbols

Close-up of a mechanical component with a circular button and directional arrow indicator (no text or symbols)

Close-up of a mechanical component with a circular feature and directional arrow, no visible text or symbols

3D rendering of a kitchen sink with a green tool and a small bowl, no visible text or symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

LC12A15-BIX

NAVODILA ZA UPORABO POMIVALNI STROJ

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

VSEBINA

Close-up of mechanical components with a black arrow pointing to a circular component (no visible text or symbols)

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Dovodna cev za vodo

Line drawing of a faucet with a handle and base (no text or symbols)

Diagram of a faucet with a valve and a valve assembly (no text or symbols)

Close-up of a mechanical knob with a scale ruler and circular dial indicator (no text or symbols visible)

Close-up of a mechanical component with a circular feature and a metallic bracket (no visible text or symbols)

Close-up of a mechanical component with a metallic tool inserted into a circular opening, showing no visible text or symbols.

Ob vklopu pomivalnega stroja se rezervoar za sol napolni z vodo, zato dodajte sol, preden stroj vklopite.

1 sekunda

Raven 1 [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDA CTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [Raven 1] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [RENACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED] [REDACTED]

Illustration of a hand pressing down on a device component (no text or symbols visible)

Illustration showing a hand inserting a component into a device, with no visible text or symbols

Illustration of a hand holding a black tool inside a wire cage (no text or symbols visible)

Mechanical assembly diagram showing a conveyor belt system with two wheels and directional arrows indicating motion (no text or symbols)

Različni načini zlaganja posode v košaro

Spodnja košara

3D cutaway view of a washing machine showing internal components like fans and wheels (no text or labels)

Black-and-white illustration of a grid-patterned kitchen utensil with four cooking pots (no text or symbols)

Zgornja košara

3D rendering of a multi-tiered storage rack with multiple cylindrical units and circular components (no text or symbols visible)

Napačno zlaganje

Abstract 3D rendering of white spherical objects with a black 'X' symbol overlay, no text or symbols present

Industrial equipment layout diagram showing workers, pipes, and a grid with no visible text or symbols

Abstract 3D rendered collage of mechanical parts and a cross symbol, no text or labels present

3D rendered mechanical component with a central 'X' mark, no visible text or symbols

Pomembno obvestilo za testne laboratorije

a. mikrofilter b. grobi filter

machine.

Close-up of a mechanical component with a circular dial and arrow indicator (no text or symbols)

3D rendering of a mechanical assembly with a green handle and circular component (no text or symbols visible)

Pršilni ročici

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

LC12A15-BIX

UPUTE ZA UPORABU PERILICA POSUĐA

Simple line drawing of a rectangular box with a horizontal bar inside, no text or symbols present.

SADRŽAJ

- Tehničke karakteristike .... 3

Sigurnosne informacije i preporuke.... 4

• Odlaganje otpada 4
• Sigurnosne informacije 4
• Preporuke 7
• Neprikladni predmeti za pranje u perilici....8

Instalacija perilice za posuđe 9

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Cijev za dovod vode

Preporučujemo uporabu crijeva za dovod vode koje ste dobili sa perilicom; nemojte koristiti crijevo za dovod vode od stare perilice. Ukoliko spajate perilicu na dovod vode koji niste koristili duži period vremena, prije spajanje pustite vodu. Crijevo za dovod vode spojite direktno na priključak. Preporučeni pritisak na priključku je od minimalnih 0,03 MPa do maksimalnih 1 MPa. Ukoliko je pritisak vode veći od 1 Mpa potrebno je između crijeva i priključka postaviti sigurnosni ventil koji se otvara na povišeni pritisak (pretlačni ventil).

Diagram showing two different pipe fittings: one with a handle and the other with a valve (no text or symbols present)

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Close-up of a mechanical knob with a circular dial and arrow indicator (no text or symbols visible)

Close-up of a mechanical component with a circular recess and mounting bracket (no visible text or symbols)

Close-up of a mechanical component with a metallic tool inserted into a circular opening, no visible text or symbols

3D diagram of a device with a hand pressing a button, showing no text or symbols

Kombinirani deterdženti

Illustration showing a hand inserting a card into a device, with no visible text or symbols

Illustration of a hand holding a tool inside a wire cage (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with two wheels and directional arrows indicating motion (no text or symbols)

Two grayscale images showing a grid of kitchen utensils and cooking pots, no text or symbols visible.

Gornja košara

3D rendering of a multi-tiered storage rack with multiple cylindrical units and a central rod (no text or symbols visible)

Abstract 3D grid pattern with a large 'X' symbol overlay, no text or symbols present

Industrial equipment diagram showing workers, machinery, and a fence with no visible text or symbols

Abstract 3D rendered mechanical parts with a black 'X' mark overlay (no text or symbols)

3D rendered mechanical component with grid lines and a black 'X' symbol overlay (no text or labels)

TABELA SA PROGRAMIMA

Programa 1 2 3
Nazivi programa i temperature	Pretpranje Brzo pranje 40°C Eko 50 °C
Vrsta hrane ostaci	Prikladno za ispiranje posuđa koje kasnije namjeravate oprati	Pogodno za lagano zaprljano posuđe i brzo pranje	Standardni program za normalno zaprljane posude koje se svakodnevno koriste sa smanjenom potrošnjom energije i vode.
Razina zaprljanosti - niska srednja
Količina deterdžentaB: 25 cm3 /15 cm3A: 5 cm3	- B A+B
	Pretpranje Pranje na 40 °C Pretpranje
	Završetak	Ispiranje hladnom vodom	Pranje na 50 °C
		Ispiranje toplom vodom	Ispiranje toplom vodom
		Završetak Sušenje
			Završetak
Trajanje programa (minute)	15	30 205
Potrošnja električne energije (kWh)	0,02	0,90	0,90
Potrošnja vode (litri)	4,5 12,4	12,0

UPOZORENJE: Kratki programi ne uključuju korak sušenja. Prethodno navedene dnosti dobivene su u laboratorijskim uvjetima u skladu s relevantnim standardima.

Close-up of a mechanical component with a circular dial and numbered label (1), no readable text or symbols present.

Close-up of a mechanical component with a circular dial and numbered label (4), no readable text or symbols present.

Uklonite metalno/plastični filtar (slika 3). Nakon toga uklonite grubi filtar iz mikro filtra kao što je prikazano na slici 2. Operite ih pod jakim mlazom vode. Vratite grubi filtar u mikro filtar. Umetnite grubi filtar u mikro filtar na način da oznake odgovaraju jedne drugima. Pričvrstite mikro filtar na metalno / plastični filtar i okrenite u smjeru strelice kao što je prikazano na slici 4. Filtar je u pravilnom položaju i zaključan kada je preko njega vidljiva strelica mikro filtra.

Close-up of a white appliance interior with a circular vent and labeled parts (no text or symbols beyond numbers)

• Nikada ne koristite perilicu bez bilo kojeg od filtra.
• Nepravilno stavljeni filtri umanjuju efikasnost pranja perilice.
• Čišćenje filtra vrlo je važno za pravilan i učinkovit rad perilice.

3D rendering of a kitchen sink with a green handle and control panel (no text or symbols visible)

Provjerite da li su otvori na donjim i gornjim mlaznicama perilice začepljeni. Ukoliko postoji začepljenje otvora, uklonite mlaznice i očistite ih pod mlazom vode.

Donju mlaznicu možete ukloniti na način da ju povučete prema gore, dok gornju mlaznicu uklanjate na način da pričvrsnu plastičnu maticu okrenete u lijevo.

Prikom vraćanja gornje mlaznice u perilicu, provjerite da li ste pravilno pričvrstili maticu mlaznice.

Filtar cijevi

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

LC12A15-BIX

MANUAL DO USUÁRIO MÁQUINA DE LAVAR LOUÇ

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

CONTEÚDOS

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing two different pipe fittings: one with a handle and the other with a valve, both without any text or symbols.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Ligação eléctrica

Close-up of a mechanical knob with a dial and adjustment knob (no visible text or symbols)

Close-up of a hand pouring liquid into a circular tank (no text or symbols visible)

Close-up of a mechanical component with a circular recessed part and a metallic bracket (no visible text or symbols)

3D diagram of a device with a hand pointing to a button, no text or symbols present

Detergente combinado

Illustration of a hand inserting a small object into a device (no text or symbols visible)

Illustration of a hand inserting a small component into a device (no text or symbols visible)

Illustration of a hand inserting a plug into a wire cage (no text or symbols)

Mechanical assembly diagram showing a conveyor belt system with two wheels and a central rotating component (no text or symbols)

3D cutaway view of a washing machine showing internal components like fans, speakers, and gears (no text or labels)

Black-and-white photo of a metal basket containing four cooking pots (no text or symbols visible)

Bandeja superior

3D rendering of a grid-based mechanical assembly with white and green components (no text or symbols)

3D rendered image of a grid with circular objects and a large 'X' symbol overlay (no text or symbols present)

Industrial equipment layout diagram showing workers, machinery, and a fence with no visible text or symbols

3D wireframe model of a storage or warehouse unit with blue and white components, no visible text or symbols

3D wireframe model of a shopping basket filled with white and blue plastic containers, no text or symbols visible

Close-up of a mechanical component with a circular dial and directional arrow, no visible text or symbols

Close-up of a mechanical component with a circular component and directional arrow, no visible text or symbols

3D rendering of a stainless steel kitchen sink with a green piping bag and a circular tank (no text or symbols visible)

FICHA DO PRODUTO(Spect)
