Product Type	Dishwasher
Brand	VOX
Model	LC2145IX
Capacity	10 place settings
Dimensions (H x W x D)	850 x 450 x 598 mm (820 x 450 x 598 mm without worktop)
Net Weight	40 kg
Power Supply	220-240 V, 50 Hz, 10 A
Total Power	1900 W
Heating Power	1800 W
Water Pressure	0.03 - 1 MPa (0.3 - 10 bar)
Energy Efficiency Class	A++
Annual Energy Consumption	211 kWh/year (based on 280 standard cycles)
Annual Water Consumption	3080 L/year
Programmes	Prewash, Quick-wash (30 min), Eco (198 min), Super Wash 50 min, Intensive (114 min), Hygiene (124 min)
Noise Level	57 dB(A)
Salt Dispenser	Yes, capacity approx. 1 kg
Rinse Aid Dispenser	Yes, adjustable level 1-6
Detergent Dispenser	Yes, capacity 40 cm³ with prewash compartment
Filter System	Micro, coarse, and metal/plastic filters
Spray Arms	Upper and lower, removable for cleaning
Delay Start	3, 6, or 9 hours
Half Load Function	Yes
Safety Features	Child lock (supervision recommended), door safety switch, anti-flood system

Frequently Asked Questions - LC2145IX VOX

How do I adjust the water hardness setting?

Turn the On/Off button to off. Press and hold Start/Pause, then rotate On/Off to position 2. Release Start/Pause when lights flash. Use Start/Pause to select the hardness level (see table in manual). Turn off to save.

What type of detergent should I use?

Use detergent specifically designed for dishwashers: powder, gel, or tablets. For combined detergents (2-in-1, 3-in-1), check the package and adjust salt/rinse aid settings accordingly.

Why does the dishwasher not start?

Check that the plug is connected, the fuse is not blown, water tap is open, door is closed, and the machine is switched on. Also ensure the Start/Pause button has been pressed.

How to clean the filters?

Remove the lower basket. Twist the filter assembly counter-clockwise and lift out. Separate the coarse filter from the micro filter. Rinse all filters under running water. Reassemble and lock by twisting clockwise.

What does the error code 'Wash' and 'End' flashing mean?

This indicates a water overflow alarm. Immediately turn off the water tap and contact an authorised service.

How much salt should I add?

Fill the salt compartment with approximately 1 kg of dishwasher salt. At first use, also add water until it overflows. Use only coarse-grained or powder softener salt, not table salt.

Why are there white stains on my dishes?

Possible causes: too little detergent, low rinse aid dosage, high water hardness without salt, incorrect water softener setting, or salt compartment cap not closed properly.

Can I open the door during a cycle?

The machine stops when the door is opened for safety. If opened during drying, the programme may terminate. For best results, wait until the End light is lit.

How to install the dishwasher under a counter?

Remove the worktop by unscrewing screws at the back, then push the front panel rearward and lift. Adjust feet for leveling. Ensure hoses and cables are not crushed when sliding under the counter.

What is the Eco programme?

The Eco programme is the standard cleaning cycle for normally soiled tableware. It is the most energy and water efficient programme, lasting 198 minutes with 0.73 kWh consumption.

USER MANUAL LC2145IX VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

GBR

MKD

SVN

LC 2145 - 2145IX

UPUTSTVO ZA UPOTREBU MAŠINA ZA SUDOVE

OPERATING INSTRUCTIONS DISHWASHER

УПАТСТВА ЗА РАКУВАНЬЕ МАШИНА ЗА МИЕНЬЕ САДОВИ

NAVODILA ZA UPORABO POMIVALNI STROJ

MAŠINA ZA PRANJE POSUĐA UPUTSTVO ZA UPOTREBU

/ &□□□□□□□□□□□,;

Simple line drawing of a wine glass and a decorative plate with starburst elements (no text or symbols)

SADRŽAJ:

• Tehničke karakteristike 4
- Usaglašenost sa standardima i rezultati testiranja 5

SIGURNOSNE MERE I PREPORUKE 6

• Recikliranje 6
- Sigurnosne informacije 6
- Preporuke 10
- Predmeti nepodesni za pranje u sudomašini 10

INSTALIRANJE MAŠINE 11

• Pozicioniranje mašine 11
  • Povezivanje sa dovodom vode 12
  • Dovod vode 12
  • Odvod vode 13
  • Povezivanje sa električnom mrežom 15
• Podešavanje mašine 16
• Prva upotreba mašine 18

PRIPREMA MAŠINE ZA UPOTREBU 18

• Važnost dekalcifikacije vode 18

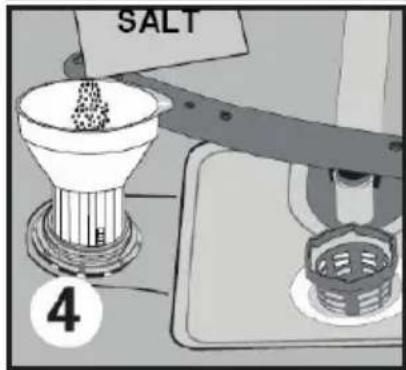

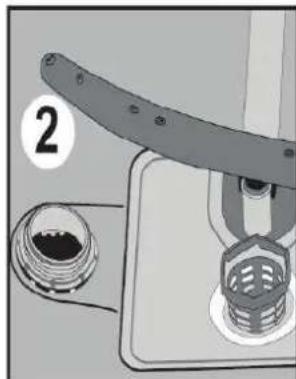

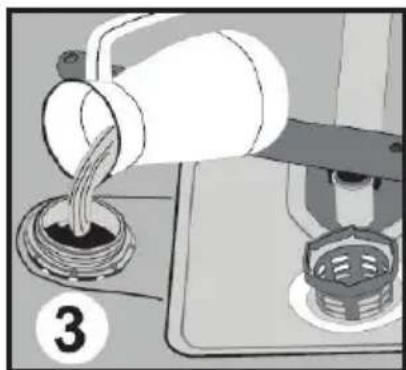

- Punjenje solju 18
- Test traka 19
- Potrebna količina soli 19
- Upotreba deterdženta 21
- Punjenje pregrade za deterdžent 21
• Kombinovanje deterdženta 21
• Punjenje sredstvom za sjaj 22

PUNJENJE VAŠE MAŠINE.... 23

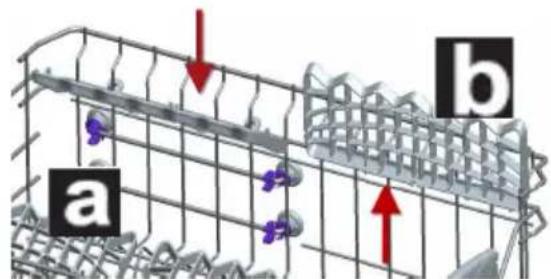

• Polica za posudje 23
  • Alternativno punjenje korpi 24

OPIS PROGRAMA.... 26

- Programske funkcije 26

Izbor programa i rukovanje mašinom 27

• Rukovanje mašinom.... 29
- Nadzor programa 29
- Promena programa 29
- Otkazivanje programa 30
• Isključivanje mašine 30

ČIŠĆENJE I ODRŽAVANJE.... 31

• Filteri.... 31
• Prskalice 32
• Filter creva 32

OPISI KVAROVA I ŠTA RADITI U SLUČAJU KVARA 33

Praktične i korisne informacije 35

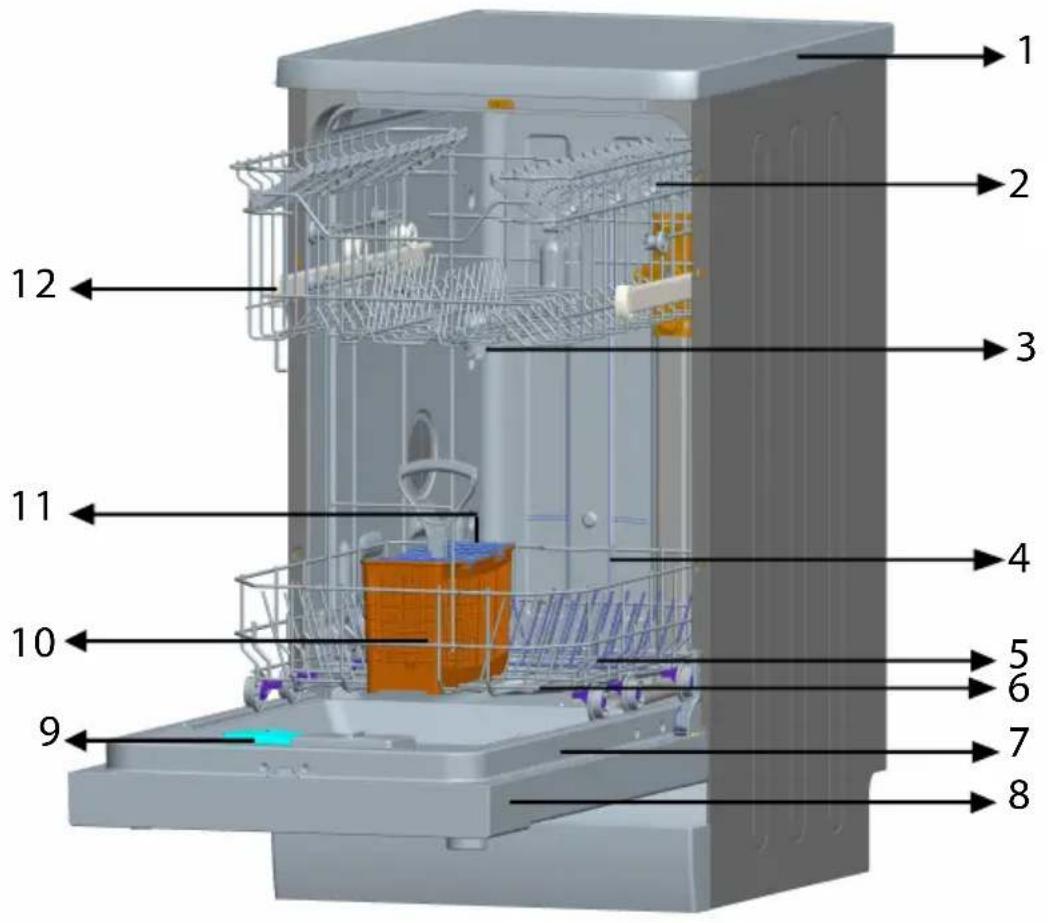

1. Radna ploča 7. Unutrašnja ploča vrata
   2.Gornja korpa sa policom 8.Kontrolna konzola
   3.Gornja prskalica 9.Dispenzer deterdženta i sjaja
   4.Donja korpa 10.Korpa za pribor za ručavanje
   5.Donja prskalica 11.Dispenzer soli
   6.Filteri 12.Klizač gornje korpe

Tehničke karakteristike

Kapacitet 10 setova posuđa
Visina 850 mm
Visina (bez gornjeg poklopca)	820 mm
Širina 450 mm
Dubina 598 mm
Neto težina 40 kg
Napon 220-240 V, 50 Hz
Maksimalna snaga 1900 W
Snaga grejanja 1800 W
Snaga dovoda 100 W
Snaga odvoda 30 W
Pritisak vode 0,03 MPa	(0,3 bara)-1 MPa (10 bara)
Struja 10 A

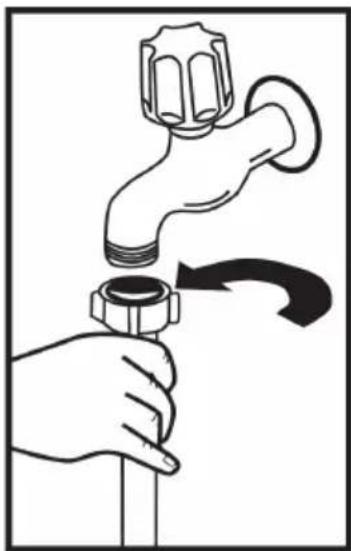

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Crevo za dovod vode

Preporučujemo upotrebu creva za dovod vode koje ste dobili sa mašinom; nemojte da koristite crevo za dovod vode od stare mašine. Ukoliko spajate mašinu na dovod vode koji niste koristili duži period vremena, pre spajanja pustite vodu Crevo za dovod vode spojite direktno na priključak. Preporučeni pritisak na priključku je od minimalnih 0,03 Mpa do maksimalnih 1 Mpa. Ukoliko je pritisak vode veći od 1 Mpa potrebno je da između creva i priključka postavite sigurnosni ventil koji se otvara na povišeni pritisak-.

Diagram showing two different pipe fittings: one with a handle and one with a valve, both without any text or symbols.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Diagram showing a screwdriver inserted into a circular component, with a numbered circle highlighting the number 3 (no text or symbols present)

Upozorenje: Nakon što ste uklonili gornji poklopac mašina obavezno mora biti smeštena u zatvorenom prostoru, dimenzija kao što je prikazano na slici 3.

Pre prve upotrebe mašine

• Proverite je li specifikacije snabdevanja vode i struje odgovaraju vrednostima navedenim u uputstvu o instalaciju mašine.
• Uklonite sve materijale za pakovanje iz unutrašnjosti mašine.
  • Podesite omekšivača vode

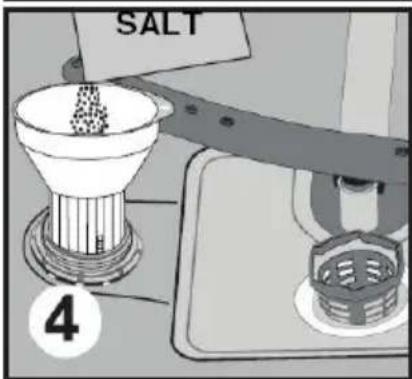

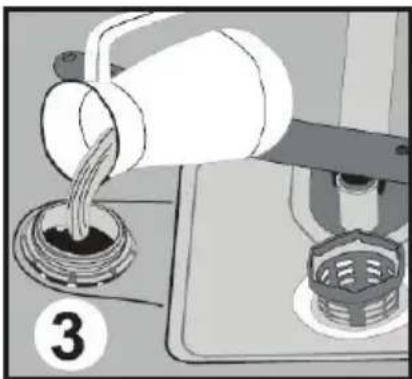

  • Dodati 1kg soli u odeliku soli i popunite vodom do nivoa na kome će skoro preliti.
• Popunite odeljak pomoćnog sredstva ispiranja

PRIPREMA MAŠINE ZA PRVU UPOTREBU

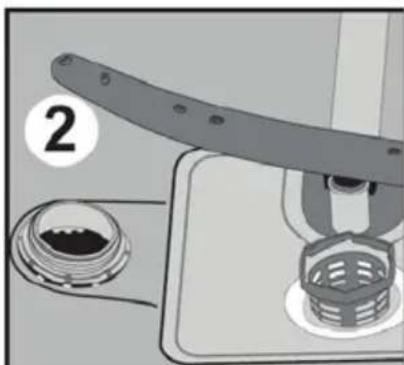

Važnost dekalcifikacije vode

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Mechanical assembly diagram showing a clamping device with a nut and housing (no text or symbols)

Illustration of a coffee maker pouring milk from a container into a machine (no text or symbols)

Na ovaj način, prelita so je odmah uklonjena kroz operaciju pranja. Ukoliko ne nameravate odmah nakon punjenja soli prati posuđe, pustite kratki program pranja na praznu mašinu kako bi izbegli oštećenja mašine (prevencija korozije) od prelite soli.

Traka za testiranje

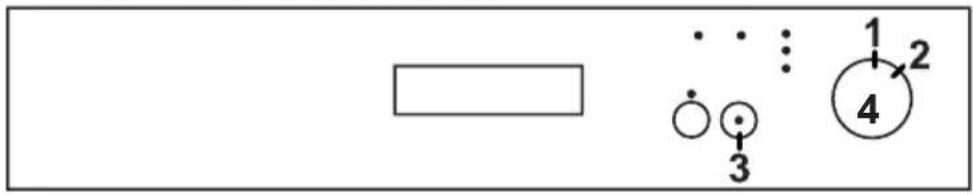

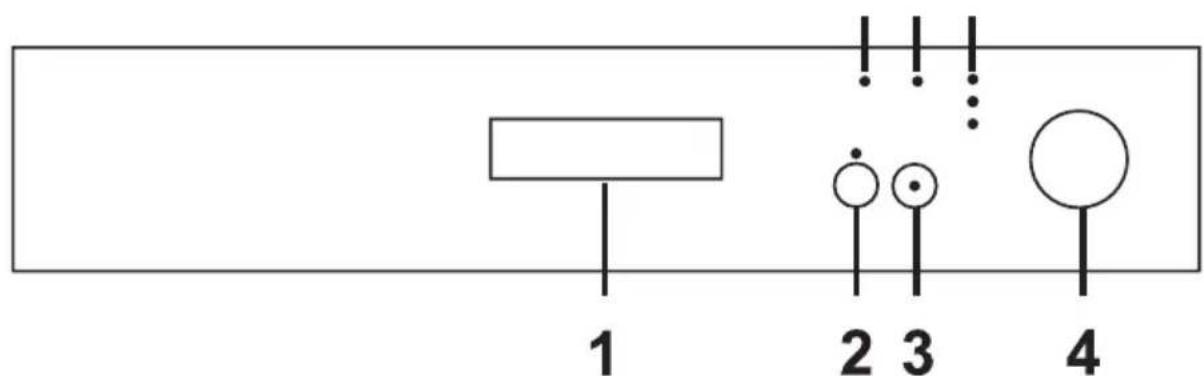

• Postavite dugme za uključivanje/isključivanje (4) na isključeni položaj (1).
• Pritisnite i držite taster Pokretanje/pauza (3).
- Podesite taster za uključivanje/isključivanje (4) na položaj 2 tako što ćete ga rotirati u smeru kretanja kazaljki na satu (nadesno) za 1 korak.
- Držite prst na tasteru za Pokretanje/pauzu (3) dok se lampica ne uključi, zatim će se prikazati indikator stepena tvrdoće vode koji je prethodno definisan na mašini (pogledajte tabelu za podešavanje tvrdoće vode).
- Možete da podesite podešavanja na osnovu tabele za podešavanje stepena tvrdoće vode pritiskom tastera za Pokretanje/pauzu (3).
- Nakon izbora stepena tvrdoće vode, isključite mašinu putem dugmeta za uključivanje/isključivanje (4) tako što ćete ga staviti na isključeni položaj (1). Poslednje izabrano podešavanje tvrdoće vode će se sačuvati u memoriji.

Upozorenje: U slučaju selidbe važno je da podesite postavku tvrdoće vode u skladu sa tvrdoćom vode u oblasti u koju ste se preselili da biste omogućili efektivno pranje.

Sredstva za pranje (prašak tečnost ili tableta)

Koristite sredstva za pranje koja su specijalno proizvedena za pranje u mašini posuđa i koja su preporučena od strane proizvođača mašine posuđa.

Deterdženti mogu da budu u tekućem stanju, kao prašak i kao tablete.

Deterdžent stavite u poseban odeljak mašine pre stavljanja mašine u rad. Držite ga na na suvom i hladnom mestu, van dohvata dece.

Ne stavljajte veće količine od preporučenog, jer u protivnom na posuđu mogu da se pojave mrlje koje su uzrokovane slabim rastvaranjem deterdženta.

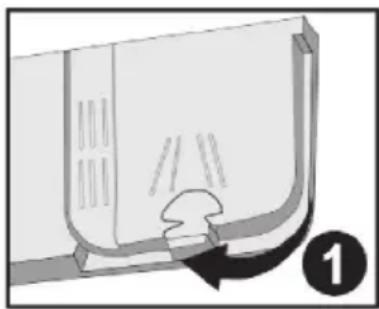

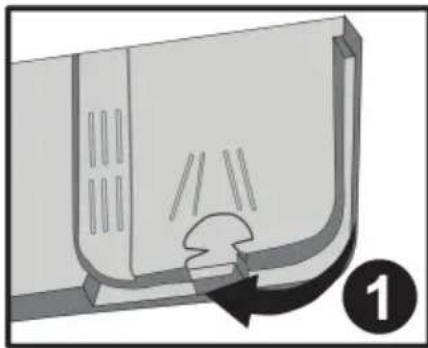

Punjenje odeljka za deterdžent

Diagram of a door handle with a curved handle and a circular arrow indicating direction (no text or symbols)

Kombinovani deterdženti

Proizvođači deterdženata za mašine osim običnih proizvode i kombinacije deterdženata nazvanih “2 u 1”, “3 u 1” ili “5 u 1” itd.

“2 u 1” deterdženti sadrže deterdžent u kombinaciji sa soli ili sredstvom za ispiranje. Pre korišćenja ovih deterdženta proverite specifikacije i sadržaj na pakovanju.

Ostale tablete sadrže deterdžent sa dodatkom sredstva za ispiranje, soli i dodatnih posebnih sredstava koja poboljšavaju pranje vašeg posuđa.

Generalno, kombinovani deterdženti daju zadovoljavajuće rezultate pranja prilikom posebnih uslova upotrebe.

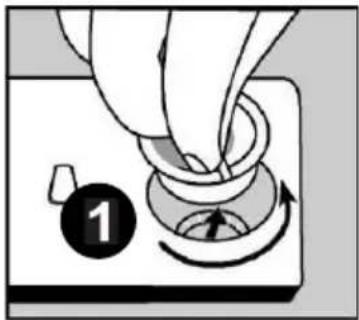

Hand turning a button on a device, showing a circular motion indicator (no text or symbols)

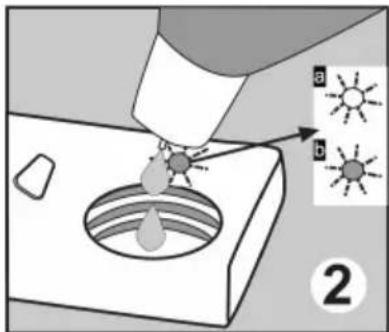

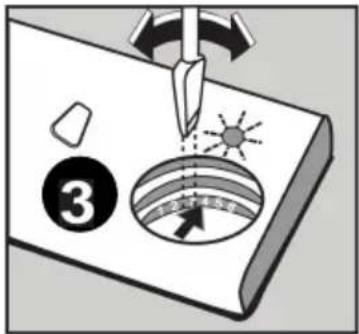

Indikator (b) označava da vaša mašina sadrži dovoljno sredstva za ispiranje, dok indikator (a) označava da morate dopuniti vašu mašinu sredstvom za ispiranje.

Korišćenje sredstva za ispiranje možete da ugodite na nekoliko različitih nivoa: od 1 do 6. Fabričkim postavkama nivo korišćenja sredstva za ispiranje podešen je na 3. U zavisnosti od pezujatata možete da ga povećate ili umanjite. Ako nakon pranja ostaju mrlje od vode povećajte nivo korišćenja sredstva. Međutim, ukoliko nakon što izvadite oprano posuđe na njemu ostaju plave

mrlje od prstiju, smanjite nivo korišćenja sredstva za ispiranje.

Upozorenje: Koristite samo ona sredstva za ispiranje koja su namenjena za mašine posuđa. Ako u mašini primetite ostatke sredstva za ispiranje koji rezultiraju pojavom pene u mašinii i time uteču na kvalitet pranja posuđa. Višak sredstva za ispiranje uklonite krpom.

PUNJENJE MAŠINE POSUĐEM

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

Diagram of a jet engine with attached suspension components and directional arrows indicating motion (no text or symbols)

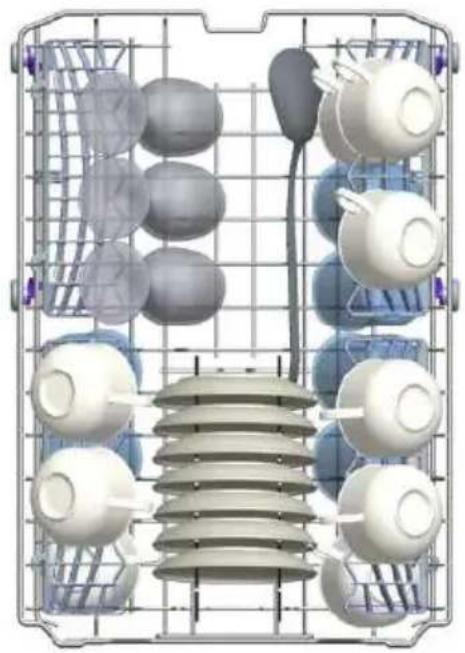

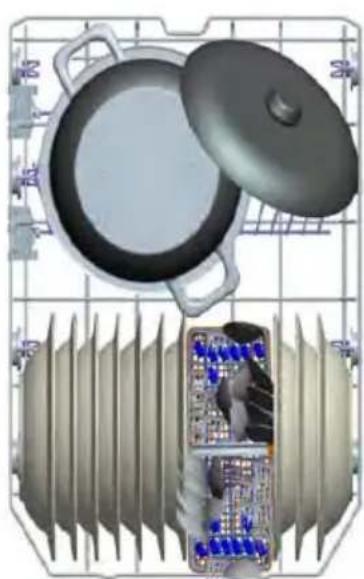

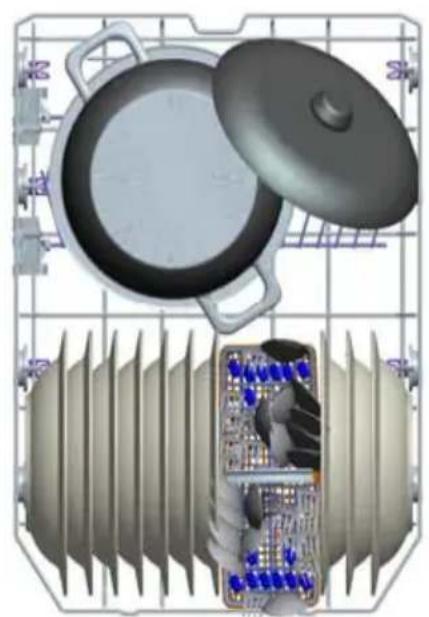

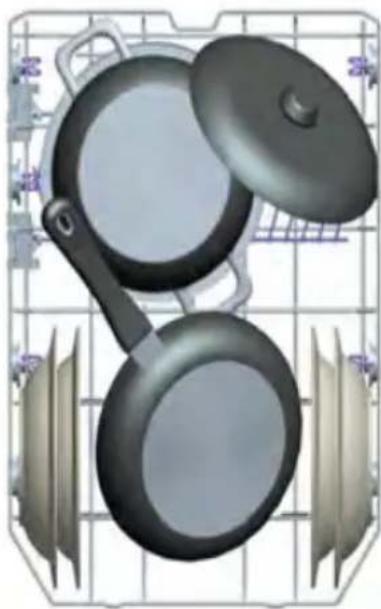

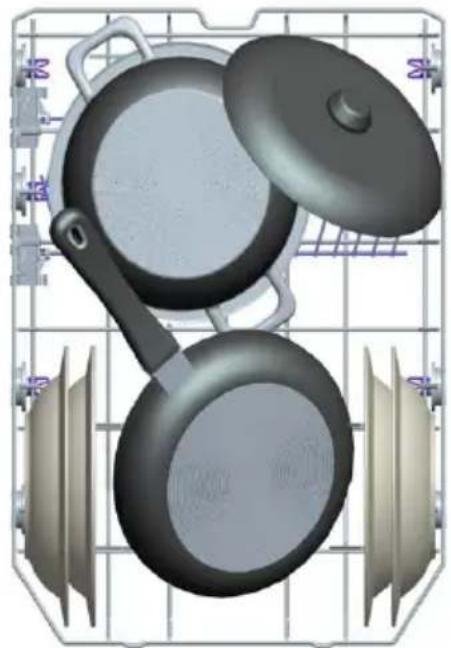

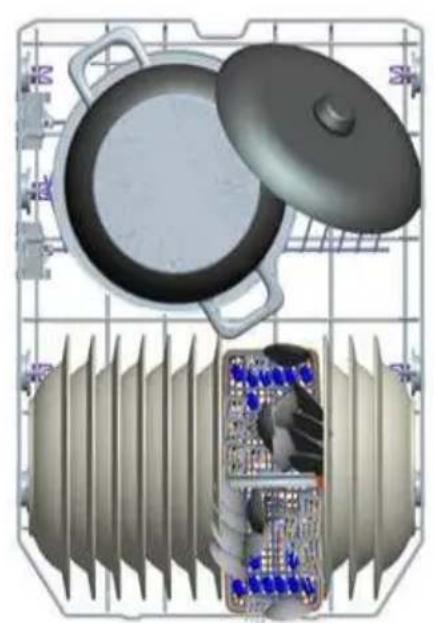

Neki od primera punjenja korpi posudjem Donja korpa

3D technical illustration of a cooking pan and fan assembly with internal circuit board (no text or symbols)

Illustration of two cooking pots placed on a grid surface with kitchen utensils (no text or symbols)

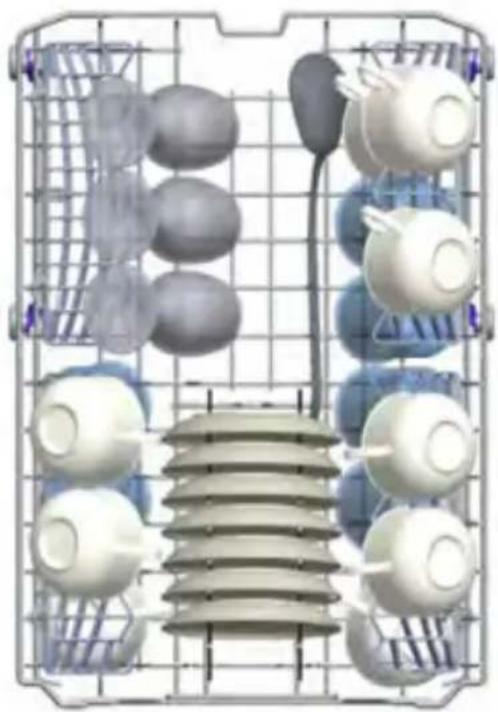

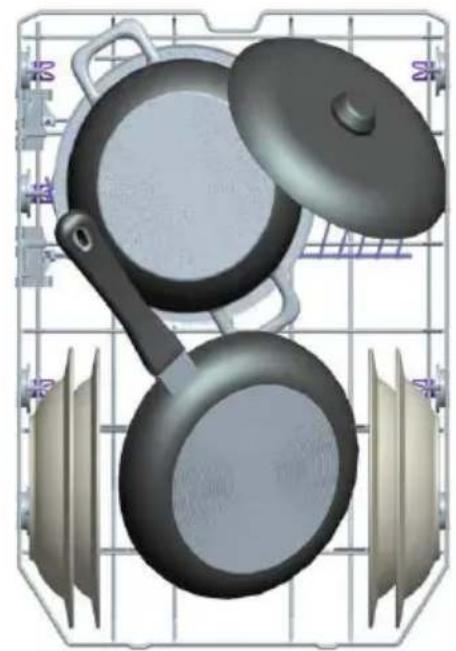

Gornja korpa

3D rendering of a grid-based mechanical component with multiple spherical components and a central threaded base (no text or symbols visible)

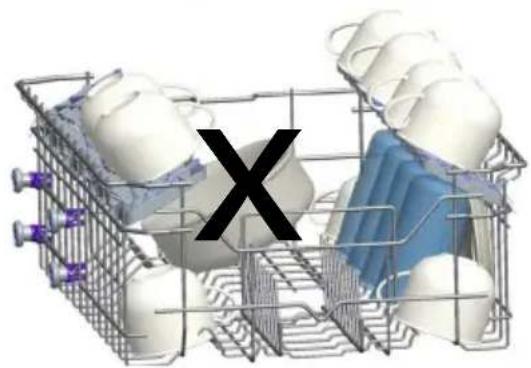

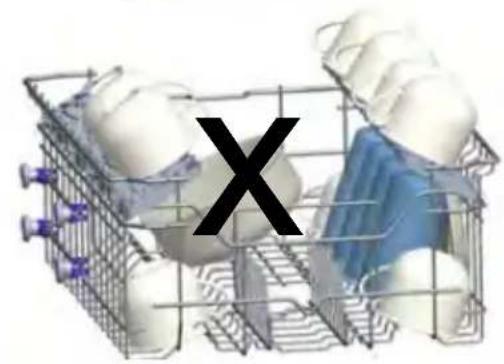

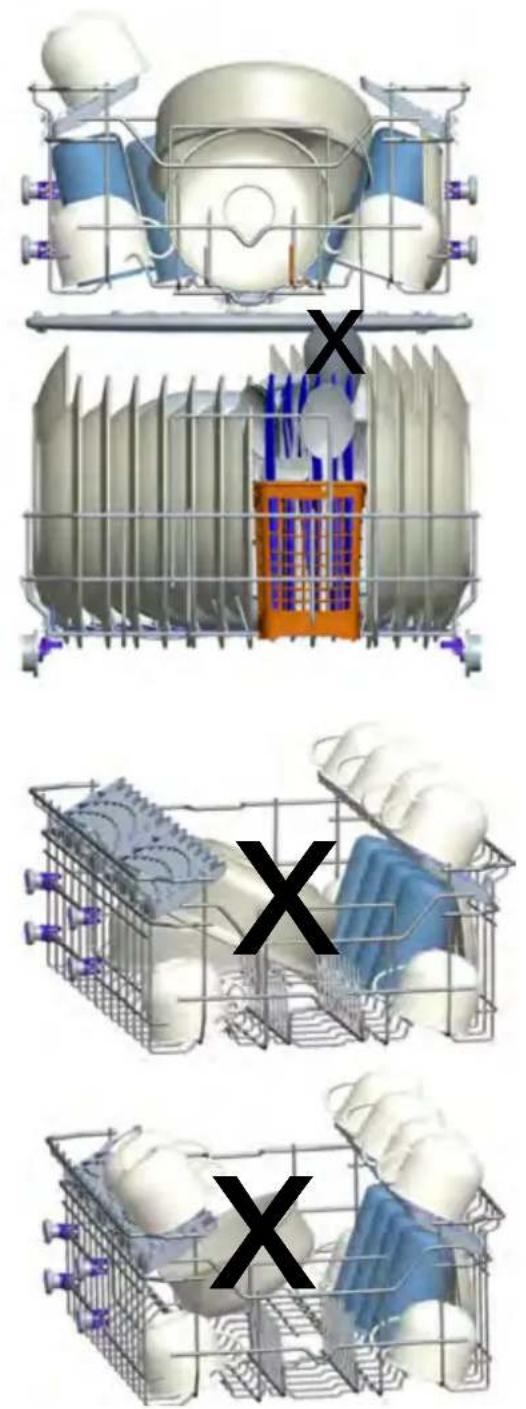

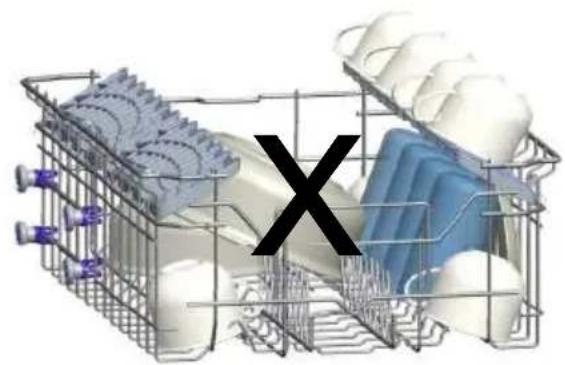

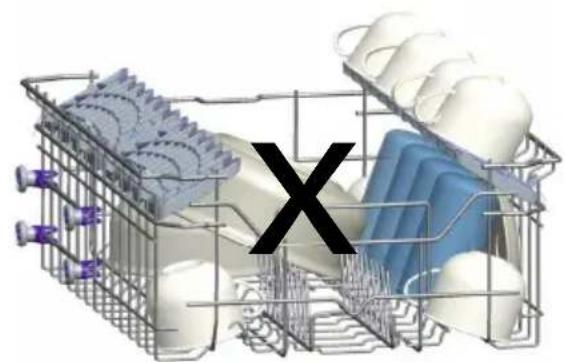

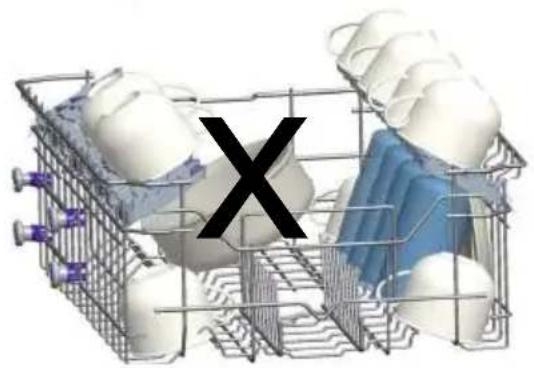

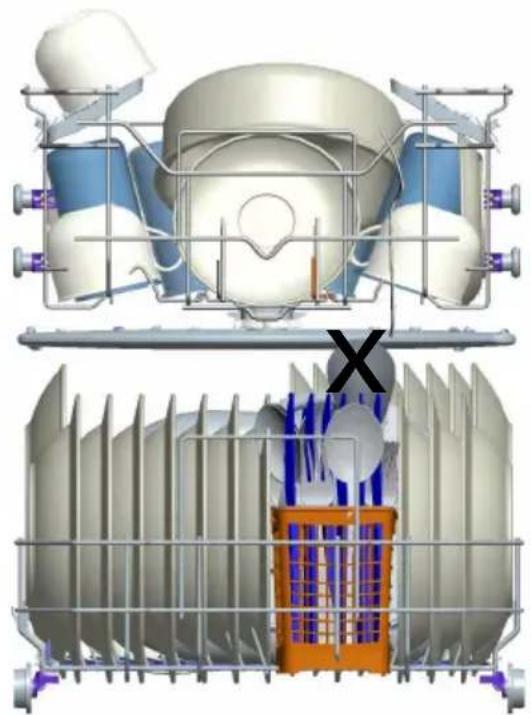

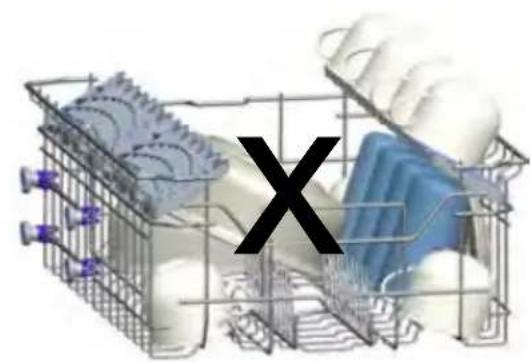

Nepravilno punjenje

3D technical illustration of a mechanical assembly with internal components and a highlighted section (no text or symbols)

3D wireframe model of a washing machine with plastic washes and a large 'X' symbol overlay (no text or symbols on the main diagram)

3D wireframe model of a food delivery rack with white and blue food items, marked with a black 'X' symbol (no text or labels)

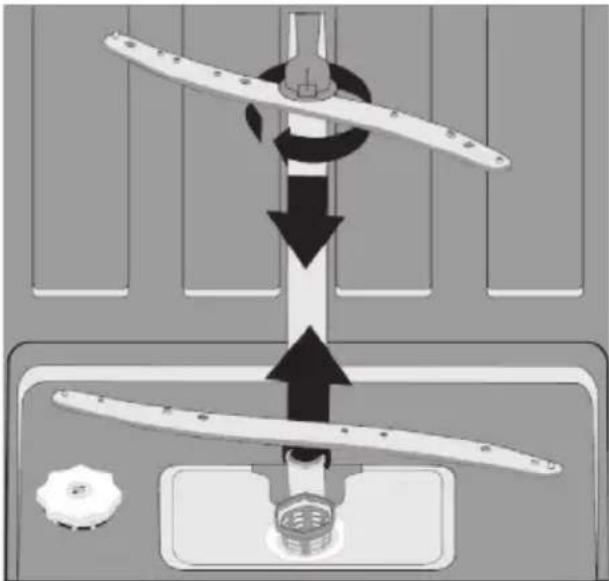

Važna napomena za testiranje labaratorije.

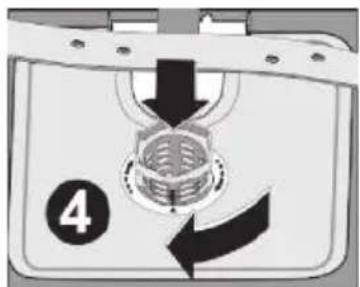

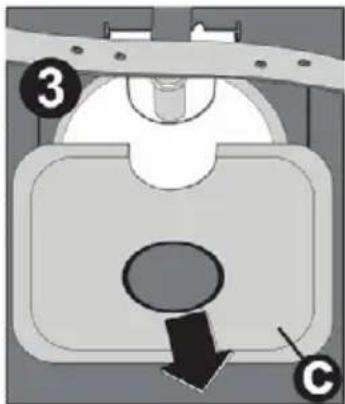

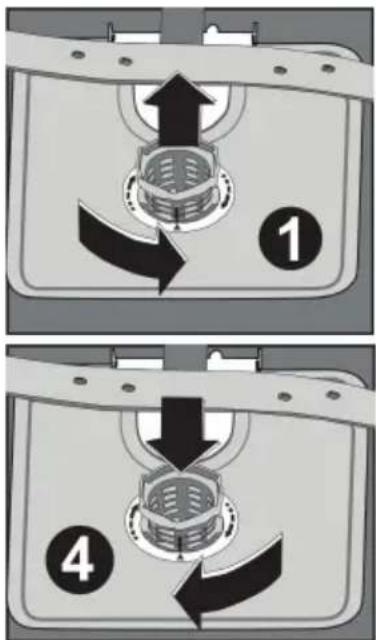

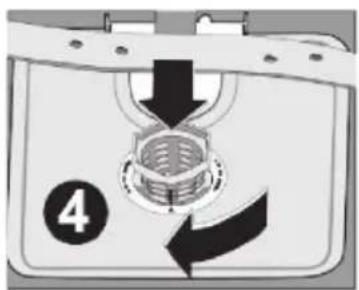

Odstranite metalno/plastični filter (slika 3). Nakon toga odstranite grubi filter iz mikro filtera kao što je prikazano na slici 2. Operite ih pod jakim mlazom vode.

Vratite grubi filter u mikro filter. Umetnite grubi filter u mikro filter na način da oznake odgovaraju jedne drugima. Pričvrstite mikro filter na metalno/plastični filter i okrenite u smeru strelice kao što je prikazano na slici 4. Filter je u pravilnom položaju i zaključan kada je preko njega vidljiva strelica mikro filtera.

Diagram of a mechanical component with labeled parts (3 and C), no readable text or symbols present.

• Nikada ne koristite mašinu bez bilo kojeg od filtera.
• Nepravilno postavljeni filteri smanjuju efikasnost pranja mašine.
• Čišćenje filtera je vrlo važno za pravilan i efikasan rad mašine.

Diagram of a mechanical device with directional arrows indicating motion or assembly (no text or symbols)

Line drawing of a wine glass and a decorative plate with starburst elements (no text or symbols)

CONTENTS

• Technical specifications .... 39
• Conformity with the standards and Test data 39

Safety information and Recommendations.... 40

• Recycling 40
- Safety information 40
- Recommendations 43
- Items not suitable for dishwashing 44

Installing the machine 44

• Positioning the machine 44
  • Water connections 45
• Water inlet hose 46

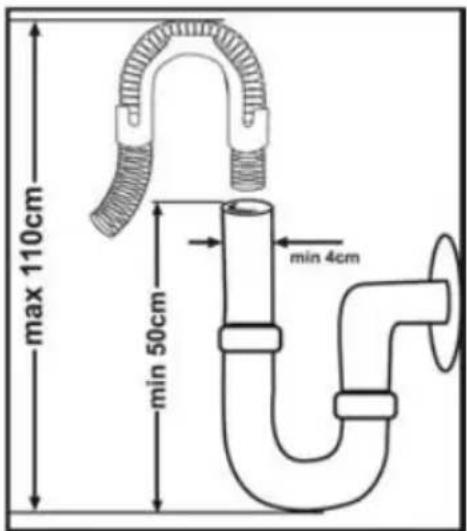

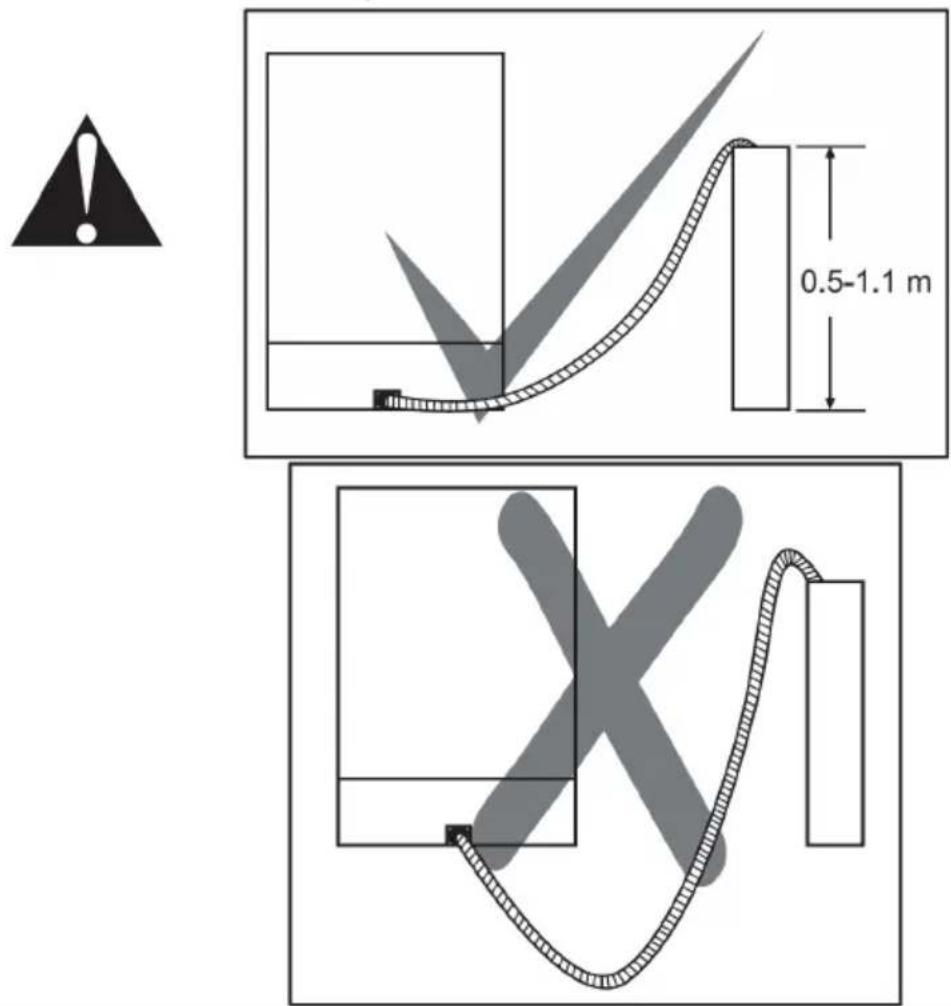

  • Water outlet hose 47
• Electrical connection.... 48

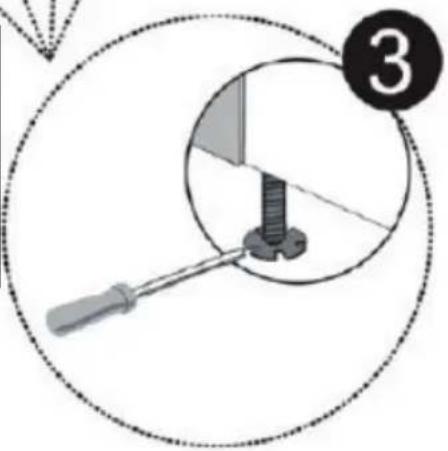

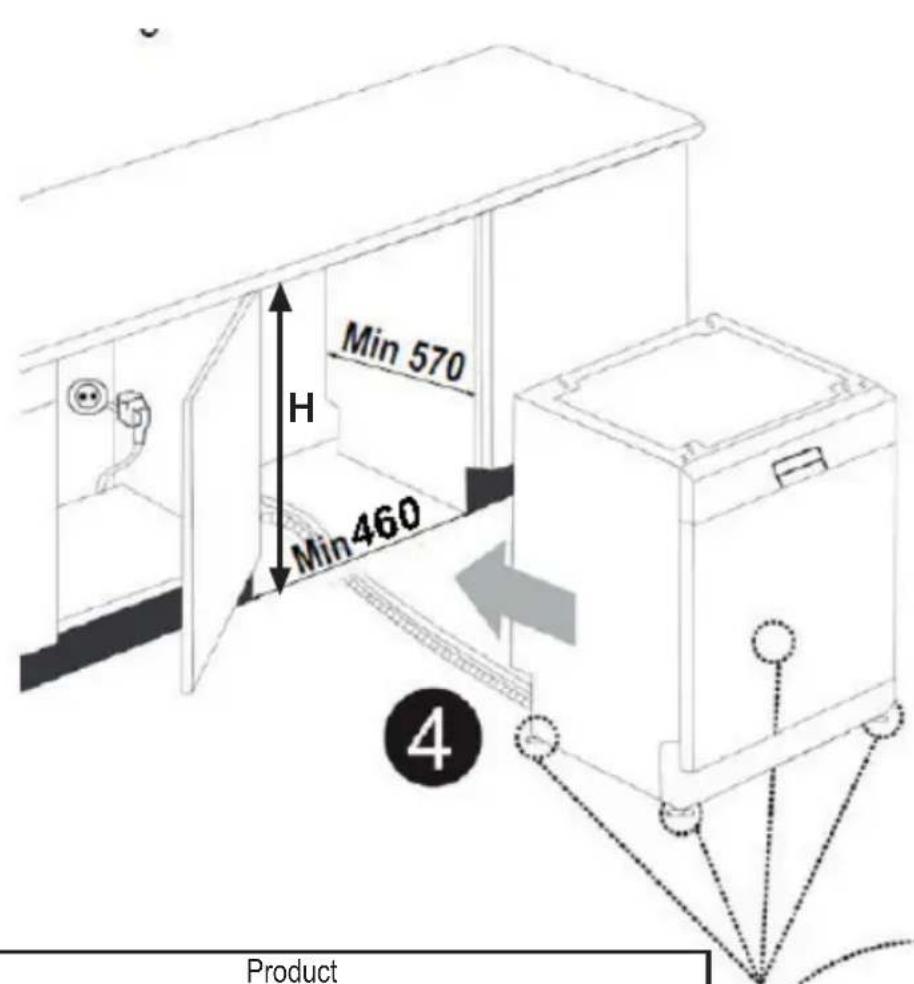

• Fitting the machine undercounter 49
• Prior to using the machine 51

Preparing the machine for use 51

• The importance of water decalcification 51

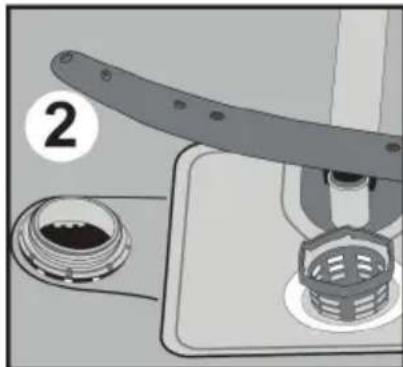

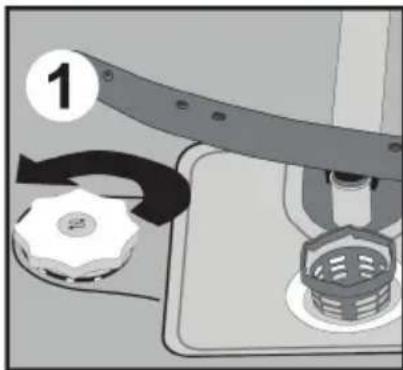

- Filling with salt 51
- Testing strip.... 52
- Adjusting salt consumption.... 52
• Detergent usage 54
- Filling the detergent compartment.... 54
- Combined detergent 54
- Filling with rinse aid and making the setting.... 55

Loading your dishwasher 56

• Dish rack 56
  • Alternative basket loads 57

Programme descriptions 59

- Programme items 59

Programme Selection and Operating the Machine 60

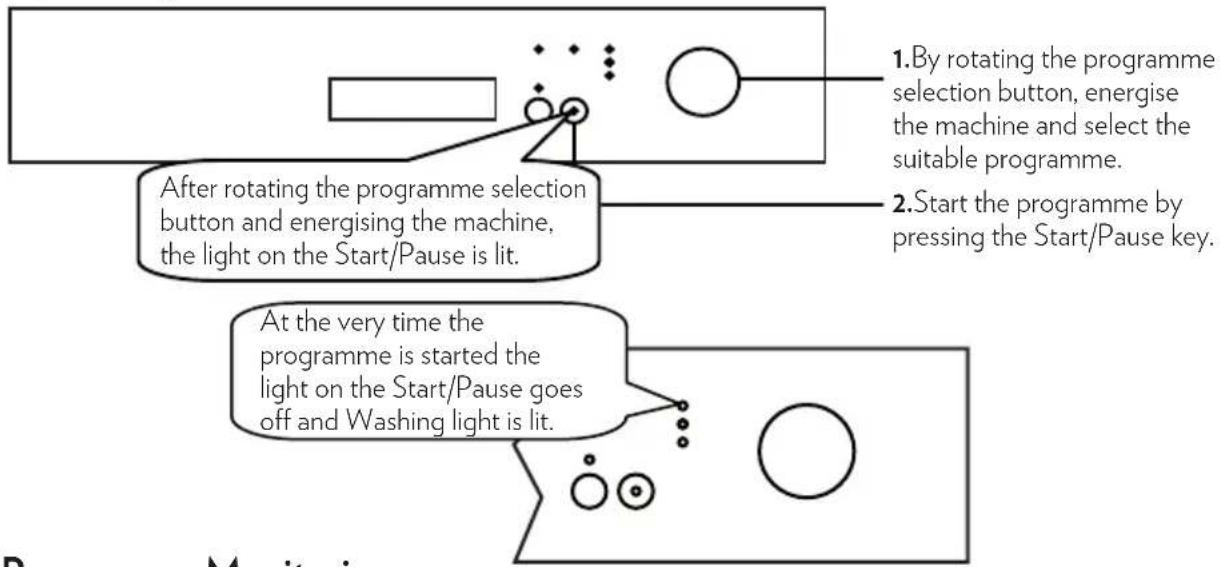

• Operating the Machine 62

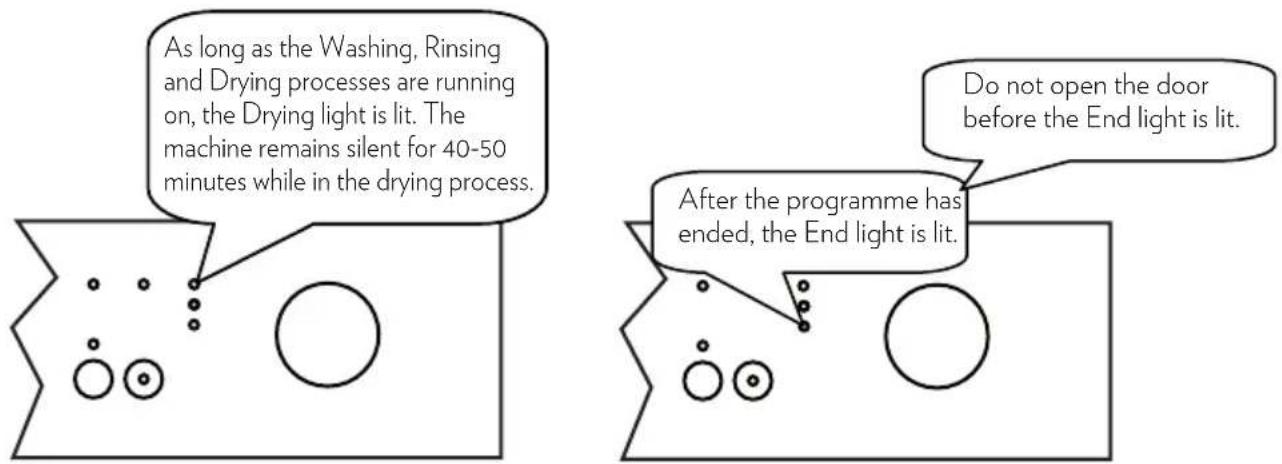

  • Programme Monitoring 62

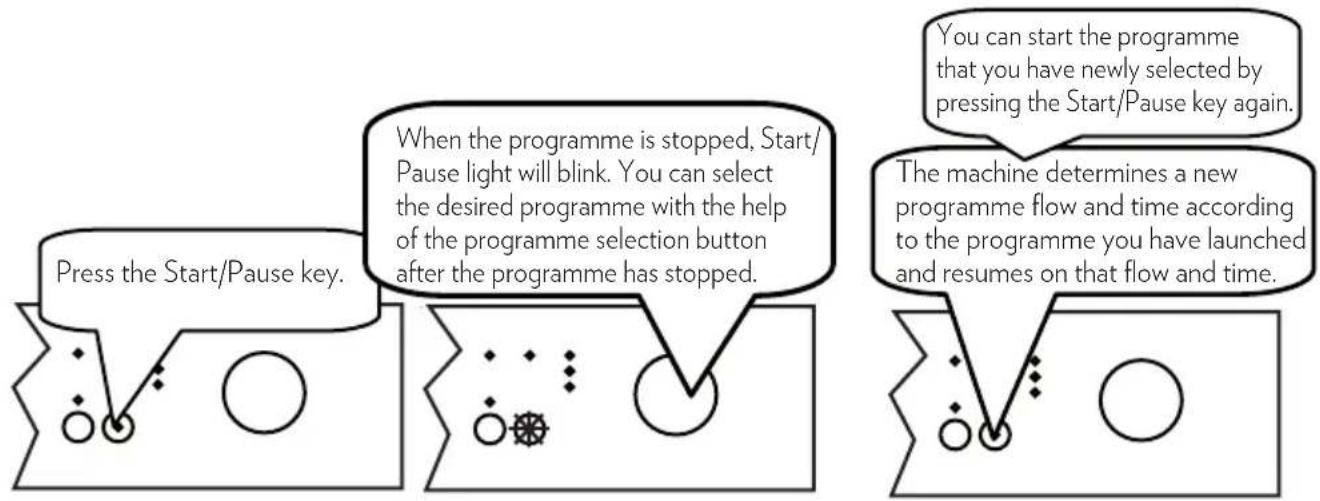

• Changing the Programme 62

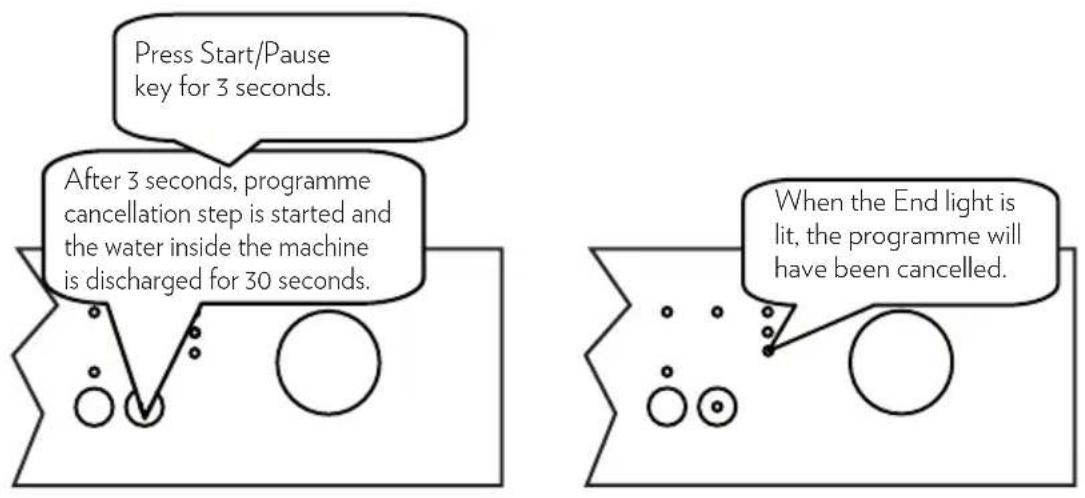

• Cancelling the Programme 63

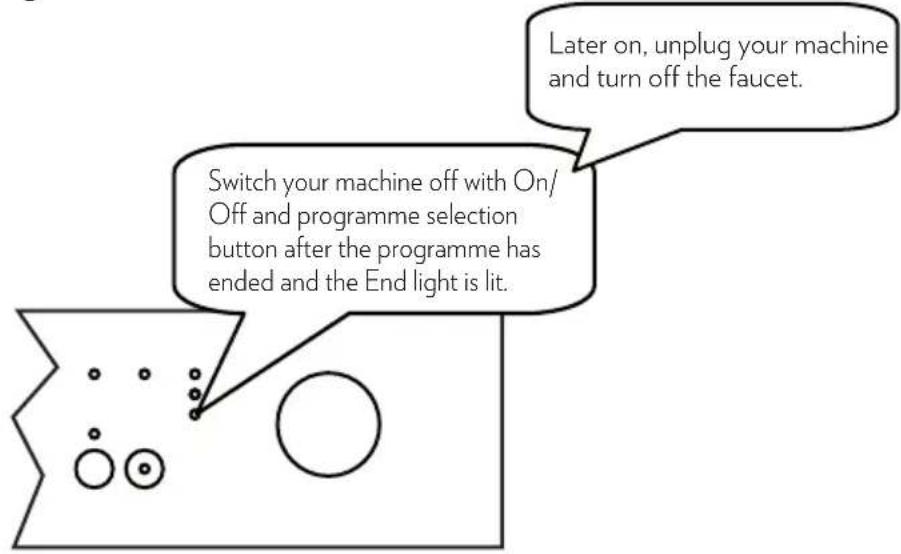

• Switching the Machine Off 63

Maintenance and Cleaning 64

• Filters 64
• Spray arms 65
• Hose filter 65

Failure codes and what to do in case of failure 66

Practical and useful information.... 68

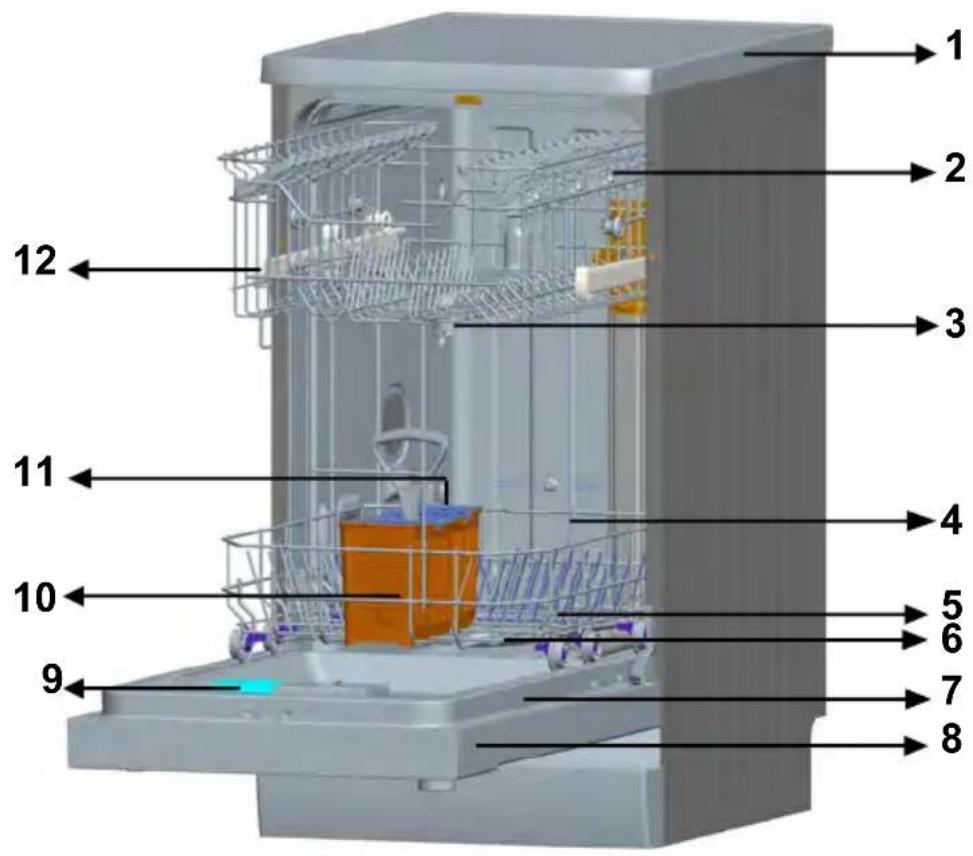

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm

6. Filters

7. Rating plate

8. Control Panel
9. Detergent and rinse-aid dispenser
10. Cutlery basket
11. Salt dispenser
12. Upper basket track latch

Technical specifications

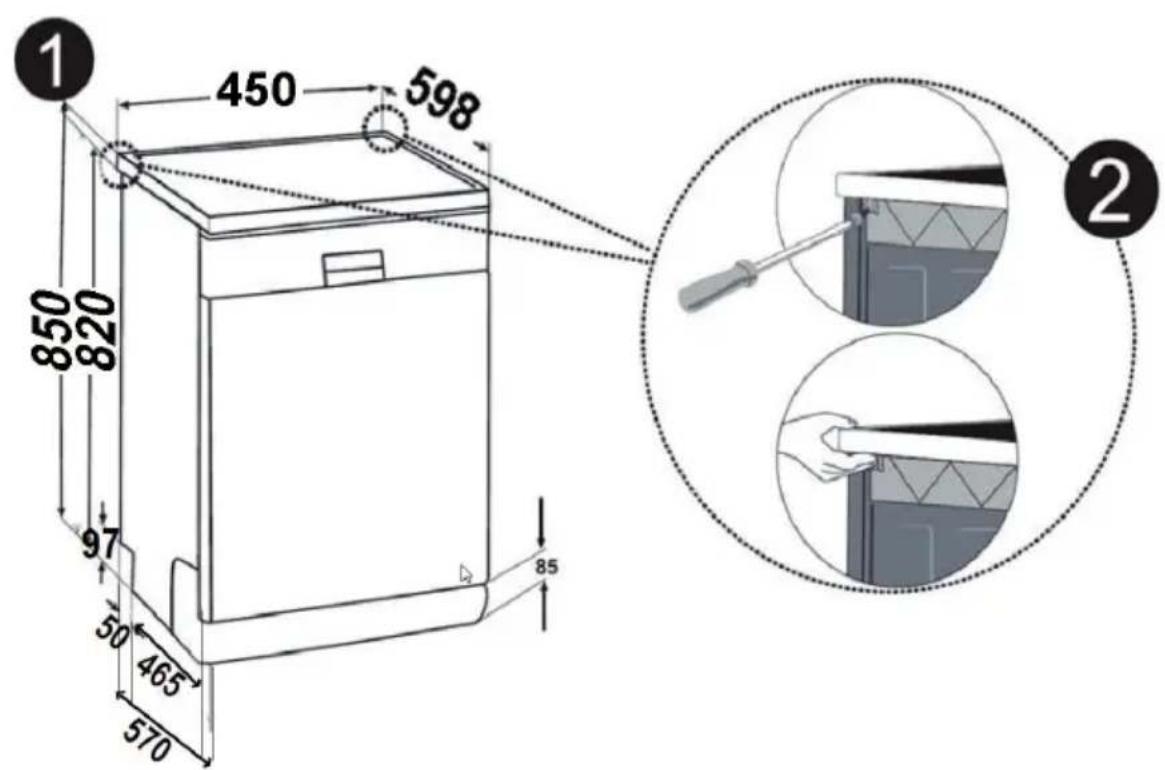

Capacity 10 place settings
Height 850 mm
Height (without worktop)	820 mm
Width 450 mm
Depth 598 mm
Net Weight 40 kg
Electricity input 220-240	V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure	0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A

Conformity with the standards and Test data / EC Declaration of Conformity

7KLV□ SURGXFW□ P HHWV□ WKH□UHTXLUHP HQWV□ RI□D00□DSSOLFDEOH□ ( &□ GLUHFWLYHV□ Z LWK□ WKH□FRUUHVSRQGLQJ□ KDUP RQLVHG□ VWDQGDUGV□□ Z KLFK□ SURYLGH□ IRU□&( □P DUNLQJ□

Important Note for User: For softcopy of this user manual, please contact following address:

"[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• Certain components and the packaging of your machine have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<,)
• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for being disposed of into garbage bins. They should be delivered to recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• This machine should be installed and repaired by an authorised service only.
• Only original spare parts should be used with the machine.

• Before installing, be sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is connected according to the regulations.

• All electrical connections must match the values indicated on the rating plate.
• Pay special attention and be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
  • After installing the machine to a suitable place, run it unloaded for the first time.

In daily use

• This machine is for household use; do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.
• Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
• The water in the machine's washing section is no drinking water do not drink it.
• Due to danger of explosion, do not put into the machine’s washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety devices ensures that the machine stops if the door is opened.
• Do not leave your dishwasher's door open. Failure to do so may lead to accidents.
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including - children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If EnergySave option is selected as "Yes", The door will be opened at the end of the program. Do not force to close the door to avoid harm auto door mechanism during 1 minutes. The door must be open during 30 minutes to get effective drying.(in models with auto door opening system)
  Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

For your children's safety

• After removing the machine’s packaging, make sure that the packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and rinse aids.
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine's door lock and tear off the electrical cables.

In case of malfunctioning

• Any malfunction in the machine should be repaired definitely by qualified persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains.Switch off the fuse or unplug the machine.Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

• For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it.
• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
• You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

Water connection

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Water inlet hose

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine , run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween.

After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Line drawing of a faucet with a flanged handle and a base pipe (no text or symbols)

Diagram of a faucet with a valve and a valve component, showing a downward force arrow (no text or symbols)

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be at a minimum of 50 cm and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between. The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration. 2

Warning: The stand part which we will settle our machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1 ~cm from the front side towards the rear and lift it.

Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4

Product
	Without Insulation	With Insulation
	All Product For	2nd Basket For 3rd	Basket
Height 820	mm 825 mm 835 mm

Diagram showing a screwdriver inserted into a circular component with a triangular cover, enclosed in a dotted circle (no text or symbols)

Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Set the water softener.
• Add 1 kg salt into the salt compartment and fill with water up to a level at which it will almost overflow.
• Fill the rinse aid compartment.

PREPARING THE MACHINE FOR USE

The importance of water decalcification

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Filling with salt

Use softener salt specifically produced for use in dishwashers. To put softener salt, first remove the lower basket and then open the salt compartment cap by turning it counter clockwise. At first fill the compartment with 1kg salt and water at overflowing level If available, using the funnel provided will make filling easier; refit the cap and close it. When salt absent indicator is lighten on (app. between 20th-30th cycles depend on the water hardness) add salt into your machine until it fills up (approx. 1 kg) Fill the salt compartment with water at first use only. We recommend that you use small-grained or powder softener salt. Do not put table salt into your machine. Otherwise, the function of the softener compartment may decrease over time. When you start your dishwasher, the salt

Mechanical assembly diagram showing a lever mechanism with a gear and housing (no text or symbols)

Illustration of a coffee maker pouring liquid into a container on a stand, with no visible text or symbols.

Mechanical assembly diagram showing a lever and gear assembly (no text or symbols)

compartment gets filled with water. Therefore, put the softener salt prior to starting your machine. This way, overflowing salt gets immediately cleaned up through the wash operation. If you are not going to wash any dishes immediately after putting salt, then run a short washing program with an empty machine in order to avoid any damage (to prevent corrosion) to your machine due to the salt overflow while filling in the salt container.

Testing strip

The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).

Open the testing strip.

Run water through your tap for 1 min.

Keep the testing strip in water for 1 sec.

Shake the testing strip after taking it out of water.

Wait for 1 min.

Make your machine's water hardness setting according to the result obtained through the testing strip.

Hand holding a tool measuring water droplets with arrows indicating direction (no text or symbols)

Adjusting salt consumption

Table of Water Hardness Level Settings

Water hardness degree	German hardness dH	French hardness dH	British hardness dH	Water hardness indicator
1 0-5 0-9	0-6 Wash light is on.
2 6-11 10-2	20 7-14 End light is on.
3 12-17 21-	30 15-21 Start/Pause key is on.
4 18-22 31-	40 22-28 Wash light is on.			End light is on.
5	23-34	41-60	29-42	Wash light is on.Start/Pause key is on.
6.	35-50	61-90	43-63	End light is on.Start/Pause key is on.

If the hardness of the water you use is above 90 dF (French hardness) or if you are using well water; you are recommended to use filter and water refinement devices.

NOTE: Hardness level is adjusted to level 3 as a factory setting.

In accordance with the degree defined on the test track, perform the water hardness setting of your machine as indicated below.

• Set the On/Off button (4) to off position (1).
• Press and hold Start/Pause (3) key.
• Set the On/Off button (4) to number 2 position by rotating it clockwise (rightward) 1 step.
• Hold your finger on the Start/Pause (3) key till all the lights flash and then the "water hardness degree indicator" predefined on your machine is displayed, (see setting table for water hardness degree).
• You can configure the settings according to the setting table for water hardness degree by pressing Start/Pause key (3).
• After selecting the water hardness degree, cut off the power of the machine by switching the On/Off button (4) to off position (1). The last selected water hardness setting will be stored in the memory.

Warning: In case of moving, to configure the water hardness setting according to the water hardness of the area you have moved is important for the effectiveness of washing.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Diagram of a door handle with a curved arrow indicating rotation or movement (no text or symbols)

Filling the detergent compartment

Push the latch to open the detergent container as shown in the image 1 Detergent pod has level lines inside. It is possible to measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ^3 detergent.

Open the dishwasher detergent and pour into the larger compartment 25 cm ^3 if your dishes are heavily soiled or 15

cm ^3 if they are less soiled. If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly loaded the dishwasher, pour 5cm ^3 detergent into the pre-wash compartment and start your machine.

You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area.

Combined detergents

Detergent manufacturers also manufacture combined detergents that are called 2 in 1 - 3 in 1 - 5 in 1...

The 2 in1 detergents contain detergent+ salt or rinse aid. While using the 2 in 1 detergents, it should be observed which functions the tablet consists of.

The other tablet detergents also have detergent+rinse aid +salt+various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts.

Points to consider when using this type of products:

• Always make sure to check the specifications of the product you will use or whether or not it is a combined product.
• Check if the detergent used is appropriate for the hardness of mains water that machine is appertaining to.
• Observe the instructions on packagings when using such products.

• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.

• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.

• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in salt and/or rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

• Fill the salt and rinse aid compartments.
• Adjust the water hardness setting to the highest position and run an empty-wash.
• Adjust the water hardness level.
• Make the suitable rinse aid setting.

Filling with rinse aid and making the setting.

Rinse aid is used to

Hand turning a knob with a numbered dial (1) and rotational arrow, no text or symbols present

prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently

dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

To put rinse aid, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark; refit the

cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator means that there is rinse aid in the compartment, while a light indicator shows that you need to fill the compartment with rinse aid.

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3.

You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets. You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Dish rack

There are dish racks on the upper basket of your machine. a b You can use these dish racks in open or closed position. When they are in open position a you can place your cups on them; and when in closed position a you can place long glasses on the basket. Also, you can use these racks by placing long forks, knives and spoons on them laterally.

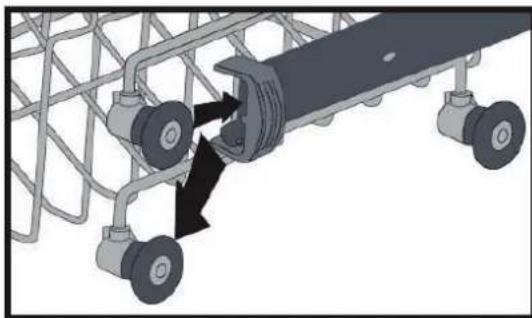

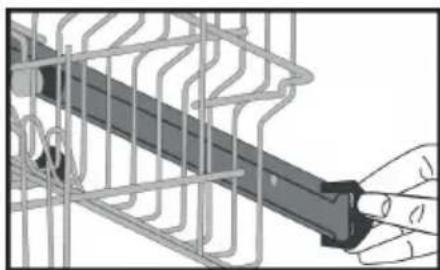

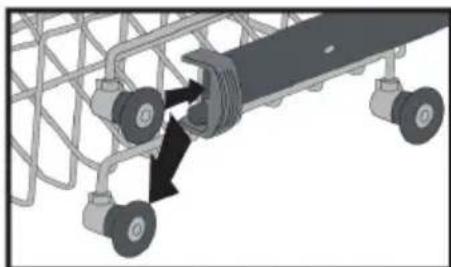

Top basket height adjustment

Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket.

Use wheels in order to change the basket height. Open the basket retaining parts at the end of top basket rails by turning them to the sides, and take the basket out. Change the position of the wheels; reinstall the basket to the rail, and close basket retainer parts. In this way, you take the top basket to lower position.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Mechanical assembly diagram showing a conveyor belt system with wheels and directional arrows (no text or symbols)

Alternative basket loads

Lower Basket

3D diagram of a cooking pan and fan with a hand holding a tray containing blue objects, enclosed in a grid-like structure (no text or symbols)

3D rendering of a cooking pan and lid on a grid background (no text or symbols)

Top basket

3D diagram of a grid-based mechanical or electrical component with multiple spherical components and a central threaded base (no text or symbols)

Faulty loads

Technical illustration of a mechanical assembly with internal components and a highlighted section (no text or symbols)

3D rendering of a multi-wheeled kitchen sink with eggshells and a large 'X' symbol overlay (no text or labels)

3D wireframe model of a shopping basket with white and blue product containers, marked with a black 'X' symbol (no text or labels)

Important Note for Test Laboratories

For detailed information on performance tests, please contact following address: "[e-mail]". In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.

PROGRAMME DESCRIPTIONS

Programme items

Programme No	Prewash	Quick-wash	Eco	Super Wash 50 min.	Intensive	Hygiene
Programme names and temperatures	-	40°C	50°C	65°C	65°C 70°C
Type of food waste	Pre-wash to rinse and loosen residue- awaiting full load- then select a programme	coffee, milk, tea, cold meats, vegetables, not kept for long	cold meats, vegetables, not kept for long	soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods	soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods	Dishes with dense dirt waiting for a long time or requiring hygienic washing.
Level of soil	-	small	medium	medium high	high	high
Detergent amount B: 25 cm ^-1 / 15 cm ^-2 A: 5 cm ^-3	-	B A+B		A=B	A+B A+B
	Prewash	40°C Wash	30°C Wash	65°C Wash	45°C Wash	45°C Wash
	End	Cold rinse	50°C WashC	Intermediate rinse	65°C Wash	70°C Wash
	Hot rinse		Hot rinse	Hot rinse	Cold rinse	Cold rinse
	End	Dry	End	Intermediate rinse	Hot rinse
	End		End	Hot rinse	Dry
	Dry		Dry	Hot rinse	Dry
	End		End	Hot rinse	Dry

Programme duration (min.)	15	30	198	50	114	124
Electricity consumption (kW hours)	0,02	0,72	0,73	1,31	1,45	1,5
Water consumption (liters)	3,8	10	11,0	10,5	17,6	15

Warning : Short programs do not include a drying step.
The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

Programme Selection and Operating the Machine 765

1. Door Handle

Use the door handle to open/close the door of your machine.

2. Delay and Half load Button

Thanks to the delay function in your machine, by using the Delay button you can delay the start-up time of the programme for 3-6-9 hours.

Upon pressing the delay key 3h washing light will be lit. If you keep on pressing the Delay key, 6h-9h lights will be lit respectively on your each press. You will cancel the delay if you press the delay key again after the 9h light is lit.

You will activate the delaying function once you select the delay time and then press the Start/Pause key. The countdown will be triggered after that moment. If you would like make any change in the delay time after the delaying function is enabled, you can set the new time with the button number 2 by pressing the Start/Pause key. Press the Start/Pause key again to activate it.

Once the delay time is terminated, the delay light will go off and the programme you have selected will start operating. If you press Delay key while the 9h delay light is on, the delay light will go off. If you press Start/Pause key while the delay lights are turned off, the programme you

have selected will start without delay. If the user switches the programme selection button to off position after enabling the delay time and the programme is started, the activated delay function will have been cancelled.

The half load function will be activated and the half load LED will be lit if the key number 2 is pressed and hold for 3 seconds.

Press the key number 2 for 3 seconds to cancel the half load function. The half load LED will go off.

Thanks to the half load function in your machine, you can shorten the durations of the programmes that you have selected and reduce the energy and water consumption. (see programme listing p 59)

NOTE: If you have used any extra function (such as delay or half loads) in the washing programme that you last used and then cut off the energy of the machine and re-energised it, that function you have selected will not be active in the next washing programme. If you would like to use this feature in the programme you have newly selected, you may select the desired functions once again.

3. Start/Pause Button

When you press the Start/Pause key, the programme you have selected with the programme selection button will start operating and the washing light will be lit. After the programme is started, the Start/Pause light will go off.

You can press Start/Pause key if you would like to stop the programme. In such case, the light on the Start/Pause key will blink. You can allow the programme to resume by pressing the Start/Pause key again.

4. On/Off Programme Selection Button

When in off position, it cuts off the energy of the machine. In other positions, the machine is energised and programme selection can be performed.

5. Programme Monitoring Lights

You can monitor the programme flow with the programme lights on the control panel.

• Wash
  • Dry
  • End

6 Salt Missing Warning Indicator

Check the salt missing warning indicator light on the display to have an idea whether the softening salt in your machine is enough. When salt missing warning indicator is lit,

fill the salt compartment.

7. Rinse Aid Missing Warning Indicator

Check the rinse aid missing warning indicator light on the display to have an idea whether the amount of the rinse aid in your machine is enough. When rinse aid missing warning indicator is lit, fill the rinse aid compartment.

Operating the Machine

Programme Monitoring

You can monitor the programme flow with the programme lights on the control panel.

Changing the Programme

If you would like change a programme while a washing programme is running on:

Cancelling the Programme

If you would like cancel a programme while a washing programme is running on:

Switching the Machine Off

NOTE: In order for the drying process to be performed more quickly, you may slightly open the machine door after few minutes when the programme has ended and the End light has been lit.

NOTE: The washing programme resumes on where it has left if the machine door is opened and then closed or if the machine power is cut off and then supplied during the washing process.

NOTE: If the power is interrupted or if the machine door is opened and then closed during the drying process, the programme is terminated. And your machine becomes ready for the new programme selection.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door,

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning machine,

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter

b. Coarse Filter

c. Metal/Plastic Filter

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.1

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another.

Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across. 4

• Never use your dishwasher without any filter.
• Incorrect fitting of the fi Iter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

Diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE ERROR			DESCRIPTION	CONTROL
Wash	End Start/ Pause
			Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service if the error resumes
	[2K7W]		Error of continuous water input	Close the tap.Contact the service.
			The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service.
			Intended water temperature could not be reached faulty heater and heater sensor	Contact the service.
			Alarm is active against water overflow	Power off your machine and close the tap.Contact the service.
			Faulty electronic card	Contact the service.

If one of program monitor lights is on and start/Pause light is on and off, Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the lamps "Wash" and "End" keep flashing

• Water overflow alarm is active
- Turn off your tap and contact an authorised service.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
• Water inlet failure.
• Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
  • Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
  • Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
• Rinse aid dosage setting at a very low level.
• No special salt is being used despite the high degree of water hardness.
  • Water softener system setting is at a very low level.
• Salt compartment cap not closed well.

If the dishes won't dry up

• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
• High rate of salt in the wash water.
- Salt compartment cap not closed well.
- Too much salt spilt into the sides and into the machine while filling it with salt.
- Unhealthy mains grounding.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine
2. Unplug the machine and then turn the water off.
3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.

7. Do not add detergent.
8. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.
9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a program.
13. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

THE PRODUCT FICHE (Spect)

Supplier's trade mark VOX
Supplier's model	LC 2145 / LC 2145ix
Capacity of dishwasher	10
The energy efficiency class	A++
Annual energy consumption in kWh per year (AEc) (280 Cycle) *	211
Energy consumption (Et) (kWh per cycle)	0,73
Off-mode power consumption (W) (Po)	0,50
Left-on mode power consumption (W) (Pi)	1,00
Annual water consumption in litres per year (AWc) (280 Cycle) **	3080
Drying efficiency class ***	A
Standard programme name ****	Eco
Programme time for standard cycle (min)	198
Noise dB(A)	57

* Energy consumption 211 kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes. Actual energy consumption will depend on how the appliance is used.
** Water consumption 3080 liters per year based on 280 standard cleaning cycles. Actual water consumption will depend on how appliance is used.
***Drying efficiency class A on a scale from G(least efficient) to A (most efficient).
**** The "Eco" is the standard cleaning cycle to which the information in the label and the fiche relates. This programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption.

Line drawing of a wine glass and a decorative plate with starburst elements (no text or symbols)

СОДРЖИНА

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Црево за довод

Diagram showing two different pipe fittings: one with a handle and the other with a valve, both without any text or symbols.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Mechanical device with a numbered label (1) and a circular arrow, showing a tool interacting with a mechanical component (no text or symbols visible)

Illustration of a coffee machine pouring dark liquid into a container on a stand, with no visible text or symbols.

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Diagram of a door handle with a curved panel and a knob, showing a circular arrow indicating direction (no text or symbols)

Hand turning a knob on a device (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a rail vehicle with wheels and a lever mechanism (no text or symbols)

Долна корпа

3D technical illustration of a mechanical component with internal parts, showing a pan and fan assembly (no text or symbols)

3D rendering of a cooking pan with lid and pan, placed on a grid surface with side panels (no text or symbols)

Горна корпа

3D diagram of a grid-based mechanical or electrical component with multiple components and no visible text or symbols

3D technical illustration of a mechanical assembly with internal components and a highlighted section (no text or symbols)

3D wireframe model of a shopping basket with white and blue models, marked with a black 'X' symbol (no text or labels)

3D wireframe model of a grid with white and blue components, no text or symbols visible

Важна забелешка за тест лабаратории.

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Line drawing of a wine glass and a decorative circle with starburst elements (no text or symbols)

VSEBINA

• Tehnicne lastnosti.... 4
• Potrdilo o skladnosti s standardi in testnimi podatki.... 5

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Dovodna cev za vodo

Diagram showing two different pipe fittings: one with a handle and the other with a valve, both without any text or symbols.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Električna povezava

Mechanical assembly diagram showing a lever with numbered components and a gear-like component (no text or symbols)

Dodajanje soli

Illustration of a coffee maker pouring liquid into a container with a spool, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with a nut and housing (no text or symbols)

Diagram of a door handle with a curved arrow indicating rotation (no text or symbols)

Kombinirani detergenti

Hand turning a knob on a device, showing a circular dial with an arrow indicating rotation (no text or symbols)

Illustration of a droplet being injected into a container with two sun icons nearby (no text or symbols)

Illustration of a hand holding a tool inside a wire cage (no text or symbols visible)

Mechanical assembly diagram showing a conveyor belt system with two wheels and a central rotating component (no text or symbols)

3D diagram of a cooking pan and lid with internal components, no visible text or symbols

Illustration of a cooking pan with lid and pan, placed on a grid background (no text or symbols)

Zgornja košara

3D diagram of a grid-based device with multiple spherical components and a central speaker (no text or symbols)

Napačno nalaganje posode

Pomembno obvestilo za testne laboratorije

Simple line drawing of a container with three circles and a wavy line, no text or symbols present

Spremljanje programa

Če želite odstraniti in očistiti filtre, jih obrnite v nasprotni smeri urinega kazalca in jih potegnite navzgor. 1 Potegnite in odstranite kovinsko-plastični filter. 3 Nato potegnite grobi filter iz finega filtra. 2 splaknite jih pod tekočo vodo. Nato vstavite grobi filter v fini filter, tako da se bodo oznake skladale.

pomivanja.

Pure diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Razpršilne roke:
