USER MANUAL C383 Revel
In-Ceiling Architectural Loudspeaker Instruction Manual
DOCUMENTATION CONVENTIONS
This document contains general safety, installation and operation instructions for the Revel ^® C783, C583, C383, C763, C563, C363, C563DT, C363DT in-ceiling loudspeakers. It is important to read this document before attempting to use this product. Pay particular attention to:
WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.
CAUTION: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in damage to or destruction of part of or the entire product.
Note: Calls attention to information that aids in the installation or operation of the product.
ABOUT REVEL® IN-CEILING SPEAKERS
Since the first Revel ^® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-ceiling loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-ceiling loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.
IN-CEILING LOUDSPEAKER HIGHLIGHTS
- Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
- 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
- High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
- Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
- Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
PRODUCT REGISTRATION
Please take a moment to register your product on our Web site at www.revelspeakers.com. You'll enable us to keep you posted on our latest advancements and help us to understand our customers and build products that meet their needs and expectations.
BOX CONTENTS
Your Revel in-ceiling loudspeaker box should contain the following items:
1 x Revel in-ceiling loudspeaker
1 x round grille
1 x square grille
1 x extra scrim cloth for round grille
1 x extra scrim cloth for square grille (with attached foam pads)
1 x mounting template
1 x instruction manual
UNPACKING THE SPEAKER
Carefully unpack the speaker. If you suspect damage from transit, report it immediately to your dealer and/or delivery service. Keep the shipping carton and packing materials for future use.
INSTALLATION CONSIDERATIONS
Your new Revel loudspeakers have been engineered to provide extremely accurate performance. However, any speaker's ultimate performance will be affected by the speaker's placement in the listening room and the acoustics of the room. Not all listening spaces can accommodate the ideal conditions of these two factors. Therefore, careful attention to the placement of your Revel in-ceiling loudspeakers will have a significant impact on the general performance of the loudspeakers.
LOUDSPEAKER PLACEMENT FOR DISTRIBUTED SOUND
- Since distributed sound is general sound throughout an area, place the loudspeakers as uniformly as possible for even sound coverage throughout the area.
- Place the left and right loudspeakers roughly the same distance from the primary listener locations.
- To avoid "hot spots" where the sound is too loud, plan to use more loudspeakers, with each set to play at a lower volume.
LOUDSPEAKER PLACEMENT FOR TWO-CHANNEL STEREO

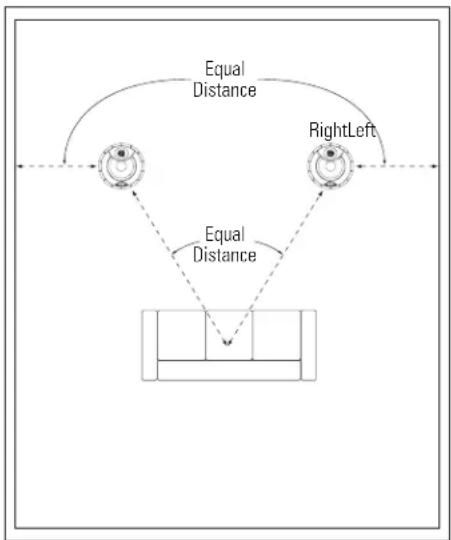

Place the left and right loudspeakers the same distance from the primary listening area (or as close to the same distance as possible). The distance from each speaker to its nearest side wall should also be the as close to the same distance as possible.
Ideally, the distance between the left and right loudspeakers should be slightly less than their distance from the primary listening area.
LOUDSPEAKER PLACEMENT FOR HOME THEATER
- The front left, center and front right loudspeakers should be centered relative to the video display.
- The front left, center, and front right loudspeakers should be closer to the video display than to the main listening area. For example, if the video display is 10 ft (3m) from the main listening area, the loudspeakers should be 6 ft (1.8m) or further from the main listening area.
- The front left and front right loudspeakers should be relatively close to the sides of the video display. For example, front left and front right loudspeakers used with a 50-in (1.2m) video display should generally not be more than 80 in (2m) apart.
- The center loudspeaker should be aligned with the center of the video display.
- The surround-channel loudspeakers should be as far from the main listening area as possible but at least 2 feet (0.6m) from side and rear walls.
5.1-Channel Speaker Placement
- In a 5.1-channel system, the surround left and surround right loudspeakers should be located to the sides of, and approximately 10 degrees behind, the main listening area.


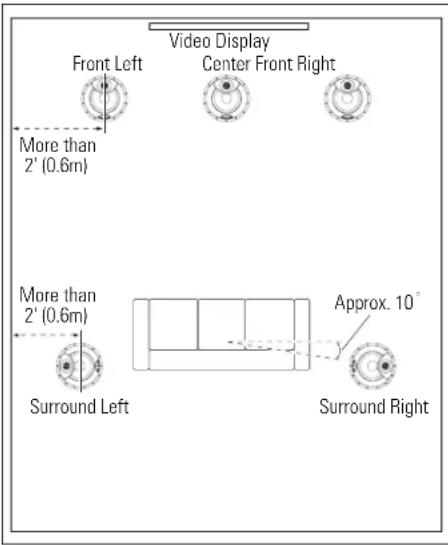

Video Display Front Left Center Front Right More than 2' (0.6m) More than 2' (0.6m) Approx. 10° Surround Left Surround Right7.1-Channel Speaker Placement
- In a 7.1-channel system, the surround left and surround right loudspeakers should be located directly to the sides of, or up to 10 degrees behind, the main listening area.
- In a 7.1-channel system, the surround back left and surround back right loudspeakers should be equidistant from the primary listening area and generally as far from it as possible but at least 2 ft (0.6m) from the side and rear walls.


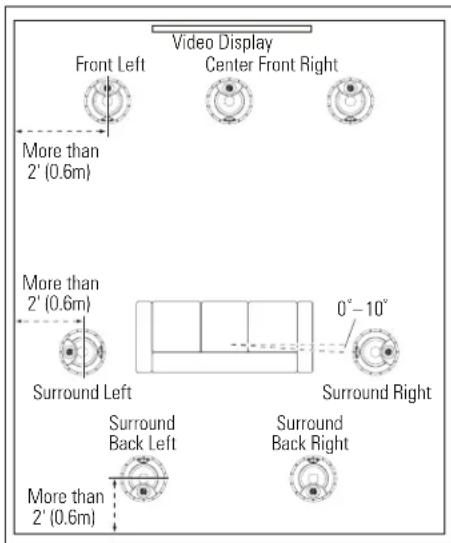

Video Display Front Left Center Front Right More than 2' (0.6m) More than 2' (0.6m) Surround Left Surround Right Surround Back Left Surround Back Right More than 2' (0.6m)LOUDSPEAKER PLACEMENT FOR DUAL-TWEETER STEREO MODELS
Because a single Revel dual-tweeter stereo in-ceiling speaker reproduces both stereo channels from a single location, it will deliver outstanding performance from a wide variety of mounting locations where a pair of stereo speakers would be impractical, including hallways, bathrooms and closets.
INSTALLATION INSTRUCTIONS

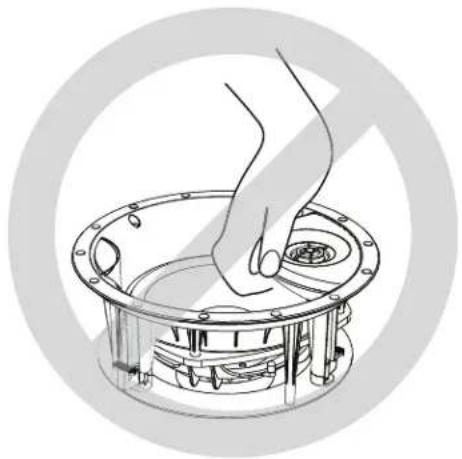

CAUTION: Do not use the tweeter-mounting baffle as a handle to move, carry or position the speaker. Doing so can damage the baffle. Such damage is not covered by the speaker's warranty.
WARNING: HARMAN International assumes no responsibility for improper installation of hardware or for any personal injuries or product damages resulting from improper installation or a fallen loudspeaker.
CONNECTING TO THE AMPLIFIER
CAUTION: REMOVE POWER
You must connect the speaker wires before the speaker is fully installed. To protect the audio system and yourself from damage or injury through accidental electrical shorting and surges during installation, turn all audio system power OFF before beginning the speaker installation.
Speaker Wire
Use high-quality speaker wire to obtain the best performance from your Revel in-ceiling speakers.
- For wire lengths of less than 50 ft (15m), use at least 16-gauge speaker wire.
- For wire lengths between 50 ft and 100 ft (15m – 30m), use at least 12-gauge speaker wire.
- For wire lengths of greater than 100 ft (30m), use at least 10-gauge speaker wire.
Note: All speaker wires must comply with all local building and safety codes for use in in-ceiling applications.
Making Connections

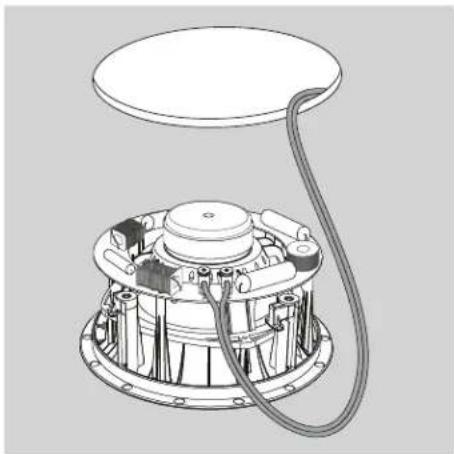

Connect each channel's positive (+) terminal on the back of the amplifier or receiver to the positive ("IN+)/red) terminal on the corresponding speaker; connect each channel's negative (−) terminal on the back of the amplifier or receiver to the negative ("IN−"/black) terminal on the corresponding speaker. Do not reverse polarities (that is, do not connect + to −, or − to +) when making connections. Doing so will cause poor imaging and diminished bass response.

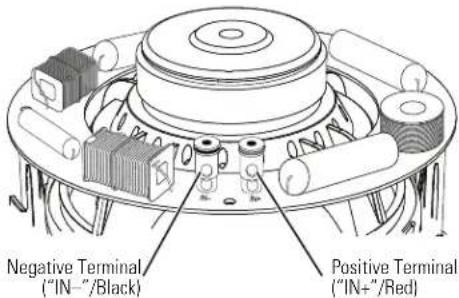

CAUTION: To avoid short circuits that may damage your equipment, be certain that positive and negative wire strands do not touch each other and do not touch metal parts such as the speaker frame.
MOUNTING THE SPEAKERS
For New Construction
If you wish to pre-install a rough-in frame for the speakers before the drywall is installed in new construction, you will need to purchase the correct rough-in frame kit for your loudspeaker model from your authorized Revel dealer. Detailed mounting instructions are supplied with the rough-in kit. After the drywall is installed, follow the installation instructions in For Existing Construction, below.
For Existing Construction
Note: The installation procedure is the same for all models covered by this manual.
- Ensure that the drywall, plywood or other ceiling material is 1/2" - 2" (13mm - 51mm) thick and capable of withstanding the weight of the speaker being installed.
Make sure to allow at least 3/4" (19mm) between the edge of the supplied installation template and any rafters or other obstructions behind the wall, so the speaker's locking mechanism will have room to engage fully. Perform an obstruction survey to be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.


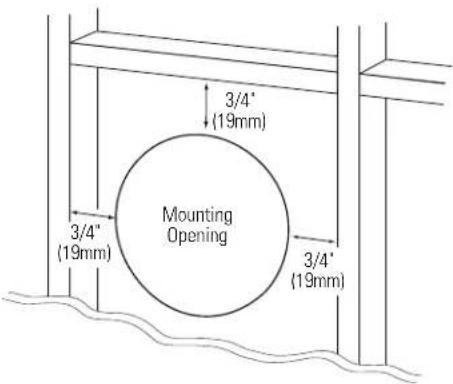

3/4" (19mm) Mounting Opening 3/4" (19mm) 3/4" (19mm)- Determine the correct speaker location and use the template included with the speaker to mark the ceiling material.


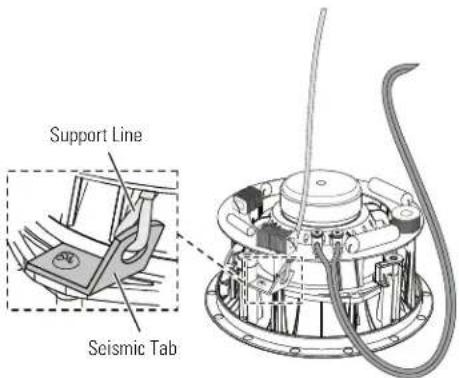

Support Line Seismic Tab- Make sure all four speaker clamps are in their "ready-to-mount" position.


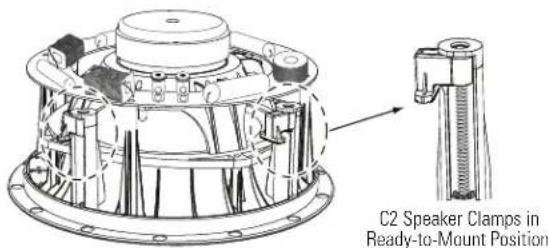

C2 Speaker Clamps in Ready-to-Mount Position- Insert the speaker straight into the mounting opening. Tighten the speaker clamp screws on the front of the speaker baffle. The speaker clamps will automatically rotate into position and begin clamping the speaker.
- When you notice resistance on the screws the speaker has been clamped successfully.
IMPORTANT: Always use low-torque settings. NEVER over-tighten the clamp screws


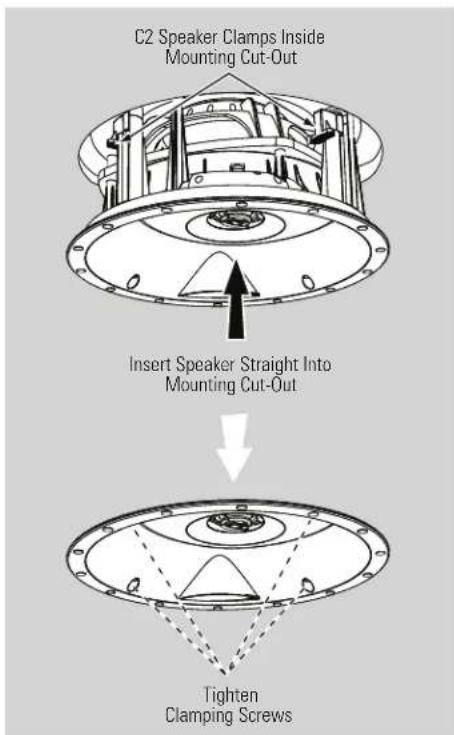

C2 Speaker Clamps Inside Mounting Cut-Out Insert Speaker Straight Into Mounting Cut-Out Tighten Clamping Screws- Attach the supplied round or square grille. Powerful magnets in the speaker frame will securely hold the grille in place.


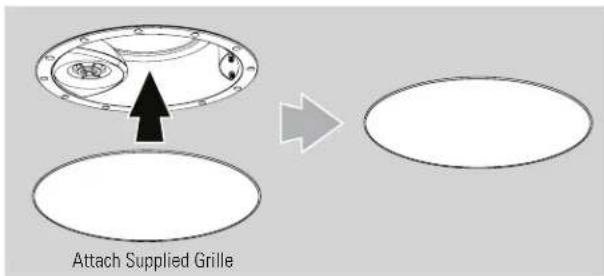

Attach Supplied GrillePainting the Grille
Revel architectural loudspeaker grilles can be painted to match any décor. If you wish to change the grille's color, its satin finish will function as a primer coat. For the best results follow this procedure:
- Gently remove the scrim cloth from the back side of the grille before painting.
- Use a high-quality spray paint and apply a thin coat of color. Ensure that the grille perforations remain free of paint. Filling them with paint will diminish the speaker's sound quality. If any perforations are plugged, use compressed air to blow the paint out of the perforations.
Note: If you find any grille perforations that are plugged with paint after the paint has dried, carefully use a straight pin or sewing needle to remove the paint.
- We have included round and rectangular replacement scrim cloths. After the paint has dried, apply a light coat of spray adhesive to the inside of the perforated grille and attach a new scrim cloth. IMPORTANT: Never spray adhesive on the cloth. The square scrim cloth has pre-attached foam pads that help prevent the grille from vibrating against the ceiling.
USING YOUR SPEAKERS
ADJUSTMENTS
Adjustable Angle Tweeter (C783/C763/C583/C563/C383/C363)

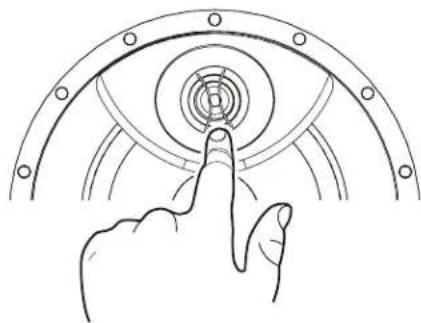

Most Revel in-ceiling speaker models allow you to adjust the angle of the tweeter. To change the angle, press on the tweeter's outer ring as shown in the illustration below. Be careful not to touch the tweeter diaphragm or suspension.
The Boundary Compensation control reduces the speaker's bass output level to compensate for the greater reflection of bass energy when the speaker is placed near a wall.
When possible, avoid mounting the speaker within 2 ft (0.6m) of a wall. If such placement is unavoidable, set the Boundary Compensation control to the "On" position.


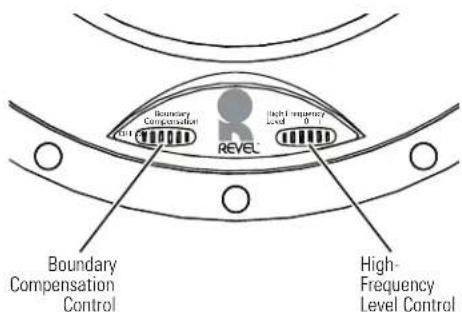

Boundary Compensation REVEL High-Frequency Level 0.1 Boundary Compensation Control High-Frequency Level ControlHigh-Frequency Level Control (C783/C763/C583/C563)
The High-Frequency Level control lets you fine-tune the speaker's high-frequency output to compensate for various acoustical environments. The control has three settings:
+: Increases high-frequency output. Set the switch to this position if the room has many features that absorb high-frequency sound energy, such as thick carpeting, drapes and fabric-covered furniture.
0: Normal high-frequency output. Set the switch to this position for most installations.
-: Decreases high-frequency output. Set the switch to this position if the room has many features that reflect high-frequency sound energy, such as large uncovered windows, bare tile floors and large expanses of bare walls, or if the speakers are used without grilles.
EXCESSIVE OUTPUT LEVELS
Your Revel loudspeakers feature custom-designed transducers and high-quality network components featuring high-order filters with steep cutoffs that reduce the potential of damage to individual speaker drivers and help the loudspeakers maintain their performance even under extreme operating conditions. However, all loudspeakers have limits when it comes to continuous playback. To extend these limits, avoid playback at volume levels that result in distorted or strained sound.
OBTAINING SERVICE
To obtain service, contact an authorized Revel dealer. Refer to Limited Warranty, below for more information.
DIMENSIONS
| Mounting Opening Diameter Mounting Depth Overall Dimensions (w/grille) | ||
| C783 | 9-7/8" (251mm) 5-15/32" (139mm) Deep 10-23/32" (272mm) Dia. X 5-5/16" | (136mm) Deep |
| C583 | 9-7/8" (251mm) 5-15/32" (139mm) Deep 10-23/32" (272mm) Dia. X 5-5/16" | (136mm) Deep |
| C383 | 9-7/8" (251mm) 5-15/32" (139mm) Deep 10-23/32" (272mm) Dia. X 5-5/16" | (136mm) Deep |
| C763 | 8-1/4" (210mm) 4-5/8" (118mm) Deep 9-3/32" (231mm) Dia. X 4-25/32" (121mm) | Deep |
| C563 | 8-1/4" (210mm) 4-5/8" (118mm) Deep 9-3/32" (231mm) Dia. X 4-25/32" (121mm) | Deep |
| C363 | 8-1/4" (210mm) 4-5/8" (118mm) Deep 9-3/32" (231mm) Dia. X 4-25/32" (121mm) | Deep |
| C563DT | 8-1/4" (210mm) 4-5/8" (118mm) Deep 9-3/32" (231mm) Dia. X 4-25/32" (121mm) | Deep |
| C363DT | 8-1/4" (210mm) 4-5/8" (118mm) Deep 9-3/32" (231mm) Dia. X 4-25/32" (121mm) | Deep |
Dimensions are subject to change without notice.
For complete performance specifications, please go to the Revel Web site: www.revelspeakers.com.
LIMITED WARRANTY
A valid serial number is required for warranty coverage. This Revel warranty protects the original retail purchaser for a period of five (5) years (parts and labor) from any failure as a result of original manufacturing defects so long as:
- The Revel products were purchased within the 50 United States, its territories or Canada.
- The dealer from whom the Revel products were purchased was authorized to sell such products at the time of the original purchase.
- The original, dated Bill of Sale is presented whenever service is required during the warranty period.
The balance of this warranty is transferable only if the used product is purchased from an authorized Revel dealer. This warranty is only valid for service within the United States, its territories and Canada; please contact an authorized Revel dealer for warranty and service information.
Any Revel product not performing satisfactorily may be returned to the factory for evaluation. Return authorization must first be obtained by either calling or writing Customer Service prior to shipping the product. The customer is responsible for shipping charges to the
factory. Customer Service will pay return shipping charges within the United States only in the event that the product is found to be defective as mentioned above. There are other stipulations that may apply to shipping charges.
There is no other express warranty on this product. Neither this warranty nor any other warranty, express or implied, including implied warranties of merchantability and fitness, shall extend beyond the warranty period. No responsibility is assumed for any incidental or consequential damages, so that the above exclusion or limitation may not apply.
This warranty provides specific legal rights. Other states may provide additional rights. This warranty is applicable in the United States, its territories and Canada. Outside of the United States, its territories and Canada, please contact an authorized Revel dealer for warranty and service information.
The information this document contains is subject to change without notice. In the event that there are differences between this warranty and the provisions of any advertisements, documentation, product brochures or packaging cartons, the terms of this warranty will prevail.
www.revelspeakers.com
© 2012 HARMAN International Industries, Incorporated All rights reserved.
Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
For questions, assistance or additional information concerning any of our products, call us at: (516) 594-0300 or (888) 691-4171. For technical support, submit your detailed inquiry to: csupport@harman.com.
Part No. REVP4441 Rev.: 0
LIMITED WARRANTY
United States, US Territories – Effective January 1, 2017
This limited warranty (this "Limited Warranty") protects only the original end-user ("you" or "your"), and is not transferable. Any attempt to transfer this Limited Warranty shall immediately make this Limited Warranty void.
Harman International Industries, Incorporated ("Harman") warrants to you that your Revel product (the "Product") will be free from defects in workmanship and materials for the corresponding period set forth in the table below (the "Warranty Period").
| A-stock(purchased from authorized resellers) | B-stock(denoted with "-Z" at the end of the part number) | ||
| Product Category | Warranty Period | Product Category | Warranty Period |
| Passive Loudspeakers | 5 years | Passive Loudspeakers | 1 year |
| Powered Loudspeakers | 5 years | Powered Loudspeakers | 1 year |
| In-wall Loudspeakers | Lifetime | In-wall Loudspeakers | 1 year |
| In-ceiling Loudspeakers Lifetime In-ceiling Loudspeakers 1 year | |||
This Limited Warranty does not cover defects which are a result of: (1) damage caused by accident, disaster, misuse, abuse or other unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage caused by improper installation or adjustment; (4) damage to, or deterioration of, any accessory or decorative surface; (5) damage resulting from failure to follow instructions contained in your owner's manual; or (6) damage resulting from the performance of repairs by someone other than an authorized Revel service center.
Furthermore, this Limited Warranty covers only actual defects within the Product itself, and does not cover the cost of installation or removal from a fixed installation, setup or adjustments, claims based on misrepresentation by the seller, performance variations resulting from installation-related circumstances such as program source quality or AC power or Product modifications, any Product on which the serial number has been effaced, modified or removed, or any Product sold on an "as-is" or final sale basis. This Limited Warranty is valid only for Products purchased from an authorized Revel dealer.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. EXCEPT TO THE EXTENT EXPRESSLY PROHIBITED BY APPLICABLE LAW, HARMAN EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, HARMAN SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT EXPRESSLY PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF HARMAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Notwithstanding the above, if you qualify as a "consumer" under the Magnuson-Moss Warranty Act, or applicable state laws, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Further, some states do not allow limitations on how long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so such limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This Limited Warranty is applicable in the United States and its territories. Outside of the United States and its territories, please contact an authorized Revel dealer for warranty and service information.
When the Product needs service contact an authorized Revel dealer, or contact Revel customer support to request information about where the Product should be taken or sent. To validate your right to this Limited Warranty, you must provide the original dated sales receipt or other proof of ownership and date of purchase. Do not return your Product for service without prior authorization from an authorized service center. Warranty repair of the Product must be carried out by an authorized service center. Unauthorized warranty repair will void this Limited Warranty and is performed at your sole risk.
During the Warranty Period, Harman will at its sole option and expense, repair or replace any product found to be defective. In the event that the Product is no longer available and cannot be repaired effectively, Harman, at its sole option, may replace it with a reasonable equivalent, or refund the original purchase price paid. Harman will cover reasonable return shipping charges within the United States and its territories, only if the Product is found to be defective under this Limited Warranty.
You will be charged for the cost of examining any Product that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty.
We sincerely thank you for your expression of confidence in Revel. We wish you many years of listening pleasure.
REVEL®
HARMAN Luxury Audio Group
8500 Balboa Blvd, Northridge, CA 91329 USA
(Toll-Free) 1-888-691-4171
Harman International Industries, Incorporated
400 Atlantic Street, 15 ^th Floor, Stamford, CT 06901 USA
© 2017 Harman International Industries, Incorporated. All rights reserved.
P/N 950-0513-001, Artwork # 080-3681 Rev B
