CONGRATULATIONS!

Thank You for purchasing the Wet Sounds

Wet Sounds professional marine audio products represent the ultimate in high performance marine audio.

Wet Sounds speakers are specifically engineered to withstand the rigorous marine environment.

The Wet Sounds REVO XXX Series Subwoofers are designed to provide amazing high Sound Pressure Level performance with cutting edge style. Utilizing state of the art acoustic engineering and three dimensional computer aided design, the REVO XXX series represent the most advanced marine subwoofers in the world.

Please take a moment to read the instruction manual before starting your installation. If you have any questions or concerns, please contact your certified Wet Sounds dealer or Wet Sounds directly at:

877-WET-SPKR (1-877-938-7757)

www.wetsounds.com

Shield-shaped emblem featuring the American flag with a waving wave and a stylized white claw-like symbol below (no text or numbers)

PROUDLY DESIGNED

IN THE USA

INSTALLATION

Wet Sounds REVO XXX marine subwoofers have been specifically designed to produce high Sound Pressure Level (SPL) when used in ported or vented enclosures. For optimal vented/ ported enclosure specifications, it is suggested that you visit www.wetsounds.com for complete details.

PLEASE NOTE

REVO XXX subwoofers are extremely heavy and will require an enclosure with adequate support. Minimum enclosure wall thickness of 34 " with internal bracing is recommended. For the REVO XXX-15 a brace to support the extremely heavy magnet structure is highly suggested to avoid damage of the subwoofer frame or the enclosure.

KEEP THE SHIPPING BOX!

The shipping box supplied with REVO XXX subwoofers is specially engineered to accommodate the extreme size and weight of these subwoofers. In the unlikely event that your REVO XXX subwoofers will require service it is suggested that you keep the shipping box to ensure adequate packing while in transit to and from the Wet Sounds facility.

REVO XXX SERIES SUBWOOFER TECHNICAL SPECS

REVO XXX-12 REVO XXX-15

Impedance	Dual 2 Ohms	Dual 2 Ohms
Resistance	1.0 Ohm	1.0 Ohm
Sd	510.7 cm2	855.3 cm2
Xmax	11 mm	23 mm
Mms	242 g	484 g
Voice Coil Size	4.0 inches	5.0 inches
Fs	40 Hz	45 Hz
Vas	24 Liters	44 Liters
Qms	5.00	6.00
Qes	0.42	0.40
Qts	0.39	0.38
BI (T*m)	11.9	17.4
Le (mH)	0.5	0.7
SPL	89 dB	89 dB
RMS Power	1200W	2000W
Peak Power	2400W	4000W

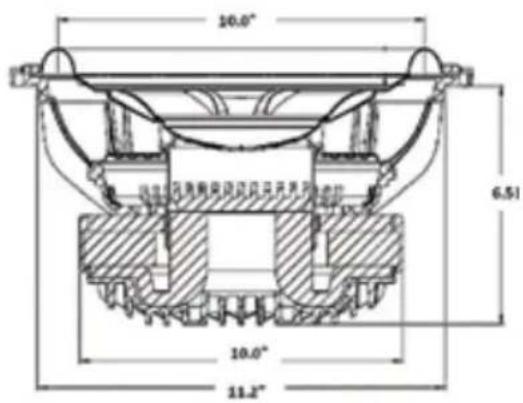

REVO XXX - 12

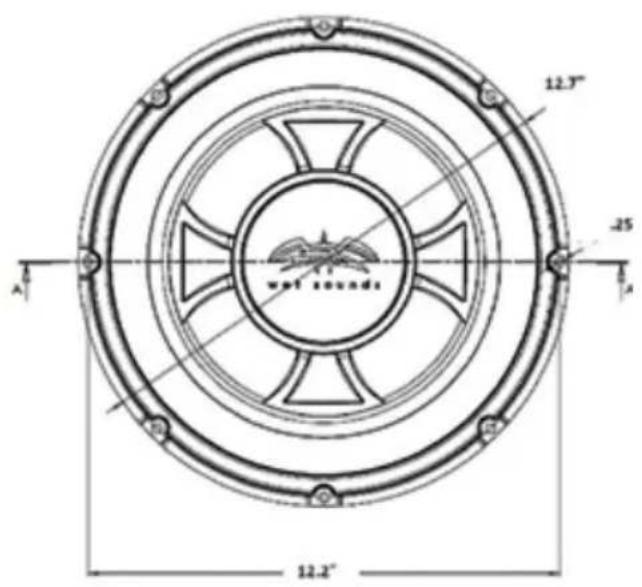

10.0" 6.51 10.0" 11.2"

12.3" -25 A wet sounds 12.2"

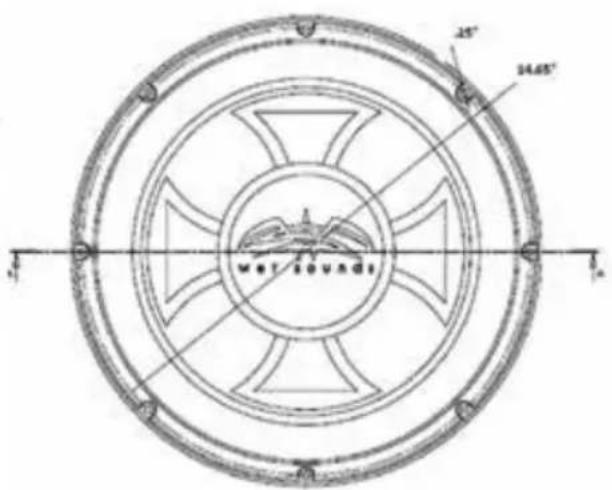

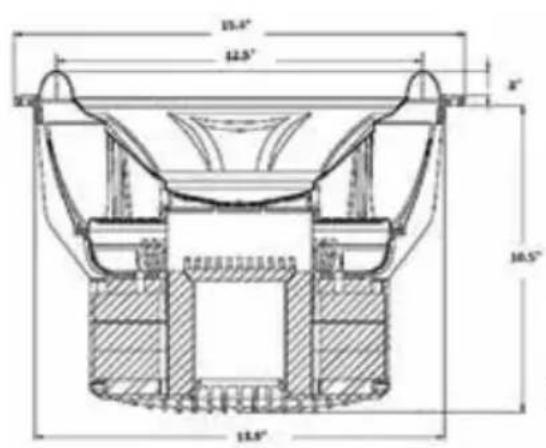

REVO XXX - 15

15.4" 12.5" 3" 10.5" 11.8"

25° 14.65° WET SOVADI

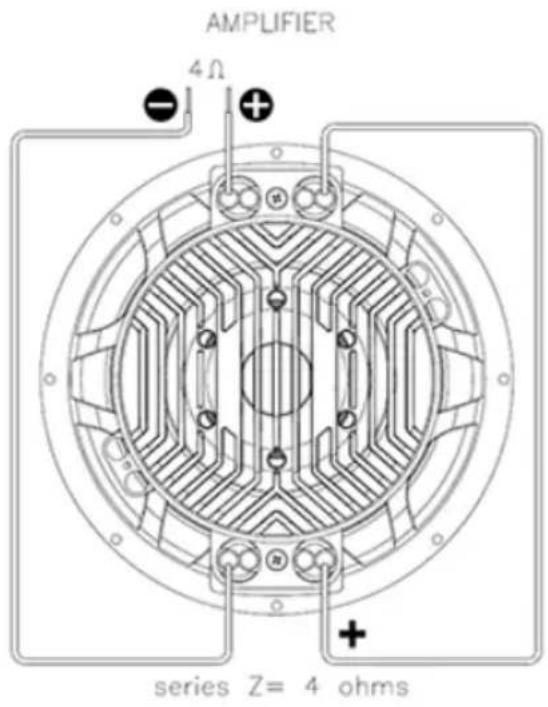

AMPLIFIER 4 Ω series Z= 4 ohms

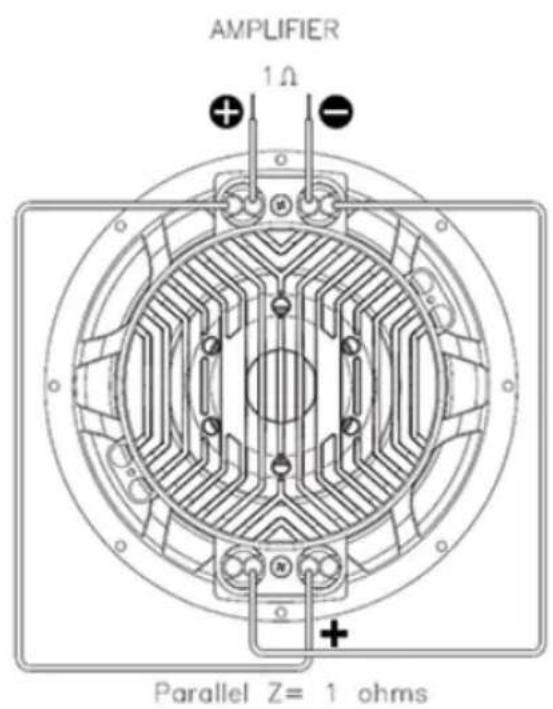

AMPLIFIER 1 Ω Parallel Z= 1 ohms

REVO XXX Subwoofers are available in Dual 2 Ohm Impedance only. This means that each subwoofer can be wired for a total impedance of either 4 Ohm (with the 2 voice coils wired is series) or 1 Ohm (with the 2 voice coils wired in parallel).

Please see the above diagram for detailed wiring diagram.

What This Warranty Covers This is a "limited" warranty.

This warranty covers any defect in materials and workmanship. This warranty only covers the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds TM dealer.

How Long Coverage Lasts This warranty extends for 2 years from the date of purchase. It is recommended to REGISTER your warranty online within 45 days of purchase at www.wetsounds.com – click on “warranty registration”.

What Is Not Covered This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. Wet Sounds, Inc. does not cover the expense for removal or re-installation. Additionally, shipping TO Wet Sounds, Inc. must be paid for by the purchaser. This warranty is void and inapplicable is Wet Sounds deems that the product was abused or misused; including but not limited to damage caused by accident, mishandling, improper installation, removing the inline fuse on the power connection, negligence, normal; wear and tear, excessive water or heat damage, freight/shipping damage, or products that have been disassembled by anyone other than Wet Sounds technical staff. Wet Sounds will not be responsible for any incidental or consequential damages, except to the extent provided (or prohibited) by applicable law. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

What Wet Sounds, Inc. Will Do Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price is that model is no longer available. Labor costs and materials needed to complete this service will be at No Charge to the purchaser. Additionally, return shipping FROM Wet Sounds, Inc. to the purchaser will be paid for by Wet Sounds.

How To Get Service Contact Wet Sounds, Inc. either by phone [phone]) or by email ([e-mail]).

A service representative will assist you in confirming that the problem you are experiencing is caused by a defective product and if that product is covered under warranty.

The service representative will issue you a Return Manufacturer's Authorization (RMA) and other details to obtain service for your product.

DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER RETURN AUTHORIZATION (RMA)!

Internet Warning Wet Sounds, Inc. products sold on any non-authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds (877-938-7757) or visit our web site (www.wetsounds.com) for a list of authorized online sellers or to find an authorized installing retailer near you.
