Type de produit	Marine digital media receiver
Dimensions	7.1 x 2.4 x 5.9 inches (180 x 61 x 150 mm)
Weight	2.2 lbs (1.0 kg)
Power Supply	12 V DC (negative ground)
Maximum Power Output	4 x 50 watts RMS (at 4 ohms)
Bluetooth	Built-in Bluetooth for audio streaming and hands-free calling
Radio Tuner	AM/FM with 30 presets
USB Input	Front USB port for MP3/WMA playback
Auxiliary Input	3.5 mm front auxiliary input
Waterproof Rating	IPX6 (water resistant)
Display	LCD with white backlight
Remote Control	Included wired remote control
Equalizer	7-band graphic equalizer
Inputs	2 pairs of RCA inputs (front/rear)
Outputs	4 pairs of RCA outputs (front/rear/subwoofer)
Installation	DIN size, stainless steel mounting brackets
Maintenance	Wipe with a dry microfiber cloth; avoid abrasive cleaners
Safety	Reverse polarity protection; built-in fuse (15A)
Spare Parts	Replacement fuses, remote control, mounting screws
General Information	Designed for marine environments; UV resistant

Frequently Asked Questions - STX Micro-4 Wet Sounds

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone. On the receiver, press the Bluetooth button. Search for devices and select 'STX Micro-4'. Enter PIN '0000' if prompted.

What is the maximum power output?

The STX Micro-4 delivers up to 4 x 50 watts RMS at 4 ohms, or 4 x 75 watts at 2 ohms.

Can I use this receiver in a saltwater environment?

Yes, it is designed for marine use with IPX6 water resistance and UV-resistant materials. Rinse with fresh water after saltwater exposure.

How do I reset the receiver?

Use a pin to press the Reset button on the front panel. This clears all settings and returns to factory defaults.

What audio formats are supported via USB?

The USB port supports MP3 and WMA files. For best performance, use a FAT32-formatted USB drive with a maximum capacity of 32 GB.

Does the receiver support a subwoofer?

Yes, it has a dedicated RCA subwoofer output. You can also configure the rear channels for subwoofer via the menu.

What is included in the box?

The box includes the receiver, wired remote control, mounting hardware, wiring harness, and user manual.

Can I control the receiver from the wired remote?

Yes, the included wired remote allows control of volume, track, source, and basic functions. It can be mounted up to 20 feet away.

What is the fuse rating?

The receiver has a 15A mini blade fuse located on the power wire. Always replace with the same rating.

How do I clean the receiver?

Use a slightly damp (not wet) microfiber cloth to wipe the faceplate. Do not use alcohol or ammonia-based cleaners.

USER MANUAL STX Micro-4 Wet Sounds

Abstract metallic wave-like graphic design on black background (no text or symbols)

wet sounds

wetsounds.com

STX MICRO-1 / STX MICRO-4

COMPACT CHASSIS CLASS-D AMPLIFIERS

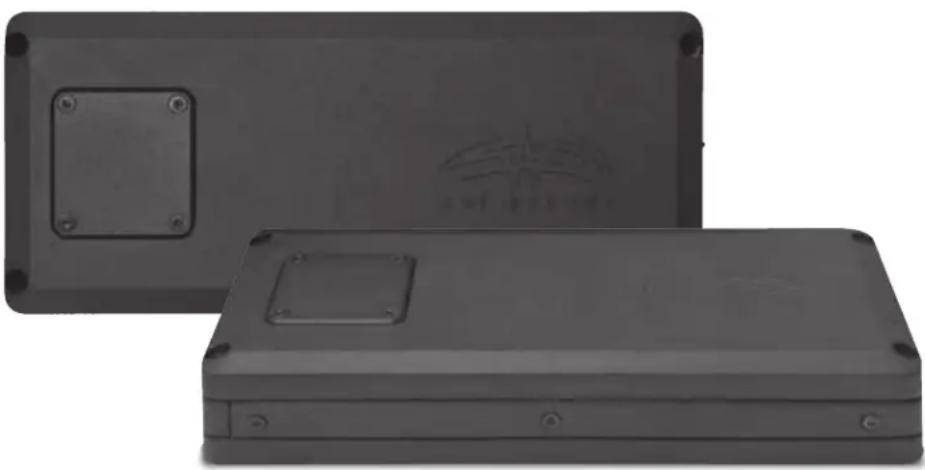

Two black rectangular electronic devices with mounting holes, one front and one side, shown from different angles (no visible text or symbols)

STX MICRO Series Specifications

STX

MICRO-1

STX

MICRO-4

Power Output 600W x 1 @ 1 Ohm 80W x 4 @ 4 Ohms

420W x 1 @ 2 Ohms 130W x 4 @ 2 Ohms

250W x 1 @ 4 Ohms 280W x 2 @ 4 Ohms

S/N Ratio @ 1 Watt > 95dBA > 95dBa

Frequency Response 10Hz – 250Hz 10 Hz – 40 kHz

Total Harmonic Distortion 0.19% 0.05%

Input Sensitivity Range 150mV – 7V 150mV – 7V

Dimensions 9.25" L x 4" W x 1.5" H

(235mm L x 101.6mm W x 38mm H)

Abstract black-and-white graphic with curved lines and a star-like shape (no text or symbols)

wet sounds

CONGRATULATIONS!

Thank You for purchasing the Wet Sounds STX MICRO amplifier.

Wet Sounds professional marine audio products represent the ultimate in high performance marine audio. Wet Sounds products are specifically engineered to withstand the rigorous marine environment.

The STX MICRO amplifiers are state of the art Class D amplifiers designed to provide great amplification in a small space for your marine or off-road audio system. The STX MICRO-4 is a 4 channel full range amplifier with fully variable high pass and low pass crossovers enabling it to drive a wide variety of either full range speakers or subwoofers. The STX MICRO-1 is a Mono-Block Class D amplifier that is designed to drive subwoofers. Both amplifiers are equipped with 3.5mm inputs and have wide enough gain range to accept a direct input from a smartphone or other portable device. The STX MICRO-4 also has a pass through output that enables connection to either the STX-MICRO-1 or a Wet Sounds ST-AS10/AS6 amplified subwoofers. The die cast aluminum chassis on the STX MICRO amplifiers are sealed to withstand use in extreme environments.

Please take a moment to read the instruction manual before starting your installation. If you have any questions or concerns, please contact your certified Wet Sounds dealer or Wet Sounds:

877-WET-SPKR (1-877-938-7757)

www.wetsounds.com

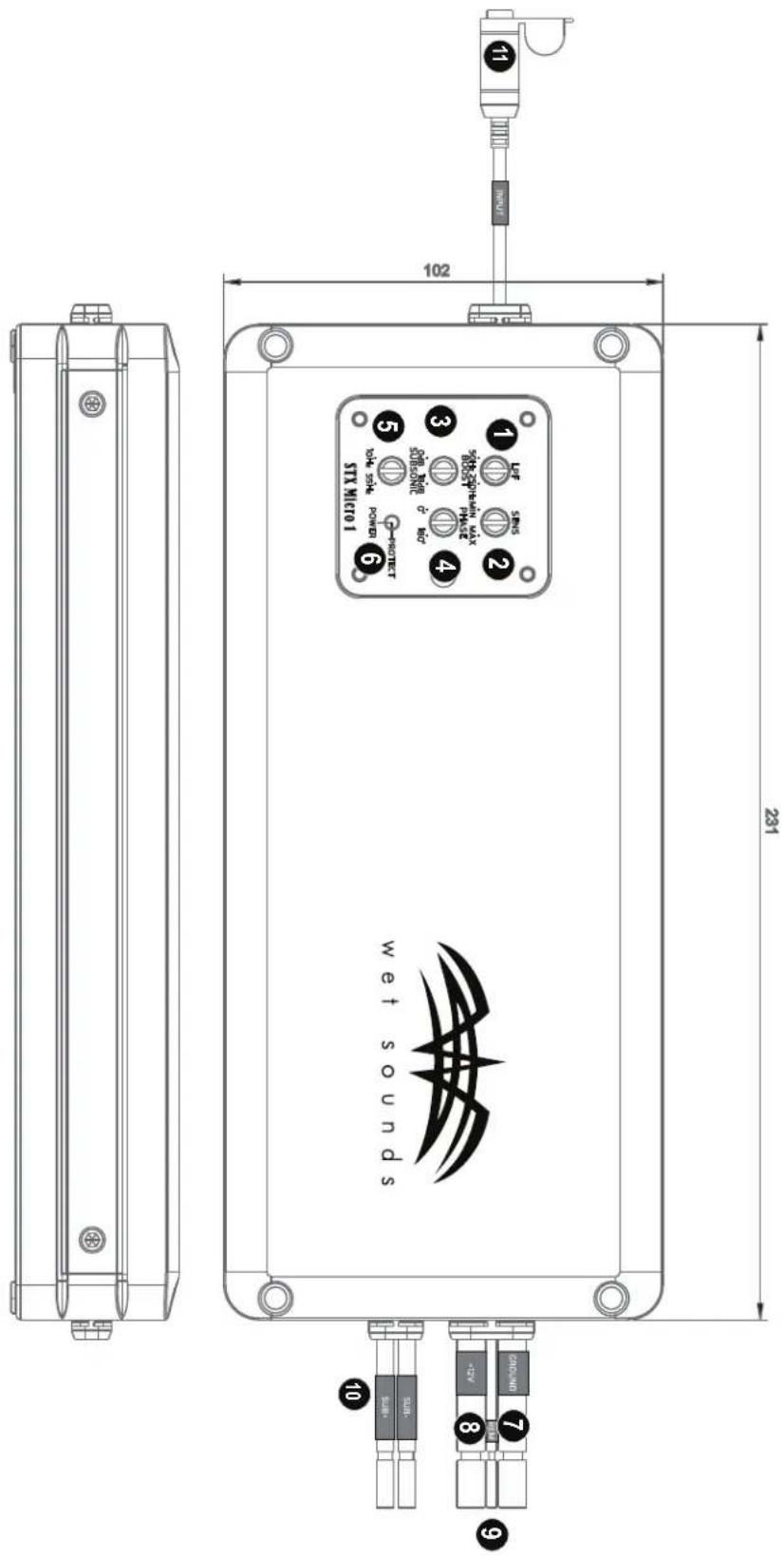

3.ATURES AND CONTROLS - STX MICRO-1

The STX MICRO-1 is a mono block amplifier that is designed to exclusively drive subwoofers. The fully variable crossover can be adjusted from 50Hz to 250Hz to fine tune the amplifier for the subwoofer enclosure and speakers being used in the system.

1. Low Pass Filter. This sets the lower limit of the frequency range for the amplifier. When the Low Pass Filter is set to 80Hz, the amplifier will pass all frequencies 80Hz and below.
2. Sensitivity. This control is used to match the input of the amplifier to the source unit. The higher the sensitivity the sooner the amp will reach maximum output.
3. Bass Boost. This is an equalization control that allows emphasis to be put on one frequency (45Hz) to increase the amplifier's output at that one frequency. The farther to the right this control is set, the more output the amplifier will have at 45Hz. Care should be taken when using this control. Excessive bass boost can damage subwoofers!
4. Phase Control. This will reverse the phase of the subwoofer. The best way to set this is by ear. Whichever sounds best should be set and left alone.
5. Subsonic Filter. Asking the amplifier to amplify frequencies below the tuning or audible range of the subwoofer will cause the amplifier to work less efficiently. Adjusting this setting slightly below the tuning frequency of the enclosure will result in more efficient and reliable operation.
6. Power/Protect Indicator. This indicator will light up RED upon initial amp start up. If all connections are OK, within 3-5 seconds the light will turn to BLUE. If a condition of protect (short circuit, over/under voltage) occurs the light will turn to RED until the condition of protect is resolved.

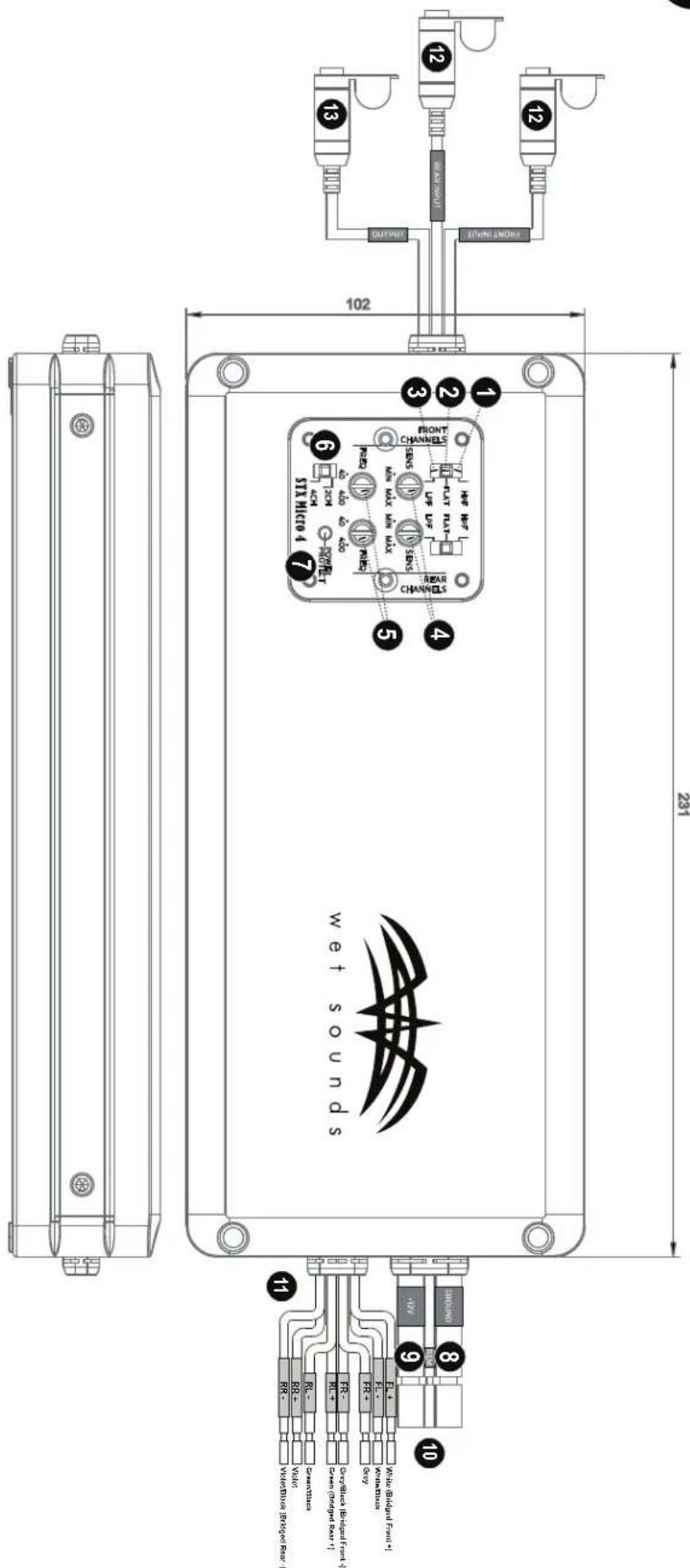

The STX MICRO-4 is an 80-watt four channel full range class D amplifier. This versatile amp may be used to drive 2 or 4 full range channels, or the front channel outputs for full range speakers and the rear channel outputs for subwoofers, or any combination of these.

1. Crossover Controls HPF. The High Pass Filter sets the upper frequency range for that channel. When the High Pass Filter is set to 800 Hz, that channel will pass all frequencies 800Hz and above.
2. Crossover Control FLAT. This will disable the crossover — allow all frequencies to pass.
3. Crossover Control LPF. The Low Pass Filter sets the lower frequency range for that channel. When the Low Pass Filter is set to 80Hz, that channel will pass all frequencies 80Hz and below.
4. Sensitivity. This control is used to match the input of the amplifier to the source unit. The higher the sensitivity the sooner the amp will reach maximum output.
5. Frequency Controls. These are used to select the frequency for the Crossover Controls.
6. Channel Select. In 2 channel mode, all 4 speakers will play using only the FRONT input. In 4 channel mode — front and rear speakers are independent and must receive both a FRONT and REAR input. When using the STX MICRO-4 in Bridged Mode this switch should be in the “2CH” position.
7. Power/Protect Indicator. This indicator will light up RED upon initial amp start up. If all connections are OK, within 3-5 seconds the light will turn to BLUE. If a condition of protect (short circuit, over/under voltage) occurs the light will turn to RED until the condition of protect is resolved.

BEFORE ANY INSTALLATION IS BEGUN — DISCONNECT THE BATTERY!

1. Power (RED) Connection. It is recommended that the power connection be run directly to the vehicle's battery. Run a minimum 8 Gauge wire with a fuse at the battery. Be sure that the outboard dual ATC fuse holder stays close to the amplifier. FAILURE TO USE THE SUPPLIED OUTBOARD FUSES IN THE INSTALLATION IS DANGEROUS AND WILL VOID THE WARRANTY!
2. Ground (BLACK) Connection. This should be connected to chassis ground where possible. If the vehicle does not have a chassis ground, run a wire directly to the negative side of the battery.
3. Remote Turn-On (BLUE) Connection. This should be connected to a wire that supplies +12V when powered on. The BLUE wire must receive +12V for the amplifier to power on.
4. Speaker (Black and Black/White) Connections. Connect these to the Positive and Negative terminals of the subwoofer. Be sure the total impedance of the subwoofers does not fall below 2 Ohms!
5. Input. Connect this to the output of the source unit or the pass-through output of the STX MICRO-4. This connector is designed to accept a 3.5mm male plug. An RCA style adaptor such as the Wet Sounds WW-RCA-3.5mm 2ft can be used if the source has RCA style connectors.

BEFORE ANY INSTALLATION IS BEGUN – DISCONNECT THE BATTERY!

1. Power (RED) Connection. It is recommended that the power connection be run directly to the vehicle's battery. Run a minimum 8 Gauge wire with a fuse at the battery. Be sure that the outboard dual ATC fuse holder stays close to the amplifier. FAILURE TO USE THE SUPPLIED OUTBOARD FUSES IN THE INSTALLATION IS DANGEROUS AND WILL VOID THE WARRANTY!
2. Ground (BLACK) Connection. This should be connected to chassis ground where possible. If the vehicle does not have a chassis ground, run a wire directly to the negative side of the battery.
3. Remote Turn-On (BLUE) Connection. This should be connected to a wire that supplies +12V when powered on. The BLUE wire must receive +12V for the amplifier to power on.
4. Speaker Connections. Speaker connection color codes are as follows:

Front Left Positive Speaker White (Bridged Front +)

Front Left Negative Speaker White / Black

Front Right Positive Speaker Grey

Front Right Negative Speaker Grey / Black (Bridged Front -)

Rear Left Positive Speaker Green (Bridged Rear +)

Rear Left Negative Speaker Green / Black

Rear Right Positive Speaker Violet

Rear Right Negative Speaker Violet / Black (Bridged Rear -)

1. Front and Rear Inputs. Connect to the output of the source unit or BT controller. These connectors are designed to accept a 3.5mm male plug. An RCA style adaptor such as the Wet Sounds WW-RCA-3.5mm 2ft can be used if the source has RCA style connectors.
2. Pass Through Output. Use this output if you need to feed signal to the input on an additional amplifier – such as the STX MICRO-1 or a Wet Sounds ST-AS10/AS6 amplified subwoofer. This will pass the same signal that is present at the front input, avoiding the need for any Y adaptors.

STX MICRO-4 - DIAGRAMS

NOTE - When using the STX-MICRO 4 in Bridged Mode, the 2CH/4CH Switch should be in the 2CH position.

WHAT THIS WARRANTY COVERS

This is a “limited” warranty. This warranty covers any defect in materials and workmanship. This warranty only covers the original purchaser and is not transferable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds TM dealer.

HOW LONG COVERAGE LASTS

This warranty extends for 2 years from the date of purchase. It is recommended to REGISTER your warranty online within 45 days of purchase at www.wetsounds.com – click on “warranty registration”.

WHAT IS NOT COVERED

This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. Wet Sounds, Inc. does not cover the expense for removal or reinstallation. Additionally, shipping TO Wet Sounds, Inc. must be paid for by the purchaser. This warranty is void and inapplicable if Wet Sounds deems that the product was abused or misused; including but not limited to damage caused by accident, mishandling, improper installation, removing the inline fuse on the power connection, negligence, normal wear and tear, excessive water or heat damage, freight/shipping damage, or products that have been disassembled by anyone other than Wet Sounds technical staff. Wet Sounds will not be responsible for any incidental or consequential damages, except to the extent provided (or prohibited) by applicable law. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

WHAT WET SOUNDS, INC. WILL DO

Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no

longer available. Labor costs and materials needed to complete this service will be at No Charge to the purchaser. Additionally, return shipping FROM Wet Sounds, Inc. to the purchaser will be paid for by Wet Sounds.

HOW TO GET SERVICE

Contact Wet Sounds, Inc. either by phone [phone]) or by email ([e-mail]). A service representative will assist you in confirming that the problem you are experiencing is caused by a defective product and if that product is covered under warranty. The service representative will issue you a Return Manufacturer's Authorization (RMA) and other details to obtain service for your product.

DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER RETURN AUTHORIZATION (RMA)!

INTERNET WARNING

Wet Sounds, Inc. products sold on any non-authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds (877-938-7757) or visit our website (www.wetsounds.com) for a list of authorized online sellers or to find an authorized installing retailer near you.

WET SOUNDS INC. www.wetsounds.com 877-938-7757

10621 S Sam Houston PKWY W • Suite 100 Houston, Texas 77071 USA
