Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....26
2. Installation 29
   2.1 Unpacking and positioning....30
   2.2 Installation 30
   2.3 Electrical connection....33
3. Operation.... 33
   3.1 Hob and control panel.... 33
   3.2 Use of the touch control 34
   3.3 Suitable cookware.... 34
   3.4 How to start cooking.... 35
   3.5 How to stop cooking 37
   3.6 Using the Boost function....38
   3.7 Key Lock.... 37
   3.7.1 Over temperature protection 39
   3.7.2 Detection of small objects 39
   3.8 Timer....40
4. Cooking guidelines .... 40
   4.1 Power levels.... 41
5. Cleaning and maintenance.... 41
6. Trouble shooting....43
   6.1 Error codes....44
7. Technical data.... 44
8. Waste management....45
9. Guarantee conditions....46

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.

i The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

Important information for persons with a pacemaker or any other medical implant:

The appliance complies with the current electromagnetic interference regulations. It fully complies with all legal requirements (2004/108/EG). It is designed to not interfere with the functions of other electric appliances, provided they comply with the identical regulations.

DANGER! THIS INDUCTION HOB GENERATS MAGNETIC FIELDS IN ITS IMMEDIATE VICINITY.

Your pacemaker must be designed in compliance with the corresponding regulations so it will not cause any interferences between the pacemaker and the appliance. Consult the manufacturer of your pacemaker or your doctor to decide whether it meets the forced requirements or if any incompatibilities do exist.

DANGER!

1. The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your energy supplier.
2. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
4. Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly,

please contact the shop you purchased the appliance at. Original spare parts should be used only.

1. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. Disconnect the appliance from the mains before you clean or maintain it.
2. The appliance must always be grounded and protected corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. In case of an event caused by a technical malfunction, disconnect the appliance from the mains. Report the malfunction to your service centre so it can be repaired.
5. If any cracks occur on the glass-ceramic, switch off the appliance and disconnect it from the mains. RISK OF ELECTRICAL SHOCK!
6. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.
7. Do not carry out any modifications to your appliance.
8. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.
9. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85 C above the ambient temperature of the room the appliance is installed in during operation.
10. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
11. Cooker-hoods should be installed according to their manufacturers' instructions.
12. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
13. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!
14. Do not store any objects on the hob. RISK OF FIRE!
15. Household equipment and connection leads must not touch the hob as the insulation material is usually not heat-resistant.
16. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRICAL SHOCK!

17. After use, always switch off the cooking zones as described in this manual(i.e. by using the touch controls). Do not rely on the auto-detection feature to switch off the cooking zones when you remove the cookware.

18. The appliance is not allowed to be operated with an external timer or a separate remote-control-system.

19. The accessible parts of the appliance become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.

20. Children must not play with the appliance.

21. Always supervise children when they are near the appliance.

CAUTION!

1. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the appliance. Otherwise you may scratch the surface and damage the glass.

2. Do not switch on the hob before you have put a cookware on it.

3. The blades of scrapers for cleaning an induction hob are very sharp. Do not cut yourself, especially when you have removed the safety cover of the scraper.

4. Metal-made items such as knives, forks, spoons and pan lids should not be put on the appliance, because they may become hot.

5. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.

2. The appliance must be transported and installed by at least two persons.

3. When you unpack the appliance, you should take note of the position of its components in case you have to repack and transport it at a later point of time.

4. Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

5. Do not put any heavy items on the hob.

6. Only use cookware which is suitable to be used on a induction hob; otherwise you will damage the appliance.

7. Do not operate the appliance unless all components are installed properly.

8. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

2. Installation

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter WASTE MANAGEMENT.
2. The appliance may be equipped with a the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check that the appliance and the power cord are not damaged.
4. Connect the appliance to a dedicated socket only.
5. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.
6. Connect the appliance to the mains properly.

2.2 Installation

Selection of installation equipment

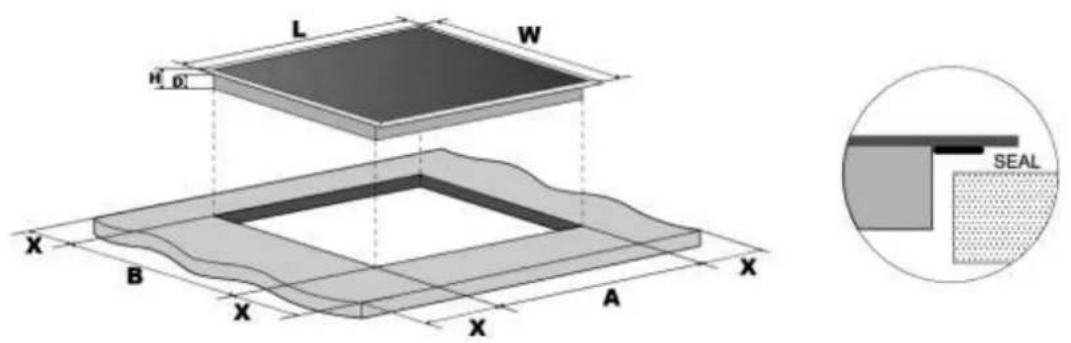

Cut out the installation hole as described on the drawing below. For installation and use, a minimum of 50 mm space shall be preserved around the hole. The thickness of the work top should be at least 30 mm. Choose heat-resistant materials for the work top only to avoid any deformation caused by the heat-radiation of the appliance.

L W H D X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	58	54	560	490	50 min.

The appliance must be ventilated properly. Do not block the air outlet and inlet. Ensure that the ceramic hob is in proper operating state. The safety distance between the hob and a cupboard above should be at least 760 mm.

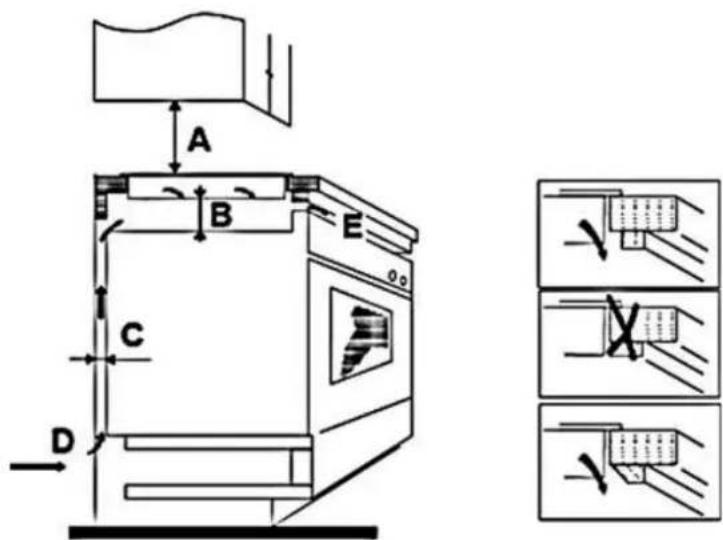

Technical diagram of a machine with labeled components and three-view tool illustrations showing mechanical assembly steps.

A(mm)	B(mm)	C(mm)	D	E
760	50 min.	20 min.	Air inlet	Air outlet 5 mm

Before the installation

The worktop must be rectangular and plane and made of heat-resisting material. Structural elements should not interfere with the installation area.

The installation must meet the safety requirements as well as the legal rules and regulations.

The wall sat the hob should be covered with heat-resistant material, e.g. ceramic tiles.

After the installation

The power cable must not come into contact with cabinet doors or drawers.
The appliance must be supplied with an adequate flow of fresh air from outside the cabinet to the base of the hob.
The circuit breaker must be easily accessible.

2.3 Electrical connection

DANGER!

The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier.

1. Your household power supply must meet the power consumption of the appliance.
2. The voltage must meet the values on the nameplate.
3. The power cord must withstand the values on the nameplate.
4. When connecting do not use adapters, reducers and branching devices as they cause overheating. RISK OF FIRE!
5. The power cord must not touch hot areas and its temperature must not exceed 75^ C .
6. When the socket is not accessible for the user or a fixed electrical connection of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335). Read the information on the nameplate and the connection diagram before connecting the appliance to the mains. The electricity supply must be performed via a 16A automatic cut-out. If in doubt, always contact the local building authorities and consult the relevant legal provisions.
7. Do not bend or compress the power cord.
8. Check the power cord regularly. The power cord must be replaced by a qualified professional only!

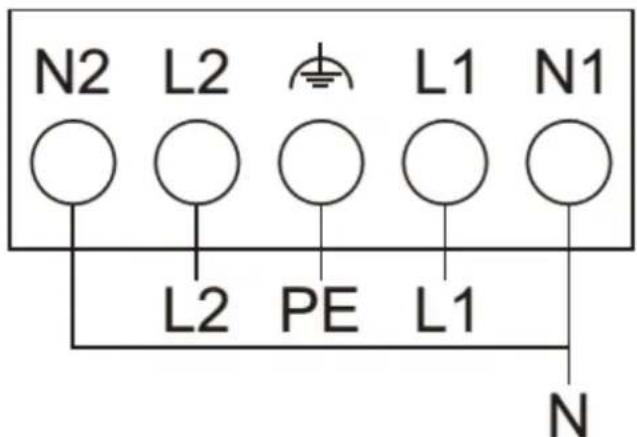

N2 L2 L1 N1 L2 PE L1 N

L1-L2: 380-415V 2N\~

3. Operation

3.1 Hob and control panel

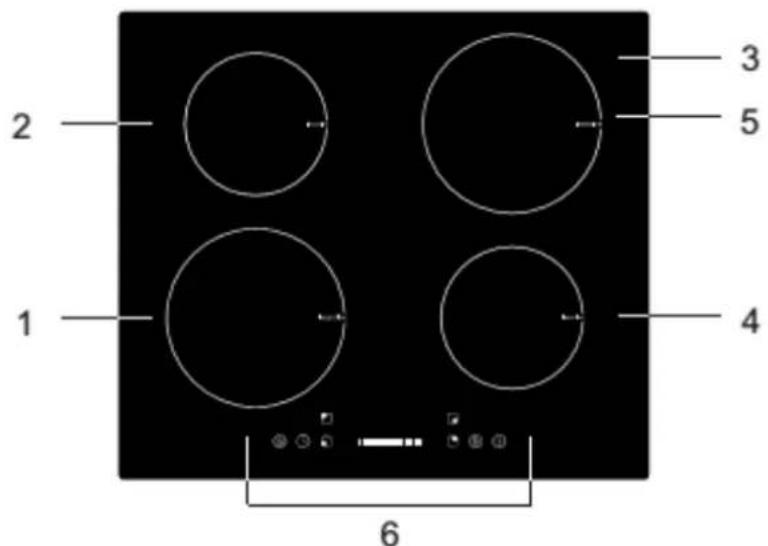

1 2 3 4 5 6

1 Max. 2000W-zone
2 Max. 1600W-zone
3 Max. 2000W-zone
4 Max. 1600W-zone
5 Glass panel
6 Control panel

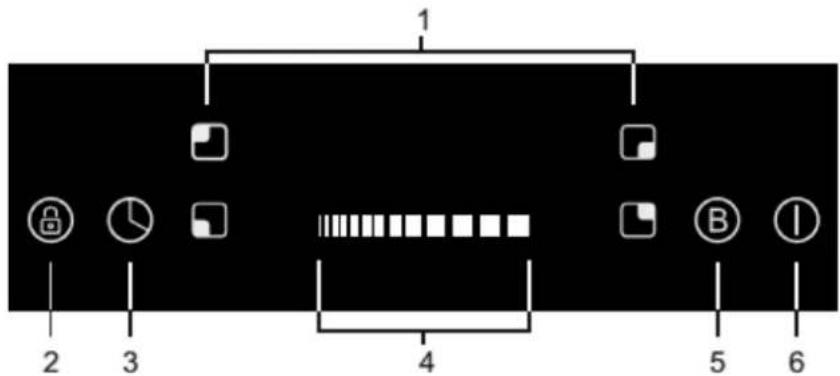

1 2 3 4 5 6

1 Selection of cooking zone
3 Timer
5 Power Boost

2 Key Lock
4 Power/Time setting
6 ON/OFF

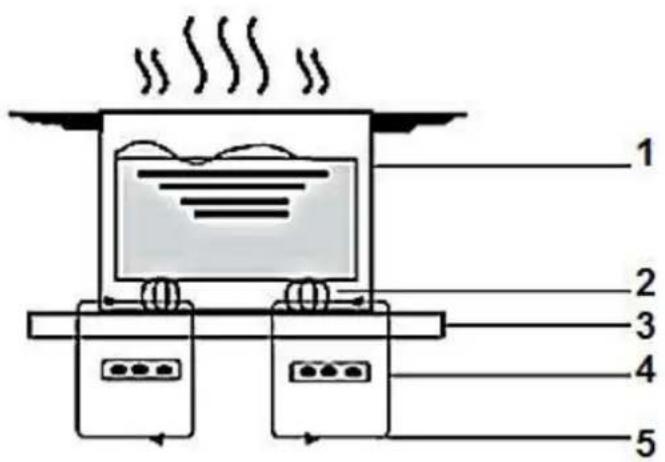

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works via electromagnetic vibrations generating heat directly in the cookware. The glass becomes hot only because the pan eventually warms it up.

1 2 3 4 5

1 Cookware
2 Magnetic circuit
3 Glass-ceramic panel
4 Induction coil
5 Induction current

NOTICE!

Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety guidelines!
Remove the complete protective film!

3.2 Use of the touch control

The sensor keys respond to touches so you do not need to press them.
➢ Touch the sensors with the bottom side of your top phalanx but not with your fingertip (see figure below).
You will hear a beep after each effective input.
➢ Always keep the touch control clean and dry. Cooking utensils and cloths should not cover the touch control. A thin water film may already complicate operating the sensors.

Diagram showing two hand positions on a line with checkmark and cross symbols indicating correct and incorrect states.

3.3 Suitable cookware

➢ Use induction-suitable cookware only. Check the induction symbol on the packaging or the base of the cookware.

➢ Check the suitability with a magnet. When the magnet is attracted by the base, the cookware is suitable.

If you have not got a magnet:

Pour some water into the cookware which is to be checked.

➢ Follow the steps described in HOW TO START COOKING.

When does not flash on the display and the water is heated up, the cookware is suitable.

➢ Cookware made of the following materials is not suitable: pure stainless steel, aluminium and copper without a magnetic base, glass, wood, china, ceramic und earthenware/pottery.

Do not use cookware with sharp or serrated edges or an coarse and uneven base.

Three identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

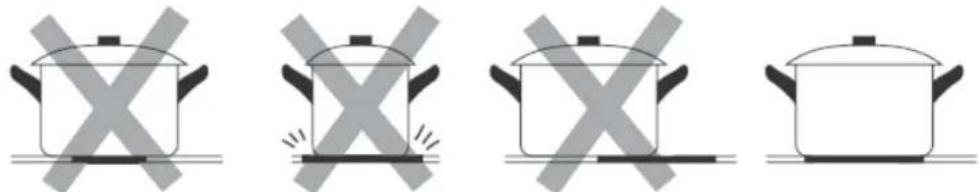

The base of your cookware should be flat, contact the glass ceramic completely and have the same diameter as the relevant cooking zone. Always centre the cookware on the cooking zone. Cookware with a diameter of less than 140 mm can be undetected by the appliance.

Four identical cooking pots with X-shaped marks, shown in a row (no text or symbols)

➢ Always lift your cookware, when you want to move it on the glass ceramic. Do not push cookware as you may scratch the glass ceramic.

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

The base of cookware must have a minimum diameter relevant to the diameter of the cooking zone you use the cookware on.

3.4 How to start cooking

1. Upon inserting the Power Plug into an electric socket, the induction cooktop will make a sound once and all the digital lights on the cooktop will blink once, indicating the unit enters into standby mode.

1. Place a cookware on the desired cooking zone. Always keep the bottom of the cookware as well as the cooking zone clean and dry.

2. While on Standymode, press the On/Off key, the induction will make a beep sound once indicating that it is ready to use. If only the indicator light above the on/off key is lit up, the unit will automatically return to standby mode if the cooking heating zone ON key or Lock key are not chosen within 30 seconds..

3. Set the power level with the + and - sensor.

a. Place a compatible pot or pan on the cooking zone you wish to use. To turn on one or more cooking elements, place a compatible pot or pan on the desire cooking element. With the hob being on as mentioned above, touch the desired cooking symbol element. The Power will automatically show a “0”.

Line drawing of a cooking pot with lid and base (no text or symbols)

The display indicates ! indicator of the power level alternately.

➢ You have not placed the cookware on the correct zone, or
You use unsuitable cookware, or
➢ You use cookware which is too small or not centred properly on the cooking zone.
While using unsuitable cookware, the cooking zone does not heat up. The display goes off automatically after 1 minute even if you have not placed suitable cookware on the cooking zone.

3.5 How to stop cooking

1. Touching the heating zone selection that you wish to switch off.

2. Turn the cooking zone off by touching the slider to "1", slide left to switch off.

3. Press the “①” key, it will make a “beep” sound once, and it will turn off. The unit is now on standby mode. Note: Please do not pull the power plug until the cooling fan has stopped.

4. Beware of hot surfaces H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

5. The hob features an automatic shut off feature that turn off the entre hob it any cooking zone has been on continuously for 2 hours.

3.6 Using the Boost function

Activate the boost function

1. Boost is the highest power level, designed for quickly heating or boiling larger quantities. Boost will operate for a maximum of 10 minutes. After 10 minutes, it will automatically revert to power level 9.

2. Pressing the “ Ⓑ ”key will show on the display as a “ Ⓒ ”, boosting the heating power to the highest level.

Diagram showing two hand gestures interacting with a button, one pointing at a square and the other displaying a segmented bar pattern.

P

3.7 Key lock

➢ You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

1. Press the “@” key to activate the function.

The unit will make a “beep” sound and the indicator light will turn on above the “⑥” key.

The controls are now locked.

To unlock the controls

While in Lock made, press the “®”key to deactivate the function. The indicator light will turn off.

When the hob is in the lock mode, all the controls are disable except the ON/OFF ① , you can always turn the induction bob off with the ON/OFF ① control in and emergency, but you shall unlock the hob first in the next operation.

3.7.1 Over-temperature protection

A thermistor monitors the temperatures inside the appliance. The appliance will stop operating automatically if an over-temperature is detected.

3.7.2 Detection of small objects

When a small-sized or unsuitable cookware (e.g. aluminium) or small objects like knives, forks etc. are placed on a coking zone, the appliance will turn into stand-by mode automatically after 1 minute. The fan will keep cooling down the appliance for another minute.

3.8 Timer

You can use the timer in two different ways:

1. With the desired heating zone Powered ON, press the “☐” key. The timer display will blink and show a “00”, Press the “+” or “-” to increase or decrease to the desired time until the desired time appears in the display (Choose up to 99 minutes).

Once the Timer is set, if keys haven't been pressed after 5 seconds, it will begin to countdown, the timer display will remain lit, the indicator for that particular burner will flash.

When the time reaches "0", a "beeping" sound will go off indicating that the time is up, and selected heating zone shut off automatically.

1. If you want to set another burner to switch-off automatically, press “ Ⓜ ” key to until the desired timer indicator blink, repeat the same steps.

2. If you want to check the remaining time for another zone, press the “ Ⓜ ” until the indicator for the desired burner blinks.

3. If more than one switch-off time is programmed, the shortest time remaining will show in the display, the indicator for that particular burner will flash.

4. Cancelling the timer:

Press the “ Ⓜ ” until the indicator for the desired burner blinks, set the time by touching the slider control to “00”. The Timer display will blink for 5 seconds and then turn off, indicating that the timer of selected heating zone has been cancelled.

Diagram showing a hand pointing at a timeline with clock and directional arrows, likely illustrating a digital navigation or timer-based process.

15 ⏱

40 ⏰

99 ⏰

Hand-drawn interface icons showing finger pressing and clicking a numeric keypad, with one finger pointing at the cursor's left arrow.

WARNING!

Be very careful when frying, because oil and fat heat up very fast especially when operating a high power level. Extremely hot oil and fat inflame spontaneously and represent a serious fire risk.

Cooking tips

➢ Decrease the power level as soon as the desired cooking temperature is reached.
➢ Use pot-lids to shorten cooking times and save energy.
➢ Minimize the amount of cooking liquids or fat/oil to shorten cooking times.
➢ Select a high power level, when you start cooking. Reduce the power level, when your food has been heated up.

Simmering/cooking of rice

Simmering is cooking with a temperature of approx. 85^ . At this temperature small bubbles ascend to the surface of the cooking liquid. Simmering is a perfect way to cook delicious soups and stews as the flavours of the food unfold completely without being over-heated. You should also cook egg-based sauces and sauces thickened with flour in this way.
Some cooking procedures, including the cooking of rice with the absorption-method (= the water is consumed completely), require a setting above the lowest power level, so the food is cooked within the recommended cooking time.

Steaks

1. Take the meat out of the fridge and let it rest at room temperature for approx. 20 minutes.
2. Heat up a pan with a heavy base.
3. Rub both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and place the steak into the pan.
4. Turn the meat just once while cooking. The exact cooking time depends from the size of your steak and your individual preferences (medium, medium rare etc.). So the cooking time of each side may vary from 2 to 8 minutes. Press the steak to check the cooking result - a firm steak is well done.
5. Leave the steak on a warm plate for a few minutes; so it will become tender.

Asian-style cooking

1. Choose a wok with a flat base or a big pan.

2. Prepare all ingredients and the cooking utensils you need. Asian-style cooking should work fast. If you want to cook a big amount of food, you should divide the food into several portions.

3. Preheat the wok/pan briefly and add two tablespoons of oil.
4. Cook the meat first. Put it aside and keep it warm.
5. Now cook the vegetable. When the vegetable is hot but still crisp, reduce the power level. Add the meat and, if desired, a sauce.
6. Sauté the complete food carefully so all components are hot.
7. Serve immediately.

4.1 Power levels

Power level	Suitability
1-2	▸ Delicate warming of small amounts of food.
	▸ Melting of chocolate, butter etc.
	▸ Food which burns quickly.
	▸ Gentle simmering.
	▸ Slow warming.
3-4	▸ Reheating.
	▸ Fast simmering.
	▸ Rice.
5-6	▸ Pancakes.
7-8	▸ Sautéing.
	▸ Pasta.
9	▸ Asian-style.
	▸ Frying.
	▸ Reaching the boiling point of soup/water.

5. Cleaning and maintenance

WARNING!

Do not use a steam cleaner. Risk of electric shock! The steam can damage the electric components of the appliance.

KIND OF CONTAMINATION

STRATEGY

SAFETY GUIDELINES

Daily contamination of the glass ceramic (fingerprints, stains caused by food, non-sugary spillages).

1. Disconnect the appliance from the > While the appliance is disconnected mains (fuse-box). From the mains the residual heat

2. Use a suitable detergent for glass ceramic while the glass ceramic is still warm - but not hot!

3. Clean with a soft cloth/kitchen paper and water, then dry carefully.
4. Connect the appliance to the mains again.

indicator does not work, so the cooking zones may be still hot. Be very careful.

➢ Scourers, nylon-scourers and abrasive detergents can scratch the glass ceramic. Read the product information of these detergents, so you know if they are suitable to clean glass ceramic.

➢ Do not leave any residuals of a detergent on the glass ceramic as it can turn stained permanently.

Overcooked or melted food and stains caused by heated sugar-containing food on the glass ceramic.

Remove such a contamination immediately with a suitable glass ceramic scraper. Beware of cooking zones which are still hot!

1. Disconnect the appliance from the mains (fuse-box).
2. Hold the scraper in a 30 ^0 -angle and scrape off the contamination to a cold area.
3. Clean the contaminated area with a dish towel/kitchen paper.
4. Proceed as described in steps 2-4 in the previous section.

Remove such contaminations as soon as possible. When they cool down on the glass ceramic, they are difficult to remove and may damage the glass ceramic permanently.

➢ Be very careful when using the scraper so that you do not cut yourself (especially, when you have removed the safety cover).

Contamination of the control panel.

1. Disconnect the appliance from the mains (fuse-box).
2. Take away the contamination.
3. Wipe the sensors with a damp sponge or cloth.
4. Dry the sensors with kitchen paper.
5. Connect the appliance to the mains again.

The appliance may beep and automatically turn off. The sensors may not work properly when they are wet. Dry the control panel carefully before you put it into operation again.

Do not use any abrasive detergents! Do not use any organic detergents! ^2

Do not use essential oils!

ERROR
CAUSES	MEASURES
The appliance cannot be switched on.
➢ Break in the power supply.	➢ Check that the appliance is connected to the mains. Check the household fuse box. Is there a power failure at your place of residence?
The sensors do not respond.
➢ The sensors are locked.	➢ Unlock the sensors.
The sensors are difficult to operate.
➢ Liquid on the sensors.	➢ Dry the sensors.
➢ You used your fingertip.	➢ Use the bottom of your top phalanx.
The glass ceramic is scratched.
➢ You used unsuitable cookware with sharp edges.	➢ Use suitable cookware.
➢ You used an unsuitable detergent, e.g. an abrasive.	➢ Use suitable detergents.
Some cookware make cracking or clicking noise.
➢ Your cookware is produced with layers made of different kinds of metal.	➢ This is normal for such a cookware and does not indicate a malfunction.
The appliance makes humming noise when used on a high heat setting.
➢ Caused by induction-cooking.	➢ Normal operating condition, but the noise should decrease or disappear after decreasing the heat setting.
Noise caused by the fan inside the appliance.
➢ The cooling-fan the appliance is equipped with protects the electronics from being overheated. It may continue to run even after you have switched the appliance off.	➢ Normal operating condition. Do not disconnect the appliance from the mains while the fan is running.
Cookware does not become hot and the relevant symbol is displayed.
➢ Cookware cannot be detected, because it is unsuitable, too small or improperly positioned on the cooking zone.	➢ Use suitable cookware which meets the diameter of the cooking zone. Place cookware on the centre of the cooking zone.
The appliance or a cooking zone has been switched off automatically and unexpectedly, an acoustic signal sounds and an error code is displayed (typically alternating with one or two digits on the timer-display).
➢ Technical malfunction.	➢ Note the complete error-code,

disconnect the appliance from the mains and contact the aftersales service.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact a service department.

6.1 Error codes

Code	Possible causes	Measures
E9/EE	Temperature sensor of the induction coil is defective.	Contact the aftersales service.
E7/E8	Temperature sensor of the IGBT*.	Contact the aftersales service.
E2/E3	Abnormal supply voltage.	Please inspect whether the voltage is normal.Power on after the power supply is normal.
E1	No cookware on zone.	Use suitable cookware.
E0	High temperature of the IGBT sensor.	Please restart after the appliance has cooled down.
F	Communication interrupt	Call for service.

*: IGBT = insulated-gate bipolar transistor, a semiconductor device to control the load power supply.

7. Technical data

Model	Induction hob
Control panel	Touch Control
Material	Vitro Ceramic
Cooking zones	4
Power of cooking zone	2*1600W/2*2000W
Maximum power	7000W
Voltage	220-240V~
Frequency	50Hz
Residual heat indicator	√
Power levels	9 per cooking zone
Power cable	120 cm
Timer	99 minutes
Dim. installation opening B*T in cm	56.00*49.00
Installation depth in cm	5.80

Dim. installation H*B*T in cm	5.50*59.00*52.00
Dim packaging H*B*Tin cm	12.00*66.50*59.50
Weight net/gross in kg	9.0/10.50

8. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances, PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2014

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 10/15/2019
