ZHC475 - Toaster Zephir - Free user manual and instructions

Product Type	Toaster
Brand	Zephir
Model	ZHC475
Power Supply	220-240V, 50Hz
Power Consumption	800 W
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	1 kg
Cord Length (approx.)	0.8 m
Browning Control	Mechanical timer knob (1-6 levels)
Auto Shut-off	Yes, when timer cycle completes
Indicator Sound	Yes, beep at end of cycle
Bread Holding	Removable pliers/tongs
Crumb Tray	Removable, easy to clean
Material	Plastic housing, stainless steel heating elements
Safety Features	Overheat protection, cool-touch exterior
Cleaning	Wipe with damp cloth; do not immerse
Intended Use	Household only
Warranty	2 years (check local regulations)

Frequently Asked Questions - ZHC475 Zephir

How do I use the Zephir ZHC475 toaster?

Place the toaster on a flat, heat-resistant surface. Insert bread slices into the pliers. Turn the timer knob to select desired browning level. The toaster will automatically shut off and beep when done.

What should I do if bread gets stuck in the toaster?

Unplug the toaster and let it cool completely. Carefully remove the bread using the pliers or by gently shaking the toaster. Do not use sharp objects.

Why does the toaster smoke during first use?

It is normal for the toaster to emit some smoke during the first use as the heating elements burn off protective residues. Ensure good ventilation.

Can I use the toaster to toast other foods like bagels?

The toaster is designed for standard sliced bread only. Do not insert other foods or metal objects to avoid electric shock.

How do I clean the crumb tray?

Unplug the toaster and let it cool. Slide out the crumb tray from the bottom, discard crumbs, and wipe with a damp cloth. Do not immerse in water.

Is the toaster safe for children to use?

Children aged 8+ can use the toaster under supervision. The appliance must be kept out of reach of younger children.

What should I do if the power cord is damaged?

Stop using the toaster immediately. The cord must be replaced by the manufacturer or a qualified technician to avoid hazards.

Can I use an extension cord with the toaster?

Using adapters or extension cords is not recommended. If necessary, ensure they comply with safety standards and have adequate current rating.

How do I store the toaster?

Allow the toaster to cool completely before storing. Keep it in a dry place, away from heat sources and out of reach of children.

What does the timer knob do?

The timer knob controls browning level: higher settings increase toasting time. The toaster turns off automatically when the timer ends.

USER MANUAL ZHC475 Zephir

White kitchen toaster with a coiled handle and side panel (no text or symbols visible)

MANUALE D'ISTRUZIONI

1- Pinze

GUIDA ALL'USO E CONSIGLI

White kitchen toaster with a flat-screen grille and handle (no visible text or symbols)

MANUAL INSTRUCTION

Please read this instruction manual inside as there are important information on safety, operation and maintenance of the appliance. Keep this manual for future reference.

PRECAUTIONS

1. This unit is intended for household use only and not for commercial purposes. Use in the way that is described in this manual. When used in household appliances, it is necessary to pay attention to some basic precautions including the following:
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 and supervised.
3. Children under age 8 should not be allowed to handle appliance and its power cord which must be kept out of their reach.
4. Never place the appliance body, plug or power cord in water or other liquids
5. Always wipe clean with a damp cloth.
6. Always unplug the power cord from the electricity mains before fitting or removing single attachments or before cleaning the appliance.
7. Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.
8. To unplug the appliance, grip the plug and remove it directly from the power socket. Never pull the power cord to unplug the appliance.
9. Do not use the appliance if the power cord or plug are damaged or if the appliance itself is faulty; all repairs, including substitution of power cord, must be carried out exclusively by an authorized assistance centre or authorized technicians in order to avoid all risks.
10. Never allow the cord to dangle in places where it may be grabbed by a child.
11. Do not immerse the toaster, the pliers or the power cord directly into water or other liquids.
12. The first time it is recommended to turn on the toaster for a few minutes without inserting forceps in any slice of bread: it will be possible to observe a bit ' of smoke coming from the elements. This is absolutely normal
13. Do not touch hot surfaces.
14. Do not use outdoors.
15. Keep out of reach of children.
16. Use only white bread or cassette, already cut.
17. Do not insert other types of foods or metal materials inside the toaster, to avoid any risk of electric shock.
18. Do not use near flammable materials such as curtains.
19. When the power cord is connected to the power outlet and the toaster is on, do not move the food inside calipers, but let it warm up without touching it.
20. Before storing away, let the toaster to cool completely.
21. Not place heavy objects on the cables or heat sources close to them. The cables may be damaged.
22. This product is intended solely for domestic use.
23. Before performing maintenance and cleaning, disconnect the appliance from.
24. In case of abnormal situations immediately turn off the power and contact your dealer or service center.
25. Do not use this unit connected to programmers, external timer, separate remote control system, timer or any other device that can switch automatically
26. Do not use power sockets flying or damaged cables.
27. Hold the plug firmly when you pull it out from power supply to avoid electric shock, short circuit or fire
28. Not attach safety switches with tape, for fire hazard.
29. It is absolutely prohibited to disassemble or repair the unit by the danger of electric shock if necessary contact your dealer or service center.
30. Do not use the appliance near a bathtub, shower, swimming pool.
31. Do not place objects on the unit to fire hazard
32. Do not use the machine near flammable objects

33. Do not insert objects through the slots of the unit

34. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations

35. Do not touch the power connection with wet hands
36. Do not use the product for purposes other than those for which it was built.
37. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instruction concerning use of the appliance by a person responsible for their security.
38. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to prevent any risk.
39. Children should be supervised to ensure that they do not play with the appliance
40. The temperature of accessible surfaces may be high when the appliance is operating.
41. The bread may burn. The toaster should therefore not be used under or next to combustible materials such as curtains.
42. Beware the bread may burn, do not use the toaster near flammable material, such as near a curtain.
43. Before connecting the appliance, check that the voltage printed on the nameplate correspond to those of the power grid, and that the outlet is effectively grounded. In case of incompatibility between the plug and the plug of the appliance, have the socket replaced with a suitable type by a qualified professional, who finds that the section of the cord is suitable for the power absorbed by the appliance. In general it is not advisable to use adapters and / or extension, if their use is absolutely necessary, must comply with the applicable safety standards and scope of current (amps) must not be less than the maximum of the unit.
44. Vertically position the toaster on a stable, flat and heat-resistant.
45. Do not cover the appliance, and does not put us above all.
46. If the bread should become trapped, unplug the toaster, let it cool and remove the bread carefully. Do not use to make this sharp or pointed objects, otherwise you may damage the elements.
47. When there is only one slit roasting, do not allow any object penetrates the other slit.
48. This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
- farm houses;
– by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

49.

CAUTION: To prevent overheating do not cover the appliance.

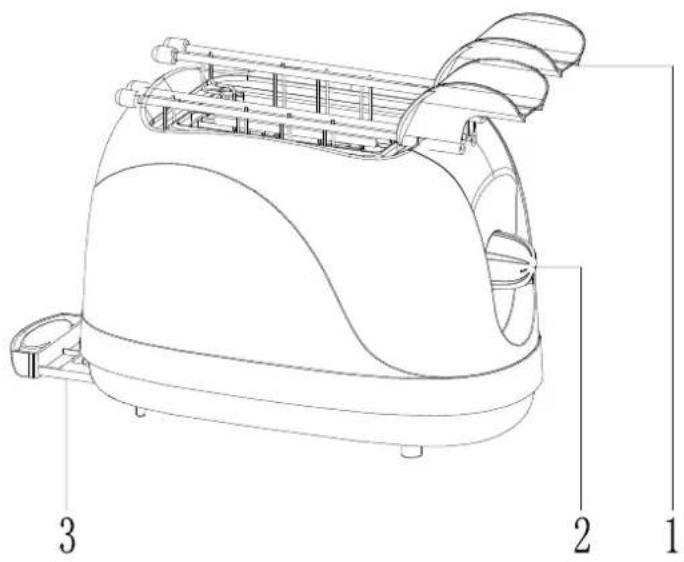

UNIT DESCRIPTION

1. Pliers

2. Timer (Rotate according to the desired browning level, the longer it will wait, the toast will be cooked, the appliance will switch off as soon as the timer cycle is complete, the toaster will emit a sound at the end of the timer cycle a sound. The timer will continue to run for a few moments to reset.

3. Crumb Tray, you can extract it for cleaning and removing crumbs.

HOW TO USE

1. Place on a solid, flat surface.

2. Place the slices of bread inside the pliers, then turn the timer knob to turn on the toaster.

3. Select the type of toasting using the timer knob

4. If residues of bread get stuck inside the compartment, turn off the unit (wait for the timer to stop working and disconnect from the mains socket. Allow to cool completely, then remove the residues.

5. To remove the residues, open the crumb tray below the unit and remove crumbs.

Suggestion:

Before first use it is suggested having the appliance without bread operated with the control knob set to grade 3 and the lever in down position to remove the heating element protection finish. At this time, the appliance will smoke. This is normal. It is recommended to have a good ventilation of air. After the first heating, let it cool down naturally before being used again.

HOW TO USE

1. Do not immerse the unit in liquids
2. Operate only when the toaster has completely cooled down.
3. Disconnect from the power outlet before starting a new cleaning cycle.
4. Do not use chemical cleaning agents or abrasive materials to clean the unit body or pliers. It is forbidden to use any spray towards the toaster. Use only warm water and a soft cloth for pliers.
5. Clean the unit body with a dry cloth.
6. To remove residues, open the crumb tray located on the underside of the product.
7. Do not immerse the unit in liquids
8. Operate only when the toaster has completely cooled down.
9. Disconnect from the power outlet before starting a new cleaning cycle.
10. Do not use chemical cleaning agents or abrasive materials to clean the unit body or pliers. It is forbidden to use any spray towards the toaster. Use only warm water and a soft cloth for pliers.
11. Clean the unit body with a dry cloth.
12. To remove residues, open the crumb tray located on the underside of the product.

www.uniorservice.com

WESTIM S.p.A.

Via Roberto Bracco 42/E

00137, Roma

Tel. [phone]

Italiano

Disposal of old electrical & electronic equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or in its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
