P29P42MK - Kitchen appliance NEFF - Free user manual and instructions

Product Type	Electric Hob
Brand	NEFF
Model	P29P42MK
Hob Surface	Ceramic Glass
Number of Hotplates	4
Hotplate Types	Single-circuit, Dual-circuit, Extended cooking zone
Heat Settings	9 (1 to 9)
Residual Heat Indicator	Yes (± symbol)
Hotplate Indicator	Yes
Safety Features	Overheating protection, Electrical overload protection
Child Safety	Use only by children over 8 under supervision
Cleaning	Use glass ceramic cleaner, glass scraper for burnt residues
Energy Saving Tips	Use lids, leverage residual heat
After-Sales Service (UK)	0344 892 8989
After-Sales Service (Ireland)	01450 2655
E-number / FD-number	Required for service calls
Environmental Disposal	WEEE compliant, recycle packaging
Max Altitude	2000 m above sea level
Permitted Use	Private domestic, food preparation only
Manual Languages	DE, EL, EN, and many others

Frequently Asked Questions - P29P42MK NEFF

How do I clean the ceramic hob?

Clean after each use with a suitable glass ceramic cleaner. Use a glass scraper for burnt-on spills. Avoid abrasive sponges and harsh chemicals.

What do the heat settings mean?

Settings 1 (lowest) to 9 (highest). Use 9 for boiling, then reduce to an appropriate ongoing setting.

How do I use the residual heat indicator?

After cooking, the ± symbol lights up if the hotplate is still warm. You can use this residual heat to keep food warm or melt chocolate.

What should I do if the hob is damaged?

If there are cracks or fractures, switch off the circuit breaker and contact the after-sales service. Do not use a defective appliance.

Can I use aluminium foil on the hob?

No. Aluminium foil and plastic containers can melt on hot hotplates and cause damage.

How do I activate the dual-circuit hotplate?

Turn the hotplate control clockwise to the ☎ symbol, then set the heat setting. To deactivate, turn to 0 and reset.

Why does the hob turn on and off during cooking?

The heat cycling protects sensitive components, prevents electrical overload, and improves cooking results. This is normal.

What cookware is recommended?

Use pots and pans with flat, even bases that match the hotplate size. Avoid rough bases that can scratch the ceramic.

Can I install the hob myself?

Only a licensed professional may connect appliances without plugs. Incorrect connection voids warranty.

How do I obtain spare parts or service?

Contact the after-sales service with your E-number and FD-number. For UK: 0344 892 8989, Ireland: 01450 2655.

USER MANUAL P29P42MK NEFF

[en] INSTRUCTION MANUAL ....13

M..R40.., M..R41.., M..R42.., M..R43.., M..R72..

M..R40..

M..R41..

M..R42..

M..R43..

M..R72..

Inhaltsverzeichnis

Safety precautions ....13

Causes of damage 14

Environmental protection....14

Environmentally-friendly disposal.... 14

Energy-saving tips.... 14

Getting to know your appliance....15

The hotplates 15

Hotplate and residual heat indicators.... 15

Setting the hob ....15

Switching the hob on and off 15

Setting a hotplate....15

Table of cooking times ....16

Cleaning and care ....17

Ceramic 17

Hob surround.... 17

After-sales service ....17

Additional information on products, accessories, replacement parts and services can be found at www.neff-

international.com and in the online shop www.neff- eshop.com

⚠ Safety precautions

Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance is not intended for operation with an external clock timer or a remote control.

Do not use covers. These can cause accidents, for example due to overheating, catching fire or materials shattering.

Only use safety devices or child protection grilles approved by ourselves. Unsuitable safety devices or child protection grilles may result in accidents.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

• Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
  ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
  ■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
• Do not use hob covers here. They can cause accidents, for example due to overheating, catching fire or materials shattering.

Risk of burns!

The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.

Risk of electric shock!

• Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
• Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.

Causes of damage

Caution!

■ Rough pot and pan bases scratch the ceramic.
- Avoid boiling pots dry. This may cause damage.
■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage.

Overview

The following table provides an overview of the most frequent kinds of damage:

• A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
• Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Risk of injury!

Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.

■ Damage can occur if hard or pointed objects fall on the hob.
■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.

Damage Cause Action

Stains Food spills Remove spills immediately with a glass scraper.
	Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic
Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space.
	Rough pot and pan bases scratch the Check your cookware.ceramic.
Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic
	Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them.
Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Energy-saving tips

■ Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid.
■ Use pots and pans with even bases. Uneven bases increase energy consumption.

The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan.
■ Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy.
■ Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved.
■ Always cover as large an area of the hotplate as possible with your saucepan.
■ Switch to a lower heat setting in good time.
- Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high.

■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time.

Getting to know your appliance

The instruction manual is the same for various different hobs. An overview of the models with their dimensions is given on page 2.

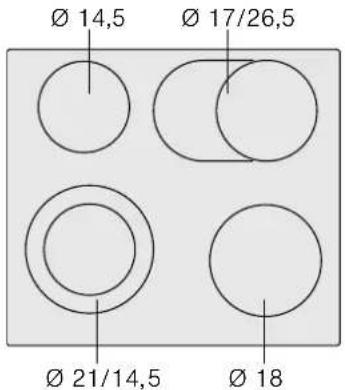

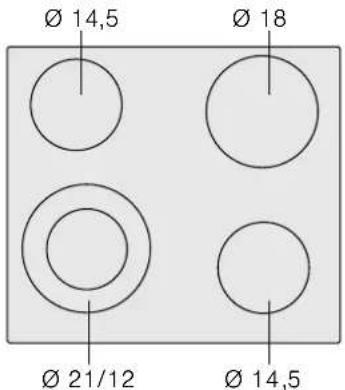

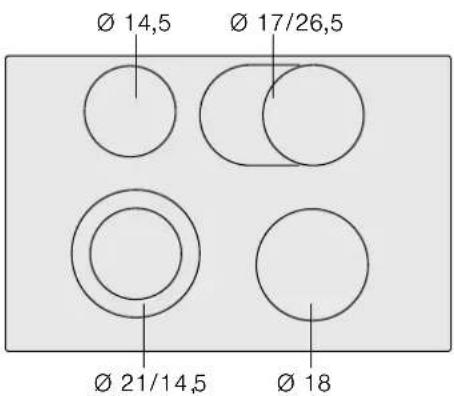

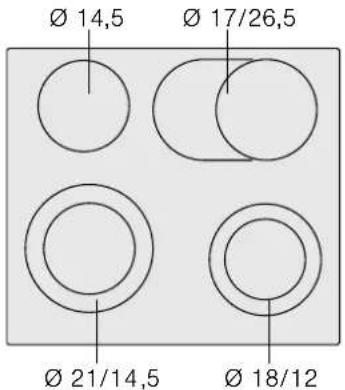

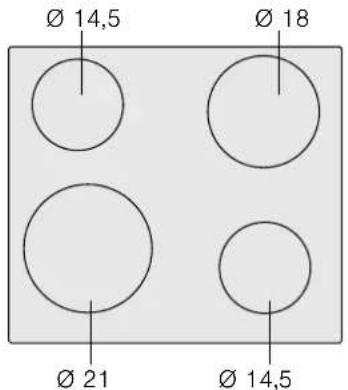

The hotplates

Hotplate Activating and deactivating
○ Single-circuit hotplate
◎ Dual-circuit hotplate	To activate: turn the hotplate control clockwise to ☎. Set the heat setting. To deactivate: turn the hotplate control to 0 and reset. Never turn the hotplate control beyond the ☎ symbol to 0.
∞ Extended cooking zone	To activate: turn the hotplate control clockwise to ☎. Set the heat setting. To deactivate: turn the hotplate control to 0 and reset. Never turn the hotplate control beyond the ☎ symbol to 0.

Hotplate and residual heat indicators

The hotplate and residual heat indicators ± light up when a hotplate is warm:

■ Hotplate indicator - during operation, shortly after you have switched on a hotplate.
■ Residual heat indicator - after cooking, when the hotplate is still warm.

You can use the residual heat to save energy, e.g. to keep a small dish warm or to melt chocolate.

Setting the hob

This section informs you how to set the hotplates. The table shows heat settings and cooking times for various meals.

Switching the hob on and off

You can switch the hob on and off with the hotplate controls.

Setting a hotplate

Adjust the heat setting of the hotplates using the hotplate controls.

Heat setting 1 = lowest setting

Heat setting 9 = highest setting

Note: Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting.

This ensures e.g.:

■ sensitive components are protected from overheating
■ the appliance is protected from electrical overload
■ better cooking results are achieved

Table of cooking times

The following table provides some examples.

Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible.

For bringing liquids to the boil, use heat setting 9.

Stir thick liquids occasionally.

	Ongoing cooking setting	Ongoing cooking time in minutes
Melting
Butter, gelatine 1	-
Heating and keeping warm
Stew (e.g. lentil stew)	1	-
Milk**	1-2	-
Poaching, simmering
Dumplings	3-4*	20-30 min
Fish	3*	10-15 min
White sauces, e.g. béchamel sauce	1	3-6 min
Boiling, steaming, braising
Rice (with double the quantity of water)	3	15-30 min
Unpeeled boiled potatoes	3-4	25-30 min
Boiled potatoes	3-4	15-25 min
Pasta, noodles	5*	6-10 min
Stew, soups	3-4	15-60 min
Vegetables and frozen vegetables	3-4	10-20 min
Cooking in a pressure cooker	3-4	-
Braising
Roulades	3-4	50-60 min
Pot roasts	3-4	60-100 min
Goulash	3-4	50-60 min
Frying**
Escalope, plain or breaded	6-7	6-10 min
Chop, plain or breaded	6-7	8-12 min
Steak (3 cm thick)	7-8	8-12 min
Fish and fish fillet, plain or breaded	4-5	8-20 min
Fish and fish fillet, breaded and frozen, e.g. fish fingers	6-7	8-12 min
Stir fry, frozen	6-7	6-10 min
Pancakes	5-6	consecutively

* Ongoing cooking without lid
** Without lid

Cleaning and care

The information in this section provides help on how best to care for your hob.

Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop.

Ceramic

Clean the hob after each use. This will prevent spills from burning onto the ceramic.

Only clean the hob when it has cooled down sufficiently.

Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging.

Never use:

■ Undiluted washing-up liquid
■ Detergent intended for dishwashers
■ Scouring agents
■ Harsh cleaning agents such as oven spray or stain remover

■ Abrasive sponges
■ High-pressure cleaners or steam jet cleaners

Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions.

You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop.

Using special sponges to clean glass ceramic achieves great cleaning results.

Hob surround

To prevent damage to the hob surround, observe the following instructions:

■ Use only hot soapy water.
■ Wash new sponge cloths thoroughly before use.
■ Do not use any sharp or abrasive agents.
■ Do not use the glass scraper.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB 0344 892 8989

Calls charged at local or mobile rate.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Constructa-Neff

Vertriebs-GmbH

Carl-Wery-Straße 34

D-81739 München

GERMANY
