Product Type	Cordless Electric Kettle
Brand	Bosch
Model	TWK7105GB
Dimensions (HxWxD)	250 x 237 x 152 mm
Weight	Approx. 1.2 kg
Water Capacity	1.7 liters (max) / 0.3 liters (min)
Power Consumption	2500-3000 W
Electrical Connection	220-240 V~ 50/60 Hz
Material	Plastic body, stainless steel heating element
Heating Element	Concealed, limescale resistant
Auto Shut-off	Yes, when water reaches boiling point
Boil-Dry Protection	Overheat control automatically switches off if empty
Cordless Base	360-degree rotational base with cord storage
Lid Type	Lockable lid with release button
Water Level Indicator	Transparent scale on kettle body
Limescale Filter	Removable, washable mesh filter
Illuminated On/Off Switch	Yes, lights up when kettle is on
Safety Features	Auto shut-off, boil-dry protection, overheat control, cool-touch handle
Cleaning	Wipe with damp cloth; descale regularly with vinegar or commercial descaler
Accessories Included	Kettle, base, limescale filter, instruction manual

Frequently Asked Questions - TWK7105GB BOSCH

What is the capacity of the Bosch TWK7105GB kettle?

The kettle has a maximum capacity of 1.7 liters and a minimum of 0.3 liters. Do not exceed the max mark to avoid boiling over.

Can I boil milk or other beverages in this kettle?

No, this kettle is designed for water only. Milk or instant beverages will burn and damage the appliance.

How do I descale the kettle?

Fill to 1.7L and boil, then add white vinegar or a commercial descaler and let it sit for several hours. Rinse thoroughly with clean water afterwards. Regular descaling prolongs life and saves energy.

What should I do if the kettle won't turn on?

First, check if the overheat control has tripped – the kettle may have been used empty. Let it cool down for 5-10 minutes, then try again. Also ensure the base is plugged in and the kettle is properly seated.

Is the kettle safe to use near water?

No, the manual warns not to use near bathtubs, showers, or basins. Avoid spillage on the connector and never immerse the kettle, base, or cord in water.

How do I clean the limescale filter?

Remove the filter from the spout, soak it in vinegar for a few minutes, then rinse with clean water. Reinsert before use.

Can children use this kettle?

Yes, children aged 8 years and above can use it under supervision. Children under 8 must be kept away from the appliance and cord. Cleaning by children only if supervised and older than 8.

Why does the kettle turn off before the water is fully boiled?

This is often due to excessive limescale. Descale the kettle as per instructions. It could also be a dry-boil protection if there's insufficient water.

What is the power cord length?

The cord can be adjusted via the cable tidy on the base. The exact length is not specified, but it allows flexible placement.

Does the kettle have a warranty?

Yes, the warranty terms are defined by the representative in the country of sale. Keep your bill of sale or receipt for claims. Register at www.bosch-home.com/welcome for extended benefits.

USER MANUAL TWK7105GB BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

Cordless electric kettle

TWK71..GB

[en] Instruction manual

Cordless electric kettle 2

Illustration of a hand holding a kettle with an arrow indicating rotation or motion (no text or symbols)

Illustration of a mechanical press or stamping device with a cylindrical component and a base, showing no text or symbols.

Illustration of a hand holding a tool interacting with a metallic object, showing a downward arrow (no text or symbols present)

Illustration of a metallic kettle with handle and side arm, accompanied by an hourglass symbol (no text or labels)

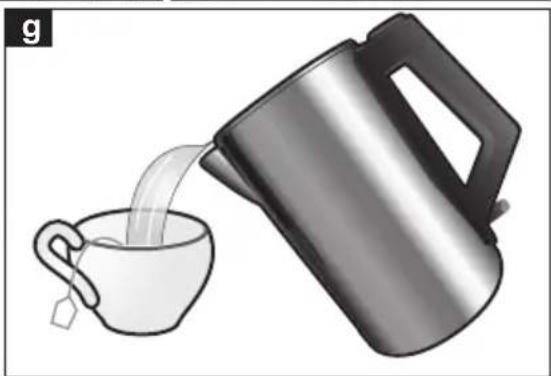

Illustration of a kettle pouring liquid into a cup (no text or symbols)

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only.

⚠️Danger of electric shock!

Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water.

Use the kettle only with the included base.

Use only if power cord and appliance show no signs of damage.

Should a fault occur, pull the plug or disconnect from the mains immediately.

⚠️Risk of fire!

Do not place the base or kettle on or near hot surfaces, e.g. hobs.

Avoid spatters of grease as the plastic may be damaged.

⚠️Risk of scalding!

The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged.

If the appliance is filled above the “max” marking, there could be a risk from splashes of boiling water.

⚠️Risk of burns!

After the use the heating element surfaces can be subjected to residual heat.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

⚠️Risk of suffocation!

Do not allow children to play with packaging material.

⚠️Risk of injury!

A misuse of the appliance can potentially lead to injury.

Caution!

Cleaning surfaces which come into contact with foodstuffs!

Please note the special information on cleaning in the instructions.

Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website.

Parts and operating controls

1 Kettle (with water level indicator)
2 Lid with lock
3 Lid release button
4 ON/OFF ① switch, illuminated
5 Limescale filter (removable)
6 Base
7 Cable tidy

Important: Use the kettle only with its included base.

■ Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle without water and do not overfill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Before using for the first time

■ Remove any stickers or film.
■ Unroll the right amount of cable from the cable tidy and plug it in.
■ Fill the kettle with water. Bring the water to a boil and discard it. Repeat the procedure. This will make sure that the kettle is clean for normal use.
■ When the water comes to a boil for the first time, add a tablespoon of white vinegar.

Boiling water

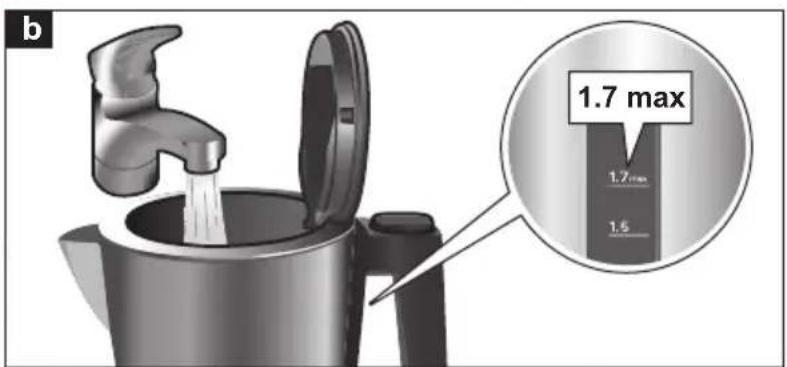

■ Fill the kettle with fresh water through the spout or the open lid (press lid release button).
- Read the quantity on the water level indicator. Do not fill with less than 0.3 litres or more than 1.7 litres of water!

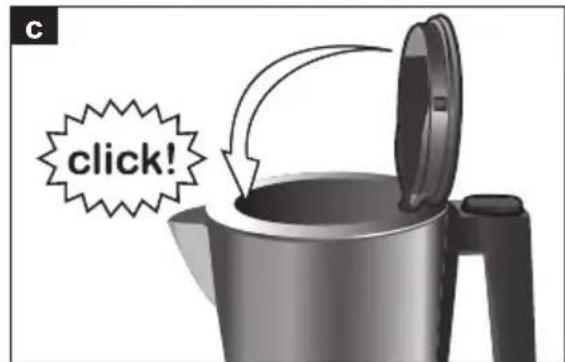

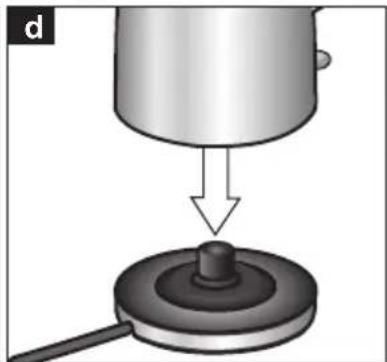

■ Close the lid until it locks and place the kettle on the base.

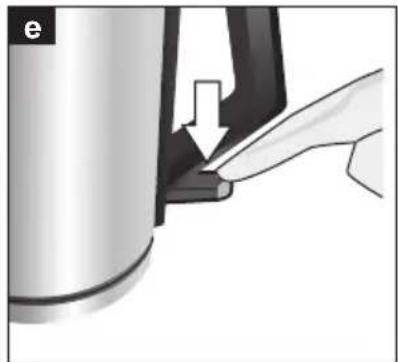

■ Press down the switch; the switch lights up. The water is heated.

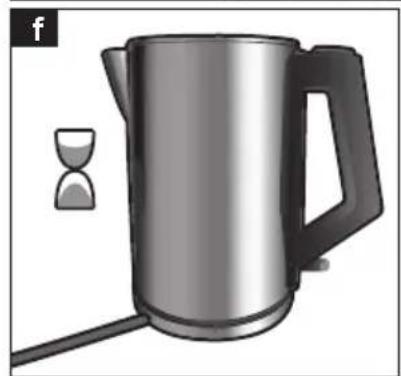

■ The kettle switches off automatically once the water has boiled.

The appliance can also be switched off at any time by pulling up the ON/OFF ① switch.

Warning: If you remove the kettle from the base and replace it before the heating process is over, the kettle will not continue to heat the water.

N.B.: Only operate the kettle with the lid closed and the limescale filter inserted, otherwise the kettle will not switch off. For physical reasons, the base may collect some condensation water. This is normal; it does not mean that the kettle leaks. After boiling, let the kettle cool down for 5 minutes before refilling it with water. Do not turn on the appliance if the kettle is empty, otherwise the overheat control will engage and the appliance will switch itself off automatically.

Cleaning and maintenance

⚠️ Danger of electric shock!

Never immerse the device in water or place it in the dishwasher!

Do not steam-clean the appliance.

■ Before cleaning, unplug the appliance from the power outlet.
■ Clean the outside of the kettle and base with a damp cloth. Do not use strong or abrasive cleaning agents.
■ Remove the limescale filter, soak it in a little vinegar, then rinse clean with clear water.
■ Rinse the kettle and the limescale filter with clear water.

Descaling

Regular descaling

■ makes your kettle last longer;
■ ensures proper function;
■ saves energy.

Descale the kettle with vinegar or a commercial descaling agent.

• Fill the kettle with water up to the 1.7 mark and bring to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer's instructions.
  ■ Rinse the kettle and the limescale filter with clear water.

Tip: If you use the kettle daily, descale more frequently.

Troubleshooting

The appliance does not heat and the ON/OFF switch does not light up.

– The overheat control has tripped.

■ Let the kettle cool down for some time so that the appliance can be switched on again.

The unit turns off before the water comes to a boil.

• The kettle contains too much scale.
  ■ Descale the kettle as per the instructions.the terms of this guarantee.
  .the terms of this guarantee.

Technical data

Electrical connection 22	0-240 V~50/60 Hz
Output 2500-3000 W
Appliance height 250 mm
Appliance width 237 mm
Appliance depth 152 mm
Water capacity 1.70 l

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under

Changes reserved.
