Product type	Sports camera
Brand	Manta
Model	MM357
Video resolution	1080p Full HD (estimated)
Photo resolution	12 megapixels (estimated)
Lens	Wide-angle lens (typical for sports camera)
Display	Built-in LCD screen
Storage	Micro SD card (not included)
Wi-Fi	Yes, 2.4 GHz, default password: 66666666
Battery	Rechargeable lithium-ion battery
Charging	Via USB (computer or car charger)
Waterproof	Not specified (likely requires housing)
Dimensions	Approx. 60 x 40 x 30 mm (typical)
Weight	Approx. 60 g (estimated without battery)

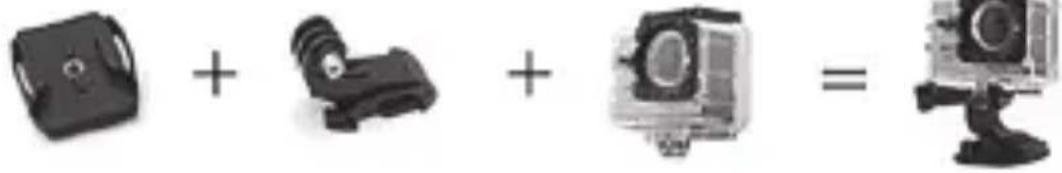

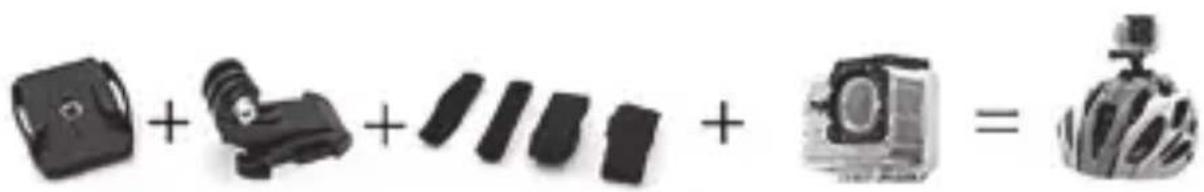

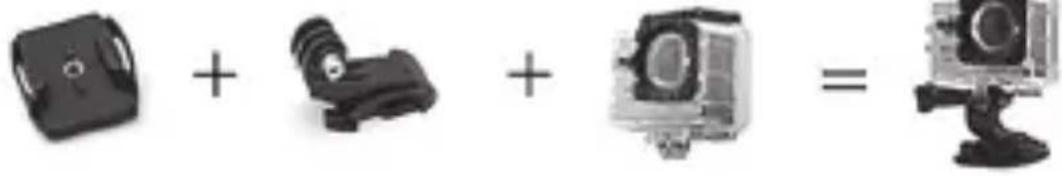

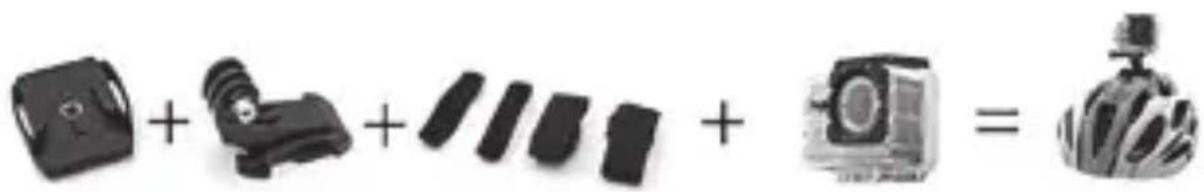

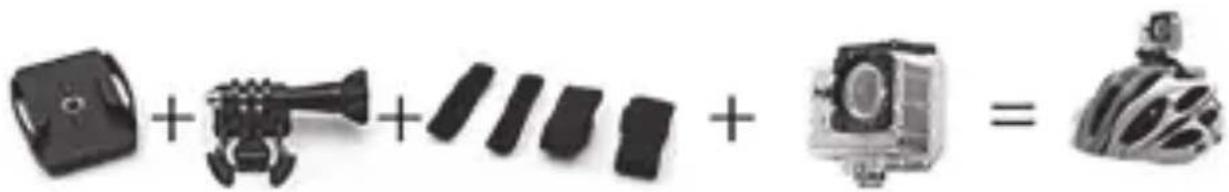

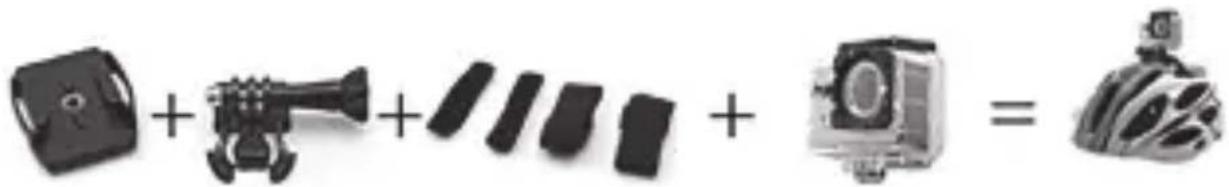

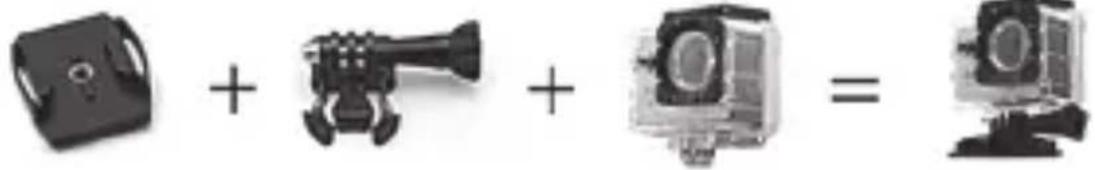

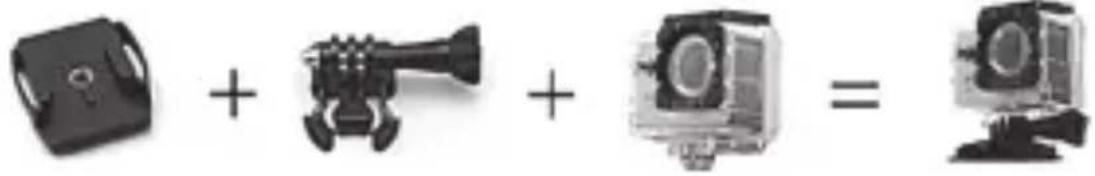

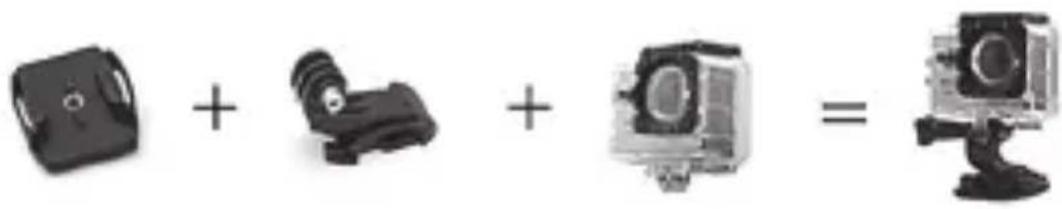

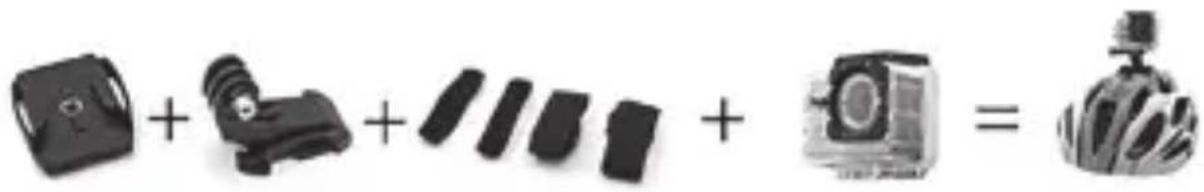

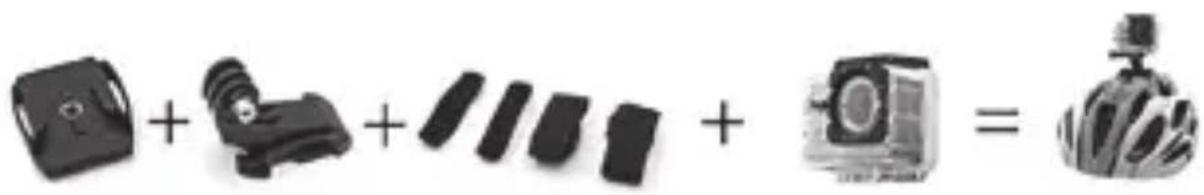

Mounting	Standard tripod mount and adhesive mounts
Recording modes	Video, photo, time-lapse, burst
Self-timer	2s, 5s, 10s
File formats	MP4 (video), JPEG (photo)
Compatible systems	Android, iOS
App	XDV (compatible with Android and iOS)
Accessories included	Not specified (typically mount, cable, manual)
Repair	Contact Manta Europe for spare parts

Frequently Asked Questions - MM357 Manta

How do I turn on the camera?

Press and hold the power switch for 3 to 5 seconds until the screen turns on.

What is the default Wi-Fi password?

The default Wi-Fi password is 66666666.

How do I insert a Micro SD card?

Open the side cover and insert a branded Micro SD card with the contacts facing the correct direction. Format the card on a computer before first use.

Can I record while charging?

Yes, enable 'Vehicle-mounted Mode' in the menu to record while charging via a car charger.

How do I switch between video and photo mode?

Press the 'Mode' button repeatedly to cycle between video recording, photo shooting, playback, and settings.

How do I connect the camera to my phone?

Enable Wi-Fi on the camera (press UP in standby mode), then connect your phone to the camera's Wi-Fi network using password 66666666, and open the XDV app.

What is the battery life?

Battery life depends on usage; typically around 60-90 minutes of continuous recording (estimated).

How do I transfer files to a computer?

Connect the camera via USB cable, or remove the Micro SD card and use a card reader.

Is the camera waterproof?

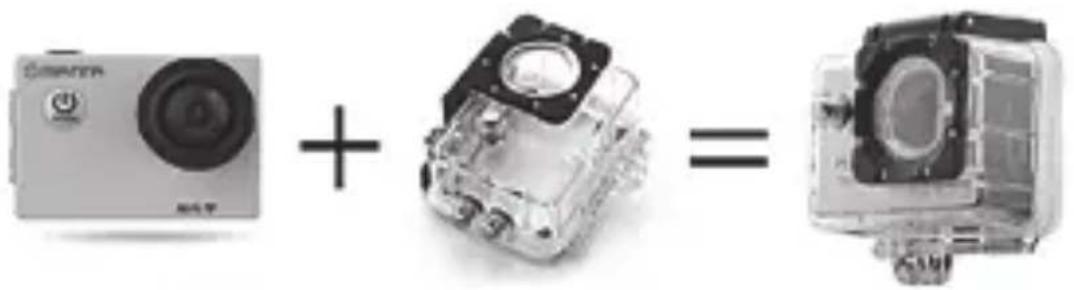

The camera itself is not waterproof; use an optional waterproof housing for underwater use.

How do I reset the camera?

Remove the battery and Micro SD card, wait 30 seconds, then reinsert the battery and power on. If issues persist, contact support.

USER MANUAL MM357 Manta

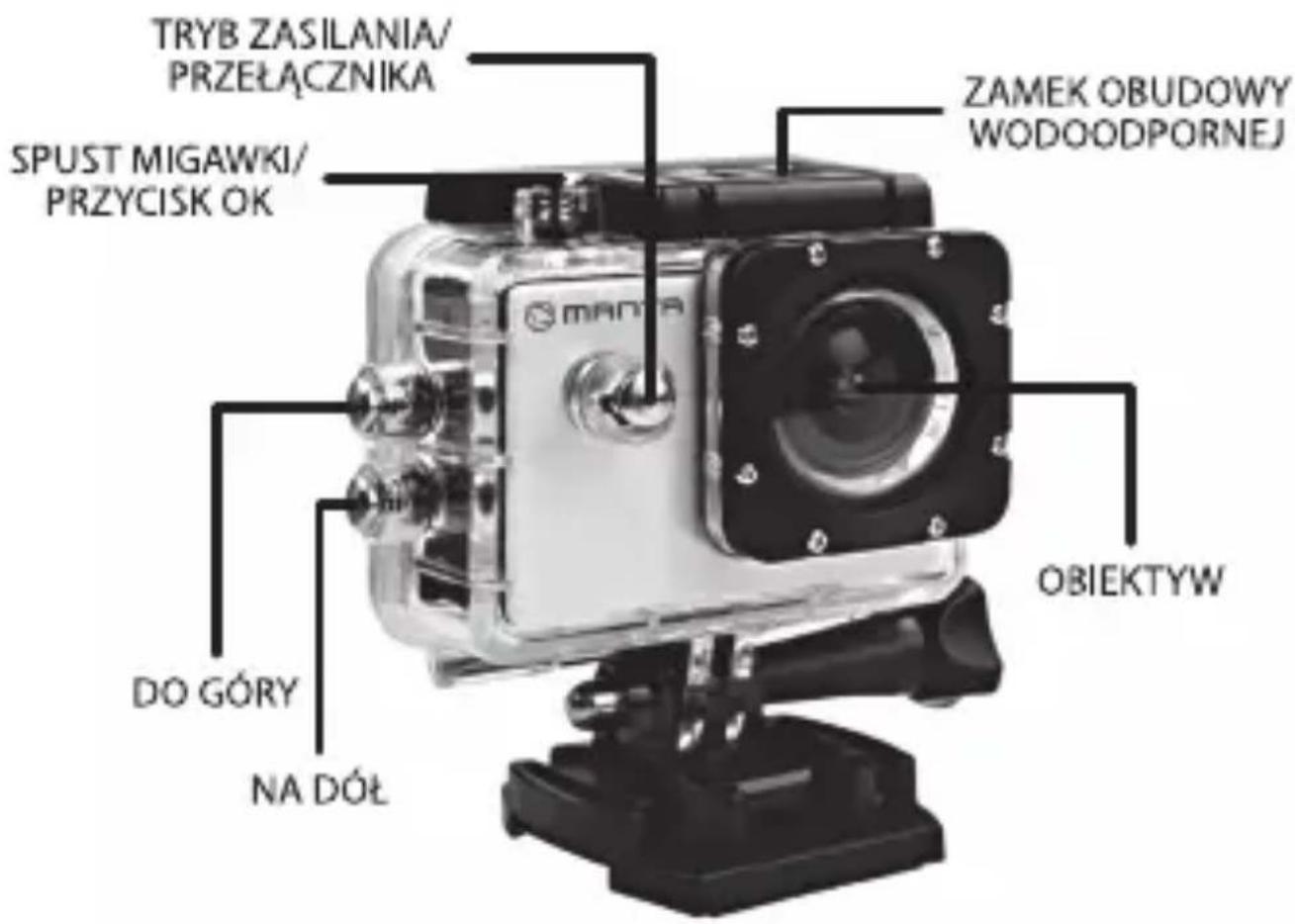

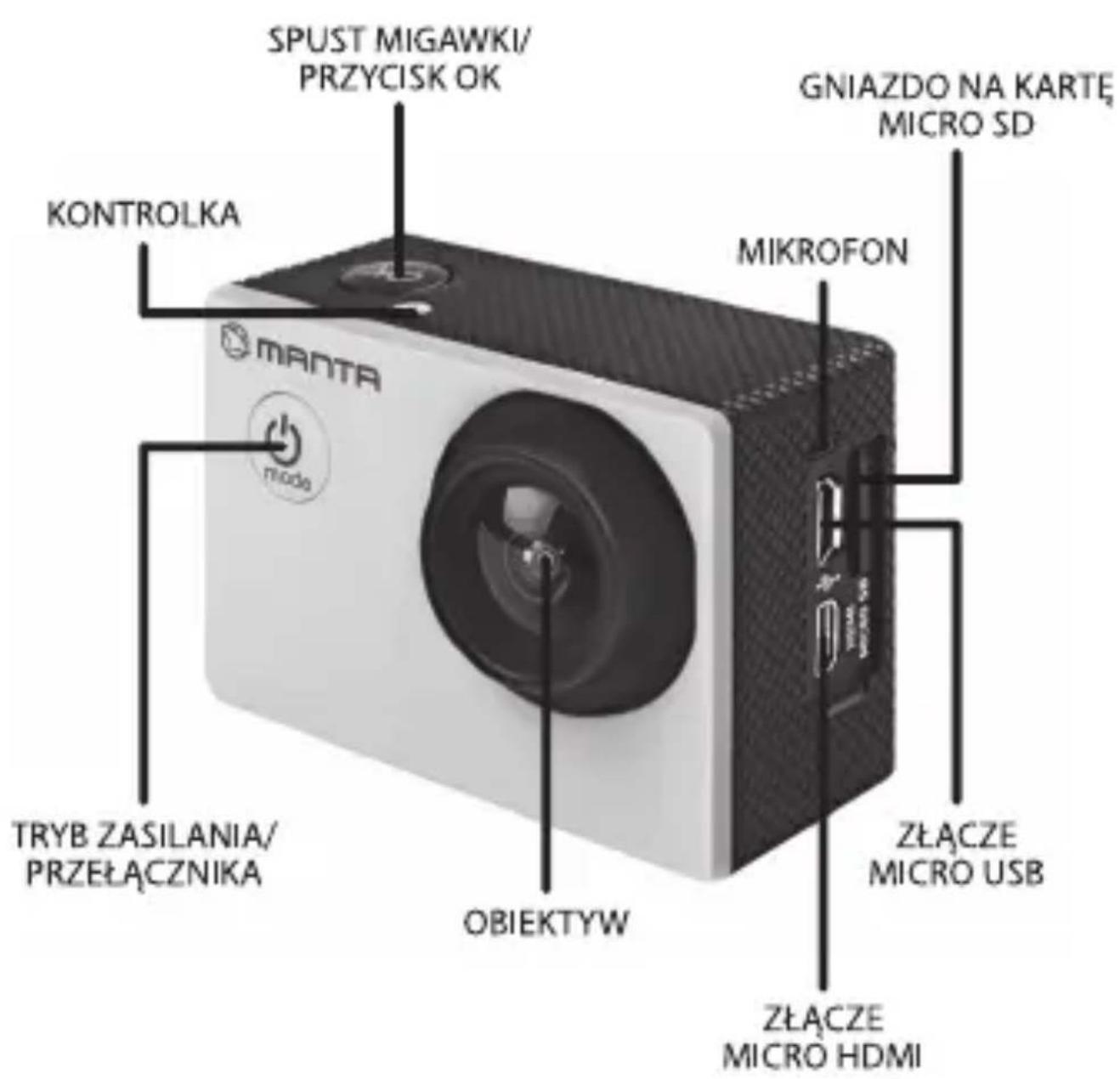

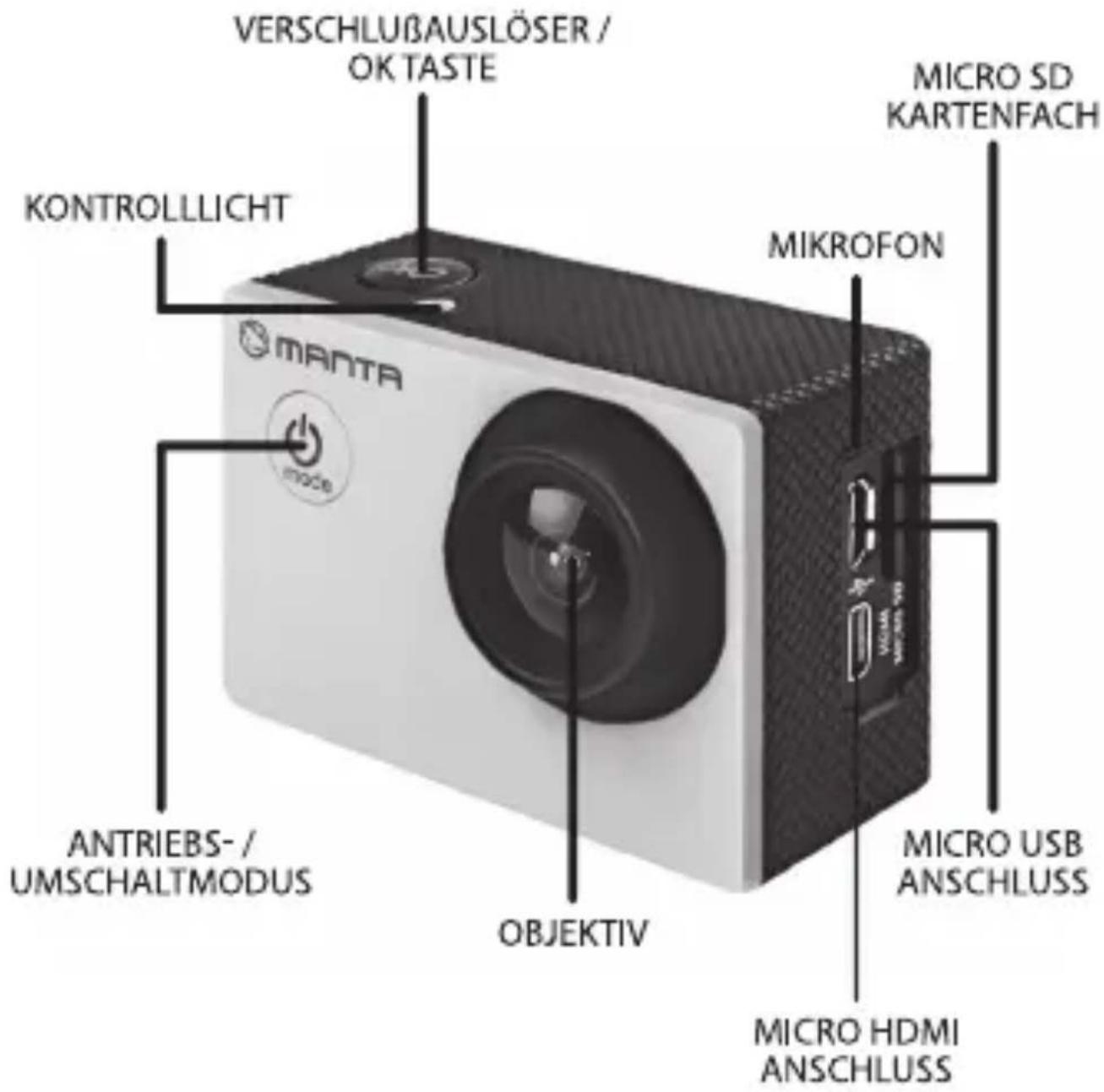

Exterior view of a MANTA camera module with visible lens and adjustment knobs (no text or symbols beyond branding)

PL

PL

KONTROLKA TRYBU PRACY

PL

PL

PL

UMIESZCZANIE KARTY MICRO SD W URZĄDZENIU

INSERTING MICRO SD CARD

Note: Please choose branded Micro SD card and format it on computer before use. Neutral cards are not guaranteed to work normally.

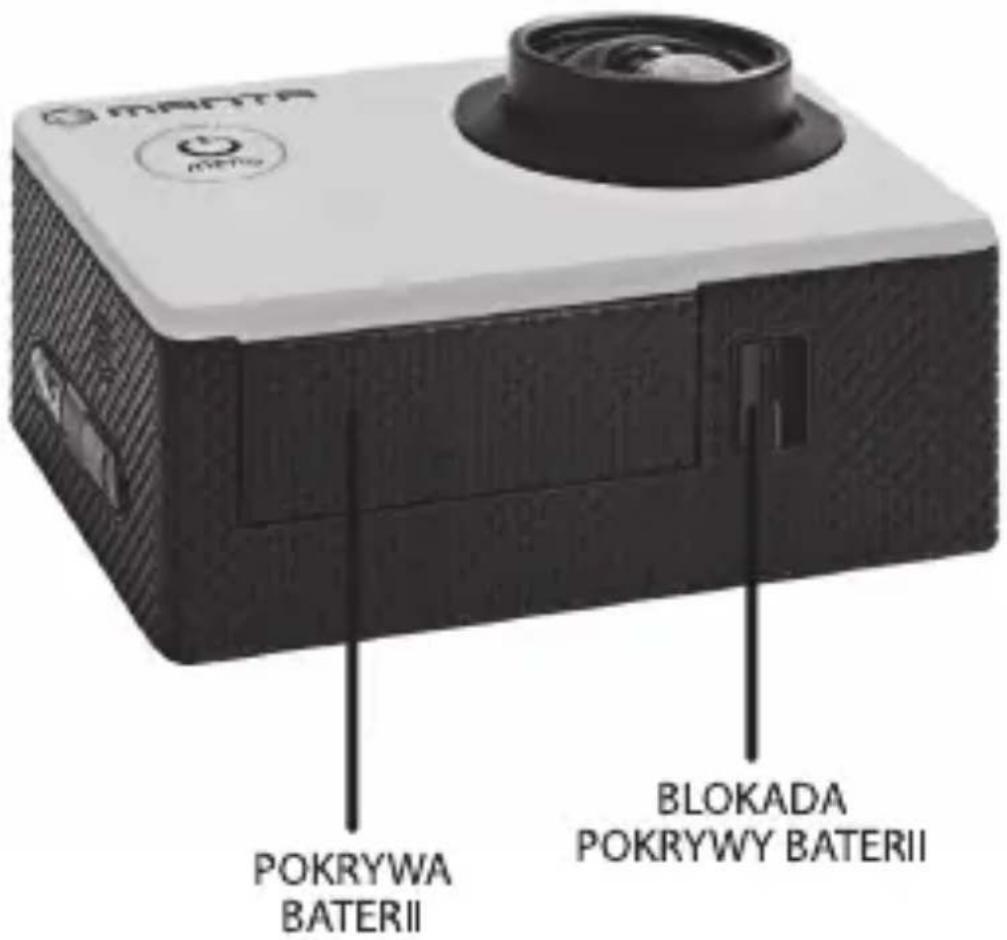

INSTALLING AND REMOVING BATTERIES

1. Press on battery cap to open it.
2. Correctly install battery into camera as indicated by +/- symbols and direction of arrows marked on battery until it's in place.
3. Battery Gauge: Please refer to diagram.
4. Remove Battery: Open cap to take battery out.

CHARGING

1. Charging can be done by either connecting camera to computer or power adaptor.
2. Charge camera on vehicle by connecting it to car charger.
3. Camera can record video while charging (Switch into Vehicle-mounted Mode in "Menu")
4. Charging of camera can be done even when it's powered off.

SWITCHING CAMERA ON AND OFF

1. Press and hold power switch for 3 to 5 seconds to turn it on / off.
2. Switch it on and off by turning display screen on and off.

MODE SWITCHING

Switch between video recording / photo shooting / playback/menubypressing"PowerOn-Off"button.

Recording mode, while photo shooting mode. Symbols are displayed on top of screen. Refers to the function of video playback, and the last one is system settings.

HOW TO RECORD VIDEOS AND CONFIGURE RECORDING SETTING

1. Video Recording

Switch to recording mode and there'll be an icon in the upper left corner of the screen. Press OK to start recording and the icon in the upper left corner will start to flash. Press "OK" again if you want to stop and the icon will disappear.

2. Photo shooting & Settings

Switch the camera on and press "Mode" to select "Photo shooting Mode", there'll be an icon in the upper left corner of display screen and the camera is in photo shooting mode. Press "OK" to take photos.

Shooting Pattern: Single shot / Self-timer (2s/5s/10s) / Continuous Shooting

3. File Storage & Playing

After you are done recording, use a USB cable to export the videos onto a computer to play. Or you can take the Micro SD card out and access the image data with a card reader.

WIFI SETTINGS

The orange LED is turned on Wi-Fi mode.

By default, the feature is disabled. To turn it on, in standby mode, press UP, and displays the message „Waiting for connection via WiFi". LED lights up orange. Now you can enter the Wi-Fi mode. When the Wi-Fi mode is already active, pressing the OK button you can now quit the settings.

EN

1. If the WiFi mode in the camera is turned on to connect the mobile phone to do the following:
2. Install the appropriate application cooperating with Android or iOS.
3. Turn Wi-Fi mode on your phone.
4. According to available wireless networks, select the appropriate device name.
5. Default password to the WiFi network camera is „66666666". Enter the correct password in the phone, and the camera will connect to the phone. Establishing connection will be indicated by lighting up LEDs on the camera orange.
6. After installing the application on your phone you can keep track preview the viewfinder on the camera, take pictures, control video recording, as well as downloaded to your phone photos and video files from the camera's memory card.

Note: The connection from the telephone apparatus is present in a ratio of 1 to 1, so at the time the camera may be connected to only one phone. If necessary, connect the camera to another phone must first be connected to disconnect it from the phone beforehand. The device is compatible with operating systems Android and iOS 2.3 or newer, supported by mobile phone.

DE

CONECTAR Y DESCONECTAR LA CÁMARA

INSERIMENTO DELLA CARTA MICRO SD NELL'APPARECCHIO

UMÍSTĚNÍ MICRO SD KARTY V ZAŘÍZENÍ

ANDROID APP - XDV
