USER MANUAL VV 121 ionic ECG

Black and purple ECG hair dryer with black handle and cord (no visible text or symbols)

VV 121 ionic

VYSOUŠEČ VLASŮ

NÁVOD K OBSLUZE

SUŠIČ VLASOV

NÁVOD NA OBSLUHU

SUSZARKA DO WŁOSÓW

INSTRUKCJA OBSŁUGI

HAJSZÁRÍTÓ

HASZNÁLATI ÚTMUTATÓ

HAARTROCKNER

BEDIENUNGSANLEITUNG

HAIR DRYER

INSTRUCTION MANUAL

CZ

SK

PL

HU

DE

GB

BEZPEČNOSTNÍ POKYNY

Technical diagram of a hair dryer with numbered parts and an inset view of the blade structure.

Technical diagram of a hair dryer with numbered parts and an inset view of the main body part.

Technical diagram of a hair dryer with numbered parts and an inset view of the blade structure.

Technical diagram of a hair dryer with numbered parts for identification and assembly reference.

Technical diagram of a hair dryer with numbered parts and an inset view of the blade structure.

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. It is recommended that to install residual current protection (RCD) for better protection with nominal tripping current not exceeding 30 mA in the bathroom electrical circuit. Ask your electrician for advice.
3. Never use hair dryer if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. If the hair dryer falls in water pull the plug from the wall outlet immediately.
5. Do not use the hair dryer outside or in a humid environment and do not touch the power cord or the appliance with wet hands. Risk of electric shock. Do not leave the appliance in places exposed to direct sunlight or another heat source, it could cause damage.

6. Exercise caution when using the hair dryer near children!

7. The hair dryer should not be left running unattended. We recommend that for safety reasons you switch off the hair dryer whenever you set it aside.

8. Do not turn the appliance on or off by plugging or unplugging the power cord. Always turn off the power switch of the hair dryer first and then pull the plug from the wall outlet!
9. We recommend that you do not leave the plugged in hair dryer unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
10. This hair dryer is equipped with a safety fuse to prevent overheating. If the air intake is covered, the appliance shuts off automatically. After a short time needed for cooling it switches on again. Make sure that the grilles for air intake and outlet are free when using the appliance.
11. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges. Do not wrap the power cord around the hair dryer.
12. Always disconnect the appliance from the power supply after you finish using it and allow the hair dryer to cool completely before storing it.
13. Do not use accessories that the manufacturer does not recommend.
14. Use the hair dryer only according to the instructions in this manual. The manufacturer is not liable for damages caused by the improper use of this appliance.
15. This appliance is intended for household use and similar areas, such as:

- appliances used by guests in hotels, motels and other accommodations

- appliances used in Bed&Breakfast accommodations

1. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained

GB

to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

WARNING:

Do not use this appliance near bathtubs, showers, washbasins or other vessels containing water.

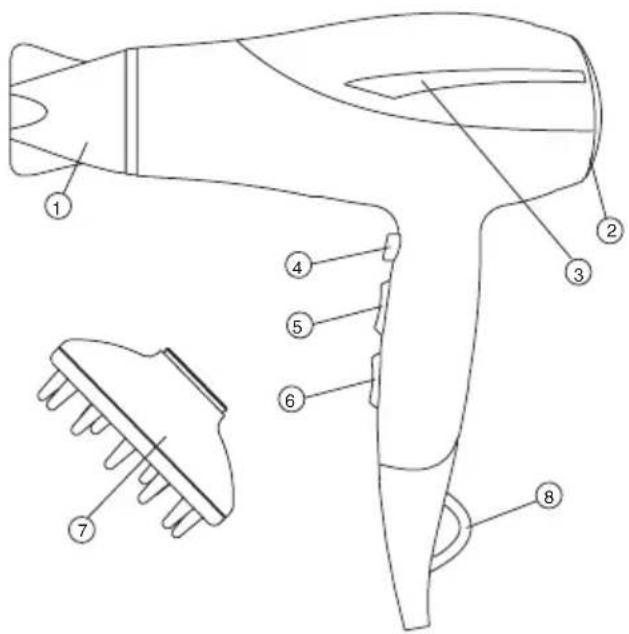

DESCRIPTION

Technical diagram of a hair dryer with numbered parts and an inset view of the device's base.

1. Air nozzle
2. Air inlet grille
3. LED indicator lights
4. Styling with cold air ( ✉)
5. Setting temperature:

Low temperature
Medium temperature
High temperature

1. Setting the air stream:

0 Off

* Low speed
High speed

1. Diffuser
2. Hanging loop

USING THE APPLIANCE

The appliance is designed for human hair drying only. Do not use on wigs or animals.

1. After washing, dry the hair with a towel and only then use the hair dryer.
2. Plug the hair dryer in the electrical outlet when the dryer is off (switch ⑥ in "0" position).
3. Using switches ⑤ and ⑥, select the required temperature and speed of the air stream.

Note: The LED lights indicate the set temperature of the hair dryer:

Low temperature: one LED light is lit
Medium temperature: two LED lights are lit
High temperature: three LED lights are lit

1. Style your hair in the course of drying using a comb. Maintain a safe distance to prevent burning the hair or skin or suction of hair in the input grille of the appliance.
2. The air nozzle enables you to direct a narrow stream of air to a comb or a brush when you are styling your hair.
3. Unplug the hair dryer from power after use.
4. A strap ⑧ serves to hang the appliance.

Note on ionization technology

Ionization technology gives the hair shine and prevents frizzing. The hair is regenerated, shiny, has full volume and is easy to comb.

Cold air pulse

The pulse of cold air improves hold of your hair style. Press and hold the ✝ button for rapid cooling of the hair and holding the created hairstyle (only blue indicator light is on).

Fast drying

Select medium or high level of temperature and high fan speed and roughly dry your hair. Shake the moisture out of your hair with comb or hand while continuously moving the hair dryer.

Hair straightening

Select medium or high level of temperature and high fan speed and roughly dry your hair. When the hair is almost dry, install the air nozzle (minimizes curling of hair) and lower the power level. Divide the hair into strands and start straightening from the bottom layers. Follow the movement of the comb with the air nozzle and slowly glide over each strand of hair from the roots to the tips. When you straighten the bottom layer, continue with the middle layers and eventually straighten the top layers.

Naturally wavy hair

Set the hair dryer to lower temperature and to a lower fan speed. Divide between the fingers in the palm several hair strands and direct the air stream between the fingers. Once you achieve the desired effect use always a pulse of cold air ( ^* ), so that the strands hold the desired shape. For more volume lean forward and dry the hair from the bottom upwards.

Achieving maximum volume

Set the hair dryer to medium or maximum temperature and high fan speed. Proceed from the roots and start on the top of the head. Divide the hair into strands and using a comb or a hand dry against their natural direction of growth. This will lift the hair from the roots and you create a rich volume hairstyle.

Note: You can use the diffuser to achieve maximum hair volume. The dispersal of air stream contributes to fine drying and gives the hair shine and volume.

Styling hair

Insert an air nozzle on the hair dryer for precise drying. Set a low or medium temperature and low fan speed. Using comb, style individual strands. Direct the air stream directly onto the combed hair strand. If you need to achieve a better hold of the shape, hold the air stream over each strand 2 to 5 seconds and twist the hair up or down.

Note: We recommend that people with dyed, fragile, damaged and fine hair use lower degree setting. To save time and effort, using the maximum amount of heat, established on the highest setting, is recommended for people with healthy rough, strong, exotic and resistant hair.

CLEANING AND MAINTENANCE

• The unit does not contain inside any elements, which could be adjusted by the user, refer all repairs to qualified service personnel!
• Never use the appliance in combination with hair spray or another aerosol product.
• Disconnect the appliance from the electrical outlet prior to performing any maintenance.
• Cleaning should be always performed on a cooled appliance!
• Remove from time to time dust and hair from the air input grille using a small brush.
• Wipe the appliance using moist (not wet) cloth and dry with a soft dry cloth.
• Never clean the hair dryer under running water, do not rinse it and do not immerse it in water!
  • Always make sure that the hair dryer cooled completely and that it is clean and dry before storing it.

Safety fuse against overheating

The hair dryer is equipped with an automatic thermal fuse, which disconnects the power supply of the appliance in case of overheating. If the hair dryer shuts off while running, turn the switch ⑥ to position 0, unplug the power cord from the outlet and allow the hair dryer to cool for 10–15 minutes. Make sure that the air intake is not blocked and restart the appliance.

TECHNICAL DATA

Noise level: 82 dB

Nominal voltage: 220–240 V\~ 50–60 Hz

Nominal input power: 2200 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
