USER MANUAL 10028927 Klarstein

Three kitchen blisters with colorful fruit toppings, one labeled 'KLARSTEIN' (no other text or symbols visible)

Technical diagram of a blender with labeled parts including top, front, side, and interior views

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 5

Safety Instructions 5

Product Description 6

Getting Started 6

Use and Operation 7

Useful Tips 7

Cleaning and Care 7

Environment Concerns 7

Declaration of Conformity 7

Technical Data

Item number 10027723, 10028927
Power supply 220-240 V ~ 50/60 Hz
Power consumption 300 W
Bottles capacity 0.4/0.6 litres
Jug capacity 0.8 litres

Safety Instructions

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances shall be potential injury from misuse.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

- This blender is intended only for domestic use.

- CAUTION: Ensure that the blender is switched off before removing it from the stand.

- Make sure that the voltage shown on the rating plate corresponds with that of the mains supply. The rating plate can be found on the bottom of the motor block. The blender is only to be connected to an AC supply ( ). The mingotor must always be switch off before the blender is connected with the mains supply.

- Care is needed when handling cutting blades, especially when removing the blade from the bowl, emptying the bowl and during cleaning.

- This blender only operates if the blending unit has been inserted into the motor block.

- Before switching on the blender, make sure that the blending unit has been assembled correctly and has been inserted into the motor block with the lid attached.

- The blender is not to be operated with an empty blending unit (i.e. without solid or liquid foodstuff).

- Allow any hot liquids to cool to a lukewarm temperature before you pour them into the blending unit.

- This electrical device complies with the relevant safety regulations.

- Repairs are only to be carried out by an authorized electrician. Improperly carried out repairs can lead to accidents and injury to the user.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

• Do not operate the appliance in dry motion.
• If the supply cord is damaged, its must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Switch off the appliance before changing accessories or approaching parts which move in use.

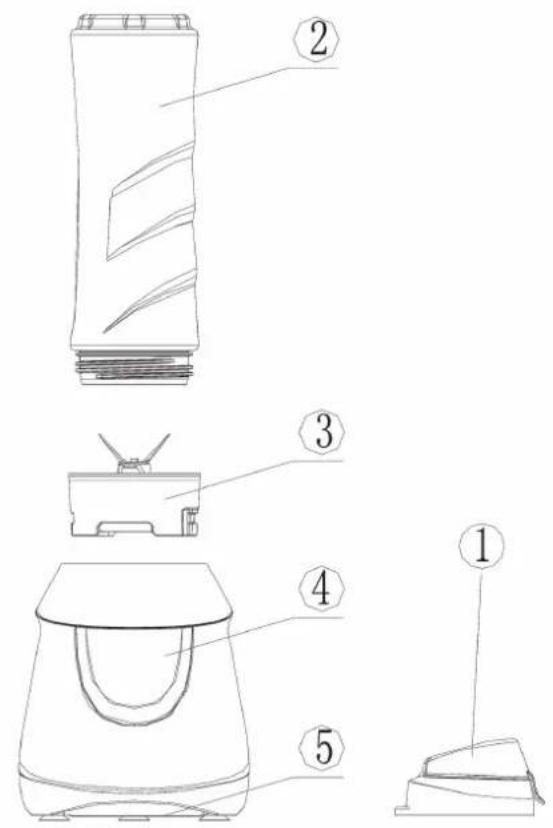

Product Description

1 Drinking Lid (2x)

2 Bottle (2x)

3 Blade Assembly

4 Button Cover

5 Motor Block

Technical diagram of a device with numbered parts, showing exploded and assembled views

Getting Started

All parts of the blender are to be thoroughly cleaned before being used for the first time. (see Section: Cleaning).

Assembly of the bottle

Put the ingredients in the bottle (2). Mount the Blade Assembly1 (3) onto the bottle and tune the Blade Assembly 1 in clockwise direction until it is fixed.

Assembly of the jug

Put the rubber sealing ring (8) press into the Blade Assembly2 (9). Mount the jug (7) onto the Blade Assembly2 and tune it unit in clockwise direction until it is fixed. 5. After putting the ingredients in the jug, fix the lid2 (6) onto the jug by pressing down.

Inserting the jug or bottle assembly

Make sure that the blender is switched off. Place the jug assembly or the bottle assembly onto the motor block (5) in right position.

Use and Operation

• Place the foodstuff you wish to process into the jug or botte.
• Put the lid on the jug and close securely.
• Press the button cover (4) on the motor block and the motor is running. Release the button cover on the motor block and the motor stops.
  • After using the blender, always pull out the mains plug. Just lift it up to remove the jug or bottle.
• It is recommended that, this product should not exceed 1 minute in operation and allow 1 minute break in between each use. This prevent motor from becoming too hot and tend to damage the motor.

Useful Tips

• To achieve the best results when pureeing solid ingredients, place small portions into the jug or bottle .one by one instead of placing a large quantity all at once.
• If you are processing solid ingredients, cut them into small pieces (2-3cm) first.
• When mixing solid ingredients start off first with a small amount of liquid. Gradually add more and more liquid through the opening in the lid.
  • Always place your hand on top of the blender when you are operating the device.
• Be careful when processing hot liquids.
• For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck.

Cleaning and Care

Never immerse the motor block in water. Wipe it only with a moist cloth.

Simple cleaning/rinsing out the assembled jug or bottle

Empty the jug or bottle and fill it with water. Place the jug or bottle assembly on the motor block and turn the push switch several times. Empty the jug or bottle and rinse until clean.

Thorough cleaning of the dismantled jug

Ensure that the jug is completely empty before you unscrew the retaining ring. Be careful when handling the cutting blade. All removable parts are suitable for the dishwasher.

We reserve the right to make amendments.

Environment Concerns

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. by ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin.

This produkt is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
