USER MANUAL 10031971 Klarstein

text_image Illustration showing a hand pouring liquid into a glass jar with labeled steps 01 and 02, likely illustrating a chemical or chemical process.

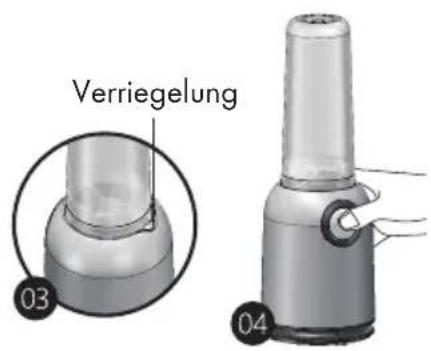

Klarstein 10031971 - 1

text_image Verriegelung 03 04

Klarstein 10031971 - 2

natural_image Two transparent cylindrical containers with black lids, one open and one closed, both showing a transformation from liquid to solid (no text or symbols visible)
natural_image Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Technical Data 10

Safety Instructions 11

Components 12

Sport Bottle Use Guide 13

Operation 14

Blending Tipps 15

Cleaning and Storing Your Blender 15

Disposal Considerations 16

TECHNICAL DATA

Item number 1003197010031971 10031972
Power supply 220-240 V~ 50/60 Hz
Power consumption 250 W
RPM 18000 - 22000

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

• To disconnect, grasp plug and unplug cord form electrical outlet.
- To protect against risk of electrical shock, do not immerse the cord, plug or motor base in water or any other liquids.
- Do not let cord hang over edge of table or counter or touch hot surfaces.
- Never leave appliance unattended when in use.
- Close supervision is necessary when used by or near children.
- Avoid contact with moving parts. Keep hands and utensils out of sport bottle while blending to prevent personal injury or damage to the blender.
• The blade is sharp. Handle with care.
- To reduce the risk of injury, never place cutter-assembly blades on base without sport bottle properly attached.
- Do not attempt to bypass the interlock system that powers the unit on.
- Do not blend hot liquids in the blender.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest Service Center for examination, repair or electrical mechanical adjustment
- Do not use outdoors or for commercial purposes; this appliance is for household use only.
• Always operate on a flat surface.
- Unplug the blender when not in use, before taking off or putting on parts and before cleaning.
- Use this appliance for its intended use as described in this manual. The use of attachments not made by the manufacturer, including canning or ordinary jar and processing assembly parts, is not recommended and may cause a risk to persons.

This appliance is equipped with a polarized plug. This type of plug has one blade that is wider than the other. This plug will fit in a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, reverse the plug and try again. If it still does not fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

COMPONENTS

Klarstein 10031971 - COMPONENTS - 1

text_image Sport Bottle Blade Assembly

Klarstein 10031971 - COMPONENTS - 2

text_image Inner Bottle

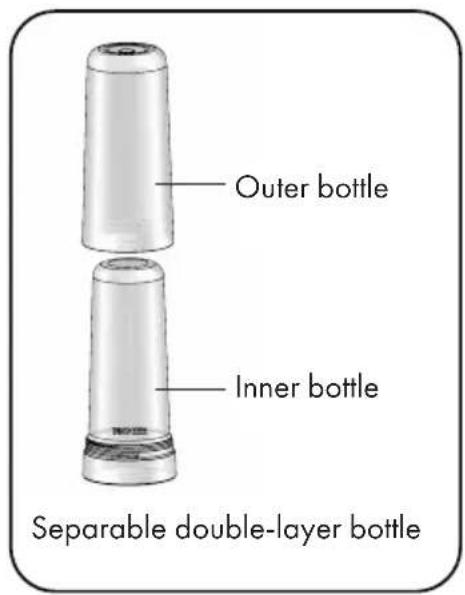

Klarstein 10031971 - COMPONENTS - 3

text_image Outer bottle Inner bottle Separable double-layer bottle

Klarstein 10031971 - COMPONENTS - 4

text_image Drinking lid

SPORT BOTTLE USE GUIDE

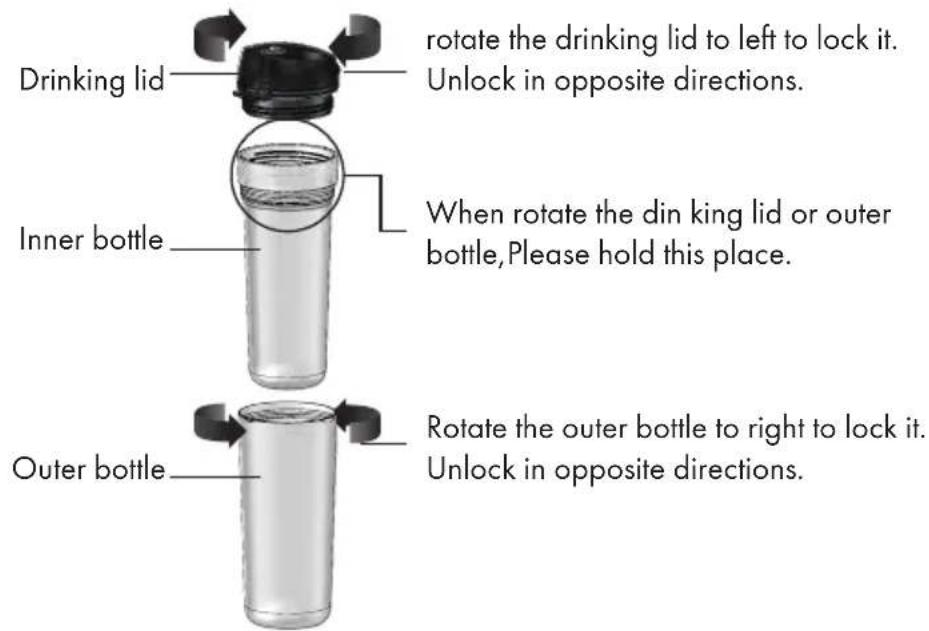

Klarstein 10031971 - SPORT BOTTLE USE GUIDE - 1

text_image Drinking lid rotate the drinking lid to left to lock it. Unlock in opposite directions. Inner bottle When rotate the din king lid or outer bottle, Please hold this place. Outer bottle Rotate the outer bottle to right to lock it. Unlock in opposite directions.

Klarstein 10031971 - SPORT BOTTLE USE GUIDE - 2

text_image Lock mark on the outer bottle

OPERATION

  1. Place the sport bottle on a flat surface with the open end facing up. Fill the sport bottle with your favorite ingredients. Be sure not to fill ingredients past the MAX marking "MAX 450 ML".

  2. Fasten the blade assembly on the open end of the sport bottle.

  3. Turn the sport bottle upside down, place it in the base vertically. Then be sure the key point is match. Operation by safety switch. Blending will stop once you stop pressing the switch.

  4. Work for one run, then stop more than one minute.

  5. Turn the sport bottle over and place. on a flat surface. Replace the blade assembly with the drinking lid. Take the sport bottle with you throughout the day to stay hydrated.

Note: For optimal performance, place desired ingredients in the sport bottle according to the following order: Liquids, fresh ingredients, frozen fruit, yoghurt and ice cream.

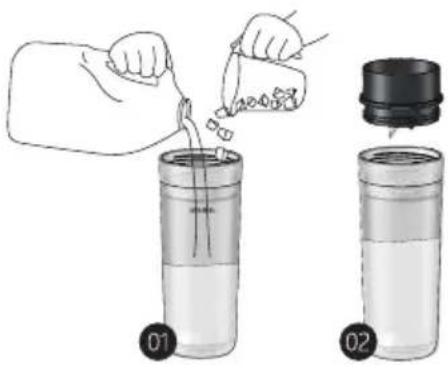

Klarstein 10031971 - OPERATION - 1

text_image Illustration showing a hand pouring liquid into a glass beaker, with two labeled steps (01 and 02) indicating step-by-step preparation.

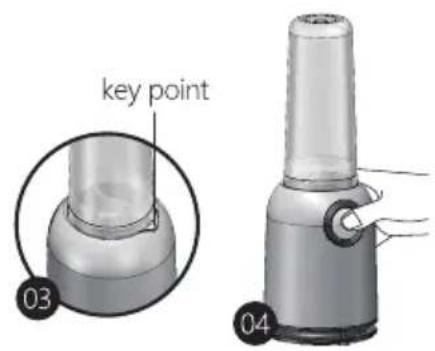

Klarstein 10031971 - OPERATION - 2

text_image key point 03 04

Klarstein 10031971 - OPERATION - 3

natural_image Two transparent plastic containers with black caps, one open and one closed, both showing a transformation from liquid to solid (no text or symbols visible)

BLENDING TIPPS

  • Put liquids in the cup first unless a recipe says otherwise.
  • Cut all firm fruits and vegetables into pieces no larger than 3/4 inch(1.8cm) to 1 inch(2.5 cm).
  • Do not overload sport bottle. If the motor stalls, turn the blender off immediately unplug the unit and let it cool for at least 15 minutes. Then, remove a portion of the food and continue.
  • This blender will not mash potatoes, whip egg whites or substitute dairy toppings, nix stiff dough or grind raw meat.

CLEANING AND STORING YOUR BLENDER

Cleaning

  • Caution: UNPLUG BEFORE CLEANING. DO NOT IMMERSE THE BLENDER BASE IN WATER OR ANY OTHER LIQUID..
  • Use a damp, soft sponge with mild detergent to clean the outside of the blender base. All parts except for the blender base are dishwasher-safe. You can also wash the parts, except the blender base, in warm, soapy water. Rinse well and dry.

Storing

- After cleaning, reassemble blade assembly to open end of the sport bottle and the place in the blender. Snap the drinking lid on the other end of the sport bottle.

DISPOSAL CONSIDERATIONS

Klarstein 10031971 - DISPOSAL CONSIDERATIONS - 1

natural_image Symbol of a trash bin crossed with no visible text or labels

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Klarstein 10031971 - DISPOSAL CONSIDERATIONS - 2

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)

Klarstein 10031971 - Declaration of Conformity - 1
