User manual

Refrigerator

Table of contents

Delivery GB-3

Packaging tips .... GB-3

Package contents . . . . . . . . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . . . . . . . . . GB-3

Appliance parts / control elements . . . . . . . GB-4

Safety GB-5

Intended use GB-5

Explanation of terms . . . . . . . . . . . . . . . . . GB-5

Explanation of symbols . . . . . . . . . . . . . . GB-5

Safety notices GB-5

Operation GB-9

Requirements for safe use. . . . . . . . . . . GB-9

Switching on and off . . . . . . . . . . . . . . . . . . . . GB-9

Setting the temperature . . . . . . . . . . . . . . . GB-9

Refrigeration GB-10

Refrigeration tips . . . . . . . . . . . . . . . . . . . . . . . GB-10

Maintaining quality . . . . . . . . . . . . . . . . . . GB-10

Moving the glass shelves . . . . . . . . . . . GB-10

Care and maintenance . . . . . . . . . . . . . . . GB-11

Clean exterior GB-11

Checking and cleaning door seals....GB-11

Removing the door shelves . . . . . . . . GB-11

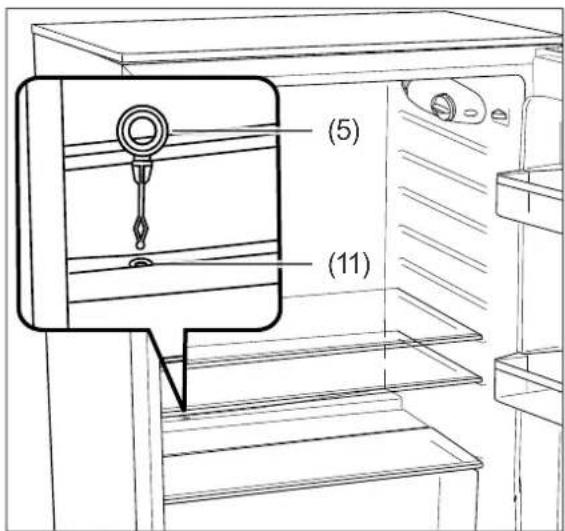

Cleaning the fridge compartment ..... GB-11

Changing bulb . . . . . . . . . . . . . . . . . . . . . . . . . GB-12

Start-up GB-13

Moving and unpacking . . . . . . . . . . . . . GB-13

Choosing a suitable location . . . . . . . GB-13

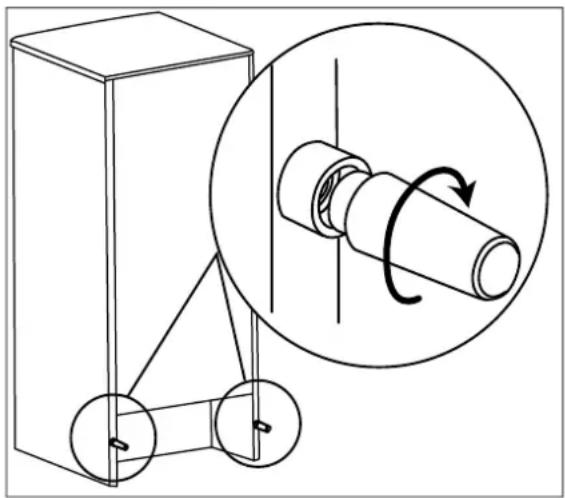

Setting up and aligning the appliance . . GB-13

Cleaning before use . . . . . . . . . . . . . . . . . . GB-14

Connecting the appliance . . . . . . . . . . GB-14

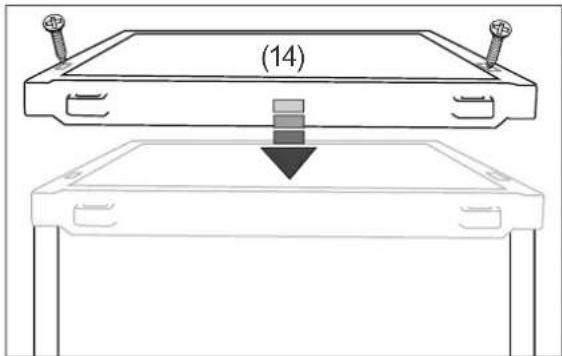

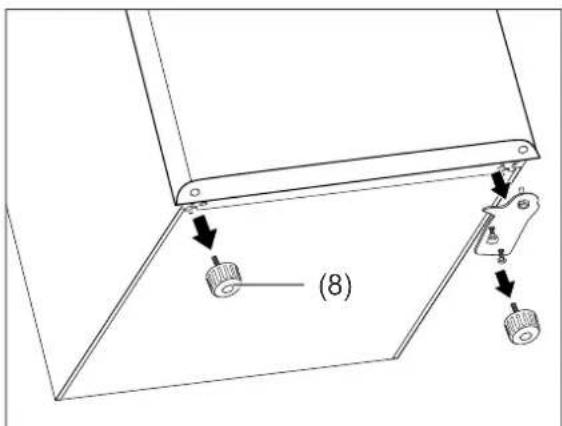

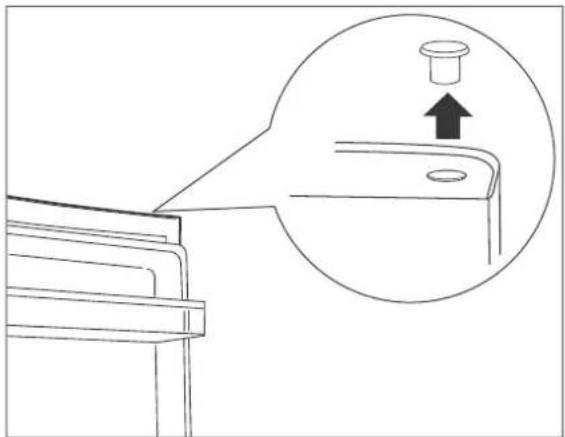

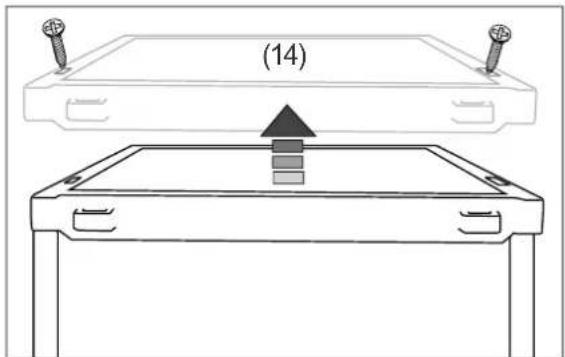

Changing the door hinges . . . . . . . . . . . . GB-15

Troubleshooting table . . . . . . . . . . . . . . . . . GB-17

Service GB-18

Advice, order and complaint . . . . . . . . GB-18

Repairs and spare parts . . . . . . . . . . . . GB-18

Environmental protection . . . . . . . . . . . . GB-19

Disposing of old electrical devices in an environmentally-friendly manner . GB-19

Our contribution to the protection of the ozone layer . . . . . . . . . . . . . . . . . . . . . . GB-19

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No. 1060/2010 and Regulation (EU) No. 643/2009 GB-20

Technical specifications . . . . . . . . . . . . . . GB-20

You can find more information on setting up the appliance and starting it up for the first time

from page GB-13.

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way to ensure you can use all the functions safely and reliably. Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

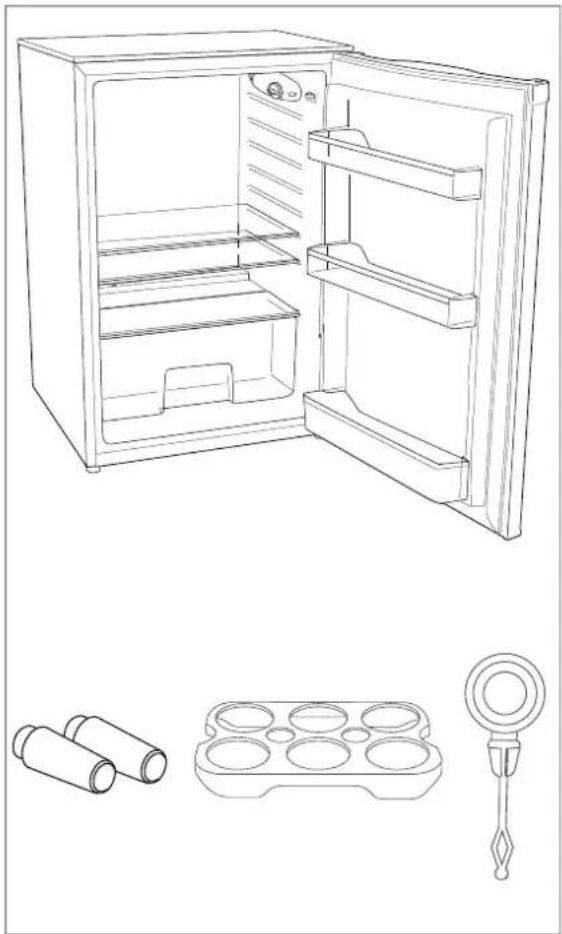

Line drawing of an open refrigerator with internal compartments and a separate view of its tray (no text or symbols)

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Package contents

1× Refrigerator
1× Egg tray, 6 compartments
1× Cleaning rod
2× Spacer
1× User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see chapter „Start-up“ on page GB-13).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see "Service" on page GB-18).

WARNING!

Never use a damaged appliance.

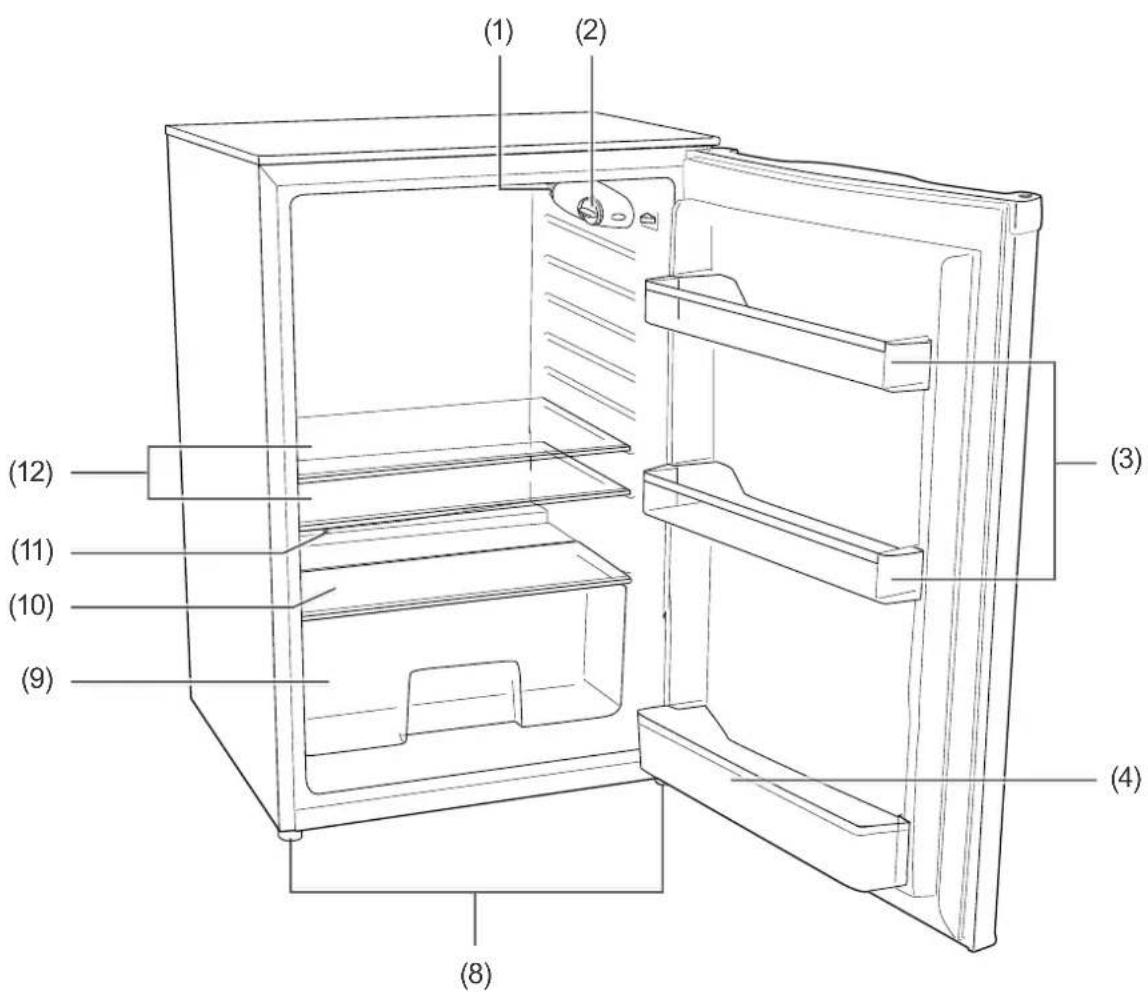

Appliance parts / control elements

(1) (2) (3) (4) (8) (9) (10) (11) (12)

(7) (6) (5)

(1) Interior light
(2) Temperature controller
(3) Small door shelf, x2
(4) Wide door shelf / bottle compartment
(5) Cleaning rod
(6) Spacer
(7) Egg tray, 6 compartments

(8) Screw-on feet, x2
(9) Vegetable drawer
(10) Glass cover for vegetable drawer
(11) Condensation drain (covered)
(12) Glass shelf, x2

Safety

Intended use

The appliance is intended to chill fresh foods.

The appliance is intended solely for use in private households.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following signal words can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Caution: Fire hazard!

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, start-up, etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance,

• if it has visible damage, e.g. the power cord is defective.
• if it starts smoking or there is a smell of burning.
• it makes unfamiliar noises.

In this case, you should pull out the mains plug and have the appliance repaired (see „Service“ on page GB-18).

■ Only connect the appliance to an easily accessible socket so that you can quickly disconnect it from the mains in the event of a fault.
■ Take care to prevent the risk of tripping when laying the mains cord.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.

■ Always touch the mains plug, not the mains cord.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
■ Do not operate the appliance with an external timer or a separate remote control system.
■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.
Inspections and repairs to the appliance may only be carried out by authorised specialists (see „Service“ on page GB-18).
■ Independent repairs made to the appliance may cause damage to property and personal injury, and any liability and warranty claims will be forfeited. Never attempt to repair the faulty – or supposedly faulty – appliance yourself.
■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.
- Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ In the event of any defect, or when cleaning and servicing, please unplug from the mains.

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory or mental abilities, or who lack experience and/or knowledge, if they are supervised or have been instructed in the safe use and understand the dangers associated with its use.

■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Additional precautionary measures apply to children of all ages.

■ Do not allow children to play with the packaging fi Im. They may get caught in it or suffocate.
■ Children must not be allowed to play with the appliance.
■ Stop children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths. Children can choke on small parts.

Danger of explosion!

Improper handling of the appliance can lead to explosions.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

■ Never use defrosting sprays. They can generate explosive gases.

■ Only store high-proof alcohol upright and tightly sealed.

CAUTION

Fire hazard!

The inappropriate use of the device can cause a fire and damage to property.

• Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.
• In order to guarantee sufficient air circulation, do not close the ventilation openings in the appliance housing.
• Do not place the appliance directly against the wall. Observe minimum distances and use the spacers provided (see „Choosing a suitable location“ on page GB-13).

Risk of injury!

Improper handling of the appliance may result in injury.

■ Do not use the base, drawers, doors, etc., as steps or for support.

Risks associated with using refrigerators

Dangers from the refrigerant!

The refrigerant circuit of your appliance contains the sustainable but fl ammable refrigerant R600a (isobutane).

■ Mechanical modifications to the refrigeration system are only permitted by authorised specialists.
■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clean water and call a doctor immediately.

■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m³ per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the data sheet (see page GB-20).

Health hazards for stored food!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ After a possible power failure, check whether the stored foodstuffs are still edible.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Abide by the specified ambient temperature (see “climate class” line on page GB-20).

NOTICE

Risk of damage to property!

If the refrigerator has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, do not tilt the cooling appliance horizontally.
■ After transporting the refrigerator, leave it in its normal position for approx. 2 hours before connecting it. This allows the lubricant enough time to flow back into the compressor.

Improper handling of the appliance can lead to property damage.

■ Do not use the door to pull or lift the appliance.
- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
- Do not use any electrical parts inside the appliance that do not conform to the manufacturer's recommended design.
■ Do not use any mechanical devices or means other than those recommended by the manufacturer.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
- Do not store glass or metal containers containing water, lemonade, beer etc. Water expands when frozen and can burst the container.
■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 4 mm. Excessive ice formation increases power consumption and the freezer compartment door may no longer close tightly.

- Do not use any means other than those recommended by the manufacturer to speed up defrosting. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

■ When cleaning, please note:

- Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

- Only use soft cloths.

- Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

Requirements for safe use

• You have read chapter „Safety“ on page GB-5 and understand all the safety notices.
  – The appliance is set up and connected as described in Chapter „Start-up“ on page GB-13.

Switching on and off

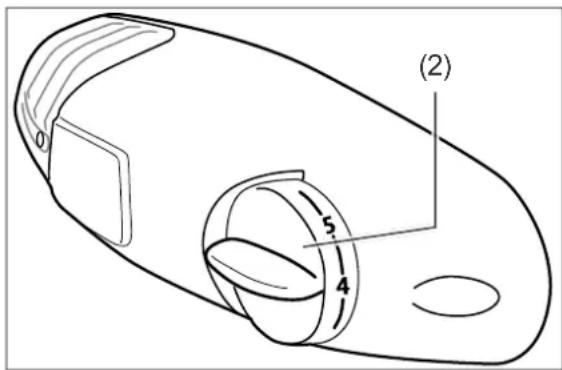

(2) 5 4

The temperature controller (2) can be used to switch the appliance on and off. The temperature controller is on the wall of the fridge compartment and is infinitely adjustable.

Switching on

1. Set the temperature controller (2) to a setting of between "1" and "7".
   The appliance is switched on, the interior light (1) illuminates, the motor starts to work, the refrigerant flows through the pipes and you hear a slight noise.
2. If the appliance makes worrying noises check the solid base and remove any objects on the appliance.

Switching off

1. Set the temperature controller (2) to "0". The compressor is switched off. The appliance doesn't refrigerate. The interior light continues to function.

2. Empty the appliance, defrost it and clean it (see chapter „Care and maintenance“ on page GB-11).

3. To switch the appliance off completely, pull out the mains plug.

4. Leave the door open slightly to avoid mould formation.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Abide by the specified ambient temperature (see “Climate class” on page GB-20).

Set the temperature using the temperature controller (2).

• First select a medium setting.
• If, for example in summer, the ambient temperature increases, select a lower setting accordingly.

In order for the temperature in the refrigerator to be set

• higher, turn the temperature controller towards "0".
• lower, turn the temperature controller towards "7".

You ideally need a refrigerator thermometer to be able to control the cooling efficiency. Place it

- above the vegetable drawer (9) in the fridge compartment; the correct temperature here is +6 °C.

Refrigeration

WARNING

Danger of explosion! Improper handling of the appliance can lead to explosions.

• Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
  ■ Only store alcohol upright and tightly sealed.

Refrigeration tips

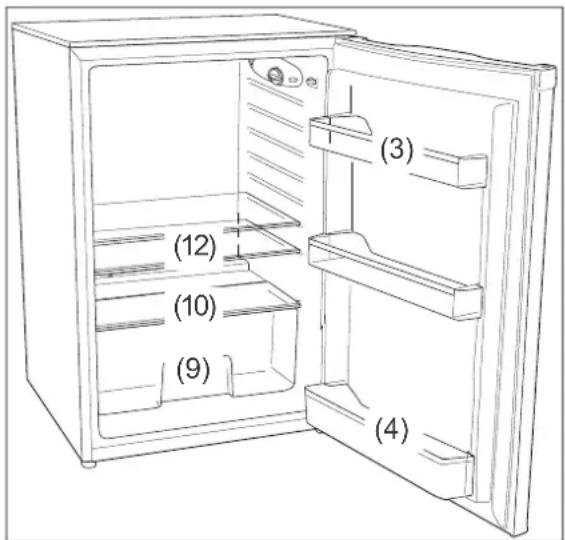

(3) (12) (10) (9) (4)

- Fill the fridge compartment in such a way that the temperature conditions inside are used to their full potential:

• Place spreadable butter and cheese in the top section on the top glass shelf (12) or on the top small door shelf (3). This is where it is warmest.
• Store bottles and drinks cartons in the wide door compartment (4). Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the bottom glass shelf (12).

- Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass cover of the vegetable drawer (10). This is where the temperature is lowest.

- Place fresh fruit and vegetables in the vegetable drawer (9).

• Allow hot food to cool before placing it in the fridge.
• The temperatures in the appliance and thus the energy consumption can increase
• if the doors are opened frequently or for a prolonged period.
• if the room temperature fluctuates up and/or down.
• Energy consumption is also dependent on the selected location (for more detailed information, see page GB-13).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge compartment, only place packaged food in the fridge compartment. Use special plastic containers for good or standard food wrap.
• Place the food
• in the fridge in a way that allows the air to circulate freely. Do not cover the glass shelves with paper or anything similar.
• somewhere that is not directly against the rear wall. Otherwise it may freeze to the back wall.

Moving the glass shelves

The glass shelves (12) can be moved around.

1. Lift the glass shelf from the back and take it out.
2. Slide the glass shelf to the new position in the side guides.

Care and maintenance

WARNING

Health hazard!

■ Cleaning and user maintenance must not be carried out by children unless they are supervised.

Risk of electric shock!

■ Unplug the mains cable before cleaning. Take hold of the mains plug itself, do not pull on the mains cord.
■ Make sure that no cleaning water gets into the ventilation slots, the electrical parts and the drain opening.

NOTICE

The surfaces and door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
- The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.

Clean exterior

Use only light pH-neutral soapy water for cleaning coated surfaces.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the door seal is not uniform everywhere: Carefully warm the seal in the affected places with a hair dryer and pull it out slightly with your fingers.
3. Clean dirty door seals with clean water only.

Removing the door shelves

For ease of cleaning, the door shelves can be lifted and removed.

Cleaning the fridge compartment

1. Set the temperature controller (2) to "0".
2. Pull out the mains plug.
3. Remove the chilled goods and place them in a cool room.
4. Remove the vegetable drawer, door shelves, glass shelf above the vegetable drawer and the glass shelves and clean them in lukewarm water with a little washing-up liquid. Dry all parts thoroughly.
5. Wash the interior with warm water and washing-up liquid.
   Add a few drops of vinegar to the water when wiping for a second time to prevent the formation of mould.
   Wipe the interior dry and leave the door open a while to air.

(5) (11)

1. Clean the opening of the condensation drain (11) using the cleaning rod (5).
2. Replace the shelves and vegetable drawer and refill with chilled goods.
3. Plug the mains plug back into the socket and turn the temperature controller (2) to the desired setting.

It is not necessary to defrost the fridge compartment because your refrigerator has an automatic defrost system. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Changing bulb

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Unplug the mains cable before changing the light bulb.

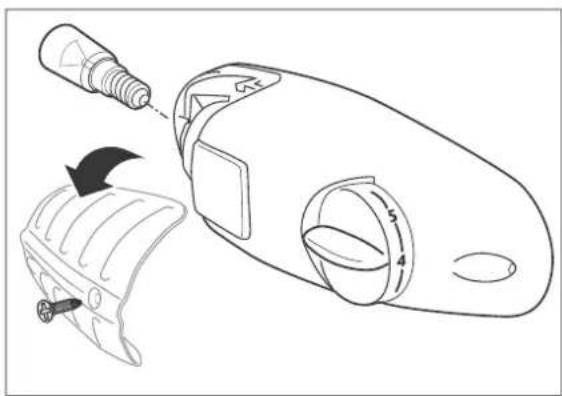

Line drawing of a device with a plug inserted into a housing, showing internal components and a close-up view (no text or symbols)

Only use similar light bulbs with an output of max. 10 watts, 230 volts and an E14 base.

1. Pull the mains plug out of the socket.
2. Loosen the cover screw with a cross-headed screwdriver and remove the cover.
3. Unscrew the light bulb from the holder and replace with a new one.
4. Screw the cover back on.
5. Re-insert the mains plug into the socket.

Start-up

CAUTION

Risk of injury!

■ Shelves, drawers, doors, etc. must not be used as steps or for support.

CAUTION

Dangers from the refrigerant!

- Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.

■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clean water and call a doctor immediately.

NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Make sure that the specified ambient temperature is maintained (see “Climate class” on page GB-20).

NOTICE

Improper handling of the appliance may result in damage.

■ If possible, do not tip the appliance horizontally, but transport it at a maximum inclined angle of 45^ .
■ Only rest the appliance against the wall to change the door stop.
■ Do not use sharp objects to unpack it.

Moving and unpacking

• Move the appliance using a trolley or with the help of a second person.
• Unpack the appliance and carefully remove all packaging items, plastic profiles, adhesive strips and foam padding from inside, outside and from the back of the appliance.

Choosing a suitable location

To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of refrigerant in compliance with the EN 378 standard. That equates to a minimum space of 2.5 m^3 for this appliance.

• Suitable locations are dry, well-ventilated areas that are cool if possible.
• Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

The following minimum distances must be maintained:

– from electric stoves 3 cm
– from oil and coal burning stoves 30cm
– from other cooling appliances 2 cm
– from washing machines/dishwashers 2 cm

If you would like to reduce these distances, you can fit an insulation plate between the appliances.

If underfloor heating is installed at the set-up location, place the refrigerator on an insulation plate made from solid material.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible.
2. To ensure adequate air circulation,

– the entire space above the appliance must be clear.
- the appliance should not stand directly against the wall. Leave space of at least 5 cm to the back wall.

Diagram of a mechanical device with pulleys and a magnified inset showing rotational motion (no text or symbols)

• To maintain the minimum distance, mount the supplied spacers (6) on the rear panel.

Diagram of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

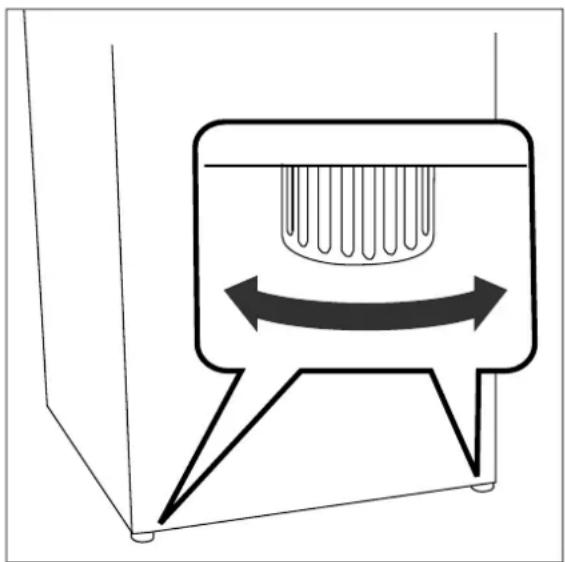

1. Level out any unevenness in the surface with the two front screw-on feet (8).

2. Close the door.
   – Tilt the appliance backwards slightly.

3. Screw/unscrew the screw-on feet until the appliance is level.

4. Put the appliance back into an upright position.

5. Check the position with a spirit level. The appliance should not move when opening the door.

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before use (see „Care and maintenance“ on page GB-11).

Connecting the appliance

! NOTICE

Risk of damage to property! If the refrigerator has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, do not tilt the cooling appliance horizontally.
■ After transporting the refrigerator, leave it in its normal position for approx. 2 hours before connecting it. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible socket (220-240 V\~ / 50 Hz). When the door is open, the interior lighting (2) is now switched on.

- You will find all important information about operation from page GB-9.

You can change the side on which the door opens. The hinge is on the right on delivery.

As this alteration requires some manual skill, please read through the individual steps before altering.

In addition to the package contents, you will require:

– Medium size cross-headed screwdriver
– Fine flat-headed screwdriver
– Size 8 and 10 spanners

Changing the door hinges

Proceed as follows:

1. Pull the mains plug out of the socket.

Technical line drawing of a mechanical bracket with an inset showing a component being inserted (no text or symbols)

1. Open the door and pull out the blind plug from the top of the door.

(13)

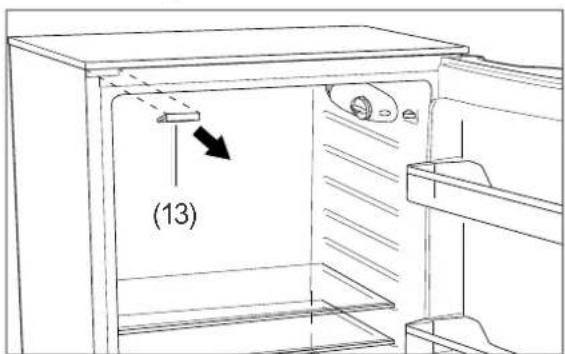

1. Remove the blind cover (13) under the refrigerator cover.

2. Remove the two screws from the top of the refrigerator cover (14) with a cross-headed screwdriver.

(14)

1. With the refrigerator door open, lift off the refrigerator cover.

2. Close the refrigerator door again.

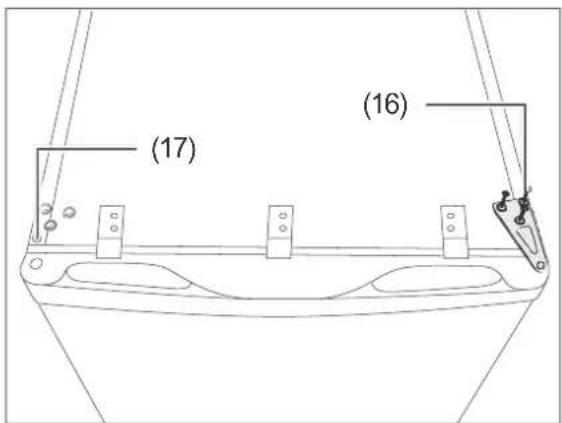

(17) (16)

1. Unscrew the 3 fixing screws (16) of the hinge plate and the single screw (17) on the opposite side. Use a size 8 spanner or a cross-headed screwdriver.

2. Remove the hinge plate.

Technical line drawing of a mechanical component with mounting holes and structural supports (no text or symbols)

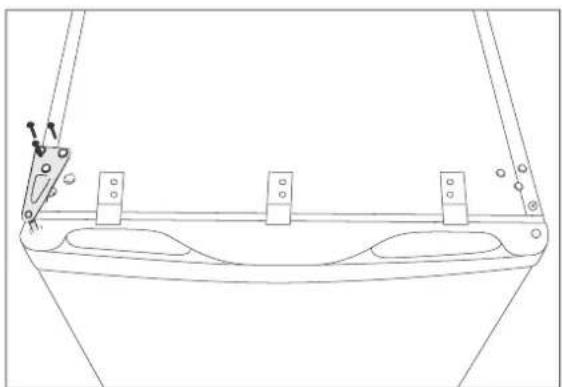

1. Screw on the hinge plate and the single screw on the opposite side.

(8)

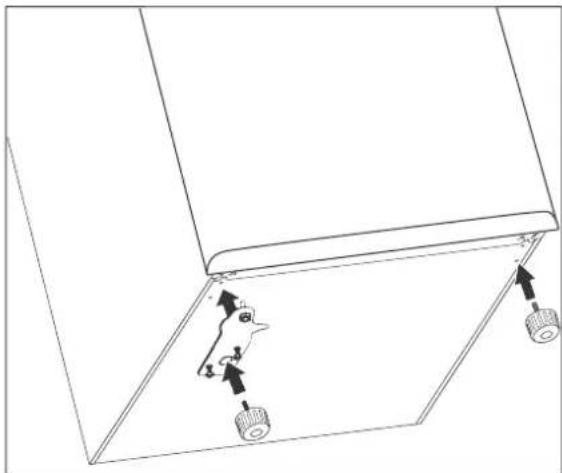

1. To adjust the lower door hinge, tilt the refrigerator to a maximum of 45^ to the rear.

2. Unscrew the two screw-on feet (8).

3. Unscrew the lower hinge plate. Use a size 8 spanner or a cross-headed screw-driver.

(15)

1. Loosen the stud bolt (15) with a size 10 spanner and screw it onto the back of the hinge plate.
2. Move the lower hinge plate to the other side.

Technical line drawing of a mechanical component with two wheels and a small attached component (no text or symbols)

1. Tighten the lower hinge plate with a size 8 spanner.
2. Rescrew the screw-on feet tightly onto the refrigerator.
3. Carefully stand the refrigerator upright.
4. Place the cover (14) back onto the refrigerator with the refrigerator door open.

(14)

1. Tighten the two screws on the cover. Use a cross-headed screwdriver for this.

(13)

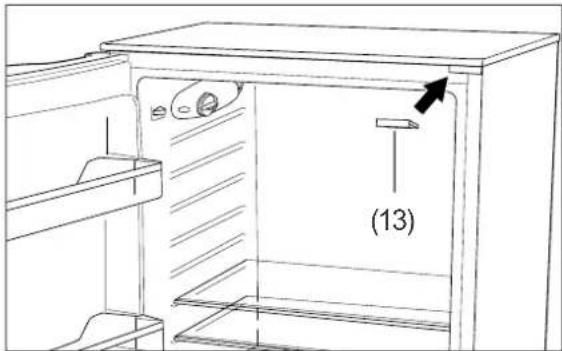

1. Insert the blind cover (13) under the refrigerator cover.

Technical line drawing of a mechanical component with an inset showing a downward arrow and a cylindrical part (no text or symbols)

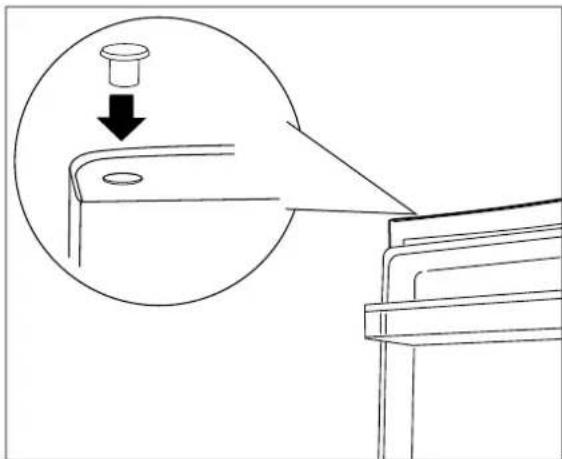

1. Replace the blind plug on the opposite side of the door.
2. Check whether the door seal is securely in place (see section „Care and maintenance“ on page GB-11).

The door hinge has now been changed.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean that there is a defect in the appliance. Therefore, please check whether or not you can correct the fault using the table.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the faulty – or supposedly faulty – appliance yourself. You can endanger yourself and subsequent users. Only authorised specialists may carry out repairs.

Problem Possible cause Solutions, tips
Compressor off, interior light off.	No electricity to socket. Check by connecting another appliance.
	Mains plug is loose. Check that the mains plug is firmly inserted.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically turns on.
Appliance cools too quickly.	Temperature controller is set at too cold a setting.	Turn down the temperature controller (see „Operation“ on page GB-9).
The appliance doesn't cool sufficiently.	Incorrect temperature selected.	Turn the temperature controller to a higher position (see „Operation“ on page GB-9).
	Door not tightly closed or door seal is not completely tight.	See „Checking and cleaning door seals“ on page GB-11.
	The appliance is near or on a heat source.	Insert insulation plate in-between or relocate.
	Food has been put in warm.	Only put in cooled foods.
	Too many goods loaded. Load no more than 7 kg at once.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see „Technical specifications“ on page GB-20).
	Compressor seems defective.	Set the temperature controller to “7”. If the compressor does not switch on within an hour, please contact our service centre (see „Service“ on page GB-18).
Appliance is making a noise.	Functional operating noise. These are not malfunctions.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Motor switching on or off.
	Distracting noises that you can disregard.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Order number
Hanseatic Refrigerator HKS 8548A2 809730

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

- Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call customer service because of an operating error, you will ed for the visit, even during the guarantee/warranty period. Damage resulting from compliance with this manual will unfortunately not be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigeratorants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
– Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product data sheet for electric household refrigerators and freezers as well as corresponding combination appliances according to Regulation (EU) No. 1060/2010 and Regulation (EU) No. 643/2009

Brand name		hanseatic
Model code		HKS 8548A2
Household refrigerator model category		1, refrigerator
Energy efficiency class on a scale of A+++ (high-est efficiency) to G (lowest efficiency)		A++
Energy consumption 88 kWh/year, based on the results of a 24 hour standard test. The actual consumption depends on the type of usage and the position of the appliance.
Total volume	Freezer compartment / star classification	-L/-
	Fridge compartment (frost-free) 2)	92 L
Storage time in case of malfunction		-h
Freezing capacity - kg		- kg /24 h
Climate class: N-ST. This appliance is intended for operation at an ambient temperature between 16°C and 38°C.
Airborne noise emissions		40 dB(A) re 1 pW
Built-in appliance		no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Order number 809730
Name of appliance Refrigerator
Model	HKS
Supply voltage / frequency 220 - 240 V, 50 Hz
Power consumption 0.55 A
Power consumption 90 W
Device measurements (Height × Width × Depth with connections) 84.2 cm × 47.6 cm × 49.2 cm
Unloaded weight 21 kg
Refrigerant R600a (isobutane)
Refrigerant filling quantity	17 g
Foaming agent	Cyclopentane
