USER MANUAL HMKS5144A2S Hanseatic

Line drawing of a rectangular appliance with lid and side slots (no text or symbols)

Gebrauchsanleitung

Mini-Kühlschrank

Inhaltsverzeichnis

Line drawing of an open refrigerator with internal compartments and battery pack (no text or symbols)

Lieferumfang

(15) (13)

Illustration of a hand pressing down on a mechanical component, with a magnified inset showing the hand's finger positioning (no text or symbols present)

(16) (1) (2)(4)(5)

Diagram of a mechanical component with labeled parts (3), showing no text or symbols beyond the number and arrow indicator.

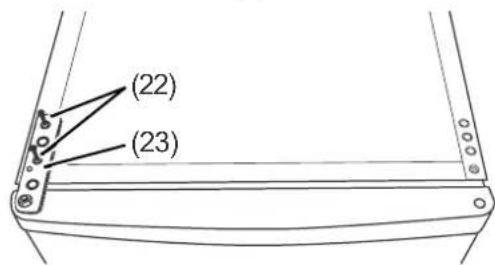

(22) (23)

Illustration of hands using a mechanical tool to tighten a circular motion (no text or symbols)

(17) (19) (20)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a rectangular appliance with lid and side slots (no text or symbols)

User manual

Manual/version:

93523 GB 20181017

Article no. 734 697, 503 870,

653 600, 690 013

Reproduction, even of excerpts,

is not permitted!

Mini Refrigerator

Table of contents

Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-2

Delivery GB-3

Package contents . . . . . . . . . . . . . . . . . . . . . . . GB-3

Check the delivery . . . . . . . . . . . . . . . . . . . . . . . . . . GB-3

Packaging tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB-3

Device components / operating elements . GB-4

Safety GB-5

Intended use GB-5

Explanation of terms GB-5

Explanation of symbols . . . . . . . . . . . . . GB-5

Safety notices GB-5

Operation GB-9

Before getting started . . . . . . . . . . . . . . . . GB-9

Switching on and off . . . . . . . . . . . . . . . . . . . . GB-9

Thermostat control . . . . . . . . . . . . . . . . . . . . . . . GB-9

Cooling GB-11

Store food correctly . . . . . . . . . . . . . . . . . GB-11

Maintaining quality . . . . . . . . . . . . . . . . . . GB-11

Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . GB-11

Care and maintenance . . . . . . . . . . . . . . . . . GB-12

Checking and cleaning door seals. . . . . GB-12

Clean exterior . . . . . . . . . . . . . . . . . . . . . . . . GB-12

Defrosting the fridge compartment .... GB-12

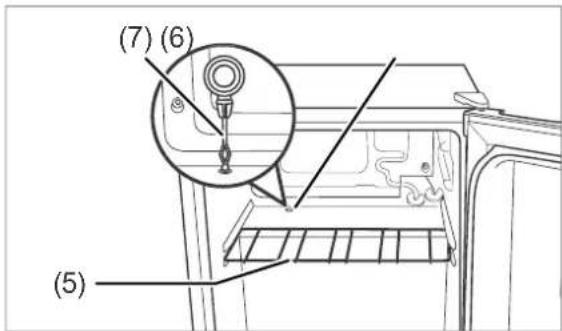

Cleaning the fridge compartment ..... GB-13

Start-up GB-14

Moving and unpacking . . . . . . . . . . . . . GB-14

Choosing a suitable location . . . . . . . GB-15

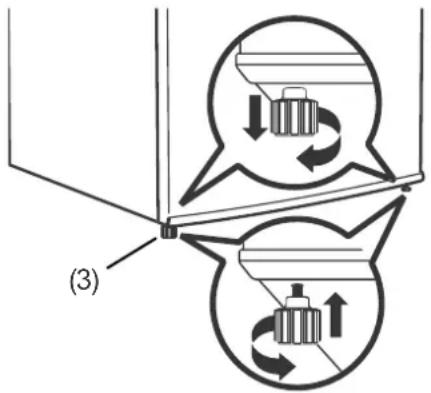

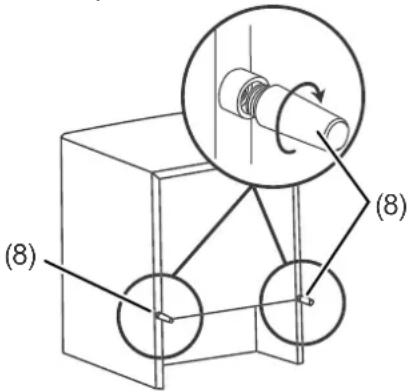

Setting up and aligning the appliance .. GB-15

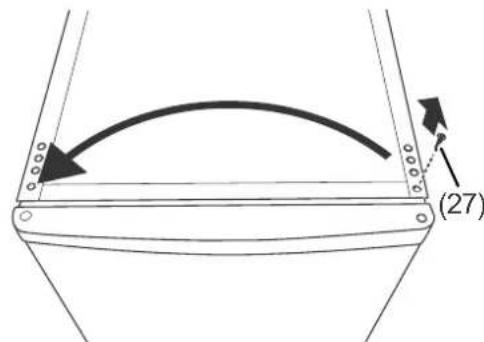

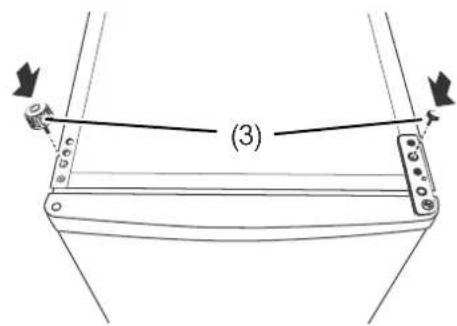

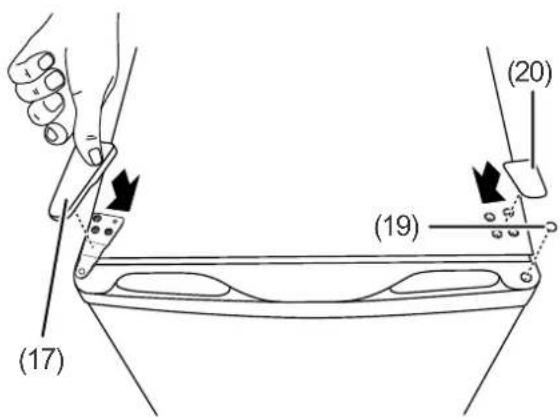

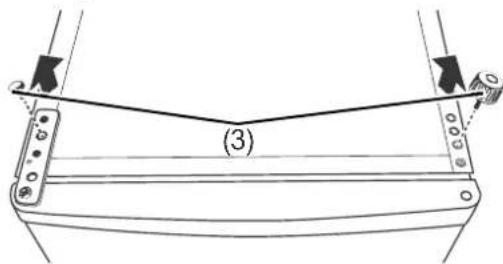

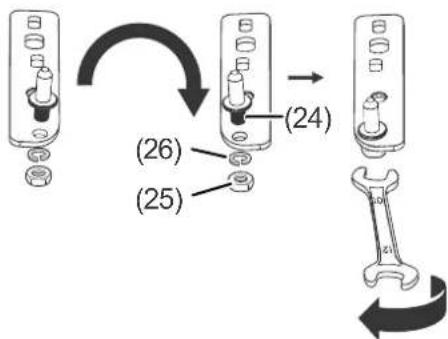

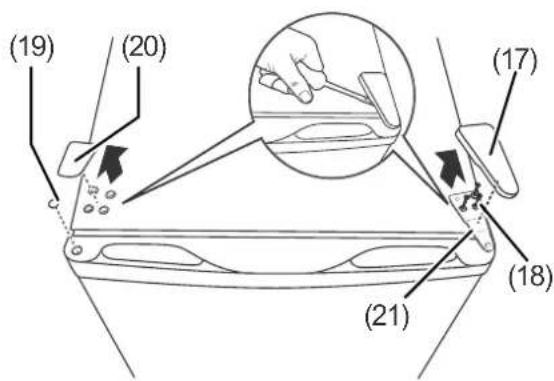

Changing the door hinges . . . . . . . . . GB-15

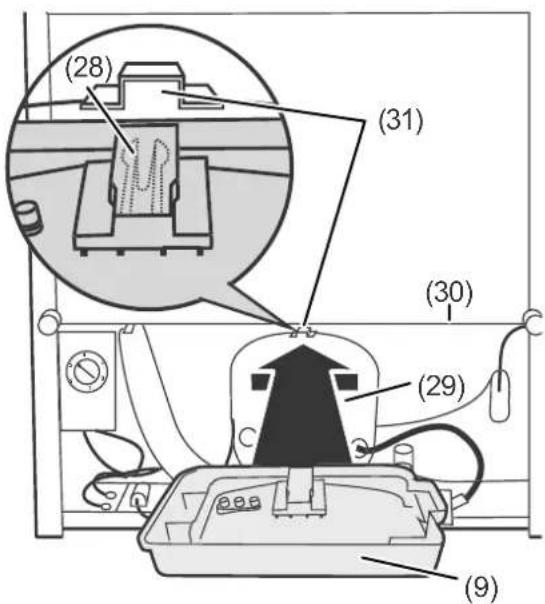

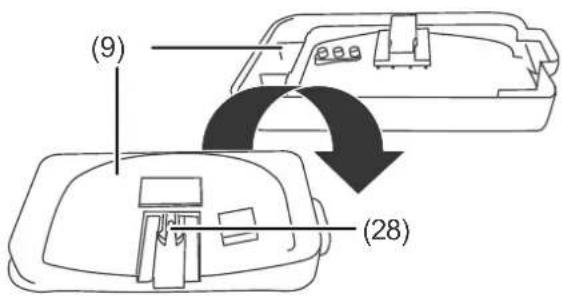

Inserting the defrost water container . . . GB-17

Cleaning before use . . . . . . . . . . . . . . . . GB-18

Connecting the appliance .... GB-18

Troubleshooting table . . . . . . . . . . . . . . . . . . . . GB-19

Service GB-21

Advice, order and complaint . . . . . . . . GB-21

Repairs and spare parts . . . . . . . . . . . . GB-21

Environmental protection . . . . . . . . . . . . GB-22

Disposing of old electrical devices in an environmentally-friendly manner . GB-22

Our contribution to the protection of the ozone layer . . . . . . . . . . . . . . . . . . . . . . . . GB-22

You can find information on installation and start-up from page GB-14.

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions reliably and reliably. Be absolutely sure to also observe the national regulations in your country, which are also valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

Line drawing of an open refrigerator with internal compartments and battery pack (no text or symbols)

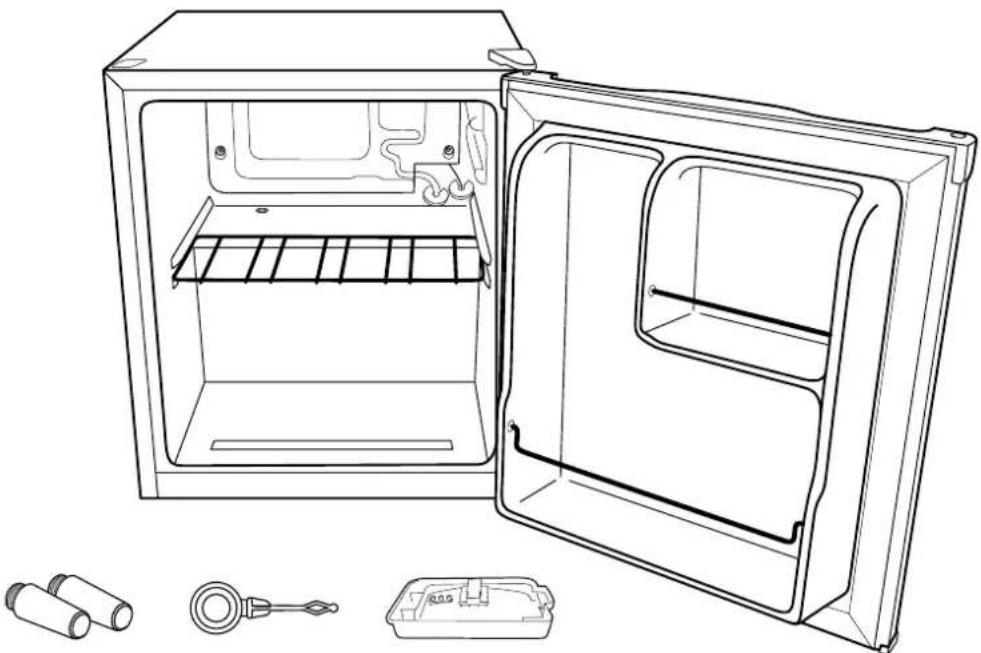

Package contents

• Mini Refrigerator
• Spacers
• Cleaning rod
• User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see Chapter „Start-up“ on page GB-14).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see "Service" on page GB-21).

WARNING!

Do not operate the appliance if it has visible damage.

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

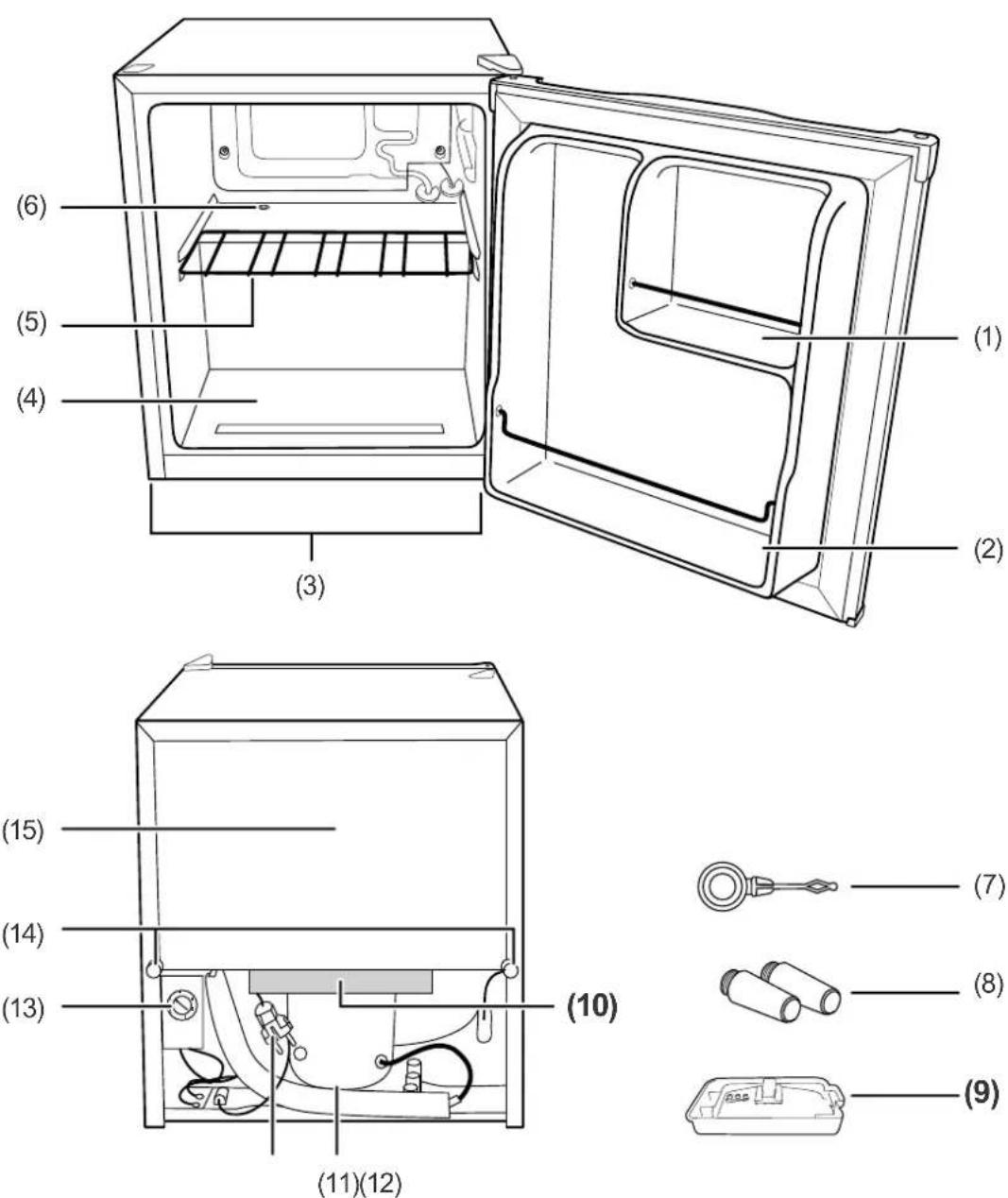

Device components / operating elements

(1) Small door shelf
(2) Door shelf/bottle compartment
(3) Screw-on feet, x2
(4) Refrigerator floor
(5) Wire rack
(6) Defrost water drain
(7) Cleaning rod
(8) Spacers
(9) Defrost water container (please insert before start-up; see „Inserting the defrost water container“ on page GB-17.)

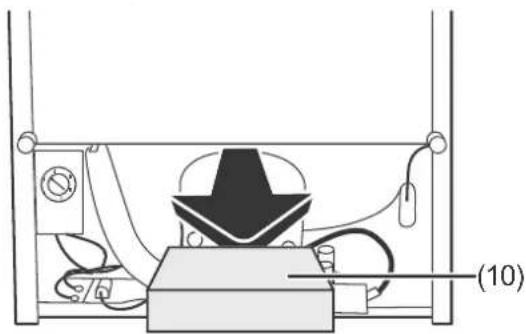

(10) Polystyrene block (please remove before start-up and insert defrost water container; see „Inserting the defrost water container“ on page GB-17.)
(11) Insulation
(12) Mains cord with mains plug
(13) Temperature controller
(14) Thread for spacers, x2
(15) Rear of refrigerator

Safety

Intended use

The appliance is intended for chilling fresh food.

The appliance is intended solely for use in private households.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Caution: Fire hazard!

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, care and maintenance, etc.

Risks in handling household electrical appliances

Risk of electric shock!

The appliance works with 220–240 V\~/50 Hz mains voltage. Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance, if

■ it shows visible signs of damage, e.g. the power cord is defective.
■ it starts smoking or there is a smell of burning.
■ it makes unfamiliar noises.

In this case, you should pull the mains plug out of the socket and have the appliance repaired (see „Service“ on page GB-21).

■ Only connect the appliance to an easily accessible socket so that you can quickly disconnect it from the mains in the event of a fault.
■ Take care to prevent the risk of tripping when laying the mains cord.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.
- Do not kink or pinch the mains cord or lay it over sharp edges. This can result in a break in the cable.

■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.
■ Do not operate the appliance with an external timer or a separate remote control system.
■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ Never pull the mains plug out of the socket by the mains cord, always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or mains plug in water or any other liquids.
■ In the event of a fault, and before cleaning and maintenance, pull the mains plug out of the socket.
- Inspections and repairs to the appliance may only be carried out by authorised specialists and our service personnel (see page GB-21). Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never attempt to repair the faulty – or supposedly faulty – appliance yourself.
■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.
■ To ensure adequate air circulation, the ventilation slots and the entire space above the unit must remain clear of obstructions.
- Do not place the appliance directly against the wall. Observe minimum distances and use the spacers provided (see „on page GB-14).

Risk of injury!

Improper handling of the appliance may result in injury.

■ Do not use the door as a support.

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance may be used by children aged eight years and above, as well as persons with reduced physical, sensory or mental capacities or those lacking experience and/or knowledge, if they are supervised or have been instructed in how to safely use the appliance and have understood the dangers associated with operating it.
■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Additional precautionary measures apply to children of all ages.

■ Do not allow children to play with the packaging film. They may get caught in it or suffocate.
■ Children must not be allowed to play with the appliance.
■ Stop children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths. They can choke on small parts.

Risks when dealing with fridge and freezer appliances

Dangers from the refrigerant! The refrigerant circuit of your appliance contains the sustainable but flammable refrigerant R600a (isobutane).

■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
■ Leaking refrigerant is flammable, and can lead to eye damage. In this case, rinse your eyes in clean water and call a doctor immediately.

■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the data sheet (see data sheet on page GB-23 and/or page GB-24).

Danger of explosion!

Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Never use defrosting sprays. They can generate explosive gases. Also refrain from using electric heating appliances, naked flames or ice scrapers. The insulation could melt or become scratched.
■ High-proof alcohol should only be stored upright and tightly sealed.

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed.

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.
■ In the event of power failure, if possible store food in a cool place.
■ After a power failure, check whether the stored food is still edible.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “Climate category” line on page GB-23).

Risk of damage!

Improper handling of the appliance can lead to property damage.

■ Do not use the door to pull or lift the appliance.
- The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.
- Do not use any electrical parts inside the appliance that do not conform to the manufacturer's recommended design.
■ Do not use any mechanical devices or means other than those recommended by the manufacturer.
■ The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.
■ Do not store glass or metal containers containing water, lemonade, beer etc. Water expands when frozen and can burst the container.

■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 4 mm. Excessive ice formation increases power consumption and the freezer compartment door may no longer close tightly.

■ Do not use any means other than those recommended by the manufacturer to speed up defrosting. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

■ When cleaning, please note:

– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

- Only use soft cloths.

■ Wait 5 minutes after switching off. Only then switch the appliance on again.

■ Only use original accessories.

Operation

Before getting started

• Read the Chapter "Safety" and particularly the safety instructions (see page 9).
• Set up and connect the appliance as described on page GB-14.

Switching on and off

(15) (13)

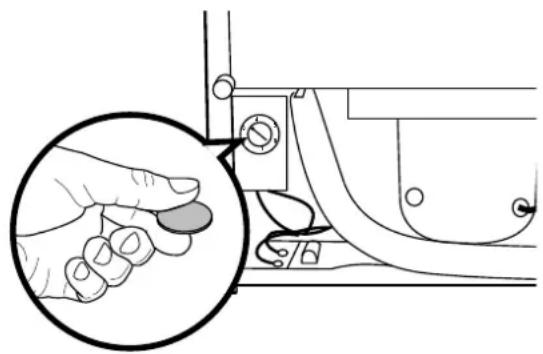

The temperature controller (13) can be used to switch the appliance on and off. The temperature controller is located bottom left at the rear of the refrigerator. It is variably adjustable.

Illustration of a hand pressing down on a mechanical component, with a magnified inset showing the hand's finger positioning (no text or symbols present)

Tip: Insert a coin into the temperature controller to adjust it.

Switching on

1. Set the temperature controller to a level between "1" and "5".
2. The appliance is switched on, the motor starts to work. The refrigerant flows through the pipes and a quiet humming sound can be heard.
3. If the appliance makes worrying noises, check its stability and remove any objects on top of the appliance.

Switching off

1. Set the temperature controller to "0".
2. Empty the appliance.
3. Clean it (see Chapter „Care and maintenance“ on page GB-12).
4. Leave the door open slightly to avoid mould formation.
5. Pull the mains plug out of the socket if you are not using the appliance for a prolonged period.

Thermostat control

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “Climate category” on page GB-23).

Adjust the refrigeration temperature using the temperature controller (13). The cooling power is variable adjustable from "0" to "5". "5" is the lowest temperature.

- First select a medium setting between "3" and "4".

The temperature inside the appliance can increase

– if the ambient temperature fluctuates above or below the prescribed level,
- if the appliance door is opened frequently or for a prolonged period.

• To set a higher temperature turn the thermostat towards "0".
• To set a lower temperature turn the thermostat towards "5".

Should the ambient temperature change, adjust the temperature in the refrigerator (e.g. in summer towards "5").

You ideally need a freezer thermometer to be able to control the cooling efficiency. Position it on the wire rack (5). The correct temperature here is +6 °C.

Cooling

WARNING

Danger of explosion! Improper handling of the appliance can lead to explosions.

■ Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
■ Alcohol should only be stored upright and tightly sealed.

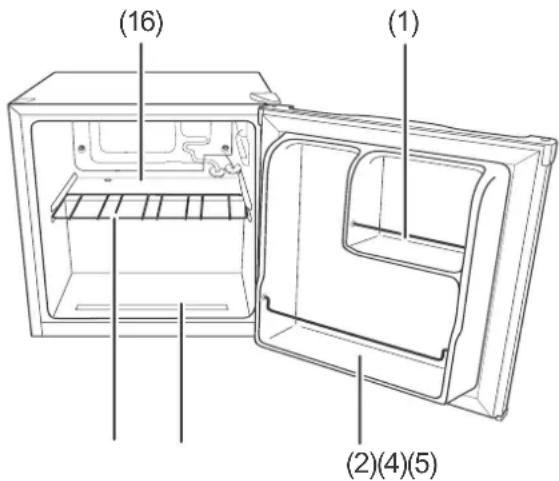

Store food correctly

(16) (1) (2)(4)(5)

- Fill the fridge compartment in such a way that the temperature conditions inside are used to their full potential:

• Place spreadable butter and cheese high on the top shelves (16) or the small door shelf (1). It is warmest here.
  – Position bottles and drinks cartons in the bottle compartment in the door shelf (2).
  Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked or baked goods, fresh meat, game, poultry, bacon, sausage and raw fish at the bottom of the refrigerator (4). This is where the temperature is lowest.

Maintaining quality

• To maintain the flavour and freshness of food in the fridge compartment, only place packaged food in the fridge compartment. Use special plastic food containers or standard food wrap.
• Place food in a way that allows air to circulate freely in the refrigerator. Do not cover the wire rack (5) with paper or anything similar.
• Do not place food directly against the back wall. Otherwise it may freeze to the back wall.

Saving energy

• Allow hot food to cool before placing it in the fridge compartment.
• The temperatures in the appliance and thus the energy consumption can increase
• if the doors are opened frequently or for a prolonged period.
• if the ambient temperature fluctuates above or below the prescribed level.
• Energy consumption is also dependent on the selected location (for more detailed information, see page GB-14).

Care and maintenance

WARNING

Health hazard!

■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Risk of electric shock!

■ Before cleaning, pull the mains plug out of the socket. Always take hold of the plug itself, do not pull on the mains cord.
■ Make sure that no cleaning water gets into the ventilation slots, the electrical parts and the drain opening.

NOTICE

The surfaces and door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
- The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Carefully warm the seal in the affected places with a hair dryer and pull it out slightly with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

– Painted surfaces: Use only light pH-neutral soapy water.
- Stainless steel surfaces: Use special stainless steel cleaner from a specialist shop. Never use polish.

Defrosting the fridge compartment

This is not necessary. The fridge compartment of your appliance has an auto-defrost feature. Frost and ice are automatically defrosted and the thaw water is collected in a defrost water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

Cleaning the fridge compartment

(7) (6) (5)

1. Set the temperature controller (13) to "0".
2. Pull out the mains plug.
3. Remove the chilled goods and place them in a cool room.
4. Remove the wire rack (5) and clean with tepid water with a little washing-up liquid. Dry all parts thoroughly.
5. Wipe down the inside with warm water and washing-up liquid. Add a few drops of vinegar to the water when wiping for a second time to prevent the formation of mould. Wipe the interior dry and leave the door open a while to air.
6. Clean the opening of the defrost water drain (6) using the cleaning rod (7).
7. Clean the door seal with clean water only. It is sensitive to oil and grease.
8. Replace the shelves and drawers, and refill with chilled goods.
9. Plug the mains plug back in and turn the temperature controller (13) to the desired setting.

Start-up

WARNING

Health hazard caused by refrigerant!

■ Do not damage the refrigeration circuit, e.g. by piercing the refrigerant channels of the evaporator with sharp objects, by bending pipes, etc.
■ Leaking refrigerant is flammable, and can lead to eye damage. If this happens, rinse eyes with clear water and call a doctor immediately.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant in your appliance can be found on the data sheet (see data sheet on page GB-23 and/or page GB-24).

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

- Do not place the appliance directly against the wall. Observe minimum distances and use the spacers provided.

NOTICE

Risk of damage!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Observe the specified ambient temperature (see “Climate category” from page GB-23).

Improper handling of the appliance during transport, unpacking and start-up can damage the appliance:

■ Do not use any pointed objects while removing the packaging and protective film.
■ Do not remove stickers from the rear of the appliance.
■ Do not remove insulation.
■ Do not use the door to hold or lift the appliance.
■ Leave the appliance to stand for 2 hours after transportation to allow the refrigerant to settle.
■ If possible, do not tip the appliance horizontally, but transport it at a maximum inclined angle of 45^ .
■ Only rest the appliance against the wall to switch the door stop.

Moving and unpacking

• Move the appliance using a trolley or with the help of a second person.
• Unpack the device and carefully remove all packaging items, plastic profiles, adhesive strips and foam padding from inside, outside and from the back plate of the device.

Choosing a suitable location

To achieve the highest possible cooling performance with the least energy consumption, choose a location that:

– is not too warm, is dry and well ventilated,
– is not exposed to direct sunlight,
– measures at least 2 m ^3

We do not advise positioning the appliance next to an oven, stove or radiator. The minimum distances to such appliances are:

– from electric stoves 3 cm
– from oil and coal burning stoves 30 cm
– from refrigeration appliances 2 cm
– from washing machines/dishwashers 2 cm

If these distances cannot be maintained, place an insulating plate in-between. If underfloor heating is installed in the room where the mini refrigerator is to be installed, place an insulating plate of solid material underneath.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible. In doing so, ensure

– that the entire space above the appliance is clear;
– that there is adequate wall clearance. Leave space of at least 3 cm.

(8) (8)

1. If necessary, screw the spacers (8) into the threads at the rear.

2. Check the position with a spirit level.

(3)

If the appliance is not positioned securely,

1. Close the doors.
2. Tilt the appliance backwards slightly.
3. Screw/unscrew the screw feet (3) until the appliance is level.
4. Reposition the appliance upright.
5. Check the alignment with a spirit level. The appliance should not move when opening the doors.

Changing the door hinges

You can change the side on which the door opens. The door stop is on the right upon delivery.

As this alteration requires some manual skill, please read through the work steps before altering.

In addition to the package contents, you will require:

• a medium sized cross-slotted screwdriver,
• a fine flat-headed screwdriver,

• a 10 mm wrench or combination wrench,
  – the assistance of another person, if possible.

• Ensure that the appliance is not connected to the power supply.

(19) (20) (17) (18) (21)

1. Using a flat-head screwdriver, carefully pry out the blind covers (17) and (20) on the top of the appliance and the blind plugs (19) on the door frame.
2. Loosen the three screws (18) on the upper hinge (21), and remove these. As a precaution hold the door itself with one hand, or please ask a second person to hold the door.
3. Remove the upper hinge (21).
4. Lift the door from the lower hinge, and set aside.
5. Tilt the appliance backwards slightly, and rest it against a wall.

(3)

1. Unscrew both feet (3).

(22) (23)

1. Loosen both screws (22) on the lower hinge (23) and remove.

(24) (25) (26)

1. With the wrench, loosen the nuts (25), and remove the pin screw (24). In doing so, ensure you do not lose the snap ring (26).

(27)

1. Remove the tapping screw (27), and screw it back in on the opposite side.

(26) (25) (24)

1. Reverse the hinge, insert the pin screw (24) and the snap ring (26) from the other side, and re-tighten the nuts (25).

Illustration of hands using a mechanical tool to lift a cylindrical component, with an arrow indicating rotation (no text or symbols)

1. Tip: To tighten the nuts, hold these with the wrench while tightening the pin screw from above using the flat-head screwdriver.
2. Position the hinge on the opposite side on the corresponding holes in the frame, and re-attach using both screws (22).

(3)

1. Screw both feet (3) back in. Ensure that the larger of the two screw-in feet (shown on left) is on the opposite side to the hinge.
2. Replace the door on the bottom hinge (23).
3. Re-attach the top hinge (21) to the top of the appliance using the three screws (18).

(17) (19) (20)

1. Attach the blind covers (17) and (20) and the blind plugs (19) on the door frame.
2. Check whether the door seal is securely in place (see „Checking and cleaning door seals“ on page GB-12).

Inserting the defrost water container

You must install the defrost water container before using the appliance.

Technical diagram of a mechanical assembly with labeled component (10), no readable text or symbols present

1. Remove the polystyrene block (10) at the rear of the appliance.

(9) (28)

1. Turn the defrost water container (9) in such a way that the snap-in clip (28) points downwards.

(28) (31) (30) (29) (9)

1. Insert the defrost water container (9) between the compressor (29) and the bottom edge of the refrigeration chamber (30) in such a way that the snap-in clip (28) engages with and snaps into the mount (31) on the compressor casing (29).

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before using it (see Section „Cleaning the fridge compartment“ on page GB-13).

Connecting the appliance

! NOTICE

Risk of damage!

The coolant must be allowed to settle before connecting.

■ After transport leave the appliance to stand for 2 hours.

- Insert the mains plug into a properly installed socket (220–240 V\~ /50 Hz/10 A).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean that there is a defect in the appliance. Therefore, please check whether or not you can correct the fault using the table.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the faulty – or supposedly faulty – appliance yourself. You can endanger yourself and subsequent users. Only authorised specialists may carry out repairs.

Problem Possible cause Solutions, tips
Compressor off, appliance not refrigerating.	No electricity to socket. Check by connecting another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, appliance is cool inside.	Desired temperature has been reached. Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Thermostat control is set at too cold a setting. Turn down the temperature controller (see „Cooling“ on page GB-11).
The appliance doesn’t cool sufficiently.	Incorrect temperature selected. Turn the temperature controller to a higher position (see „Cooling“ on page GB-11).
	Door not tightly closed or door seal is not completely tight. See „Checking and cleaning door seals“ on page GB-12.
	The appliance is near a heat source. Insert insulating plate in-between or relocate.
	Food has been put in warm. Only put in cooled foods.
	Too many goods loaded. Load no more than 7 kg at once.
	Ambient temperature too low or too high. Adjust ambient temperature to climate category (see data sheet on page GB-23 and/or page GB-24).
	Compressor seems defective. Set the temperature controller to “5”. If the compressor does not switch on within an hour, please contact our service centre (see page GB-21).

Problem Possible cause Solutions, tips
Appliance is making a noise.	Functional operating noise. These are not malfunctions.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Motor switching on or off.
	Distracting noises that you can disregard.	Check that it is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Service

In order for us to help you quickly, please tell us:

Name of appliance Colour Model article no.
hanseatic Mini Refrigerator	white HMKS 51	44 A1 A+ 734 697
	white HMKS 51	44 A2 A++ 653 600
	Stainless steel	HMKS 5144 A1S A+ 503 870
	Stainless steel	HMKS 5144 A2S A++ 690 013

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

- Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call customer service because of an operating error, you will charged for the visit, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual will unfortunately not be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally-friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse effect.

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product fiche concerning Regulation (EU) No 1060/2010

Trade mark hanseatic
Model identifier 734697 / HMKS5144A1	503870 / HMKS5144A1S
Category of the household refrigerating appliance model	1, Refrigerator with one or more fresh-food storage compartments
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A+
Energy consumption 106 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigeratorFreezer / Star rating	44 L- L / - Stars
Power cut safe - h
Freezing capacity	- kg / 24 h
Climate class: N-ST . This appliance is intended to be used at an ambient temperature between +16 °C and +38 °C bestimmt.
Airborne acoustical noise emissions	39 dB(A) re 1 pW
Built-in appliance	no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Order number 734697, 503870
Name of appliance Refrigerator
Model identifier HMKS5144A1	HMKS5144A1S
Device measurements (Height × Width × Depth with connections) 51.0 cm × 43.5 cm × 49.0 cm
Unloaded weight 15 kg
Refrigerant R600a
Filling capacity refrigerant 15 g
Foaming agent Cyclopentane
Power consumption 60 W
Supply voltage / frequency / fuse 220–240 V / 50 Hz / 0.45 A
Protection class 1

Product fiche concerning Regulation (EU) No 1060/2010

Trade mark hanseatic
Model identifier 653600 / HMKS5144A2	690013 / HMKS5144A2S
Category of the household refrigerating appliance model	1, Refrigerator with one or more fresh-food storage compartments
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 84 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigeratorFreezer / Star rating	44 L- L / - Stars
Power cut safe	- h
Freezing capacity	- kg / 24 h
Climate class: N-ST . This appliance is intended to be used at an ambient temperature between +16 °C and +38 °C bestimmt.
Airborne acoustical noise emissions	41 dB(A) re 1 pW
Built-in appliance	no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Order number 653600, 690013
Name of appliance Refrigerator
Model identifier HMKS5144A2	HMKS5144A2S
Device measurements (Height × Width × Depth with connections) 51.0 cm × 43.5 cm × 49.0 cm
Unloaded weight 15 kg
Refrigerant R600a
Filling capacity refrigerant 15 g
Foaming agent Cyclopentane
Power consumption 60 W
Supply voltage / frequency / fuse 220–240 V / 50 Hz / 0.4 A
Protection class 1
