EK 212 - Egg cooker KARCHER - Free user manual and instructions

Product Type	Egg Cooker
Brand	Kärcher
Model	EK 212
Capacity	Up to 14 eggs
Power Supply	220-240 V ~ 50 Hz
Power Consumption	360 W
Cooking Levels	Medium, Medium Well, Well Done, Steamed Egg
Water Measuring Cup	Yes, with scale for different egg counts and doneness
Egg Piercer	Integrated on measuring cup bottom
Safety Features	Automatic shut-off not specified; unit must be manually switched off. Do not immerse in water.
Materials	Plastic body and lid, metal heating plate, plastic egg tray
Cleaning	Removable lid, egg tray, and measuring cup washable with water and dish soap. Wipe base with damp cloth.
Operation	Single power button (I/O). Do not open lid during cooking.
Included Accessories	Measuring cup (with egg piercer), egg tray, lid, rack
Intended Use	Household use only; for cooking eggs exclusively
Special Notes	First use may produce smoke or odor; ensure ventilation. Do not move during operation.

Frequently Asked Questions - EK 212 KARCHER

How many eggs can I cook at once?

You can cook up to 14 eggs simultaneously. Adjust water amount according to the measuring cup scale.

How do I determine the correct water amount?

Use the measuring cup with marked scales for different numbers of eggs and desired doneness (Medium, Medium Well, Well Done). Refer to the scale lines for your egg count.

Can I cook other foods besides eggs?

No, this appliance is designed only for cooking eggs. Do not heat other dishes in it.

How should I clean the egg cooker?

Unplug and let cool. Remove lid, egg tray, and measuring cup; wash them with water and dish soap. Wipe the motor base and heating plate with a damp cloth. Do not immerse the base in water.

Why does the appliance produce smoke or odor when used for the first time?

This is normal and caused by manufacturing residues burning off. Ensure sufficient ventilation during the first use.

Can I leave the appliance unattended during operation?

No, do not leave the appliance unattended while it is operating. Switch off and unplug after use.

What does the power button do?

The power button switches the cooker on (I) and off (O). When on, it lights up. You must manually turn it off after cooking.

Can I open the lid while the eggs are cooking?

No, opening the lid releases the steam needed for cooking. Wait until the cooker switches off or you turn it off, then open the lid slowly away from your face.

How do I pierce the eggs?

Use the egg piercer located at the bottom of the measuring cup. Gently pierce the larger end of each egg to prevent cracking. Be careful as the piercer is sharp.

What is the power supply requirement?

The egg cooker requires a power supply of 220-240 V ~ 50 Hz. Check that your mains voltage matches before use.

USER MANUAL EK 212 KARCHER

Exterior view of a Karcher kitchen steamer with a dome lid and control panel (no text or symbols on the device itself)

EK 212

Egg Boiler | User Manual

• Wrong operation and improper handling can cause problems with the appliance and injury to the user.
- Read all safety and operating instructions.
- The unit may be used only for the intended purposes. No liability is accepted for damages arising from improper use or incorrect handling.
- Before connecting to the mains, please check whether the type of supply and the mains voltage match with the details given on the nameplate on the appliance.
- Do not immerse the appliance and mains plug in water or other fluids. Should the appliance accidentally fall into water, pull out the power plug immediately and have the appliance checked by an expert before using it again. There is danger to life from electrical shock!

• Do not try to open the housing yourself!

- Do not introduce any kind of objects into the housing.

- Do not use the appliance with wet hands, on moist floor or when the appliance is wet.

• Never touch the power plug with wet or damp hands.

- Check mains cable and plug regularly for damages. In case of damages, have the power cord and mains plug changed by the manufacturer, or a qualified expert, in order to avoid danger.

- Do not operate the appliance if the power cable or the mains plug shows damage or the unit has fallen down or has been damaged otherwise. In such cases, bring the unit to the authorized service center for checking and repairs, if necessary.

- Do not ever try to repair the unit yourself; danger of electrical shock!

- Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug to remove it from the wall outlet; do not pull at the cable.

- The cable as well as any extension cable required should be run in such a way that there will be no risk of anyone pulling it inadvertently or tripping over it. Ensure that the cable does not touch hot surfaces.

- If an extension cable is used it must be suitable for the power supply in question. Otherwise it causes overheating of cable and / or plug.

- Place the appliance on a rigid, flat and heat-resistant surface, away from open flames (such as gas oven) and operate it out of reach of children.

• This appliance is neither suitable for commercial use nor for outdoor use.

- Do not leave the appliance unattended during use.

- Disconnect from mains power supply when not in use and before cleaning.

- Caution! The appliance is powered as long as it is connected to the power circuit.

- Switch off the unit before disconnecting from mains power.

• Never carry the unit by its power cord.

• The wall outlet must be freely accessible at all times.

• Use only spare parts and accessories supplied or recommended by the manufacturer.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

SPECIAL SAFETY PRECAUTIONS

• The device heats up very quickly, but slowly cools down. Beware of hot water and escaping steam during operation. Hold the device at its handles only.
• The mains cable must not touch hot surfaces during operation.
  • This device is only suitable for cooking eggs. Do not heat up any other dishes with this device.
• Do not use the device without lid or egg tray.
• Do not move the device during operation.

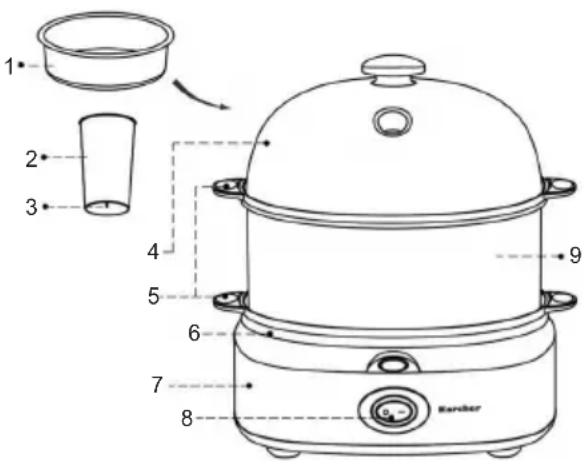

ASSEMBLY

1. Bowl
2. Cup
3. Pin
4. Top cover
5. Shelf
6. Heating plate
7. Body
8. Power button
9. Rack

BEFORE FIRST USE

Remove all packaging materials. Clean the device prior first use (please refer to CLEANING AND CARE).

Note: Smoke or unpleasant odor, which emerge from the burning of manufacturing debris, might be released during first time use. This is not a malfunction. Ensure sufficient ventilation.

OPERATION

The egg cooker is suitable for cooking up to 14 eggs.

• Remove the lid and then the tray from the heating plate.
• Place the egg tray with the groove on the bottom onto the motor base. Align the egg tray handle with the handle of the motorbase.
• Carefully pierce the eggs with the egg piercer at the bottom side of the measuring cup. Do not use too much force in order not to break the eggs.
  Warning: The egg piercer is very sharp.

- Place one egg respectively onto the openings of the egg tray.

- Place the lid on the egg tray; align the handle accordingly.

- Connect the device to a suitable wall socket and press the power button (I) to switch on the device. The power button lights up. Do not open the lid during the cooking process, as otherwise the steam, which is needed for cooking the eggs, will escape all at once.

- Warning: Hot water steam will escape from the steam opening in the lid during operation.

- The cooking time depends on the water amount. Press the power button (O) to switch off the device. Disconnect the plug from the mains.

- Open the lid slowly, in order for you not to get burnt by the remaining water steam. Hold the egg tray at its handle and then carefully lift it from the motor base. Refresh the eggs under cold water. Place the egg tray back onto the motor base; you may then peel and serve the eggs.

	Water Volume Time
Medium 20 ml 6 min.
Medium Well 30 ml 9 min.
Well Done 50 ml 12 min.
Steamed Egg 50 ml 12 min.

Capacity of water on different levels of the measuring cup:

Scale (egg numbers)	Water Volume - Well Done Water	Volume - Medium Well Water	Volume - Medium
1 66 40 33
2 64 37 30
3 60 34 27
4 56 31 24
5 53 28 21
6 & 7 50 25 18

CLEANING AND CARE

• Please observe also the safety advices.
• Never use abrasive detergents or sharp utensils.
  • Before cleaning, disconnect the plug and let the device cool down completely.
• Remove the lid and then the egg tray from the motor base. Clean both parts together with the measuring cup with water and dish soap. Rinse and thoroughly dry afterwards.
• Wipe the motor base and the heating plate with a slightly damp cloth and some cleaning detergent. Dry thoroughly afterwards.
  • Make sure none of the electric parts of the device will be in contact with water during the cleaning process.
• Store the device in its original packaging or at a dry, clean place.

SPECIFICATIONS

Power supply: 220-240V\~50Hz

Power consumption: 360W

Technical specifications and design may change without notice.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Karcher

www.karcher-products.de
