USER MANUAL LSW420BX LG
Wall Mounting Bracket
Please read this manual carefully before operating your set and retain it for future reference.
LSW420BX
Component
Wall mount anchor 6 units
Wall mount screw 10 units
User manual
Guide spacer 4 units
Guide space screw 4 units
Safety clip 2 units
Safety clip screw 2 units (M4X12mm)
Set protection cushion 4 units
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Warning
This wall mount should be installed by a trained and experienced installer designated by the retailer.
Having the product installed by a non-specialized installer is very dangerous and can cause damage or injury.
Use a trained and experienced installer to move or replace the wall mount, if needed.
Installation requires special techniques and moving or installing the product on your own can cause serious safety issues.
When installing the wall mount, never hang the power or signal cable on the rear side the TV.
The cord can be damaged and cause a fire, an electric shock or damage to the product.
Do not install the product where the weight cannot be supported.
If the strength of the location where the wall mount is installed is not strong enough, it can fall off and cause an injury.
After installing the wall mount, do not hang on the product or apply severe impact to the product.
The product can fall off and cause injury.
Caution
Install the product according to the directions in the user manual.
If the product is not installed based on the directions in the user manual, it can cause a serious injury or damage to the product.
During the installation, check the type of wall material and use the sealed anchor and screw if the conditions comply.
If you do not use the designated anchor or screw, the mount may not be able to withstand the weight of the product and cause a safety issue.
Do not wipe the product with a wet towel and do not use any heater or humidifier below where the product is installed.
If water flows into the product or if moisture and heat are applied to the product, it can cause a fire, an electric shock or problem to the product.
Unplug the power cord from the power outlet before installing the product.
If you install the product with the power cord plugged, it can cause an electric shock or a fire.
Do not allow the video connectors connected to the display to press against the wall. Use the included right-angle adapters if needed.
Only use attachments/accessories specified by the manufacturer.
When installing the product or adjusting the height of the product after installing, always do so with 2 people. Working alone can cause the product to fall off and result in injury or damage to the product.
When drilling holes in the wall, always use a drill bit and drill of designated diameter. Also follow the designated directions for the depth of the hole.
If the product is installed without following the designated method, the product may be unstable and cause a safety issue.
Do not install the product near any object that may cause vibration.
Do not install the product near any high voltage power cable or power source.
Do not install the product with bare hands. Always wear proper work gloves.
It can cause an injury.
Before installation
* Do not use the product for purposes other than mounting a display on the wall.
* When installing/using the wall mount, be cautious of product damage and avoid accidents.
* If you have not fully read and understood the installation manual, do not install the product and contact the dealer to have a specialized installer install the product for you.
* Even if you are not a specialized installer, it is advantageous to have experience in mechanical or construction field in completely understanding this manual and installing the product.
* This product is designed to be mounted to walls that use standard intervals between the studs.
* Install the screw to attach the wall mount so that it can be assembled at the center from both ends of the studs. Use of stud finder, a separate device, is recommended.
* Install the product only on a vertical wall.
The manufacturer is not responsible for issue from installing the product on severely wall or on the ceiling.
* Keep the included accessories out of reach of babies or children as it can cause safety issues including suffocation from swallowing the parts.
* Make sure screws are tight against the wall, but do not overtighten.
* Be careful not to install a TV that exceeds the weight restrictions of the wall mount.
* Be careful with the tools used during installation to prevent accidents or damage.
Installation method
- Tools you will need : Phillips head "+" driver(Manual or motorized) ∅4mm drill bit for wood or steel / Level / Stud finder / Drill. You may also need an 8mm socket wrench or an 8mm drill bit for concrete.
- The actual product may differ from the picture.
Fixating the mounting bracket on the TV
If the screw will not fully tighten when using a guide spacer, recheck the assembly depth of the screw and refer to the technical service manual.


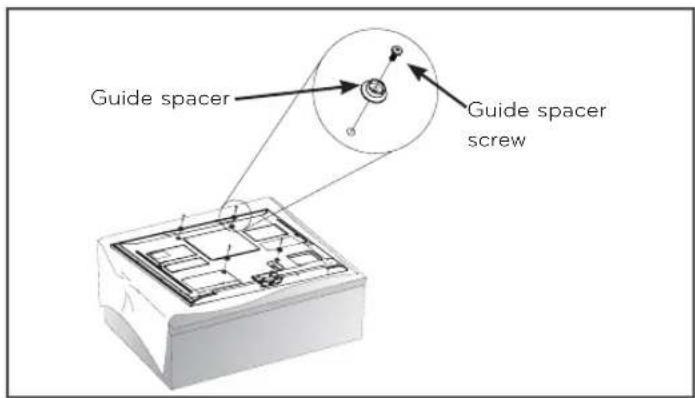

Guide spacer Guide spacer screw- Check to see if the display has screws installed into the mounting holes. If so, remove those.
- Assemble the guide spacer and the guide spacer screw in order as shown in the picture.
- Assemble the guide spacer to the set by tightening the screw.
- Tighten the screw until the set, guide spacer and the screw are fully pressing against one another.
- Use the "+" driver (Manual or motorized) when tightening the screw.
2
How to attach to masonry walls
- Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow block that do not crack.
Please follow the below direction.
- Check the material of the wall and the thickness of the finishing.
- When installing the product on the wooden wall, refer to page 5.
- When installing the product on wall material not designated, install the product so that each fixated location can withstand the pull out load of 70kgf (686N) and shear load of 100kgf (980N) or above.


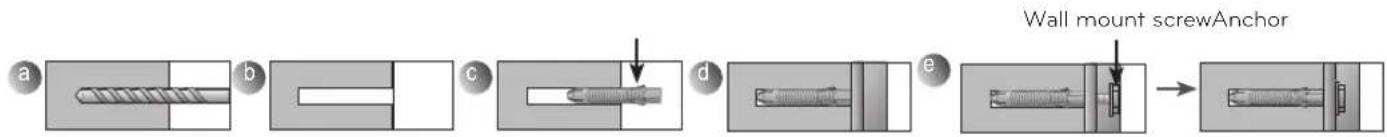

a b c d e Wall mount screwAnchor- Use the ∅8mm drill bit for concrete and hammer (Impact) drill.
a. Use a drill bit ∅8mm to drill a hole for the anchor location within a depth of 80mm \~ 100mm
b. Clean the drilled hole.
c. Insert the sealed anchor to the hole. (When inserting the anchor, use a hammer.)
d. Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
e. Align the wall mount bolt to the hole and tighten it. Then, fasten the bolts at torque of 45 - 60 kgf/cm.
3
How to install the wall mount

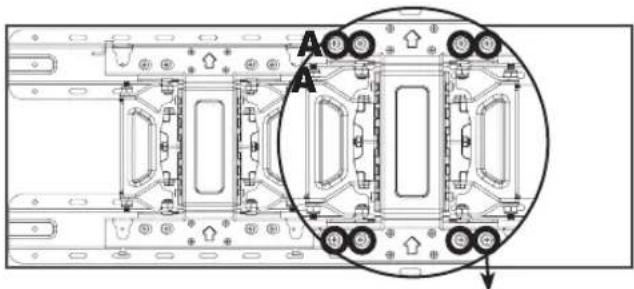

→ When you separate the 8 screws on the wall mount connected to the wall bracket for use with a wooden wall, it is much easier to install the product.
→ When installing the product on a masonry wall, turn the 8 screws on the A part counterclockwise to separate the screw and bracket.
→ After aligning the wall bracket to the location to install, mark the part to screw on the wall and then remove the wall bracket.
→ Refer to page 4 to attach the wall bracket.
→ Use a level to check whether the wall mount is level.


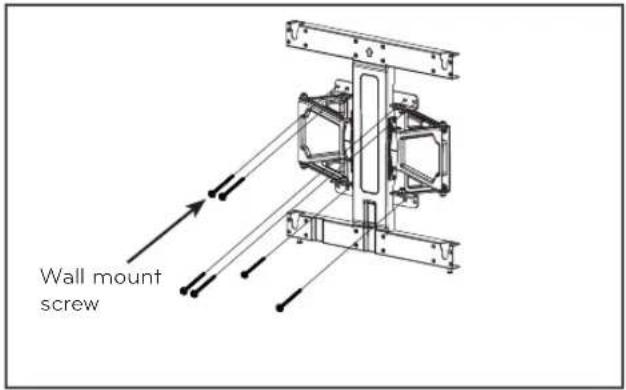

Wall mount screw→ If the screw cannot be assembled in the designated location inevitably, it can be assembled by rearranging to the closest location. But, do not change 2 or more locations from the designated spot.
→ Assemble the wall mount screw on 2 left and 2 right location on the top part and 1 left and 1 right location on the bottom part.
→ At this time, use a "+" driver (Manual or motorized) or 8mm wrench to tighten the screw so that the wall, wall bracket and screw are completely pressed against one another.


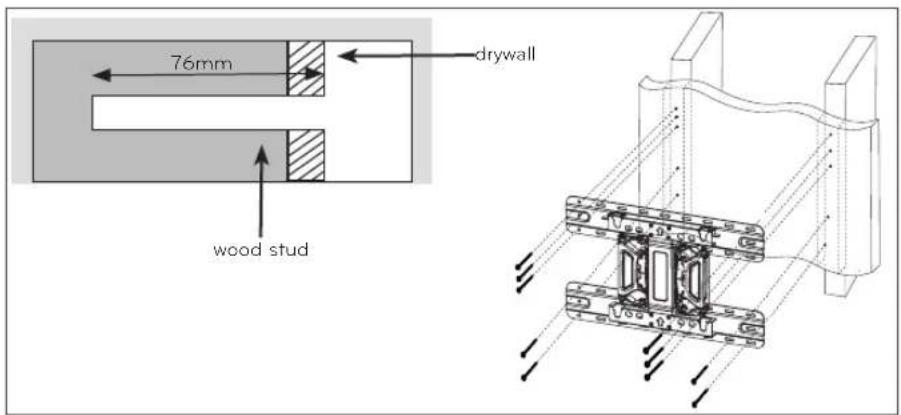

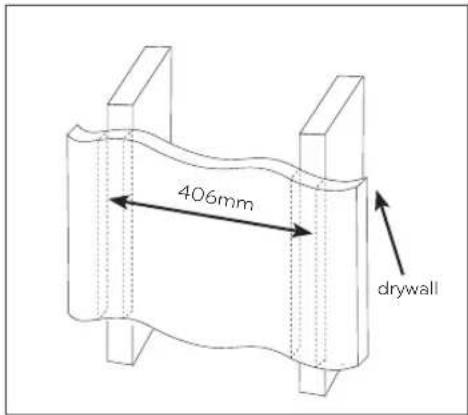

406mm drywall
b. After aligning the wall bracket on the wall where the center of the wood stud is marked, mark the location of the screws and then remove the wall bracket.
c. Use a level to make sure your screw marks are level.
d. Use the 4mm drill bit for wood to drill holes with the depth of 76mm or above where the wall mount screw location is marked on the wall.
e. Clean the drilled hole.
f. Tighten the wall mount screws for the wall bracket on the drilled hole.
→ At this time, tighten the screw so that the wall, wall bracket and the wall mount screw are pressed against one another. (Drywall can be damaged when tightened with excessive force, please be careful.)
→ When tightening the screw use the "+" driver (Manual or motorized) or 8mm wrench.
4
How to assemble the wall mount support and display
- Always install the display with 2 or more people.


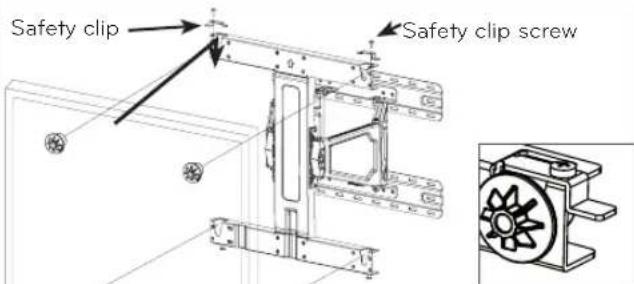

Safety clip Safety clip screw* Assemble the wall mount support, product and safety clip. * Caution: Prevent the power cord from being pinched between the wall mounting bracket and the set when installing the set. (A pinched power cord may cause an electrical short)
- Set the display with the guide spacer assembled on the wall mount bracket on the wall in arrow direction. At this time, align the bottom assembly part and lift the set up lightly to align the top part. (When installing a Cinema Screen set (LM64**, LM66**, LM67**, LM76**, LM86**) to the wall mount, please refer to the installation section of the TV owner's manual.)
- When adjusting the location, assemble the provide safety clip as shown in the picture to prevent the product from moving. Tighten the safety clip screw completely. If the safety clip is not tightened as shown in the picture, the product can fall off.
→ Pull on the bottom of the set to make sure the display is secure.
→ When installing a display rotated, only rotate the display 90 degrees (portrait mode). (Only applies for VESA 200X200, 400x400)
→ The clearance from the wall is 30mm \~ 41mm for this product. Make sure to keep a certain level of distance from the wall so that excessive force is not applied on the cable or accessory.
→ When you push the product with excessive force, the product can be damaged.
Please follow the below direction.
The display panel on Cinema Screen models (LM64**, LM66**, LM67**, LM76**, LM86**) can be easily damaged by pressure or shock. Please handle the product with care. For more information, please refer to the owner's manual of the TV.
5

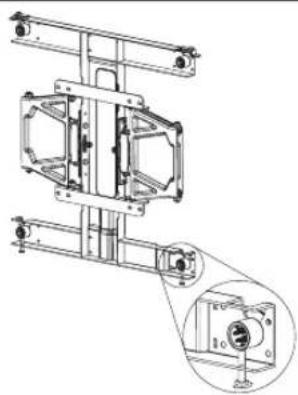

How to level the Display
After installing the display, check to make sure it is level. The wall mount has two screws that make minor adjustments to the level.
6

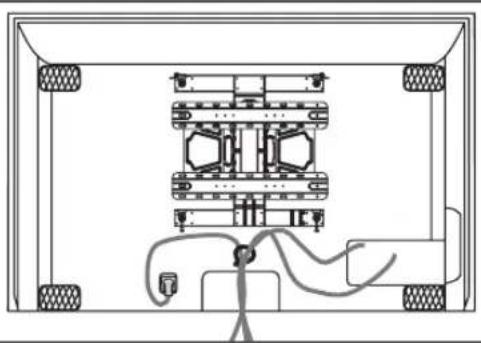

Cable arrangement and set protection cushion
- Arrange the cables as shown in the picture. Use some type of cable banding device to hold all the cables together.
- Attach the set protection cushion to mitigate the impact between the wall and the set when adjusting the angle. Attach the set protection cushion as shown in the picture.
Product specification
| Model Name LSW420BX | |
| Width (mm) | 440 |
| Height (mm) | 450 |
| Depth (mm) | 24 |
| Weight (kg) | 5.5 |
| Wall Mount VESA Specification | 400X400 |
| Max.UL Load Capacity (kg) | 50 |
| Model Name LSW420BX | |
| Width (mm) | 460 |
| Height (mm) | 450 |
| Depth (mm) | 30 |
| Weight (kg) | 72 |
| Wall Mount VESA Specification | 400X400 |
| Max.UL Load Capacity (kg) | 50 |


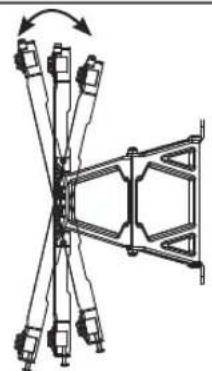

Pure mechanical assembly diagram showing a linkage mechanism with no text or symbols13 ± 2^


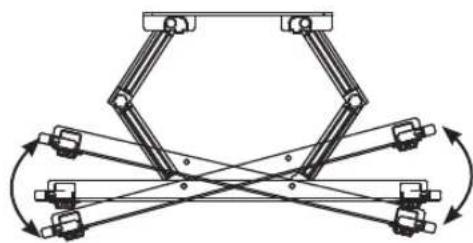

Mechanical linkage diagram showing multiple joints and linkages with rotational arrows (no text or labels)15 ± 2^


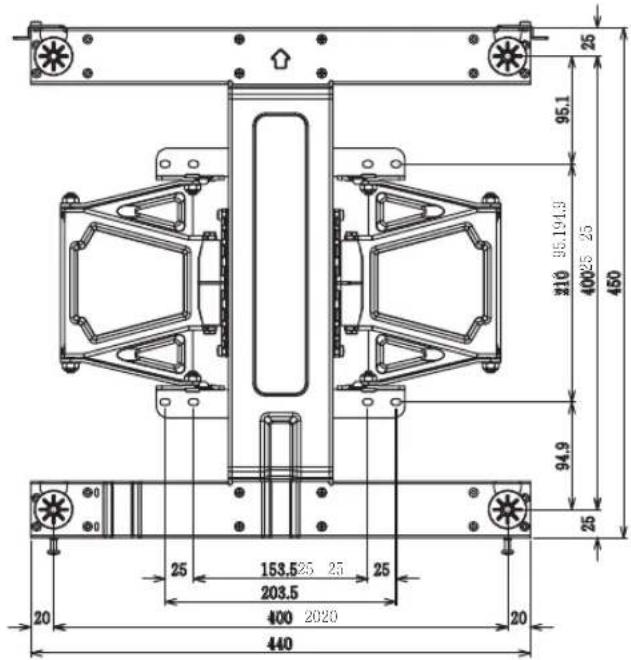

25 95.1 210 35.194.9 400 25 25 450 94.9 25 25 153.5 25 25 203.5 400 2020 20 440


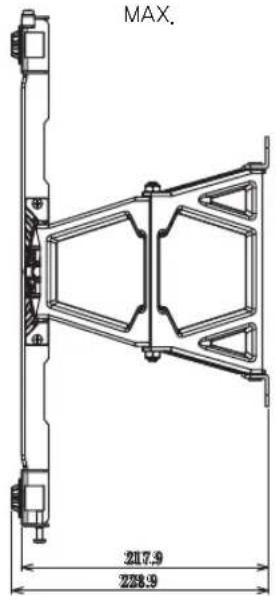

MAX. 217.9 228.9


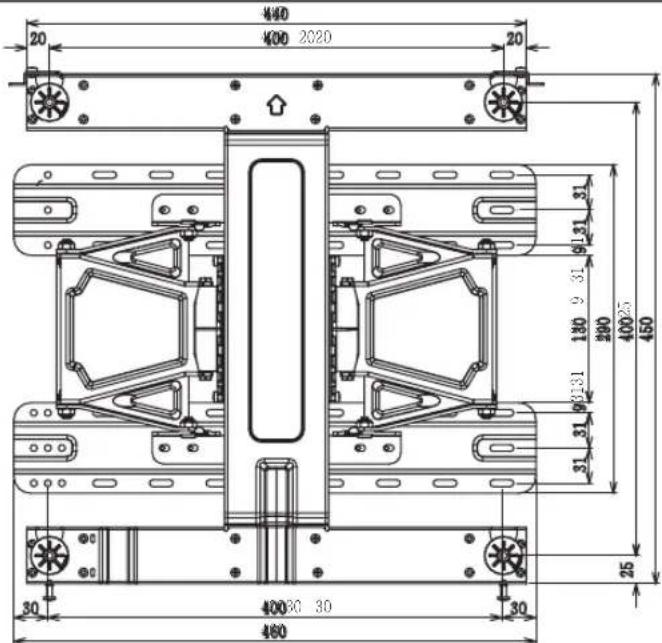

400 400 2020 20 20 31 9131 180 9 31 290 40025 31 31 450 25 30 40030 30 30 460


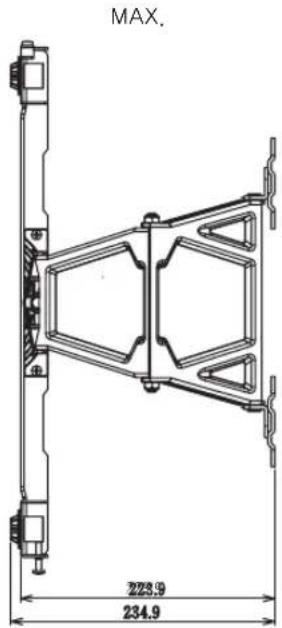

MAX. 223.9 234.9
MODEL SERIAL
Supported Displays (Please contract the retailers or refer to the TV owner's manual for applicable models.)
