USER MANUAL JRG90120 Juno Electrolux

Illustration of a hand inserting a black arrow into a filing cabinet (no text or symbols)

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Line drawing of a wine rack with a wavy glass tube and coiled tubing (no text or symbols)

Simple line drawing of a washing machine with two side pans and a control panel (no text or symbols)

Diagram of a double door with an upward arrow and a small light bulb, no text or symbols present

Reinigung

Diagram of a device with arrows indicating direction, no text or symbols present

Please read these operating instructions carefully before installing the appliance. These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. If you are unsure about the meaning of these warnings contact the Customer Care Department.

Domestic Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
• This appliance is heavy. The edges and projecting parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Ensure that the appliance does not stand on the electrical supply cable.
• Do not use electrical appliances inside the appliance

• Do not keep carbonated drinks or bottles in the freezer compartment. The glass bottles may break.

• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

• It is dangerous to try and alter the specifications or modify this product in any way.
• Under no circumstances should you attempt to repair the appliance yourself. Refer to your local Service Centre, and always insist on genuine spare parts.

Child Safety

• This appliance is designed to be operated by adults only. There is a risk of suffocation! Keep packaging material away from children!
• In case of disposal of the appliance, cut off the supply cable as close as possible and make the lock unusable, to prevent children from closing themselves inside the appliances.

Environment Protection

- This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from your municipal authorities.

Index

Safety Instructions ....9

Disposal 10

Use and Control Before Use / Control panel / Starting the appliance / Temperature control .....10

Internal parts 11

Hints 12

Maintenance Defrosting 12

Cleaning / Changing the light bulb 13

Something not Working 13

Customer Service and Spare Parts ....14

Technical Specifications 14

Installation Positioning 14

Electrical connection 15

Building-in 15

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Disposal

Appliance Packaging Information

- The materials used on this appliance marked with the symbol are recyclable.

PE<=polyethylene >PS<=polystyrene >PP<=polypropylene - All materials are environmentally sound!

Disposal of old Appliances

Information concerning collection schedules or locations can be obtained from your local Council or Environmental Health Office.

At the end of the Appliance Life

- When disposing of your appliance use an authorised disposal site.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Use and Control

Before Use

Wait two hours before connecting the appliance to allow the oil to flow back in the compressor.

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

- Remove safety elements used for transportation.

Control panel

1 2

1 Light switch
2 Temperature regulator and ON/OFF switch

Starting the appliance

• The temperature regulator is located at the top of the appliance on the control panel. It is also the ON/OFF switch.
• A coin is required to turn the temperature regulator.
• Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).
• The interior lighting comes on. The compressor starts and then runs automatically. To switch off the appliance, turn the temperature regulator to position «O».

Temperature Control

• The temperature regulator allows you to adjust the temperature inside the refrigerator according to use and external conditions.

• The following effects are of significance in respect of the interior temperature:

• Ambient temperature
  • Quantity and temperature of the food stored;

• Frequency with which the door is opened and how long it is left open
  • the location of the appliance.

- The temperature inside the appliance is automatically adjusted.

- Setting „1“ = hightest temperature, warmest setting

- Setting „4“ = lowest temperature, coldest setting.

- Setting , “ = Off

A medium setting is generally the most suitable.

Internal Parts

Storage shelves

• The shelves can be removed for cleaning.

- To permit storage of food packages of various sizes, the shelves can be placed at different heights.

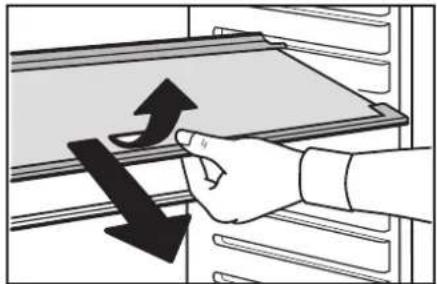

• To remove the internal shelf pull forward until it can be tipped up or down and removed.

Illustration of a hand inserting a device into a rack with an upward arrow and downward arrow (no text or symbols)

- Please do the same in reverse to insert the shelf at a different height.

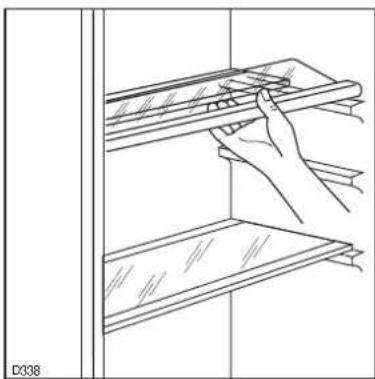

- For better use of space, the front half-shelves can lie over the rear ones.

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

The glass shelf above the vegetable drawers and the bottle shelf should always remain in position, to ensure correct air circulation.

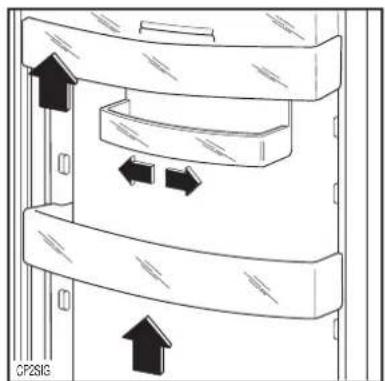

- To permit storage of food packages of various sizes, the central door shelf can be adjusted in height.

- Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a multi-layered structure with directional arrows indicating movement or force, no text or symbols present.

- Your model is equipped with a variable door storage compartment which is fitted under the upper door storage compartment and can be slid sideways.

- For more thorough cleaning, the top and bottom door sheves can be removed by pulling them in the direction of the arrows, then refitting them in position.

Bottle/Can Shelf

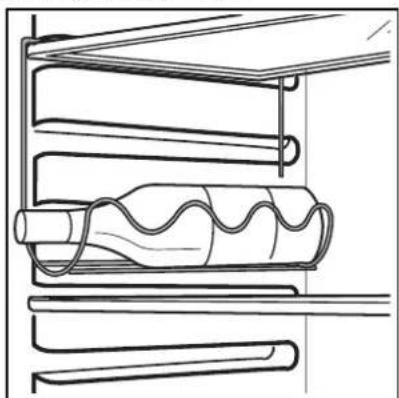

- To insert or move the bottle/can shelf, pull out the corresponding storage shelf.

Line drawing of a wine rack with coiled pipes and a wavy bottle (no text or symbols)

- Ensure that the bottle or cans do not touch the rear wall of the appliance or, when the door is closed, the door shelf.

• Always lay bottles in the shelf with the top to the front. Small bottles and cans can be placed crossways in the holder.

Attention! Place only unopened bottles or cans horizontally.

Humidity Control

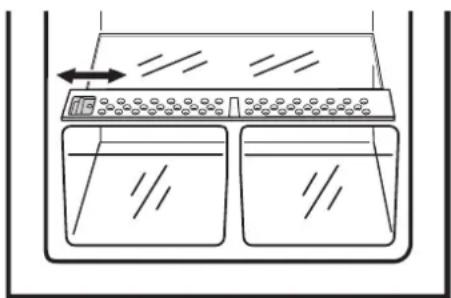

• On some models, there is an adjustable air grille in front of the shelf above the fruit and vegetable compartments.
• The opening in the ventilation slots can be steplessly adjusted with a slider.

Simple line drawing of a washing machine with two side dishes and a wall-mounted top panel (no text or symbols)

• Slider in right position: ventilation slots opened. Slider in left position: ventilation slots closed.
• With the ventilation slots open, the stronger air circulation results in a lower air moisture content in the fruit and vegetable compartments.
• When the ventilation slots are closed, the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section "Installation". When installed correctly the cabinet will consume less energy.

• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

• If the ambient temperature is high, the thermostat knob is on the coldest setting (higher numbers) and the appliance is fully loaded, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, turn the knob to a warmer setting (lower numbers) to allow automatic defrosting and so a saving in electricity consumption.

• Do not place warm foods inside the appliance. Allow warm foods to cool first.

Hints for refrigeration

- Do not store warm food or evaporating liquids in the refrigerator and do cover or wrap up the food, particularly if it has a strong smell.

To help you use your refrigerator correctly, here are some useful hints:

- Raw meat (beef, pork, lamb & poultry): wrap in polythene bags and place on top of the salad compartment, this being the coldest spot in the refrigerator.

Meat can only be stored safely in this way for one or two days at the most.

• Cooked food, cold cuts, jelly, etc.: these should be well covered and can be stored on any of the glass shelves.
• Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom drawer.
• Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to keep out as much air as possible.
• Milk bottles: these should have a top and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Maintenance

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

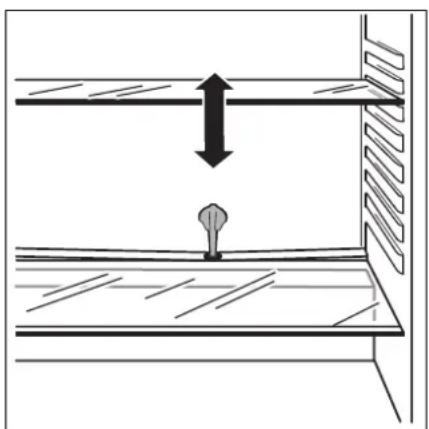

• Defrosting the refrigerator compartment is automatic. The defrost water drains out through a trough into a container at the back of the appliance, above the motor compressor, where it evaporates.
• It is important to periodically clean the defrost water drain hole.

Diagram of a double door with a vertical double-headed arrow indicating upward motion, no text or symbols present

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

When the appliance is not in use

Disconnect the appliance from the electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Changing the light bulb

- Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows:

1. unscrew the light cover securing screws.
2. unhook the moving part by pressing it as shown in the figure.
3. Replace the bulb by other with another with the same characteristics.

Diagram of a device with arrows indicating direction and a screw, no text or symbols present

Something not Working

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM SOLUTION
Door does not close	Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out.The appliance is not properly installed. Please look in the “Building-in” section.
It is too warm inside the refrigerator	Set a lower temperature.Distribute the food products to allow cold air to circulate around them.Make sure that the door is completely closed and that the insulating strip is complete and clean.The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the refrigerator.	Set a warmer temperature.
The compressor works continuously.	Turn the thermostat knob to a lower number.The temperature where the cabinet is placed is above normal room temperature.Check that the ventilation is sufficient and that the ventilation openings are unobstructed.The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
There is water inside/outside the refrigerator.	Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Water comes out on the floor.	Place the drain hose at the back of the cabinet above the drain bowl.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected.The injected cooling gas may produce a gurgling sound while passing through the tubes.The motor may cause a humming noise and/or slight bumping.The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

• Model Name
• Model Number (PNC)
• Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

The technical data is indicated in the rating plate on the left side inside the appliance.

Installation

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• Place the refrigerator away from direct sunlight and heat sources.
• Avoid prolonged exposure of the appliance to direct sunlight.

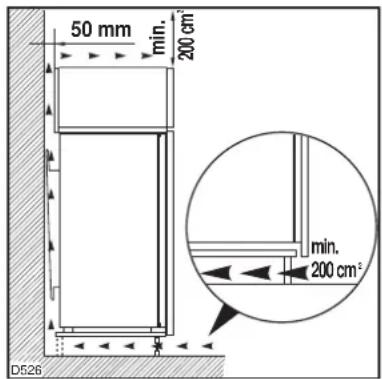

• For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

- It is necessary that the niche is provided with a conduct of ventilation having the following dimensions:

Depth 50 mm

Width 540 mm

The climate classification can be found on the rating plate, which is located inside the cabinet on the left hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN +10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

50 mm min. 200 cm² min. 200 cm² D526

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

- 87/308 EEC of 2/6/87 relative to radio interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications.

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Attention!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Building-in

See „Installation Instructions“ supplied.

Please check whether, after installing your appliance and especially after rehingeing the door, the door seal seals right round. An untight door seal may lead to heavy frosting and thereby to a higher power consumption.

Warning!

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.
