USER MANUAL JRG94121 Juno Electrolux

We were thinking of you

when we made this product

Line drawing of a hand installing or adjusting a shelf panel on a cabinet (no text or symbols)

Türablagen

Diagram of a mechanical or electrical component with two arrows indicating direction, no text or symbols present

Line drawing of a wine rack with a wavy glass bottle and coiled tubing (no text or symbols)

Feuchteregulierung

Simple line drawing of a kitchen appliance with two panes and a top panel, no text or symbols present.

Gefrierabteil

Temperaturregelung

Technical line drawing of a mechanical component with an inset showing a close-up view of internal components (no text or symbols)

Abtauen

Diagram showing a hand holding scissors inside a circular frame with arrows indicating rotation (no text or symbols)

Technical diagram of a mechanical device with an inset showing a component being inserted into a housing (no text or symbols present)

Welcome to the world of Electrolux

You've chosen a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety of quality products that would make your life even more comfortable. You can look at some examples on the cover in this manual. But now it's time to study this manual and start using and enjoying the benefits from your new machine. We promise that it'll make your life a little easier. Good luck!

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to avoid damaging the appliance.

General information and tips

Environmental information

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Contents

Safety Information 24

Use 2

Cleaning the interior 27

Fresh food refrigeration 27

Control panel 27

Starting the appliance 27

Temperature Control 27

Movable shelves 28

Door shelves 28

Bottle/Can Shelf 28

Humidity Control 29

Freezer Compartment 29

Temperature Control 29

Interior Accessories 29

Ice-cube production 29

Hints 30

Hints for refrigeration 30

Freezing of fresh food and storage of

frozen food 30

Maintenance 30

Periodic cleaning 30

Periods of no operation 31

Interior light 27 31

Defrosting 31

Customer service and spare parts 33

Installation 33

Location 33

Electrical connection 33

Door reversibility 33

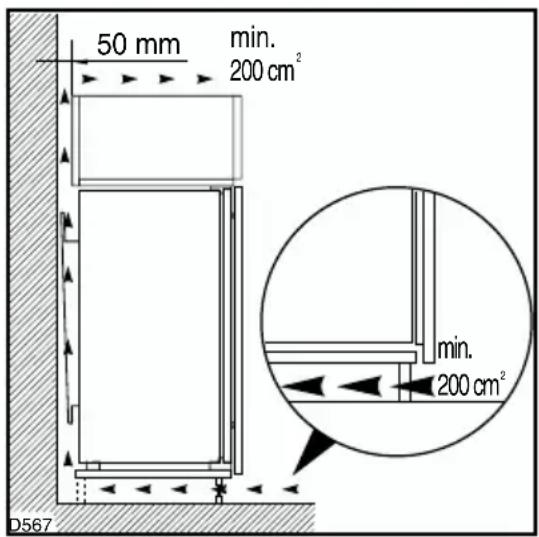

Instructions for totally built-in

appliances 33

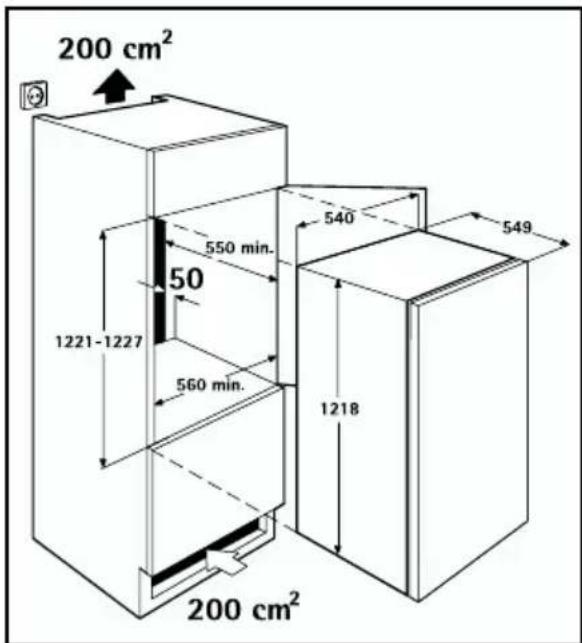

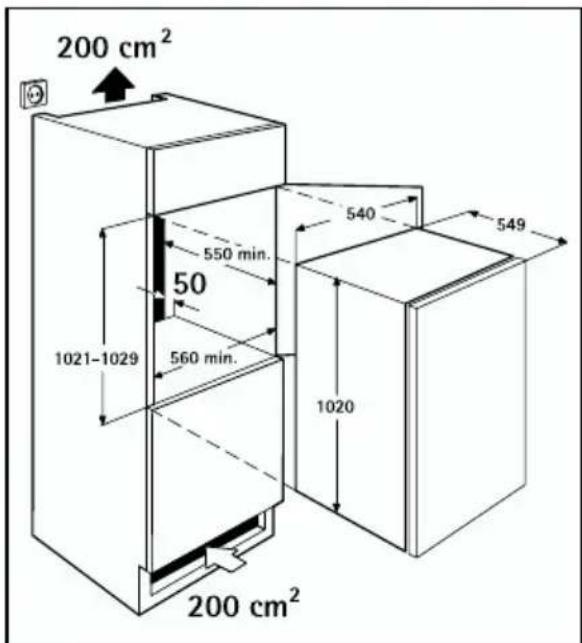

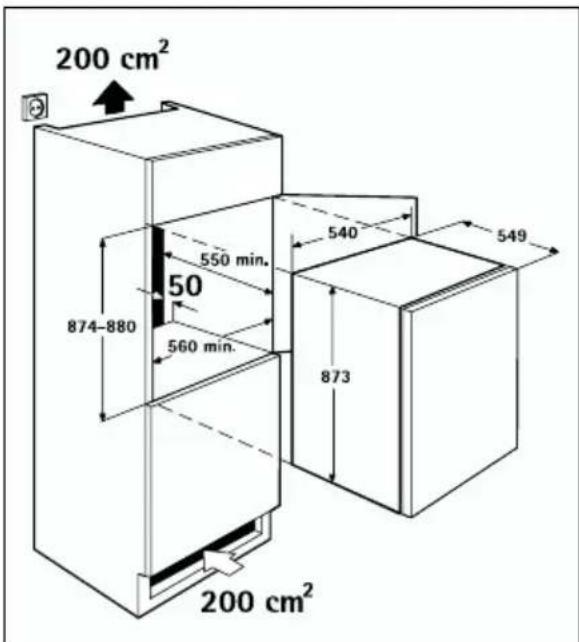

Dimensioned drawings 34

European Guarantee 35

www.electrolux.com 36

i Safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• It is dangerous to alter the specifications or modify this product in any way.
• Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
• This appliance is heavy. Care should be taken when moving it

• Ice lollies can cause frost burns if consumed straight from the appliance.

• Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• The appliance must not be located close to radiators or gas cookers.
• Avoid prolonged exposure of the appliance to direct sunlight.
• There must be adequate ventilation round the back of the appliance and any damage to the refrigerant circuit must be avoided.
• For freezers only (except built-in models): an ideal location is the cellar or basement.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances.

Service/Repair

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person
• This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.

- This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Use

- The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.

- Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and +32°C (class N); +10°C and +32°C (class SN). The class of your appliance is shown on its rating plate.

Warning: when the ambient temperature is not included within the range indicated for the class of this appliance, the following instructions must be observed: when the ambient temperature drops below the minimum level, the storage temperature in the freezer compartment cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

- Frozen food must not be re-frozen once it has been thawed out.

- Manufacturers' recommendations should be strictly adhered to. Refer to relevant instructions.

- The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be

allowed to thaw when defrosting the appliance.

- Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

- During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the instructions.

Attention: keep ventilation openings clear of obstruction.

- Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Important: if the supply cord is storageaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

- If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

• There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from municipal authorities. The materials used on this appliance marked by the symbol are recyclable.

USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with luke-warm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator;
  • do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely round it.

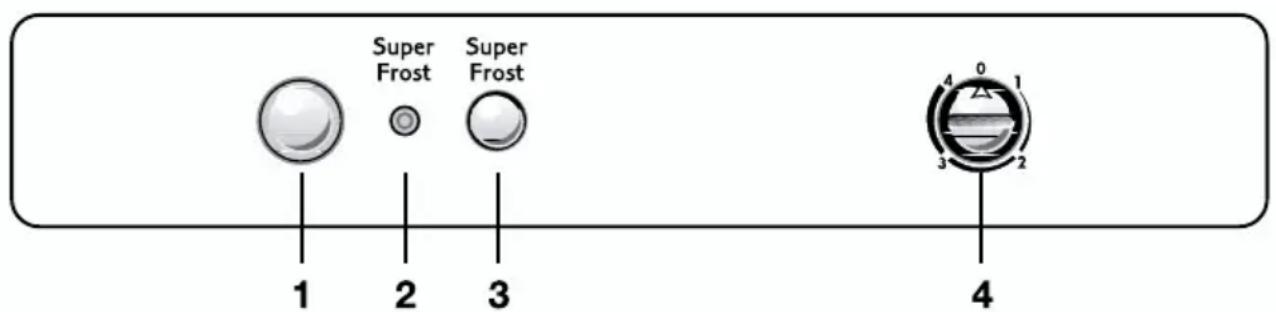

Control panel

Super Frost Super Frost 1 2 3 4 0 1 3 2

1 Light switch
2 SUPERFROST-function "on" indicator (yellow) (not on all models)
- SUPERFROST for freezing items quickly in the freezer compartment
3 SUPERFROST button (not on all models)
4 Temperature regulator and ON/OFF switch

Starting the appliance

The temperature regulator is located at the top of the appliance on the control panel. It is also the ON/OFF switch.

A coin is required to turn the temperature regulator.

Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).

The interior lighting comes on. The compressor starts and then runs automatically. To switch off the appliance, turn the temperature regulator to position «O».

Temperature Control

The temperature regulator allows you to adjust the temperature inside the refrigerator according to use and external conditions.

The following effects are of significance in respect of the interior temperature:

Ambient temperature

Quantity and temperature of the food stored;

Frequency with which the door is opened and

how long it is left open

the location of the appliance.

The temperature inside the appliance is automatically adjusted.

Setting "1" = highest temperature, warmest setting

Setting „4“ = lowest temperature, coldest setting.

Setting "” = Off

A medium setting is generally the most ssuitable.

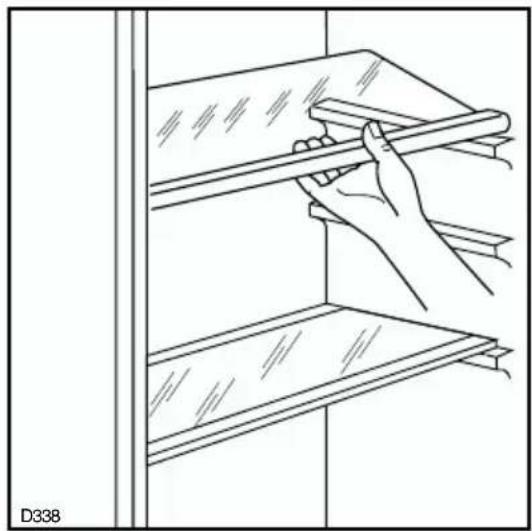

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

depending on the model

For better use of space, the front half-shelves can lie over rear ones.

Line drawing of a hand holding a shelf with a tool, no text or symbols present

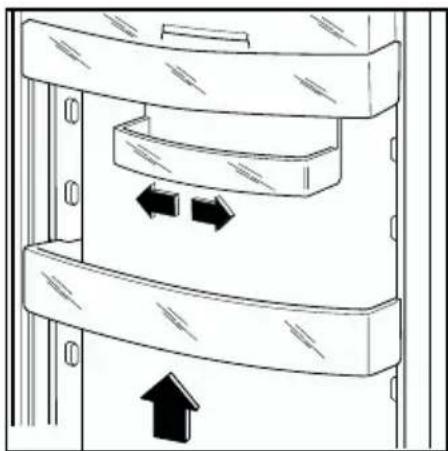

Door shelves

The door shelves can be easily removed for cleaning.

Diagram of a mechanical or architectural component with three horizontal bands and directional arrows indicating movement (no text or symbols)

Some models are equipped with a variable storage box which is fitted under a door shelf compartment and can be slid sideways.

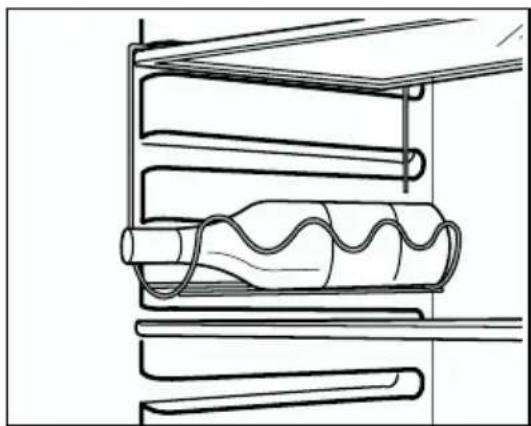

Bottle/Can Shelf

To insert or move the bottle/can shelf, pull out the corresponding storage shelf.

Ensure that the bottle or cans do not touch the rear wall of the appliance or, when the door is closed, the door shelf.

Always lay bottles in the shelf with the top to the front. Small bottles and cans can be placed crossways in the holder.

Attention! Place only unopened bottles or cans horizontally.

Line drawing of a wine rack with a wavy glass bottle and coiled tubing (no text or symbols)

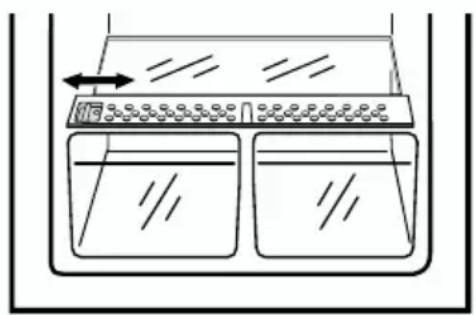

Humidity Control

On some models, there is an adjustable air grille in front of the shelf above the fruit and vegetable compartments. The opening in the ventilation slots can be steplessly adjusted with a slider.

Slider in right position: ventilation slots opened.

Slider in left position: ventilation slots closed.

With the ventilation slots open, the stronger air circulation results in a lower air moisture content in the fruit and vegetable compartments.

When the ventilation slots are closed, the natural moisture content of the food in the fruit and vegetable compartments is preserved for longer.

Simple line drawing of a washing machine with two side chambers and a side panel, no text or symbols present.

Freezer compartment

Temperature Control

To freeze fresh foods it is not necessary to change the setting of the thermostat knob.

For a quicker freezing operation, turn the temperature regulator to setting "4" several hours before freezing fresh items, or press the SUPERFROST button if the model has one. The yellow indicator will light up.

In this condition, the refrigerator compartment temperature might drop below 0^ C. If this occurs return the temperature regulator to a warmer setting or switch off the SUPERFROST function. To do that, press the SUPERFROST button again. The yellow indicator will go off.

At the first starting-up or after a period out of use, before putting the products in the compartment, let the appliance run for at least two hours on the coldest setting, then turn the thermostat knob to the normal operating position.

Interior Accessories

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

HINTS

Hints for refrigeration

Useful hints:

Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk b bottlethese should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Freezing of fresh food and storage of frozen food

Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.

Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.

Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.

Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.

It is advisable to show the freezing-in date on each individual pack to enable you to keep tab of the storage time.

Be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time.

Do not put carbonated liquids (fizzy drinks, etc.) in the freezing compartment as they may burst.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

Clean the inside with warm water and bicarbonate of soda.

Rinse and dry thoroughly.

Do not pull, move or damage any pipes and /or cables inside the cabinet ..

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

remove the plug from the wall socket; remove all food;

defrost and clean the interior and all accessories;

leave the door ajar to allow air to circulate to prevent unpleasant smells.

Interior light

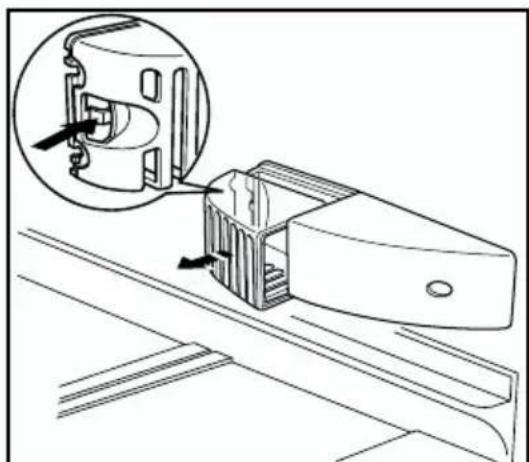

If it becomes necessary to replace the lamp, press on the rear hook and at the same time slide the cover in the direction indicated by the arrow.

Replace the lamp with one of the same power (the maximum power is shown on the light diffuser).

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Defrosting

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

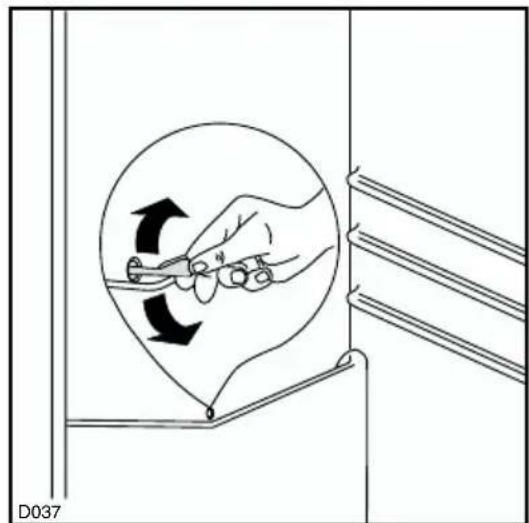

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water from overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Diagram showing a hand holding a tool inside a circular component, with arrows indicating rotation or movement (no text or symbols present)

Freezer compartment

Remove the frost with a plastic scraper.

Whenever the thickness of the frost exceeds 5 mm complete defrosting should be carried out.

Proceed as follows:

Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

Pull out the plug from the wall socket or turn the thermostat knob to the «O» setting.

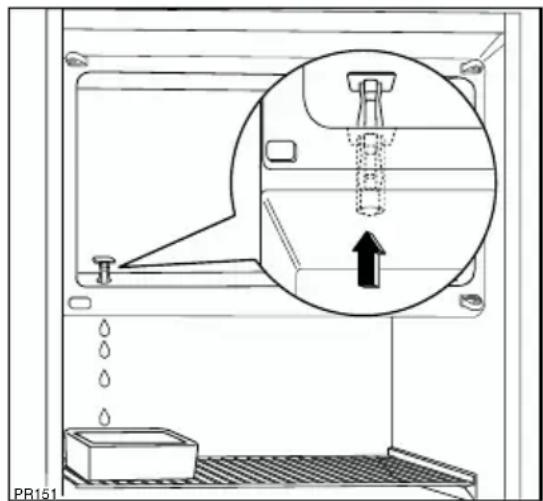

Leave the door open, place a basin on the top shelf of the refrigerator compartment, under the drain hole, remove the plug as shown in the figure.

Diagram of a device with a magnified inset showing a mechanical component and water drop, labeled PR151 (no text or symbols on the diagram itself)

When defrosting is completed, dry the interior thoroughly and refit the plug.

Turn the thermostat knob back to the required setting or replace the plug in the power socket.

Reload the previously removed food into the compartment.

Never use sharp metal tools to scrape off frost from the orator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

CUSTOSERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

• the plug is firmly in the wall socket and the mains power switch is on;
• there is an electricity supply (find out by plugging in another appliance);
• the thermostat knob is in the correct position.
• If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see “Defrosting” section).
• If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

INSTALLATION Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

CE This appliance complies with the following E.E.C. Directives:

• 87/308 EEC of 2/6/87 relative to radio interference suppression.
• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Directive) and subsequent modifications.

ATTENTION!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Door reversibility

The appliance's door have been locked in position for transport by means of pins on both sides. According to the door opening direction, remove relevant pins at the top and at the bottom.

i Instructions for totally built-in appliances

Building-in instructions

50 mm min. 200 cm² D567 min. 200 cm²

For safety reasons, minimum ventilation must be as shown in Fig.

Attention: keep ventilation openings clear of obstruction.

It is necessary that the niche is provided with a ventilation conduct having the following dimensions:

Depth 50 mm

Width 540 mm

Dimensioned drawings

See "Installation Instructions" supplied.

Please check whether, after installing your appliance and especially after rehingeing the door, the door seal seals right round. An untight door seal may lead to heavy frosting and thereby to a higher power con-sumption.

Warning!

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

200 cm² 550 min. 50 874-880 560 min. 540 873 549 200 cm²

200 cm² 550 min. 50 1021-1029 560 min. 540 1020 549 200 cm²

200 cm² 550 min. 50 1221-1227 560 min. 540 1218 549 200 cm²

EUROPEAN GUARANTEE

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed, the appliance guarantee will move with you subject to the following qualifications:-

The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.

The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.

The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.

The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.

The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

www.electrolux.com

Albania	[phone]	Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/Belgien	[phone]	Bergensesteenweg 719, 1502 Lembeek
Česká republika	[phone]	Budějovická 3, Praha 4, 140 21
Danmark	[phone]	Sjællandsgade 2, 7000 Fredericia
Deutschland	[phone]	Muggenhofer Str. 135, 90429 Nürnberg
Eesti	[phone]	Mustamäe tee 24, 10621 Tallinn
España	[phone]	Carretera M-300,Km.29,900 Alcalá de Henares Madrid
France	www.electrolux.fr
Great Britain	[phone]	Addington Way, Luton, Bedfordshire LU4 9QQ
Hellas	[phone]	4, Limnou Str., 54627 Thessaloniki
Hrvatska	[phone]	Slavonska avenija 3, 10000 Zagreb
Ireland	[phone]	Long Mile Road Dublin 12
Italia	[phone]	C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija	[phone]	Kr. Barona iela 130/2, LV-1012, Riga
Lietuva	[phone]	Verkių 29, LT-09108 Vilnius
Luxembourg	[phone]	Rue de Bitbourg, 7, L-1273 Hamm
Magyarország	[phone]	H-1142 Budapest XIV, Erzsébet királyné útja 87
Nederland	[phone]	Vennootsweg 1, 2404 CG - Alphen aan den Rijn
Norge	[phone]	Risløkkvn. 2 , 0508 Oslo
Österreich	[phone]	Herziggasse 9, 1230 Wien
Polska	[phone]	ul. Kolejowa 5/7, Warsaw
Portugal	[phone]	Quinta da Fonte-Edificio Gonçalves Zarco-Q 35-2774-518 Paço de Arcos
Romania	[phone]	Str. Garii Progresului 2, S4, 040671 RO
Schweiz-Suisse-Svizzera	[phone]	Industriestrasse 10, CH-5506 Mägenwil
Slovenija	[phone]	Tržaška 132, 1000 Ljubljana
Slovensko	[phone]	Electrolux Slovakia s.r.o., Electrolux Domáce spotrebė e SK, Seberíniho 1, 821 03 Bratislava
Suomi	[phone]	Konepajanranta 4, 28100 Pori
Sverige	[phone]	Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
Türkiye	[phone]	Tarłabași caddesi no : 35 Taksim i stanbul
Россия	[phone]	129090 Москва, Олимпийский проспект, 16, БЦ "Олимпик"

www.electrolux.com

www.juno-electrolux.de
