USER MANUAL JRU44601 Juno Electrolux

Technical line drawing of a mechanical assembly with mounting feet and support brackets (no text or symbols)

Juno

Electrolux

JRU 44601

GEBRAUCHSANWEISUNG

Line drawing of a mechanical component with an arrow indicating rotation or movement (no text or symbols)

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

P F S.I.011

Gefrierraum

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols)

Illustration of a hand using a tool to apply a component on a surface, with no visible text or symbols.

Diagram illustrating a mechanical assembly with numbered components and directional arrows indicating motion or movement.

6 10 9 13 6 11 12 3

6 7 8 2

Achtung!

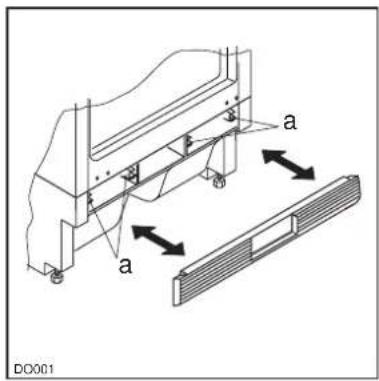

a a DO001

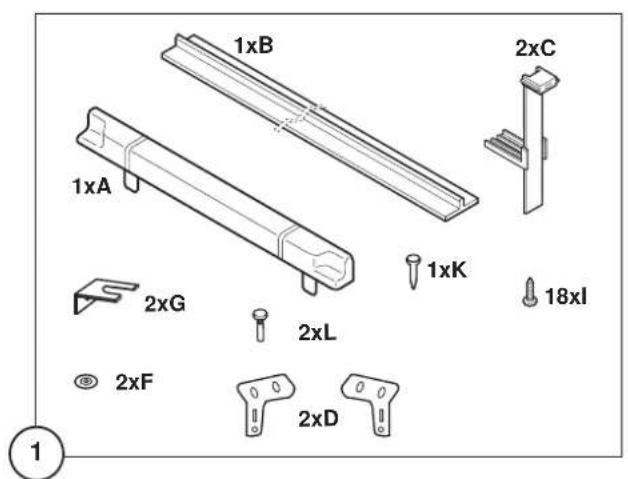

1xB 2xC 1xA 1xK 18xI 2xG 2xL 2xF 2xD 1

Technical diagram showing mechanical assembly with labeled parts and magnified views of structural details

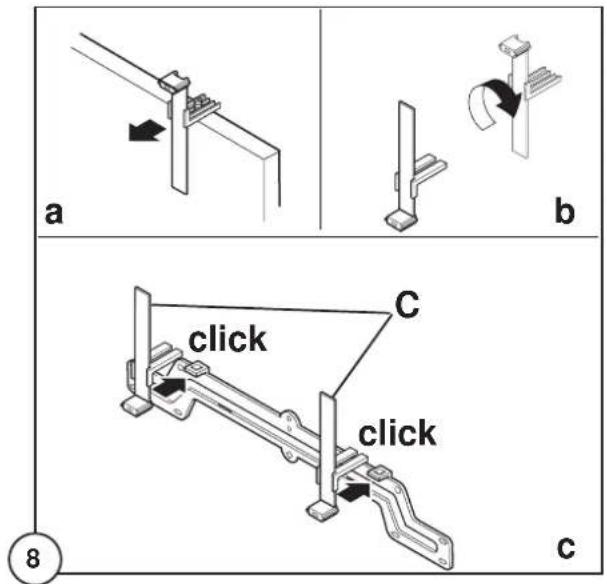

Diagram showing a door lock mechanism with magnified detail and directional arrow, labeled with number 7

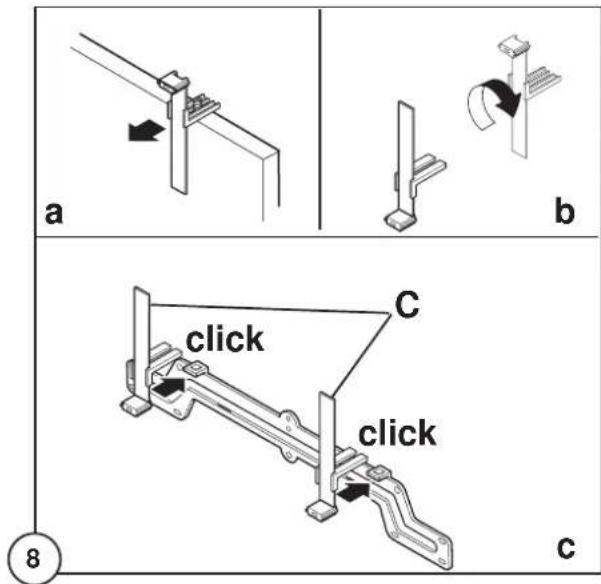

a b click C click c 8

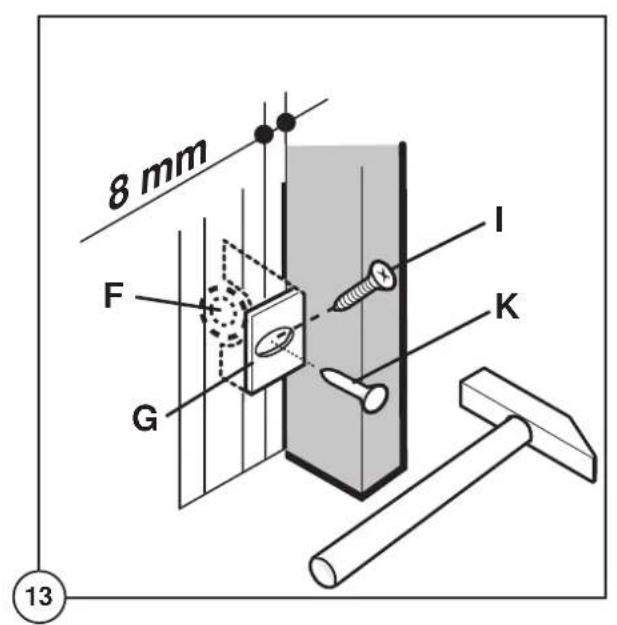

8 mm F G I K 13

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or using the appliance. Please retain the instruction book for future reference. If owner ship is transferred, please leave the user manual for the new owner.

Domestic Use

- The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.

- Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

- This appliance is heavy. The edges and projecting parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.

- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

- Make sure that the power plug is not squashed or damaged by the back of the appliance. Make sure that the cable is not trapped underneath the appliance, nor touches the motor.

- Do not remove the power cord by pulling on its lead, particularly when the appliance is being pulled out of its niche. If the power plug socket is loose, do not insert the power plug. Damage to the cord may cause a short-circuit, fire and/or electric shock.

- Do not use electrical appliances inside the appliance.

- Do not keep carbonated drinks or bottles in the freezer compartment. The glass bottles may break.

- Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.

- It is dangerous to try and alter the specifications or modify this product in any way.

- Under no circumstances should you attempt to repair the appliance yourself. Refer to your local Service Centre, and always insist on genuine spare parts.

Child Safety

- This appliance is designed to be operated by adults only. Do not allow the children to tamper with the controls or play with the products. There is a risk of suffocation! Keep packaging material away from children!

Environment Protection

- This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit. Information on your local disposal sites may be obtained from your municipal authorities.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Disposal

Appliance Packaging Information

- The materials marked with the symbol are recyclable.

PE< for polyethylene, e.g. sheet wrapping material

PS< for polystyrene, e.g. padding material (always CFC-free)

POM< polyoxymethylene, e.g. plastic clips.

All materials are environmentally sound! Information concerning collection schedules or locations can be obtained from your local Council or Environmental Health Office.

At the end of the Appliance Life

- When disposing of your appliance use an authorised disposal site.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Contents

Safety Instructions ....15

Disposal 15

Use and Control Before Use / Starting the appliance / Temperature control / Internal parts .....16

Hints / Freezer compartment - Temperature control / Interior accessories .....17

Freezer compartment - Hints 18

Maintenance Defrosting 18

Cleaning / Changing the light bulb 19

Something not Working ....20

Customer Service and Spare Parts ....20

Technical Specifications ....20

Door reversal 21

Inner door reversal 22

Installation Positioning 22

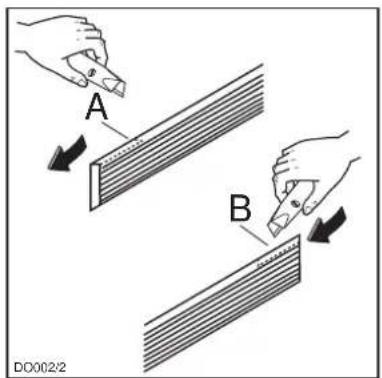

Electrical connection / Grid preparation .....23

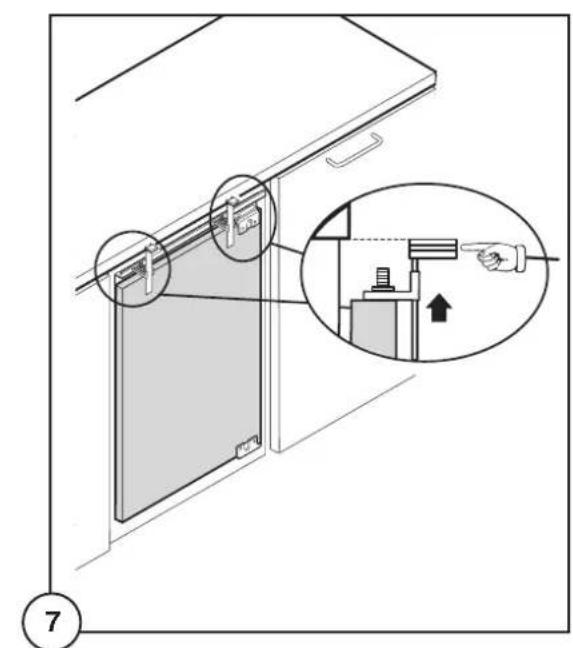

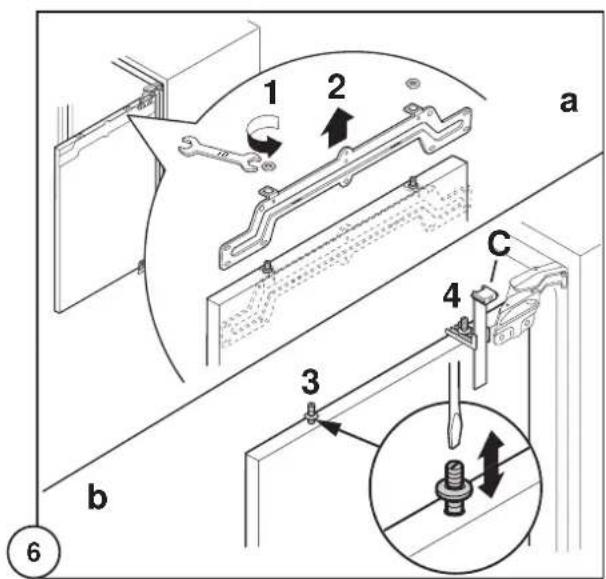

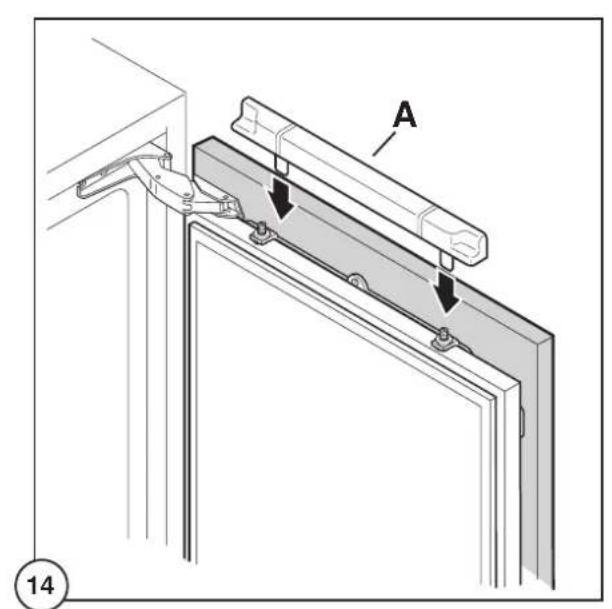

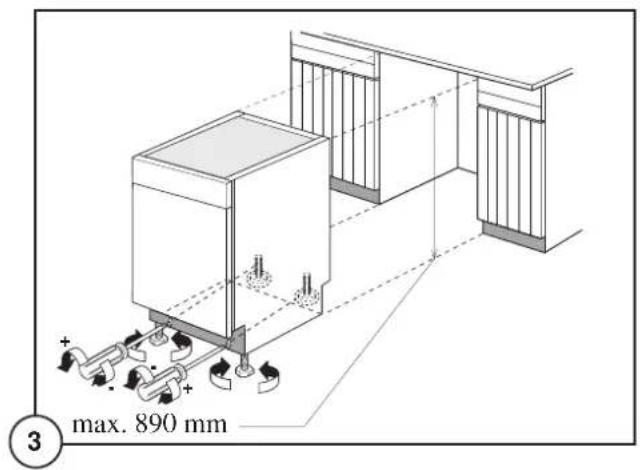

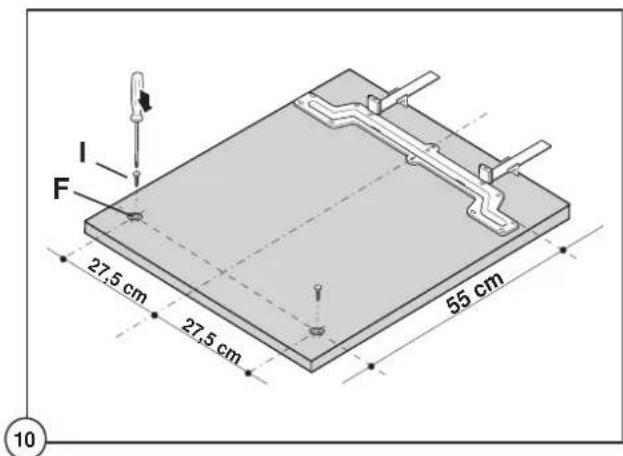

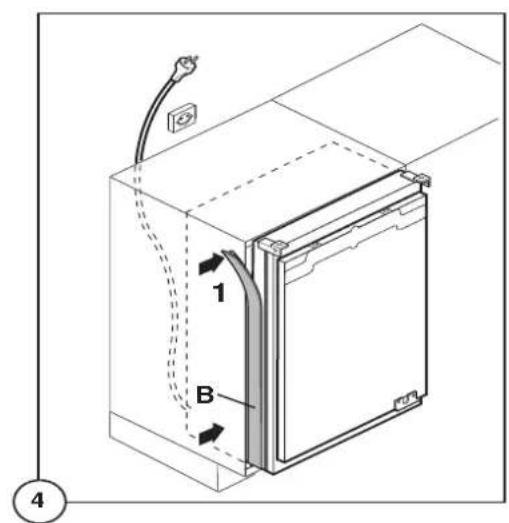

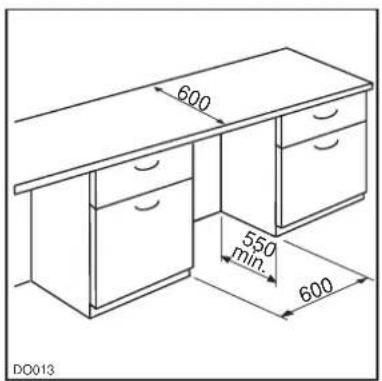

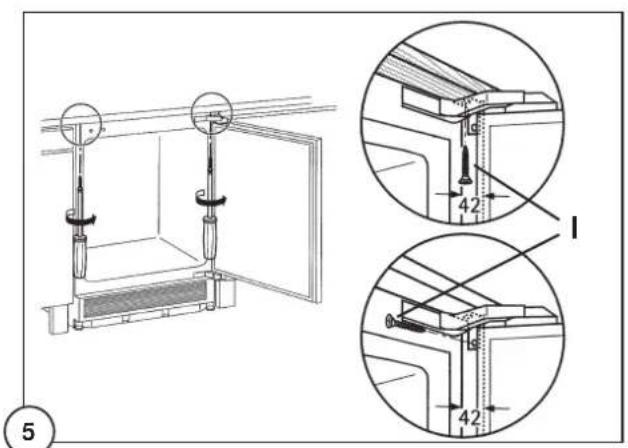

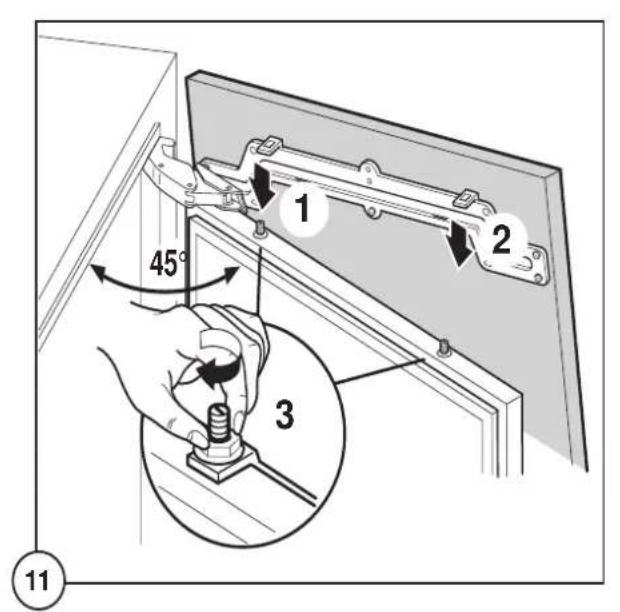

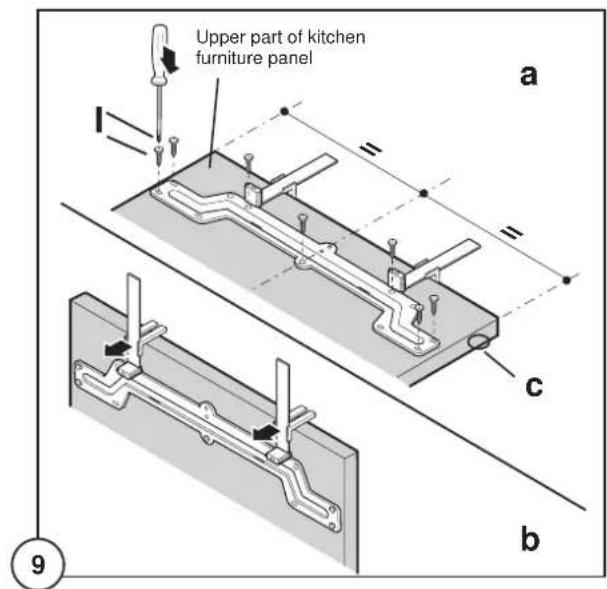

Building-in the appliance under a worktop ....23

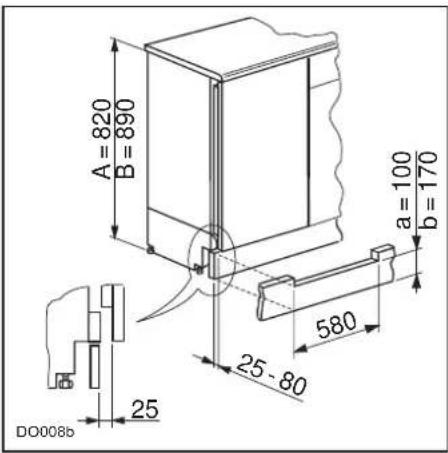

Fitting the plinth 27

Use and Control

Before Use

Wait two hours before connecting the appliance to allow the oil to flow back in the compressor.

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

- Remove safety elements used for transportation.

Refrigerator compartment Starting the appliance

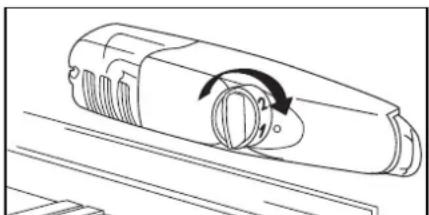

- Insert the plug into the wall socket and turn the thermostat knob clockwise beyond position «O» (OFF).

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

- Turn the thermostat control to the required setting.

Temperature Control

• The thermostat control situated inside the fridge compartment regulates the temperature of the appliance.

• It allows you to adjust the temperature inside the refrigerator according to use and external conditions.

• Setting „1“ = hightest temperature, warmest setting

• Setting „6“ = lowest temperature, coldest setting.
• Setting „0“ = Off

A medium setting is generally the most suitable.

Internal Parts

Storage shelves

• The shelves can be removed for cleaning.
• To permit storage of food packages of various sizes, the shelves can be placed at different heights.

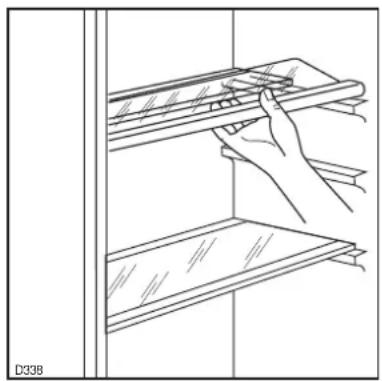

• To remove the internal shelf pull forward until it can be tipped up or down and removed.
• Please do the same in reverse to insert the shelf at a different height.

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

- For better use of space, the front half-shelves can lie over the rear ones.

The glass shelf above the vegetable drawers and the bottle shelf should always remain in position, to ensure correct air circulation.

Door shelves

- This model is equipped with a variable storage box

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

which is fitted under a door shelf

compartment and can be slid sideways.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section "Installation". When installed correctly the cabinet will consume less energy.
• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• If the ambient temperature is high, the thermostat knob is on the coldest setting (higher numbers) and the appliance is fully loaded, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, turn the knob to a warmer setting (lower numbers) to allow automatic defrosting and so a saving in electricity consumption.
• Do not place warm foods inside the appliance. Allow warm foods to cool first.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.

Hints for refrigeration

- Do not store warm food or evaporating liquids in the refrigerator and do cover or wrap up the food, particularly if it has a strong smell.

To help you use your refrigerator correctly, here are some useful hints:

- Raw meat (beef, pork, lamb & poultry): wrap in polythene bags and place on top of the salad compartment, this being the coldest spot in the refrigerator.

Meat can only be stored safely in this way for one or two days at the most.

• Cooked food, cold cuts, jelly, etc.: these should be well covered and can be stored on any of the glass shelves.
• Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom bins.
• Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to keep out as much air as possible.
• Milk bottles: these should have a top and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Freezer compartment Temperature Control

• To freeze fresh foods it is not necessary to change the setting of the thermostat knob.
• For a quicker freezing operation, turn the thermostat knob to the coldest setting; but remember that, in this condition, the refrigerator compartment temperature might drop below 0°C. If this occurs reset thermostat knob to a warmer setting.
• At the first starting-up or after a period out of use, before putting the products in the compartment, let the appliance run for at least two hours on the coldest setting, then turn the thermostat knob to the normal operating position.

Interior Accessories

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

i Hints

Freezing of fresh food and storage of frozen food

• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.
• Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.
• Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.
• Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.
• It is advisable to show the freezing-in date on each individual pack to enable you to keep tab of the storage time.
• Be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time.
• Do not put carbonated liquids (fizzy drinks, etc.) in the freezing compartment as they may burst.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.

Maintenance

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

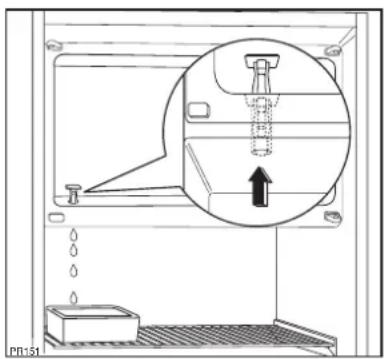

Refrigerator compartment

• Defrosting the refrigerator compartment is automatic. The defrost water drains out through a trough into a container at the back of the appliance, above the motor compressor, where it evaporates.

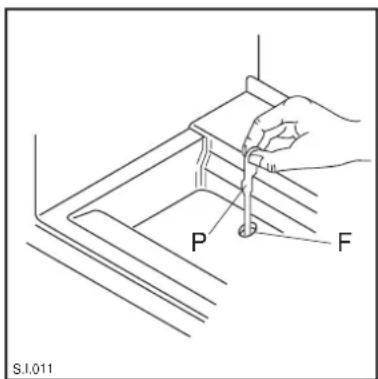

• It is important to periodically clean the defrost water drain hole (F) situated under the salad drawers to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided (P), which you will find already inserted into the drain hole.

P F S.I.011

Freezer compartment

• Remove the frost with a plastic scraper.
• Whenever the thickness of the frost exceeds 5 mm complete defrosting should be carried out. Proceed as follows:
• Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
• Pull out the plug from the wall socket or turn the thermostat knob to the «O» setting.
• Leave the door open, place a basin on the top shelf of the refrigerator compartment, under the drain hole, remove the plug as shown in the figure.

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

• When defrosting is completed, dry the interior thoroughly and refit the plug.
• Turn the thermostat knob back to the required setting or replace the plug in the power socket.
• Reload the previously removed food into the compartment.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

The appliance is equipped with a ventilation grid. Keep clean to guarantee good ventilation and good working order of the appliance.

An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

The structure of the appliance permits cleaning of the rear zone close to the wall, using a vacuum cleaner.

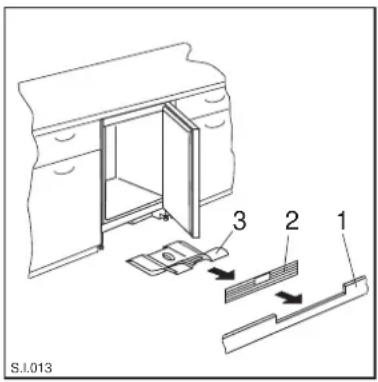

1. Remove the plinth (1), then the ventilation grid (2);

S.I.013

1. Carefully pull the air deflector out (3), checking that there is no water left from the defrosting.

When the appliance is not in use

Disconnect the appliance from the electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

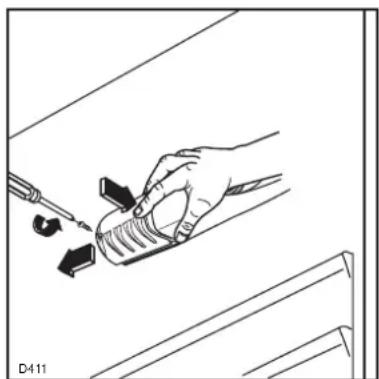

Changing the light bulb

• Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows:
• unscrew the light cover securing screws.
• unhook the moving part by pressing it as shown in the figure.
• Replace the bulb by other with another with the same characteristics.

Illustration of a hand holding a tool with arrows indicating movement or force, next to a cylindrical object (no text or symbols)

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM SOLUTION
Door does not close	Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out.The appliance is not properly installed. Please look in the “Building-in” section.
It is too warm inside the refrigerator	Set a lower temperature.Distribute the food products to allow cold air to circulate around them.Make sure that the door is completely closed and that the insulating strip is complete and clean.The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the refrigerator.	Set a warmer temperature.
The compressor works continuously.	Turn the thermostat knob to a lower number.The temperature where the cabinet is placed is above normal room temperature.Check that the ventilation is sufficient and that the ventilation openings are unobstructed.The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
There is water inside/outside the refrigerator.	Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.
Water comes out on the floor.	Place the drain hose at the back of the cabinet above the drain bowl.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected.The injected cooling gas may produce a gurgling sound while passing through the tubes.The motor may cause a humming noise and/or slight bumping.The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

- Model Name

• Model Number (PNC)
• Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

Dimensions
Height	815 mm
Width	596 mm
Depth	540 mm

The technical data is indicated in the rating plate on the right side inside the appliance.

If there is a power failure when food is in the freezer, do not open the door of the freezer compartment. The frozen food will not be affected if the power cut is of short duration (up to 12 hours) and the freezer compartment is full, otherwise, it is recommended that the food should be used within a short time (a temperature increase of the frozen food shortens its safe storage period).

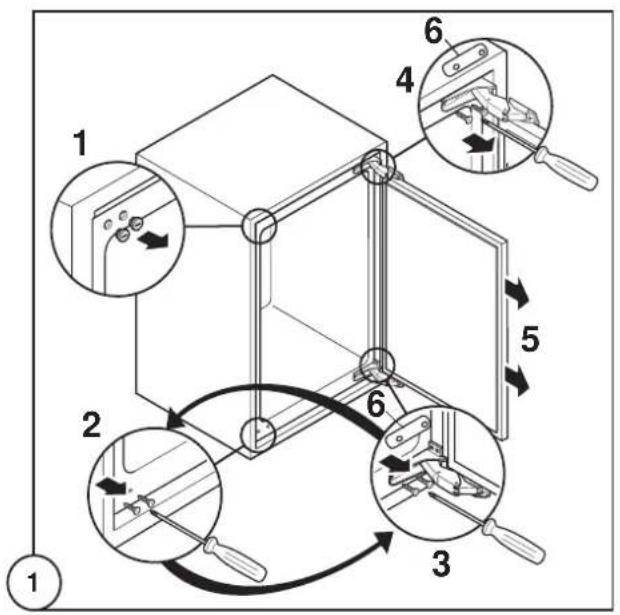

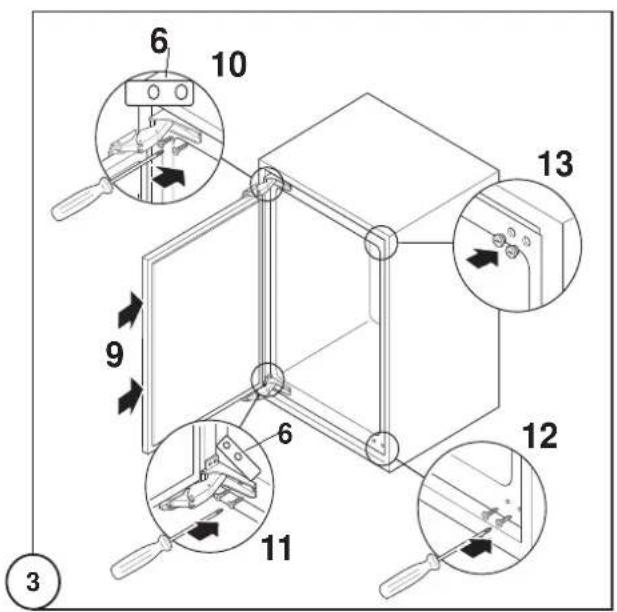

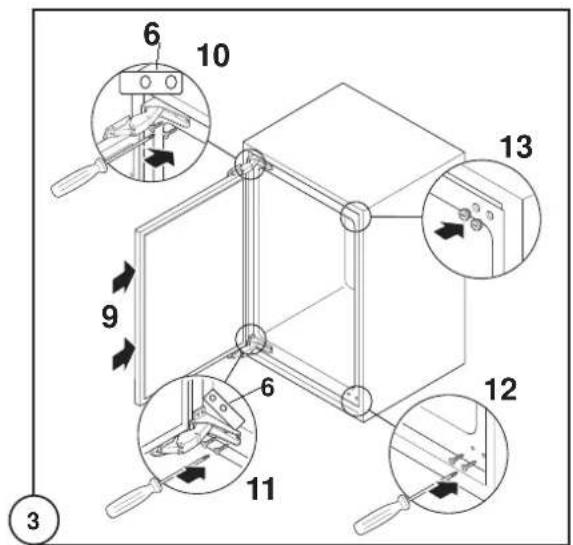

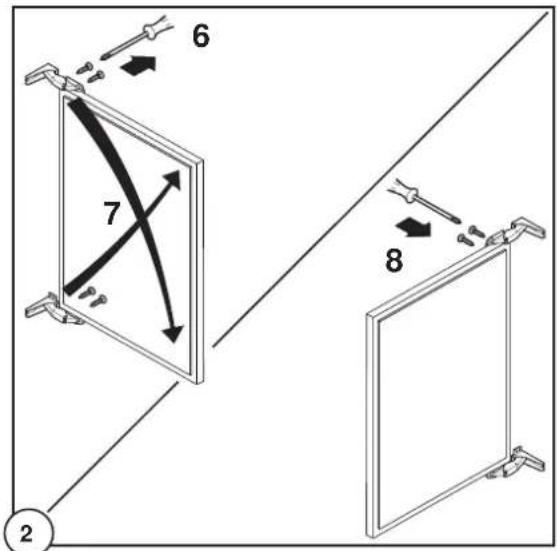

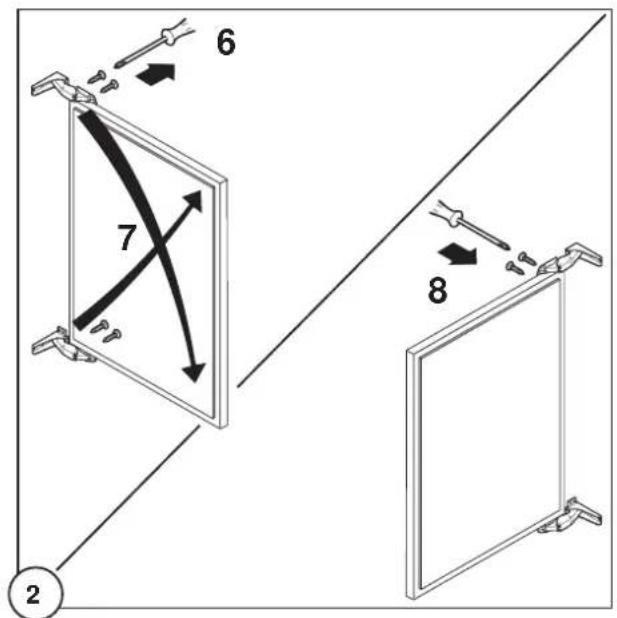

Door reversal

Diagram illustrating a mechanical assembly with numbered steps and directional arrows indicating motion or movement.

2 6 7 8

6 10 9 13 6 12 11 3

Warning! If the am

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

Inner door reversal

Installation

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cable is damaged, it must be replaced by authorized service or qualified personnel using a special cable of the same type.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• Place the refrigerator away from direct sunlight and heat sources.
• Avoid prolonged exposure of the appliance to direct sunlight.

The climate classification can be found on the rating plate, which is located inside the cabinet on the right hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN +10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

When the ambient temperature is not included within the range indicated for the class of this appliance, the storage temperature in the appliance cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

- 87/308 EEC of 2/6/87 relative to radio interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage Directive)

and subsequent modifications.

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Attention!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Grid preparation

Left door opening:

Remove the left side (A) of the grid cutting it from the rear (see figure).

A B DO002/2

Right door opening:

Remove the right side (B) of the grid cutting it from the rear (see figure).

To position the grid on the appliance proceed as follows:

Apply the grid to the base of the appliance by pushing on to the clasps (a) until they click.

a a DO001

Building in the appliance under a worktop

Dimensions of the recess

The dimensions of the recessed installation area must correspond with those indicated in the figure.

600 550 min. 600 DO013

1xB 1xA 2xC 1xK 2xG 2xL 18xI 2xF 2xD 1

1. Installation kit

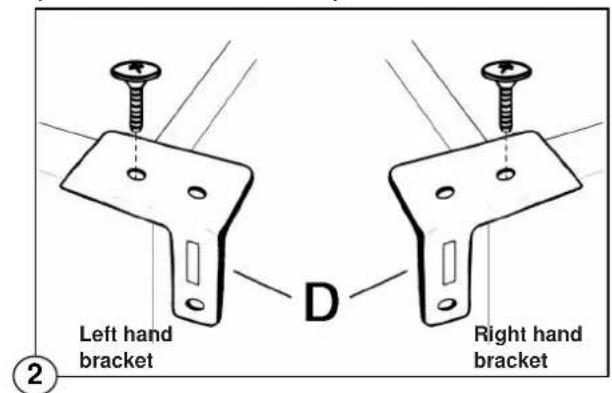

2. Two cabinet securing brackets (D) are supplied with the installation pack. They need to be assembled onto the cabinet prior to cabinet being pushed into the Kitchen aperture.

Left hand bracket D Right hand bracket

• To fit these brackets remove the two screws at the top left and right hand front corners of the cabinet.

• Position the two brackets as shown in the figure and replace the two securing screws.

• Push the appliance into place. The plug socket necessary for connection of the appliance to the electricity supply should be positioned, so that the plug is not placed in the recess.

max. 890 mm 3

To adjust the height proceed as follows:

• Loosen or tighten the two front feet.
• The rear feet are adjusted by turning the screw in the front kick plate to the left or right.

1 B 4

1. The joint cover (B) is to be assembled after having installed the appliance in the recess.

5 42 42 I

1. Screw appliance into place and retain the cabinet with screws (I) through the securing brackets into the worktop or adjacent woodwork as necessary.
2. To mount the furniture door proceed as shown in the figures:

1 2 a 3 4 b 6

Diagram showing a door lock mechanism with magnified detail and directional arrow, labeled with number 7

a b click C click c 8 c

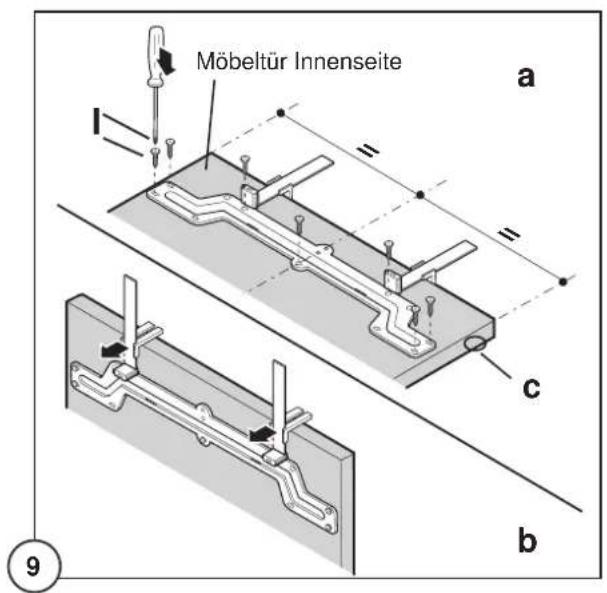

Upper part of kitchen furniture panel a b c 9

I F 27.5 cm 27.5 cm 55 cm 10

1 2 45° 3 11

A 14

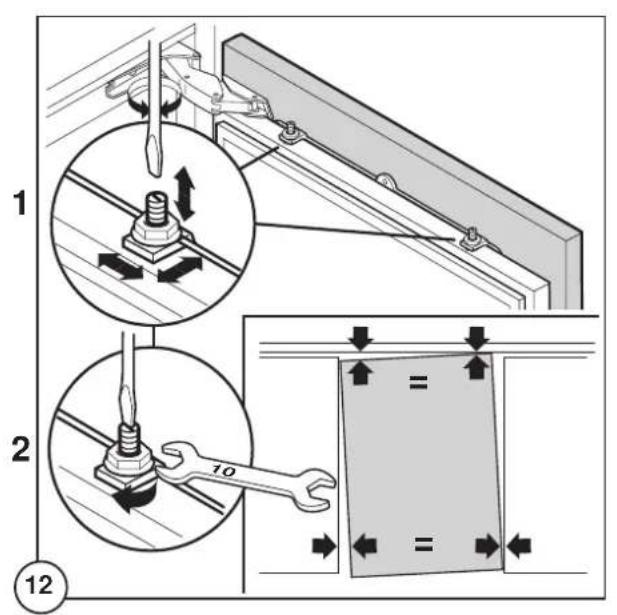

1 2 10 12

1. Refit the covering strip (A).

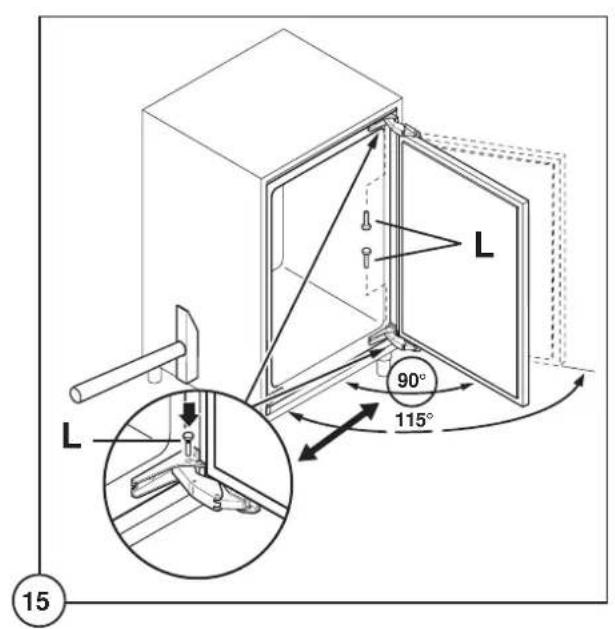

L 90° 115° L 15

8 mm F G I K 13

Fitting the plinth

Important

For the efficient operation of the appliance, it is important that the original ventilation grid is used.

• For an opening height dimension A=820 mm and a plinth height dimension a=100 mm, the plinth may be fitted without adjustments. The same applies to an opening height dimension B=890 mm and a plinth height dimension b=170 mm.
• For plinth heights greater than a=100 mm, b=170 mm, a cut should be made in the plinth, 580 mm wide, in the centre of the appliance position, leaving a remaining height of a=100 mm, b=170 mm.
• Attach plinth to the kitchen units.

A=820 B=890 a=100 b=170 580 25-80 25 DO008b

Important

The plinth must be positioned at a minimum distance of 25 mm from the door.

The Electrolux Group. The world's No.1 choice.

The Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
