USER MANUAL WKS72B PKM

Front view of a modern stainless steel double-harper refrigerator with blue-lit lighting and control knobs (no visible text or symbols)

Deutsch

English

Seite 2

Page 17

Simple line drawing of a rectangular container with horizontal bars and an arrow indicating upward motion (no text or symbols)

6

PROBLEMBEHANDLUNG

6

FEHLER

MÖGLICHE URSACHE

MASSNAHMEN

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

INDEX

1.	Safety instructions	17	2.	Climatic classes	21
3.	Installation	21	4.	Operation	22
5.	Cleaning and maintenance	24	6.	Trouble shooting	25
7.	Decommissioning	27	8.	Technical data	28
9.	Waste management	29	10.	Guarantee conditions	30

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
i The appliance is intended for cooling wine in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructe concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.

2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. Do not install the appliance near of volatile or combustible materials(e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).
3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.
5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
6. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
7. Do not use a socket board or a multi socket when connecting the appliance to the mains.
8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.
13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
14. Disconnect the appliance from the mains before you clean or maintain it.
15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
16. Do not put any heat-radiating appliances onto your appliance.
17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
21. Children must never play with the appliance.
22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time
2. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45^0 .

3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

4. Leave the appliance in an upright position for 4-6 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

2

CLIMATIC CLASSES

2

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	c.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3

INSTALLATION

3

→ Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.

6. Protect the appliance from direct sunlight.

7. The doors must open completely and without hindrance.

8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is situated inside the appliance or at the back.

4

OPERATION

4

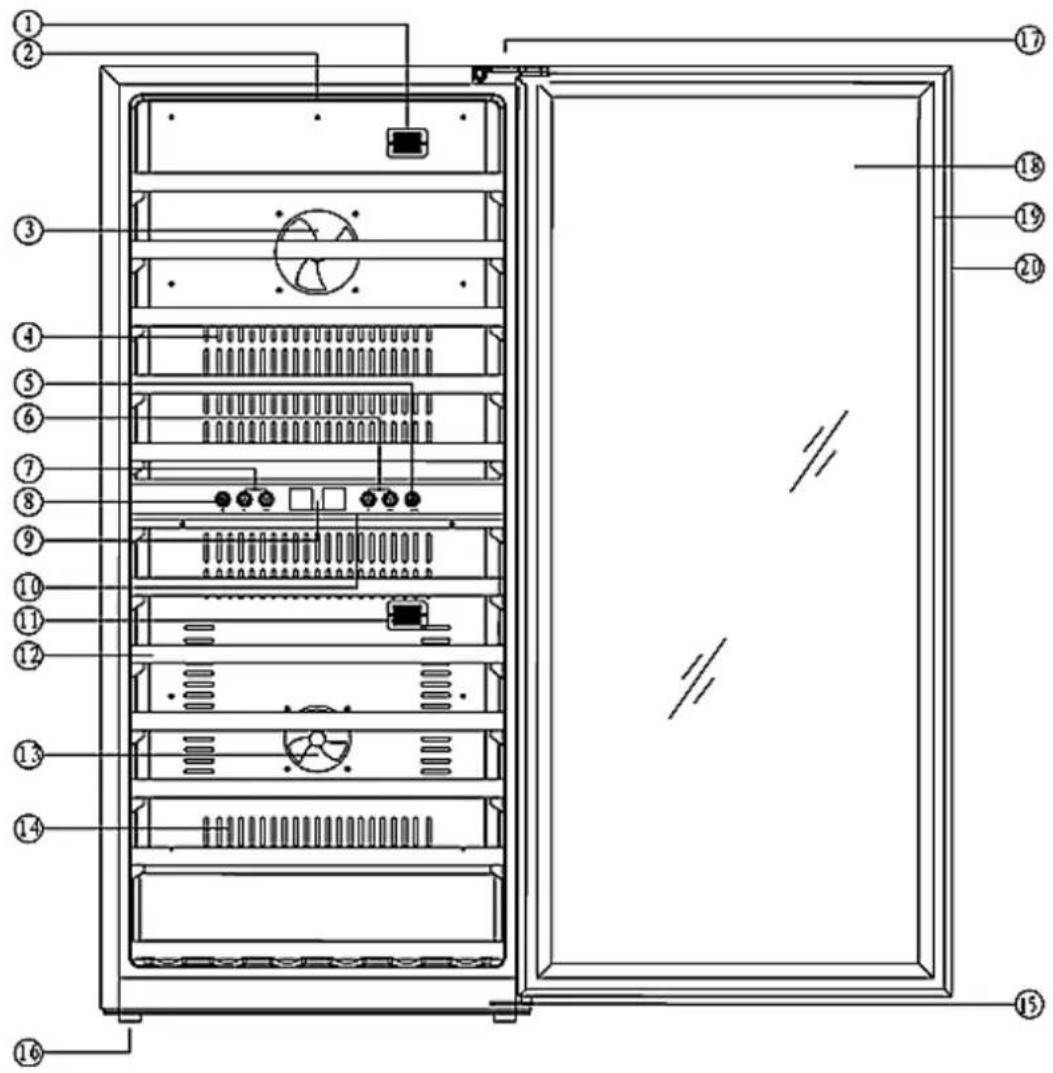

1. NTC point/upper compartment

2. Light/upper compartment

3. Fan/ upper compartment

4. Exhaust window

5.	Light switch	6.	Temperature/lower compartment
7.	Temperature/ upper compartment	8.	Change between ^0C/^
9.	Temperature display	10.	Light/ lower compartment
11.	NTC point/ lower compartment	12.	Shelf
13.	Fan/ lower compartment	14.	Exhaust window
15.	Lower hinge	16.	Foot
17.	Upper hinge	18.	Glass pane
19.	Door seal	20.	Handle

Before initial operation

1. Leave the appliance in an upright position for 4-6 hours before you connect it to the mains.
2. Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chapter CLEANING AND MAINTENANCE).
3. If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 4.
4. The appliance must be connected to the mains properly.
5. Allow the appliance to stabilize the temperature for approx. 24 h before use.
6. Do not overfill the appliance

Temperature setting

⚠ WARNING! The LED-illuminant must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional (not covered by the guarantee).

⚠NOTICE! This product contains a LED light source of energy efficiency class G according to EU-Regulation 2019/2015.

➢ Set the temperature using the ▲ and ▼ buttons by 1^0 within a range of 5^0 to 10^0C (upper compartment) or 10^0 to 18^0C (lower compartment).
➢ Switch on/off the internal light using the LIGHT-button.
➢ Select degrees Celsius or degrees Fahrenheit using the ^0 C/ ^0 F-button
➢ Flashing LCD = Setting mode of the temperature.
▶ Constant LCD = Cooling temperature.

Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.

b. the doors close properly.

c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

Helpful hints/energy saving

❖ Try opening the door as little as possible, especially when the weather is warm and humid. When you open the door, close it as soon as possible.
- Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
◆ Disconnect the appliance from the mains if you do not operate it.
◆ Always keep the door seals clean and in a proper condition.

5

CLEANING AND MAINTENANCE

5

1. ⚠WARNING! Disconnect the appliance from the mains before you clean or maintain it.

2. Always keep the appliance clean so that unpleasant odours do not occur.

3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.

4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

1. Do not use any harsh, abrasive detergents.

2. Do not use any aggressive detergents.

3. Do not use any solvents.

External cleaning

1. Use a moist cloth and a mild, non-acrid detergent.

2. Use clear water to rinse.

3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the other removable parts with warm water and a mild, non-acrid detergent.

2. Use clear water to rinse.

3. Dry the cleaned surfaces with a cloth.

4. Clean the interior with water and a mild, non-acrid detergent.

5. Use clear water to rinse.

6. Dry the cleaned surfaces with a cloth.
7. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acrid detergent.

How to move the appliance

1. Remove all bottles.
2. Securely tape down all loose items inside the appliance.
3. Turn the levelling feet up to the base to avoid damage.
4. Tape the door.
5. The appliance must be moved in upright position.

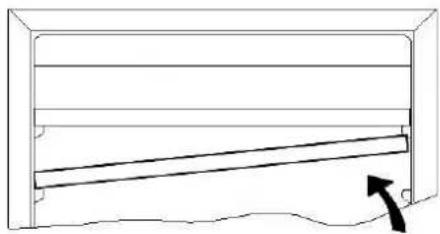

How to move the shelves

1. Open the door completely before you pull out the shelves to avoid damaging the door seal.
2. For easy access to the storage content, pull the shelves approx. 1/3 out. A notch on both sides of the tracks protects bottles from falling down.
3. When you want to remove/insert a shelf, hold it tilted (see below).

Simple line drawing of a rectangular container with horizontal lines and a curved arrow indicating direction (no text or symbols)

6

TROUBLE SHOOTING

6

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

Unsatisfactory cooling capacity.

The door was frequently opened.
The door is not properly closed.
The appliance is overfilled.
The door seals are damaged.

▶ Close the door properly.

Do not overfill.

Replace the seal.

No LCD display.

▶ Main control board is defective.

▶ PCB is defective.

Plug is defective.

▶ Contact the aftersales service.

LCD indicates error.

▶ LED is defective.

➢ Temperature cannot be determined.

▶ Contact the aftersales service.

Unusual noise.

The appliance is not installed on a level, dry and solid floor.

The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

▶ Realign the appliance.

➢ Readjust the appliance.

▶ Realign the bottles

Remove these items.

Some items have dropped behind the appliance.

The door does not close properly.

The appliance is not installed on a level, dry and solid floor.

▶ Door seal is defective.

Shelves are not inserted properly.

▶ Realign the appliance.

➢ Insert the shelves properly.

Control buttons do not work.

▶ Control panel is defective.

▶ Contact the aftersales service.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.

i

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.

Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.

The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below certain level the appliance will operate with high power to reach the preset

temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

7

DECOMMISSIONING

7

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.

3. Dry the inside of the appliance with a cloth and leave the door open for a few days.
   ➢ While away on an average vacation/holiday (14-21 days):

4. Do the same as described above, or

5. let the appliance operate.

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

▶ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter 12.

Technical Data*

Model	Wine cooler
Climatic class	SN-N
Energy labelling**	B
Temperature sections	2
Annual energy consumption in kW/h***	144.00
Max. capacity / bottles	52
Temperature adjustable from -to	5^-10^/10^-18^
Display	digital LCD
Temperature control	Touch control
Noise emission	41 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Door with tempered safety glass	yes
Reversible door	no
Adjustable feet	yes
Defrosting	automatically
Internal light****	bluc/LED
Storage levels / material	11	Wood
Dimensions appliance H/W/D in cm	127.50	49.50
Dimensions packing H/W/D in cm	132.50	56.00
Weight net / gross in kg	56.00	61.00

◆ Technical modifications reserved.

*	According to regulation (EU) No. 2019/2016
**	On a scale from A (highest efficiency) to G (lowest efficiency).
***	Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.
****	This product contains a LED light source of energy efficiency class G according to EU-Regulation 2019/2015.

9

WASTE MANAGEMENT

9

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 07/21/2021
