USER MANUAL Sports AF03003B ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

WARNING

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.

CAUTION

④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person sweeping or cleaning a surface (no text or symbols)

(5) Temperature

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

In environments below and above normal temperatures ( 5^ C- 35^ C), the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About accessory parts

CAUTION

Do not attempt to disassemble or modify this product.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some watch have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some products employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This watch is an automatic winding mechanical watch (with a hand winding mechanism).
(2) In addition to showing the time, this watch has a date indicator and power reserve indicator.
(3) It comes with a second hand halt mechanism.
(4) Shock-proof bearings to protect the balance with hairspring from shocks.

◆ SPECIFICATIONS

(1) Functions: hour/minute/second hands, date and power reserve indicator
(2) Vibrations : 21,600 vibrations / hour
(3) Daily accuracy: +25sec. to -15 sec.
(4) Drive system : Mainspring Winding (Hand-winding)
(5) Number of jewels : 22 jewels
(6) Running time : More than 40 hours

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
• Due to the characteristics of the automatic winding watch, the time may deviate from the stated “daily accuracy” depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.
• Determine the deviation from not just a day but a period of about a week.

Product specifications may change without notice, for improvement.

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

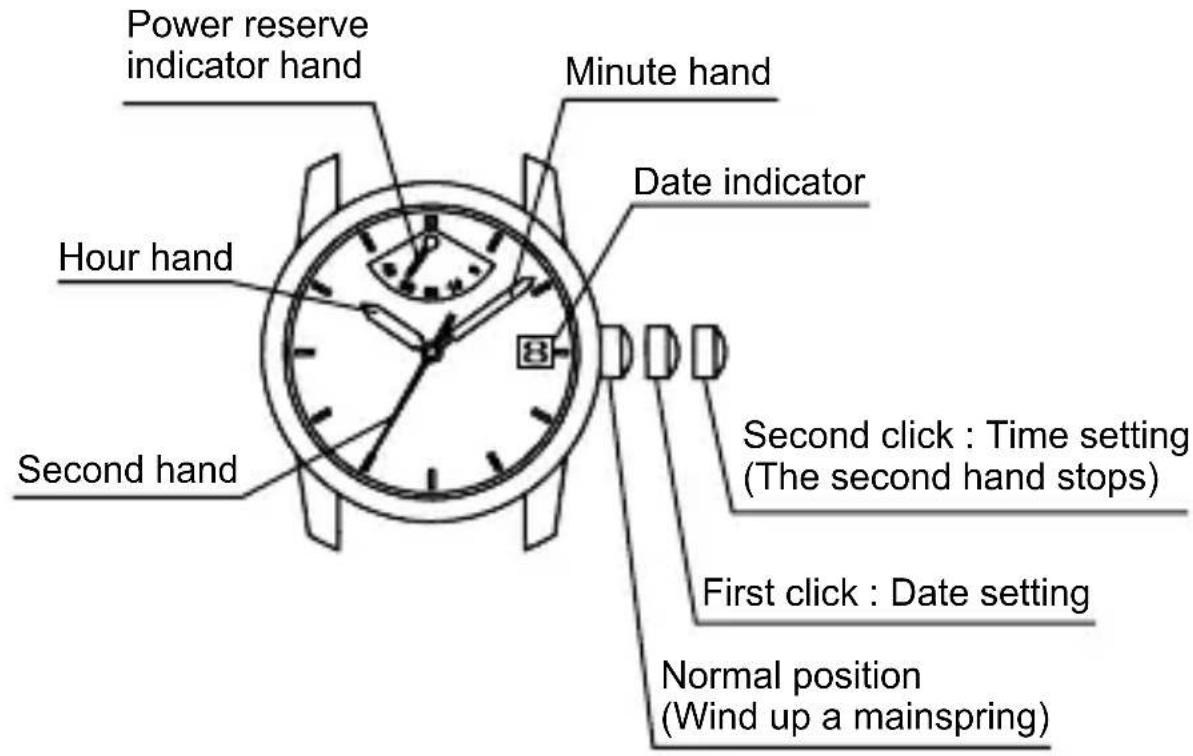

Power reserve indicator hand Minute hand Date indicator Hour hand Second hand Second click : Time setting (The second hand stops) First click : Date setting Normal position (Wind up a mainspring)

* The position of the crown and the power reserve indicator hand may differ depending on the model.

◆ AUTOMATIC AND HAND WINDING MECHANISM

(1) This is an automatic winding mechanical watch (with a hand winding mechanism).
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.

In addition, you can also wind the mainspring by turning the crown.

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

(3) If your watch stops, either swing the watch back and forth ten or more times or turn the crown to wind the mainspring in order to restart the second hand.

After it starts moving, set the calendar and time.

(4) When winding the mainspring, slowly turn the crown to the right (clockwise) while in its normal position.

Turning the crown to the left (counterclockwise) merely turns the crown uselessly and does not wind the mainspring.

You can wind the mainspring fully by turning the crown to the right about 30 times from a stopped position.

The crown can still be turned after the mainspring is fully wound. Either use the above count or use the markings on the power reserve indicator when winding the watch.

(5) Even if the mainspring is fully wound, it will not be over-wound due to the slip mechanism.
(6) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown counterclockwise to loosen the screw lock.
(2) After setting the date and time, turn the crown clockwise while pressing in, until it stops turning to securely tighten the screw.

◆ HOW TO SET THE TIME & CALENDAR [How to set the time]

(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position. (The second hand stops.)

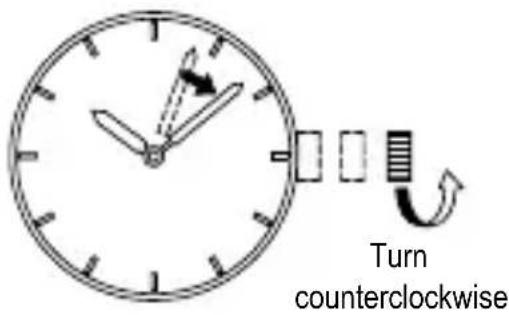

(2) Turn the crown counterclockwise and set the current time.

* When setting the time, first bring the hand back slightly earlier than the actual time and then move it forward to the actual time.

* For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].

(3) Press the crown in to the normal position.

Diagram of a clock face with hour and minute hands, showing a segmented object and directional arrow

Turn counterclockwise

Simple analog clock face with hour and minute hands, showing time approximately 2:30 (no text or symbols beyond clock face markings)

[How to set the date]

Avoid setting the date between 8:00 p.m. and 2:00 a.m. since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

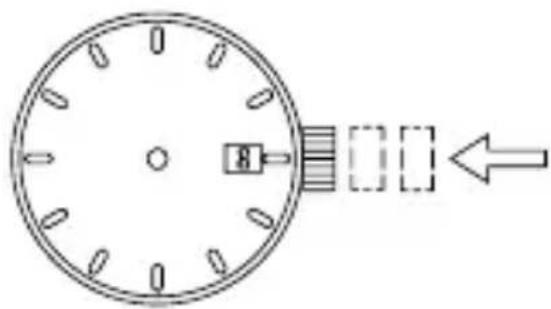

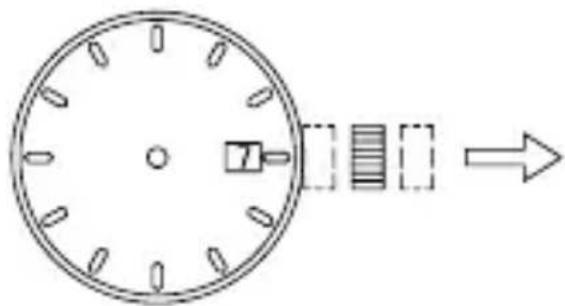

(1) Pull the crown out to the first click.

* The crown on this watch can be pulled out to either of two clicks.

Diagram of a circular dial with internal components and an arrow indicating direction (no text or symbols)

(2) Turn the crown counterclockwise, and set the date to that for the current day.

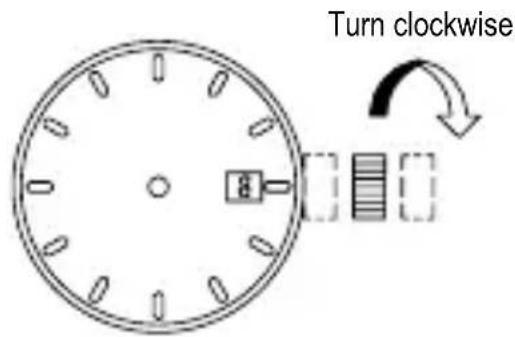

Turn clockwise 8

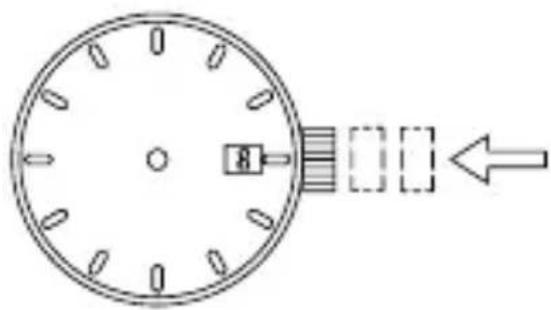

(3) Push the crown back to the normal position.

8

** Correcting the date at the end of the month

The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].

◆ POWER RESERVE INDICATOR

The power reserve indicator shows how much the watch is wound, allowing you to see how much longer the watch will run at a glance. The time pointed to by the power reserve hand is the remaining time.

When the power reserve hand indicates the 40 or F mark, the mainspring is fully wound.

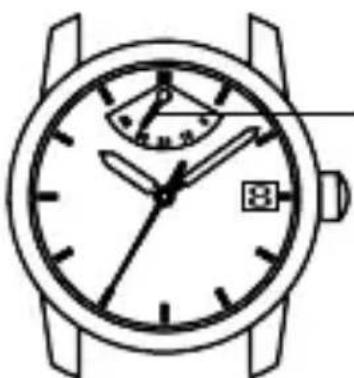

Line drawing of a wristwatch with analog dials and frame (no text or symbols)

Power reserve indicator hand

* The remaining time shown is only an approximation. The time shown may be different from actual remaining time.

This product is also equipped with an automatic winding function. When it is worn on the wrist, the movement of the arm will wind the mainspring.

The amount that the mainspring is wound will depend on the movement of the arm.

If you do not wind, the power reserve hand will move toward zero as time passes.

◆ USING THE ROTATING INDICATOR RING

Please notice that some models come with a rotating indicator ring, which should be used properly.

Turn the ring by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator ring. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the ring reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the ring could also help you to read the current time easily.

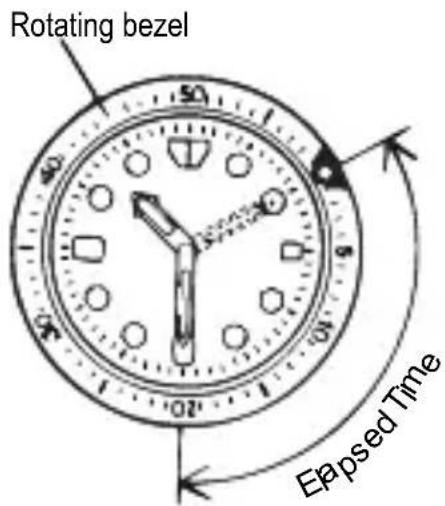

Rotating bezel Eapsed Time

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator ring does not apply to some models.

◆ HOW TO USE THE INTERNAL ROTATING INDICATOR RING

Please notice that some models come with an internal rotating indicator ring, which should be used properly.

Turn the crown for the internal rotating indicator ring to set the ▽ - mark to the position of the minute hand.

The position of the internal rotating indicator ring to which the minute hand is pointing after some time has elapsed indicates the elapsed time.

Setting the mark to the desired time also allows you to know the remaining time.

- mark 05 06

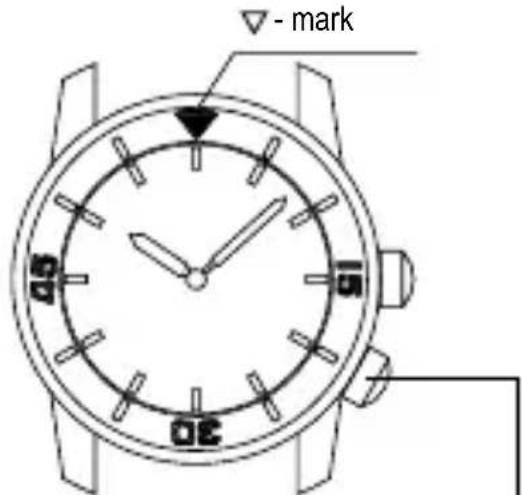

Crown for the internal rotating indicator

e up 1 pesal 08 09 10

The above figure shows that 10 minutes have elapsed since 10:08.

* The positions of the crown and the appearance of the internal rotating indicator ring may differ depending on the model.

DEUTSCH

MECHANISCHE UHR MIT GANGRESERVEZEIGER

UND AUTOMATISCHEM SOWIE HANDAUFZUG

< AF (F6N)>

BEDIENUNGSANLEITUNG

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(5) Temperatur

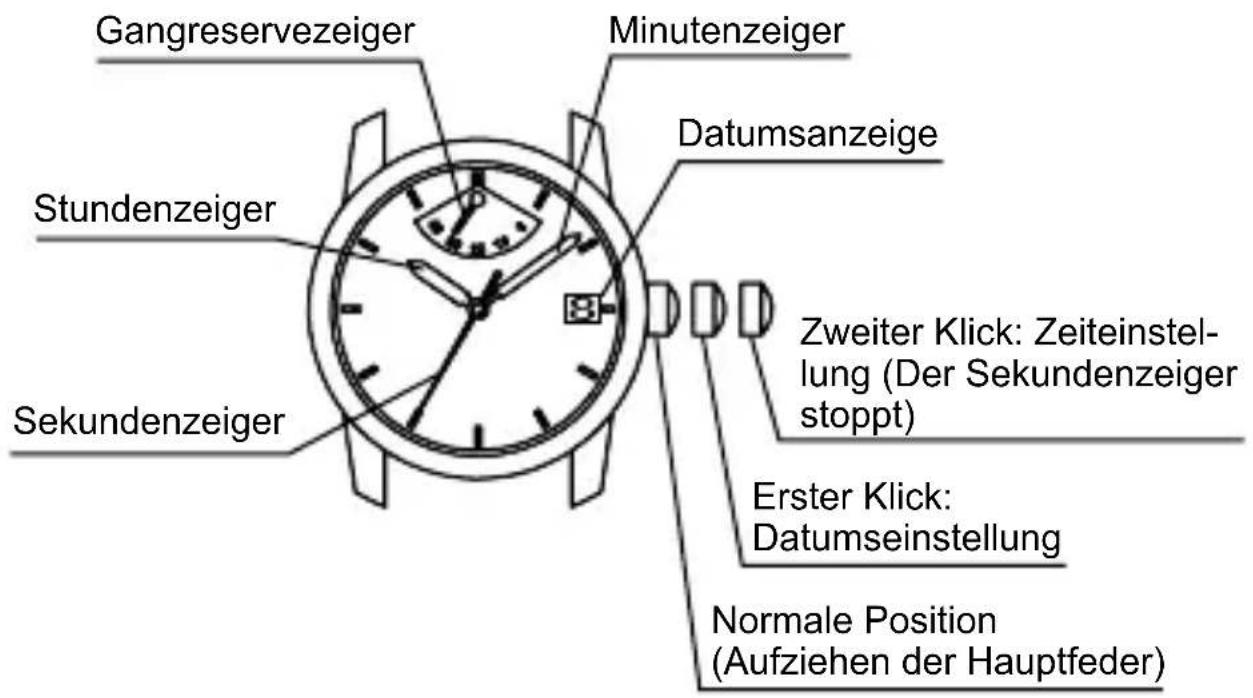

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Diagram showing a clock face with an arrow pointing right, indicating time measurement or navigation.

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Diagram of a circular object with internal components and an arrow indicating direction (no text or symbols)

Diagram of a circular mechanical component with internal components and an arrow indicating direction (no text or symbols)

Technical diagram of a wristwatch with dial and front panel, showing measurement markings and pointer

Gangreservezeiger

Simple line drawing of a person using a golf club to dig (no text or symbols)

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperatura

Hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Diagram of a clock face with an arrow indicating rightward movement, showing time measurement and directional arrow.

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Diagram of a circular mechanical component with internal components and an arrow indicating direction (no text or symbols)

Diagram showing a circular dial with a small square labeled '6' and an arrow indicating rotation or change.

Diagram of a circular dial with a pointer and directional arrow, no text or symbols present

Diagram of a wristwatch with dial and front panel, showing measurement markings and a labeled '图' (Figure)

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperaturas

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Diagram of a clock face with hour and minute hands, showing time measurement and directional arrow

Analog clock face showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

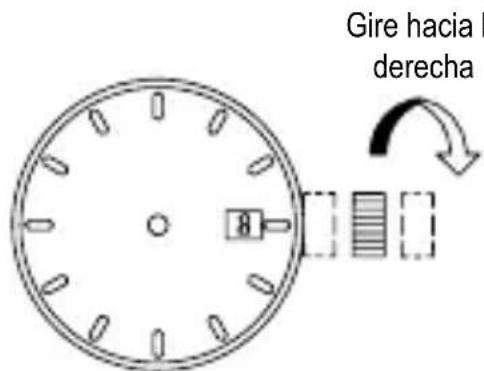

[Ajuste de la fecha]

PRECAUCIÓN

Diagram of a circular dial with internal components and an arrow indicating direction (no text or symbols)

ESPAÑOL

Diagram of a circular dial with internal components and an arrow pointing right (no text or symbols)

Line drawing of a wristwatch with dial and wrist strap (no text or symbols)

90° Temp to transco

Cartoon illustration of a person riding a tricycle with motion lines indicating speed (no text or symbols)

(5) Температура

Simple line drawing of a person using a golf club to dig (no text or symbols)

Hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

Diagram showing a clock face with hour and minute hands, followed by a rightward arrow indicating time or duration.

Simple analog clock face with hour and minute hands, showing time approximately 2:30 (no text or symbols beyond clock face markings)

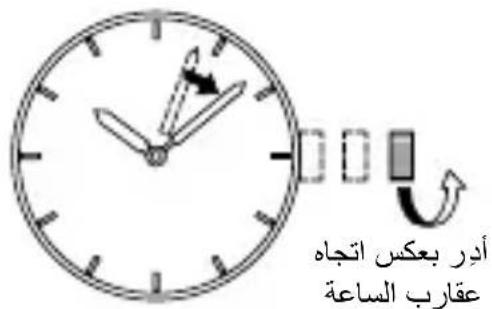

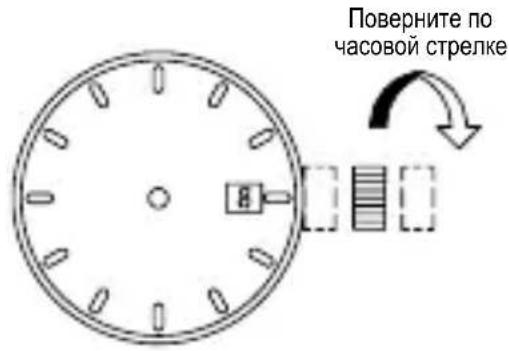

[Установка даты]
