Classic RA-KA0004L - Watch ORIENT - Free user manual and instructions

Product Type	Analog Quartz Watch
Movement	Crystal oscillator (32,768 Hz)
Accuracy	Mean monthly rate: ±20 seconds (at normal temperature 5°C–35°C)
Operating Temperature Range	-5°C to +50°C
Drive System	Step motor
Battery	SR920SW (1 piece)
Battery Life	Approximately 3 years from insertion of new battery
Functions	Time (hour, minute, second hands), Date (hand), Day of week (hand), 24-hour Sun & Moon disk, Second hand halt mechanism, Date quick setting
Water Resistance	Check dial or caseback for rating; not all models are water resistant. Refer to manual for usage limits.
Crown	Two positions (first click: date setting; second click: time setting). Some models have screw-down crown.
Bezel	Rotating indicator bezel (on some models) for elapsed time measurement; may have anti-reverse mechanism.
Maintenance	Keep away from strong magnetism, extreme temperatures, chemicals; avoid shock; clean with soft dry cloth; replace battery at authorized center.
Safety	Do not ingest battery; keep away from children; stop wearing if skin irritation occurs.
Spare Parts & Repairability	Contact ORIENT authorized service center for battery replacement and repairs.
General Information	Brand: ORIENT; Model: Classic RA-KA0004L; Category: Watch; Manual available in multiple languages.

Frequently Asked Questions - Classic RA-KA0004L ORIENT

How do I set the time on my ORIENT Classic RA-KA0004L?

Pull the crown out to the second click (when the second hand is at 12 o'clock) to stop the second hand. Turn the crown to set the current time, ensuring AM/PM is correct using the 24-hour Sun & Moon disk. Push the crown back to normal position.

How do I set the date?

Do not set the date between 11:00 PM and 4:00 AM as the date is changing. Pull the crown to the first click and turn it counterclockwise to adjust the date. Push the crown back.

Is my watch water resistant?

Water resistance depends on the specific model. Check the dial or caseback for markings like 'WATER RESIST' or depth ratings (e.g., 50m). The manual provides usage limits for different water resistance levels. Always keep the crown pushed in and do not operate underwater.

How often should I replace the battery?

The battery life is approximately 3 years from insertion. When the watch stops or runs slow, replace the battery at an ORIENT authorized service center. Do not attempt to replace it yourself.

What should I avoid to prevent damage to my watch?

Avoid strong magnetic fields (e.g., MRI machines, speakers), extreme temperatures (below -5°C or above +50°C), chemicals (solvents, perfumes), and strong shocks (dropping or high-impact sports). Also avoid operating the crown when the watch is wet.

Why is there fogging inside the glass?

Temporary fogging can occur when the outside air is cooler than the internal temperature. If it clears quickly, it's harmless. If it persists or water enters, contact a service center immediately.

How do I use the rotating bezel?

If your model has a rotating bezel, turn it so the ▽ mark aligns with the minute hand. You can then read elapsed time by the distance between the minute hand and the bezel markings. Some bezels have a 1-minute click and anti-reverse mechanism.

Can I swim with my ORIENT Classic RA-KA0004L?

Only if your watch has a water resistance rating of at least 50m (5 bar) for swimming, or 100m (10 bar) for skin diving. Check your watch's markings. Non-water resistant or 30m (3 bar) watches are not suitable for swimming.

What is the luminous light on the hands and dial?

The luminous light is a safe paint that stores sunlight and artificial light without radioactive materials. It emits light in darkness. The brightness and duration depend on light exposure and paint thickness.

My watch is running fast/slow. What should I do?

Temporary speed changes can occur due to magnetism. Move the watch away from magnetic sources; accuracy should return. If the problem persists, the watch may need adjustment. Contact an ORIENT service center.

USER MANUAL Classic RA-KA0004L ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× × × ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× × ×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○ ○		×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○ ○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○ ○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

n the

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This is an analogue crystal oscillator watch.
(2) The current time is indicated by the hour, minute and second hands.
(3) The date and day of the week are indicated by hands. 24-hour time (Sun & Moon) is indicated by disk.

◆ SPECIFICATIONS

(1) Crystal oscillator frequency ... 32,768 Hz (Hz = Oscillations per second)
(2) Wrist-worn accuracy ... Mean monthly rate: ±20sec.
(at normal temperature <5^ 35^> )
(3) Operating temperature range ... -5^ to +50^
(4) Drive system ... Step motor
(5) Additional functions ... Second hand halt mechanism, Date
quick setting function
(6) Battery ... SR920SW ; 1 piece
(7) Battery life ... Approximately 3 years from insertion of
a new battery

* The above specifications may change without notice for improvement.

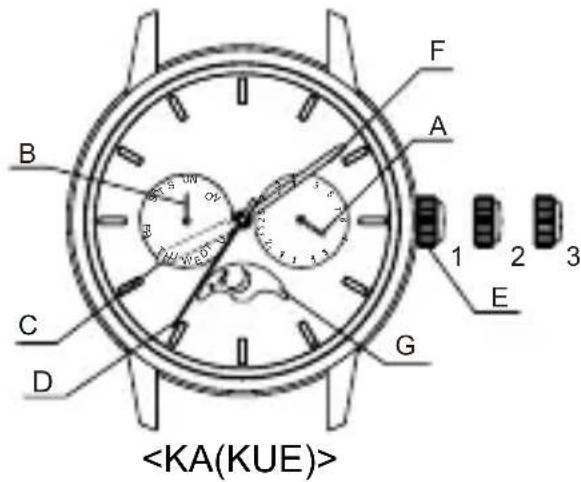

◆ NAMES OF INDIVIDUAL COMPONENT PARTS

A. Date hand
B. Day hand
C. Hour hand
D. Second hand
E. Crown
F. Minute hand
G. 24-hour time (Sun & Moon) disk

1. Normal position
2. First click: Date setting
3. Second click: Time setting

* The position of date, day of the week hands, 24-hour time (Sun & Moon) disk, and crown differ on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Some models have a screwed-down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise and loosen.
(2) After time setting and calendar setting are completed, turn the crown clockwise and tighten.

◆ HOW TO SET THE TIME AND CALENDAR

[How to set the time]

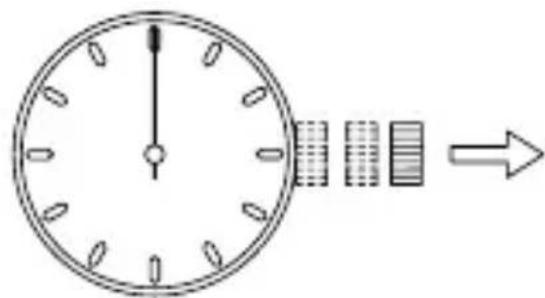

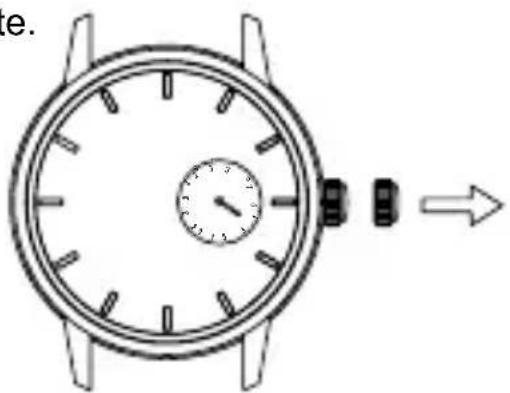

(1) Pull out the crown to the second click when the second hand is at the 12 o'clock position. The second hand stops on the spot.

Diagram showing a clock face with an arrow pointing right, indicating time measurement or adjustment.

(2) Turn the crown and set the current time.

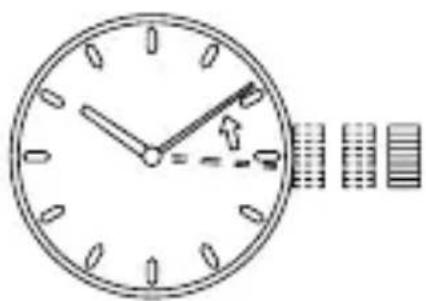

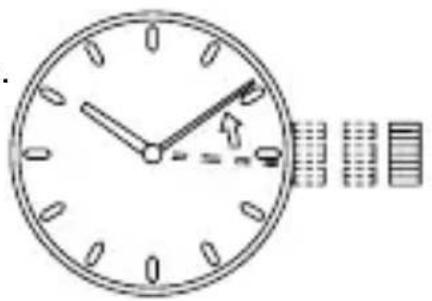

* This watch features a calendar function. When setting the hour hand, check that AM/PM is set correctly. The date changes at "0:00 a.m.". Check AM or PM with the 24-hour time (Sun & Moon) disk.

Diagram of an analog clock showing time with hour and minute hands, alongside a segmented ruler for scale.

* When setting the time, first advance it 4 to 5 minutes ahead of the desired time, and then turn it back to the exact time. * Depending on design, 24-hour time (Sun & Moon) disk does not apply to some models.

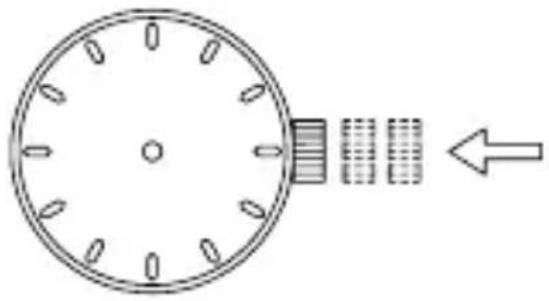

(3) Push the crown back in to the normal position.

Diagram of a circular mechanical component with internal slots and an arrow indicating direction (no text or symbols)

[How to set the date]

* Do not set the date during the time period noted below because the date is changing.

11:00 p.m. to 4:00 a.m.

If date is set during this time period, the date may not change properly on subsequent days.

Avoid this time period when setting the date.

(1) Pull out the crown to the first click.

* The crown on this watch has two click positions.

Top-down view of a wristwatch with analog dials and a directional arrow (no text or symbols)

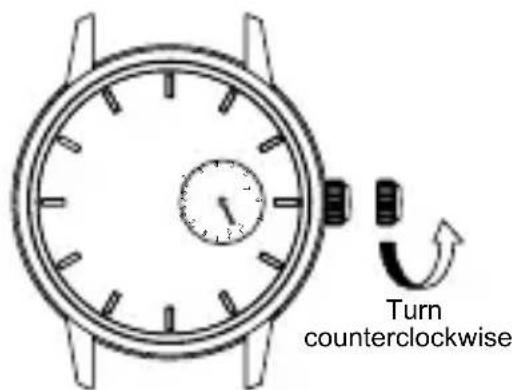

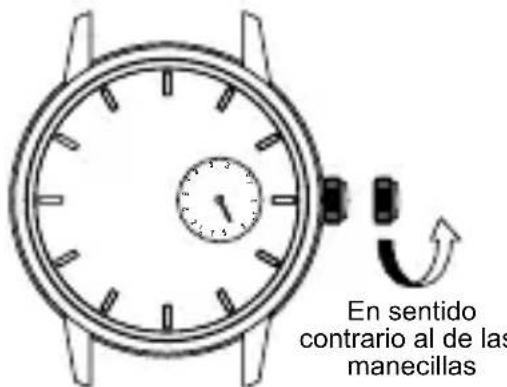

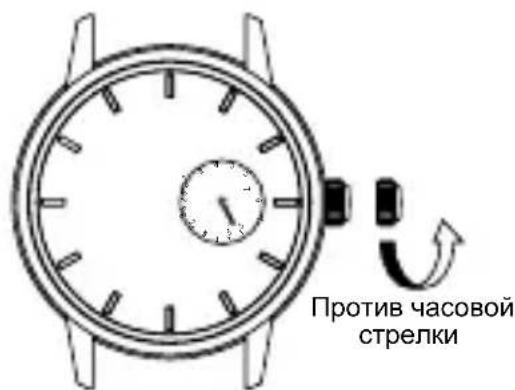

(2) Turn the crown counterclockwise and adjust the date.

Turn counterclockwise

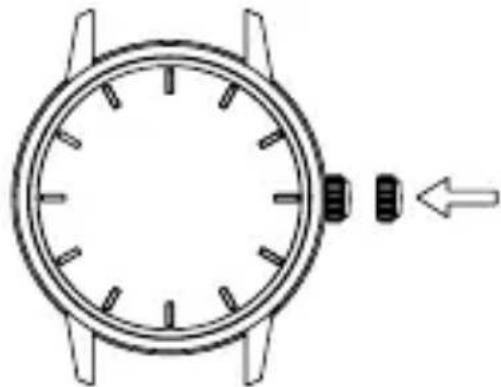

(3) Push the crown back in to the normal position.

* The position of date, day of the week hands, 24-hour time (Sun & Moon) disk and crown differ on some models.

* About date correction at month's end: Date correction is necessary for months

Diagram of a wristwatch with a circular dial and a separate button, showing no text or symbols.

with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

[24-hour time (Sun & Moon) disk]

The 24-hour time (Sun & Moon) disk is interlocked with the hour hand and cannot be adjusted individually.

[Day of the week]

The day of the week hand is interlocked with the hour hand and cannot be adjusted individually.

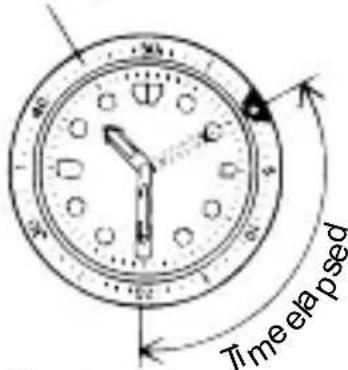

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

Rotating indicator bezel

Time elapsed

The above shows that 20 minutes have elapsed from 10:10.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong

operation by force or shock. Figures on the bezel could also help you to read the current time easily.

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR-CHRONOGRAPH

MULTIFUNKTIONAL

BEDIENUNGSANLEITUNG

Simple line drawing of a person riding a tricycle with motion lines indicating speed (no text or symbols)

(7) Temperatur

Diagram showing a clock face with an arrow pointing right, indicating time progression or measurement.

Diagram of an analog clock showing time and duration with a hand pointing to the 10:30 mark, alongside a ruler for scale.

Diagram of a circular mechanical component with internal components and an arrow indicating direction (no text or symbols)

Top-down view of a wristwatch with a dial and wrist strap, showing no text or symbols on the dial itself.

Diagram of a circular mechanical device with internal components and an arrow indicating direction (no text or symbols)

Simple line drawing of a person using a golf club to dig (no text or symbols)

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperaturas

Diagram showing a dial with an arrow indicating rightward movement, likely representing time or duration.

Diagram of an analog clock showing time with hour and minute hands, alongside a segmented ruler for scale.

Diagram of a circular mechanical component with internal components and an arrow indicating direction (no text or symbols)

[Cómo ajustar la fecha]

11:00 p.m. to 4:00 a.m.

Top-down view of a wristwatch with analog dials and a directional arrow (no text or symbols)

Diagram of a circular mechanical watch with a fastener and directional arrow indicating motion (no text or symbols)

[Disco de 24 horas (sol y luna)]

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Температура

Diagram showing a clock face with an arrow pointing right, indicating time measurement or direction.

Diagram of an analog clock showing time with hour and minute hands, alongside a segmented ruler for scale.

Diagram of a circular mechanical component with internal slots and an arrow indicating direction (no text or symbols)

Top-down schematic of a wristwatch with a circular dial and directional arrow (no text or symbols)

Diagram of a wristwatch with a circular dial and two buttons, showing no text or symbols

Analog clock face with Chinese characters indicating time and direction, showing hands and numerals.

Diagram of a circular watch with a directional arrow indicating left motion (no text or symbols)

Simple line drawing of a clock face with hour and minute hands (no numbers or text)

Diagram of a circular mechanical component with internal slots and an arrow indicating direction (no text or symbols)

Top-down view of a wristwatch with analog dials and a directional arrow (no text or symbols)

Diagram showing a clock face with an arrow pointing right, indicating time measurement or direction.

Simple line drawing of a person using a golf club to walk (no text or symbols)

(٤)prec#

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)
