Product Type	Analog quartz watch
Brand	ORIENT
Model	Contemporary RF-QD0003G
Movement	Quartz (caliber QD)
Accuracy	±20 seconds per month
Functions	Hour, minute, second hands; date display
Battery Type	SR920SW (1 piece)
Battery Life	Approx. 3 years
Operating Temperature Range	-5°C to +50°C
Water Resistance	Water resistant for daily life (splash proof)
Crown Type	Push/pull crown
Case Material	Stainless steel (standard)
Glass Material	Mineral crystal (standard)
Strap Material	Leather or metal (varies by model)
Dimensions	Case diameter approx. 40mm, thickness approx. 10mm (typical)
Weight	Approx. 70g (typical)
Maintenance	Wipe with a dry soft cloth; avoid chemicals
Safety	Keep away from strong magnetic fields; do not operate crown underwater
Reparability	Battery replacement by authorized service center only

Frequently Asked Questions - Contemporary RF-QD0003G ORIENT

How do I set the time on my ORIENT Contemporary watch?

Pull the crown out to the second click when the second hand is at 12 o'clock. Turn the crown to set the correct time, then push the crown back in.

How do I set the date on my watch?

Pull the crown out to the first click. Turn the crown clockwise to adjust the date. Avoid setting the date between 8:00 p.m. and 2:00 a.m. to ensure proper date change.

What is the battery life and battery type?

The watch uses a SR920SW battery with an approximate life of 3 years. When depleted, have it replaced by an authorized ORIENT service center.

Is my ORIENT watch water resistant?

Yes, it is water resistant for daily life. It can withstand splashes and rain but should not be submerged in water or used while swimming.

Can I swim with my watch?

No, this model is not suitable for swimming or diving. It is only water resistant for daily use.

How do I clean my watch?

Wipe the case and strap with a dry, soft cloth. Avoid using chemicals, solvents, or detergents as they may damage the watch.

What should I do if my watch stops?

First, check if the battery is depleted. If the watch has not been worn for a long time, it may need a new battery. Contact an authorized service center for battery replacement.

How does magnetism affect my watch?

Strong magnetic fields can cause the watch to run fast or slow temporarily. Keep the watch away from magnets, and if affected, accuracy will be restored once away from the field.

Can I wear my watch in a sauna?

No, high temperatures can damage the watch. Avoid wearing it in saunas or hot environments, as the heat may cause burns or malfunction.

How do I identify the caliber of my watch?

Check the 13-digit model number on the guarantee; the 4th and 5th digits indicate the caliber. Alternatively, look at the case code on the case back.

USER MANUAL Contemporary RF-QD0003G ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	○	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children. If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperature

In environments below and above normal temperatures ( 5^ C- 35^ C), the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 13-digit model number

Check the 13-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its fourth and fifth digits indicate the caliber number of your watch.

Example: If the model number is "RF-QA0001S10A", the caliber number is "QA".

2. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is “☐UN00001B☐”, the caliber number is “UN”.

3. Searching by the case code

See the case code on the case back of your watch like XXXX-XXXX or XXXX-XX.

The first two or three digits indicate the caiber number.

Example A : When the case code is "UN00-C0", the caliber number is "UN".

Example B : When the case code is "VT32-UAA0", the caliber number is "VT3**".

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.

* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

◆ SPECIFICATIONS

(1) Quartz frequency: 32,768 Hz (One-second frequency)
(2) Drive method: Step motor

<2-hands type>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Reset Switch	Battery	Battery Life (with new battery)
UA	HM0	±20sec -5°C	- +50°C	○	SR516SW 1piece	Approx. 3 years

<3-hands type>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions			Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator
QC Y1	21 ±20sec.	-5°C - +	50°C	○	○	—	SR626SW 1piece	Approx. 3 years
UB HM5	±20sec.	-5°C -	+50°C	○	○	—	SR521SW 1piece	Approx. 2 years

<2-hands type with Date Indicator>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions				Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device
GW JP	6 ±20sec.	-5°C – +50°C		○	—	—	○	SR920SW 1piece	Approx. 3 years

<3-hands type with Date Indicator>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions				Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device
QA	VT821 ±20sec.	-5°C	+50°C	○	○	—	○	SR621SW 1piece	Approx. 3 years
QD VT	321 ±20sec.	-5°C	+50°C	○	○	—	○	SR920SW 1piece	Approx. 3 years
SZ HE7	±20sec.	-5°C	+50°C	○	○	—	○	SR621SW 1piece	Approx. 3 years
UN HT7	±15sec.	-10°C	+60°C	○ ○	○ ○			SR920SW 1piece	Approx. 5 years

<3-hands type with Date and Day of the Week Indicator>

Caliber		Wrist-Worn Accuracy	Operating Temperature Range	Additional Functions					Battery	Battery Life (with new battery)
				Reset Switch	Second Hand Control	Battery End of Life Indicator	Date Forwarding Device	Day of the week Forwarding Device
UG	HS9	±20sec.	-5°C – +50°C	○ ○	○ ○	○			SR920SW 1piece	Approx. 5 years

* When worn around the wrist at 5°C to 35°C

Product specifications may change without notice, for improvement.

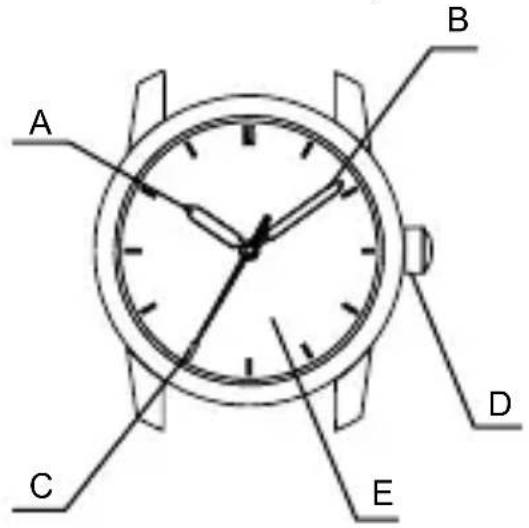

◆ NAMES OF INDIVIDUAL COMPONENT PARTS

A: Hour hand

E: Dial

B: Minute hand

F: Date

C: Second hand

G: Day of the week

D: Crown

<2 or 3-hands type>

* Some models may not have second hands.

A B C D E

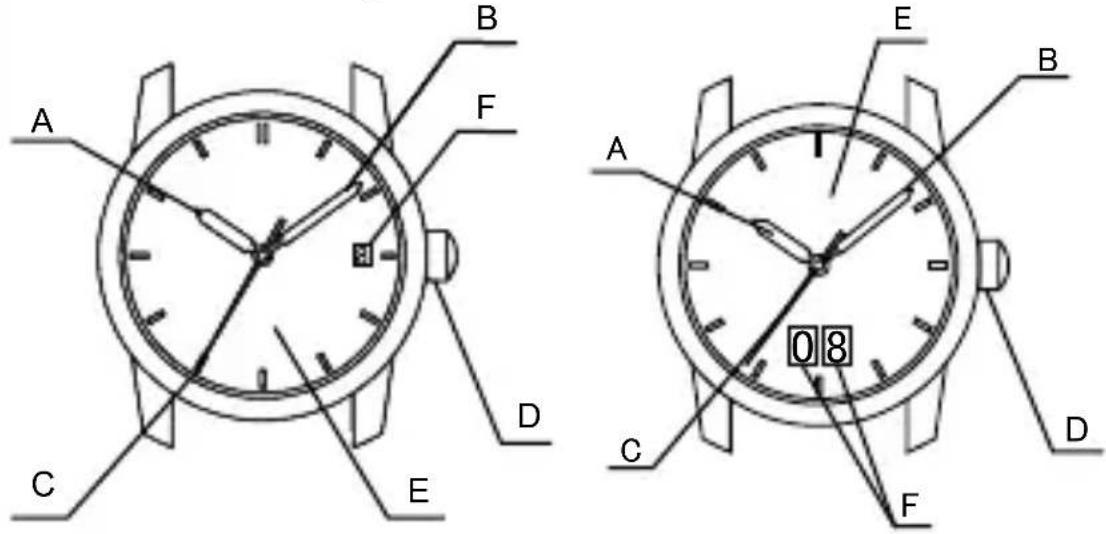

<2 or 3-hands type with Date Indicator>

* Some models may not have second hands.

A B F D C E E A T B C D 08

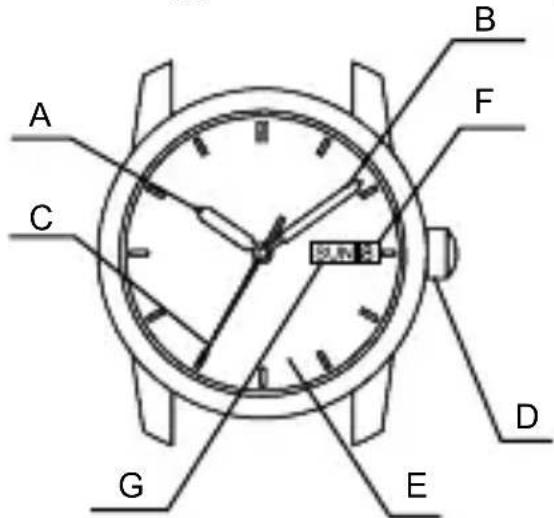

<3-hans type with Date and Day of the week Indicator>

A B C F D G E

* The position of the crown, date or day of the week indicator etc. may vary on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Some models have a screwed-down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise and loosen.
(2) After time setting and calendar setting are completed, turn the crown clockwise and tighten.

◆ HOW TO SET THE TIME

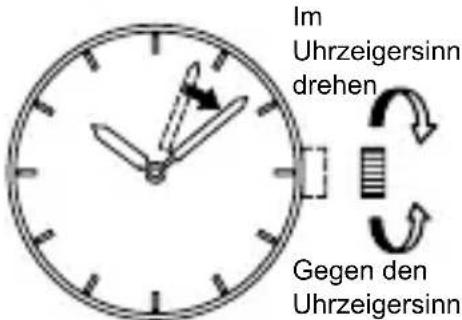

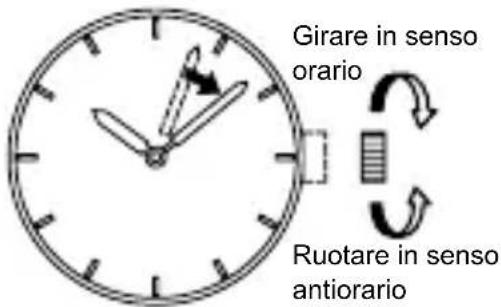

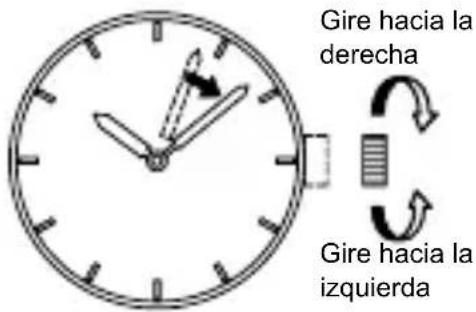

[2 or 3-hands type]

(1) Pull out the crown to the second click when the second hand is at the 12 o'clock position. The second hand stops on the spot.
* If your watch has only two hands, pull out the crown any time because it does not have the second hand.

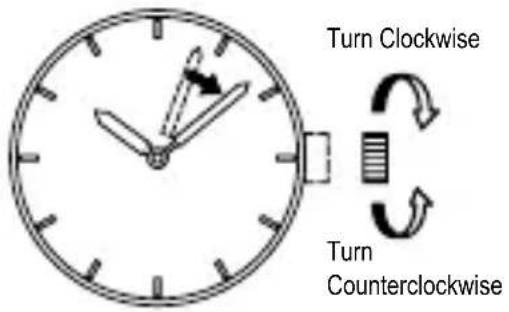

(2) Turn the crown and set the current time. * When setting the time, first advance it 4 to 5 minutes ahead of the desired time, and then turn it back to the exact time.

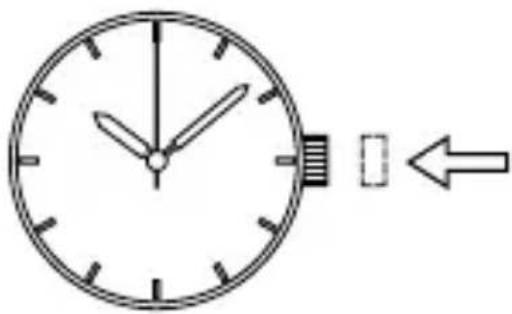

(3) Push the crown back in to the normal position.

Diagram showing a dial with an arrow indicating rightward movement, likely representing time or duration.

Turn Clockwise Turn Counterclockwise

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

◆ HOW TO SET THE TIME

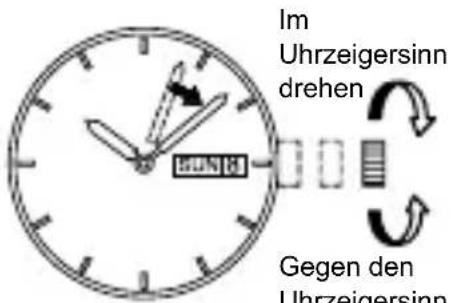

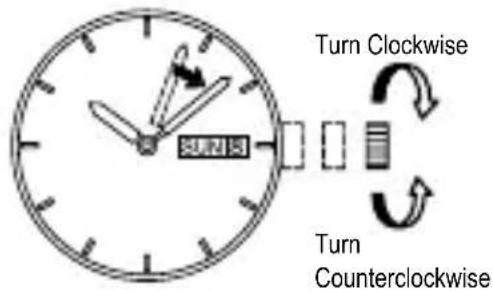

[with Date and Day of the week Indicator]

(1) Pull out the crown when the second hand is at the 12 o'clock position.

The second hand stops on the spot.

* If your watch has only two hands, pull out the crown any time because it does not have the second hand.

(2) Turn the crown to set the time.

* This watch features a calendar function. When setting the hour hand, check that AM/PM is set correctly. The date changes at "0:00 a.m.".

* When setting the time, first advance it 4 to 5 minutes ahead of the current time, and then turn it back to the exact time.

(3) Push the crown back in to the normal position.

2:30 →

Turn Clockwise Turn Counterclockwise

SUMMER

◆ HOW TO SET THE CALENDAR

* Do not set the date during the time period noted below because the date is changing.

Watch with the date indicator : 8:00 p.m. to 2:00 a.m.

Watch with the date and day of the week indicator :

8:00 p.m. to 5:00 a.m.

If date is set during this time period, the date may not change properly on subsequent days.

* Avoid this time period when setting the date.

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

THU R →

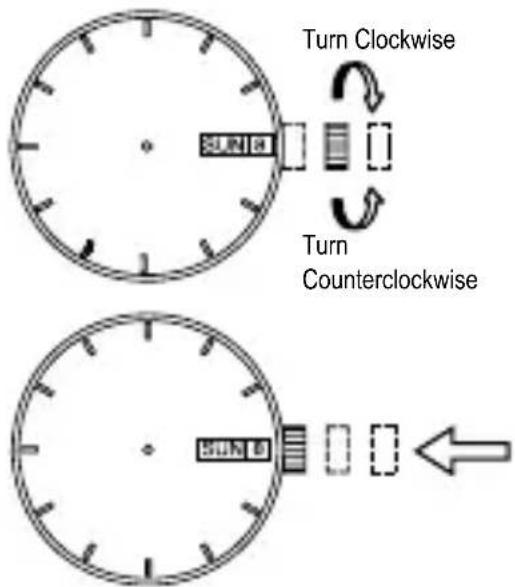

(2) Turn the crown to adjust the date and day of the week.

* On models with separate date indicators, the tens digit will increase by one whenever the ones digit changes from 9 to 0.
* For the crown turning directions, see the table below.
* Some watches may have crowns that rotate in the direction opposite that shown in the table below.

	Date Correction Day of the week Correction
Watch with Date Indicator Turn clockwise
Watch with Date and Day of the week Indicator	Turn counterclockwise Turn clockwise

* The day of the week can be displayed in two languages (only one language may be available depending on the product specifications). Select your desired language.

(3) Push the crown back in to the normal position.

* The position of date and crown differ on some models.
* About date correction at month's end: Date correction is necessary for months

Turn Clockwise Turn Counterclockwise SUN B SUN B

with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

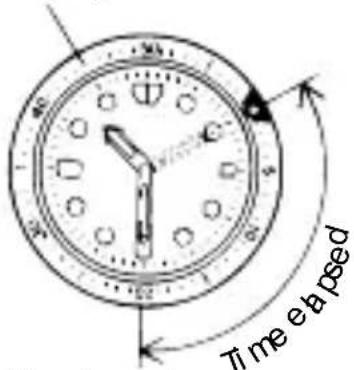

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating indicator bezel

Time elapsed

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR-CHRONOGRAPH

BEDIENUNGSANLEITUNG

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

Simple line drawing of a person riding a tricycle with motion lines indicating speed (no text or symbols)

(7) Temperatur

A B C F D G E

Simple analog clock face with hour and minute hands, showing time as the next close-up (no text or symbols)

Simple analog clock face with hour and minute hands, no text or symbols present

(3) Push the crown back in to the normal position.

SUN

DEUTSCH

Simple line drawing of a person using a tool to clean or dig (no text or symbols)

(5) Magnetismo

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperatura

A B C F D G E

Simple analog clock face with hour and minute hands, showing time as the next analog (no text or numbers)

Simple analog clock face showing 3 o'clock with hour and minute hands, next to a blank rectangular block (no text or symbols)

8:00 p.m. e l' 05:00 a.m.

Diagram showing a clock face with tick marks and a directional arrow, indicating measurement or navigation.

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperaturas

A B C F D G E

Simple analog clock face with hour and minute hands, showing time as the next analog (no text or numbers)

Simple line drawing of an analog clock face with hour and minute hands (no numbers or text)

◆ CÓMO AJUSTAR LA HORA

Diagram showing a clock face with an arrow pointing right, indicating direction or movement.

Simple line drawing of a person using a golf club to dig (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(7) Температура

A B C F D G E

Simple analog clock face with hour and minute hands, showing time as approximately 2:30 (no text or symbols beyond clock face markings)

Simple analog clock face showing 3 o'clock with hour and minute hands (no numbers or text)

◆ УСТАНОВКА ВРЕМЕНИ

5:30 SUN HI

Simple line drawing of a person using a golf club to walk (no text or symbols)

(5) 磁化

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(7) 温度

Simple analog clock face with hour and minute hands, no visible text or numbers

中支

(2) 转动表冠并设置当前时间。

Simple analog clock face with hour and minute hands, no text or symbols present

◆ 时间设置方法

[带日期和星期指示]

S.I.N. 13

Analog clock face with Chinese characters and a hand pointing to the 12:00 mark, showing time and duration.

Diagram showing a clock face with a pointer and an arrow pointing right, indicating direction or measurement.

Diagram of a analog clock face showing time and duration, with an arrow indicating rightward movement.

Diagram showing a clock with an arrow indicating leftward movement, alongside a partial image of a black square with a currency symbol.

Simple line drawing of a person using a golf club to walk (no text or symbols)

(٤)prec#

Cartoon illustration of a person riding a three-wheeled vehicle (no text or symbols)
