Smartphone 9.1 - Smartphone TESLA - Free user manual and instructions

Product Type	Smartphone
Brand	Tesla
Model	Smartphone 9.1
Dimensions (H x W x D)	160 x 75 x 8.5 mm
Weight	180 g
Display	6.5-inch AMOLED, 1080 x 2400 pixels
Processor	Octa-core 2.0 GHz
RAM	4 GB
Storage	64 GB, expandable via microSD up to 256 GB
Operating System	Android 11
Rear Camera	48 MP (main) + 8 MP (ultrawide) + 2 MP (depth)
Front Camera	16 MP
Battery	4000 mAh, Li-ion, non-removable
Charging	USB-C, Fast charging 18W
Connectivity	4G LTE, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, GPS
Sensors	Fingerprint (side-mounted), accelerometer, proximity, compass
Audio	3.5 mm headphone jack, single speaker
Security	Face unlock, fingerprint sensor
Materials	Glass front, plastic back, plastic frame
Colors	Black, White
Box Contents	Phone, USB-C cable, 18W charger, SIM ejector, quick start guide
Warranty	2 years

Frequently Asked Questions - Smartphone 9.1 TESLA

What is the battery capacity and how long does it last?

The Tesla Smartphone 9.1 has a 4000 mAh battery. Under normal usage, it lasts about 1-2 days. Heavy usage (gaming, video streaming) may require charging daily.

Does it support fast charging?

Yes, it supports 18W fast charging via the included charger. A full charge takes approximately 90 minutes.

Is the phone water-resistant?

No, the Tesla Smartphone 9.1 does not have an official water resistance rating. Avoid exposure to water and moisture.

Can I expand the storage?

Yes, the phone has a dedicated microSD card slot supporting cards up to 256 GB. It can be used alongside dual SIMs or a single SIM.

What type of SIM card does it use?

It uses Nano SIM cards. The dual SIM tray allows two Nano SIMs or one Nano SIM plus a microSD card.

Does it have a headphone jack?

Yes, the phone includes a 3.5 mm headphone jack for wired headphones.

How is the camera quality?

The 48 MP main camera takes detailed photos in good light. The 8 MP ultrawide is useful for landscapes. Low-light performance is average. The 16 MP front camera is suitable for selfies and video calls.

Does it support wireless charging?

No, the Tesla Smartphone 9.1 does not support wireless charging. It charges via USB-C.

Is the screen protected by Gorilla Glass?

The display uses Corning Gorilla Glass 3 for scratch resistance. A screen protector is recommended for added protection.

How can I perform a factory reset?

Go to Settings > System > Reset > Factory data reset. Alternatively, boot into recovery mode (Power + Volume Up) and select 'Wipe data/factory reset'. Backup your data first.

USER MANUAL Smartphone 9.1 TESLA

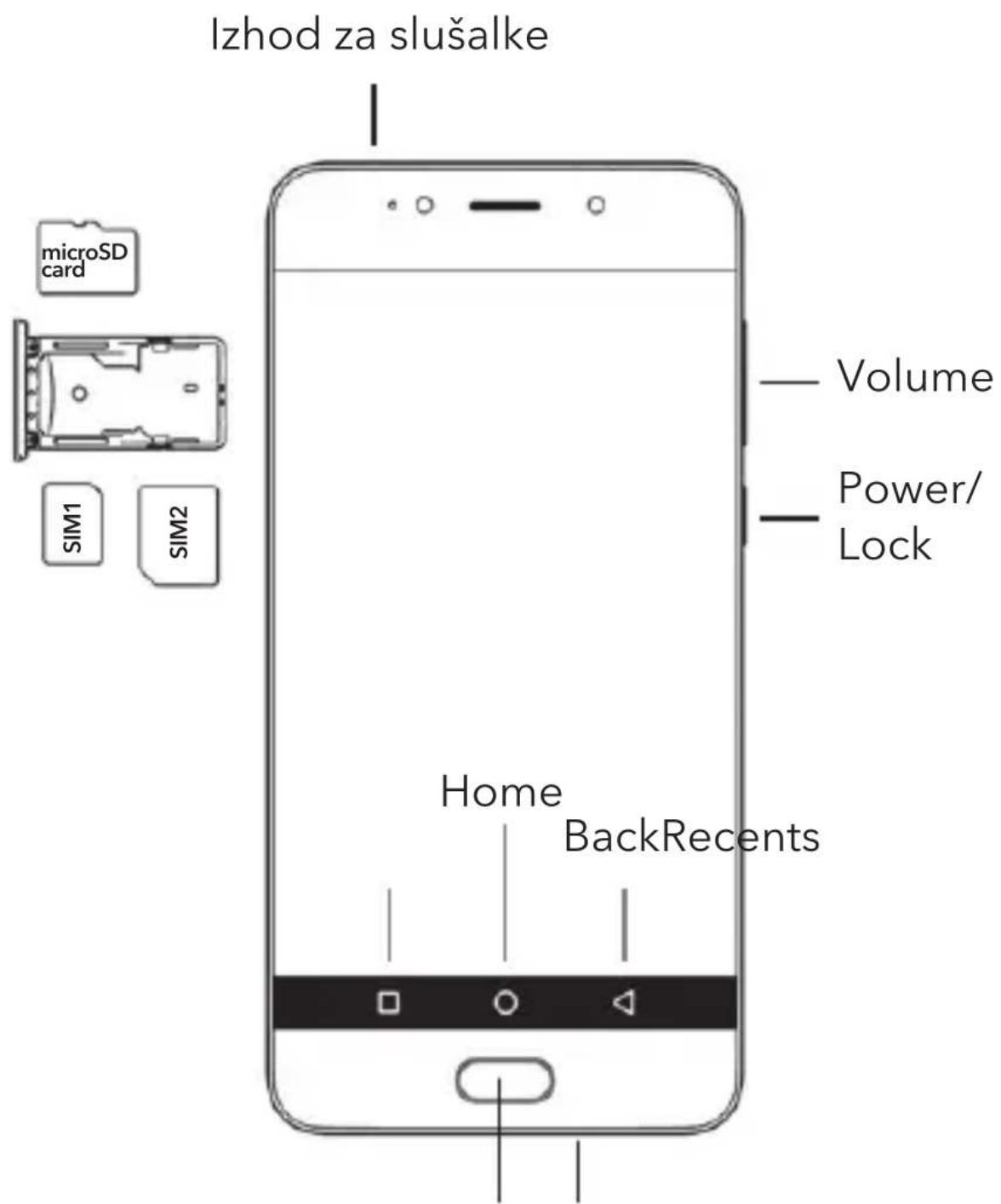

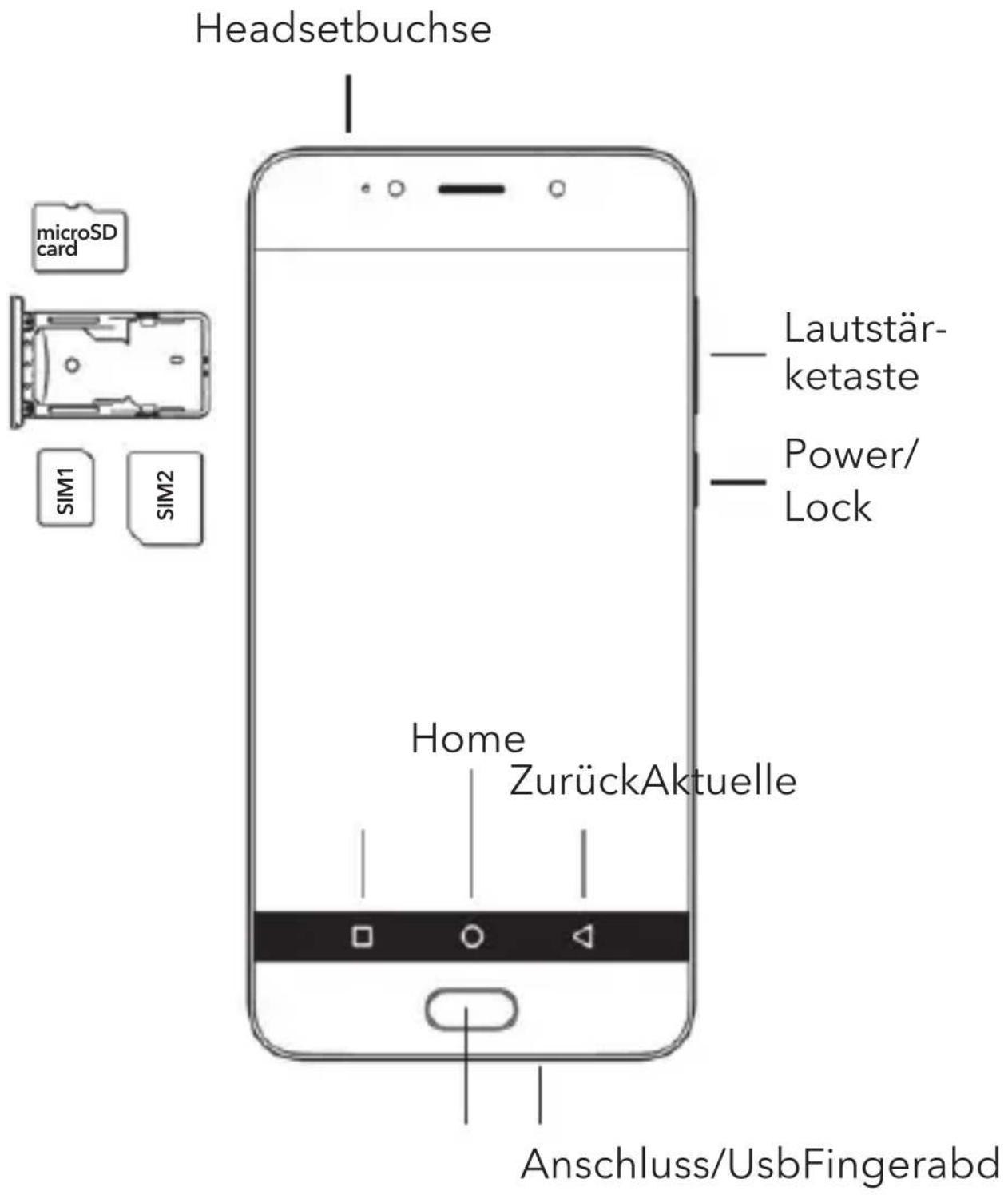

KeyFunction
Power key	To turn the phone on or off, switch to Airplane mode, take a screenshot, reset phone and change audio profile settings, press and hold the “Power” button and select an optionTo switch your phone to Sleep mode or to wake up your phone press the “Power” button
Home key	To return to Home screen from any application or screen, press the “Home” buttonTo activate Google assistant function, press and hold the “Home” button
Recents key	To see a list of recently used applications, press the “Recents” button
Back key	Press the “Back” button to go to the previous screen
Volume key	Press and hold the “Volume” button to increase/decrease the sound and to adjust audio profile
Fingerprint button	Set up to unlock your phone using fingerprintSet up to one of the additional functions

Switch off your phone before installing SIM card.

1. Take the needle included in the package
2. Insert it into the hole beside the SIM tray
3. Put the SIM card inside the tray as shown on the picture
4. Return the SIM tray back in the hole

Instead of the SIM card, you can insert micro SD card into the SIM1 slot. Instructions on how to insert micro SD card are shown in the illustration.

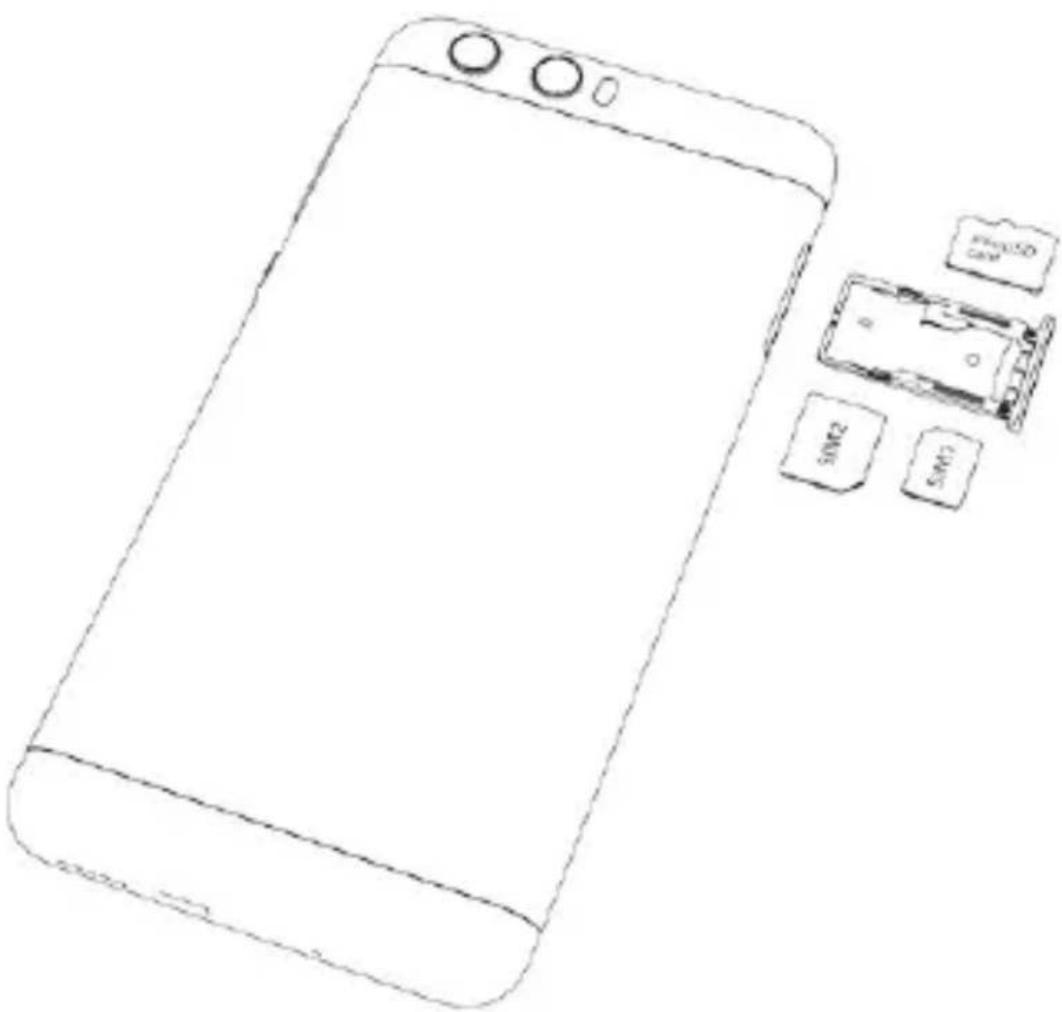

Line drawing of a smartphone with an inset showing internal components labeled SIM2 and SIM3 (no text or symbols on the device itself)

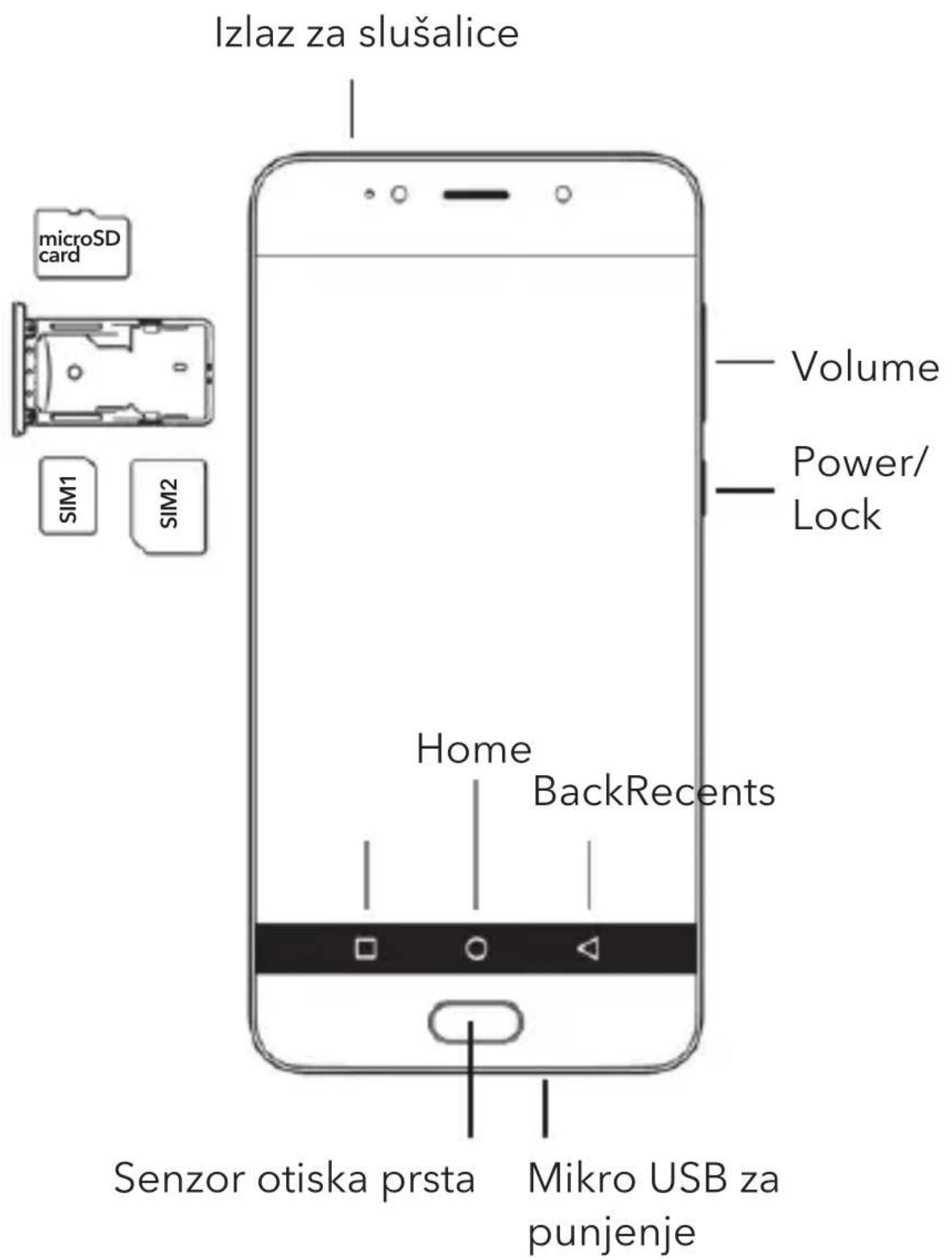

TasteriFunkcije
Power taster	Da biste uključili ili isključili telefon, prešli u Airplane režim rada, napravili snimak ekrana, resetovali telefon i podesili audio profile pritisnite i zadržite "Power" taster i odaberite odgovarajuću opcijuDa biste prebacili telefon u Sleep mode ili da biste "probudili" telefon, pritisnite "Power" taster
Home taster	Da biste se vratili na početnu stranicu iz bilo koje aplikacije, pritisnite "Home" tasterDa biste pokrenuli Google asistent opciju, pritisnite i zadržite "Home" taster
Recentstaster	Da biste vidjeli listu skoro otvorenih aplikacija, pritisnite "Recents" taster
Back taster	Pritisnite "Back" taster kako biste se vratili na prethodnu stranicu
Volume taster	Pritisnite i zadržite "Volume" taster kako biste pojačali/smanjili zvuk i prilagodili audio profile prema potrebi
Senzor otiska prsta	Podesite otključavanje uređaja preko otiska prstaPodesite taster na jednu od dodatnih fukcija

Isključite Vaš telefon prije instaliranja SIM kartice.

1. Uzmite iglicu koju ste dobili u pakovanju
2. Kutijicu za SIM izvadićete ubacivanjem iglice u otvor
3. Ubacite SIM karticu u SIM kutijicu prema crtežu
4. Vratite SIM kutijicu nazad u prorez

Umesto SIM kartice u SIM1 slot možete ubaciti mikro SD karticu. Ubacivanje mikro SD kartice se radi na način prikazan na crtežu.

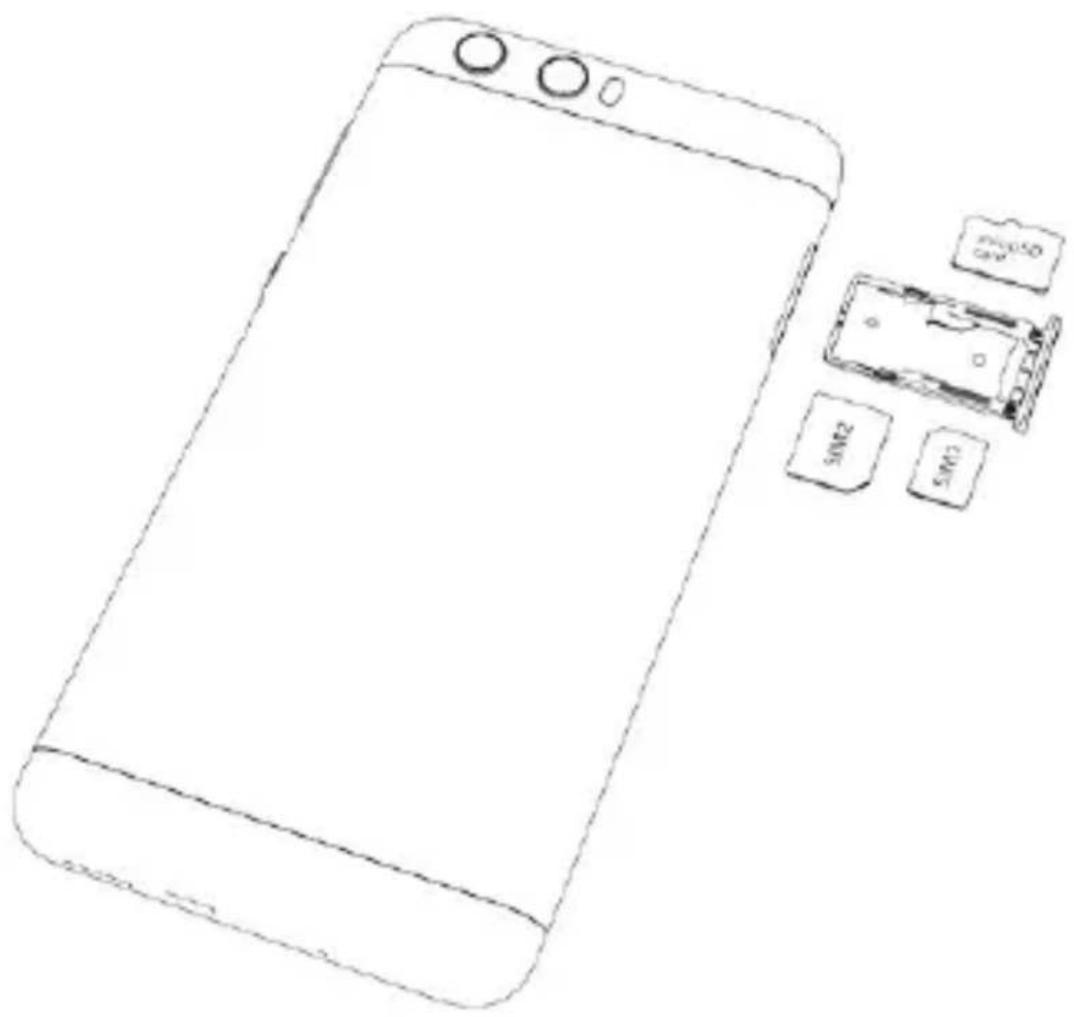

Line drawing of a smartphone with an inset showing internal components (no text or symbols)

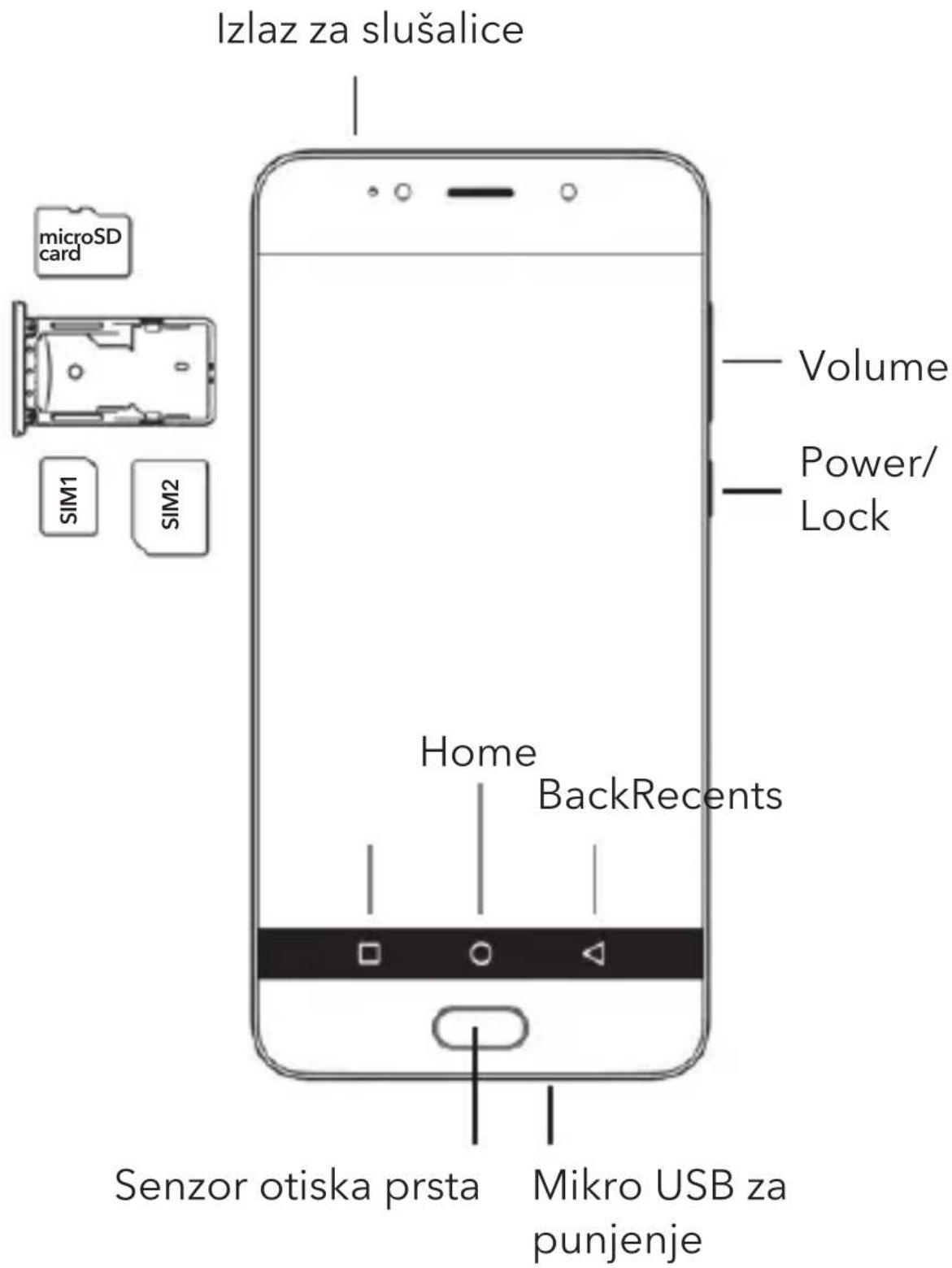

TasteriFunkcije
Power taster	Da biste uključili ili isključili telefon, prešli u Airplane režim rada, napravili snimak ekrana, resetovali telefon i podesili audio profile pritisnite i zadržite "Power" taster i odaberite odgovarajuću opcijuDa biste prebacili telefon u Sleep mode ili da biste "probudili" telefon, pritisnite "Power" taster
Home taster	Da biste se vratili na početnu stranicu iz bilo koje aplikacije, pritisnite "Home" tasterDa biste pokrenuli Google asistent opciju, pritisnite i zadržite "Home" taster
Recentstaster	Da biste vidjeli listu skoro otvorenih aplikacija, pritisnite "Recents" taster
Back taster	Pritisnite "Back" taster kako biste se vratili na prethodnu stranicu
Volume taster	Pritisnite i zadržite "Volume" taster kako biste pojačali/smanjili zvuk i prilagodili audio profile prema potrebi
Senzor otiska prsta	Podesite otključavanje uređaja preko otiska prstaPodesite taster na jednu od dodatnih fukcija

Isključite Vaš telefon prije instaliranja SIM kartice.

1. Uzmite iglicu koju ste dobili u pakovanju
2. Kutijicu za SIM izvadićete ubacivanjem iglice u otvor
3. Ubacite SIM karticu u SIM kutijicu prema crtežu
4. Vratite SIM kutijicu nazad u prorez

Umesto SIM kartice u SIM1 slot možete ubaciti mikro SD karticu. Ubacivanje mikro SD kartice se radi na način prikazan na crtežu.

Line drawing of a smartphone with an inset showing internal components (no text or symbols)

Line drawing of a smartphone with an inset showing internal components labeled SIM1, SIM2, and SIM3 (no text or symbols on the device itself)

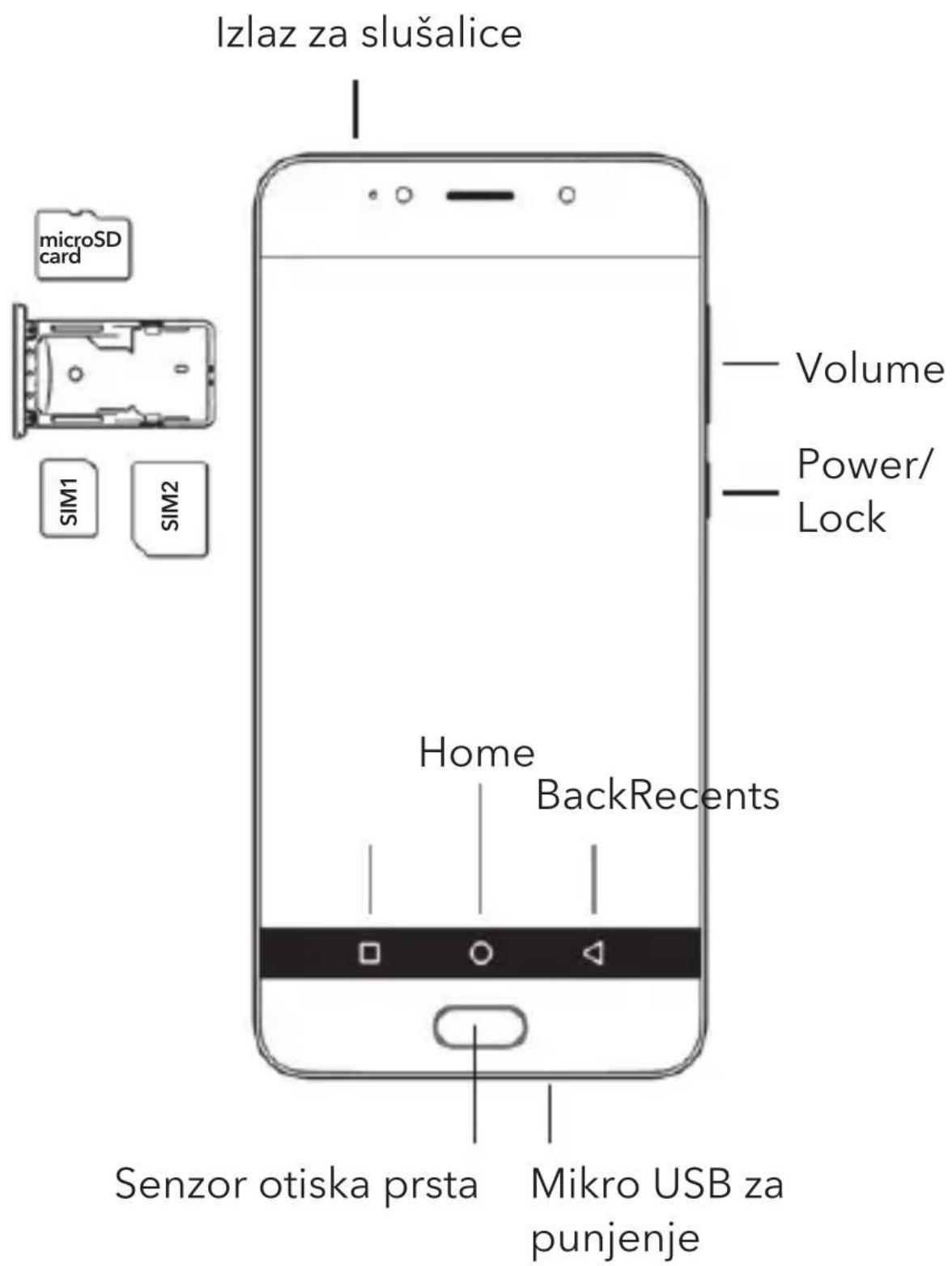

TipkeFunkcije
Power tipka	Kako biste uključili ili isključili telefon, prešli u Airplane način rada, napravili snimak ekrana, resetirali telefon i podesili audio profile pritisnite i zadržite “Power” tipku i odaberite odgovarajuću opcijuKako biste prebacili telefon u Sleep mode ili da biste “probudili” telefon, pritisnite “Power” tipku
Home tipka	Za vraćanje na početnu stranicu iz bilo koje aplikacije, pritisnite “Home” tipkuZa pokretanje Google asistent opcije, pritisite i zadržite “Home” tipku
Recents tipka	Kako biste vidjeli listu skoro otvorenih aplikacija, pritisnite “Recents” tipku
Back tipka	Pritisnite “Back” tipku kako biste se vratili na prethodnu stranicu
Volume tipka	Pritisnite i zadržite “Volume” tipku kako biste pojačali/smanjili zvuk i prilagodili audio profile prema potrebi
Senzor otiska prsta	Podesite otključavanje uređaja preko otiska prstaPodesite tipku na jednu od dodatnih funkcija

Isključite Vaš telefon prije instaliranja SIM kartice.

1. Uzmite iglicu koju ste dobili u pakiranju
2. Kutijicu za SIM izvadit ćete ubacivanjem iglice u otvor
3. Ubacite SIM karticu u SIM kutijicu prema crtežu
4. Vratite SIM kutijicu nazad u prorez

Line drawing of a smartphone with an inset showing internal components (no text or symbols)

Излез за слушалки

Line drawing of a smartphone with an inset showing internal components labeled SIM1, SIM2, and SIM3 (no text or symbols on the device itself)

Line drawing of a smartphone with an inset showing internal components labeled SIM1, SIM2, and SIM3 (no text or symbols on the device itself)

TasteriFunkcije
Power taster	Da biste uključili ili isključili telefon, prešli u Airplane režim rada, napravili snimak ekrana, resetovali telefon i podesili audio profile pritisnite i zadržite “Power” taster i odaberite odgovarajuću opcijuDa biste prebacili telefon u Sleep mode ili da biste “probudili” telefon, pritisnite “Power” taster
Home taster	Da biste se vratili na početnu stranicu iz bilo koje aplikacije, pritisnite “Home” tasterDa biste pokrenuli Google asistent opciju, pritisite i zadržite “Home” taster
Recentstaster	Da biste videli listu skoro otvorenih aplikacija, pritisnite “Recents” taster
Back taster	Pritisnite “Back” taster kako biste se vratili na prethodnu stranicu
Volume taster	Pritisnite i zadržite “Volume” taster kako biste pojačali/smanjili zvuk i prilagodili audio profile prema potrebi
Senzor otiska prsta	Podesite otključavanje uređaja preko otiska prstaPodesite taster na jednu od dodatnih fukcija

Isključite Vaš telefon pre instaliranja SIM kartice.

Uzmite iglicu koju ste dobili u pakovanju

Line drawing of a smartphone with an inset showing internal components (no text or symbols)
