| Product Type | Infrared wireless headphone amplifier (receiver) |
| Model | SilverCrest SHIR 12 A1 |
| Dimensions (Base) | Approx. 170 x 30 x 98 mm (W x H x D) |
| Dimensions (Headset) | Approx. 144 x 209 x 23 mm (W x H x D) |
| Weight (Base) | Approx. 134 g (without mains charger) |
| Weight (Headset) | Approx. 75 g |
| Power Supply | Mains charger: Input 100-240 V~, 50/60 Hz, 300 mA; Output 15 V~, 500 mA |
| Built-in Battery | Li-ion, 420 mAh |
| Transmission Type | Infrared |
| Range | Max. 12 m with direct visual contact |
| Frequency Response | 15 Hz – 13 kHz |
| Battery Charging Time | Approx. 3.5 hours |
| Operating Time (Headset) | Up to 12 hours (at medium volume) |
| Controls | Volume, balance, treble, compression on/off, stereo/mono switch |
| Indicators | Power LED (base, headset), audio LED |
| Accessories Included | Base with charging function, mains charger, audio cable (3.5 mm), TV SCART adapter, RCA jack adapter, 3.5 mm to 6.3 mm adapter, 2 pairs replacement ear pads |
| Intended Use | Private use for wireless audio playback; not medical device, not for outdoor or tropical climates |
| Safety Features | Auto power-off after ~210 s without signal, energy-saving mode |
| Cleaning | Ear pads: mild detergent and lukewarm water; housing: dry cloth |
| Repairability / Spare Parts | Replacement ear pads available; only qualified personnel should repair |
| Disposal | Separate from household waste per EU Directive 2012/19/EU; built-in battery not removable |
| Warranty | 3 years from date of purchase (TARGA GmbH) |
Frequently Asked Questions - SHIR 12 A1 SILVERCREST
User questions about SHIR 12 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual SHIR 12 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHIR 12 A1 by SILVERCREST.
USER MANUAL SHIR 12 A1 SILVERCREST
User manual and service information
IAN 94260
OE NO
Deutsch 2
Nederlands 19
English....36
Inhaltsverzeichnis
Einleitung 3
B Netzteil
C Audiokabel 3,5mm Klinke
D TV-SCART-Adapter
8 Audio-Buchse (Audio-IN)
Kein Empfang
Product display of a SilverCrest brand electronic device with labeled parts including microphone, power plug, cable, and open book (no text or symbols on main components)A Koptelefoon
B Netadapter
C Audiokabel 3,5mm jack
D TV-SCART-adapter
G Cinch-jack-adapter
Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)Safety instructions.... 40
Copyright 43
Overview of the controls and button functions.... 44
Prior to use.... 45
Adapter 45
Charging the built-in battery 46
LED indicators....46
First use 47
Putting on the headset....47
Playback settings....47
Settings on the headset....47
Settings on the base 48
Switching off the headset....48
Cleaning / replacing ear pads 49
Troubleshooting 49
Environmental and disposal information.... 50
Conformity information.... 50
Warranty and servicing advice 51
Introduction
Thank you for purchasing a SilverCrest product.
The SilverCrest hearing amplifier SHIR 12 A1 is easy to use and is impressive with its modern design and excellent sound. The infrared transmission is resistant to radio signals of other devices. Enjoy the pleasure of wireless hearing without disturbing others. Various selectable settings allow you to customise the hearing amplifier to your personal needs.
Intended use
This hearing amplifier is a consumer electronics device which is used for playback of audio data that is transmitted from an audio source via an infrared signal. The hearing amplifier may only be used privately and not for industrial or commercial purposes. In addition, it is not intended to be used as a medical device. Furthermore, the device may not be used outdoors or in tropical climates. This device meets all relevant standards in relation to CE conformity. The manufacturer does not accept any liability for any resulting damage or faults in the event of unauthorised modifications to the device. Only use accessories specified by the manufacturer. Please observe the regulations and laws in the country of use.
Supplied items


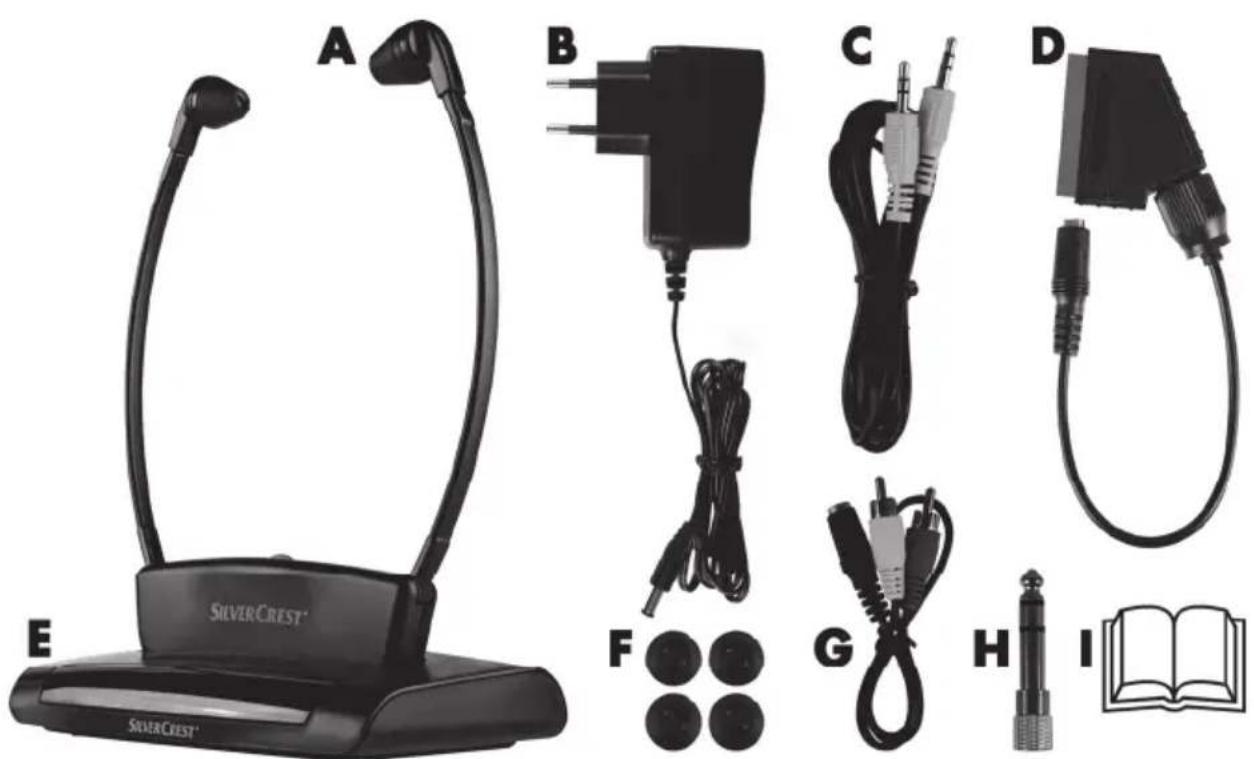

B Mains charger
C Audio cable 3.5mm jack
D TV SCART adapter
E Base with charging function
F 2 pairs of replacement ear pads
G RCA jack adapter
H Adapter for 3.5mm jack to 6.3mm jack
I These operating instructions (symbolic representation)
Technical data
Hearing system
| Operating voltage: 15V | ... |
| Battery: Li-ion | |
| Battery capacity: 420mAh | |
| Frequency range: 15 Hz - 13KHz | |
| Transmission type: infrared | |
| Range: maximum of 12 metres with direct visual contact | |
| Battery charging time: approx. 3.5 hours | |
| Operating time of headset: up to 12 hours (at medium volume) | |
| Dimensions (W x H x D): | base (E): approx. 170 x 30 x 98mmheadset (A): approx. 144 x 209 x 23mm |
| Weight: | base (E): approx. 134g (without mains charger)headset (A): approx. 75g |
| Operating temperature: 0°C to +45°C | |
| Storage temperature: -20°C to +60°C | |
| Max. air humidity for use and storage: | max. 85% rel. air humidity |
Mains charger
| Manufacturer | Ringsun |
| Type | JXAS0121500050VE |
| Input | 100-240V~, 50/60Hz, 300mA |
| Output | 15V~, 500mA, ⊖⊕⊕ |
| Protection class | II |
The technical data and design may be changed without notification.
Safety instructions
Before using this device for the first time, always read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell or pass on the device to someone else, be sure to always include these operating instructions as they are an integral part of the device.
DANGER! This symbol indicates important information for safe operation of the device and the safety of the user. Disregarding this information can lead to material damage and/or health hazards and even death.
WARNING! This symbol indicates possible health risks up to a risk of fatal injury and/or material damage due to an electrical shock.
This symbol indicates other important information on the topic.
Ensure that
- no direct heat sources (e.g. heating) can affect the device
• no direct sunlight or bright artificial light reaches the device - contact with sprayed and dripping water and corrosive liquids is avoided and the device is never operated near water; in particular it should never be immersed (do not place any objects filled with liquids, for example, vases or drinks, on or near the device)
- the device is not in the immediate vicinity of magnetic fields (e.g. speakers)
- no fire sources (e.g. burning candles) are placed on or near the device
- the headset (A) is not thrown into a fire because the built-in battery may explode
- no foreign objects penetrate the device
- the device is not subjected to any extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the device was subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the device has reached ambient temperature before use
• the device is never subjected to excessive shocks and vibrations
• the device is not covered as there is a risk of fire otherwise.
If the aforementioned instructions are not adhered to, it poses a risk to your health or the device could be damaged.
Children and persons with disabilities
Electrical devices do not belong in the hands of children. Persons with mental, physical or sensory disabilities should also only use electrical devices within the scope of their abilities. Never allow children or persons with disabilities to use electrical devices unsupervised unless they have been instructed accordingly or are supervised by a person responsible for their safety. Children should always be supervised to ensure that they do not play with this device. Small parts can be fatal if swallowed. Always keep plastic packaging out of reach.
It poses a suffocation risk.
Health risks due to high volume
Take care when using a headset. Listening at high volume for prolonged periods of time can damage your hearing. Before putting on the headset (A), set the volume to the lowest level.
Operating environment
Never use the hearing amplifier if your environment requires your full attention, for example, when operating machinery.
Pacemakers and ICDs
The headset (A) produces permanent magnetic fields which can interfere with pacemakers and implantable cardioverter defibrillators (ICDs). Make sure that there is a distance of at least 10cm between the earpieces with the ear pads (1) and the pacemaker or ICD.
Mains charger
Only insert the mains charger (B) in a suitable mains socket that is always easily accessible. Never touch the mains charger (B) with wet hands. It poses an electric shock risk.
Always handle the housing of the mains charger (B) when unplugging it from the socket and never pull on the cable.
Always disconnect the mains charger (B) from the mains in the following situations:
If there are any unusual sounds or if smoke is emitted from the mains charger (B). Fire smoke is toxic! Do not inhale it!
or
- If there is a hazardous situation.
• Before stormy weather, when there is the risk of lightning.
• The mains charger (B) was damaged. - If the mains charger (B) was exposed to rain, liquids or extreme moisture.
- During prolonged absences, for example, holidays.
- If you want to clean it.
- The mains charger (B) consumes power even in standby mode, thus it must be removed from the mains socket to be completely disconnected from the mains.
Pay attention to these instructions to avoid a risk of fatal injury or fire! In addition, the mains charger (B) must never be covered because there is a risk of fire. Never try to open the housing of the mains charger (B). There is a risk of a fatal electric shock.
Cables
Always handle the cables by the connector and do not pull on the cables themselves. Never place furniture or other heavy objects on the cables and take care that the cables are not kinked, especially near the plug and connection sockets. Do not connect the cables over hot or sharp points and edges to prevent damage. Never make knots in any of the cables or tie them together with other cables. Ensure that all cables are placed so that no one can trip over them and they do not cause an obstruction.
Cleaning / maintenance
It is necessary to repair the device if it has been damaged in any way, for example, if the mains charger (B) or device housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture. Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, the device must be switched off immediately and the mains charger (B) must be removed from the socket. In these cases, the device should not be used until it has been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the device. Only use a clean, dry cloth for cleaning and never use any corrosive liquids. Never try to open the housing of the device as this would void your warranty.
Storage when not in use
If you will not be using the headset (A) for a prolonged period, you should recharge the battery at least every 6-12 months to maintain it in working order. Ensure that the storage temperature remains between -20°C and +60°C. The air humidity should not exceed 85% rel. air humidity.
Operating environment
The device is not designed for use in environments with high humidity (e.g. bathrooms) or in extremely dusty conditions. Operating temperatures and operating air humidity: 0^ C to 45^ C, max. 85% rel. humidity.
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change without notice.
Overview of the controls and button functions

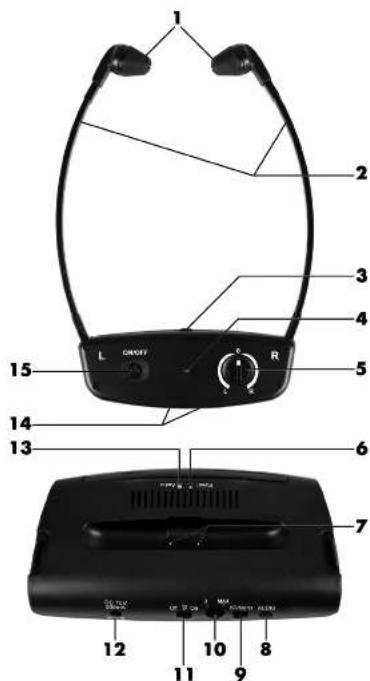

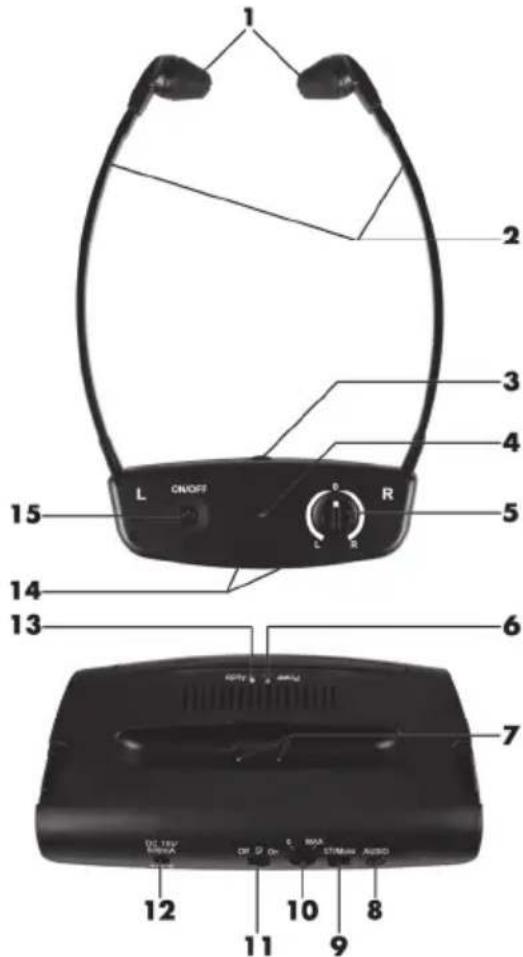

An illustration of the controls with the relevant reference numbers can also be found on the fold-out inside cover of these operating instructions. You can leave this cover page folded out while reading further sections of these operating instructions. Thus you always keep a reference to the relevant control in sight.
1 Ear pads
2 Headset earpieces
3 Volume control
4 Power LED (headset)
5 Balance control
6 Power LED (base)
7 Charging contacts (base)
8 Audio socket (Audio-IN)
9 Stereo/mono switch
10 Treble control
11 Compression switch
12 DC-IN socket
13 Audio LED
14 Charging contacts (headset)
15 On/off button
Prior to use
- Remove all protective foil from the device and accessories.
- Insert the plug of the supplied mains charger (B) into the DC-IN socket (12) on the base (E).
- Insert the mains charger (B) into a mains socket that is always easily accessible.
Always lay cables in such a manner that nobody can trip over them.
Place the base (E) so that there are no objects between the base (E) and the headset (A). An optical infrared connection is involved. If there are objects or persons between the base and the receiver, they can interfere significantly with the transmission.
Connect the base to your audio source (for example, TV or audio device). Also use the audio cable (C) to connect the audio socket of the base (E) with the headset socket of your TV or audio device.
When connecting the IR hearing amplifier via the headset socket, the built-in loudspeakers of your audio source may be switched off. To prevent it from switching off, use one of the supplied adapters (G, D) if necessary. You may also be able to use a setting on your audio source to prevent the built-in loudspeakers from switching off.
For further details, please read the operating instructions for your audio source.
Adapter
To connect the audio cable (C) to your audio source, use one of the supplied adapters if necessary:
Adapter for 3.5mm jack to 6.3mm jack (H)
▶ RCA jack adapter (G)
▶ TV SCART adapter (D)
For further details, please read the operating instructions for your audio source.
Charging the built-in battery
Before the first use or when the built-in battery is empty, you charge it as follows:
- Connect the base (E) to the mains power supply as described above.
- Place the headset (A) on the base (E). The SilverCrest logo must be facing forward.
- The power LED (6) then lights up orange on the base (E). The battery is charging.
When the power LED (6) of the base (E) lights up green, the battery is fully charged and the headset (A) is ready to use.
LED indicators

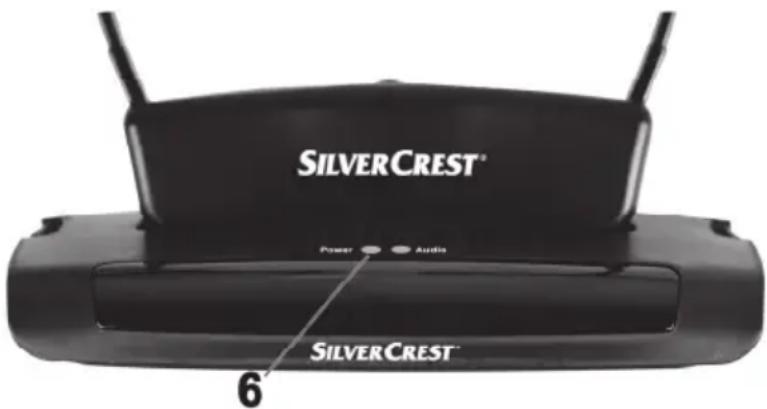

Base:
| Power LED (6) lights up green, headset (A) is not on base | Base (E) is ready to use |
| Power LED (6) lights up orange, headset (A) is on base | Battery is charging |
| Power LED (6) lights up green, headset (A) is on base | Battery is fully charged |
| Audio LED (13) lights up orange Audio | signal is being received |
| Audio LED (13) is out* Energy-saving mode / no audio signal | |
* If there is no audio signal for about 50-60 seconds, the base switches to energy-saving mode.
Headset:
| Power LED (6) lights up orange Headset (A) is ready to use |
| Power LED (6) is off* Energy-saving mode |
* If there is no audio signal for about 90-120 seconds, the headset (A) switches to energy-saving mode.
First use
Position the base (E) so that there are no objects between the base (E) and the headset (A).

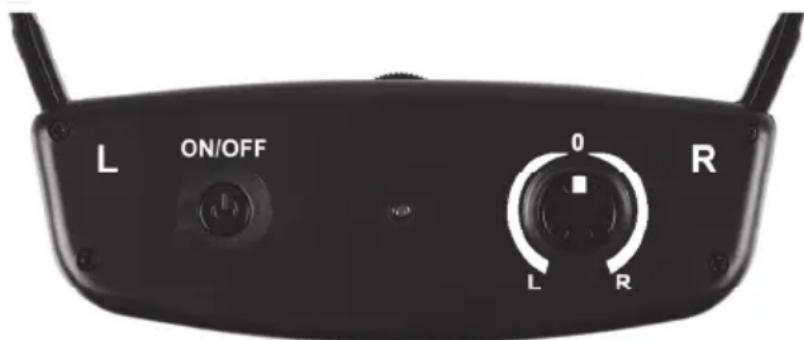

Switch on the headset (A) with the on/off button (15).
Health risks due to high volume
Take care when using a headset. Listening at high volume for prolonged periods of time can damage your hearing. Before putting on the headset (A), set the volume to the lowest level.
The playback volume is also influenced by the volume set on the audio source. First, set the volume on the audio source to a low or medium level. It can be increased later if necessary.
Put on the headset (A).
Putting on the headset
Note the markings L (left) and R (right) to put on the headset (A) correctly. The headset (A) is on correctly if the on/off button (15) and balance control (5) are pointing towards your body.
As soon as the base (E) receives an audio signal, it is transmitted via an infrared signal to the headset (A).
It is imperative that there is visual contact between the base (E) and the headset (A). First, set the volume on your audio source to a pleasant level.
Playback settings
You have several options for adjusting the sound settings to suit your needs perfectly. When you have put on the headset (A) and playback is in progress, make the following settings to it in order to adjust the IR hearing amplifier perfectly to your hearing.
It makes sense to proceed in the sequence described below:
Settings on the headset
Volume
Adjust the playback volume according to your needs by turning the volume control (3). Set the volume to the lowest level before putting on the headset (A). When you have put on the headset (A) and playback is in progress, you then adjust the volume in order to find the setting that suits you best.
Balance
You can adjust the volume balance between the right and left ear using the balance control (5). This may be useful if your hearing is different in each ear and you thus require a higher volume for one ear. When you have put on the headset (A) and playback is in progress, you then adjust this control in order to find the setting that suits you best.
Settings on the base
Stereo/mono switch
If you hear the sound only in one ear despite the correct balance setting, turn the stereo/mono switch (9) to the "mono" position. The same audio signal is played back left and right with this setting.
In the "stereo" position, audio signals may be different left and right to represent surround sound.
Example: In a film, you see a dog barking on the left side. The barking of the dog would be mainly audible in the left ear at the "stereo" setting. At the "mono" setting, you hear the dog barking equally in both ears.
When you have put on the headset (A) and playback is in progress, you then adjust this control in order to find the setting that suits you best.
Compression
You can switch on the compression with the compression switch (11). When you do so, faint sounds are accentuated more during playback than loud sounds. This function is particularly useful for people with a hearing impairment because it is primarily faint sounds that they usually fail to hear as a result. The intelligibility of speech can be optimised in particular. When you have put on the headset (A) and playback is in progress, you then adjust this control in order to find the setting that suits you best.
Treble boost
You can achieve further improvement in speech intelligibility with the treble control (10). The trebles of the audio playback can be continuously boosted as a result. When you have put on the headset (A) and playback is in progress, you then adjust this control in order to find the setting that suits you best. To amplify high tones, turn the control anti-clockwise towards the "MAX" marking.
Switching off the headset
You can switch off the headset (A) at any time by pressing the on/off button (15). If the headset (A) does not receive any audio signal for about 210 seconds, it switches itself off in order to save the built-in battery.
You must press the on/off button (15) again to resume playback.
When the headset (A) is not in use, it should be stored in the base (E) if possible. Thus you know where to find it and the battery is always charged.
Cleaning / replacing ear pads
If necessary, you can clean the ear pads with a mild detergent and lukewarm water.
2 pairs of replacement ear pads (F) are also supplied with the device.
Proceed as follows:
First, remove the ear pads (1) to be cleaned or replaced from the headset earpieces (2) and then attach cleaned or new ear pads.
No reception
- Check whether the mains charger is correctly inserted into the mains socket.
- Check whether the mains charger plug is correctly inserted into the DC-IN socket (12) of the base (E).
- Check whether the audio cable is correctly inserted into the audio source and the base (E).
Poor reception
- Plasma screens emit an infrared signal which may have a negative impact on the transmission quality. Install the base (E) as far as possible from the plasma screen.
• The distance between the headset (A) and the base (E) is too great. Reduce the distance.
• There are objects between the base (E) and the headset (A). - The built-in battery is almost empty. Charge the battery.
Sound only in one ear
- Check whether the 3.5mm jack plug of the audio cable (C) is correctly inserted into the base (E).
- Check the setting of the stereo/mono switch (9).
Noise
• Make sure that there is visual contact between the base (E) and the headset (A).
Environmental and disposal information
The built-in battery cannot be removed for disposal.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
Remember to protect the environment. Used batteries should not be disposed of in domestic waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in collection bins for portable batteries. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.
Conformity information
This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of this manual.
Warranty and servicing advice
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Service
Phone: 0207 - 36 50 744
E-Mail: service.GB@targa-online.com
Phone: 01 - 242 15 83
E-Mail: service.IE@targa-online.com
Phone: 800 - 62 175
E-Mail: service.MT@targa-online.com
Phone: 800 - 92 496
E-Mail: service.CY@targa-online.com
IAN: 94260
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
C€
EU Declaration of Conformity
Address:
Targa GmbH
Coesterweg 45
59494 Soest, Germany
Product:
IR Headphone
Model:
SilverCrest SHIR 12 A1
Identification number:
IAN 94260
The product complies with the requirements of the following European directives:
2004/108/EC
Electromagnetic Compatibility
2006/95/EC
Low Voltage
2009/125/EC
Energy Related Products
2011/65/EU
Restriction of the use of certain hazardous substances in electrical and electronic equipment
Compliance was proved by the application of the following standards:
EMC:
EN 55013: 2001 +A1: 2003 +A2: 2006
EN 55020: 2007 +A11: 2011
EN 61000-3-2: 2006 +A1: 2009 +A2: 2009
EN 61000-3-3: 2008
Safety:
EN 60065: 2002 +A1: 2006 +A11: 2008 +A2:
2010+A12:2011
ErP:
EN 50564: 2011 with Regulation 1275/2008
EN 50563: 2011 with Regulation 278/2009
RoHS:
EN 50581: 2012
Year of CE marking:
2014
Soest, 22th of April 2014
Matthias Klauke, Managing Director
- Inhaltsverzeichnis
- Fehlerbehebung
- Kein Empfang
- Introduction
- Intended use
- Supplied items
- Technical data
- Safety instructions
- Ensure that
- Children and persons with disabilities
- Health risks due to high volume
- Operating environment
- Pacemakers and ICDs
- Mains charger
- Cables
- Cleaning / maintenance
- Storage when not in use
- Copyright
- Overview of the controls and button functions
- Prior to use
- Adapter
- Charging the built-in battery
- LED indicators
- Headset:
- First use
- Putting on the headset
- Playback settings
- Settings on the headset
- Volume
- Balance
- Settings on the base
- Stereo/mono switch
- Compression
- Treble boost
- Switching off the headset
- Cleaning / replacing ear pads
- Troubleshooting
- No reception
- Poor reception
- Sound only in one ear
- Noise
- Environmental and disposal information
- The built-in battery cannot be removed for disposal.
- Conformity information
- Warranty and servicing advice
- Warranty of TARGA GmbH
- Warranty conditions
- Warranty period and legal warranty rights
- Scope of warranty
- Submitting warranty claims
- Service
- Manufacturer
- C€
- EU Declaration of Conformity
- Address:
- Product:
- Model:
- Identification number:
- 2004/108/EC
- 2006/95/EC
- 2009/125/EC
- 2011/65/EU
- EMC:
- Safety:
- ErP:
- RoHS:
- Year of CE marking:
Brand : SILVERCREST
Model : SHIR 12 A1
Category : Receiver
