DVD1005 - DVD player Reflexion - Free user manual and instructions

Product Type	Portable DVD Player
Brand	Reflexion
Model	DVD1005
Disc Compatibility	DVD, DVD±R/RW, CD, CD-R/RW, VCD, MP3, JPEG
Display	10.1" TFT LCD (estimated)
Power Supply	AC 100-240V, 50/60Hz via adapter (Model: PEF-0900100VE)
Power Consumption	< 10W
Battery	Rechargeable lithium-ion, 7.4V; charge time 3-4 hours
Video Output	Composite AV: 1 Vp-p (75Ω)
Audio Output	1.2 Vrms (1kHz, 0dB) via earphone jack or AV out
Laser	Semiconductor, wavelength 650nm
Signal System	NTSC/PAL compatible
Frequency Response	20Hz - 20kHz
Signal-to-Noise Ratio	> 80dB
Dynamic Range	> 85dB (DVD/CD)
Playback Functions	Play/Pause, Stop, Skip, Fast Forward/Reverse, Slow, Step, Zoom, Repeat, Program, Angle, Subtitle, Audio, Menu
Setup Options	TV Display, OSD Language, Closed Captions, Screen Saver, Auto Standby, Audio Downmix, Dolby Digital, Video Adjustments, Parental Lock, Password
Remote Control	Included with full function buttons
Dimensions (approx.)	250 x 180 x 30 mm
Weight (approx.)	1.0 kg
Accessories Included	AC adapter, remote control, composite AV cable (estimated)
Safety Class	Class II (double insulated), laser safety
Environmental	Recycle responsibly; do not dispose with household waste

Frequently Asked Questions - DVD1005 Reflexion

How do I play a DVD?

Insert a DVD with the label side up into the disc slot. Press POWER to turn on the unit. The disc will start playing automatically. If not, press PLAY/PAUSE. Use the remote or main unit buttons to navigate menus.

How to set up parental control?

Press SETUP, go to PREFERENCE PAGE, select PARENTAL and choose a rating level (1-8). Enter your password (default: 1369) when prompted. To modify password, go to PASSWORD SETUP PAGE.

How to change the audio language?

During playback, press the AUDIO button repeatedly to cycle through available audio languages or tracks (DVD), or to switch between Left, Right, Mix, Stereo for CDs.

How to connect to a TV?

Use the AV OUT jack on the portable DVD player with a composite AV cable (yellow for video, red/white for audio). Connect to corresponding inputs on your TV. Set the TV to the correct input source.

How to charge the battery?

Connect the included AC adapter to the DC IN 9-12V port and plug into a wall outlet. The battery charges automatically. Standard charge time is 3 to 4 hours. The unit can be used while charging.

How to use the remote control?

Remove the battery tab before first use. Point the remote at the sensor on the main unit. Remote buttons include PLAY/PAUSE, STOP, MENU, SETUP, number keys, volume, and navigation. Ensure no obstacles between remote and sensor.

How to adjust screen settings?

Press SETUP, go to VIDEO SETUP PAGE. Use the navigation buttons to adjust BRIGHTNESS, CONTRAST, HUE, and SATURATION. Press ENTER to confirm.

How to reset to factory defaults?

Press SETUP, go to PREFERENCE PAGE, select DEFAULT RESET and confirm. All settings including parental and password will return to factory defaults (password: 1369).

What types of discs can I play?

This player supports DVD, DVD±R/RW, CD, CD-R/RW, VCD, MP3 files on CD, and JPEG image files. Not all discs are guaranteed to play due to disc condition or copy protection.

How to clean the device?

Turn off and unplug the unit. Wipe the exterior with a soft, dry cloth. Do not use liquids, aerosol cleaners, or abrasive materials. Clean the disc lens with a special lens cleaner if playback issues occur.

USER MANUAL DVD1005 Reflexion

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.

Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.

Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.

Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.

Never place heavy or sharp objects on the LCD panel or frame.

Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.

The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.

Unplug the power from the outlet when the unit is not in use.

Attention should be drawn to the environmental aspects of battery disposal.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Use only power supplies listed in the user instructions.

Adapter Model(s): PEF-0900100VE Made By: Shenzhen Mass Power Electronic

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent possible hearing damage. do not listen at high volume levels for long periods.

Fully understand user manual before use. Ensure your player at low volume levels or power off before you leaving.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

Warning: Never stare directly into the laser beam.

Caution: Do not install this product in a confined space such as a book case or similar unit.

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.

Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.

Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat.....

Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.

Warning: more than 250mm USB extension cord is prohibited to use for USB port

WARNING:

Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER:

You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Date of Purchase

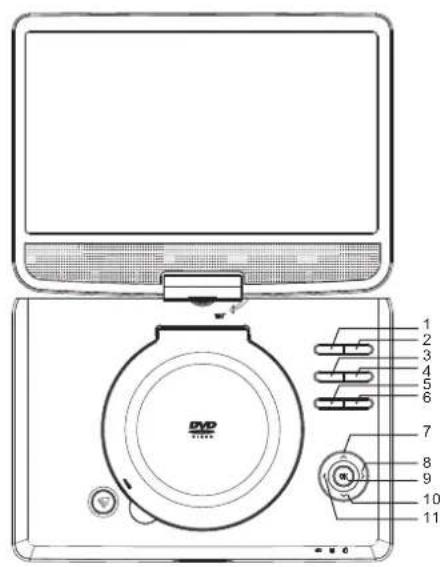

Identification of Controls Main Unit

1. VOL-
2. VOL+
3. MENU
4. PLAY/PAUSE
5. SETUP
6. SOURCE
7. UP/Prev
8. Right/Fast forward
9. OK
10. Down/Next
11. Left/Fast reverse
12. USB
13. Earphone Socket
14. AV OUT
15. ON/OFF
16. DC IN 9-12V

Identification of Controls

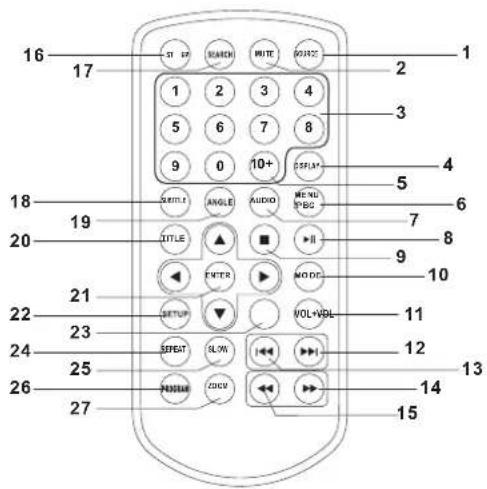

Remote control unit

1. SOURCE

DVD/USB.

1. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.DISPLAY

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

1. MENU/PBC

Return to DVD root menu(DVD).

PBC on/off switch (VCD)

7.AUDIO

DVD: Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

CD/VCD: Press AUDIO repeatedly during playback to hear a different audio channel (Left, Right, Mix, Stereo).

8.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

9.STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if PLAY( )▶pressed after wards. But if STOP button is pressed again instead of PLAY( )▶button, there will be no resume function.

10.MODE

Set LCD parameter(adjust bightness, contrast,and saturation).

11.VOL+

23.VOL

Adjust volume.

1. Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

1. ▶▶ BUTTON

Press ▶ BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.

Identification of Controls

Remote control unit

15. ◀ BUTTON

Press ◀◀ BUTTON allow skipping back at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.

16.STEP

Step the motion in DVD mode.

17.SEARCH

Goto time point, title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

19.ANGLE

DVD:Press ANGLE will change the view angle, on DVDs that support this feature.

20.TITLE

Return to DVD title menu

21. ENTER

Confirms menu selection..

22.SETUP

Accesses or removes setup menu.

24.REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD: you can play select repeat chapter/title/off.

VCD/CD: you can select repeat single/all/off

MP3: you can select repeat single/folder/off.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD/VCD:The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu.

27.ZOOM

DVD/VCD: Use ZOOM to enlarge or shrink the video image. 1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. 2. Each press of the ZOOM button changes the TV screen in the following sequence: 2X size → 3X size → 4X size → 1/2 size → 1/3 size → 1/4 size → normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

1. Press 'ZOOM'

2,Used "▶" to enlarge,or "◀" to shorten the picture.

Use the ▲▼ ◀▶ button to move through the zoomed picture.

SETUP Menu Setting

General Setup Page

Press SETUP button to get the setup menu. Use direction buttons

▲▼◀▶ to select the preferred item. After finishing settings, press

SETUP again to normal display.

The following menu items can be changed:

GENERAL: selects the GENERAL PAGE menu.

AUDIO: selects the AUDIO PAGE menu.

VIDEO: selects the VIDEO PAGE menu.

PREFERENCE : selects the PREFERENCE PAGE menu.

PASSWORD: selects the PASSWORD PAGE menu.

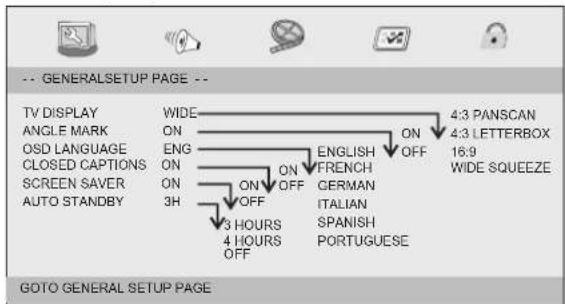

General Setup Page

TV DISPLAY: selects the aspect ratio of the playback picture.

4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9:wide screen display.

Wide Squeeze: Set screen mode to 4:3.

Angle Mark

Displays current angle setting information on the right hand corner of the TFT screen if available on the disc.

OSD Language

You can select your own preferred language settings.

Closed Captions

Closed captions are data that are hidden in the video signal of some discs. Before you select this function, please ensure that the disc contains closed captions information and your TV set also has this function.

Screen Saver

This function is used to turn the screen saver On or Off

Auto Standby

This function is used to select auto standby settings after 3 or 4 hours.

3 HOURS: the unit will turn to standby mode after 3 hours if there is no interaction from user within this period of time.

4 HOURS: the unit will turn to standby mode after 4 hours if there is no interaction from user within this period of time.

OFF: the auto standby function is disabled, and unit will stay in "on" mode even if no interaction from user..

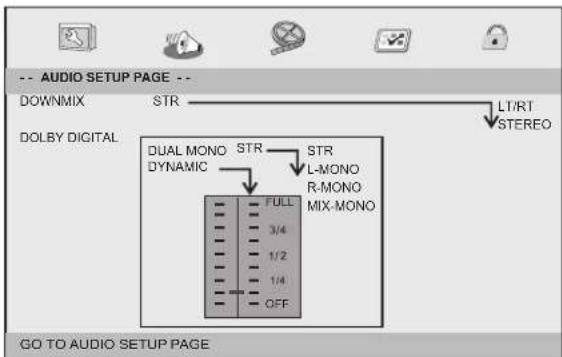

Audio Setup Page

Audio Setup Page

SETUP Menu Setting

Audio Setup Page

Downmix

This options allows you to set the stereo analog output of your DVD Player.

LT/RT : Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.

Stereo : Select this option when output delivers sound from only the two front speakers.

Dolby digital

The options included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.

Dual Mono

Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker.

L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.

R-Mono: Right mono sound will send output signals to Left speaker and Right speaker.

Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers.

Dynamic

Dynamic range compression.

Video Setup Page

Video Setup Page

Brightness, Contrast, Hue, Saturation: setting the video quality.

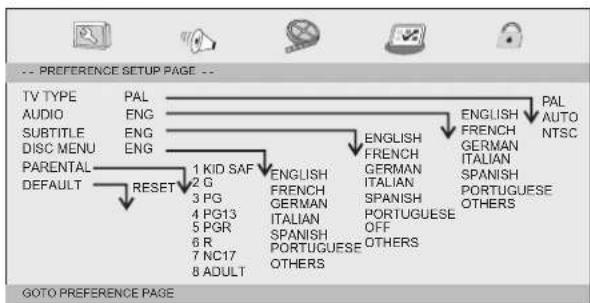

Preference Page

Preference Page

TV Type

Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

SETUP Menu Setting

Preference Page

PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC-Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Auto:Chang the video signal output automatic according to the playing disk format.

Audio: Selects a language for audio (if available).

Subtitle: Selects a language for subtitle (if available).

Disc Menu: Selects a language for disc menu (if available).

Parental

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

Default: Back to the factory setting.

Password Setup Page

Password Setup Page

Password mode: Set password mode on/off. If set to off, change parental level will not check password.

Password Setup Page

Password: select the menu password change page.

OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will jump automatically to NEW PASSWORD

NEW PASSWORD: Enter the NEW password. Enter 4 digits from the remote control unit numeric buttons, and the cursor will automatically jump to CONFIRM PASSWORD.

CONFIRM PASSWORD: Confirm the NEW password by entering it again. If the confirmation is incorrect, the cursor will stay in this column. After entering, the correct new password again, the cursor will jump automatically to OK.

OK: When cursor is on this button, press ENTER key to confirm setting.

Note: If the password has been changed, the parental and disc lock code will also be changed.

The default password(1369)is always active even the password has been changed.

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		:<10W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	:1 Vp-p (75Ω)
	AUDIO OUT	:1.2 Vrms (1 KHz, 0 dB)

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

Battery Parameters

Battery Specifications:

Output: 7.4V

Charge / Discharge Time:

Standard charge time: 3h \~ 4h

Storage and work circumstances:

1. Storage circumstances	Temperature	Humidity
6 months	-20^ +45^	65 ± 20%
1 week	-20^ +65^	65 ± 20%
2. Work circumstances	Temperature	Humidity
Standard charge	0^ +45^	65 ± 20%
Standard discharge	-20^ +65^	65 ± 20%

www.ultramedia.de

vironment protection

Instructions on en

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Please fill the blank with the model number of this player for future reference
