HH 2000 - Heat gun Cocraft - Free user manual and instructions

Brand	Cocraft
Model	HH 2000 (Art. No. 40-8761, Model JS-HG12AII)
Product Type	Heat Gun
Power Supply	220–240 V AC, 50 Hz
Power Consumption	2000 W
Temperature Settings	Low: approx. 350 °C; High: approx. 550 °C
Airflow Settings	Low: 250 l/min; High: 550 l/min
Weight	0.6 kg
Protection Class	Class II (double insulated)
Switch Positions	0 (Off), 1 (Low), 2 (High)
Nozzle	Concentrator nozzle
Air Inlet	Located at rear of unit
Handle	Ergonomic handle
Safety Features	Stand upright to cool; never block nozzle; keep away from flammable materials
Required Personal Protection	Safety glasses, ear protection, respiratory protection
Applications	Paint removal, defrosting pipes/locks, shrink wrapping, drying paint, removing stickers, waxing skis
Care & Cleaning	Wipe with soft cloth and mild detergent; do not use solvents
Disposal	Recycle according to local regulations (WEEE symbol)
Included Accessories	None mentioned in manual
Warranty	Not specified

Frequently Asked Questions - HH 2000 Cocraft

What are the two temperature settings on the Cocraft HH 2000 heat gun?

The heat gun has two settings: Low (approx. 350 °C with 250 l/min airflow) and High (approx. 550 °C with 550 l/min airflow). Use the power switch to select between them.

How should I safely use the heat gun to remove paint?

Keep the nozzle about 10 cm from the paint. Work from the top down, using a paint scraper with smooth strokes while sweeping the heat gun back and forth. Do not overheat the same spot to avoid burning the paint.

Can the heat gun be used on glass surfaces?

No, never point the heat gun toward a window or any glass surface as the heat may cause breakage.

What should I do after using the heat gun?

Place the heat gun upright and allow it to cool completely before storing. Never leave it unattended while switched on.

What personal protective equipment is recommended when using this heat gun?

Always wear safety glasses, ear protection, and respiratory protection. Ensure good ventilation, especially when heating paint or varnish.

Can the heat gun be used to dry clothes or as a hair dryer?

No, never use the heat gun for drying clothes or as a hair dryer. It is designed for industrial/DIY applications and poses a fire risk if misused.

How do I clean the heat gun?

Use a clean soft cloth with a little mild detergent to wipe the exterior. Keep the air inlet and outlet clean. Do not use solvents or flammable liquids.

What should I do if the mains lead is damaged?

The mains lead must only be replaced by a qualified tradesman to ensure safety.

Can children use the heat gun?

Children aged 8 and above may use it under supervision, provided they understand the hazards. Cleaning and maintenance can be done by children only under adult supervision. Children should not play with the product.

What are some other applications of the Cocraft HH 2000 heat gun?

Other uses include removing stickers and decorations, defrosting frozen pipes (not plastic), accelerating paint drying, removing old window putty, shrinking heat-shrink tubing, and waxing skis.

USER MANUAL HH 2000 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue Cocraft 2000 handheld heater with black handle and metallic grille (no visible text or symbols on body)

Art.no Model

40-8761 JS-HG12AII

Ver. 20211101

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• If the mains lead is damaged it must only be replaced by a qualified tradesman.
• Never expose the heat gun to rain or moisture.
• Never point the heat gun towards people or animals.
• Never block the nozzle by covering it or holding it too close to the object being heated.
• Harmful or toxic gases can be produced when heating paint or varnish. Make sure your work area is well-ventilated.
• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and maintenance may be carried out by children but only under adult supervision.

Warning – Fire hazard!

The heat gun can become a fire risk if used improperly. Please take the following into consideration:

• Be careful when using the heat gun in the vicinity of inflammable materials.
• Do not hold the heat gun over the same area for a long time.
• Never use the heat gun in the proximity of explosive surroundings.
• Heat can spread and ignite flammable materials which are not within sight.
• Stand the heat gun upright after use and let it cool sufficiently before putting it away for storage.
• Never leave the heat gun unattended when it is switched on.
• Never use the heat gun for drying clothes or as a hair dryer.
• The high temperatures produced by the heat gun can ignite flammable or explosive materials.

Product safety symbols

Please read the entire instruction manual and follow the safety rules.

Always use ear protection.

Always use safety glasses/visor.

Always use respiratory protection.

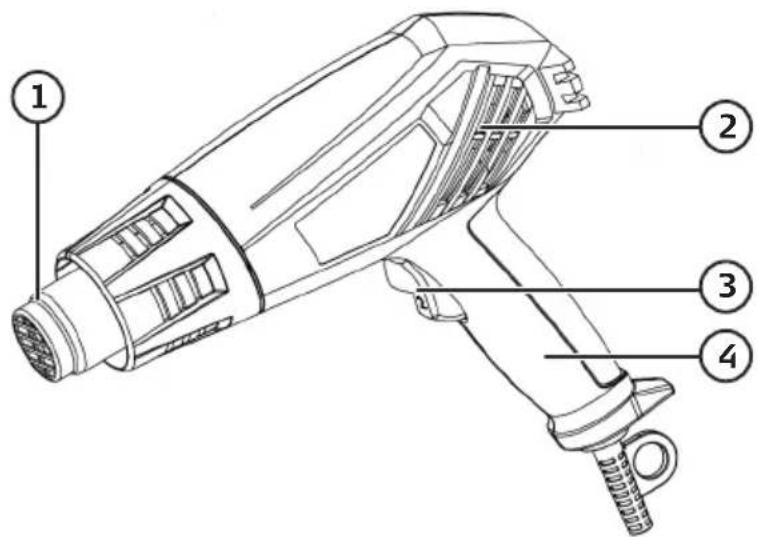

Product description

1. Nozzle
2. Air inlet
3. Power switch (0 - 1 - 2)
4. Handle

Operating instructions

Power switch

The power switch has 3 settings 0 - 1 - 2:

• 0 Off
• 1 Low heat (approx 350 °C and airflow 250 l/min)

• 2 High heat (approx 550 °C and airflow 550 l/min)

• Make sure the power switch is set to 0 before connecting the heat gun to a wall socket. When you are ready to start work make sure that the power switch is in the desired position, 1 or 2. Within a minute the heat gun will have come up to operating temperature.

• If you need both hands for another task, the heat gun can be laid on a flat surface (with the nozzle raised up). The nozzle will become very hot; don't hold your hands too close.
• When removing paint, use a suitable paint scraper and work from the top down. Scrape off paint with smooth even strokes while simultaneously warming the paint in front of the scraper by sweeping the heat gun in a back and forth motion. When the paint has been heated sufficiently, even thick layers can be easily removed.
• The edge of your scraper must be cleaned often to keep it sharp and effective. Scrape off the paint immediately after heating as the paint hardens quickly.
• For contoured surfaces, the paint must first be heated until it softens and then be removed with a steel brush.
  • Cover any adjacent surfaces which are not to be heated with a non-flammable material.
• Never point the heat gun towards a window or any other glass surface.
• After use the heat gun should be placed in an upright position and allowed to cool before it is put away.

Note: The heat gun is suitable for the removal of oil and latex based paints. It cannot remove stains, primer and wood treatment residue. Emissions from lead paint can be dangerous to your health. Always provide for good ventilation when working indoors.

Removing paint/varnish

• Switch the heat gun on and let it warm up to operating temperature.
• Keep the nozzle about 10 cm away from the paint to be removed.
• Do not heat the same spot too much, otherwise the paint could begin to burn and will then be even more difficult to remove.

Other applications

• Removing stickers and decorations.
• Defrosting frozen pipes, door locks, padlocks, etc. Do not try to defrost plastic pipes!
• Bringing out wood grain before staining or lacquering.
• Speeding up the drying of paint and varnish to help see what the colour is when the paint has dried.
• Removing old window putty before applying new.
• Shrinking packaging shrink wrap.
• Waxing skis.
• Shrinking heat-shrink tubing.

Care and maintenance

• Keep the air inlet and outlet clean.
• Clean the product using a clean soft cloth and a little mild detergent.
  Never clean the product using solvents or flammable liquids.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Voltage 220–240 V AC, 50 Hz

Power 2000 W

Operating temperature 350 / 550 °C

Air flow 250 / 550 l/min

Weight 0.6 kg

Protection class

Varmluftspistol

Bruk

Strømbryter

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Effekt 2000 W

Arbeidstemperatur 350/550 °C

Luftmengde 250/550 l/min.

Vekt 0,6 kg

Beskyttelsesklasse

Kuumailmapuhallin

Tuotenro 40-8761 Malli JS-HG12All

Käyttö

Virtakytkin

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Tekniset tiedot

Jännite 220–240 V AC, 50 Hz

Teho 2000 W
