| Product Type | Mechanical Watch |
| Brand | ORIENT |
| Model | Classic AG00004D |
| Movement Type | Automatic with hand winding |
| Caliber | AG (F6T) |
| Number of Jewels | 22 |
| Vibrations per Hour | 21,600 |
| Daily Accuracy | +25 to -15 seconds |
| Power Reserve | Over 40 hours |
| Water Resistance | 5 bar (50 m) for daily life |
| Functions | Time display (hours, minutes, seconds) |
| Second Hand Halt | Yes |
| Calendar | None (no date or day) |
| Shock Protection | Shock-proof balance |
| Luminous | Hands and dial with luminous paint |
| Crown Type | Standard push/pull |
| Case Material | Stainless steel |
| Band Material | Leather or stainless steel (varies) |
| Care Instructions | Avoid strong magnetism, chemicals, high temperatures; rinse after seawater |
Frequently Asked Questions - Classic AG00004D ORIENT
How do I manually wind the ORIENT Classic AG00004D?
With the crown in its normal position (pushed in), turn the crown clockwise slowly. Turning counterclockwise has no effect. Approximately 30 rotations will fully wind the mainspring, providing over 40 hours of power.
How do I set the time on my watch?
Pull the crown out to the second click (when the second hand stops). Turn the crown counterclockwise to set the hour and minute hands to the correct time. Ensure AM/PM is correct for calendar models (if applicable). Push the crown back to the normal position.
Does the Classic AG00004D have a date or day display?
No. This model features caliber AG (F6T), which has no date or day-of-week function. It only displays hours, minutes, and seconds.
Is the watch water resistant and can I swim with it?
The watch is water resistant to 5 bar (50 m) for daily life. This means it can handle splashes, rain, and face washing, but not swimming or diving. Always keep the crown pushed in and avoid operating it underwater.
What should I do if the watch fogs up inside?
Temporary fogging may occur when the watch is moved from a warm to a cold environment. If it disappears quickly, it is harmless. However, if fogging persists or water enters, consult your place of purchase immediately.
How often should I service my ORIENT mechanical watch?
ORIENT recommends a regular overhaul every 3 to 5 years by an authorized service center. This ensures lubrication and seals remain effective, maintaining accuracy and water resistance.
Can I use the watch in a sauna or hot tub?
No. Avoid high temperatures such as saunas or hot tubs, as they can damage the movement and cause burns. The watch is designed for normal temperatures (5°C to 35°C).
What is the accuracy of this watch?
The daily accuracy is +25 to -15 seconds under normal conditions (fully wound, room temperature, dial face up). Actual accuracy may vary based on wearing habits and position.
How do I care for the watch band?
If the band is leather, avoid water and sweat; wipe with a dry cloth. For metal bands, rinse with fresh water after exposure to seawater and dry thoroughly. Replace the band if it shows signs of wear.
Why does the watch stop or run slowly?
The watch may need winding. If not worn for a while, wind it manually about 30 turns. Also ensure the crown is fully pushed in. If the problem persists, it may be magnetized or require servicing.
User questions about Classic AG00004D ORIENT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Watch in PDF format for free! Find your manual Classic AG00004D - ORIENT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Classic AG00004D by ORIENT.
USER MANUAL Classic AG00004D ORIENT
MECHANICAL WATCHES
INSTRUCTION MANUAL
Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.
Please keep this Instruction Manual handy for future reference.
◆ SAFETY PRECAUTIONS
Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.
WARNING
CAUTION
... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.
... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.
1 2017/08/07
9:38:54
(1) Water-resistance
| Type\Conditions of use | Underwater operation of crown and operation of crown with drops of water on it | Exposure to small amounts of water (face-washing, rain, etc.) | Water sports (swimming, etc.), frequent contact with water (car-washing, etc.) | Skin diving (air tanks are not used) | Scuba diving (air tanks are used) | Mixed-gas Diving (using helium gas) | ||
| Non water resistant | Without WATER RESISTANT (WATER RESIST) | × × | × × | × × | ||||
| Water resistant watches | Water resistant for daily life | WATER RESISTANT (WATER RESIST) | × | ○ | × × | × × | ||
| Reinforced water resistance for daily life I | WATER RESISTANT (WATER RESIST) 50m (5bar) | × | ○ | ○ | × × | × | ||
| Reinforced water resistance for daily life II | WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar) | × | ○ | ○ | ○ | × | × | |
| Diver's watches | Diver's watch for Air Diving | AIR DIVER'S 100m / 150m 200m | × | ○ | ○ | ○ | × | |
| Diver's watch for Mixed-gas Diving | He-GAS DIVER'S 200m / 300m /... | × | ○ | ○ | ○ | ○ | ||
* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.
2 2017/08/07
9:38:55
WARNING
① A watch with water resistance for daily life 30M (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50M (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100M or 200M (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
CAUTION
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.
3 2017/08/07
9:38:55
① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.
(3) Magnetism
① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.
(4) Vibration
The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.
(5) Temperature
In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.
CAUTION
Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.
(6) Chemicals, Gases, etc.
Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.
4
4 2017/08/07
9:38:55
Do not attempt to disassemble or modify the watch.
Store the bracelet/strap pin and other small parts out of the reach of children.
If any small parts are swallowed, immediately contact a doctor.
(8) Allergic reactions
If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.
(9) About "luminous light"
This watch has luminous light on the hands and dial.
The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.
(10) Water resistant watchband
Some products employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.
5 2017/08/07
9:38:55
◆ HOW TO IDENTIFY THE CALIBER NUMBER
Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.
1. Searching by 10-digit model number
Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.
Example: If the model number is “☐AA00001B☐”, the caliber number is “AA”.

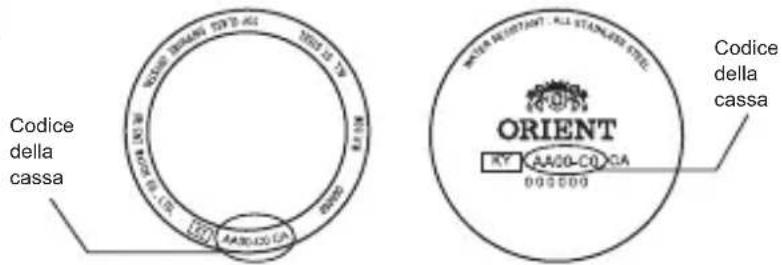

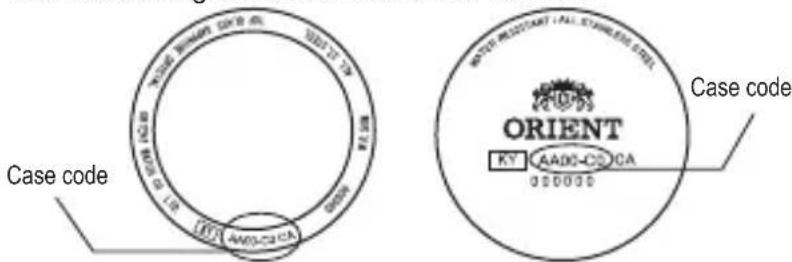

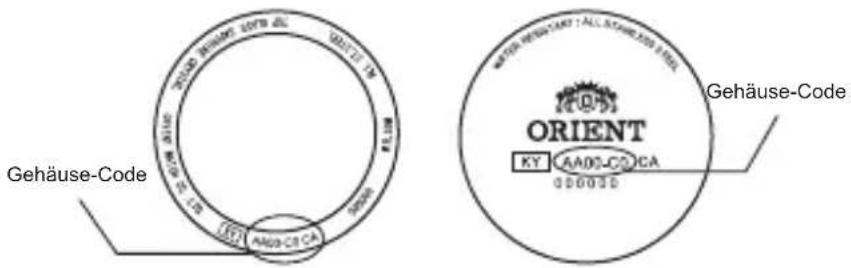

2. Searching by the case code
See the case code on the case back of your watch.
The first two digits indicate the caliber number.
* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.
6
6 2017/08/07
9:38:55
| Caliber | Number of jewels | Date Day of week | Second hand halt mechanism | Remark1* | ||
| AA F69 22 | ○ | ○ | 8:00P.M.-4:00A.M. | |||
| AC F67 22 | ○ | ○ | 8:00P.M.-2:00A.M. | |||
| AG F6T 22 | - | ○ | 8:00P.M.-4:00A.M. | |||
| AP F62 24 | ○ | ○ | 8:00P.M.-1:00A.M. | |||
ENGLISH
(1) Vibrations: 21,600 vibrations/1 hour
(2) Daily accuracy: +25 sec. to -15 sec.
(3) Drive system: Mainspring winding (Hand-winding)
(4) Running time: More than 40 hours
(5) Shock-proof bearings to protect the balance with hairspring from shocks.
The stated daily accuracy is in the following conditions:
• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
- Due to the characteristics of the automatic winding watch, the time may deviate from the stated "daily accuracy" depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.
• Determine the deviation from not just a day but a period of about a week.
Product specifications may change without notice, for improvement.
CAUTION
* Avoid setting the date during the time periods listed in "Remark1" above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.
7


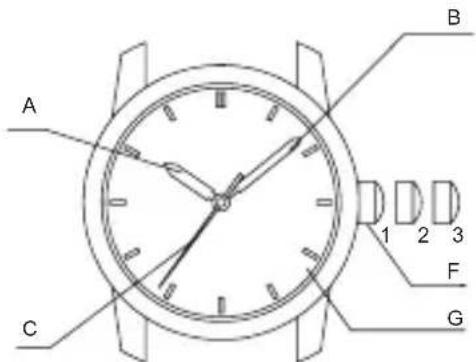

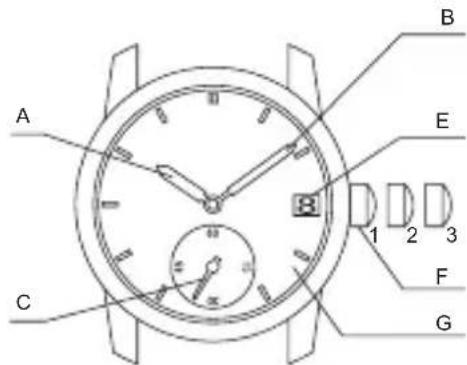

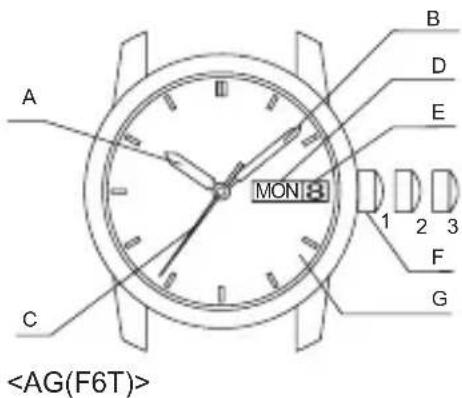

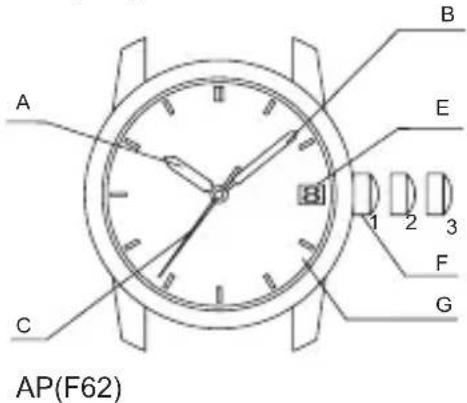

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS
A: Hour hand
E: Date 1. Normal position
B: Minute hand F: Crown 2. First click: Calendar setting
C: Second hand G: Dial 3. Second click: Time setting
D: Day of the week
8
8 2017/08/07
9:38:56
(1) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.
(2) If your watch stops, swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.
(3) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.
ENGLISH
◆ HAND WINDING MECHANISM
(1) The mainspring is wound up manually.
(2) To wind the spring, ensure that the crown is in its normal position and slowly turn it clockwise.
Turning the crown counterclockwise will have no effect.
(3) When the watch is in the stopped state, the spring can be wound sufficiently by rotating the crown approximately 30 times. Since the crown will rotate even when winding is complete, wind the watch using the above number of turns as a guide.
(4) This watch will run approximately 40 hours after the spring is fully wound.
◆ MODELS WITH SCREWED-DOWN CROWN
Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).
Operate this type of watch as follows:
(1) Before setting the date and time, first turn the crown counterclockwise to loosen the screw lock.
(2) After setting the date and time, turn the crown clockwise while pressing in, until it stops turning to securely tighten the screw.
◆ HOW TO SET THE TIME & CALENDAR [AA(F69)]
(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position. (The second hand stops.)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 1](/content/2026/05/800182/images/c97677013c39888025d31908cb4c461a12b5fbf1bcaa42ca3e8ce624c830a738.jpg)
* When setting the time, first bring the hand back slightly earlier than the actual time and then move it forward to the actual time.
* For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].
(3) Pull the crown out to the first click. * The crown on this watch can be pulled out to either of two clicks.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 3](/content/2026/05/800182/images/1f9f2ce0b005ed196237d06525dca66e7fa76513cf88c735961e04b49b0f8687.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 6](/content/2026/05/800182/images/989a9d73a464570f0299b5432c007d5266081359f64744befa3ea8ae51da12be.jpg)
10 2017/08/07
9:38:56
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 7](/content/2026/05/800182/images/e3a5a591a2cc5935e64fd4957be1e408d8da8c02d3f6a0f15c4272bbbc77871c.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 12](/content/2026/05/800182/images/59cb1fc78be0cc7a29e4aa730db5f228b7d8f76a3698bfd87792da7be1ffc5f6.jpg)
(5) Turn the crown clockwise to set the day of the week to the current day. * This watch has a bilingual day of the week function. Turn the crown to select the desired language. The display languages differ depending on the model.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 14](/content/2026/05/800182/images/e4879bc87158d7a9f99b8f0f46eef05d7cbe27585ca90534c6f9b98afb62148d.jpg)
(6) Push the crown back to the normal position.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 15](/content/2026/05/800182/images/6b868786d55bf1f52fca7878622bcdf22cc07941723b49d08dd09468aa014ff8.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 16](/content/2026/05/800182/images/d99b2b4d89d580e6dcced98f9b1e8779e7f43cffe70c0c0880ce35fc7397e81c.jpg)
11 2017/08/07
9:38:56
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AA(F69)] - 19](/content/2026/05/800182/images/cc57af286759d80e4c98a71f86c851de0ce6bfee283927197345a4bd191f9601.jpg)
◆ HOW TO SET THE TIME & CALENDAR [AC(F67)]
(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position. (The second hand stops.)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 1](/content/2026/05/800182/images/0960e0d26dd1c54d2a5c0aab8370f401512474aa6d39cc1895d729ccc5f679ab.jpg)
* When setting the time, first bring the hand back slightly earlier than the actual time and then move it forward to the actual time. * For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 3](/content/2026/05/800182/images/676f20dc33ab274dfc3f5c8a50d7b135dd1455b424174159c141b5aec6540d2d.jpg)
* The crown on this watch can be pulled out to either of two clicks.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 4](/content/2026/05/800182/images/97c1e1ab3bd76cb19d08bf11a2fd8cbfefdc7290d0f1b5d4f23e4fd74f74c3fc.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 5](/content/2026/05/800182/images/98ab6786b0e6838e28028e083571ca02e75c41fb966256fb6604c26568e1cb74.jpg)
12 2017/08/07
9:38:56
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 6](/content/2026/05/800182/images/dd88418e70c158515083ec5c7debf8548d8219c707948ee9f21c2a4cafd52c28.jpg)
** Correcting the date at the end of the month
The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].
(5) Push the crown back to the normal position.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 11](/content/2026/05/800182/images/9bcaca562b4d8da45b6f7a6ef6cbff408947cf5f0708b9a27322a0c48a19e388.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AC(F67)] - 12](/content/2026/05/800182/images/410086d144b36a67b19a3e393583d93388bfe426ca839dcdaa07093d7b7cf012.jpg)
(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position.
(The second hand stops.)
(2) Turn the crown counterclockwise and set the current time.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME [AG(F6T)] - 1](/content/2026/05/800182/images/3f9fa7153200265a49792a994fe2f3b8625615c7e8a1e2248886540b52847702.jpg)
13 2017/08/07
9:38:57
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME [AG(F6T)] - 6](/content/2026/05/800182/images/bf6e0de0e8b7988996d430aea43ece67a69028edbd1ab5e0d869411efa43ea67.jpg)
(3) Press the crown in to the normal position.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME [AG(F6T)] - 10](/content/2026/05/800182/images/fd274e32e17b7e798d877f2bbfe96e76d14dc733fb2e3ca561cc429cd0a68e17.jpg)
(1) Pull out the crown to the second click when the second hand reaches the 12 o'clock position. (The second hand stops.)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 1](/content/2026/05/800182/images/ebf944ae0a63cb41c5292409b1547e93863a28338bcceb7ec81aa62fe2772a32.jpg)
* When setting the time, first bring the hand back slightly earlier than the actual time and then move it forward to the actual time.
* For the watch with a calendar, make sure that you set either a.m. or p.m. without fail. The date changes at [twelve o'clock midnight].
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 2](/content/2026/05/800182/images/1bf35b3349e61cc17a22f839953b445f4a96249568809a1239e51cb390be46b8.jpg)
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 3](/content/2026/05/800182/images/33560573cecff2a7ba7407adbc02665686bc4b08110a4c6ddcd01ea20f30e9bf.jpg)
14 2017/08/07
9:38:57
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 4](/content/2026/05/800182/images/2949e0dd1bcad3574c568d96b68328c32e236d16e058b3a2cdf001c3b3ee7878.jpg)
* The crown on this watch can be pulled out to either of two clicks.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 11](/content/2026/05/800182/images/a9b5eee494449f038246c68189d73ff0a9c98210c02d3817876105e88f2d2750.jpg)
** Correcting the date at the end of the month
The date will have to be corrected for months that have 30 days, or those that have less than 30 days. After the date switches over to the first day of the succeeding month, set the date to the [First (1)].
(5) Push the crown back to the normal position.
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 12](/content/2026/05/800182/images/77fc187b1bb5bab9e648ed8fbbfd7001f0d783006b2dda3c684f2c8193a0af1e.jpg)
15 2017/08/07
9:38:57
![ORIENT Classic AG00004D - ◆ HOW TO SET THE TIME & CALENDAR [AP(F62)] - 16](/content/2026/05/800182/images/a06a8ac55fc59e3e81909d73f319c16e0188977831a4e32fa563fc92f1824df8.jpg)


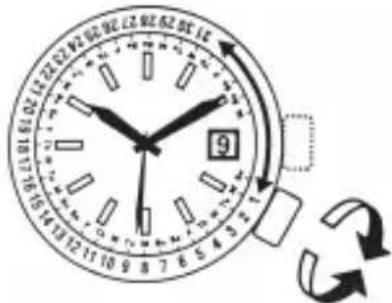

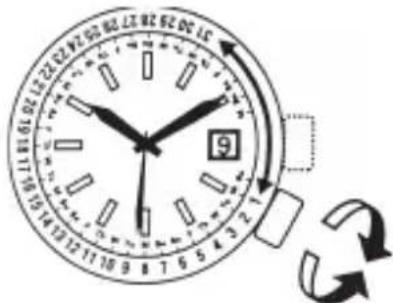

◆ HOW TO SET THE MONTHLY CALENDAR
Some models come with a monthly calendar.
The monthly calendar can be used by turning the crown at the 4 o'clock position to set the rotating ring inside the watchcase and aligning it with the day of the week that is printed on the dial.
Turn the crown to align the first day of the month to the appropriate day of the week.
16 2017/08/07
9:38:57


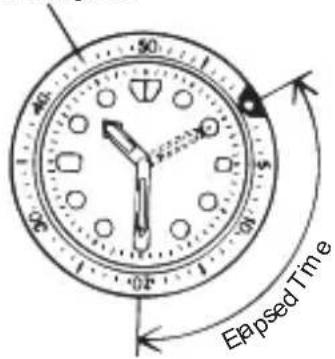

Please notice that some models come with a rotating indicator ring, which should be used properly.
Turn the ring by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator ring. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.
Rotating bezel
You cannot turn the ring reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the ring could also help you to read the current time easily.
* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator ring does not apply to some models.
17 2017/08/07
9:38:57


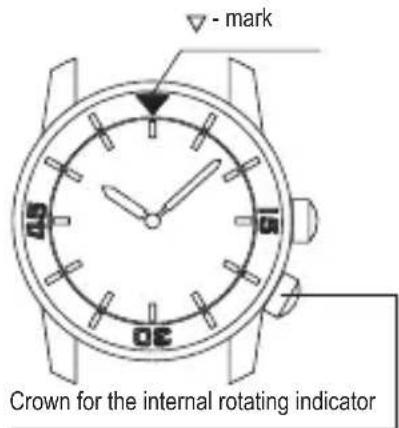

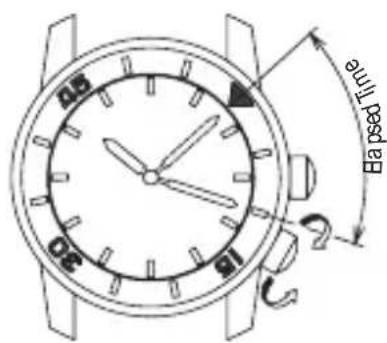

◆ HOW TO USE THE INTERNAL ROTATING INDICATOR RING
Please notice that some models come with an internal rotating indicator ring, which should be used properly.
Turn the crown for the internal rotating indicator ring to set the ▽ - mark to the position of the minute hand.
The position of the internal rotating indicator ring to which the minute hand is pointing after some time has elapsed indicates the elapsed time.
Setting the mark to the desired time also allows you to know the remaining time.
The above figure shows that 10 minutes have elapsed since 10:08.
* The positions of the crown and the appearance of the internal rotating indicator ring may differ depending on the model.
18 2017/08/07
9:38:58
MECHANISCHE UHR
BEDIENUNGSANLEITUNG
19 2017/08/07
9:38:58
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
WARNUNG
ACHTUNG
21 2017/08/07
9:38:58
Simple geometric diagram with a circle centered at the intersection of two perpendicular lines (no text or labels)
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
24 2017/08/07
9:38:58
| Kaliber | Anzahl der Lagersteine | Datum Wochentag | Sekundenzeigerstopp-mechanismus | Anmerkung 1* | ||
| AA F69 | 22 | ○ | ○ | 8:00P.M.-4:00A.M. | ||
| AC F67 | 22 | ○ | - | ○ | 8:00P.M.-2:00A.M. | |
| AG F6T | 22 | - | - | ○ | 8:00P.M.-4:00A.M. | |
| AP F62 | 24 | ○ | - | ○ | 8:00P.M.-1:00A.M. | |
DEUTSCH
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
26 2017/08/07
9:38:59
27 2017/08/07
9:38:59
Simple analog clock face with hour and minute hands, showing a small rectangular object on the right side (no text or symbols)natural_image
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
28 2017/08/07
9:38:59
SAT8 Gegen den Ulll. I am innatural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
29 2017/08/07
9:38:59
Diagram showing a clock face with hour and minute hands, indicating time measurement or digital displaynatural_image
Diagram of a circular mechanical component with a fastener and directional arrow, no text or symbols present30
30 2017/08/07
9:38:59
Diagram showing a circular dial with a pointer labeled 'B' and a curved arrow indicating rotation or direction.natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Simple analog clock face with hour and minute hands, showing a 3:50 split (no text or numbers)
31 2017/08/07
9:38:59
Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)DEUTSCH
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
32 2017/08/07
9:38:59
Diagram showing a circular object with labeled points and a curved arrow indicating rotation or change.natural_image
Diagram of a circular mechanical component with a central fastener and an arrow indicating direction (no text or symbols)
33 2017/08/07
9:39:00
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)34
34 2017/08/07
9:39:00
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
35 2017/08/07
9:39:00
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
36 2017/08/07
9:39:00
OROLOGIO MECCANICO
37 2017/08/07
9:39:00
38 2017/08/07
9:39:00
AVVERTENZA
ATTENZIONE
39 2017/08/07
9:39:00
Simple geometric diagram with a circle centered at the intersection of two perpendicular lines (no text or symbols)
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
42 2017/08/07
9:39:01
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)44
44 2017/08/07
9:39:01
Simple geometric diagram with a circle centered at the intersection of two perpendicular lines (no text or symbols)
Simple analog clock face with hour and minute hands, showing a small rectangular object on the right (no text or symbols)ITALIANO
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
46 2017/08/07
9:39:01
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
47 2017/08/07
9:39:02
Diagram showing a clock face with an arrow pointing to it, indicating time measurement or direction.ITALIANO
Diagram of a circular object with evenly spaced holes and a rectangular block, connected by an arrow indicating direction (no text or symbols)48
48 2017/08/07
9:39:02
Simple line drawing of a circular object with a central button and an arrow pointing to it (no text or symbols)
Simple analog clock face with hour and minute hands, showing a 12:50 split (no text or numbers)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)ITALIANO
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
50 2017/08/07
9:39:02
00 12 35 → Cinero intext_image
Diagram showing a circular dial with a numbered segment and an arrow indicating rotation or adjustment.ITALIANO
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)52
52 2017/08/07
9:39:02
53 2017/08/07
9:39:03
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
54 2017/08/07
9:39:03
RELOJ MECÁNICO
55 2017/08/07
9:39:03
ADVERTENCIA
PRECAUCIÓN
57 2017/08/07
9:39:03
58 2017/08/07
9:39:03
Simple geometric diagram with a circle centered at the intersection of two perpendicular lines (no text or labels)EMAM63. indb
59 2017/08/07
9:39:03
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
60 2017/08/07
9:39:03
| Calibre | Número de joyas | Fecha | Día de semana | Mecanismo de detención de la manecilla de los segundos | Observaciones 1* | |
| AA F69 | 22 | ○ ○ | ○ | 8:00P.M.-4:00A.M. | ||
| AC F67 | 22 | ○ | - | ○ | 8:00P.M.-2:00A.M. | |
| AG F6T | 22 | - | - | ○ | 8:00P.M.-4:00A.M. | |
| AP F62 | 24 | ○ | - | ○ | 8:00P.M.-1:00A.M. | |
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
62 2017/08/07
9:39:04
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AA(F69)] - 3](/content/2026/05/800182/images/28cff27b5fe0e4923926047836fd7a95cf49f41b5b21ae574b321841d4459d35.jpg)
64 2017/08/07
9:39:04
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AA(F69)] - 4](/content/2026/05/800182/images/ed6accbae410fe41cf5e084cc6600b7249257d50bc24e66fc72a51fd3bdc9a46.jpg)
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AA(F69)] - 9](/content/2026/05/800182/images/35036d4e9e933baf858f0ab40b11c0b031817f090acb22a554e62086bf98895e.jpg)
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AC(F67)] - 2](/content/2026/05/800182/images/e8be0be4125ed28f5de3ba4a0d4f2591b48509cf2eb7f4765702d9e9ee5aedbd.jpg)
66 2017/08/07
9:39:04
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AC(F67)] - 3](/content/2026/05/800182/images/f1f0211a5cc0902a7256e347e7309ad5cbe54cbc3a58355537d2782662adcb26.jpg)
Diagram of a circular dial with a pointer and arrow indicating direction (no text or symbols)![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AC(F67)] - 8](/content/2026/05/800182/images/d60ac67a63985ca61a666e79bd7ad4235f4835ff02ab190cf141343ff3f05423.jpg)
Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)]
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 1](/content/2026/05/800182/images/1ed2b7516035087629ef0092ff9cb216381fa7feecccc975872e73fa98833fc5.jpg)
Simple line drawing of a clock face with hour and minute hands, no text or symbols present![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 2](/content/2026/05/800182/images/8fdcdf815bfded235d278c61835eb2ea8164f91220054a6e916dec0638df8c19.jpg)
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 3](/content/2026/05/800182/images/2a4dcbdd5b043691bd3dc08cb19983ca385f36ad639959b25d141fa814932714.jpg)
68 2017/08/07
9:39:05
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 4](/content/2026/05/800182/images/c015557b403673a85d4a7ff13e79c2b1bba8f1bd6f3a8c2f31555c29b6b7e312.jpg)
Diagram of a circular dial with a pointer and arrow indicating direction (no text or symbols)![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 9](/content/2026/05/800182/images/d9ce5ce366b902db523cd0b1e065bb3dc2d58aa1e20ea3fd56d0e7160a416f02.jpg)
69 2017/08/07
9:39:05
![ORIENT Classic AG00004D - ◆ CÓMO AJUSTAR LA HORA Y EL CALENDARIO [AP(F62)] - 10](/content/2026/05/800182/images/469919ec37070a2dabddd19f9bdaac44daec69ad892623904659faa116b93807.jpg)
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)70
70 2017/08/07
9:39:05
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
72 2017/08/07
9:39:05
МЕХАНИЧЕСКИЕ ЧАСЫ
ПРЕДУПРЕЖДЕНИЕ
ВНИМАНИЕ
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)74
74 2017/08/07
9:39:06
ПРЕДУПРЕЖДЕНИЕ
ВНИМАНИЕ
75 2017/08/07
9:39:06
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
76 2017/08/07
9:39:06
77 2017/08/07
9:39:06
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
78 2017/08/07
9:39:06
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)natural_image
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
79 2017/08/07
9:39:06
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
82 2017/08/07
9:39:06
Simple analog clock face with hour and minute hands, showing a small rectangular object aligned horizontally (no text or symbols)
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
83 2017/08/07
9:39:07
Pure geometric lines forming an L-shape with no text, numbers, or symbolsEMAM63. indb
84 2017/08/07
9:39:07
Simple analog clock face with hour and minute hands, showing a small rectangular object on the right side (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Diagram showing a clock face with hour and minute hands, followed by a rightward arrow indicating time measurement.natural_image
Pure geometric lines forming an L-shape with no text or symbolsEMAM63. indb
86 2017/08/07
9:39:07
Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.natural_image
Simple analog clock face with hour and minute hands, no visible text or numbersnatural_image
Pure geometric lines forming an L-shape with no text, numbers, or symbols
10:30 9:30 5:30natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)88
88 2017/08/07
9:39:07
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Simple geometric diagram with a black rectangle and intersecting lines (no text or symbols)89
89 2017/08/07
9:39:07
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)90
90 2017/08/07
9:39:07
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
91 2017/08/07
9:39:08
Analog stopwatch with time hand and clock face, showing 12:00-15:00 with hour and minute hands and a circular arrow indicating refresh.
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
17
16 2017/08/01
16:46:18
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Diagram of a circular dial with a pointer and arrow indicating direction (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)10
15 2017/08/01
16:46:17
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or labels)
Pure geometric lines forming an L-shape with no text or symbolsEMAM63_AR.indd
14 2017/08/01
16:46:17
Diagram of a circular dial with a pointer and arrow indicating direction (no text or symbols)natural_image
Simple analog clock face with hour and minute hands, showing time as the next minute (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Diagram showing a clock face with an arrow indicating rightward movement, likely representing time or duration.natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Simple line drawing of a circular object with a small protrusion and an arrow pointing right (no text or symbols)natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
11 2017/08/01
16:46:17
Diagram showing a clock face with an arrow indicating rightward movement, possibly representing time or duration.natural_image
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)1.
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
8 2017/08/01
16:46:16
ملاحظة ١٠٠٥١
| الرقم عقرب للؤ Dirاني ايام الأسوع اليوم عدد الاحجر | ||||||
| م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ م seeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ مseeing ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~ م Gin ~م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~ مReading ~م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading ~ م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م reading -م | ||||||
7 2017/08/01
16:46:16
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
Pure geometric lines forming an L-shape with no text, numbers, or symbols
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
5 2017/08/01
16:46:16
(٢)prec#
3 2017/08/01 16:46:16
(1) مقاومة الماء
ساعة آلية
دليل التشغيل
Simple geometric diagram with a circle intersected by two perpendicular lines (no text or symbols)
1
1 2017/08/01
16:46:16

