USER MANUAL Sports TD0G001B ORIENT

ANALOGUE QUARTZ WATCH ALARM CHRONOGRAPH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	○	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

④ The watch comes equipped with a battery end of life indicator.

If the small second hand begins to advance two tick marks for every movement, it means that the battery is nearing the end of its life and will need to be replaced.

Contact the place of purchase or your nearest ORIENT authorized service center immediately for assistance with battery replacement.

⑤ Steps to be taken after the battery is replaced

After you have the battery replaced, be sure to set the time and set the stopwatch hands to the "0" position.

(Refer to ◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display and stopwatch hands) for more information.)

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperature

In the environment below and above the normal temperatures <5^ 35^> , the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

This is a multi-display analogue watch featuring a stopwatch and alarm function.

It is a very convenient multi-function watch.

The current time is indicated by the hour and minute hands and a small second hand.

The alarm can be set in 1-minute increments to a time up to 11 hours and 59 minutes in advance.

The stopwatch can measure up to 60 minutes in 1/5 second increments. The time measured is indicated by the two stopwatch hands (stopwatch second and minute hands). Split time measurement is also available.

After 12 hours, the stopwatch will automatically stop.

◆ SPECIFICATIONS

(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)
(2) Wrist-worn accuracy: (at normal temperature <5^ 35^> ) Mean monthly rate: ±20 sec. Alarm accuracy: ±1 minute
(3) Operating temperature range: -5^ +50^
(4) Drive system: Step motor (4 pieces)
(5) Display system: [Time function]

Hour and minute hands with a small second hand that moves at one-second intervals.

[Stopwatch function]

Stopwatch minute hand turns a full circle in 60 minutes at one-minute intervals.

Stopwatch second hand turns a full circle in 60 seconds at 1/5 second intervals.

[Alarm function]

Alarm minute hand turns a full circle in 60 minutes at one-minute intervals.

Alarm hour hand turns a full circle in 12 hours while moving correspondingly with the alarm minute hand.

(6) Additional functions: Reset switch, second hand halt mechanism, accumulated time measurement, split time measurement, power reserve indicator feature

(7) Battery: Silver oxide battery SR927W ; 1 piece
(8) Battery life: Approx. 3 years from installation if the alarm is used once a day (for 20 seconds) and the stopwatch is used for 2 hours a day.
(9) IC (Integrated Circuit): C-MOS-1C ; 1 piece

* The above specifications are subject to change without notice for improvement.

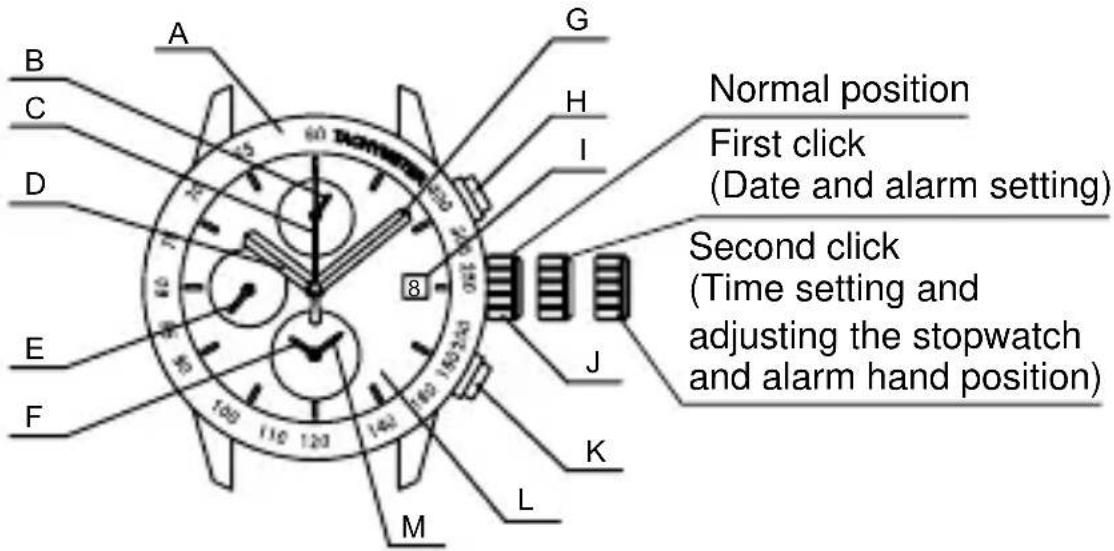

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

B C D E F A G H I Normal position First click (Date and alarm setting) Second click (Time setting and adjusting the stopwatch and alarm hand position)

A : Tachymeter scale

H : Button Ⓐ

B : Stopwatch minute hand I : Date

C : Stopwatch second hand J : Crown

D : Hour hand

K : Button Ⓑ

E : Small second hand L : Dial

F : Alarm hour hand M : Alarm minute hand

G : Minute hand

* Some models may not come with tachymeter scales.
* The position of the date indicator may vary on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Some models have a screwed-down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise and loosen.
(2) After time setting and calendar setting are completed, turn the crown clockwise and tighten.

◆ MODELS WITH A SCREWED-DOWN BUTTON RING

Some models may have a configuration that allows the button ring (ring on the outer periphery) to be locked (fixed) into place by being screwed down.

Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and then loosen it until the screw stops.
* The buttons may not be able to be used if the button ring cannot be loosened enough. Do not turn it more forcefully than necessary.
(2) After finishing using the buttons, turn the button ring to the right, and firmly tighten it until the screw stops.
* Do not tighten it more forcefully than necessary.

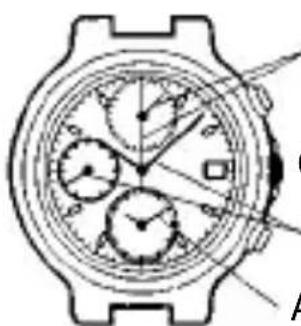

◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display, alarm sub-dial, and stopwatch hands)

This watch allows you to both set the time (basic watch and alarm sub-dial) and set the stopwatch hands to the "0" position with the crown at the second click position. Once the crown is pulled out to the second click, check the following three items, and if necessary, make adjustments, and then push the crown back in.

(1) Time of the basic watch
(2) Time of the alarm sub-dial
(3) "0" position of the 2 stopwatch hands

Technical line drawing of a wristwatch with dials and calipers (no text or symbols)

Stopwatch hands

(Stopwatch minute and second hands)

Crown

Hands for time display

(Hour and minute hands and small second hand)

Alarm hands

(Alarm hour and minute hands)

[How to set the time (basic watch and alarm sub-dial)]

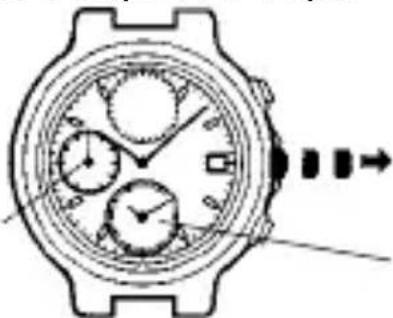

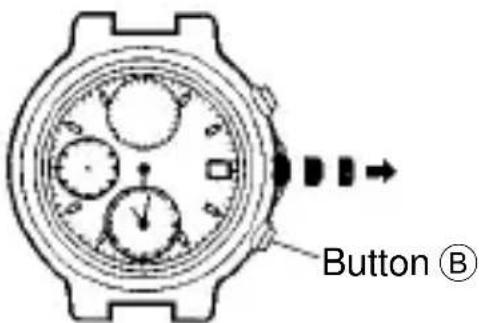

(1) Pull out the crown to the second click when the small second hand is at the 12 o'clock position.

The small second hand stops on the spot.

Small second hand

Line drawing of a wristwatch with three dials and a pointer indicating left-hand motion (no text or symbols)

The alarm sub-dial indicates the current time.

* If the stopwatch is measuring, the stopwatch hands are automatically reset to the "0" position.
* If the alarm has been set, the alarm hands will move quickly and indicate the current time.

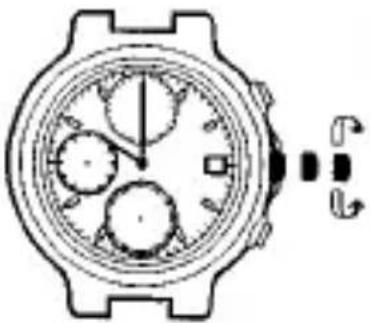

(2) Turn the crown to set the hour and minute hands to the current time.

Technical line drawing of a wristwatch with dials and buttons (no text or symbols)

After setting the time, also set the stopwatch hands to the "0" position. It is recommended that the hands be set to the time a few minutes ahead of the current time, taking into consideration the time required to push the crown back in when all the adjustments are completed.

* When setting the hour hand, check that AM/PM is correctly set. The date changes around midnight.
* When setting the minute hand, first advance it 4 to 5 minutes ahead of the current time, and then, turn it back to the exact minute.

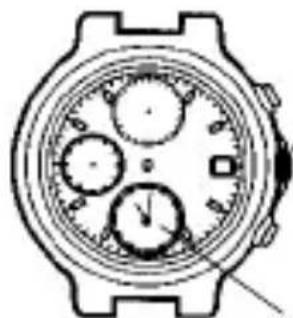

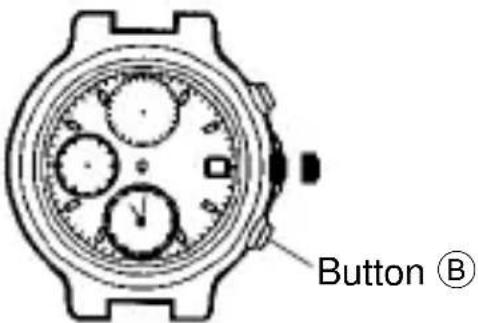

(3) Then, press button Ⓑ and set the time on the alarm sub-dial. Set it to the same time as that of the basic watch set in (2) above. The alarm sub-dial hands move quickly when button Ⓑ is kept pressed.

Button Ⓑ

* The alarm sub-dial does not come with the AM/PM option.

(4) Reset the two stopwatch hands to "0" position.

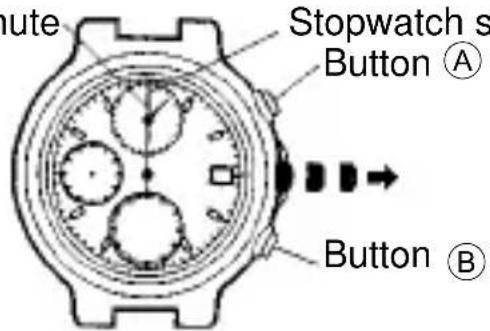

Press button Ⓐ for about 2 seconds and the stopwatch minute hand will turn a full circle.

Press button Ⓑ and set the stopwatch minute hand to the "0" position. The hand moves quickly when button Ⓑ is kept pressed.

Stopwatch minute hand

Stopwatch s Button A Button B

Then, press button Ⓐ for about 2 seconds, and the stopwatch second hand will turn a full circle.

Press button Ⓑ and set the stopwatch second hand to the "0" position.

The hand moves quickly when button Ⓑ is kept pressed.

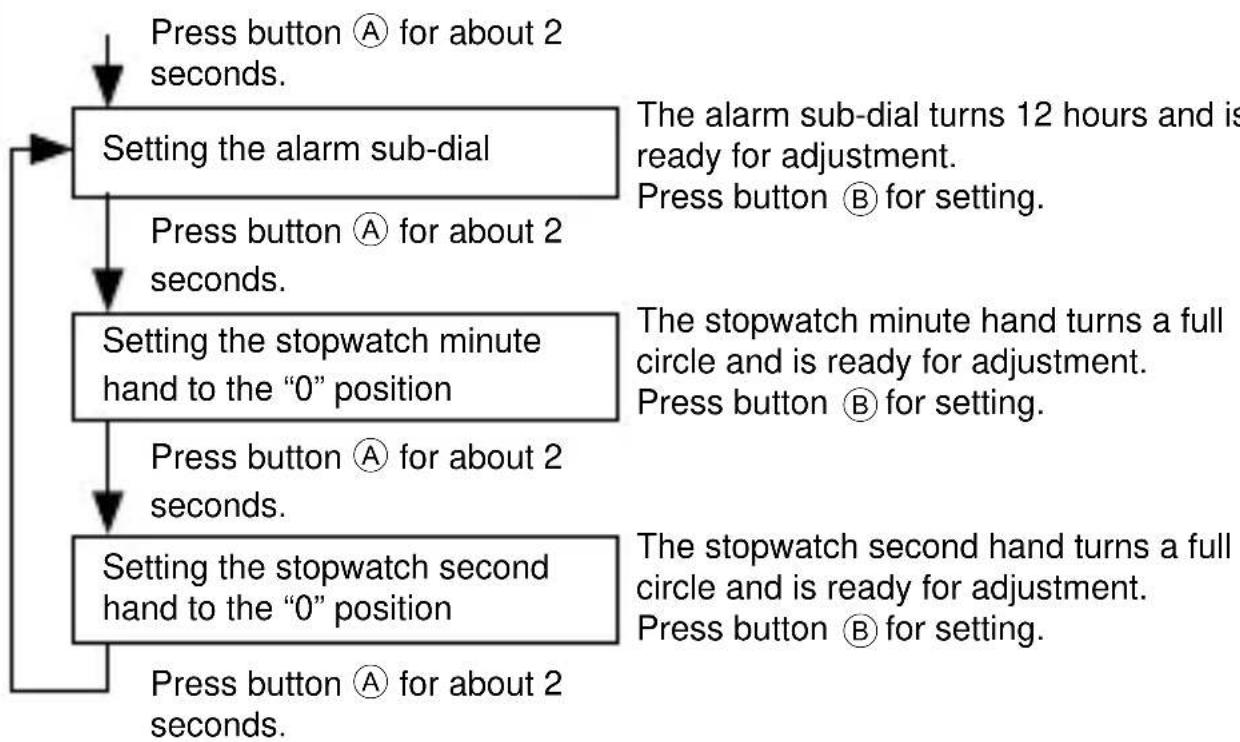

(5) To reset again what has already been set, follow the steps listed below.

    H["The alarm sub-dial turns 12 hours and is ready for adjustment.<br>Press button Ⓑ for setting."] --> I["The stopwatch minute hand turns a full circle and is ready for adjustment.<br>Press button Ⓑ for setting."]
    I --> J["The stopwatch second hand turns a full circle and is ready for adjustment.<br>Press button Ⓑ for setting."]

* You can reset the settings as often as you like.
(6) After all the adjustments are completed, push the crown back in to the normal position in accordance with a time signal.
* Check that the time of the basic watch and the alarm sub-dial indicate the current time, then, push the crown back in to the normal position.

◆ HOW TO SET THE DATE

* Do not set the date during the time period noted below because the date is changing.

9:00 p.m. to 1:00 a.m.

If date is set during this time period, the date may not change properly on subsequent days.

* Avoid this time period when setting the date.

Be sure to set the time before setting the date.

It is necessary to adjust the date on the first day of March and months following 30-day months.

(1) Pull out the crown to the first click.

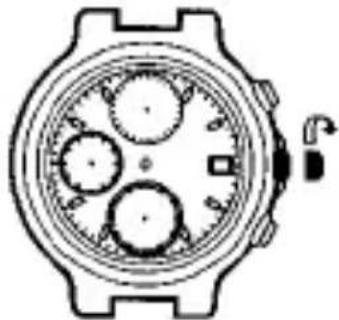

Technical line drawing of a mechanical watch with three dials and a scroll wheel (no text or symbols)

* Pressing button Ⓑ in this condition will result in either setting or adjusting the alarm time, and so we advise not to press button Ⓑ if there is no particular need.

(2) After all the adjustments are completed, push the crown back in to the normal position.

◆ HOW TO USE THE STOPWATCH

The stopwatch can measure up to 60 minutes in 1/5 second increments. After 12 hours, it will automatically stop.

The time measured is indicated by the two stopwatch hands that move independently of the hands for time display.

Split time measurement is available.

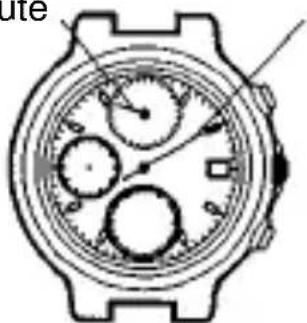

[How to read the stopwatch hands]

The time measured is indicated by the two stopwatch hands (stopwatch second and minute hands).

Stopwatch minute hands

(Elapsed minutes)

dute

Stopwatch second hand (Elapsed 1/5 seconds)

48 minutes and 10 seconds 2

If the stopwatch hands do not return to "0" position when the stopwatch is reset, follow the procedure in "♦ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION" to reset them.

In that case, be sure to adjust the hands for time display to the current time.

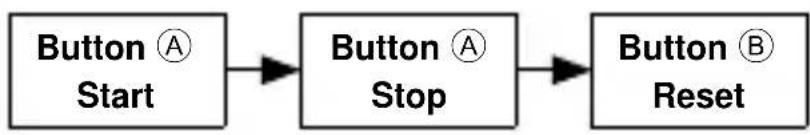

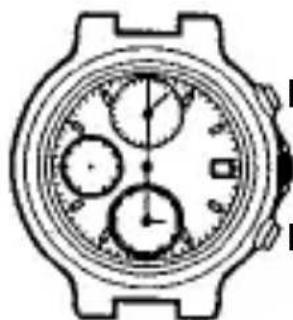

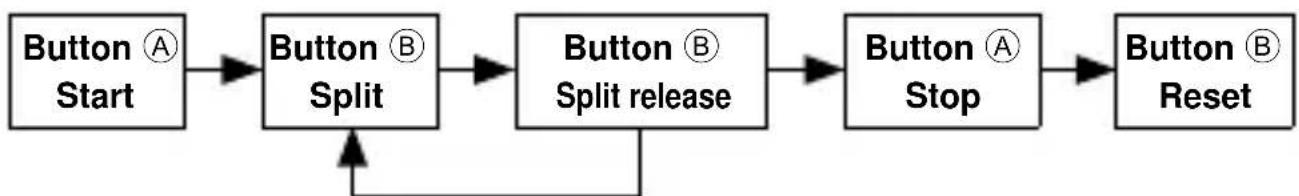

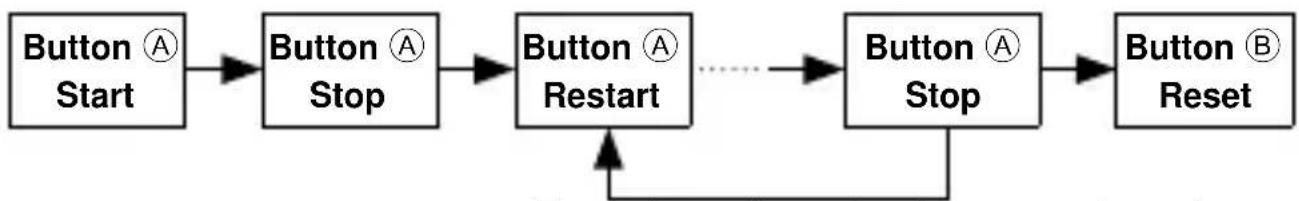

[How to reset the stopwatch]

When the stopwatch hands are counting:

(1) Press button Ⓐ to stop the stopwatch.
(2) Press button Ⓑ to reset the stopwatch.

When the stopwatch hands are stopped: One of the following three stopwatch operations has occurred. Reset the stopwatch accordingly.

Close-up of a wristwatch face showing three dials and a dial (no text or symbols visible)

Button A

Button Ⓑ

[The stopwatch was stopped in “Standard measurement” or “Accumulated elapsed time measurement.”]

(1) Press button Ⓑ to reset the stopwatch.

[Split time was measured and remains displayed "Split time measurement."]

(1) Press button Ⓑ. The split time is released and the stopwatch hands move quickly to indicate the measurement in progress.
(2) Press button Ⓐ to stop the stopwatch.
(3) Press button Ⓑ to reset the stopwatch.

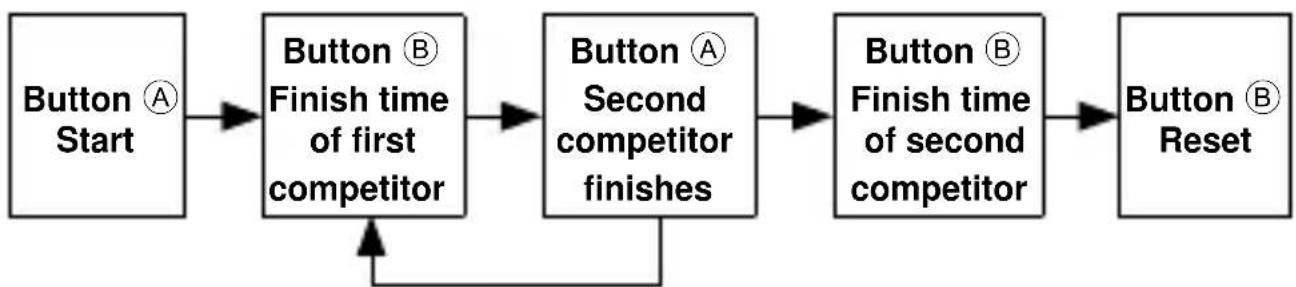

[The time of the 2nd competitor was measured in “Measurement of two competitors.”]

(1) Press button Ⓑ. The stopwatch hands move quickly and stop.
(2) Press button Ⓑ to reset the stopwatch.

■ Standard measurement

■ Accumulated elapsed time measurement

Restarting and stopping the stopwatch can be repeated by pressing button Ⓐ.

■ Split (intermediate) time measurement

Measurement and release of the split time can be repeated by pressing button Ⓑ.

■ Measurement of two competitors

The hands indicate the first competitor's time while the measurements are being taken.

◆ HOW TO USE THE ALARM (ONE-TIME ALARM)

This is a one-time alarm that sounds only once at a set time. After it sounds, the set time is reset.

The alarm can be set in 1-minute increments to a time up to 11 hours and 59 minutes in advance.

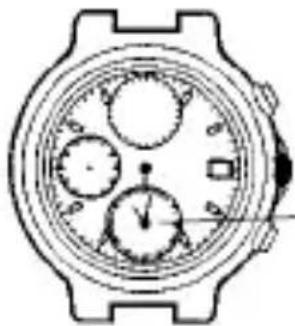

Line drawing of a wristwatch with three dials and analog clock face (no text or symbols)

This alarm sub-dial indicates the current time when the alarm is not set, and when the alarm is set, it indicates the alarm time.

Set the time of the alarm sub-dial when you set the time of the basic watch, etc.

Refer to ◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION.

[How to set the alarm time]

(1) Pull out the crown to the first click.

Line drawing of a wristwatch with three dials and a dial (no text or symbols)

Crown

First click (setting the alarm time)

When the alarm is set, the alarm time remains as indicated.

* Note that you cannot operate the stopwatch with the crown in the first click position.

(2) Press button Ⓑ and set the alarm time.

The alarm sub-dial hands move quickly when button Ⓑ is kept pressed.

Button Ⓑ

* If you passed the time you want to set, advance it further and set it. When the alarm sub-dial hands reach the current time, the watch enters a state in which no alarm is set. In this situation, if button Ⓑ had been kept pressed for the alarm sub-dial hands to reach the current time, the quickly moving hands will stop once. To set the alarm time, release button Ⓑ once and press it again and set the alarm time.
* If the current time is 10:08 a.m., you can set an alarm time up to 10:07 p.m.
(3) After all the adjustments are completed, push the crown back into the normal position.
* Be sure to push the crown back into the normal position; otherwise, the alarm will not sound.

[How to stop the alarm sound]

When the set alarm time comes, the alarm will continue to sound for 20 seconds.

Press button Ⓐ or button Ⓑ if you wish to stop the alarm sound.

* While the stopwatch hand is running, the alarm may sound different from the usual alarm sound, but this is not a malfunction. Furthermore, even if you try to operate the stopwatch while the alarm is sounding by pressing button Ⓐ or button Ⓑ, pressing either button will merely stop the sound and will not operate the stopwatch. You can operate the stopwatch normally after the sound has stopped. After the alarm sounds once, the set alarm will be automatically reset.

[How to correct the alarm time or reset the set alarm]

(1) Pull out the crown to the first click.
(2) Press button Ⓑ and then correct the alarm time. The alarm sub-dial hands move quickly when button Ⓑ is kept pressed.
To reset the alarm, press button Ⓑ and set the alarm time to the hour/minute of the current time. An easy way to reset the alarm is to move the alarm sub-dial hands quickly by keeping button Ⓑ pressed, and then releasing button Ⓑ when the alarm sub-dial hands stop at the current time.
(3) After you have successfully carried out the correction or reset, push the crown back into the normal position.

◆ HOW TO USE THE TACHYMETER

Some models may come with a tachymeter scale printed around the bezel or dial. Check your watch to see if it comes with a tachymeter scale, and follow the steps listed below to use it, if it does have one.

A tachymeter is a function that enables users to determine average speed based on a measurement of the amount of time it takes to travel a certain distance (1 km). The tachymeter can also be used to determine the rate of production per unit of time (per hour). (measuring range: maximum 60 seconds)

(1) Press button Ⓐ at the start point or when a product begins to be made.

(2) Press button Ⓐ again once 1 km have been passed or the product is completed.

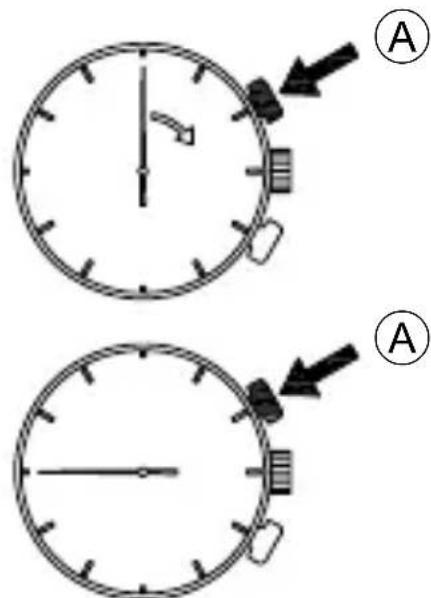

Diagram showing two analog clocks with arrows pointing to the dial, labeled 'A', indicating a time measurement or adjustment.

(3) Read the numeral on the tachymeter scale at which the stopwatch second hand is pointing.

(In this case, the hand is pointing at 80 on the tachymeter scale, which would give an average speed of 80 km/hr. or a rate of production of 80 units/hr.)

12:00 11:00 10:00 9:00 8:00 7:00 6:00 5:00 4:00 3:00 2:00 1:00 0:00 90 70 60 50 40 30 20 170 120

* The measurement time of the tachymeter is 1 minute or less.

Please note that if the measurement time exceeds 1 minute, the average speed or the rate of production per hour cannot be read.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

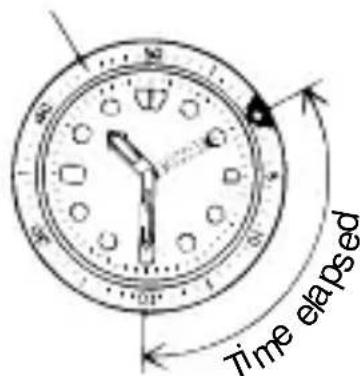

Rotating indicator bezel

Time elapsed

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR ALARM-CHRONOGRAPH

BEDIENUNGSANLEITUNG

Simple line drawing of a child using a tool to dig or sweep (no text or symbols)

(5) Magnetismus

Simple line drawing of a person riding a tricycle with motion lines indicating speed (no text or symbols)

(7) Temperatur

Technical diagram of a wristwatch with labeled parts and directional arrows indicating motion or movement.

Stoppuhrzeiger

Line drawing of a wristwatch with dials and buttons, showing no text or symbols

Das Alarm-

Technical line drawing of a mechanical watch with dials and buttons (no text or symbols)

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Line drawing of a wristwatch with three dials and a pointer (no text or symbols)

Simple line drawing of a child playing golf (no text or symbols)

(5) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(7) Temperatura

Technical diagram of a wristwatch with labeled parts C and L, showing dials and calipers.

Line drawing of a wristwatch with analog dials and a pointer (no text or symbols)

Technical line drawing of a wristwatch with three dials and a separate close-up view (no text or symbols)

Dalle 9:00 p.m. all'1:00 a.m.

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Line drawing of a wristwatch with three dials and analog clock face (no text or symbols)

Pulsante Ⓐ

Pulsante Ⓑ

Line drawing of a wristwatch with three dials and a dial (no text or symbols)

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Corona

Technical line drawing of a wristwatch with three dials and a dial indicator (no text or symbols)

Pulsante Ⓑ

Tempot rascoiso

Simple line drawing of a person using a tool to dig or sweep (no text or symbols)

(5) Magnetismo

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperaturas

Technical diagram of a watch with labeled parts and mechanical components

Line drawing of a wristwatch with three dials and a pointer indicating left-hand motion (no text or symbols)

Technical line drawing of a wristwatch with dials and buttons (no text or symbols)

9:00 p.m. to 1:00 a.m.

Technical line drawing of a mechanical watch with three dials and a dial (no text or symbols)

Technical line drawing of a mechanical watch with no visible text or symbols

Line drawing of a wristwatch with three dials and a watch face (no text or symbols)

Botón Ⓐ

Botón Ⓑ

Technical line drawing of a wristwatch with three dials and a dial indicator (no text or symbols)

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Corona

Diagram showing three analog clocks with labeled arrows and scale markings, likely illustrating a dial or gauge measurement setup.

◆ CÓMO USAR EL BISEL INDICADOR GIRATORIO

Simple line drawing of a person using a tool to dig or sweep (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Температура

Technical diagram of a watch with labeled parts and directional arrows indicating motion or movement.

Стрелка секундомера

Line drawing of a wristwatch with three dials and a pointer indicating left (no text or symbols)

Line drawing of a wristwatch with dials and buttons (no text or symbols)

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Close-up of a wristwatch face showing three dials and tachometer (no text or symbols visible)

Кнопка Ⓐ

Кнопка Ⓑ

Line drawing of a wristwatch with three dials and a dial (no text or symbols)

Line drawing of a wristwatch with three dials and a dial (no text or symbols)

Кнопка Ⓑ

Diagram of a circular dial with numbered segments and directional arrows, likely for measurement or calibration.

Diagram showing two analog clocks with arrows pointing to the face of each clock, labeled 'A' in the top image.

Technical line drawing of a wristwatch with three dials and a dial indicator (no text or symbols)

Line drawing of a wristwatch with three dials and a dial (no text or symbols)

زر الضبط

Line drawing of a wristwatch with three dials and analog clock face (no text or symbols)

Ⓐ زر

B زر

Technical line drawing of a wristwatch with multiple dials and calipers (no text or symbols)

٢٤٨ دقيقة ١ و ثوان

Technical line drawing of a wristwatch with three dials and a dial (no text or symbols)

Line drawing of a wristwatch with dials and buttons (no text or symbols)

Technical line drawing of a wristwatch with dials and calipers (no text or symbols)

Line drawing of a wristwatch with three dials and a pointer indicating left motion (no text or symbols)

Simple line drawing of a child wearing a hat and holding a tool, standing on a horizontal surface (no text or symbols)

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(Se referer a is figure 3)

20.3.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

Gen X_eff^+ AP_gen^+

اربع الشكل

The following table is a simple formula:

1. 460,21,3,470,2,480,570,525,590,590
