USER MANUAL Contemporary RA-SP0001B ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

n the

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(7) Temperature

In environments below and above normal temperatures (5°C-35°C), the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This is an analogue crystal oscillator watch.
(2) The current time is indicated by the hour, minute, and small second hands.
(3) The watch also comes with a calendar function (date) in addition to the time display.
(4) When the battery life begins to run out, the small second hand starts to move in 2-sec. intervals to warn that the battery is getting low. (Battery End of Life Indicator)

◆ SPECIFICATIONS

(1) Crystal oscillator frequency ... 32,768 Hz (Hz = Oscillations per second)
(2) Wrist-worn accuracy ... Mean monthly rate: ±20sec.
(at normal temperature < 5^ 35^> )
(3) Operating temperature range ... -5^ to +50^
(4) Drive system ... Step motor
(5) Additional functions ... Second hand halt mechanism, Date quick setting function
(6) Battery ... SR920SW ; 1 piece
(7) Battery life ... Approximately 5 years from insertion of a new battery

* The above specifications may change without notice for improvement.

◆ NAMES OF INDIVIDUAL COMPONENT PARTS

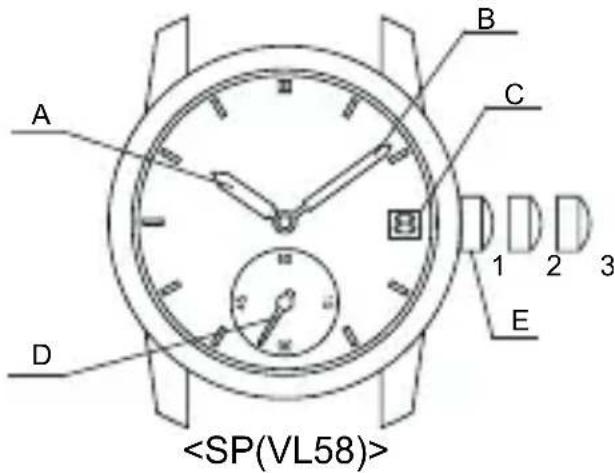

A. Hour hand
B. Minute hand
C. Date
D. Second hand
E. Crown

1. Normal position
2. First click: Date setting
3. Second click: Time setting

A B C 1 2 3 D E

* The position of date and crown differ on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Some models have a screwed-down crown that can be locked.

For these models, perform the following procedures before setting.

(1) Before time setting and calendar setting, turn the crown counterclockwise and loosen.
(2) After time setting and calendar setting are completed, turn the crown clockwise and tighten.

◆ HOW TO SET THE TIME AND CALENDAR

[How to set the time]

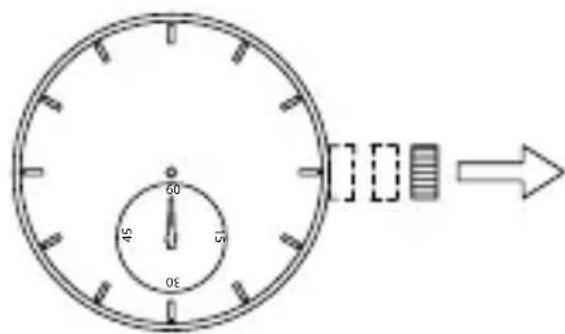

(1) Pull out the crown to the second click when the second hand is at the 12 o'clock position. The second hand stops on the spot.

60 45 51 0€

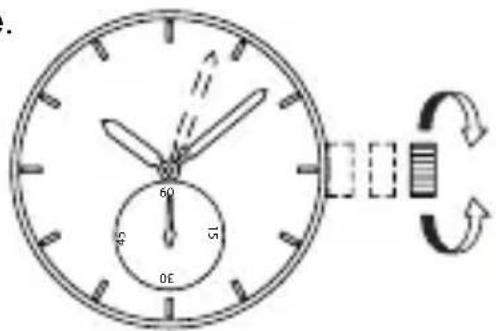

(2) Turn the crown and set the current time.

* This watch features a calendar function.

When setting the hour hand, check that AM/PM is set correctly. The date changes at "0:00 a.m.".

* When setting the time, first advance it 4 to 5 minutes ahead of the desired time, and then turn it back to the exact time.

60 45 51 0E

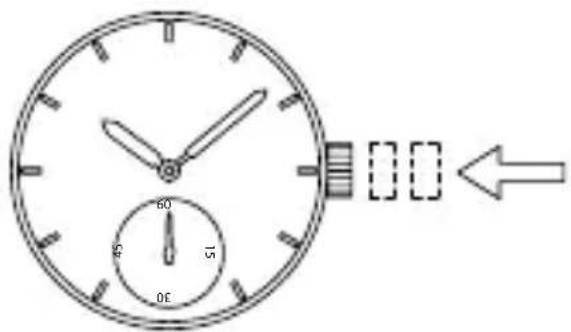

(3) Push the crown back in to the normal position.

[How to set the date]

00 9 15 03

* Do not set the date during the time period noted below because the date is changing.

10:00 p.m. to 1:00 a.m.

If date is set during this time period, the date may not change properly on subsequent days.

Avoid this time period when setting the date.

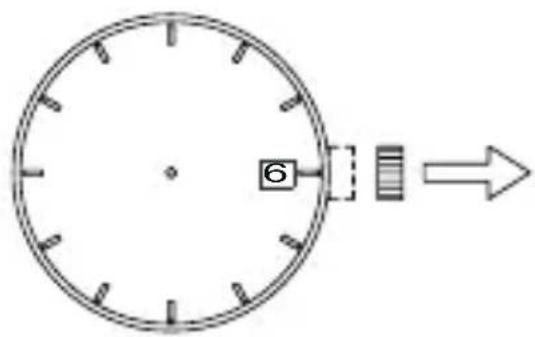

(1) Pull out the crown to the first click.

* The crown on this watch has two click positions.

6

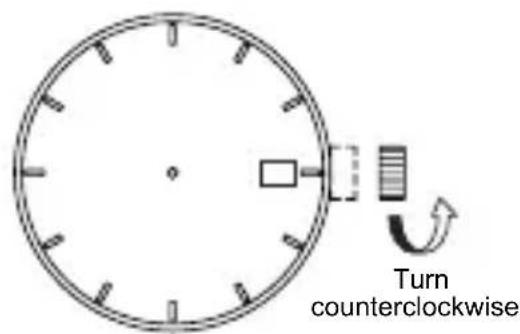

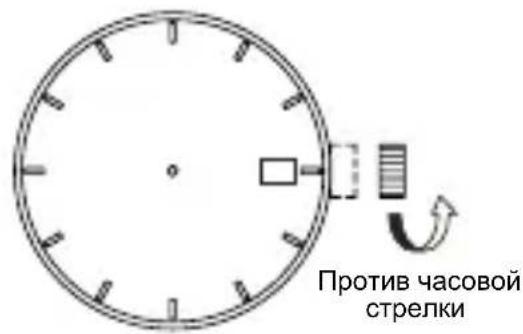

(2) Turn the crown counterclockwise and adjust the date.

Turn counterclockwise

(3) Push the crown back in to the normal position.

* The position of date and crown differ on some models.

* About date correction at month's end: Date correction is necessary for months

Simple line drawing of a circular clock face with tick marks and a small rectangular object on the wall, next to an arrow pointing right (no text or symbols)

with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

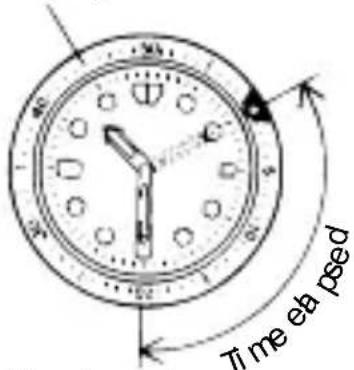

Rotating indicator bezel

Time ea psed

The above shows that 20 minutes have

You cannot turn the bezel reversely since it comeswith a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR-CHRONOGRAPH

BEDIENUNGSANLEITUNG

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperatur

Simple line drawing of a circular clock face with tick marks and a small rectangular object on the wall, next to an arrow pointing right (no text or symbols)

ung e- ran Ver strichene Zeit

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(7) Temperatura

Simple line drawing of a clock face with hour and minute hands, showing no text or symbols

◆ COME UTILIZZARE LA LUNETTA ROTANTE CON INDICATORE

Simple line drawing of a person using a tool to dig or sweep (no text or symbols)

(7) Temperaturas

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

10:00 p.m. to 1:00 a.m.

Simple line drawing of a clock face with hour and minute hands, showing no text or symbols

Simple line drawing of a round analog clock face with no text or symbols

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Температура

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a round analog clock face with no text or symbols

Simple line drawing of a person sweeping or cleaning a surface (no text or symbols)

(5) 磁化

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(7) 温度

Diagram of an analog clock face showing time, duration, and pointer with directional arrow

[日期设置方法]

Simple line drawing of a circular clock face with an arrow pointing right (no text or symbols)

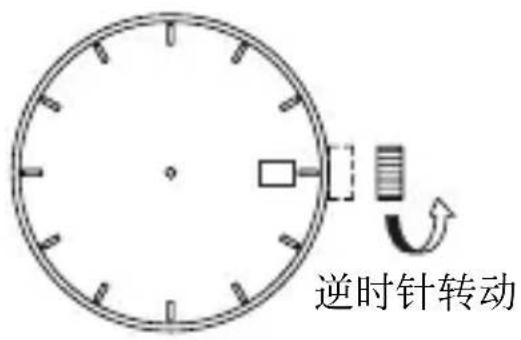

(2) 逆时针转动表冠并调整日期。
