Product Type	Two-door refrigerator-freezer
Brand	Indesit
Model	T 2 (SP)
Total Net Volume	Not specified in manual
Refrigerator Net Volume	Not specified
Freezer Net Volume	Not specified
Energy Class	Not specified
Voltage	220-240 V
Frequency	50 Hz
Power Consumption	150 W (compressor)
Interior Light Bulb	Max 15 W or 25 W as indicated
Refrigerant	R600a (isobutane) in refrigeration circuit; Cyclopentane in insulation foam
Number of Doors	2
Adjustable Shelves	Yes, removable and height-adjustable
Door Shelves	Removable for bottles and food products
Vegetable Drawer	Yes, with drainage system for defrost water
Meat/Cheese Box	Yes
Egg Compartment	Yes, removable shelf with lid
Freezing Capacity	Maximum daily freezing indicated on rating plate
Defrosting	Automatic in refrigerator; manual in freezer
Temperature Control	Thermostat knob with settings 1 (less cold) to 5 (colder)
Levelling Feet	Yes, adjustable
Installation Clearances	Top: 10 cm; Sides: 5 cm
Weight	Not specified
Dimensions (HxWxD)	Not specified

Frequently Asked Questions - T 2 (SP) INDESIT

How do I set the correct temperature in the refrigerator?

Use the thermostat knob (A) inside the refrigerator. Settings range from 1 (less cold) to 5 (colder). A medium setting (3) is recommended for normal use.

How often should I defrost the freezer?

Defrost the freezer when the frost layer is more than 15 mm thick. Turn the thermostat knob to the off position (●), wrap frozen food in newspaper, leave the door open, and optionally place warm water containers to speed up the process.

Why is there water at the bottom of the refrigerator?

This is usually due to a clogged defrost water drain hole. Locate the drain behind the vegetable crisper and clean it periodically to ensure proper water drainage.

How do I clean the refrigerator?

Unplug the appliance first. Use a sponge soaked in warm water and sodium bicarbonate solution (or neutral detergent). Do not use abrasive detergents, bleach, or ammonia. Removable parts can be washed in the dishwasher.

What should I do in case of a power failure?

Do not open the freezer door. Frozen food will stay safe for approximately 9-14 hours if the door remains closed. Partially thawed food must not be refrozen; cook and consume within 24 hours.

Why is the motor running continuously?

Possible causes: doors left open too long, warm food placed inside, thermostat set too high, or the appliance is overfilled. Check door seals and ambient temperature; adjust the thermostat knob if needed.

How do I replace the interior light bulb?

Disconnect the appliance from the power supply. Unscrew the faulty bulb (located at the rear of the thermostat box) and replace with a new bulb of maximum wattage indicated (15 W or 25 W). See figure 3 in the manual.

What does the 'cooling area' on the back panel mean?

The back panel contains a 'cooling area' that may have frost or water droplets depending on compressor operation. This is normal. If frost forms excessively, turn the thermostat to a lower setting to allow automatic defrost.

Can I freeze fresh food in this appliance?

Yes. Wrap fresh food properly, place it in the freezer compartment in contact with the walls if possible, and avoid opening the door during freezing. Check the rating plate for maximum daily freezing capacity.

How can I save energy with my refrigerator?

Install the appliance away from heat sources and direct sunlight, ensure proper ventilation, keep doors closed, avoid overfilling, let hot food cool before storing, and defrost the freezer regularly. Clean door seals to prevent cold air leakage.

USER MANUAL T 2 (SP) INDESIT

Installation and use

Kühlschrank

Abstract graphic with three symbols: a droplet, an asterisk, and a spiral (no text or labels)

E Frigocongelatore 2 porte 1 Instrucciones para la instalación y uso
GB Two-doors refrigerator-freezer 8 Instructions for installation and use
D KühlGefrier-Kombination mit 2 Türen15 Informationen für Installation und Gebrauch
PL 2-drzwiowa lodówka z zamrażarką 23 Istrukcja dotycząca instalacji i obsługi.
SK Kombinovaná 2-dverová chladnička 30 IPokyny na inštaláciu a použitie
CZ Kombinovaná 2-dveřová chladnička 36 Pokyny pro instalaci a použití
RO Frigider cu congelator – 2 uși 42 Instrucțiuni de instalare și folosire
HU 2-ajtós fagyasztó-hütőszekrény 48 Üzembe helyezési és használati útmutató
HR Hladnjak-zamrzivač sa 2 vrata 59 Upute za postavljanje i uporabu
SL Hladilnik in zmrzovalnik z 2 vrati 60 Navodila za namestitev in uporabo
GR Ψυγειοκαταψύκτης 2 θυρών Οδηγίες για την εγκατάσταση και τη χρήση

Line drawing of a refrigerator interior showing the lid and drawer with an arrow indicating a pointing component (no text or symbols)

Fig. 2

Safety - a good habit to get into.

ATTENTION

Read your manual carefully since it contains instructions which will ensure safe installation, use and maintenance of your appliance.

Your Refrigerator is built to International safety standards (EN60) ans has been awarded the European approval mark (IMQ) for compliance with UK electrical safety requirements. It also meets the EC standards on the prevention and elimination of radio interference (EC directive 87/308 - 02.06.89).

1. This appliance is designed to be used indoors and under no circumstances should it be installed outside even if protected by a roof. Leaving the appliance exposed to the rain and whether is exceedingly dangerous.
2. The appliance should be used only by adults and exclusively for storing foodstuffs in compliance with the instructions provided in this manual. Under no circumstances should children be allowed to operate, or tamper with, this product.
3. Do not attempt to operate or handle this appliance when barefoot, or with wet hands or feet.
4. It is highly recommended that you do not operate this appliance by connecting it to the power supply with extensions or multiple socket plugs. If the refrigerator has been installed between two cabinets, make sure that the supply chord is not dangerously crimped or trapped beneath a heavy object.

5. Never pull the cable or the appliance to remove the plug from the socket; this is exceedingly dangerous.

6. Do not touch the internal cooling elements, especially if your hands are wet, since you could burn or hurt yourself.

7. Before doing any cleaning, disconnect the appliance from the electricity (by pulling out the plug or turning off the general switch in your home); it is not sufficient to place the temperature regulation knob on to cut off the power.
8. Before disposing of your old appliance, remember to break or remove the lock as a safety measure to protect children who might lock themselves inside the appliance when playing. In addition, if the appliance is a new one with a lock, keeo the key out of the reach of small children.
9. If your appliance is not operating properly, read the chapter entitled, "Trouble Shooting", which might help you resolve the problem, before calling an after-sales service centre. Do not attempt to repair the appliance by tampering with the internal components.
10. If the power supply cord must be replaced, please contact one of our Customer Service Centers. In some cases, the connections are made using special terminals and in others a special tool must be used to access the connections.
11. Do not use electric appliances inside the compartment for food storage, if these are not those recommended by the manufacturer.
12. At the end of the functional life of your appliance – containing cyclopentane gas in the insulation foam and perhaps gas R600a (isobutane) in the refrigeration circuit – the latter should made safe before being sent to the dump. For this operation, please contact your dealer or the Local Organisation in charge of waste disposal.

Installation

Proper installation of the appliance is essential to ensure the best and most efficient performance of your appliance.

Ventilation

The compressor and condenser generate heat and, therefore, need to be ventilated properly. Rooms with less than perfect ventilation are not very suited for installation of the appliance. Therefore, it should be installed in a room with an opening (window or French window) that provide the appropriate amount of air re-circulation. It is also important that the room not be too humid.

During installation, make sure not to cover or obstruct the grates that allow for proper ventilation of the appliance.

For proper ventilation of the appliance, you must leave:

- a space of at least 10 cm between the top part and any cabinets above it;

- a space of at least 5 cm between the sides of the appliance and any adjacent cabinets/walls.

Away from Heat

Avoid positioning the appliance in a place where it is directly exposed to sunlight or near an oven, cook top or the like.

Levelling

The floor should be perfectly level; if not, you can adjust the feet at the front of the appliance.

Earthing

Before making the electrical connection, check that the voltage shown on the data plate, that you will find on the bottom left hand side of the appliance next to the crisper, corresponds to that of your home and that the socket is earthed in compliance with all current electrical regulations. If the system is not earthed, the manufacturer declines all liability for consequent damages or losses. Do not use adapters or multiple sockets. Position the appliance in such a way that you can access the socket where it is plugged in.

Check the power load

The electrical socket must support the maximum power load of the appliance shown on the data plate (on the bottom left hand side of the appliance next to the crisper).

Before plugging the appliance to the mains

Stand the appliance upright and wait at least 3 hours before plugging the appliance into the mains to ensure proper performance.

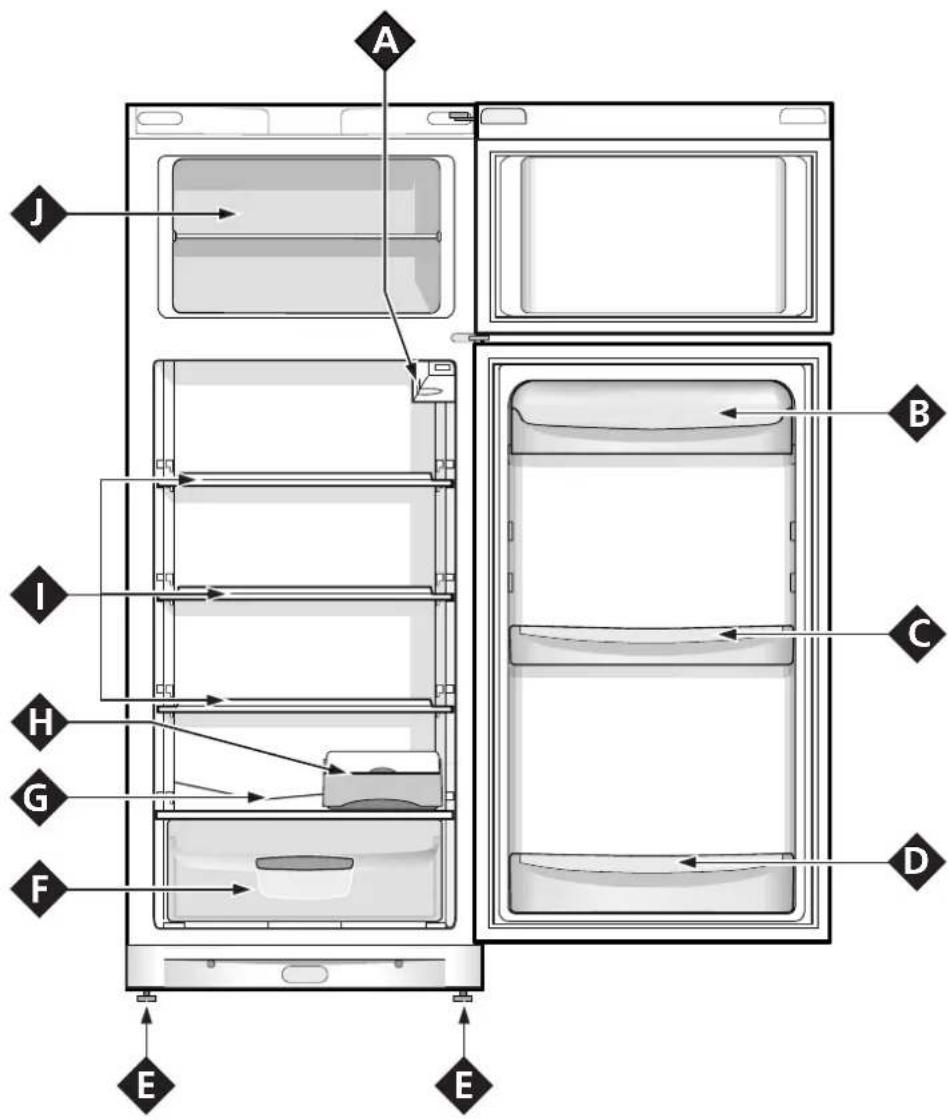

A closer look

Thermostat knob for regulating

the temperature

Use this knob to regulate the temperature of the refrigerator. The following settings are available:

● The refrigerator is off;
1 less cold;
5 colder

Simple line drawing of a mechanical component with a scale and base, no text or symbols present

Meat/cheese storage box

Removable height adjustable shelves

Compartment for storing frozen foods, freezing fresh foods and making ice

Removable shelf with lid and egg compartment

Removable door shelf for food products

Removable door shelf for bottles

Adjustable feet

Fruit and vegetable drawer

Drainage system for defrost water

How to Start the Appliance

NOTICE

After the appliance has been delivered, stand it in the upright position and wait approximately 3 hours before connecting it to the electrical outlet to guarantee that it operates properly.

Before placing foodstuffs in the refrigerator or freezer, clean the interior well with warm water and baking soda.

After putting the plug in the socket, make sure that the light is on inside the appliance and then turn the thermostat knob (A) to the "3" setting. After a few hours have passed, you can place fresh food in the refrigerator compartment and frozen foods into the freezer.

How to use the refrigerator compartment...

The thermostat automatically regulates the temperature inside the appliance

1 = less cold
5 = colder

It is recommended that a medium setting be used.

To increase the amount of space, optimize arrangement and improve appearance, this appliance has a “cooling area” located within the back panel of the refrigerator compartment. When the appliance is operating, this panel may be covered with frost or droplets of water depending on whether the compressor is operating or not at a given time. Do not be

concerned about this! The refrigerator is operating normally.

If the thermostat knob is positioned on higher settings while the refrigerator is heavily filled and the ambient temperature high, the appliance may run continuously, resulting in the formation of frost on the back cooling area. This will lead to an increase in energy consumption.

To avoid this situation, just turn the thermostat knob to a lower setting so that the appliance defrosts automatically.

Storing Food in the Refrigerator Compartment

Food Storage Time Location in the Refrigerator
Wrapped meat and cleaned fish(use plastic wrap or pack in plastic bags)	2 or 3 days	On the shelf above the vegetable crisper (which is the coldest area).
Fresh cheese 3 or 4 days		On the shelf above the vegetable crisper (which is the coldest area).
Eggs 1 month In special egg rack on door.
Butter, margarine On any shelf.
Cooked or precooked food(placer in air-tight containers and when cool store in refrigerator)	3 or 4 days On any shelf.
Sausages, salami, sandwich meats in general, fresh pasta, custards,puddings, chocolates, cream pastries, bread, dry pastries, red tomatoes	3 or 4 days On any shelf.
Bottled products, milk, drinks, yoghurt On special door shelves.
Fruits and legumes In vegetable crisper.

What Not to Store in the Refrigerator

Garlic (transmits odour), onions and leeks.

Bananas (they will turn black).

Citrus fruits.

Potatoes and root vegetables (store in dark, dry places).

• Within the refrigerator compartment, the air circulates naturally, with the colder air falling because it is heavier. This is the reason why meat and cheeses should be placed above the vegetable crisper.
• Please follow our instructions carefully on maximum storage time: any food, even the freshest, will not remain edible for any extended amount of time.
• Contrary to popular belief, cooked foods do not store any longer than raw food.
• Do not place liquids in containers without covering them because this will lead to an increase in the level of moisture within the refrigerator, causing the formation of frost.
• Remember to cool hot food before storing otherwise the temperature inside the appliance will increase, causing the compressor to work harder and use more energy.
• Be careful not to place containers (plastic or glass), food or other objects in direct contact with the cooling area of the back wall of the refrigerator. This could harm the food, increase energy consumption and facilitate the formation of condensate (on food, containers, etc.).

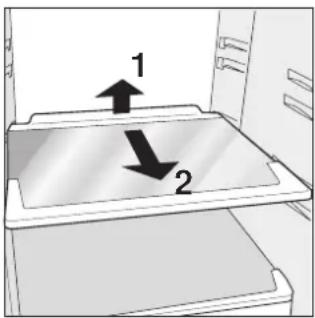

• The refrigerator compartment is equipped with convenient, removable shelves (Fig. 1) which can be adjusted for height using the shelf guides. This allows you to place even large containers and foodstuffs in the refrigerator.

Fig. 1

Freezing Foods Properly

- For the preparation of food to be frozen, please consult a specialized manual.

- Food that has be thawed, even partially, must not be refrozen: you must cook it in order to consume it (within 24 hours) or to freeze it once again.

- Fresh foods that you intend to freeze must not be placed in contact with those that are already frozen or those that have been fast-frozen. Rather, they must placed atop the grate in the freezer compartment, in contact with the walls of the compartment (back or side) if possible. Please keep in mind that proper conservation of frozen foods depends on the speed with which they are frozen.

- During the freezing process, avoid opening the door of the freezer.

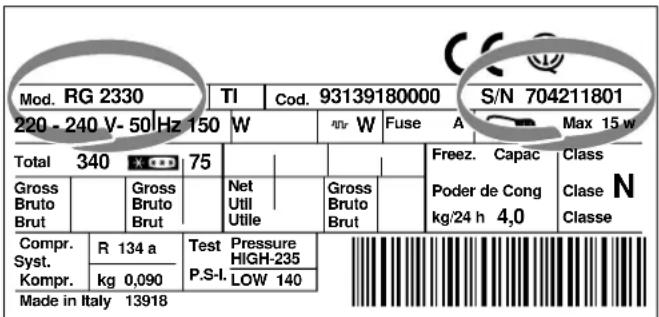

- The maximum daily quantity of food that can be frozen is indicated on the rating plate located to the left of the vegetable crisper.

- In order to freeze and then thaw foods optimally, it is recommended that you divide food into small portions so that they freeze quickly and uniformly. The packages should be clearly marked with the content and the date they were frozen.

- Do not open the freezer door in the event of a power failure or malfunction. This precaution will slow the rise in temperature within the compartment. If the door is not opened, frozen and fast-frozen foods will remain in their current state for approximately 9-14 hours.

- Do not place full bottles in the freezer: they could easily burst because all liquids increase in volume when they freeze.

- Fill the ice cube trays about 3/4 full.

- If the ambient temperature remains below 14^ C for an extended period of time, the temperature needed for extended storage of food in the freezer will not be reached, resulting in reduced storage life of the food.

Tips on Saving Energy

- Install the Appliance Properly

In other words, away from sources of heat and direct sunlight, in a well ventilated room complying with the minimum distances indicated in the paragraph entitled, “Installation/Ventilation.”

- Use the Right Temperature Setting

A setting which is too cold increases energy consumption.

- Do not Overfill

To conserve food properly, the cold air must circulate freely within the refrigerator. If it is overfilled, this will prevent proper air circulation, forcing the compressor to work continuously.

- Close the Doors

Open your refrigerator as little as possible because each time you do so you loose much of the cold air. To raise the temperature to the proper level again, the motor must work for a long time, consuming energy.

- Keep an Eye on the Seals

Keep the seals clean and make sure that they adhere well to the door. This alone will ensure that no cold air escapes.

- No Hot Foods

A hot pot or pan placed in the refrigerator immediately raises the temperature several degrees. Let hot cookware and food cool to ambient temperature before placing them in the refrigerator.

- Defrost the Freezer

Check the thickness of the frost on the walls of the freezer and immediately defrost it if the layer of frost is too thick. (see the section entitled, "Keeping your Appliance in Shape").

Keeping Your Appliance in Shape

Defrosting

WARNING: do not damage the refrigeration circuit. Do not use mechanical devices or other tools to speed up the defrosting process, unless they have been recommended by the manufacturer.

How to Defrost the Refrigerator

This appliance defrosts automatically and the water is channeled to the back toward the drain installed for this purpose (fig. 2). Here, the heat produced by the compressor will make it evaporate. The only thing you must do is to periodically check and clean the hole of the drain, which is located behind the vegetable crispers, so that the water drains properly.

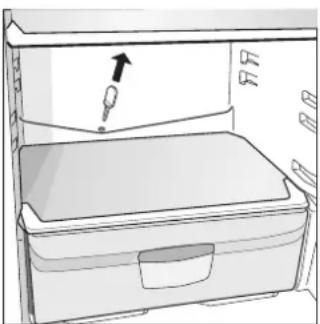

How to Defrost the Freezer

- Every so often, remove the frost with the scraper provided with the appliance (do not use knives or metal objects).

- If the frost is more than 15 mm thick, the freezer must be defrosted.

Proceed as follows: turn the thermostat knob (A) to the setting ● Then wrap all the frozen and fast-frozen food in newspaper, placing it either in the refrigerator or in a cool place. Leave the freezer door open so that the frost thaws completely. You can speed this process by placing containers of warm water in the compartment.

Line drawing of a refrigerator interior showing a drawer with an arrow pointing to the lid (no text or symbols)

Fig. 2

Cleaning and maintenance

Always unplug the appliance from the mains before cleaning.

- Your appliance is manufactured with hygienic odourless materials. To preserve these characteristics, always use sealed containers for strong smelling foods to avoid the formation of odours that are difficult to remove.

- Use only a water and bicarbonate solution: Clean the internal and exterior of your appliance with a sponge soaked with a warm water and sodium bicarbonate solution, which is also a good disinfectant. If you do not have any sodium bicarbonate at home, use neutral detergent.

- What not to use: Do not use abrasive detergents, bleach or detergents containing ammonia. Never use solvent based products.

- Dishwashable: All the removable parts can be cleaned by soaking in hot soapy water or detergent. If you own a dishwasher, you may wash these parts in the dishwasher. Remember to dry thoroughly before replacing them.

- What about the back panel? Dust may deposit on the back panel and affect the proper running of the appliance. To remove dust, vacuum away the dust very carefully using the appropriate vacuum cleaner accessory.

- Discontinued use of the appliance: If the appliance is not in use for any length of time, remember to clean the interior and dry thoroughly, leaving the doors open to prevent the formation of bad odours and mould.

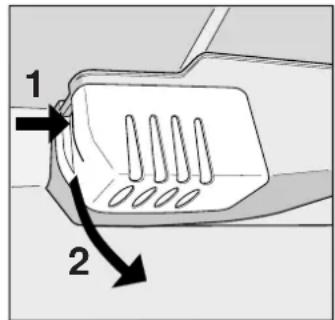

- How to replace the internal lamp. The lamp for the internal light is situated at the rear of the thermostat box. To replace it, disconnect the appliance from the electricity mains, unscrew the faulty lamp and replace it with a new one featuring a wattage no higher than that indicated on the protection (15 W or 25 W), as illustrated in figure 3.

Fig. 3

Is There a Problem?

The refrigerator does not function.

Have you checked whether:

• The main switch for the electricity to the apartment or home has been turned off;
• The plug is properly inserted in the outlet;
• The outlet is adequate; try inserting the plug into another outlet in the room.

The refrigerator and the freezer do not cool properly.

Have you checked whether:

• The doors do not close well or the seals are faulty;
  • The doors are left open too long;
• The thermostat knob is not on the proper setting;
• The refrigerator or freezer is overfilled.

The food in the refrigerator becomes too cold.

Have you checked whether:

• The thermostat knob is on the proper setting;
• The food is in contact with the back wall - which is the coldest part.

The motor runs continuously.

Have you checked whether

• The doors are not closed well or have remained open too long;
  • The ambient temperature is too high;
• The thermostat knob is not on the proper setting.

The appliance makes too much noise.

The gas refrigerant produces a slight noise even when the compressor is not running (this is not a defect).

Have you checked whether:

• The refrigerator is level.
- The appliance was installed between cabinets or objects that vibrate and make noise.

There is water on the bottom of the refrigerator.

Have you checked whether:

- The hole for draining the water from the frost is clogged (see fig. 2).

If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre and inform them of: the type of problem, the abbreviation of the model name (Mod.) and the relative numbers (S/N) written on the rating plate located at the bottom left next to the vegetable crisper (see examples in the figures below).

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Line drawing of a refrigerator interior showing the lid, drawer, and door (no text or symbols)

Abb. 2

Line drawing of a refrigerator interior showing an open drawer with a handle and a small object inserted (no text or symbols)

Rys. 2

Line drawing of a refrigerator interior with an arrow pointing to the lid (no text or symbols)

Obr. 2

Line drawing of a refrigerator interior with an arrow pointing to the lid (no text or symbols)

obr. 2

Cum se porneşte combina

ATENTIE

Line drawing of a refrigerator interior showing an open drawer with a handle and a small object inserted (no text or symbols)

Fig. 2

Line drawing of a refrigerator interior with an open drawer and a hanging handle (no text or symbols)

2.ábra

Stavljanje u rad kombiniranog hladnjaka

POZOR!

Nakon dostave, namjestite uređaj okomito i počekajte otprilike 3 sata prije priključivanja na utičnicu: samo tako potpomaže se se njegov dobar rad.

Prije no što stavite namirnice u hladnjak, dobro očistite njegovu unutrašnjost mlakom vodom i sodom bikarbonom.

Line drawing of a refrigerator interior showing a drawer with a handle and an arrow pointing to the lid (no text or symbols)

sl. 4

Posebno čišćenje i održavanje

Kako zagnati kombinirani hladilnik/zamrzovalnik

POZOR

Line drawing of a refrigerator interior with an open drawer and a small object inserted (no text or symbols)

Slika 2

Line drawing of a refrigerator interior with a handle and drawer (no text or symbols)

Eik. 2
