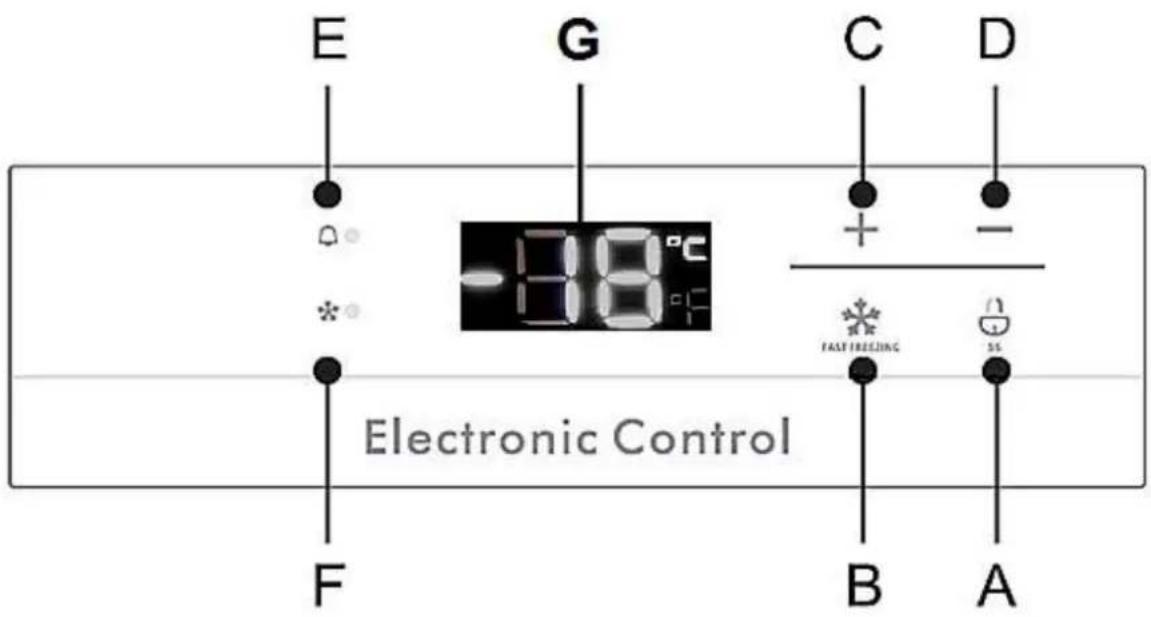

E G C D Electronic Control F B A

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....39

1.1 Signal words ....40
1.2 Safety instructions....40

1. Climatic classes ....44

2. Installation 45

3.1 Space and ventilation requirements 45

3.1.1 Space requirement....46
3.1.2 Ventilation 47
3.2 Installation of the door handle....48
3.3 Levelling....49

1. Operation....50

4.1 Description of the appliance ....50
4.2 Before initial operation....51
4.3 Control panel / Operating buttons / Display 52
4.4 Key lock ....54
4.5 Setting of the temperature 54
4.6 Selection of the modes ....56
4.7 Saving of the settings in case of power failure 58
4.8 Indication of over-temperature in the freezer....58
4.9 The freezer ....59
4.10 Helpful hints / energy saving....59
4.11 Operational parameters....60

5 Cleaning and maintenance....61

5.1 Defrosting....62
5.2 Replacing of the illuminant....63

1. Trouble shooting....63
   6.1 Error codes....65
2. Decommissioning....66
3. Technical data....67
4. Waste management....68
5. Guarantee conditions ....69

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for caterir and similar non-retail applications.
The appliance is intended for cooling food only.
The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution:

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
4. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.
5. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
6. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!
7. Always unplug the appliance if it is not used for a longer period of time.

To reduce the risk of burns, electrocution, fire or injury to persons:

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.
2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.
3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.
2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
4. Always observe the required minimum distances for proper ventilation.
5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
6. Operate the appliance with 220 \~ 240 V AC / 50 Hz only. All connections and energy-leading components must be replaced by an authorized professional.
7. Do not use a socket board or a multi socket when connecting the appliance to the mains.
8. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.
9. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

10. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

11. Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

12. Keep the cord away from heated surfaces.

13. Do not use any extension cords, multiple sockets or adapters. RISK OF FIRE!

14. The technical data of your energy supplier must meet the data on the model plate of the appliance.

15. Your domestic circuit must be equipped with an automatic circuit breaker.

16. Do not modify the appliance.

17. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

18. Disconnect the appliance from the mains before you clean or maintain it.

19. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

20. Do not put any heat-radiating appliances onto your appliance.

21. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

22. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

23. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

24. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

25. Children must never play with the appliance.

26. Always lock the door of the freezer to ensure that children never can get into the appliance. CHOKING HAZARD! RISK OF FREEZING! RISK OF FROSTBITE!

27. Always keep the key / keys of the freezer out of the reach of children to ensure that children never can get into the appliance. CHOKING HAZARD! RISK OF FREEZING! RISK OF FROSTBITE!

28. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

29. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance (positioning depending on model), can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.

2. Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer as their containers could explode.

3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces. RISK OF FROSTBITE!

4. Never stow food and / or storage containers, especially containers made of metal, in the freezer while your hands are damp or wet. Ensure that your hands are always dry. RISK OF FROSTBITE!

5. Always ensure that your fingers are not between the door and the housing of the appliance while closing the door. RISK OF CRUSHING!

NOTICE!

1. Do not store dry ice in the appliance.

2. When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.

3. Do not tilt the appliance more than 45^0 .

4. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

5. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.

6. If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours on medium temperature setting before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, this foods can thaw and / or spoil.

7. Never use the door for moving the appliance as you will damage the hinges.

8. The appliance must be transported and installed by at least two persons.

9. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

10. Do not operate the appliance unless all components are installed properly.
11. Do not stand or lean on the base, the door etc of the appliance.
12. Do not put hot liquids or hot foodstuff into the appliance.
13. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
14. Do not overfill the appliance.
15. Clean the appliance regularly (s. chapter CLEANING AND MAINTENANCE).
16. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10 ^0 →+32 ^0 C	e.g. unheated cellar
N	+16 ^0 →+32 ^0 C	inner home temperature
ST	+16 ^0 →+38 ^0 C	inner home temperature
T	+16 ^0 →+43 ^0 C	inner home temperature

3. Installation

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Remove all packaging materials.
3. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
4. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
5. Check that the appliance and the power cord are not damaged.
6. Install the appliance in a dry and well-ventilated place.
7. Protect the appliance from direct sunlight.
8. The doors must open completely and without hindrance.
9. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
10. Connect the appliance to the mains properly.
11. The rating plate is inside the appliance or at the back.

3.1 Space and ventilation requirements

i Observe the required minimum distances for proper ventilation.
i All dimensions in this chapter are given in centimetres.
The figures shown in the following chapters (3.1.1 / 3.1.2) are examples only. Modifications are possible.

3.1.1 Space requirement

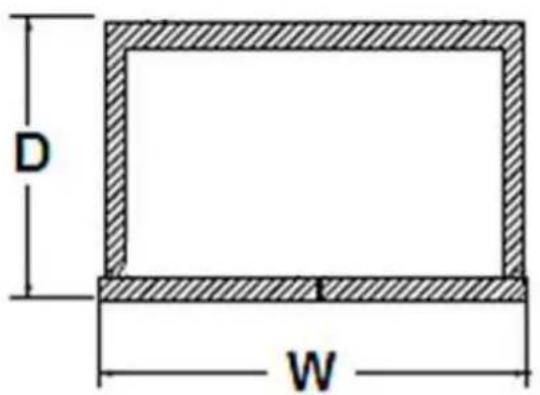

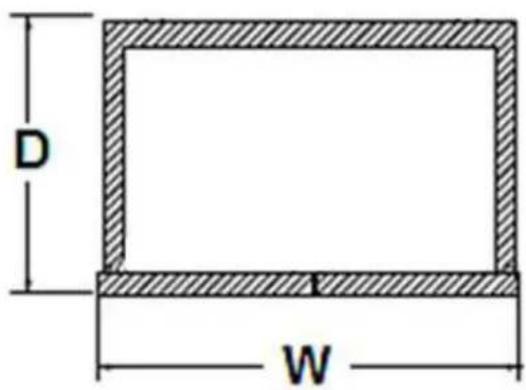

Dimensions of the appliance (W = Width / D = Depth)

View from above:

D W

W 128.50 cm

D 69.60 ~cm

Height 85.00 cm

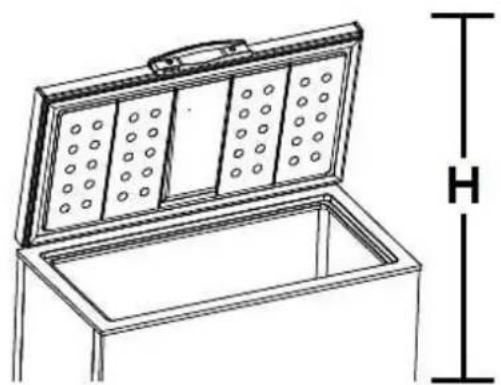

Space requirement when the door is open

(W = Width / D = Depth / H = Height)

D W

Line drawing of an open storage or drying unit with circular compartments and a vertical dimension labeled H (no text or symbols on the diagram itself)

W 128.50 cm

D 69.60 ~cm

H min. 154.60 cm

3.1.2 Ventilation

MINIMUM DISTANCES REQUIRED FOR PROPER VENTILATION:

Back ↔ wall	min. 2.00 cm
Sidcs ↔ wall	min. 2.00 cm
Free space above	min. 75.00 cm (due to the space requirement when the door is open)

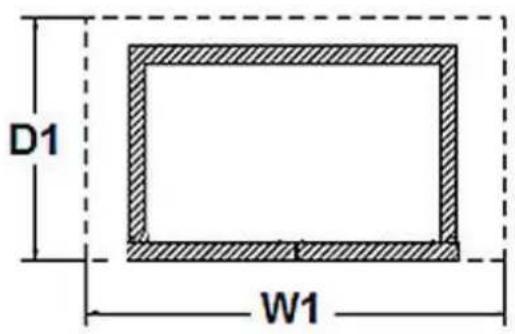

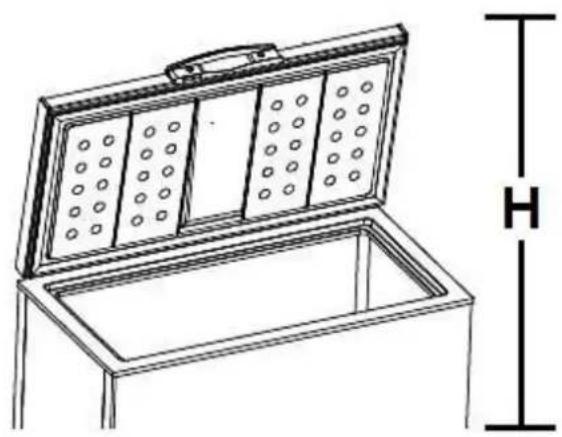

Space requirement incl. minimum distances for proper ventilation

(W = Width / D = Depth / H = Height)

D1 W1

closed

Line drawing of an open storage or drying unit with perforated panels and a handle, labeled 'H' on the vertical dimension (no text or symbols on the diagram itself)

open

The following minimum distances are recommended by the manufacturer to ensure optimum efficiency of the appliance:

Back ↔ wall	min. 20.00 cm
Right / left ↔ any piece of furniture / wall	min. 20.00 cm
Free space above	75.00 cm(due to the space requirement when the door is open)

These minimum distances may be less, but to do so can increase the power consumption of the appliance.

3.2 Installation of the door handle

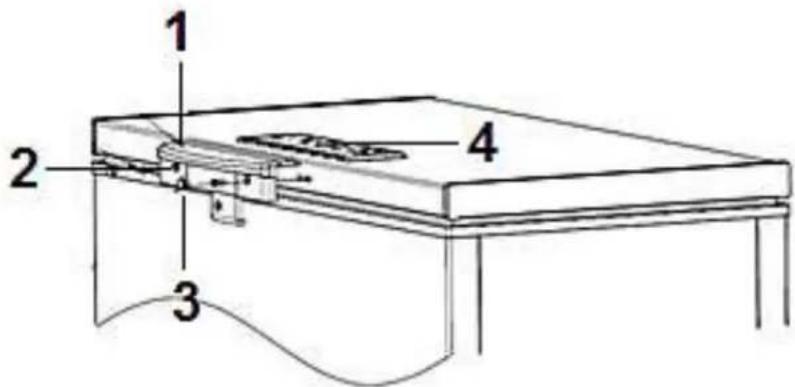

The door handle is inside of the appliance and has to be installed.

1. Align the enclosed door handle to the appropriate screw holes of the appliance (on the front of the door, below the control panel / s. fig. below).
2. Fix the door handle using the enclosed screws.
3. Cover the screws of the door handle using the screw caps.

1 2 3 4

1	DOOR HANDLE
2	SCREWS
3	SCREW CAPS
4	CONTROL PANEL

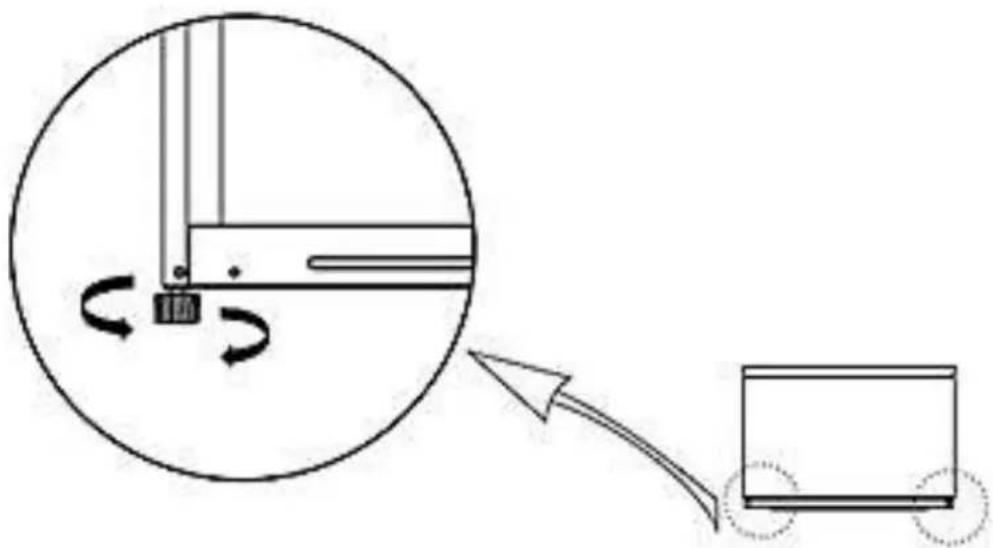

3.3 Levelling

Use the adjustable feet for proper levelling and for proper air circulation in the lower sectors of the appliance. Adjust the feet using a suitable spanner.

Diagram showing a mechanical or electrical component moving from a cart to a circular component, with directional arrows indicating motion.

The figure above is an example only. Modifications are possible.

If you have to move the appliance, set the adjustable feet to minimum position ^7 so the appliance can be moved on its rollers (depending on model) easily. Readjust the appliance when transport has been completed.

NOTICE! The rollers (depending on model) are no castors and intended to move the appliance forward and backwards only. Lateral movements can damage your floor and the rollers.

4.1 Description of the appliance

1 2 3 4 5 6

The figure above is an example only. Modifications are possible.

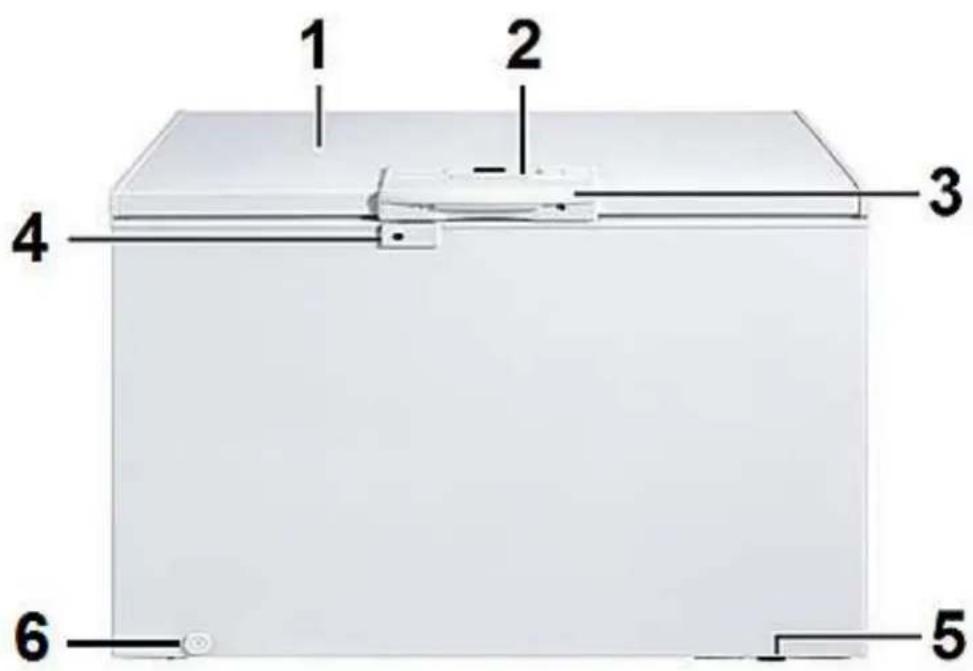

Front view:
1	DOOR of the freezer
2	CONTROL PANEL / Operation buttons / Display(s. chapter 4.3 CONTROL PANEL / OPERATING BUTTONS / DISPLAY)
3	DOOR HANDLE
4	LOCK
5	ADJUSTABLE FEET (2 in front / 2 at the rear)
6	WATER OUTLET (s. chapter 5. CLEANING AND MAINTENANCE)

Line drawing of an open metal tray with perforated panels and a labeled part '7' (no text or symbols on the diagram itself)

The figure above is an example only. Modifications are possible.

INTERNAL SIDE OF THE DOOR OF THE FREEZER:

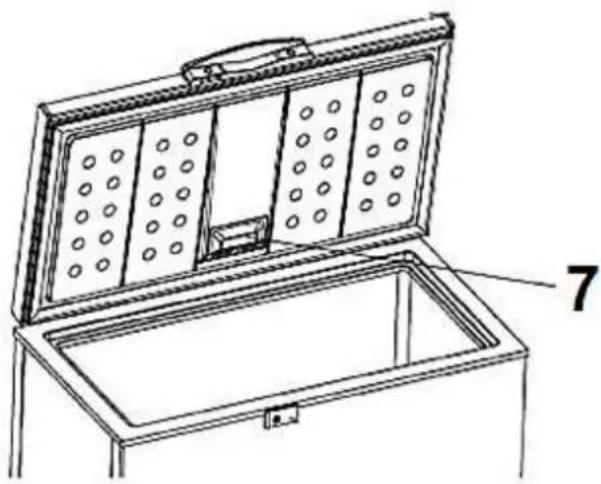

7 LIGHT / LAMP COVER (depending on model)

4.2 Before initial operation

NOTICE! Leave the appliance in an upright position for 4-6 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 3 until 4 hours (s. chapter 4.5 SETTING OF THE TEMPERATURE) before you place any fresh or frozen food in the appliance. If you place food in the appliance before it has reached its normal operating temperature, this foods can thaw and / or spoil.

1. Remove all packaging materials.
2. Adjust the feet and clean the appliance (see chapter CLEANING AND MAINTENANCE).
3. Do not start the appliance immediately after installation. Wait 4-6 hours to ensure proper operation.
4. Connect the appliance to the mains properly.

5. The noise generated by the compressor and the gases / liquids of the appliance is normal.

6. The settings of the temperature of the freezer can be adjusted manually by pressing the relevant buttons until the desired values will be indicated (s. chapter 4.5 SETTING OF THE TEMPERATURE).

7. If operation was interrupted, wait 5 minutes before restart. Otherwise the appliance can be damaged.
8. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings.
9. Due to the difference of pressure the door may be difficult to open shortly after closing. Wait a few minutes and you can open the door easily.
10. Operate the appliance according to the instructions described in the following chapters.

4.3 Control panel / Operating buttons / Display

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

◆ Operate the appliance according to the instructions about the control of the functions and modes described in the following paragraphs.
The settings of the temperature of the freezer can be adjusted manually, if required (s. chapter 4.5 SETTING OF THE TEMPERATURE).

E G C D Electronic Control F B A

A	Key lock ON / OFF
B	Button for the activation of the FAST FREEZING MODE / FAST FREEZING
C	Button to INCREASE THE TEMPERATURE
D	Button to DECREASE THE TEMPERATURE
E	Indicator: HIGH TEMPERATURE ALARM
F	Indicator of the active operation of the FAST FREEZING MODE
G	Digital display: Indicator of the SET TEMPERATURE / Indicator of the ERROR CODES in case of malfunction

CONTROL PANEL AND DISPLAY:

If you connect the appliance to the mains, the control panel reaches complete indication after 3 seconds. An acoustic signal sounds and the control panel indicates normal operation.
During normal operation the control panel / display indicates the set temperature or the set mode of the freezer.
In case of a malfunction of the category -visible error code- the display indicates the respective error code (s. chapter 6.1 ERROR CODES).
If you do not press any operating button within 30 seconds after activation of the key lock and the door is closed, the display goes off (s. chapter 4.4 KEY LOCK).

4.4 Key lock

HOW TO ACTIVATE THE KEY LOCK:

1. Press the KEY LOCK BUTTON (A) for 3 seconds.
2. The KEY LOCK is activated and the operating buttons are locked.
   ➢ After 30 seconds without using any operation buttons, the display goes off.
   If you press any operating button within 30 seconds, the display indicates normal operation.
   In case of a malfunction of the category -visible error code-the display indicates the respective error code and goes off after 30 seconds.

HOW TO DEACTIVATE THE KEY LOCK:

1. Press the KEY LOCK BUTTON (A) for 3 seconds.
2. The key lock will be disabled and the operating buttons are released again.

i If the KEY LOCK is activated, none of the following settings below can be carried out.

4.5 Setting of the temperature

The settings of the temperature of the freezer can be adjusted manually by pressing the relevant buttons (C / D to increase or decrease the temperature in the freezer) until the desired values will be indicated (s. chapter 4.3 CONTROL PANEL / OPERATING BUTTONS / DISPLAY).
When you set a temperature, you set an average temperature for the whole freezer. Temperatures inside each area of the freezer may vary from the temperature values indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

To perform the following settings the display must be unlocked.

SELECTION OF THE TEMPERATURE UNIT

The temperature of the freezer can be indicated in ^0 C (degree Celsius) or in ^0 F (degree Fahrenheit).
The temperature units ( ^0 C and ^0 F) can be changed as follows:

➢ Press the FAST FREEZING BUTTON (B) and the button for the INCREASE OF THE TEMPERATURE (C) simultaneously.
According to the pre-set temperature unit the display indicates ^0C or ^0F .

FAST FREEZING

SETTING OF THE TEMPERATURE OF THE FREEZER IN ^0 C

You can set the temperature from -12^ to -24^ .

➢ Press the buttons + (C) or - (D) repeatedly to increase or decrease the temperature of the freezer until the desired temperature is displayed (G) on the control panel.
➢ After selecting the desired temperature, the appliance continuous to work with the set value.
The temperature changes by 1^0C each time you press the buttons (C) or (D).
The sequence of the temperature setting is:

$$ - 2 4 ^ {\circ} \mathrm{C} \sim - 2 3 ^ {\circ} \mathrm{C} \sim - 2 2 ^ {\circ} \mathrm{C} \sim - 1 3 ^ {\circ} \mathrm{C} \sim - 1 2 ^ {\circ} \mathrm{C} $$

$$ - 1 2 ^ {\circ} \mathrm{C} \sim - 1 3 ^ {\circ} \mathrm{C} \sim - 2 2 ^ {\circ} \mathrm{C} \sim - 2 3 ^ {\circ} \mathrm{C} \sim - 2 4 ^ {\circ} \mathrm{C} $$

SETTING OF THE TEMPERATURE OF THE FREEZER IN ^0 F

You can set the temperature from 10^0F to -11^0F .

➢ Press the buttons + (C) or - (D) repeatedly to increase or decrease the temperature of the freezer until the desired temperature is displayed (G) on the control panel.
➢ After selecting the desired temperature, the appliance continuous to work with the set value.
The temperature changes by 1^0F each time you press the buttons (C) or (D).
The sequence of the temperature setting is:

$$ - 1 1 ^ {\circ} \mathrm{F} \sim - 1 0 ^ {\circ} \mathrm{F} \sim - 9 ^ {\circ} \mathrm{F} \sim \sim 9 ^ {\circ} \mathrm{F} \sim 1 0 ^ {\circ} \mathrm{F} $$

$$ 1 0 ^ {\circ} \mathrm{F} \sim 9 ^ {\circ} \mathrm{F} \sim - 9 ^ {\circ} \mathrm{F} \sim - 1 0 ^ {\circ} \mathrm{F} \sim - 1 1 ^ {\circ} \mathrm{F} $$

4.6 Selection of the modes

THE FOLLOWING MODES CAN BE SET:

→ FAST FREEZING MODE
→ KEY LOCK (s. chapter 4.4 KEY LOCK)

FAST FREEZING MODE

◆ The KEY LOCK must be disabled.

ACTIVATION OF THE FAST FREEZING MODE:

➢ Press the button of the FAST FREEZING MODE (B) once.
➢ After selecting the FAST FREEZING MODE, the FAST FREEZING FUNCTION will be activated.
The indicator of the active operation of the FAST FREEZING MODE will go on. (F)

This function decreases the freezing temperature rapidly and makes sure that the food will be frozen faster as usual. Thereby this function helps to preserve vitamins and nutrients of fresh food for a longer period of time.
i Select this mode when you like to freeze fresh meat or fish for long term storage.

CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.

DEGREE CELSIUS:

The temperature of the freezer will be set to -24^ automatically.
◆ The compressor works continuously.

DEGREE FAHRENHEIT:

The temperature of the freezer will be set to -11^ automatically.
◆ The compressor works continuously.

DEACTIVATION OF THE FAST FREEZING MODE:

◆ The KEY LOCK must be disabled.
The FAST FREEZING MODE can be quitted in three different ways:

1. Press the button of the FAST FREEZING MODE

FAST FREEZING

(B) once again.

or

1. Press the button for the INCREASE OF THE TEMPERATURE

or

1. Press the button for the REDUCTION OF THE TEMPERATURE

(C).

The indicator of the active operation of the FAST FREEZING MODE will go off.

◆ s. chapter 4.4 KEY LOCK

4.7 Saving of the settings in case of power failure

❖ In case of power failure the current settings will be secured and maintained.
If the appliance is supplied with power again, it continues to work with the settings adjusted before.
Max storage time in case of malfunctions: s. chapter TECHNICAL DATA).

NOTICE! In an event of a power failure, do not open the door so your food can remain in the appliance for -x- hours (-x-: see chapter TECHNICAL DATA).

4.8 Indication of over-temperature in the freezer

The appliance is equipped with an alarm function which indicates an over-temperature inside of the freezer.
If the temperature inside the freezer is less than -8^0C / 17^0F (e.g. -7^0C / 19^0F // -6^0C / 21^0F etc.) for more than 36 hours, a red warning light (E) goes on and an acoustic warning signal sounds.

1. Press any operating button to quit the acoustic warning signal.
2. The red warning light remains further on.
3. If the appliance reaches a temperature of at least -8 ^ C or 17 ^ F again, the warning light will go off and the temperature alarm will be quitted.

4.9 The freezer

WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.
⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.
CAUTION! Do not put any bottled or canned beverages (neither still nor carbonated) into the freezer compartment of the appliance as their containers could explode.

The freezer is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

Protect fresh food you want to freeze using aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
Leave some free space between the single pieces of frozen food as proper air circulation is required.
The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).
Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
- Observe the complete information on the packaging of frozen food.

4.10 Helpful hints / energy saving

Do not line the drawers / shelves / baskets with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
✿ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.

Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18°C or lower).
Put the frozen food you want to defrost into the cooling-compartment of you appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven8
√ in a microwave9

❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.

- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

4.11 Operational parameters

1. The appliance can only reach the relevant temperatures when:

the a ambient temperature meets the climatic class.
▶ the doors close properly.
➢ you do not open the doors too often or too long.
the door seals are in proper condition.
the appliance is properly positioned.
▶ you have not overfilled the appliance.
➢ you do not store warm or hot food in the appliance.

1. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.

2. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

3. Defrost the appliance periodically as encrusted ice will decrease the power and increase the energy consumption of the appliance.

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

WARNING! Remove possible dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!

NOTICE! Clean the appliance regularly.

1. Always keep the appliance clean so that unpleasant odours do not occur.
2. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
3. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

DETERGENT:

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^10 Do not use essential oils!
➢ These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING:

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING:

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

DOOR SEALS:

Clean with warm water and a mild, non- acidic detergent. Do not restart the appliance until the door seals have dried completely.

5.1 Defrosting

⚠ WARNING! Switch off the appliance by turning the thermostat (depending on model) to position 0 / AUS / OFF and disconnect it from the mains.

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

WARNING! Do not use hairdryers, electrical heaters or other technical devices to accelerate the defrosting-progress. RISK OF ELECTRICAL SHOCK!

⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!

1. Remove the content, wrap in several layers of newspaper and store in a cooling box or a cool place.
2. Switch off the appliance by turning the thermostat to OFF ^11 and disconnect it from the mains.
3. Place a container at the water outlet to collect the melt water.
4. Open the water outlet.
5. Drain the defrost water via the water outlet.
6. Wipe and dry the appliance (in- and outside) and door seals using dry and soft cloths.
7. After cleaning leave the door open for a while to aerate the appliance.
8. Switch on the appliance and let it operate in the FAST FREEZING MODE for approx. 3 hours.

5.2 Replacing of the illuminant

⚠ WARNING! The LED-illuminant ^12 must be replaced by a competent person only. If the LED-illuminant is damaged, please contact a qualified professional.

6. Trouble shooting

MALFUNCTION
POSSIBLE CAUSE	MEASURE
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
1. The appliance has been switched off for a while.2. Too much or too hot food in the appliance.3. Doors opened too often or too long.	1. The appliance needs some time to reach the preset temperature.2. Remove any hot food.3. Do not open the door too often/too long.
FORMATION OF ENCRUSTED ICE.
1. The door is not properly closed.2. The door seal is damaged or soiled.	1. Close the door properly.2. Clean and / or replace the door seal.
THE DOOR MAKES A STRANGE SOUND WHEN OPENED.
1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Frozen food is stored improperly.3. Items have dropped behind the appliance.	1. Install the appliance properly.2. Store food properly.3. Remove the items.
WATER DRIPS ON THE FLOOR.
1. The water outlet is not closed properly.	1. Close the water outlet properly.
THE LIGHT IS NOT WORKING.
1. The LED light (depending on model) may be damaged.	1. Refer to replace LED lights in cleaning and care chapter.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

NOTICE! In case of a power failure the current settings will be secured and maintained until the appliance is supplied with power again (max. storage time / malfunction: s. chapter TECHNICAL DATA).

The operating conditions described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in / on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking / snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

6.1 Error codes

Error code	Description	Visible error code
E2	Failure of the temperature sensor of the freezer compartment	√
E9	Failure of the over-temperature warning	√

DECOMMISSIONING, TEMPORARILY

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION/HOLIDAY (14-21 DAYS):

1. Do the same as described above, or
2. let the appliance operate.

IF YOU WANT TO MOVE THE APPLIANCE:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

DECOMMISSIONING, ULTIMATE

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model	Freezer
Climatic class	SN / N / ST / T(ambient temperature 10 - 43 °C)
Energy efficiency class*	A++
Annual energy consumption in kW/h**	212.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Volume gross in l	301
Net volume freezer in l	301
Stars	4****
Max. freezing capacity within 24 h	14.00 kg
Max. storage time / malfunction	75.00 h
Noise emission	43 dB/Λ
Adjustable thermostat	yes / electronic
Compressor	yes
Refrigerant	R600a / 64 g
Control lamps:
operation / fast freezing / warning light	yes / yes / yes
Lighting freezer	yes
Lock	yes
Baskets	1
Adjustable feet	yes / 2 in front /2 at the rear
Defrosting freezer	manual
Dimensions appliance H*W*D in cm	85.00*128.50*69.60
Weight net / gross in kg	47.00 /54.00

◆ Technical modifications reserved.

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).

** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
