Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....28
2. Installation 32
   2.1 Unpacking and positioning....32
   2.2 Installation 32
   2.3 Electrical connection.... 35
   2.3.1 Connection diagram.... 35
3. Operation.... 36
   3.1 Hob and control panel.... 36
   3.2 Use of the touch control 37
   3.3 Suitable cookware 37
   3.4 How to start cooking.... 39
   3.5 How to stop cooking.... 39
   3.6 Key lock 40
   3.7 Over-temperature protection 40
   3.8 Detection of small objects 40
   3.9 Automatic switch-off....41
   3.10 Timer....41
4. Cooking guidelines 43
   4.1 Power levels 44
5. Cleaning and maintenance.... 45
6. Trouble shooting....46
   6.1 Error codes....47
7. Technical data....48
8. Waste management....48
9. Guarantee conditions....49
   A. Connection Diagram....50

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.

i The appliance is intended for private use only.
The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

Important information for persons with a pacemaker or any other medical implant:

The appliance complies with the current electromagnetic interference regulations. It fully complies with all legal requirements (2004/108/EG). It is designed to not interfere with the functions of other electric appliances, provided they comply with the identical regulations.

⚠️ DANGER! THIS INDUCTION HOB GENERATS MAGNETIC FIELDS IN ITS IMMEDIATE VICINITY.

Your pacemaker must be designed in compliance with the corresponding regulations so it will not cause any interferences between the pacemaker and the appliance. Consult the manufacturer of your pacemaker or your doctor to decide whether it meets the forced requirements or if any incompatibilities do exist.

DANGER!

1. The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your energy supplier.
2. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
4. Never try to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. If the appliance does not operate properly,

please contact the shop you purchased the appliance at. Original spare parts should be used only.

1. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. Disconnect the appliance from the mains before you clean or maintain it.
2. The appliance must always be grounded and protected corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. In case of an event caused by a technical malfunction, disconnect the appliance from the mains. Report the malfunction to your service centre so it can be repaired.
5. If any cracks occur on the glass-ceramic, switch off the appliance and disconnect it from the mains. RISK OF ELECTRICAL SHOCK!
6. Do not use adapters, multiple sockets and extension cords for connecting the appliance to the mains.
7. Do not carry out any modifications to your appliance.
8. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.
9. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85C above the ambient temperature of the room the appliance is installed in during operation.
10. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
11. Cooker-hoods should be installed according to their manufacturers' instructions.
12. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
13. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!
14. Do not store any objects on the hob. RISK OF FIRE!
15. Household equipment and connection leads must not touch the hob as the insulation material is usually not heat-resistant.
16. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. RISK OF ELECTRICAL SHOCK!

17. After use, always switch off the cooking zones as described in this manual(i.e. by using the touch controls). Do not rely on the auto-detection feature to switch off the cooking zones when you remove the cookware.

18. The appliance is not allowed to be operated with an external timer or a separate remote-control-system.

19. The accessible parts of the appliance become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.

20. Children must not play with the appliance.

21. Always supervise children when they are near the appliance.

CAUTION!

1. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the appliance. Otherwise you may scratch the surface and damage the glass.

2. Do not switch on the hob before you have put a cookware on it.

3. The blades of scrapers for cleaning an induction hob are very sharp. Do not cut yourself, especially when you have removed the safety cover of the scraper.

4. Metal-made items such as knives, forks, spoons and pan lids should not be put on the appliance, because they may become hot.

5. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.

2. The appliance must be transported and installed by at least two persons.

3. When you unpack the appliance, you should take note of the position of its components in case you have to repack and transport it at a later point of time.

4. Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

5. Do not put any heavy items on the hob.

6. Only use cookware which is suitable to be used on a induction hob; otherwise you will damage the appliance.

7. Do not operate the appliance unless all components are installed properly.

8. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter WASTE MANAGEMENT.
2. The appliance may be equipped with a the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check that the appliance and the power cord are not damaged.
4. Connect the appliance to a dedicated socket only.
5. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.
6. Connect the appliance to the mains properly.

2.2 Installation

Selection of installation equipment

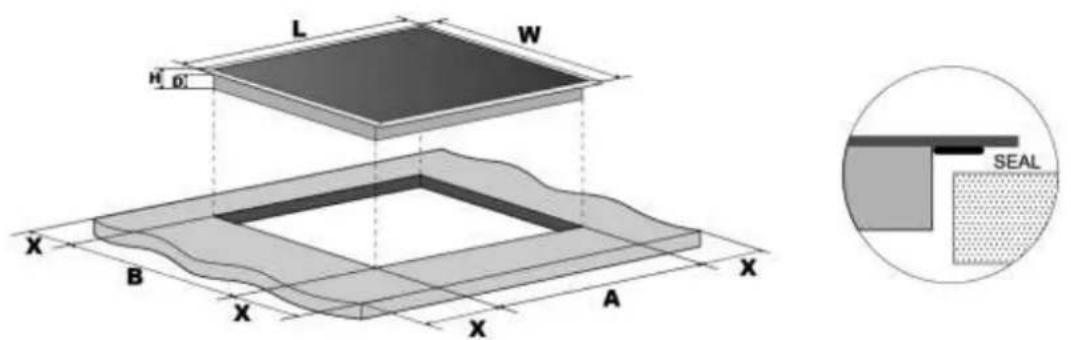

Cut out the installation hole as described on the drawing below. For installation and use, a minimum of 50 mm space shall be preserved around the hole. The thickness of the work top should be at least 30 mm. Choose heat-resistant materials for the work top only to avoid any deformation caused by the heat-radiation of the appliance.

L W H D X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	60	56	560^+4_+1	490^+4_+1	50 min.

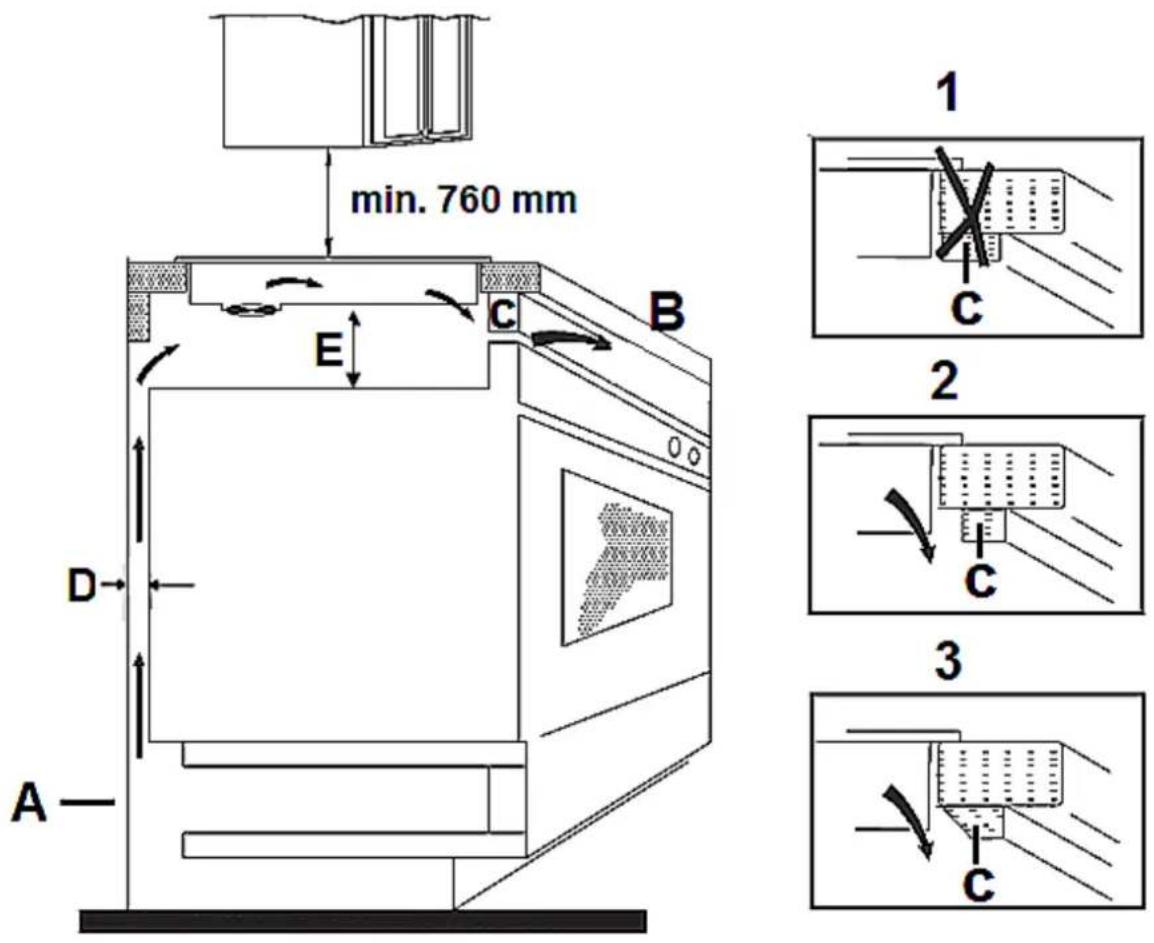

The hob must be ventilated properly. The air inlet (A) and outlet (B) must never be blocked or covered. Always keep the appliance in proper condition. The top closing edge of the cabinet (C) must not be flush with the installation opening (1). Install the closing edge in offset positioning (2) or bevel the closing edge (3).

min. 760 mm E C B D A 1 C 2 C 3 C

A(mm)

B(mm)

C(mm)

D

E

Air inlet

air outlet 5mm

20 min.

20 mm min.

50 mm min

⚠ WARNING! Min. safety distance between hob and a cupboard above = 76 cm.

Before the installation

1. The worktop must be rectangular and plane and made of heat-resisting material. Structural elements should not interfere with the installation area.
2. If the hob is installed above an oven, the oven must be equipped with a built-in cooling fan

3. The installation must meet the safety requirements as well as the legal rules and regulations.

4. The wall sat the hob should be covered with heat-resistant material, e.g. ceramic tiles.

5. Strictly observe the instructions given in chapter 2.3 ELECTRICAL CONNECTION.

After the installation

The power cable must not come into contact with cabinet doors or drawers.
The appliance must be supplied with an adequate flow of fresh air from outside the cabinet to the base of the hob.
➢ Install a thermal protection below the bottom of the appliance when installing it above a drawer or a cupboard.
The circuit breaker must be easily accessible.

Installation of the fixing brackets

CAUTION!

1. The hob must be installed by a qualified professional. Do not carry out the installation yourself.
2. Do not install the appliance above cooling equipment, dish washers or laundry dryers.
3. When installing the appliance ensure optimal heat radiation to maintain the operating safety.
4. The wall and the reach of the heat radiation above the worktop must be made of heat-resistant materials.

5. To avoid any damage, the sandwich layer and adhesive must resist heat.

6. Place the appliance on a stable and smooth surface (use the packaging). Do not carry out any physical force on the control elements of the appliance.

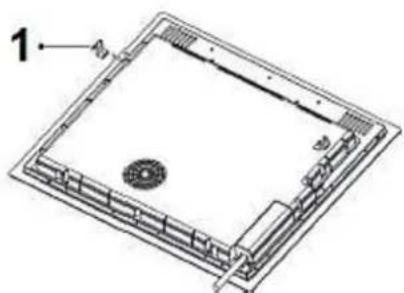

7. Fix the hob on the worktop by screwing 2 brackets on the bottom of hob(see picture) after installation.
8. Adjust the bracket position to suit for different table top thickness.

Technical line drawing of a square mechanical or architectural component with internal structure and labeled section 1 (no text or symbols beyond label)

1:bracket

2.3 Electrical connection

DANGER!

The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier.

1. Your household power supply must meet the power consumption of the appliance.
2. The voltage must meet the values on the nameplate.
3. The power cord must withstand the values on the nameplate.
4. When connecting do not use adapters, reducers and branching devices as they cause overheating. RISK OF FIRE!
5. The power cord must not touch hot areas and its temperature must not exceed 75^0 C.
6. When the socket is not accessible for the user or a fixed electrical connection of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335). Read the information on the nameplate and the connection diagram before connecting the appliance to the mains. The electricity supply must be performed via a 16A automatic cut-out. If in doubt, always contact the local building authorities and consult the relevant legal provisions.
7. Do not bend or compress the power cord.
8. Check the power cord regularly. The power cord must be replaced by a qualified professional only!

2.3.1 Connection diagram

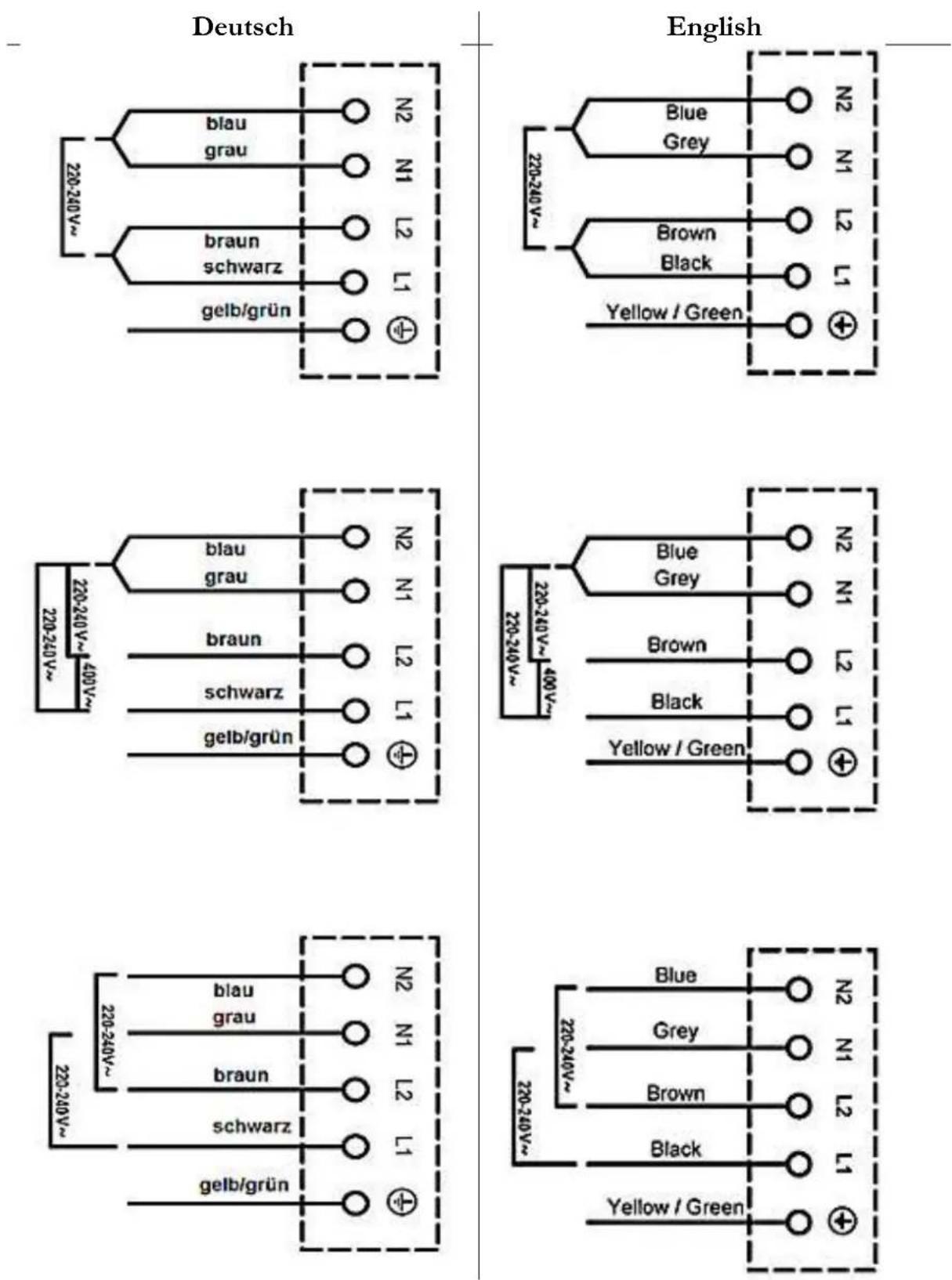

See chapter A at the end of this document.

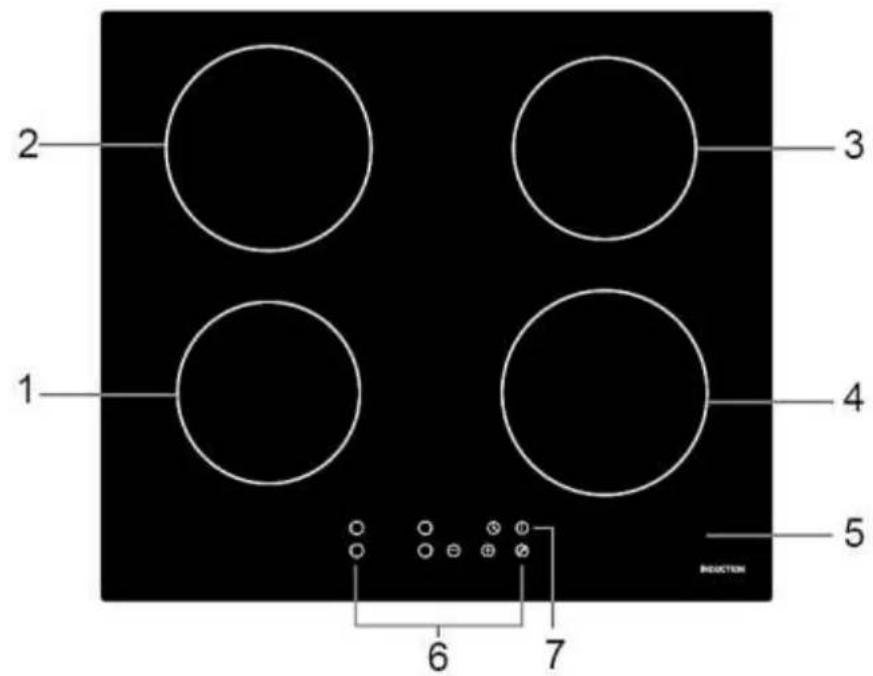

3.1 Hob and control panel

2 1 3 4 5 6 7

1 Max. 1400 W
2 Max. 1800 W
3 Max. 1400 W
4 Max. 1800 W
5 Glass panel
6 Control panel
7 ON/OFF

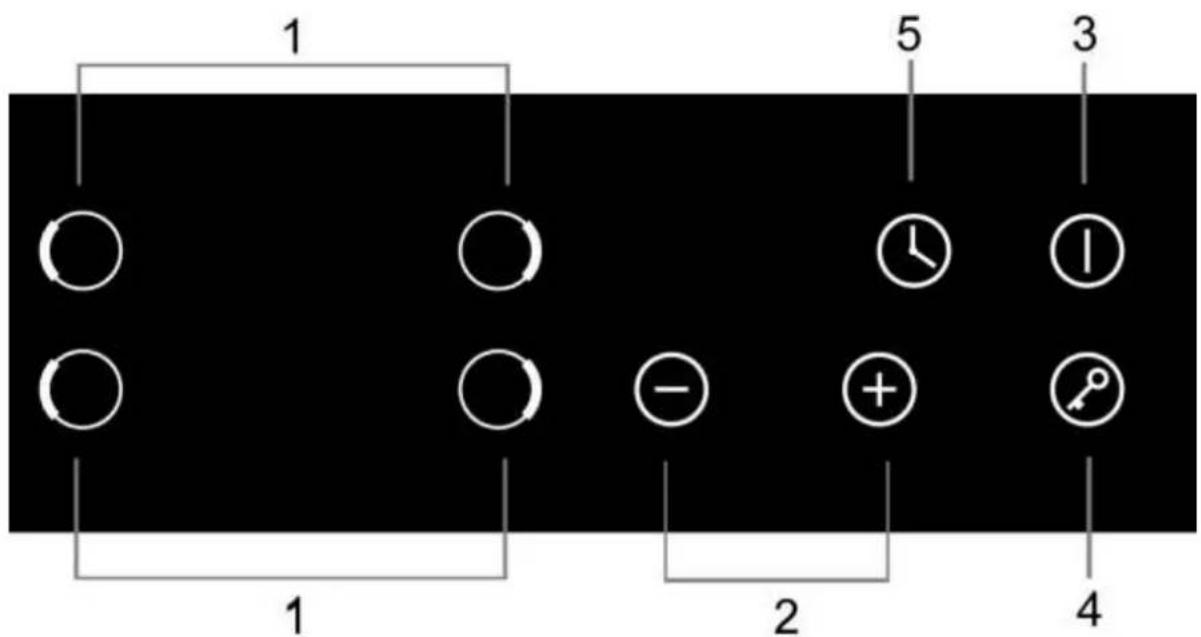

1 5 3 1 2 4

1 Selection of the cooking zones
3 On/Off
5 Timer

2 Power setting
4 Key lock

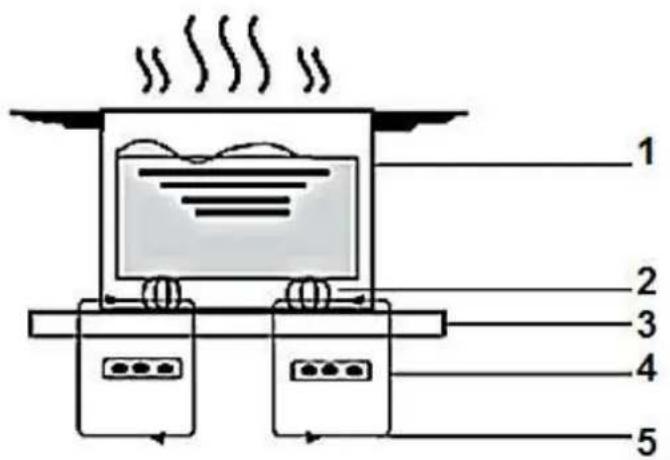

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works via electromagnetic vibrations generating heat directly in the cookware. The glass becomes hot only because the pan eventually warms it up.

1 2 3 4 5

1 Cookware
2 Magnetic circuit
3 Glass-ceramic panel
4 Induction coil
5 Induction current

Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety guidelines!
Remove the complete protective film!

3.2 Use of the touch control

The sensor keys respond to touches so you do not need to press them.
➢ Touch the sensors with the bottom side of your top phalanx but not with your fingertip (see figure below).
You will hear a beep after each effective input.
➢ Always keep the touch control clean and dry. Cooking utensils and cloths should not cover the touch control. A thin water film may already complicate operating the sensors.

Diagram showing two hand positions: one with a checkmark and another with an X, indicating correct and incorrect states.

3.3 Suitable cookware

➢ Use induction-suitable cookware only. Check the induction symbol on the packaging or the base of the cookware.
➢ Check the suitability with a magnet. When the magnet is attracted by the base, the cookware is suitable.

▶ If you have not got a magnet:
Pour some water into the cookware which is to be checked.
➢ Follow the steps described in HOW TO START COOKING.
When does not flash on the display and the water is heated up, the cookware is suitable.
➢ Cookware made of the following materials is not suitable: pure stainless steel, aluminium and copper without a magnetic base, glass, wood, china, ceramic und earthenware/pottery.
➢ Do not use cookware with sharp or serrated edges or an coarse and uneven base.

Simple line drawing of a cooking pot with crossed X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot on a stove (no text or symbols)

The base of your cookware should be flat, contact the glass ceramic completely and have the same diameter as the relevant cooking zone. Always centre the cookware on the cooking zone. Cookware with a diameter of less than 140 mm can be undetected by the appliance.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

➢ Always lift your cookware, when you want to move it on the glass ceramic. Do not push cookware as you may scratch the glass ceramic.

Symbolic illustration of a tank with crossed arrows indicating pressure or discharge (no text or labels)

Simple line drawing of a cooking pot with upward and downward arrows indicating direction (no text or symbols)

The base of cookware must have a minimum diameter relevant to the diameter of the cooking zone you use the cookware on.

3.4 How to start cooking

1. Touch the ON/OFF sensor for 3 seconds. When the power is on, a beep sounds once; the display indicates - or --. The appliance is in stand-by mode now.

2. Place a cookware on the desired cooking zone. Always keep the bottom of the cookware as well as the cooking zone clean and dry.

3. Select the power level by touching the SELECTION OF COOKING ZONE sensor. The indicator flashes.

4. Set the power level with the + and - sensor.

a. When you do not set a power level within 1 minute, the appliance will switch off automatically. You have to start a step 1 again.

b. You can change the power level whenever you want while cooking..

Simple line drawing of a cooking pot with a stand and a small figure above it (no text or symbols)

The display indicates and the indicator of the power level alternately.

➢ You have not placed the cookware on the correct zone, or

You use unsuitable cookware, or

➢ You use cookware which is too small or not centred properly on the cooking zone.

While using unsuitable cookware, the cooking zone does not heat up. The display goes off automatically after 1 minute even if you have not placed suitable cookware on the cooking zone.

3.5 How to stop cooking

1. Touch the SELECTION OF COOKING ZONE-sensor of the cooking zone you want to switch off.

2. Switch off the relevant cooking zone by setting the - sensor to 0 or touching + and - simultaneously. Check that the indicator displays 0.

6 ⊖ → 0 ⊖ ⊕ → 0

1. Switch off the appliance with the ON/OFF-sensor.

① O H

1. Beware of the hot surfaces of the cooking zones! An H indicates which cooking zones are still hot. The H disappears as soon as the relevant cooking zone has cooled down. You can use the H for saving energy → you can start a new cooking procedure on a cooking zone which is st warm/hot.

3.6 Key lock

You can lock the sensors to protect them from unintentional operation or operation by children. When the sensors have been locked, all sensors except ON/OFF are deactivated. You can switch off the appliance with the ON/OFF sensor in case of emergency, but you should unlock the sensors afterwards.

Locking of the sensors.

Touch the key lock. The timer indicator displays "Lo".

Unlocking of the sensors.

1. Check that the appliance is switched on.
2. Touch and hold the key lock for some time..
3. Now you can proceed operation as normal.

3.7 Over-temperature protection

A thermistor monitors the temperatures inside the appliance. The appliance will stop operating automatically if an over-temperature is detected.

3.8 Detection of small objects

When a small-sized or unsuitable cookware (e.g. aluminium) or small objects like knives, forks etc. are placed on a coking zone, the appliance will turn into stand-by mode automatically after 1 minute. The fan will keep cooling down the appliance for another minute.

3.9 Automatic switch-off

The automatic switch-off represents another safety component of your appliance. The automatic switch-off is activated, when you forgot to switch off a cooking zone after operation. The default times are described on the schedule below.

Power level	1	2	3	4	5	6	7	8	9
Auto switch-off (hours)	8	8	8	4	4	4	2	2	2

3.10 Timer

Mode 1 - Minute minder

1. Switch on the appliance (you can use the minute minder even you have not selected a cooking zone).
2. Touch the TIMER-sensor; the display flashes and indicates 10.
3. Set he desired time using the + and - sensor.

a. Touch +/- once to increase/decrease the value by 1 minute.
b. Hold +/- to increase/decrease the value by 10 minutes.

1. Touch + and- simultaneously to cancel the timer. The display indicates 00.

2. When you have finished the setting, the count-down of the set time starts. The display indicates the remaining time. The timer indicator flashes for 5 seconds.

3. When the set time has elapsed, an acoustic signal sounds for 30 seconds. The timer indicates --.

Mode 2. Automatic switch-off function of one cooking zone.

1. Touch the SELECTION OF COOKING ZONE-sensor you want to control via the timer.

2. Touch the TIMER-sensor; the timer indicator flashes and indicates 10.

3. Set he desired time using the + and - sensor.

a. Touch +/- once to increase/decrease the value by 1 minute.
b. Hold +/- to increase/decrease the value by 10 minutes.

1. Touch + and - simultaneously to cancel the timer. The display indicates 00.
2. When you have finished the setting, the countdown of the set time starts. The display indicates the remaining time. The timer indicator flashes for 5 seconds.
3. The red dot next to the power level indicator lights so you know which cooking zone is enabled.
4. When the set time has elapsed, the relevant cooking zone is switched off automatically

⚠ WARNING! Other cooking zones will keep operating if they have been turned on previously.

6 10

WARNING!

Be very careful when frying, because oil and fat heat up very fast especially when operating a high power level. Extremely hot oil and fat inflame spontaneously and represent a serious fire risk.

Cooking tips

Decrease the power level as soon as the desired cooking temperature is reached.
➢ Use pot-lids to shorten cooking times and save energy.
- Minimize the amount of cooking liquids or fat/oil to shorten cooking times.
➢ Select a high power level, when you start cooking. Reduce the power level, when your food has been heated up.

Simmering/cooking of rice

Simmering is cooking with a temperature of approx. 85 ^ C. At this temperature small bubbles ascend to the surface of the cooking liquid. Simmering is a perfect way to cook delicious soups and stews as the flavours of the food unfold completely without being over-heated. You should also cook egg-based sauces and sauces thickened with flour in this way.
Some cooking procedures, including the cooking of rice with the absorption-method (= the water is consumed completely), require a setting above the lowest power level, so the food is cooked within the recommended cooking time.

Steaks

1. Take the meat out of the fridge and let it rest at room temperature for approx. 20 minutes.
2. Heat up a pan with a heavy base.
3. Rub both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and place the steak into the pan.
4. Turn the meat just once while cooking. The exact cooking time depends from the size of your steak and your individual preferences (medium, medium rare etc.). So the cooking time of each side may vary from 2 to 8 minutes. Press the steak to check the cooking result - a firm steak is well done.
5. Leave the steak on a warm plate for a few minutes; so it will become tender.

Asian-style cooking

1. Choose a wok with a flat base or a big pan.

2. Prepare all ingredients and the cooking utensils you need. Asian-style cooking should work fast. If you want to cook a big amount of food, you should divide the food into several portions.

3. Preheat the wok/pan briefly and add two tablespoons of oil.

4. Cook the meat first. Put it aside and keep it warm.

5. Now cook the vegetable. When the vegetable is hot but still crisp, reduce the power level. Add the meat and, if desired, a sauce.

6. Sauté the complete food carefully so all components are hot.

7. Serve immediately.

4.1 Power levels

Power level	Suitability
1-2	➢ Delicate warming of small amounts of food.➢ Melting of chocolate, butter etc.➢ Food which burns quickly.➢ Gentle simmering.➢ Slow warming.
3-4	➢ Reheating.➢ Fast simmering.➢ Rice.
5-6	➢ Pancakes.
7-8	➢ Sautéing.➢ Pasta.
9	➢ Asian-style.➢ Frying.➢ Reaching the boiling point of soup/water.

WARNING!

Do not use a steam cleaner. Risk of electric shock! The steam can damage the electric components of the appliance.

KIND OF CONTAMINATION

STRATEGY

SAFETY GUIDELINES

Daily contamination of the glass ceramic (fingerprints, stains caused by food, non-sugary spillages).

1. Disconnect the appliance from the mains (fuse-box).
2. Use a suitable detergent for glass ceramic while the glass ceramic is still warm - but not hot!
3. Clean with a soft cloth/kitchen paper and water, then dry carefully.
4. Connect the appliance to the mains again.

While the appliance is disconnected from the mains the residual heat indicator does not work, so the cooking zones may be still hot. Be very careful.
Scourers, nylon-scourers and abrasive detergents can scratch the glass ceramic. Read the product information of these detergents, so you know if they are suitable to clean glass ceramic.
Do not leave any residuals of a detergent on the glass ceramic as i can turn stained permanently.

Overcooked or melted food and stains caused by heated sugar-containing food on the glass ceramic.

Remove such a contamination immediately with a suitable glass ceramic scraper. Beware of cooking zones which are still hot!

1. Disconnect the appliance from the mains (fuse-box).
2. Hold the scraper in a 30^-0 -angle and scrape off the contamination to a cold area.
3. Clean the contaminated area with a dish towel/kitchen paper.
4. Proceed as described in steps 2-4 in the previous section.

➢ Remove such contaminations as soon as possible. When they cool down on the glass ceramic, they are difficult to remove and may damage the glass ceramic permanently.
➢ Be very careful when using the scraper so that you do not cut yourself (especially, when you have removed the safety cover).

Contamination of the control panel.

1. Disconnect the appliance from the mains (fuse-box).

The appliance may beep and automatically turn off. The sensors may

1. Take away the contamination.
2. Wipe the sensors with a damp sponge or cloth.
3. Dry the sensors with kitchen paper.
4. Connect the appliance to the mains again.

not work properly when they are wet. Dry the control panel carefully before you put it into operation again.

Do not use any abrasive detergents! Do not use any organic detergents! ^2

Do not use essential oils!

6. Trouble shooting

ERROR

CAUSES

MEASURES

The appliance cannot be switched on.

▶ Break in the power supply.

➢ Check that the appliance is connected to the mains. Check the household fuse box. Is there a power failure at your place of residence?

The sensors do not respond.

The sensors are locked.

▶ Unlock the sensors.

The sensors are difficult to operate.

▶ Liquid on the sensors.

▶ Dry the sensors.

▶ You used your fingertip.

➢ Use the bottom of your top phalanx.

The glass ceramic is scratched.

➢ You used unsuitable cookware with sharp edges.

▶ Use suitable cookware.

➢ You used an unsuitable detergent, e.g. an abrasive.

▶ Use suitable detergents.

Some cookware make cracking or clicking noise.

- Your cookware is produced with layers made of different kinds of metal.

This is normal for such a cookware and does not indicate a malfunction.

The appliance makes humming noise when used on a high heat setting.

▶ Caused by induction-cooking.

➢ Normal operating condition, but the noise should decrease or disappear after decreasing the heat setting.

Noise caused by the fan inside the appliance.

The cooling-fan the appliance is equipped with protects the electronics from being overheated. It may continue to run even after you have switched the appliance off.

➢ Normal operating condition. Do not disconnect the appliance from the mains while the fan is running.

Cookware does not become hot and the relevant symbol is displayed.

➢ Cookware cannot be detected, because it is unsuitable, too small or improperly positioned on the cooking zone.

Use suitable cookware which meets the diameter of the cooking zone. Place cookware on the centre of the cooking zone.

The appliance or a cooking zone has been switched off automatically and unexpectedly, an acoustic signal sounds and an error code is displayed (typically alternating with one or two digits on the timer-display).

▶ Technical malfunction.

Note the complete error-code, disconnect the appliance from the mains and contact the aftersales service.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact a service department.

6.1 Error codes

Code	Possible causes	Measures
F3-F8	Temperature sensor is defective.	Contact the aftersales service.
F9-FE	Temperature sensor of the IGBT*.	Contact the aftersales service.
E1/E2	Abnormal supply voltage.	Please inspect whether the voltage is normal.Power on when the power supply is normal.
E3/E4	Improper temperature.	Check the cookware.
E5/E6	Bad induction hob heat radiation	Please restart when the appliance has cooled down.

*: IGBT = insulated-gate bipolar transistor, a semiconductor device to control the load power supply.

7. Technical data

Model	Induction hob
Control panel	Touch Control
Material	Ceramic Glass
Cooking zones	4
Diameter of cooking zone	2*160 mm/2*180 mm
Power of cooking zone	2*1400W/2*1800W
Maximum power	6400W
Voltage	220-240V AC
Frequency	50Hz
Residual heat indicator	✓
Power levels	9 per cooking zone
Timer	✓
Key lock	✓
Dim. installation opening W*D in cm	56.00*49.00
Dim. installation H*W*D in cm	6.00*59.00*52.00
Weight net/gross in kg	9.00/10.50

8. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

for large electric appliances, PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 05/01/2016
