USER MANUAL KG300.4A++NF PKM

Interior view of a modern white refrigerator with open doors showing front shelves and fruit compartments (no visible text or symbols)

Deutsch

English

Seite 2

Page 25

www.pkm-online.de

Max. 160° Y mm X mm

Simple line drawing of a refrigerator with a hanging button (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

Kühlstufen in ^0 C

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....26
2. Climatic classes....30
3. Installation 30
   3.1 Site 30
   3.2 Change of the hinge position.... 31
   3.3 Installation of the door handle 33
   3.4 Changing of the position of the door handle.... 34
4. Operation....35
   4.1 Before initial operation.... 36
   4.2 Display....36
   4.3 Fast cool mode.... 36
   4.4 Temperatureinstellung des Gefrierbereichs....37
   4.5 Operation parameters.... 37
   4.6 Proper storage 38
   4.7 Helpful hints/cnergy saving....38
5. Cleaning and maintenance....39
   5.1 Defrosting....40
   5.2 Replacing of the illuminant 40
6. Trouble shooting....41
7. Decommissioning....43
8. Technical data.... 44
9. Waste management 45
10. Guarantee conditions....46

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the

installation of the appliance must be performed by a qualified professional.

The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for caterin and similar non-retail applications.

i The appliance is intended for cooling food only.

i The appliance is intended for indoor-use only.

The appliance is not intended to be operated during camping and in public transport.

Operate the appliance in accordance with its intended use only.

Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.

2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free at the installation site:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. Do not install the appliance near of volatile or combustible materials(e.g. gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g. garage).

3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

5. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

6. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

7. Do not use a socket board or a multi socket when connecting the appliance to the mains.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. The technical data of your energy supplier must meet the data on the model plate of the appliance.

11. Your domestic circuit must be equipped with an automatic circuit breaker.

12. Do not modify the appliance.

13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

14. Disconnect the appliance from the mains before you clean or maintain it.

15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

16. Do not put any heat-radiating appliances onto your appliance.

17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

21. Children must never play with the appliance.

22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate

23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not touch the LED-light as it can become hot.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
4. Do not store any gassy beverages or water bottles in the freezing compartment of the appliance as their containers can explode.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Do not tilt the appliance more than 45°.
3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
5. Never use the door for moving the appliance as you will damage the hinges.
6. The appliance must be transported and installed by at least two persons.
7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
8. Do not operate the appliance unless all components are installed properly.
9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
10. Do not put hot liquids or hot foodstuff into the appliance.
11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	e.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3. Installation

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection (adhesive tape) of the accessories. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is situated inside the appliance or at the back.

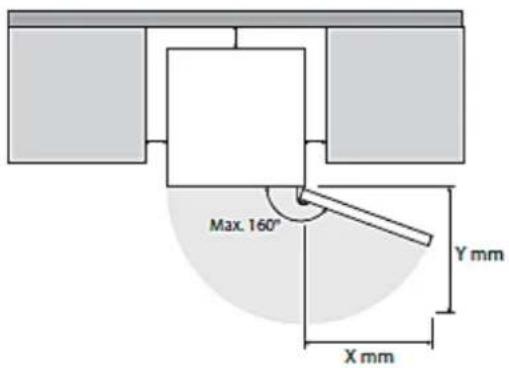

11. When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear and 25 mm at the top of the appliance. Please also ensure that you can open the doors to an angle of max. 160^ .

Max. 160° Y mm X mm

3.2 Change of the hinge position

WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!

CAUTION! The change of the position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance.

NOTICE! You should contact a qualified technician if you want to have the door swing reversed. Only try to carry out the steps described below when you believe that you are qualified to do so.

NOTICE! Adjust the doors properly before you finally tighten the screws of the hinges. The seals must close properly.

Preparatory measures:

a) Empty the appliance.
b) It is necessary to tilt the appliance backwards while removing the doors. You should rest the appliance on something solid so it will not slip while changing the hinge positions.
c) Do not lay the unit flat as this can damage the cooling system.
d) All parts removed must be saved for proper reinstallation of the doors.

Tools required: Cross-head screwdriver, flat bladed screwdriver, hexagonal spanner.

1. Remove the top hinge cover.

1. Remove the top hinge. Lift the upper door and remove it. Remove the door block, the screws and the plastic tube under the upper door and install them on the opposite site. You may need to replace the door block (accessories).

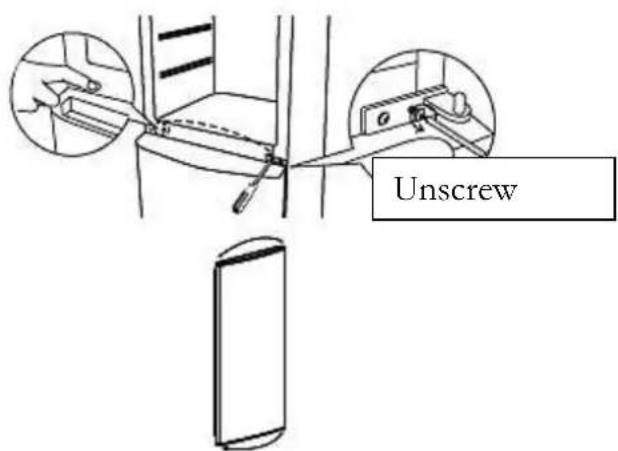

1. Unscrew the middle hinge. Lift the lower door and remove it. Remove the screw covers and install them on the opposite side. Change the position of the plastic tube and the hole cover on the top side of the lower door. Remove the door block, the screws and the plastic tube under the lower door and install them on the opposite site. You may need to replace the door block (accessories).

Unscrew

1. Remove the lower screws and the bottom hinge from the bottom of the appliance. Reverse the hinge and install it on the opposite side. Set the lower door into place carefully inserting it onto the bottom hinge.

Simple line drawing of a refrigerator with a scroll wheel (no text or symbols)

1. Remove the middle hinge. Reverse the hinge and install it on the opposite side.

Pure mechanical assembly diagram showing a lever mechanism without any text or symbols

1. Set the upper door into place carefully inserting it onto the middle hinge.
2. Insert the top hinge and install it tightly.

Technical line drawing of a mechanical bracket assembly with a screwdriver inserted (no text or symbols)

1. Install the top hinge cover.

3.3 Installation of the door handle

1. Remove the screw caps of the door handle screw holes.

2. Insert the door handle into the screw holes and install using the screws.

3. Cover the door handle screws with the screw caps.

3.4 Changing of the position of the door handle

1. Remove the screw caps of the door handle holes.

2. Remove the screws and then the handle.

3. Cover the door handle holes with the screw caps.

4. Insert the handle into the door handle holes on the opposite side (refer to chapter 3.4).

After installation wait 4-6 hours, before you connect your appliance to the mains!

⚠ WARNING THE THERMOSTAT CONTROLS THE COMPRESSOR ONLY. You must unplug the appliance to disconnect it from the mains.

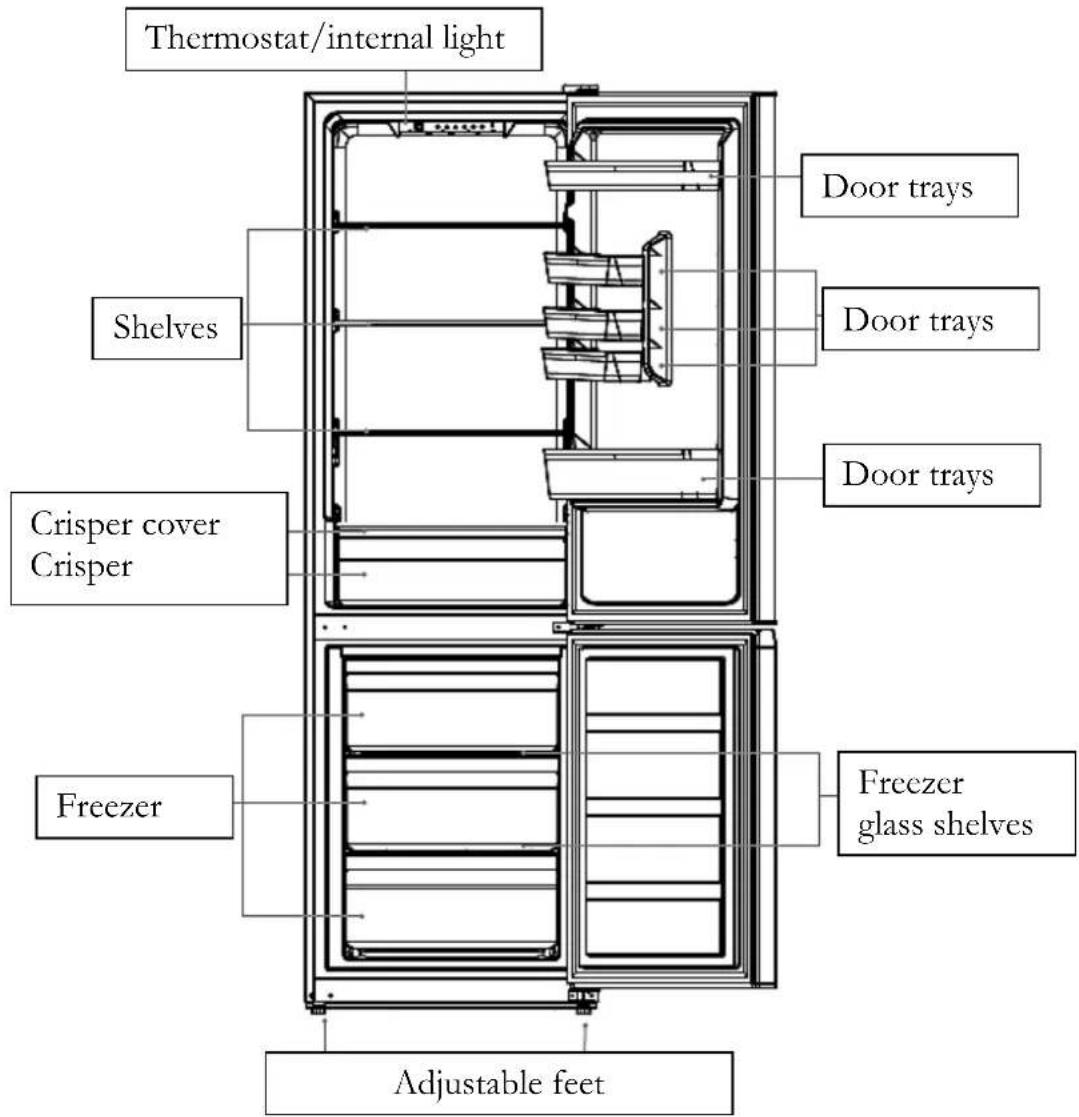

Thermostat/internal light Shelves Crisper cover Crisper Freezer Adjustable feet Door trays Door trays Door trays Freezer glass shelves

4.1 Before initial operation

1. Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chapter CLEANING AND MAINTENANCE).
2. If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 4.
3. Switch on the appliance. Use the appliance 24 hours after initial operation for the first time to ensure proper operation.
4. The appliance must be connected to the mains properly.
5. If the appliance was disconnected from the energy supply, wait 5 minutes before you restart it.
6. Do not overfill the appliance

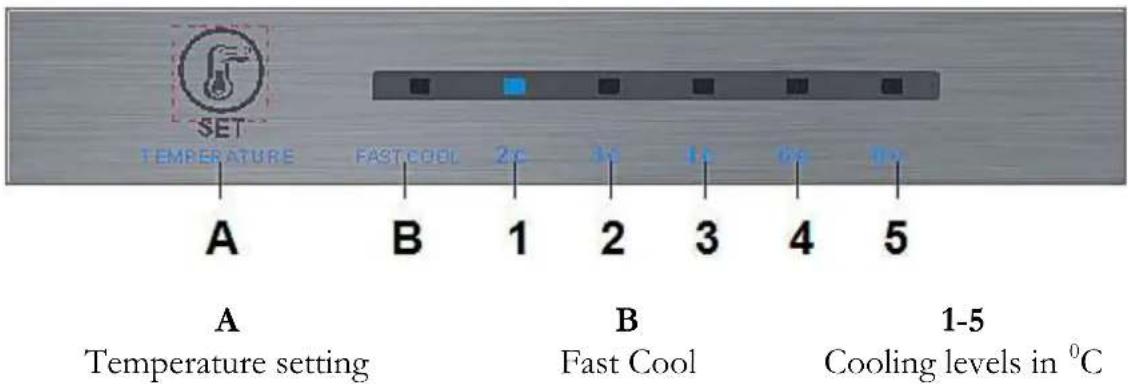

4.2 Display

SET TEMPERATURE FASTCOOL 2c 3c 1c 6c 9c A B 1 2 3 4 5 A Temperature setting B Fast Cool 1-5 Cooling levels in °C

1. Initial use: The complete display is switched on for 3 seconds. The appliance is operating now.
2. Temperature setting: Press button A repeatedly until you have set the desired temperature. The recommended temperature during operation at room temperature is 4 °C.
3. Interruption of the energy supply: When you switch on the appliance again, the complete display is switched on for 3 seconds. The appliance will operate in previous setting.
4. When an error occurs, the relevant LED indicates a combined error code.
5. When the system operates properly, the set temperature is indicated only.

4.3 Fast cool mode

The mode is activated by pressing button B. The LED for FAST COOL goes on. The temperature setting is 2^ C. The mode is active for 150 minutes. You can cancel FAST COOL any point of time by pressing button A.

(Equipment depends on model)

1 Cold/summer	High ambient temperatures: Set the temperature between NORMAL/2 und SUMMER/1.Ambient temperatures of more than 35 °C: Set the temperature to SUMMER/1.
2 Normal	Setting for daily use.
3 Colder/winter	Low ambient temperatures: Set the temperature between NORMAL/2 und WINTER/3.Ambient temperatures of less than 10 °C: Set the temperature to WINTER/3.

4.5 Operation parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

4.6 Proper storage

For proper air circulation, leave the glass shelf above the crisper in its position. Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

• Food safe cling film/airtight bags and aluminium foil.
  ◆ Food safe covering hoods.
  ◆ Food safe containers made of plastic/glass/ceramics.

The cooling compartment is intended for the storage of fresh food and beverages.

• Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper.
  ◆ Store fresh meat packaged in protective foil for max. 2 days.
• Let warm food such as cooked meals cool down before you store them in the appliance.
• Store food in such a way that the cooled air can circulate properly.
  Do not place heavy bottles in the bottle pocket as it can come off the door.

The freezing compartment is intended for the long-term storage of frozen products and for freezing fresh food. Observe the information of the manufacturer given on the packaging of frozen food. Do not refreeze defrosted or thawed food.

⚠ WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.

4.7 Helpful hints/energy saving

• Try opening the door as little as possible, especially when the weather is warm and humid.
  ◆ If you open the door, close it as soon as possible.
• Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
• Set the temperature control from a high to a low position as soon as it is possible. This depends on the amount of contents and the room temperature.

• Encrusted ice causes a higher energy consumption. Defrost encrusted ice if its diameter is more than 3 mm (1/8").

• Occasionally clean the rear of your appliance with a brush or a vacuum cleaner to avoid an increased energy consumption.
  ◆ Disconnect the appliance from the mains if you do not operate it.
  ◆ Always keep the door seals clean and in a proper condition.

5. Cleaning and maintenance

1. ⚠️WARNING! Disconnect the appliance from the mains before you clean or maintain it.

2. Always keep the appliance clean so that unpleasant odours do not occur.

3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^2 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

⚠ WARNING! Never use any mechanical items, knives or other sharpedged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!

Cooling compartment:

The cooling-compartment is defrosted automatically.

Freezer:

The freezer is defrosted automatically.

Freezer (optional procedure if encrusted ice should have occurred):

1. ⚠WARNING! Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
2. Remove the contents from the freezing-compartment and put them into a cooling box.
3. Place a container in front of the appliance to catch the water.
4. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
5. Remove the big pieces of ice first.
6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

5.2 Replacing of the illuminant

The appliance is equipped with an LED-illuminant. To replace the illuminant, please contact the aftersales service or a qualified professional. Illuminants and the replacing of illuminants are not included in guarantee.

WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only.

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.
➢ Doors opened too often or too long.

The appliance needs some time to reach the preset temperature.
Do not open the door too often/too long.

Unsatisfactory cooling capacity.

The door was frequently opened.
The door is not properly closed.
▶ Encrusted ice inside the appliance.
The current temperature setting is too warm
- Warm or hot beverages inside the appliance.
The appliance is overfilled.
The door seals are damaged.

➢ Select a different setting if necessary.
▶ Check the door/door seals.
▶ Defrost the appliance.

Strong formation of encrusted ice.

The door is not properly closed.
The door seal is damaged or soiled.

▶ Close the door.
▶ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

Clean the seals.

Unusual noise.

The appliance is not installed on a level, dry and solid floor.

▶ Realign the appliance.
➢ Readjust the appliance.

The appliance is in contact with a wall or another item. The bottles are incorrectly positioned.

➢ Realign the bottles ➢ Remove these items.

Some items have dropped behind the appliance.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
➢ Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you run the appliance for the first time or the temperature falls below certain level the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

Clicking

You will hear the compressor click when it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

➢ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.

a. remove all perishable food from the cooling compartment.
b. clean the cooling compartment.
c. freeze all food which is suitable to be frozen.

▶ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter 12.

8. Technical data

Model	Fridge-freezer
NoFrost cooling comp./freezer	yes/yes
Climatic class	N/ST
Energy efficiency class*	++
Annual energy consumption**	224.00 kW/h
Voltage/frequency	220-240W AC/50 Hz
Volume gross/net/freezer in l	295/219/76
Stars	4****
Freezing capacity/24 h	4.00 kg
Max. Storage time/malfunction	15.00 h
Noise emission	40 dB/A
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Defrosting cooling/freezing	automatically/ automatically
Dimensions H*W*D in cm	188.00*59.50*63.00
Weight net / gross in kg	68.00/75.00

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).
** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!

2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!

3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.

4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!

5. Dispose of any paper and cardboard into the corresponding containers.

6. Dispose of any plastics into the corresponding containers.

7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.

8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 05/17/2016
