1. Preface 34
2. Explanation of the signal words 35
3. Climatic Classes 36
4. Safety instructions 36
5. Installation 39
6. Description of the appliance 45
7. Thermostat and operation 46
8. Cleaning and maintenance 47

9. Helpful hints / energy saving 49

10. Decommissioning 51

11. Trouble shooting 52

12. Technical data 54

13. EU Declaration of Conformity 55

14. Waste management 57

15. Guarantee conditions 59

Technical modifications as well as misprints shall remain reserved.

Please read this manual carefully before you use or install the appliance.

→ Front page figure: figure similar, delivery without content.

The figures in this instruction manual may differ in some details from the current design of your appliance.

Nevertheless follow the instructions in such a case.

1. PREFACE

Dear customer

We would like to thank you for purchasing a

FKM - product from our wide range of domestic appliances.

When you are familiar with this instruction manual operating the appliance will not cause you any problems.

Before your appliance was allowed to leave manufacturer's works, it was carefully checked according to our safety and operating standards.

If your appliance is visibly damaged do not connect it to the power supply. Contact the shop you purchased the appliance at.

1. Read this manual before you operate the appliance for the first time.
2. The appliance is intended for private use only.
3. The appliance is intended for storing food only.
4. The appliance is intended for indoor-use only.
5. Only operate the appliance in accordance with its intended use.
6. Retain this manual in a safe place for future reference.
7. If you transfer the appliance to a third party, also hand over this instruction manual.

Please, read this instruction manual carefully so you will be able to use all functions and options of your appliance at their best performance.
→ Strictly observe the safety instructions so you will enjoy your appliance for a long period of time.
→ Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
Please dispose of the packing with respect to your current local and municipal regulations.

This symbol indicates, that you are not allowed to dispose of the appliance with your domestic waste.

Strictly observe the signal words this instruction manual contains.

DANGER!

DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

WARNING!

WARNING indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION!

CAUTION indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE!

NOTICE indicates possible damage to the appliance.

Pictograms

RISK OF ELECTRIC SHOCK indicates a possible risk of electric shock when you do not observe the corresponding information and/or warning.

RISK OF FIRE indicates a possible risk of fire when you do not observe the corresponding information and/or warning.

This symbol indicates, that you are not allowed to dispose of the appliance with your domestic waste.

NOTICE!

The appliances are climatic class N-ST types and suitable for indoor use only. Climatic class N-ST appliances can be used in rooms with a room temperature of +16^ C to +38^ C.

CLIMATIC CLASS AMBIENT TEMPERATURE

SN +10

^0+32^0 C e.g. unheated cellar

N +16

^0+32^0 C inner home temperature

ST +18

^0+38^0 C inner home temperature

T +18

^0 →+43 ^0 C inner home temperature

This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

4. SAFETY INSTRUCTIONS

Store this manual in a safe place so you can use it whenever it is needed.
The instructions and descriptions this manual contains are designed for various types of fridges and freezers. So the manual may contain some descriptions of functions or accessories which are not part of your current appliance.

Pay attention to the following safety-advice before you connect or operate the appliance.

Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or may they be time-worn and do not match the efficiency of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional.
All connections and energy-leading components (also wires inside a wall) must be checked by an authorized professional.

WARNING!

Do not connect your appliance to the electric supply unless all packaging and transit protectors have been removed.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved.

Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

Transport and handling

1. If you move the appliance, hold it at its base and lift it up carefully. Hold the appliance in an upright position.
2. Never use the doors to move the appliance. This will damage the hinges.
3. The appliance must be transported by at least two persons.
4. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
5. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
6. The supply cord must not be caught under the appliance while or after moving it.

Energy supply

1. Always connect the appliance to a dedicated socket.
2. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
3. Do not use an extension cord or multiple sockets.
4. Check that the appliance does not stand on the power cord.
5. Do not carry out any modifications to your appliance.
6. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid any kind of hazard.

WARNING!

Do not use the appliance unless you have read this instruction manual.

The appliance is designed for private household use only.

Strictly observe the following instructions. Do not allow anybody, who is not familiar with this instruction manual, to use the appliance.

1. Do not attempt to repair the appliance alone. Repairs carried out by unauthorized persons can cause serious damage. Always contact the nearest service centre and use original spare parts only.

2. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

Refrigerant circuit

1. Do not damage the refrigerant circuit. The appliance uses the environmental-friendly refrigerant R600a. The refrigerant R600a is flammable !!! Therefore the cooling circuit must not be damaged in any way neither by transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact your after sales service immediately.

3. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel or thermostat.
Do not touch the appliance until all the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

Ventilation

1. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
2. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will cause damage to the appliance. Do not cover or block the ventilation slats at any time.

Inside the appliance

1. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.
2. Do not put any gassy beverages into the freezing-compartment of your appliance, because their containers could explode.
3. All refrigerators and freezers have surfaces which are subject to formation of encrusted ice. Depending on model this encrusted ice can be removed

automatically (automatic defrosting) or manually, if necessary. Do not remove encrusted ice with sharp-edged items as you will damage to the evaporator and impair the efficient operation of the appliance. Let the encrusted ice thaw naturally. Do not use hot water.

1. Do not use any mechanic devices or other means to accelerate the defrosting procedure unless they are recommended by the manufacturer of your refrigerator.

2. Do not put hot liquids or hot foodstuff into the refrigerator.

Final safety instructions

1. This appliance is designed for the use by adults only.
2. Children must neither play with nor around the appliance. Children are not allowed to sit on the drawers or to hang on to the doors of the appliance.
3. Do not use the base, the drawers, the doors etc. to stand on or as supports.
4. The appliance is not intended for commercial purposes.
5. Do not use the appliance for camping.
6. Do not use the appliance in public transport.
7. The appliance is designed for indoor use only.

5. INSTALLATION

WARNING!

Do not use a socket board or a multi socket when using 220–240 V/50 Hz alternate current (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

All repairs should be performed by your authorized after sales service.

Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Connect the appliance to a dedicated socket only.

NOTICE!

Strictly observe the relevant information for the first use in chapter 7.

1. Install the appliance in a dry and well-ventilated place.

2. Protect the appliance from direct sunlight.

3. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.

4. The doors must open completely and without hindrance.

5. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

6. Do not cover or block the cover panel of the compressor at the back of the appliance.

7. Connect the appliance to the mains properly.

8. The nameplate is situated inside the appliance or at the back.

Electrical connection

1. An electrical supply of 220-240V AC / 50 Hz is required.

2. Connect the appliance to a suitable and dedicated socket only.

3. For your personal safety, the appliance must be grounded. The appliance is equipped with a 3-pole grounding plug. Use a suitable socket to minimize the risk of an electric shock.

4. Check if the technical data of your energy supply meet the values on the nameplate.

5. Your domestic circuit must be equipped with an automatic circuit breaker.

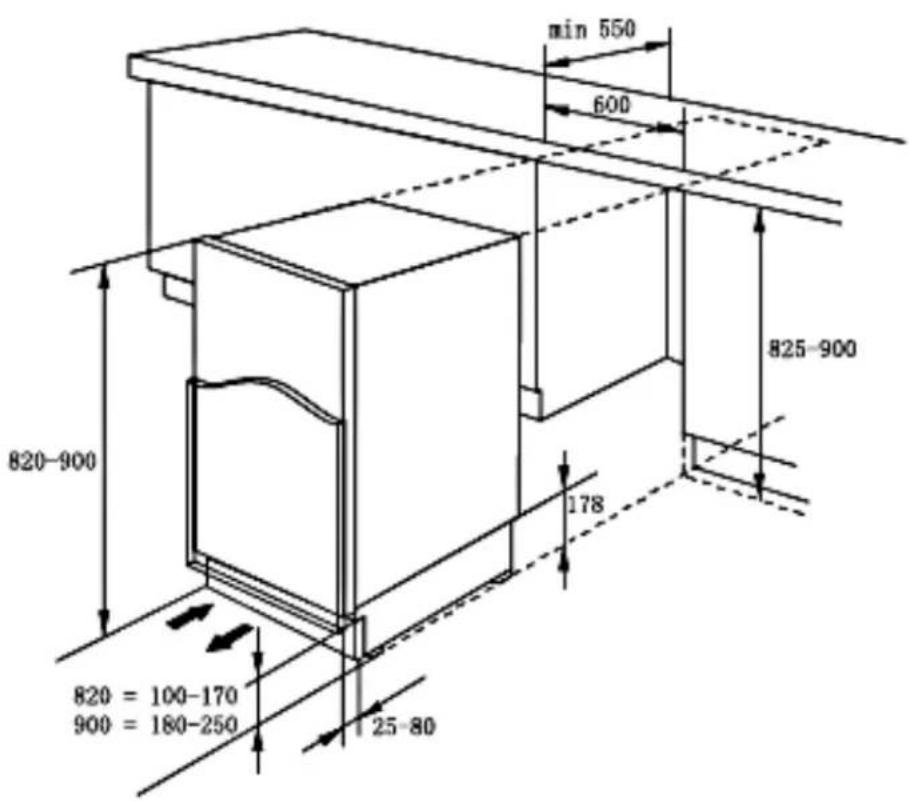

Fig 1 -Dimensions of mounting slot

min 550 600 825-900 178 820-900 820 = 100-170 900 = 180-250 25-80

1

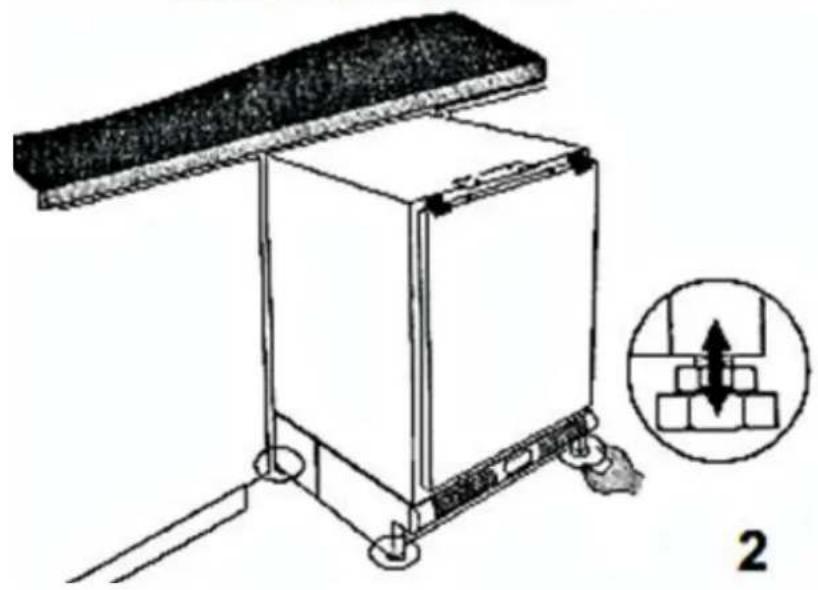

Fig 2 -Height regulation

Diagram of a mechanical device with a magnified inset showing a stack of blocks (no text or symbols present)

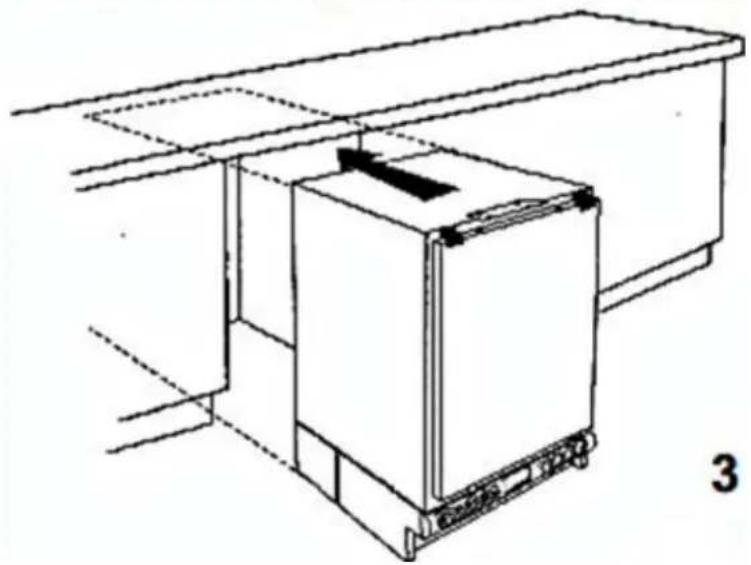

Fig 3 -Installation of the appliance under the worktop

Technical line drawing of a mechanical or electrical component with no visible text or symbols

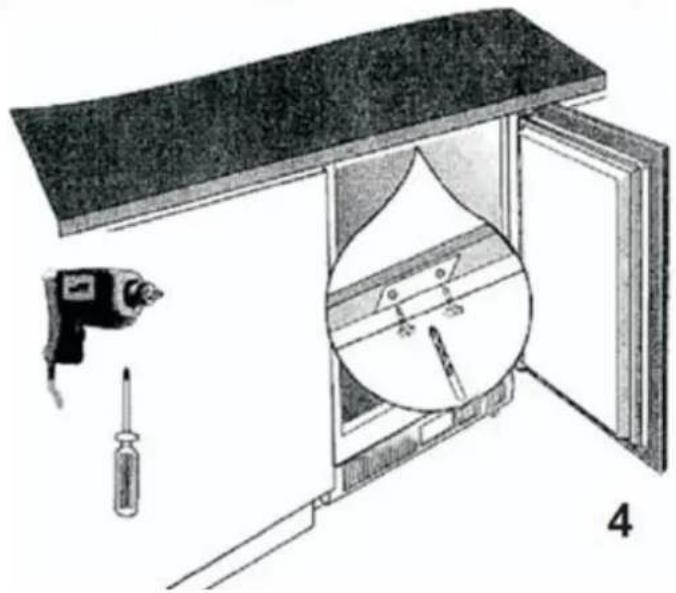

Fig 4 -Fastening the appliance under the worktop

Diagram showing a door with a screwdriver, a tool, and a magnified inset of the interior (no text or symbols)

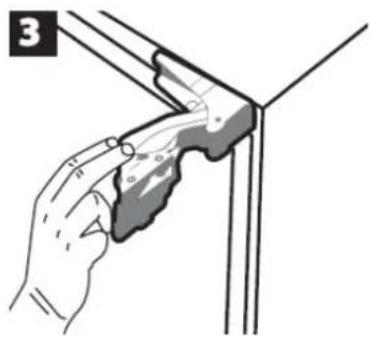

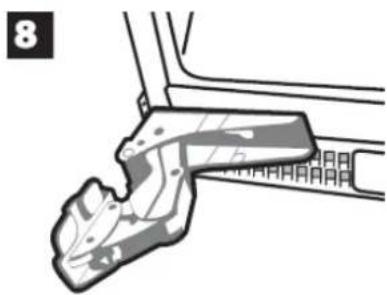

Change of the hinge position (fig. 5/1-9)

Carry out the change before you fix the outer door of the built-in unit..

1. ⚠️ WARNING! Switch off the appliance and pull the plug out of the socket before you change the illuminate.
2. The appliance must be empty.
3. Only carry out the change with a second person to assist you.
4. Be careful when opening the sprung hinges. Risk of injury.

Line drawing of a hand holding a small object connected to a vertical rod, with no text or symbols present.

Remove the blanking plates from the outside of the appliance..

Illustration of a hand using a cable to connect a mechanical component (no text or symbols visible)

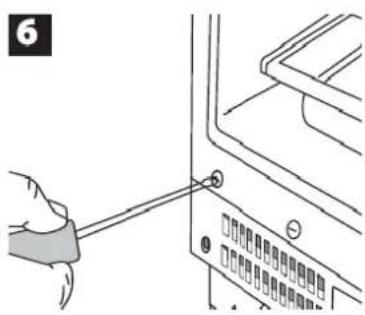

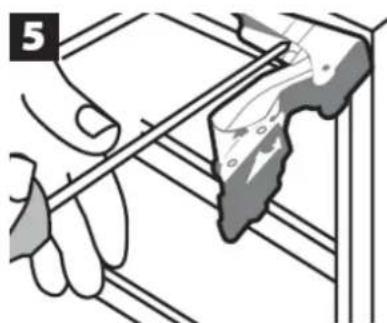

With the door closed remove the screws on the outside of the hinges. Start with the top hinge.

Illustration of a hand holding a tool interacting with a bracket (no text or symbols visible)

Open the hinges.

Line drawing of a hand holding a tool with a ruler, no text or symbols present

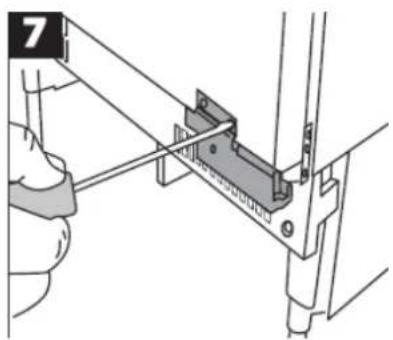

Support the bottom of the door. Be careful with the hinges. Remove the door.

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

With the hinge open undo the screws of the top hinge.

6

Remove the blanking plates of the cabinet.

Diagram of a mechanical assembly with a hand holding a bracket and a close-up view of a component (no text or symbols present)

Turn the hinge over and fix it on the diagonally opposite corner.

Technical line drawing of a mechanical component or bracket (no text or symbols visible)

Repeat with the other hinge. Replace the cabinet blankink plates. Replace the door.

Line drawing of a simple rectangular refrigerator with legs and front panel (no text or symbols)

Check that the door is properly adjusted. Check that the door seals close properly. Finally tightzen the screws.

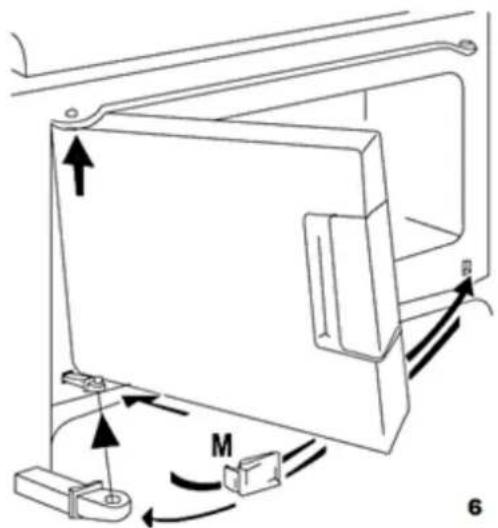

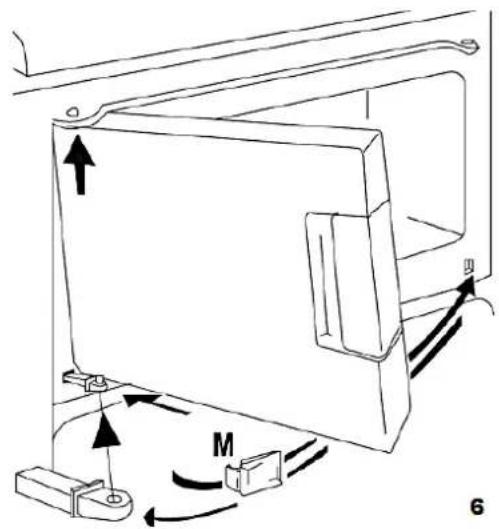

Change of the hinge position (freezer compartment door, fig.. 6)

figure 6

Diagram of a door with a hand inserting a clip into the lock, showing mechanical components and directional arrows (no text or symbols)

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or force

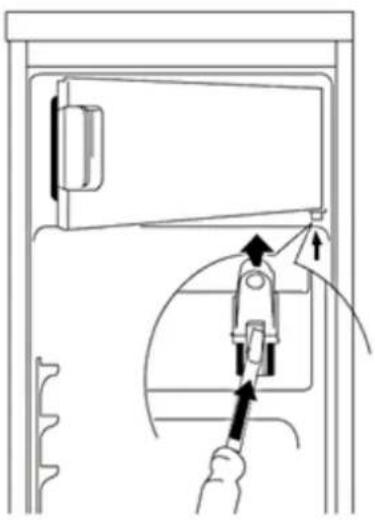

Slightly open the freezer compartment door. Using a small screwdriver, press the spring in the opening of the lower door bearing slightly upwards and take the door bearing together with the door out. Position the cover cap (M) on the opposite side Turn the door by 180^ and fit the lower door bearing in the relevant opening. Lift the door slightly upwards, fit it into the upper door bearing; at the same time insert the lower door bearing in the square hole.

Small upward and downward adjustments of the door will make fitting easier.

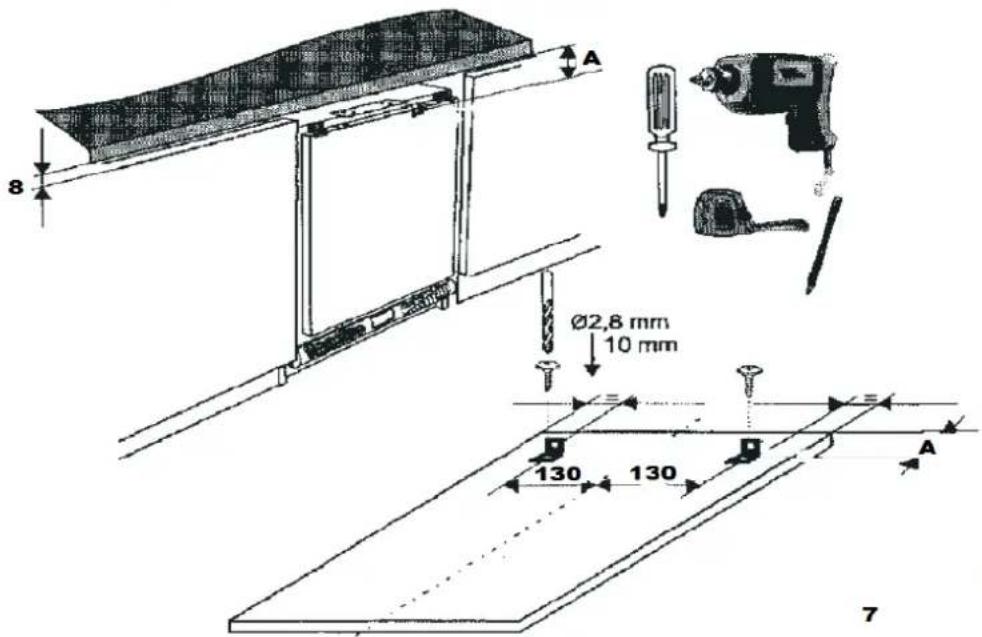

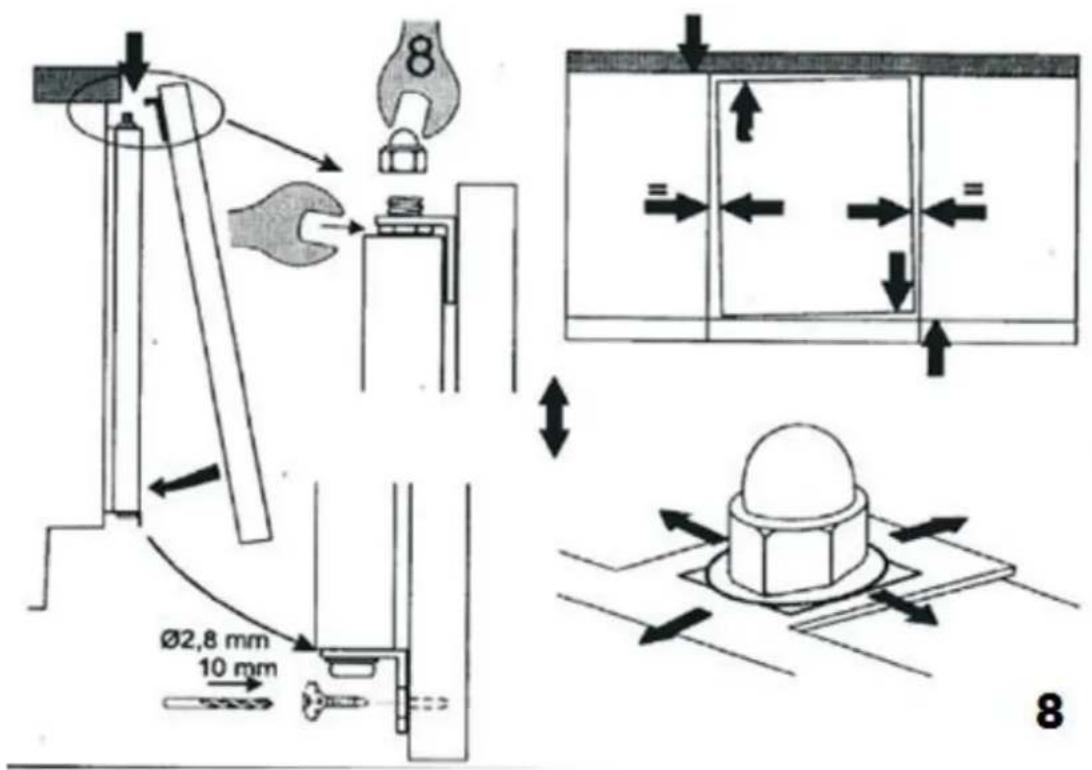

Fig 7/8 - Mounting the kitchen cabinet door

8 Ø2,8 mm 10 mm 130 130 7

Ø2,8 mm 10 mm 8

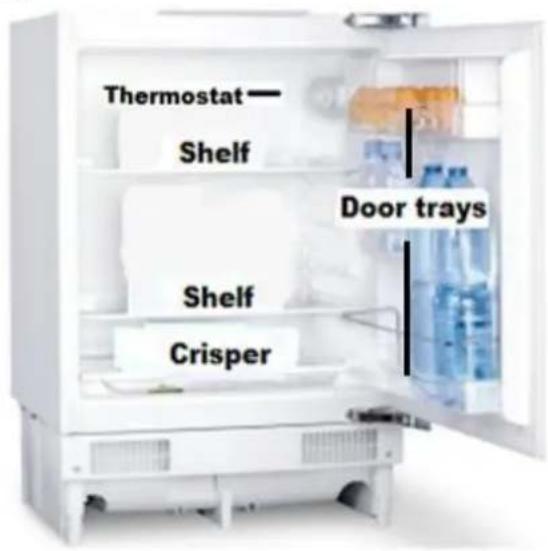

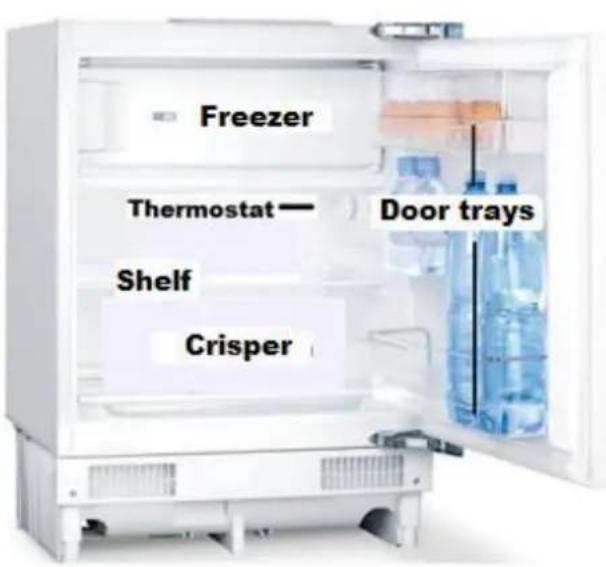

6. DESCRIPTION OF THE APPLIANCE

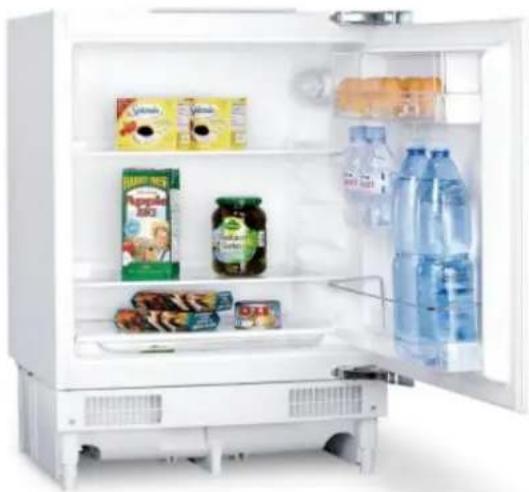

KS 117.4 A+ UB KS 133.0 A+ UB

Freezer Thermostat — Door trays Shelf Crisper

Thermostat Shelf Door trays Shelf Crisper

The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.

Before the first use

1. Clean the appliance thoroughly. Be very careful especially inside the appliance (look at chap. 8).
2. After having installed the appliance wait 4-6 hours before you connect it to the mains.
3. If the accessories inside the appliance are not fitted in their correct position, replace them according to the image in chapter 6.
4. The appliance must be correctly connected to the mains.
5. Do not eat any frozen foodstuff such as bread, vegetables or fruit. Eating frozen foodstuff can cause frostbite.
6. Draw the plug out of the socket before you clean or maintain the appliance. Repairs must be performed by a qualified professional.

Setting of the temperature

The thermostat is situated on the top of the cooling compartment.

Top-down view of a transparent plastic cylindrical object with internal cutouts and a small circular feature (no text or symbols visible)

0 OFF Turn clockwise to switch on the appliance.

1 Highest temperature = warmest settin

g

7 Lowest temperature = coldest setting

Operation parameters

1. The appliance can only reach the relevant temperatures inside the freezing compartment, when:

a. the average ambient temperature is between 16^ C and 32^ C.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in satisfactory condition.
e. the diameter of the encrusted ice is maximum 3 mm.

1. Following factors will affect the cooling power of your appliance:

a. Positioning of the appliance.
b. Amount of stored food.
c. Length of time and frequency of door-openings.
d. Ambient temperature.

e. Diameter of the encrusted ice (maximum 3 mm).

1. High ambient temperatures and simultaneously operating at the coldest settings 6/7 may make the compressor operate permanently to keep the temperature constant inside the appliance.

2. Defrost the freezing compartment regularly.

8. CLEANING AND MAINTENANCE

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

Always keep the appliance clean so that unpleasant odours do not occur.
Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.
Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent	Do not use any harsh, abrasive detergents.
	Do not use any aggressive detergents.
	Do not use any solvents.
	These instructions are valid for all surfaces of your appliance.
External cleaning	1. Use a moist cloth and a mild, non-acidic detergent. Use silicon wax for stubborn stains and for periodic waxing.2. Use clear water to rinse.3. Dry the cleaned surfaces with a cloth.
Internal cleaning	1. Clean the shelves and the other removable parts with warm water and a mild, non- acidic detergent.2. Use clear water to rinse.3. Dry the cleaned surfaces with a cloth.4. Clean the interior with baking soda ( 3 tablespoons per litre of water ) or with water and a mild, non- acidic detergent.5. Use clear water to rinse.6. Dry the cleaned surfaces with a cloth.7. Check the water drain and clean it if needed.
Magnetic door seals	Clean with warm water and a mild, non- acidic detergent.

Defrost collection tray ^7

→ Clean the drain tray and wipe it dry.

Do not use any abrasive detergents!

Do not use organic detergents!

Do not use essential oils!

Defrosting

WARNING!

Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short.

Risk of electric shock!

Manual defrosting (Freezing compartment, KS 117.4 only)

1. Remove the contents from the freezing-compartment and put them into a cooling box.

2. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.

3. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.

4. Remove the big pieces of ice first.

5. Afterwards remove the small pieces of ice.

6. Wipe and dry the appliance and door seals with dry and soft cloths.

7. After cleaning leave the door open for some time to ventilate the appliance.

→ Automatic defrosting (Cooling compartment)

1. The cooling compartment is defrosted automatically. The water runs into a container near the compressor.

2. If the automatic defrosting does not meet the requirements, e.g. on days with high ambient temperatures and humidity, defrost the appliance manually as described above.

NOTICE!

Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance.

Replacing of the illuminate

1. WARNING! Switch off the appliance and pull the plug out of the socket before you change the illuminate.

2. Illuminate-data: 220\~240V, 14W

3. Unscrew the cover.

4. Press the cover and slide it backwards

5. Change the illuminate and reinstall the cover.

Top-down view of a transparent plastic cylindrical object with internal cutouts and a small circular feature (no text or symbols visible)

According to the EU regulation No. 244/2009 for the implementation of the EU directive 2005/32/EG, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non-directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

Replacing of the power cord

WARNING!

The power cord must be replaced by a qualified and authorized professional only.

9. HELPFUL HINTS / ENERGY SAVING

Storing food

Do not put bottles or cans into the freezing compartment.
Do not freeze defrosted food again.
Mark your frozen food with a date.
→ Freeze your food in colourless, airtight and tasteless materials.
Do not put glassware into the freezer compartment or near the air outlet of the cooling compartment, because it may explode and cause injury.
Use the pockets for bottles, the egg-trays and the trays in the door You can also store foodstuff such as butter, milk etc. there.8
Some foodstuff like meat, fish etc. may become dry and release strong odours. You can avoid this by wrapping them in aluminium foil or plastic wrap or

putting them into an airtight bag or container.

Allow ample storage place for your foodstuff. Do not overfill your appliance.
Wrap your foodstuff in plastic wrap or suitable paper and place each kind of foodstuff in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot foodstuff cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales chest freezer -18°C or lower).
Suitable for freezing:

➢ Meat, poultry, fish, vegetables, herbs, fruit, pastries, cooked dishes.

Not suitable for freezing:

➢ Lettuce, reddish, radishes, onions, mayonnaise, sauce hollandaise etc., fresh eggs, cream, sour cream.

How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven9
√ in a microwave10

Energy saving

Using energy in a responsible manner does not only save money

but also helps our environment.

So, let's save energy! This is how it works.

Try opening the door as little as possible, especially when the weather is warm and humid.
If you open the door, close it as fast as possible.
▶ Permanently check, if the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.
Set the temperature control from a high to a low position as soon as it is possible. This depends on the amount of contents and the room temperature.
Cool foodstuff to room temperature before you put it into the appliance.
Encrusted ice causes a higher energy consumption. Defrost encrusted ice if

its diameter is more than 3 mm (1/8").

Put the frozen food you want to defrost into the cooling-compartment of you appliance.
Occasionally clean the rear of your appliance with a brush or a vacuum cleaner to avoid an increased energy consumption.

10. DECOMMISSIONING

WARNING!

If you decommission your appliance temporarily, ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers.

1 and 4, chapter Decommissioning, ultimate.

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all foodstuff stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

While away on an average vacation/holiday:

1. Do the same as described above, or
2. let the appliance operate.
   a. remove all perishable food from the cooling compartment.
   b. clean the cooling compartment
   c. freeze all food which is suitable to be frozen.

If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.

2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.

3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter 14.

DANGER!

If your appliance does not seem to run correctly, please contact the shop you purchased the appliance at.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

MALFUNCTION POSSIBLE CAUSE MEASURE

The appliance does not work at all.	The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.The voltage is too low.	Check the corresponding socket by connecting it with another appliance.Check the fuse box.Compare the data on the model plate with the data of your energy supplier.
The compressor does not work at all.	Defrost mode is active.Incorrect energy supply..	Normal procedure while defrosting.Check the status of the energy supply.
The compressor runs for too long.	The appliance has been switched off for a while.Too much or too hot food in the appliance.Doors opened too often or too long.	The appliance needs some time to reach the preset temperature.Remove any hot food.Do not open the door too often or too long.
Unsatisfactory cooling capacity.	The door was frequently opened.The door is not correctly closed.Encrusted ice inside the appliance.The current temperature setting is too warmWarm or hot food inside the appliance.The appliance is overfilled.The door seals are damaged	Choose a different setting if necessary.
Strong formation of encrusted ice.	The door is not correctly closed.The door seal is damaged or	Shut the door.Clean the door seal with a soft cloth and
	soiled. warm soapy water.
The door makes a strange sound when opened.	The door seals are soiled.	Replace the door seal.Clean the seals with warm water and a mild, non-acrid detergent.
The internal light ^11 does not work.	The light is damaged.	Replace the illuminant..

Check the water drain and the water drain hole regularly. Otherwise water will spread into your appliance or run out of the appliance.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact a service department.

The operating procedures described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
Some humidity may accumulate outside the appliance, especially in a moist surrounding. Simply wipe this humidity away.
The sides of the appliance may get warm while the appliance is running.

Distinct noise When you run the appliance for the first time or the cooling temperature falls below a certain level it will operate with high power to reach the preset temperature.
Condensed water	may be generated inside or outside the appliance by high humidity or very warm ambient temperatures. Just wipe it with a dry and soft cloth.
Clicking	You will hear the compressor click if it is activated or deactivated.
Hum	is caused by the compressor while running.
Knocking/snapping	may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the

12. TECHNICAL DATA

KS 117.4 A+ UB (schedule 1)

Type Under-worktop refrigerator
Climatic class N-ST
Energy labelling A+
Energy consumption day / year in KW/h	0.482		175
Gross volume in Litres 119
Net volume cooling / freezing in litres	100		16
Freezing capacity in 24 h 2.00 kg
Stars	4	★★★★★
Max. storage time due to a malfunction 12 h
Noise emission 39		dB/A
Adjustable thermostat		√
Compressor 1
Refrigerant R600a
Reversible door		√
Sliding fridge hinges		-
Adjustable feet / rollers		√
Control lights		0
Defrost cooling / freezing	automatically		manual
Internal light cooling compartment		√
Glass shelves		1
Crisper incl. glass-cover		1
Door trays/egg tray	3		2
Hatch freezing compartment		1
Dimensions appliance H/W/D in cm	82.00	59.00	54.30
Dimensions packaging H/W/D in cm	89.00	63.00	57.50
Weight net / gross in kg	32.00		35.00
Labelling		CE
Examined		GS

KS 133.0 A+ UB (schedule 2)

Data not listed here: look at schedule 1.

The appliance is not equipped with freezing-functions.

Energy consumption day / year in KW/h	0,315	115
Volume gross / net in Litres	132	130

CE ^13

EU – Declaration of Conformity

We herewith confirm that the appliances as detailed below comply with the mentioned directives.

Product description: Refrigerator-Freezer

Product number: KS 117.4A+

Type: RS-15DR4SQA1

Company address: PKM GmbH & Co.KG

Neuer Wall 2-6, D-47441 Moers

Relevant EU-directives

1. Electromagnetic Compatibility (EMC)

2014/30/EU

1. RoHS (Restriction of hazardous substances)

2011/65/EC

1. Low Voltage Directive (LVD)

2014/35/EU

1. ErP-Directive

2009/125/EC

Harmonized EU standards

The products comply with the standards as mentioned below which are necessary to obtain the CE-symbol:

On 1 EN 55014-1:2006+A1:2009

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2-2006+A1:2009+A2:2009

EN 61000-3-3:2008

On 2 EN 60335-2-24:2010

EN 60335-1:2002+A11:2004+

Position in company Quality Assurance Officer

Signature

Date Of Issue

26.02.2013

Company stamp

GMBH & CO. KG

Nemer Wall 2

4.7441 Moers

Tel.: 0 28 41 - 17 87 38

telefax: 0 28 41 - 2 19 50

EU – Declaration of Conformity

We herewith confirm that the appliances as detailed below comply with the mentioned directives.

Product description: Refrigerator-Freezer

Product number: KS 133.0A+

Type: RS-17DL4SQA1

Company address: PKM GmbH & Co.KG

Neuer Wall 2-6, D-47441 Moers

Relevant EU-directives

1. Electromagnetic Compatibility (EMC)

2014/30/EU

1. RoHS (Restriction of hazardous substances)

2011/65/EC

1. Low Voltage Directive (LVD)

2014/35/EU

1. ErP-Directive

2009/125/EC

Harmonized EU standards

The products comply with the standards as mentioned below which are necessary to obtain the CE-symbol:

On 1 EN 55014-1:2006+A1:2009

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2-2006+A1:2009+A2:2009

EN 61000-3-3:2008

On 2 EN 60335-2-24:2010

EN 60335-1:2002+A11:2004+

Position in company Quality Assurance Officer

Signature

Date Of Issue

26.02.2013

Company stamp

GMBH & CO. KG

Neuer Wall 2

47441 Moers

Tel.: 0 28 41 - 17 87 38

Telefax: 02841-21950

▶ Dispose of the appliance with respect to the national, local and municipal regulations in view of explosive gases.

Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic waste.

Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you make a significant contribution to the protection of our environment.

Warning!

Remove all gaskets before you dispose of the appliance. The appliance should be disposed of by experienced employees of your local or municipal recycling facility to avoid any risk for the environment.

Packaging

The packaging is recyclable. The recommended modus operandi is:

→ Dispose of any paper and cardboard into the corresponding containers.

→ Dispose of any plastics into the corresponding containers.

If a suitable container is not available in your residential area, you can dispose of these materials with your domestic waste; but it would be better to take it to an appropriate facility for waste recycling.

Warning!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children.

Materials with this symbol on are recyclable.

PE<= Polyethylene

PS< = Styrofoam

PP< = Polypropylene

These materials can be recycled when you depose them of in a suitable collecting container of your local facilities.

Appliance

Do not dispose of the appliance with your domestic waste.

Waste separation is essential so that the single components of the appliance will be recycled according to their appropriate use.

Do not dispose of electric appliances as unsorted domestic waste. Use the local or municipal facilities for waste separation.

If electric appliances are disposed of at landfills, substances which are dangerous to one's health can get into the ground water. Such substances will become part of the food chain and cause damage to your health.

Please contact your local authorities to receive detailed information regarding waste separation.

Refrigerant

WARNING!

Do not damage the refrigerant circuit.

The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

Do not damage any components of the refrigerant circuit during the transport and installation of the appliance.

The refrigerant R600a is flammable

Safe disposal

Please help our environment! Dispose of old appliances and their packaging in accordance to your national, local and municipal regulations concerning waste management.

Old appliances are not unusable waste. A lot of valuable resources can be gained by serious waste management.

Before you dispose of an old appliance, render it inoperative.

1. Always remove the plug from the socket. Afterwards cut off the power cord directly at the appliance. Dispose of the power cord with the plug

immediately.

1. Remove the door completely so that children are not able to get into the appliance; as this endangers their lives!

Refrigerators and freezers contain refrigerants and gases in their cooling circuit and insulation which have to be disposed of by qualified professionals.
Do not cause any damage to the cooling ribs and the condensing tubes.
If the refrigerant leaks there is fire hazard.
The above mentioned materials are environmental-friendly and recyclable.
Receive more detailed information from your retailer or your local and municipal facilities.

15. GUARANTEE CONDITIONS

Guarantee conditions for large electric appliances PKM GmbH & Co. KG, Neuter Wall 2, 47441 Moers

This appliance was made and checked according to the most modern production methods. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

The guarantee is valid without prejudice to stringent legal liability regulations, e.g. the product liability law, in the case of malice and of wanton negligence in view of harm of life, body or health by PKM or its agents.

The right on the guarantee is not granted, when the purchase is made in the course of a commercial activity.

The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. This has to be reported to us or to our after sales service in the Federal Republic of Germany. This report has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee for our appliances is valid under the following conditions:

Defects of the appliance which are verifiably caused by material or fabrication deficiency will be rectified free of charge by our after sales. When the defect

appears within 6 months we suppose that there is a material or fabrication deficiency.

Within the guarantee we will repair deficient components free of charge using components of our own choice or they will be replaced by flawless components. Appliances, which can, due to their dimensions, be reasonably transported by an automobile, should be given over or submitted to our after sales.

If the repair work is refused by us or if the repair work finally fails, the old appliance, if requested, will be replaced by an appliance of the same kind, quality and type within the period of guarantee. If the old appliance is no longer produced at the time the defect occurred, PKM will be entitled to deliver a similar appliance.

The exchange of the appliance principally takes place in the shop the first vendee bought the appliance in unless the appliance is too large to be transported by the vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but

with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The guarantee period for installed replacement parts ends with the guarantee.

Provided that a product-related malfunction is not covered by this guarantee the vendee has to bear the cost, when the appliance is checked, including any labour costs that may arise.

If the holder of the guarantee has requested repair work, then the holder of the guarantee must be informed about the non-intervention of the guarantee and possible costs, that may arise, and thereafter he must bear all costs for spare parts and wages.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

PKM

August 2012

Attention! The illuminants do not carry a guarantee!

Edition and translation

Fangnetz Xanten

Please retain this leaflet and the instruction manual in a safe place!

Contact the aftersales service representative below if your appliance does not work and you are not able to provide a permanent solution to the malfunction with help of the advice given in the instruction manual.

BeNeLux

landline; prices will differ when calling from a mobile network)

Internet: www.reparatur.at

GB

Please refer to service contact data of the country you live in.

BeNeLux

Service Centrale
