USER MANUAL KS95.4A+ PKM

Exterior view of a white rectangular refrigerator with black trim (no text or symbols visible)

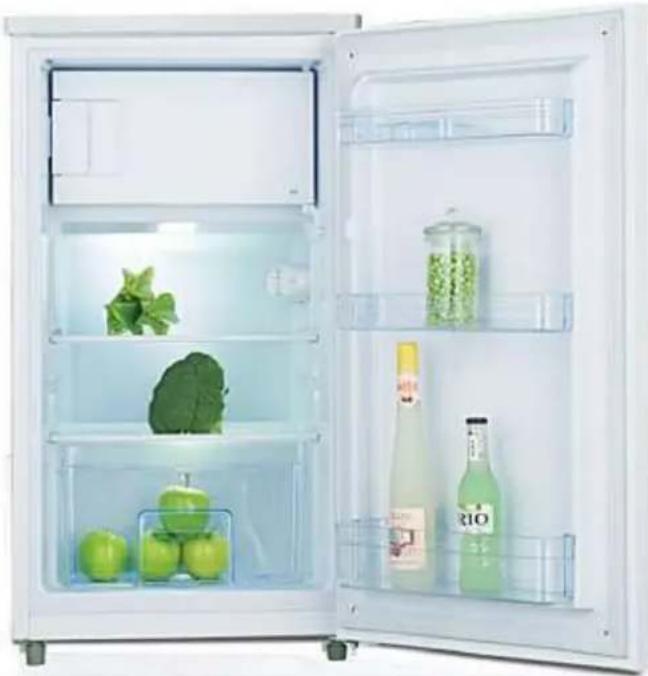

Interior view of a white refrigerator with open doors showing shelves containing vegetables and beverages (no visible text or symbols)

Deutsch

English

Seite

2

Page

21

Simple line drawing of a rectangular container with dotted pattern and two small square markers at the bottom (no text or symbols)

Abb. 2

Technical diagram showing a grid structure with a magnified detail view labeled '1' and a small bracket.

Abb. 3

Diagram of a vertical container with two directional arrows labeled 1 and 2, no text or symbols present.

Close-up of a white cylindrical object with a curved edge marked '1/2' (no text or symbols on the object itself)

Close-up of a white cylindrical device with a dial labeled 1, 2, and 3 (no additional text or symbols visible)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 22
2. Climatic classes.... 26
3. Installation 26
   3.1 Site 26
   3.2 Changing of the hinge position 27
4. Operation....29
   4.1 Main components....29
   4.2 Temperature control.... 29
   4.3 Operational parameters.... 30
   4.4 Helpful hints/energy saving 30
   5 Cleaning and maintenance.... 31
   5.1 Defrosting.... 32
   5.2 Replacing of the illuminant 33
5. Trouble shooting.... 33
6. Decommissioning....35
7. Technical data....36
8. Waste management....37
9. Guarantee conditions.... 38

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for caterin and similar non-retail applications.
i The appliance is intended for cooling food only.
The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during

camping and in public transport.

Operate the appliance in accordance with its intended use only.

Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.

2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.

3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.
6. Do not use a socket board or a multi socket when connecting the appliance to the mains.
7. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.
8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.
9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.
10. The technical data of your energy supplier must meet the data on the model plate of the appliance.
11. Your domestic circuit must be equipped with an automatic circuit breaker.
12. Do not modify the appliance.
13. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
14. Disconnect the appliance from the mains before you clean or maintain it.
15. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.
16. Do not put any heat-radiating appliances onto your appliance.
17. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.
18. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.
19. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
20. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
21. Children must never play with the appliance.
22. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
23. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.

2. Do not put any gassy beverages into the freezer compartment of the appliance, because their containers could explode.

3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.

2. Do not tilt the appliance more than 45^0 .

3. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.

4. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.

5. Never use the door for moving the appliance as you will damage the hinges.

6. The appliance must be transported and installed by at least two persons.

7. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

8. Do not operate the appliance unless all components are installed properly.

9. Do not stand or lean on the base, the drawers, the doors etc of the appliance.

10. Do not put hot liquids or hot foodstuff into the appliance.

11. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

2. Climatic classes

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+100→+320C	c.g. unheated cellar
N	+160→+320C	inner home temperature
ST	+160→+380C	inner home temperature
T	+160→+430C	inner home temperature

3. Installation

3.1 Site

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is inside the appliance or at the back.

Levelling

1. Use the adjustable feet at the front to level the appliance properly.
2. When the appliance is not levelled, the door and the magnetic seals will not close properly.

3.2 Changing of the hinge position

⚠ WARNING! Switch off and unplug the appliance before changing the hinge position. RISK OF ELECTRIC SHOCK!
⚠️ CAUTION! The change of the hinge position must be carried out by at least two persons; otherwise you may hurt yourself or damage the appliance. Do not tilt the appliance more than 45^0 .

NOTICE! Empty the appliance before. Set the adjustable feet to their highest position.

1. Remove the two cover caps on the worktop carefully using a small pointed object and unscrew the two worktop-screws (fig. 1). Then unscrew the screws on the back. Remove the worktop and the top hinge bracket (fig. 2).
2. Open the door slightly and remove it from the bottom hinge.
3. Tilt the appliance slightly backwards. A second person should hold the appliance now, so you have access to the bottom hinge.
4. Remove the two screws of the bottom hinge. Remove the adjustable foot on the left and fix it on the opposite side (fig. 3).
5. Fix the bottom hinge on the opposite side.
6. Remove the sealing plug from the top left opening of the door und press it firmly into the top right one.
7. Place the worktop upside down. Remove the hinge bracket (with axis, fig. 2) and fix it on the opposite side. Do not tighten the screws too firmly.
8. Reinstall the door. Check, that the hinge axis meets its proper position in the bottom left opening of the door.
9. Place the worktop on the appliance with the door closed. Check, that the top axis meets the top opening (where the scal plug was). Fasten the two top screws first and then the screws on the back slightly. Adjust the worktop properly. Check, that the door is adjusted perpendicularly.
10. Now tighten all 4 screws of the worktop. Do not tighten the screws too firmly.

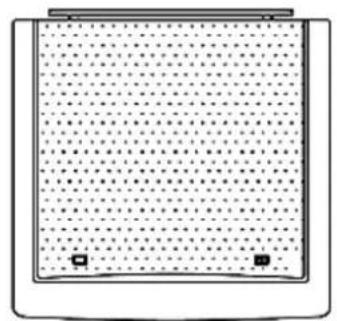

fig. 1

Remove the worktop by removing the 2 screws on the top and the two screws on the back. Remove the 2 cover caps on the top with a small flathead screwdriver before.

Diagram of a rectangular container with dotted pattern and two small square markers on the side (no text or symbols)

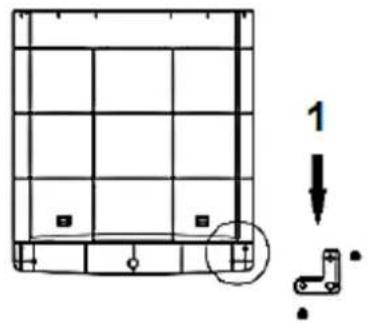

fig. 2

Remove the hinge and fix it on the opposite side. Do not tighten the screws too firmly.

1: top hinge

Technical diagram showing a grid structure with a 1x magnified detail view and a labeled component.

fig. 3

Diagram of a vertical container with two directional arrows labeled 1 and 2, no text or symbols present.

1: adjustable foot
2: bottom hinge

NOTICE! Adjust the door properly. The seal must close properly.

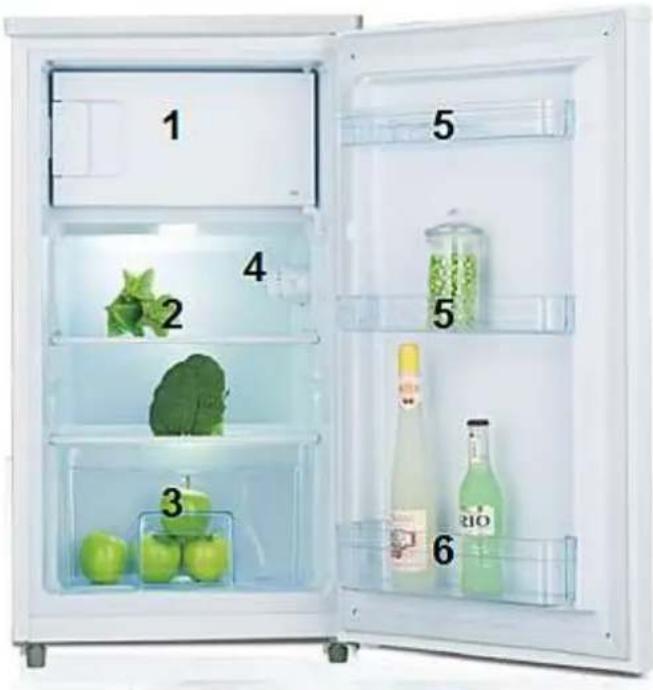

4.1 Main components

1 2 3 4 5 5 6 RIO

1 Freezer compartment

2 Shelf

3 Crisper

4 Thermostat

5 Door trays

6 Bottle pocket

4.2 Temperature control

Close-up of a white cylindrical device with a curved dial labeled 2 and 3, no visible text or symbols beyond the markings.

AFTER INSTALLATION WAIT 4-6 HOURS, BEFORE YOU CONNECT YOUR APPLIANCE TO THE MAINS!

⚠ WARNING The setting 0/OFF switches off the compressor only. You must unplug the appliance to disconnect it from the mains.

Setting	Position
Minimum	1
Normal	4
Maximum	7

1. Set the thermostat to position 7.
2. Now let the empty appliance operate for 2 hours.
3. Then set the thermostat to position 4 NORMAL. You can store food in the appliance now.
4. In case of high outdoor temperatures (e.g. hot summer days) select position 5-7 to set a lower temperature.
5. If you choose a low temperature and some rime is generated at the back of the appliance, we recommend to select a higher temperature.
6. Adept the temperature setting to the outdoor temperature.
7. If you have disconnected the appliance from the energy supply, wait 3-5 minutes before you restart the appliance. Otherwise the appliance can be damaged.
8. The setting definitions represent standard values only.

4.3 Operational parameters

1. The appliance can only reach the relevant temperatures when:

a. the a ambient temperature meets the climatic class.
b. the doors close properly.
c. you do not open the doors too often or too long.
d. the door seals are in proper condition.
e. the appliance is properly positioned.
f. you have not overfilled the appliance.
g. you do not store warm or hot food in the appliance.

1. When the ambient temperature is very high, it is recommended to set the thermostat to a colder setting if needed. If the colder setting should cause strong formation of encrusted ice, please select a lower setting.

2. High ambient temperatures and simultaneously operating the coldest setting may make the compressor operate permanently to maintain the cooling temperature.

4.4 Helpful hints/energy saving

◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You

can avoid these by wrapping them into aluminium foil or plastic wrap or putting them into an airtight bag or container.

Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase.
Put the frozen food you want to defrost into the cooling-compartment of you appliance.
❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

5 Cleaning and maintenance

1. WARNING! Disconnect the appliance from the mains before you clean or maintain it.

2. Always keep the appliance clean so that unpleasant odours do not occur.

3. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.

4. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

➢ Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^2 Do not use essential oils!
➢ These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.

2. Use clear water to rinse.

3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.

2. Use clear water to rinse.

3. Dry the cleaned surfaces with a cloth.

4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent.

5.1 Defrosting

⚠ WARNING! Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. Risk of electric shock!

NOTICE! Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance.

Cooling compartment

1. The cooling compartment is equipped with an automatic defrost-system.
2. The water is drained at the back inside the appliance.
3. The water is collected in a container below the compressor. The water evaporates in this container.
4. The drain must not be blocked.
5. Clean the drain carefully with a pipe cleaner.

Freezing compartment

1. Remove the contents from the freezing-compartment and put them into a cooling box.
2. Place a container in front of the appliance to catch the water.
3. Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
4. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
5. Remove the big pieces of ice first.
6. Afterwards remove the small pieces of ice.
7. Wipe and dry the appliance and door seals with dry and soft cloths.
8. After cleaning leave the door open for some time to ventilate the appliance.

5.2 Replacing of the illuminant

1. △WARNING! Switch off the appliance and pull the plug out of the socket before you change the illuminant.

2. Remove the glass shelves by carefully pulling them off their guides.

Close-up of a white cylindrical object with a curved edge labeled '1/2' (no additional text or symbols visible)

1. Remove the plastic cover of the illuminant and screw out the illuminant.
2. Install a new one of the same kind and power.
3. Fix the cover.
4. Reinstall the glass shelves

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non-directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

6. Trouble shooting

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

▶ Incorrect energy supply.

▶ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.
➢ Too much or too hot food in the appliance.
➢ Doors opened too often or too long.

The appliance needs some time to reach the preset temperature.
Remove any hot food.
Do not open the door too often/too long.

Strong formation of encrusted ice.

The door is not properly closed.

▶ Close the door.

The door seal is damaged or soiled.

➢ Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

▶ Clean the seals.

Uncommon noise.

The appliance is not installed on a flat and level ground.. The appliance touches a wall or other object

- Install properly. - Store food properly. - Remove the items.

▶ Frozen food is stored improperly.

Items have dropped behind the appliance.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating conditions described below are normal and do not indicate a malfunction.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures..

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

Decommissioning, temporarily

If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

❖ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.
   a. remove all perishable food from the cooling compartment.
   b. clean the cooling compartment.
   c. freeze all food which is suitable to be frozen.

◆ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

KS 95.4 A++T

Model	Fridge with freezer.
Climatic class	N/ST
Energy efficiency class*	A++
Annual energy consumption in kW/h**	120.45
Voltage/frequency	220-240W AC/50Hz
Volume gross/net/freezer in l	95/78/12
Noise emission	42 dB/A
Stars	4****
Max storage time/malfunction	5.00 h
Adjustable thermostat	yes
Compressor	1
Refrigerant	R600a
Changeable hinge position	yes
Adjustable feet	yes
Defrosting cooling/freezing	automatically/manually
Dimensions appliance H*W*D in cm	84.60*50.00*53.00
Weight net/gross in kg	28.00/31.00

Different data KS 95.4 A+T

Energy efficiency class*	A+
Annual energy consumption in kW/h**	160.60

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).

** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees.

These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 11/24/2015
