Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions....28
2. Climatic classes....32
3. Installation 32
4. Operation....34
   4.1 Main components....34
   4.2 Before initial operation.... 34
   4.3 Control panel.... 35
   4.4 Setting of the temperature....36
   4.5 Modes....36
   4.6 Coldest area in the refrigerator 38
   4.6.1 Temperature indicator.... 38
   4.7 The refrigerator.... 40
   4.8 The freezer.... 40
   4.9 Removable ice cube maker 41
   4.10 Helpful hints/energy saving.... 41
   4.11 Operational parameters.... 42
   5 Cleaning and maintenance....43
   5.1 Defrosting....43
   5.2 Replacing of the illuminant 44
5. Trouble shooting....45
6. Decommissioning....47
7. Technical data....48
8. Waste management....49
9. Guarantee conditions 50

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the

installation of the appliance must be performed by a qualified professional.

The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for cooling food only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
2. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
3. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the shop you purchased the appliance at immediately.

3. If gas is set free in your home:

a) Open all windows.
b) Do not unplug the appliance and do not use the control panel or thermostat.
c) Do not touch the appliance until all the gas has gone.
d) Otherwise sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD.

4. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

5. Operate the appliance with 220\~240V/50Hz/AC only. All connections and energy-leading components must be replaced by an authorized professional.

6. Do not use a socket board or a multi socket when connecting the appliance to the mains.

7. Do not connect the appliance to an energy saving plug (e.g. Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g. solar systems, power supply of ships.

8. A dedicated and properly grounded socket meeting the data of the plug is required to minimize any kind of hazard. The appliance must be grounded properly.

9. Check that the power cord is not placed under the appliance or damaged when moving the appliance.

10. Never pull the power cord to unplug the appliance. Pull the plug only.

11. The technical data of your energy supplier must meet the data on the model plate of the appliance.

12. Your domestic circuit must be equipped with an automatic circuit breaker.

13. Do not modify the appliance.

14. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

15. Disconnect the appliance from the mains before you clean or maintain it.

16. Do not use any electric appliances inside the food storage compartments of your appliance unless they are recommended by the manufacturer of your refrigerator.

17. Do not put any heat-radiating appliances onto your appliance.

18. Do not install the appliance in a place where it may come in contact with water/rain; otherwise the insulation of the electrical system will be damaged.

19. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

20. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

21. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.

22. Children must never play with the appliance.

23. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
24. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not put any gassy beverages into the freezer compartment of the appliance as their containers could explode.
3. Do not touch the extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces.

NOTICE

1. Do not store dry ice in the appliance.
2. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
3. Do not tilt the appliance more than 45 ^0 .
4. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
5. Leave the appliance in an upright position for 4-6 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
6. Never use the door for moving the appliance as you will damage the hinges.
7. The appliance must be transported and installed by at least two persons.
8. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
9. Do not operate the appliance unless all components are installed properly.
10. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
11. Do not put hot liquids or hot foodstuff into the appliance.
12. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

Look at chap. TECHNICAL DATA for information about the climatic class of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS AMBIENT TEMPERATURE

SN +10	^0 +32^0 C c.g. unheated cellar
N +16	^0 +32^0 C inner home temperature
ST +16	^0 +38^0 C inner home temperature
T +16	^0 +43^0 C inner home temperature

3. Installation

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.
2. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!
3. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
4. Check that the appliance and the power cord are not damaged.
5. Install the appliance in a dry and well-ventilated place.
6. Protect the appliance from direct sunlight.
7. The doors must open completely and without hindrance.
8. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
9. Connect the appliance to the mains properly.
10. The nameplate is inside the appliance or at the back.

Minimum distances required for proper ventilation:

Back ↔ wall	Min. 75 mm
Free space above	Min. 100 mm

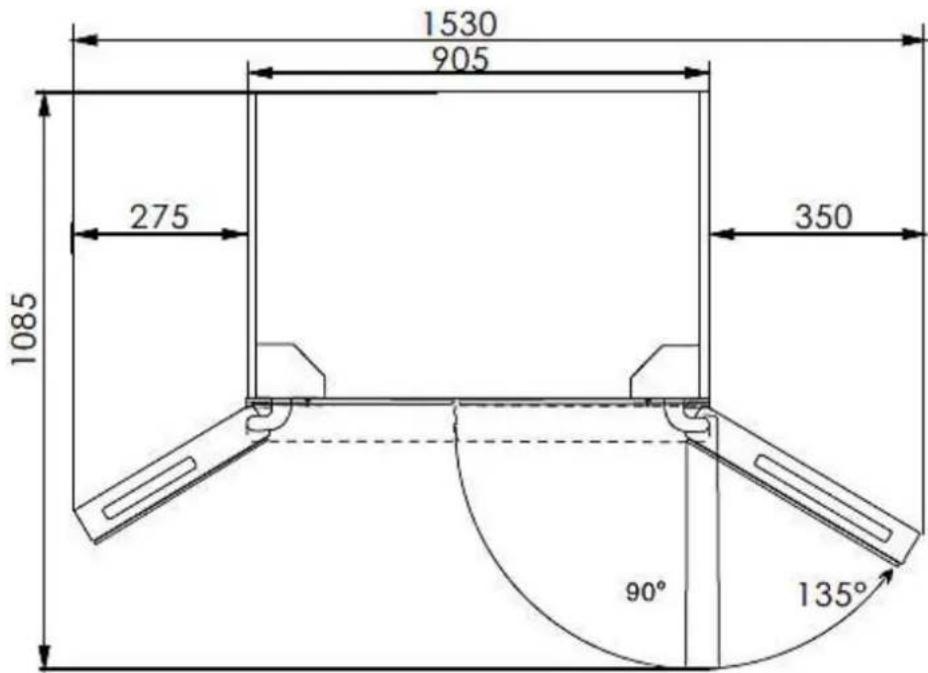

Please refer to the illustration below for additional information (data in mm):

1530 905 275 1085 350 90° 135°

Levelling

1. Use the adjustable feet at the front to level the appliance properly.
2. When the appliance is not levelled, the door and the magnetic seals will not close properly.

4.1 Main components

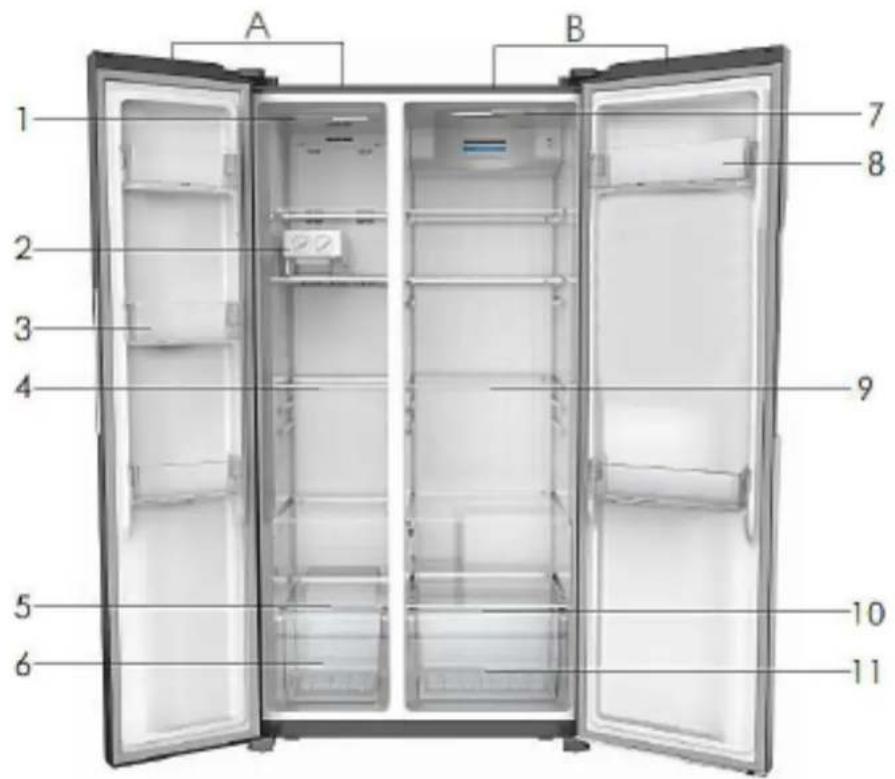

A B 1 2 3 4 5 6 7 8 9 10 11

A Freezer B Refrigerator

1 Internal illumination 7 Internal illumination
2 Removable ice cube maker 8 Door tray I
3 Door tray 9 Glass shelves
4 Glass shelves 10 Crisper cover
5 Freezer drawer cover 11 Crisper
6 Freezer drawer

4.2 Before initial operation

1. Remove all packaging materials, including the bottom cushion, foam pads and rubber belts in the refrigerator.

2. Adjust the feet and clean the appliance (see chapter CLEANING AND MAINTENANCE).

3. Do not start the appliance immediately after installation. Wait 4-6 hours to ensure proper operation.

4. Allow the appliance to stabilize at normal operating temperatures for 2-3 hours before you store fresh or frozen food in the appliance.
5. If operation was interrupted, wait 5 minutes before restart.
6. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional food in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of food and the frequency of door-openings.

4.3 Control panel

⚠ WARNING THE THERMOSTAT CONTROLS THE COMPRESSOR ONLY. You must unplug the appliance to disconnect it from the mains.

When the appliance is powered on for the first time, the backlighting of the icons on the display starts working. If no buttons have been pressed and the doors are closed, the backlighting will turn off.

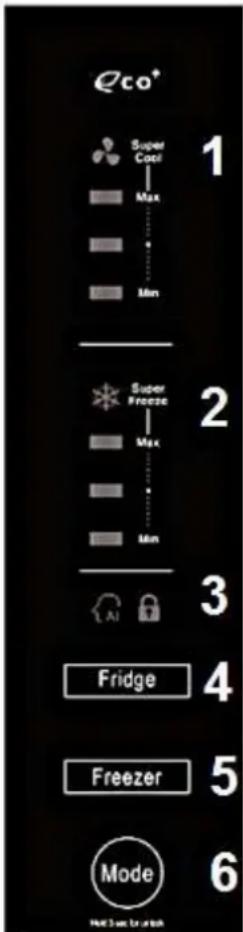

Qco+ Super Cool Max Min Super Freeze Max Min Fridge Freezer Mode HDL use to wash

4.4 Setting of the temperature

The default temperature of the refrigerator is 5 ^ . The default temperature of the freezer is -20 ^ .

When you set a temperature, you set an average temperature for the whole refrigerator. Temperatures inside each area may vary from the temperature values indicated on the display, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance.

Refrigerator

1. Press MODE to unlock the control panel.
   MODE
2. Press FRIDGE to set a temperature from 2^ C to 8^ C. The display indicates the relevant values according to the sequence below:
   FRIDGE

1. The displayed value disappears after 3 seconds. The temperature has been set.

Freezer

1. Press MODE to unlock the control panel.
   MODE
2. Press FREEZER to set a temperature from -15^ to -28^ . The display indicates the relevant values according to the sequence below:
   FRIDGE

1. The displayed value disappears after 3 seconds. The temperature has been set.

4.5 Modes

1. Press MODE to unlock the control panel.
   MODE
2. Press MODE to set the mode. The display indicates the relevant modes according to the sequence below:
   FRIDGE

1. The displayed icon disappears after 3 seconds. The mode has been set.

SUPER COOL

SUPER COOL enables quick cooling of your food to keep it fresh for a longer period of time.

When the SUPER COOL-mode is activated, the temperature of the freezer does not change.

When the SUPER COOL-mode is activated, the temperature of the refrigerator is set to 2^ C. The icon and MAX goes on.

The SUPER COOL-mode is deactivated automatically after 6 hours. The temperature of the refrigerator is set to the previously set value.

SUPER FREEZE

SUPER FREEZE enables quick freezing of your food to keep the vitamins and nutrients fresh for a longer period of time.

When the SUPER FREEZE-mode is activated, the temperature of the refrigerator does not change.

When the SUPER FREEZE-mode is activated, the temperature of the freezer is set to -28^ . The icon and MAX goes on.

If you make full use of the maximum freezing capacity within 24 hours (see chapter TECHNICAL DATA), please wait approx. 24 hours.

The SUPER FREEZE-mode is deactivated automatically after 26 hours. The temperature of the freezer is set to the previously set value.

INTELLIGENCE

When the INTELLIGENCE-mode is activated, the refrigerator works in the most beneficial food preservation and storage way

The temperature of the refrigerator is set to 5^ C.

The temperature of the freezer is set to -20^ .

KEY LOCK

1. Press MODE to unlock the control panel. The icon disappears.
2. If you have not carried out any operational setting for 20 seconds, the control panel is locked automatically. The entire illumination of the display goes off after 60 seconds.

MODE

4.6 Coldest area in the refrigerator

(Equipment depends on model)

The symbol indicates the coldest area in the refrigerator. This area is near of the fan and above the symbol or a shelf positioned at the same height. Do not change the position of the shelf in this area to maintain the temperature.

4.6.1 Temperature indicator

(Equipment depends on model)

WARNING! This indicator is intended to work only with your refrigerator, do not use it in any other refrigerator (in fact, the coldest zone is not the same), or for any other use.

The appliance is equipped with a temperature indicator which monitors the average temperature in the coldest zone. The cooling temperature in the refrigerator depends on several parameters, e.g. the ambient temperature, the quantity of stored food, how often the door was opened. Please consider these parameters when you set the temperature.

When the indicator shows OK, the temperature is well-set. The cooling temperature is correct.

When the indicator turns WHITE, the temperature is too high. Please set a suitable the temperature and wait 12 hours before you check the indicator again.

When you have stored fresh food or when the door has been opened for a longer period of time, the indicator may turn WHITE after a while.

4.7 The refrigerator

The cooling compartment is not intended for storing food for a longer period of time. So, use the cooling compartment for short-term storage only. Different temperature areas due to the air circulation occur in the appliance. Use these different temperature areas to store different kinds of food.

Shelves Food from wheat flour, milk etc. The shelves are removable for cleaning. Adjust the shelves relevant to your needs.

Crisper Fruit, vegetable etc.

Door trays Eggs, beverage cans, bottled beverages, packaged foodstuffs etc.

Store covered or packaged food in the appliance only so the smell or taste of the food will not diffuse. The following materials are suitable for proper packaging:

◆ Food safe cling film/airtight bags and aluminium foil.
◆ Food safe covering hoods.
◆ Food safe containers made of plastic/glass/ceramics.
- Store fresh, packaged food on the shelves, fresh fruit and vegetable in the crisper.
◆ Store fresh meat packaged in protective foil for max. 2 days.
Let warm food such as cooked meals cool down before you store them in the appliance.
- Store food in such a way that the cooled air can circulate properly.
Do not place heavy bottles in the bottle pocket as it can come off the door.

4.8 The freezer

The freezer is intended for long-term storage of food. Please observe the advice for max. storage time on the packaging of frozen food products. Do not refreeze defrosted food.

Shelves Fish, meat, ice crème etc. The shelves are removable for cleaning. Adjust the shelves relevant to your needs.
Drawer	Packaged frozen foodstuffs.
Door trays	Small pieces of frozen food, short time storage, etc. Do not place too many heavy items in the door trays.

Protect fresh food you want to freeze using aluminium foil, cling film, air and water tight plastic bags, polyethylene containers or other suitable plastic containers with a lid.
Leave some free space between the single pieces of frozen food as proper air circulation is required.

The food is frozen completely after 24 hours (you find the relevant information about the maximum freezing capacity within 24 hours in chapter TECHNICAL DATA).
Only buy frozen food, when its packaging is not damaged. Damaged packaging may indicate an interruption of the cold chain.
Avoid or reduce variations in temperature: buy frozen food at the end of shopping and transport it in thermally insulated bags.
Do not refreeze defrosted and semi-defrosted food. Consume within 24 hours.
- Observe the complete information on the packaging of frozen food.

WARNING! Do not eat food which is still frozen. Children should not eat ice-cream straight from the freezer. The coldness can cause injuries in the mouth.

⚠ WARNING! Contact with frozen food, ice and metal components in the freezer compartment can cause injuries similar to burns.

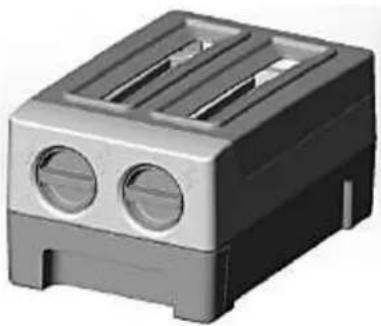

4.9 Removable ice cube maker

Fill the ice cube maker 4/5 from the top and put it on any shelf in the freezer.

After Freezing: Turn the knob in clockwise direction. The ice cubes will fall into the drawer of the ice cube maker.

Cleaning: Clean with clear, warm water only. Dry using a clean, soft cloth.

3D rendering of a gray plastic enclosure with two circular cutouts (no text or symbols visible)

4.10 Helpful hints/energy saving

Do not line the drawers with aluminium foil, waxed paper or paper layers; otherwise optimum circulation of the cold air is impeded so the appliance cannot work at best performance.
◆ Cooked food can be stored in the appliance. Let it cool down to room temperature before you put it into your appliance.
◆ Store your food in colourless, airtight and tasteless materials.
Some food like meat, fish etc. may become dry and release strong odours. You can avoid these by wrapping them into aluminium foil or plastic wrap or putting

them into an airtight bag or container.

Allow ample storage place for your food. Do not overfill your appliance.
- Wrap your food in plastic wrap or suitable paper and place each kind of food in a particular location in your appliance. This will prevent any contamination, a loss of water and a mingling of odours.
Let warm or hot food cool down to room temperature before you put it into your appliance. Otherwise the energy consumption will increase and encrusted ice will be generated.
If you buy frozen food, the packaging must not be damaged and the product must be properly stored (sales container -18 ^0 C or lower).
Put the frozen food you want to defrost into the cooling-compartment of you appliance.
How to defrost frozen food depends on your kitchen-equipment and the purpose, you want to use the frozen food for.

√ room temperature
√ in the cooling-compartment of your appliance
√ in an electrical oven5
√ in a microwave6

✿ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.

- Permanently check, that the appliance is well-ventilated. The appliance has to be well-ventilated from all sides.

4.11 Operational parameters

The appliance can only reach the relevant temperatures when:

1. the a ambient temperature meets the climatic class.
2. the doors close properly.
3. you do not open the doors too often or too long.
4. the door seals are in proper condition.
5. the appliance is properly positioned.
6. you have not overfilled the appliance.

7. you do not store warm or hot food in the appliance.

8. WARNING! Disconnect the appliance from the mains before you clean or maintain it.

9. Always keep the appliance clean so that unpleasant odours do not occur.
10. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
11. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

Detergent

Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents! Do not use any organic detergents! ^7 Do not use essential oils!
These instructions are valid for all surfaces of your appliance.

External cleaning

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

Internal cleaning

1. Clean the shelves and the inside with warm water and a mild detergent.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.
4. Check the water drain and clean it if needed.

Door seals

Clean with warm water and a mild, non-acidic detergent. Do not restart the appliance until the door seals have dried completely.

5.1 Defrosting

Cooling compartment:

1. The cooling-compartment is defrosted automatically.

Freezer:

1. The freezer is defrosted automatically.

Freezer (optional procedure if encrusted ice should have occurred):

1. ⚠️WARNING! Switch off the appliance by turning the thermostat to position 0/AUS/OFF and disconnect it from the mains.
2. ⚠️ WARNING! Never use any mechanical items, knives or other sharp-edged objects to remove the encrusted ice. Never use a steam cleaner. RISK OF ELECTRICAL SHOCK!
3. Remove the contents from the freezing-compartment and put them into a cooling box.
4. Place a container in front of the appliance to catch the water.
5. When the encrusted ice melts put some dry cloths into the freezer-compartment to hold the water back.
6. Remove the big pieces of ice first.
7. Afterwards remove the small pieces of ice.
8. Wipe and dry the appliance and door seals with dry and soft cloths.
9. After cleaning leave the door open for some time to ventilate the appliance.

5.2 Replacing of the illuminant

1. ⚠️ WARNING! Switch off the appliance and pull the plug out of the socket before you change the illuminant.
2. The replacing should be carried out by a qualified professional only ^8 . The procedure is described as follows.
3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED by a new one of the same kind and power and snap it correctly in place.

MALFUNCTION

POSSIBLE CAUSE MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.
The voltage is too low.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse box.
➢ Compare the data on the model plate with the data of your energy supplier.

The compressor does not work at all.

➢ Incorrect energy supply. ➢ Check the energy supply.

The compressor operates for too long.

The appliance has been switched off for a while.
➢ Too much or too hot food in the appliance.
➢ Doors opened too often or too long.

The appliance needs some time to reach the preset temperature.
Remove any hot food.
Do not open the door too often/too long.

Formation of encrusted ice.

The air outlets may be blocked by food.
The door is not properly closed.
The door seal is damaged or soiled.

Store the food in another place.
▶ Close the door.
Clean/replace the door seal.

The door makes a strange sound when opened.

The door seals are soiled.

▶ Clean the seals.

Uncommon noise.

The appliance is not installed on a flat and level ground.. The appliance touches a wall or other object
➢ Frozen food is stored improperly.
Items have dropped behind the appliance.

Install properly.
Store food properly.
Remove the items.

Water drips on the floor.

The water pan (located at the rear bottom of the cabinet) may not be properly levelled, or the draining spout (located underneath the top of the compressor depot) may not be properly positioned to direct water

➢ You may need to pull the refrigerator away from the wall to check the pan and spout.

into this pan, or the water spout is blocked.

The light is not working.

The LED light may be damaged.
The control system has disabled the lights due to the door being kept open too long.

➢ Refer to replace LED lights in cleaning and care chapter.
➢ Close and reopen the door to reactivate the lights.

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

i

The operating conditions described below are normal and do not indicate a malfunction.

❖ The refrigerant generates a sound similar to flowing water.
- Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

Distinct noise

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

Condensed water in/on the appliance

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures..

Clicking

You will hear the compressor click if it is activated or deactivated.

Hum

is caused by the compressor while running.

Knocking/snapping

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

Decommissioning, temporarily

❖ If the appliance is not used for a longer period of time:

1. Draw the plug out of the socket.
2. Remove all food stored in the appliance.
3. Dry the inside of the appliance with a cloth and leave the door open for a few days.

❖ While away on an average vacation/holiday (14-21 days):

1. Do the same as described above, or
2. let the appliance operate.
   a. remove all perishable food from the cooling compartment.
   b. clean the cooling compartment.
   c. freeze all food which is suitable to be frozen.

◆ If you want to move the appliance:

1. Secure all removable parts and the contents of the appliance. Pack them separately if necessary.
2. Transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. Do not damage the feet of the appliance.

Decommissioning, ultimate

1. Draw the plug out of the socket.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

8. Technical data

Model SBS-Fridge
Climatic class N/ST
Energy efficiency class* A+
Annual energy consumption in kW/h** 398.00
Voltage/frequency 220-240W AC/50Hz
Volume gross/net/freezer in l 520/325/177
Stars 4****
Max. freezing capacity within 24 h 12.00 kg
Max. storage time/malfunction 8.00 h
Noise emission 42 dB/A
Adjustable thermostat yes
Compressor 1
Refrigerant	R600a
Indicators	yes
Adjustable feet yes
Water dispenser volume	2 l
Defrosting cooling comp./freezer	NoFrost/NoFrost
Dimensions appliance H*W*D in cm	177.80*90.50*64.00
Weight net/gross in kg	90.00/100.00

* On a scale from A+++ (highest efficiency) to D (lowest efficiency).
** Based on standard measurement results within 24 hours. The current energy consumption depends on the way the appliance is used as well as on its site.

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which have to be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
3. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

Refrigerant

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.
2. ⚠WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees.

These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
