Product Type	Split-System Air Conditioner (Indoor Unit + Outdoor Unit)
Model Number (Indoor)	CS-RE12NKX
Model Number (Outdoor)	CU-RE12NKX
Cooling Capacity	Approx. 3.5 kW (12,000 BTU/h)
Heating Capacity	Approx. 3.5 kW (12,000 BTU/h)
Power Supply	220-240 V, 50 Hz, Single Phase
Refrigerant Type	R410A
Standard Piping Length	5 m
Indoor Unit Dimensions (H x W x D)	Approx. 290 x 870 x 220 mm
Outdoor Unit Dimensions (H x W x D)	Approx. 540 x 780 x 290 mm
Indoor Unit Weight	Approx. 10 kg
Outdoor Unit Weight	Approx. 30 kg
Noise Level (Cooling) - Indoor	Approx. 45 dB(A)
Noise Level (Cooling) - Outdoor	Approx. 50 dB(A)
Airflow (Cooling)	Approx. 10 m³/min
Operating Modes	Auto, Cool, Heat, Dry, Fan Only
Fan Speeds	5 Options (including Auto)
Timer Functions	12-Hour ON/OFF Delay Timer
Special Features	Powerful Mode, Quiet Mode, Auto Restart, Air Swing (Vertical & Horizontal)
Air Filters	Washable Air Filter + Optional Anti-Bacterial Filter (Replace every 10 years)
Cleaning Instructions	Wipe indoor unit with soft dry cloth; remove and wash front panel and filters gently with water (max 40°C); dry in shade.
Safety Features	Requires Earth Leakage Circuit Breaker (ELCB)/Residual Current Device (RCD); auto shut-off on error; power cord protection.

Frequently Asked Questions - CS-RE12NKX PANASONIC

How do I set the timer to turn the air conditioner on or off automatically?

Use the SELECT button to choose ON-TIMER or OFF-TIMER, then press TIMER to set the delay (1-12 hours). Press SET/CANCEL to activate. The timer indicator on the indoor unit lights up when active.

Why does mist come out of the indoor unit during cooling?

Mist is caused by condensation from the cooling process. It is normal and not a malfunction.

How often should I clean the air filters?

Clean the filters every 2 weeks under normal use. Wash gently with water (max 40°C) and dry thoroughly before reinserting.

What should I do if the remote control does not work?

Check if the batteries are inserted correctly, replace weak batteries with AAA or R03 type, and ensure no obstructions between the remote and the receiver. Certain fluorescent lights may interfere.

Why does the indoor fan stop occasionally during heating operation?

The fan stops to prevent unintended cooling when the compressor is off. This is normal.

How can I operate the unit if the remote control is lost or malfunctioning?

Press the AUTO OFF/ON button on the indoor unit. Press once for Auto mode; press and hold until beep for Cool; press and hold for double beep for Heat.

What does it mean when the timer indicator blinks and the unit stops?

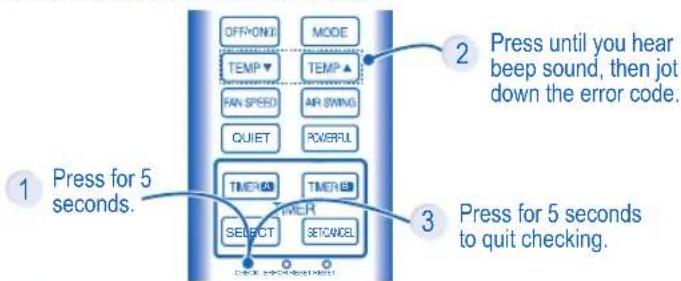

A blinking timer indicator indicates an error code. Use the remote control to retrieve the error code and contact an authorized dealer.

Is it safe to use an extension cord for power supply?

No. Do not use extension cords or modified cords. They can cause overheating and fire. Use only the specified power cord.

Can I use the air conditioner for 24-hour heating below -5°C?

This model is not suitable for continuous heating below -5°C. The outdoor unit may freeze and stop for protection.

How do I clean the antibacterial filter?

Vacuum the antibacterial filter whenever necessary. Replace every 10 years or if damaged.

USER MANUAL CS-RE12NKX PANASONIC

Panasonic®

Operating Instructions Air Conditioner

Indoor Unit Outdoor Unit

CS-RE9NKX

CU-RE9NKX

CS-RE12NKX

CU-RE12NKX

CS-RE15NKX

CU-RE15NKX

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

ESPAÑOL

© Panasonic Appliances Air-Conditioning (Guangzhou) Co., Ltd. 2012. Unauthorized copying and distribution is a violation of law.

F568412

ENGLISH Thank you for purchasing Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS 8\~9

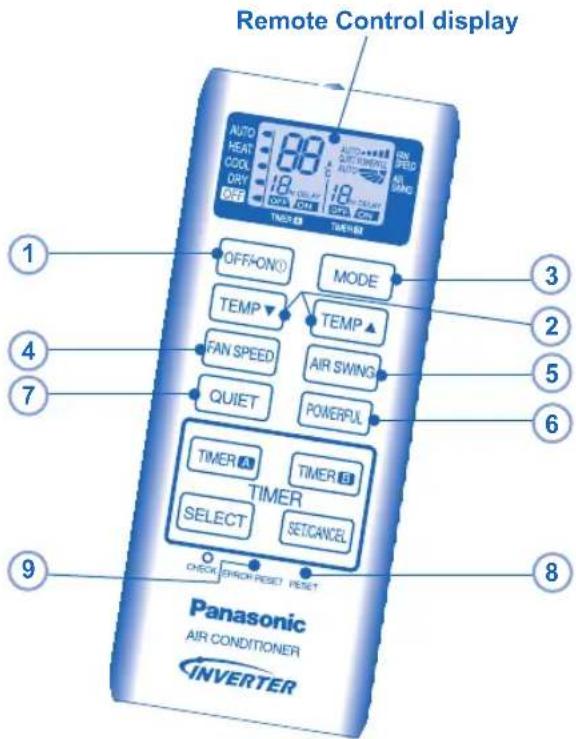

REMOTE CONTROL 10\~11

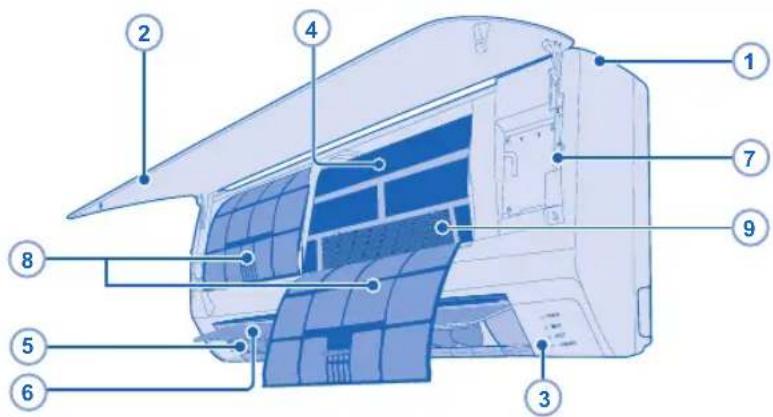

INDOOR UNIT 12

TROUBLESHOOTING....13

INFORMATION 50\~55

PRODUCT SPECIFICATION 56

QUICK GUIDE....BACK COVER

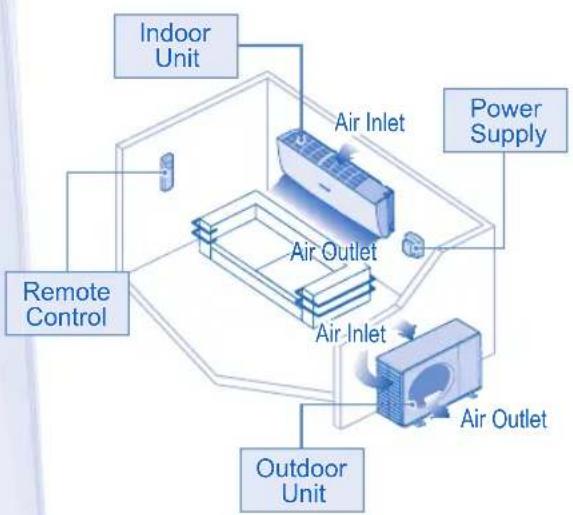

NOTE: The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Maximum 32 23 43 26
	Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18
	Minimum 16 - -5 -6

* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

NOTICE: • This model is not suitable for 24 hours non-stopping operation in heating mode below -5°C. When the outdoor temperature is below -5°C and you use this model out of above conditions, the outdoor unit might be frozen up and stop operation for protection control.

To prevent personal injury, injury to others, or property damage, please comply the following. Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an action that is COMPULSORY.

WARNING
INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

POWER SUPPLY

Do not use modified cord, joint cord, extension cord or unspecified cord to prevent overheat and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

WARNING

POWER SUPPLY

If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.

To prevent overheating, fire or electric shock:

- Insert the power plug properly.

- Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock)

Examples of abnormality/failure

• The ELCB trips frequently.

- Burning smell is observed.

- Abnormal noise or vibration of the unit is observed.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

• Fan speed cannot be controlled.

- The unit stops running immediately even if it is switched on for operation.

- The fan does not stop even if the operation is stopped.

Contact your local dealer immediately for maintenance/repair.

Replacement or installation of power plugs shall be performed by authorized/qualified personnel only. The wires in this mains lead are coloured in accordance with the following code:

Wiring colour may vary depending on a country wiring code's standard.

This equipment must be earthed to prevent electric shock or fire.

Prevent electric shock by switching off the power supply and unplug when:

- Before cleaning or servicing.

- Extended non-use

- Abnormally strong lightning activity.

CAUTION

INDOOR UNIT AND OUTDOOR UNIT

Do not wash the indoor unit with water, benzene, thinner or scouring powder to avoid damage or corrosion at the unit.

Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.

Do not use any combustible equipment in front of the airflow outlet to avoid fire propagate.

Do not expose plants or pet directly to airflow to avoid injury, etc.

Do not touch the sharp aluminium fin, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.

Do not install the unit in oily and smoky areas to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to avoid injury.

Do not step onto unstable bench when cleaning the unit to avoid injury.

Do not place vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.

Do not open window or door for long time during COOL mode operation.

Ensure drainage pipe is connected properly and keep drainage outlet clear of gutters, containers or does not immersed in water to prevent water leakage.

After long period of use or use with any combustible equipment, aerate the room regularly.

After long period of use, make sure the installation rack is not deteriorate to prevent the unit from falling down.

REMOTE CONTROL

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.

To prevent malfunction or damage of the remote control:

- Remove the batteries if the unit is not going to be used for a long period of time.

- New batteries of the same type must be inserted following the polarity stated.

POWER SUPPLY

Do not pull the cord to disconnect the plug to prevent electric shock.

REMOTE CONTROL

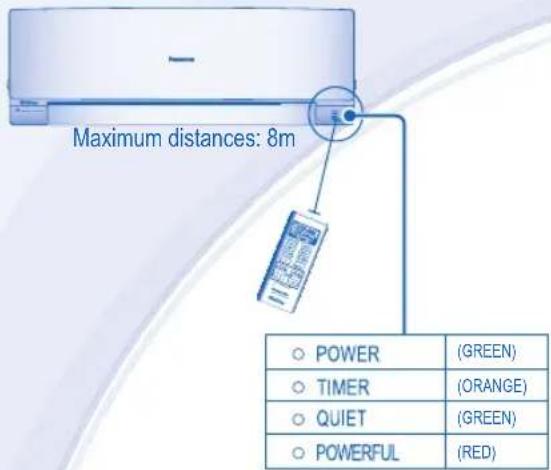

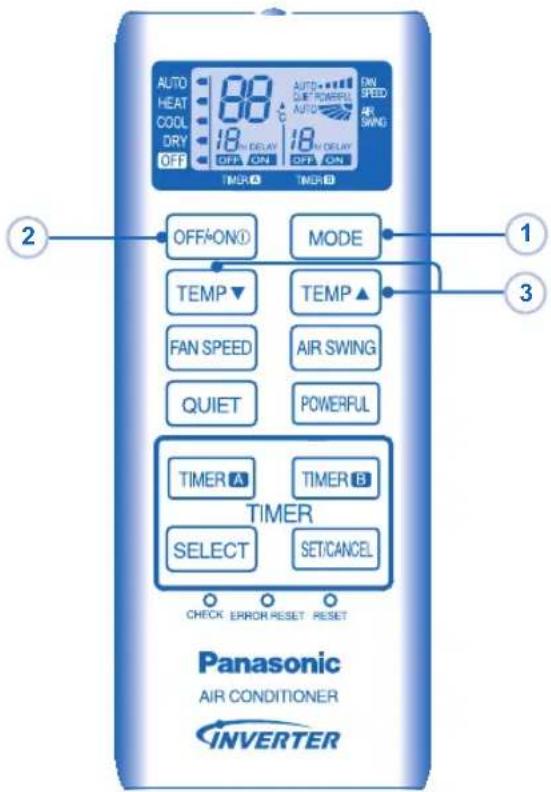

Press the remote control's button

TO TURN ON OR OFF THE UNIT

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

TO SET TEMPERATURE

• Selection range: 16°C \~ 30°C.
• Operating the unit within the recommended temperature could induce energy saving.
  HEAT mode : 20°C \~ 24°C.
  COOL mode : 26°C \~ 28°C.
  DRY mode: 1°C \~ 2°C lower than room temperature.

• During operation mode selection the power indicator blinks.
• Unit selects the operation mode according to the indoor intake temperature and remote control temperature.

HEAT mode - To enjoy warm air

- In heat mode, it may take a while for the unit to warm up. The POWER indicator blinks during preheating.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

TO SELECT FAN SPEED (5 OPTIONS)

FAN SPEED

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

• In COOL mode, if AUTO is set, the louver swing up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fix at predetermined position.

TO ACHIEVE TEMPERATURE QUICKLY

- This setting enables the desired set temperature to be reached quickly.

TO ENJOY QUIET ENVIRONMENT

• This setting provides a quiet environment by reducing the airflow noise.
• POWERFUL AND QUIET operations can not be activated at the same time.

PRESS TO RESTORE THE REMOTE CONTROL'S DEFAULT SETTING

NOT USED IN NORMAL OPERATIONS

TO SET THE TIMER (12-HOUR TIMER SETTING)

- When you want the air conditioner to turn ON or OFF automatically.

DELAY OFF-TIMER

For example, to stop the air conditioner 5 hours later.

1 To select the Delay OFF-TIMER, press the SELECT button once.

2 Press the TIMER button to select the delay hour.

- The OFF-TIMER can only be set while the air-conditioner is in operation.

DELAY ON-TIMER

For example, to start the air conditioner 2 hours later.

1 To select the Delay ON-TIMER, press the SELECT button once.

2 Press the TIMER button to select the delay hour.

- The ON-TIMER can only be set while the air-conditioner is not in operation.

DELAY OFF AND ON TIMER

For example, to stop the air conditioner 3 hours later and start 4 hours later.

1 To select the Delay OFF and ON Timer, press the SELECT button twice repeatedly.

2 Press the TIMER button to select the delay hour for OFF Timer.

3 Press the TIMER button to select the delay hour for ON Timer.

- This mode of timer can only be set while the air-conditioner is in operation.

DELAY ON AND OFF TIMER

For example, to start the air conditioner 7 hours later and stop 10 hours later.

1 To select the Delay ON and OFF Timer, press the SELECT button twice repeatedly.

2 Press the TIMER button to select the delay hour for ON Timer.

3 Press the TIMER button to select the delay hour for OFF Timer.

- This mode of timer can only be set while the air-conditioner is not in operation.

TO CONFIRM THE TIMER SETTING

Press the SET/CANCEL button once to activate the timer operation which will start when the set time is reached.

TO CANCEL THE TIMER SETTING

Press the SETCANCEL button again to cancel the timer operation.

- The timer indicator of the indoor unit will light up during the timer operation.

- When ON Timer is set, the unit may start earlier before the actual set time in order to achieve the desired temperature on time.

- If you press operation OFF-OND button during the timer setting operation, timer setting will be cancelled.

- If timer is cancelled manually or due to power failure, you can restore the timer again by repeating steps above (once power is resumed).

INDOOR UNIT

CAUTION

• Switch off the power supply before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

CLEANING INSTRUCTIONS HINT

• Do not use benzene, thinner or scouring powder.
  • Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40^ C .

• To ensure optimal performance of the unit, cleaning maintenance have to be carried out at regular intervals.

NOTE

- If chemical cloth is used to wipe the unit, instruction for the cloth should be followed.

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

- Press down both ends of the front panel to close it securely.

3 RECEIVER

4 ALUMINIUM FIN

5 HORIZONTAL AIRFLOW DIRECTION LOUVER

- Manually adjustable.

WARNING

Be careful not to insert your fingers into the unit to avoid injuring by cross-flow fan.

6 VERTICAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

7 AUTO OFF/ON BUTTON

- Use when remote control is misplaced or malfunction.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press and hold until you hear double beep sound, then release.	Heating
Press the button to turn off.

8 AIR FILTERS

• Clean the filters regularly.
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under the shade, away from fire or direct sunlight.
• Replace any damage filter.

9 ANTI-BACTERIAL FILTER

Vacuum

• Vacuum the filter whenever necessary.
- Replace the filter every 10 years or replace any damaged filter.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM CAUSE

Mist emerges from indoor unit. ▶ • Condensation effect due to cooling process.
Water flowing sound during operation. ▶ • Refrigerant flow inside the unit.
The room has a peculiar odour. ▶ • This may due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	▶ • This helps to remove the surrounding odours.
Operation is delayed a few minutes after restart.	▶ • The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. ▶ • Condensation or evaporation occurs on pipes.
The unit operates automatically when power is resumed after a power failure.	▶ • It is the Auto Restart function of the unit. Operation will be restarted automatically under the previous operation mode and air flow direction when power is resumed as the operation is not stopped by remote control.
Indoor fan stops occasionally during heating operation.	▶ • To avoid unintended cooling effect.
Power indicator blinks before the unit is switched on.	▶ • This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation. ▶ • Changes of temperature cause the expansion/contraction of the unit.

Check the following before calling for servicing.

SYMPTOM CHECK

Heating/Cooling operation is not working efficiently. ▶ Set the temperature correctly.
Noisy during operation.	Check if the unit has been installed at an incline. Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly. Replace weak batteries.
The unit does not work.	Check if the circuit breaker is tripped. Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver not obstructed. Certain fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.

The unit stops and the timer indicator blinks.

Use remote control to retrieve error code.

4 Turn the unit off and reveal the error code to authorized dealer.

1 UNIDAD INTERIOR

UNITÀ INTERNA E UNITÀ ESTERNA

UNITÀ INTERNA E UNITÀ ESTERNA

1 UNITÀ INTERNA

1 UNIDADE INTERIOR

Retire o painel frontal

1 ВЪТРЕШНА ЧАСТ

1 UNUTARNJA JEDINICA

• Jedinicu pažljivo obrišite mekom, suhom krpom.

2 PREDNJA PLOČA

Uklonite prednju ploču

1 İÇ ÜNİTE

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

• Checking of remote control batteries.
  • No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating operation, after 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2\~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.
- The timer indicator blinks and the unit can not be operated.

1. Standard piping length: 5 m.
2. Air filters are attached.

Translations

Deutsch

Français

Greek

Italian

Nederland

Portuguese

Russian

Spanish

Bulgarian

Turkish

Arabic

Swedish

Norwegian

Ukrainian

Product Specification

Produktspecification

Conductrations du produit

Préchéantique préférations

preconzione del producto

productenmarken

Especialisations de produits

Technische equipartament

Éspecialisation des produits

Équilibria générales

Übris-Eurolle

moussants des intang

Produktes spécifiziert

Produktes spécifiziert

Technische характеристики

Model Indoor UnitOutdoor Unit

ModellInnungs-Altusangerist

ModèleUnité minoursUnité extérieure

MontelloÉquiterach opsonchÉquiterach opsonch

ModelloImplante interneImplante esterne

ModelBinserinrichtingButterinrichting

ModeloElemento interiorElementa exterior

ModèleÉquiterance structuresÉquiterance structures

ModeloEquipe interiorEquipe exterior

ModèleVétricaine устройствévienne устройства

ModellY UniteDiş Unite

Équiterance structuresÉquiterance structures

ModellInnemhusenhetUtomhusenhet

ModellInnendersenetUtomdersenet

ModèleВнутрішній блокЗовнішній блок

Power / Current

Stromversorgung

Alimentation

Парохні预估атос

Corrente

Stroom

Potência

Напряжение питания

Corriente

Електрическо захранвання

Güç / Akim

/الفرية/النегير الكهربان

Effekt/ström

Effekt/ström

Потужність / струм

Refrigerant

Kühmittel

Réfrigerant

руктикію мёсо

Refrigerante

Koelmiddel

Refrigerante

Охлаждаций агент

Refrigerante

Охлаждане

Sogutucu

اللادة الم parties

Köldmedium

Kjølemiddel

Холодрагент

Cooling Capacity

Kühlleistung

Capacitérefrigérante

Ікаконтттафубнє

Refrigerazione

Cooling Capacity

Capacidade do refrascamento

Мощность охлаждения

PotenciaIngorífica

Охлаждацикалацитет

SogutmaKapasitesi

سعة التيريد

Kylkapasitet

Kjelekapasitet

Потужністьна охпорядження

Heating Capacity

Heizleitung

Capacitàchauffage

Ікаконтттабёрмавопє

Riscaldamento

VerwarmingCapacity

Capacidadado aquecimento

Мощность нагрева

Potenda calefacción

Загриващкалацитет

IstimaKapasitesi

سعة التدفئة

Upximmingskapasit

Varmekapasitet

Потужністьна обігрівачня

Noise LevelConditions1m DistanceMax. coolingSound power level

LärmpiegelBedingungen1m AbstandMax. KütungSchaffreichungsogel

Niveau de bruitCondimentsDistanza 1 mRetreadement max.Niveau de puissance senes

Entinoão боруβουΣυνδηκαςАндреон 1 μετρουΜιγ. ΦυξηΣισθυν ισμούςθουβου

Livello di rumoreConditionlDistanza di 1 mRetreadamento max.Livello rumore

LawaaipellerVoorwaarden1m a'etandMax. KoelingGaludiniveau

Nivel do barulhoCondipõesDistância de 1mАпредс movemento máx.Nivel de alimentação soneta

Уровень шума «ИСФЯТУ»ИЗДИЯГИТМ - 17MPX, кадилягИТМУ вянь мощности звука

Nivel sonoroCondiciones1 m de distanciaRefrigeración máx.Nivel de potencia de sonida

Ниво на шумаУновки1m разстояниеМаксимальная звука

Ses seviyesiKoyullar1m UzaskukMaks. seglutmaSes seviyasi

مسто الحضUAمالعربيةأдамКаз. кызингМостоти дверة ELSON

BulemvaVilkar1 m avständMax. kyningLjudefektiniva

StorynvaVilkar1 m avstandMaks. kjalingLydefektiniva

Рівень шумуУвивідстань 1 мМакс. охпорядженняРівень потужності звуку

Air Circulation

Luftzirkulation

Ventilation

Киклоро.glасабра

Circolazione ana

Luchtorculatie

Circulação do ar

Циркуляция воздуха

Circulacion de are

Вълдушка циркуляция

Hava Devri

دورан الهواє

Luftflöde

Luftstrømning

Циркуляция пеятря

Product weight

Produktgewicht

Poids du produit

Вáрос touпроюштос

Peso prodotto

Produktgewicht

Peso do producto

Вес продукта

Peso del producto

Тепло на продукта

Ürün agirligi

وزن النتح

Produktens vikt

Produktets vekt

Маса виробу

Dimensions

Abmessungen

Dimensions

Διασταση

Misure

Afmetingen

Dimensões

Размеры

Medidas

Размери

Ebatlar

الأبعаг

Māt

Māl

Габарити

MEMO

MEMO

QUICK GUIDE/GUÍA RÁPIDA/GUIDA RAPIDA/GUIA RÁPIDO/ БЪРЗ СПРАВОЧНИК/BRZE UPUTE/HIZLI REHBER

Remote Control Preparation • Preparación Del Mando A Distancia • Telecomando: Operazioni Preliminari • Preparação Do Controlo Remoto • Подготовня He Дистанционното Управление • Priprema daljinskog upravljača • Uzaktan Kumanda Hazirlanmasi

Remove the battery cover • Retire la tapa de las pilas • Rimuovere il coperchio batteria • Remova a tampa da bateria • Свалете капака за батериите • Uklonite pokrov baterija • Pil kapağını çıkartın.
2 Insert AAA or R03 batteries (can be used \~ 1 year) • Inserte pilas AAA o R03 (puede ser usado \~ 1 año) • Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) • Introduza pilhas AAA ou R03 (pode ser utilizado \~ 1 ano) • Поставете AAA или R03 батерии (могат да се използват приблизително една година) • Umetnite AAA ili R03 baterije (mogu se koristiti \~ 1 godinu) • AAA veya R03 pil kullanın (\~ 1 yıl kullanılabilir)
3 Close the cover • Cierre la tapa • Chiudere il coperchio • Feche a tampa • Затворете капака • Zatvorite pokrov • Kapağı kapatın.

1 MODE

AUTOHEAT DRYCOOL

Select the desired mode. Seleccione el modo deseado, Selezionare la modalità desiderata. Seleccione o modo de funcionamento pretendido. Избор на желания режим на работа. Odaberite željeni način. Istenilen modu seçin.

2 OFF/ON

Start/stop the operation. Inicie/detenga el funcionamiento. Avviare/arrestare l'apparecchio. Ligue/Desligue a unidade. Включване/спиране. Pokrenite/zaustavite rad. Çalışmayı başlatın/durdurun.

3 TEMP

Select the desired temperature. Seleccione la temperature deseada. Selezionare la temperatura desiderata. Programe a temperatura desejada. Настройка на желаната температура. Odaberite željenu temperaturu. İstenilen sıcaklığı seçin.

Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany

EEE COMPLIES WITH DIRECTIVE OF TURKEY EEE YÖNETMELİĞİNE UYGUNDUR BU ÜRÜNÜN KULLANIM ÖMRÜ 10 YILDIR

Panasonic Corporation

Website: http://panasonic.net/

Printed in China

F568412 F1112-00
