DVD-SS-7865 - Portable DVD Player Sogo - Free user manual and instructions

Product Type	Portable DVD Player
Brand	Sogo
Model	DVD-SS-7865
Screen Size	7 inches
Resolution	800 x 480 pixels
Dimensions (L x W x H)	250 x 180 x 40 mm
Weight	1 kg
Power Supply	AC 100-240V, 50/60Hz; Rechargeable battery 7.4V 1800mAh
Battery Life	Up to 3 hours
Supported Disc Formats	DVD, DVD±R/RW, CD, CD-R/RW
Supported File Formats	MP3, JPEG, DivX, MPEG-4
Region Code	Free (multi-region)
Connectivity	AV output, headphone jack, USB port (for media)
Card Slot	SD/MMC card slot
Remote Control	Included
Maintenance	Clean with soft, dry cloth; avoid liquids
Safety	Do not disassemble; keep away from moisture
Spare Parts / Repairability	Battery and remote available; lens cleaning optional
Accessories	AC adapter, car adapter, AV cable, remote control

Frequently Asked Questions - DVD-SS-7865 Sogo

How do I clean the lens?

Use a lens cleaning disc or a soft brush. Do not use liquids.

What formats does this player support?

It supports DVD, CD, MP3, JPEG, DivX, and MPEG-4 files.

How long does the battery last?

The battery lasts up to 3 hours on a full charge.

Can I play content from a USB drive?

Yes, insert a USB drive into the USB port to play music, photos, or videos.

How do I change the region code?

This player is region-free; it plays discs from all regions.

Can I connect this player to a TV?

Yes, use the AV output cable to connect to a TV.

How do I change the language settings?

Go to the setup menu and select your preferred language for audio and subtitles.

What should I do if the player doesn't power on?

Check the battery charge or plug in the AC adapter. If still off, try a reset.

Is this player suitable for car use?

Yes, it comes with a car adapter and can be used in vehicles.

How do I reset the player?

Press the reset button on the bottom with a paperclip for 3 seconds.

USER MANUAL DVD-SS-7865 Sogo

Important Safety Instructions

1. Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
2. Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
3. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
4. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.
5. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.
6. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
7. Never place heavy or sharp objects on the LCD panel or frame.
8. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.
9. The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.
10. Unplug the power from the outlet when the unit is not in use.
11. Attention should be drawn to the environmental aspects of battery disposal.
12. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
13. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
14. WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
15. WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK - DO NOT OPEN

1. Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.
2. Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.
3. Warning: Never stare directly into the laser beam.
4. Caution: Do not install this product in a confined space such as a book case or similar unit.
5. Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.
6. Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.
7. Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat.....
8. Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.
9. Warning: more than 250mm USB extension cord is prohibited to use for USB port

Notes on Copyrights:

1. It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.
2. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S.

Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Package

DVD Player	1
Remote Control with battery	1
AC/DC Power Adapter	1
Cigarette Lighter Adapter	1
User Manual	1
Earphone	1
Carry bag	1

Main Features

● High brightness color 7" LCD screen
● Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc
● Built-in stereo speaker
● Built-in rechargeable Lithium polymer battery
● Support PAL or NTSC system
● Support Multi-language OSD, speed forward/backward, repeat function
- Zoom in/out function

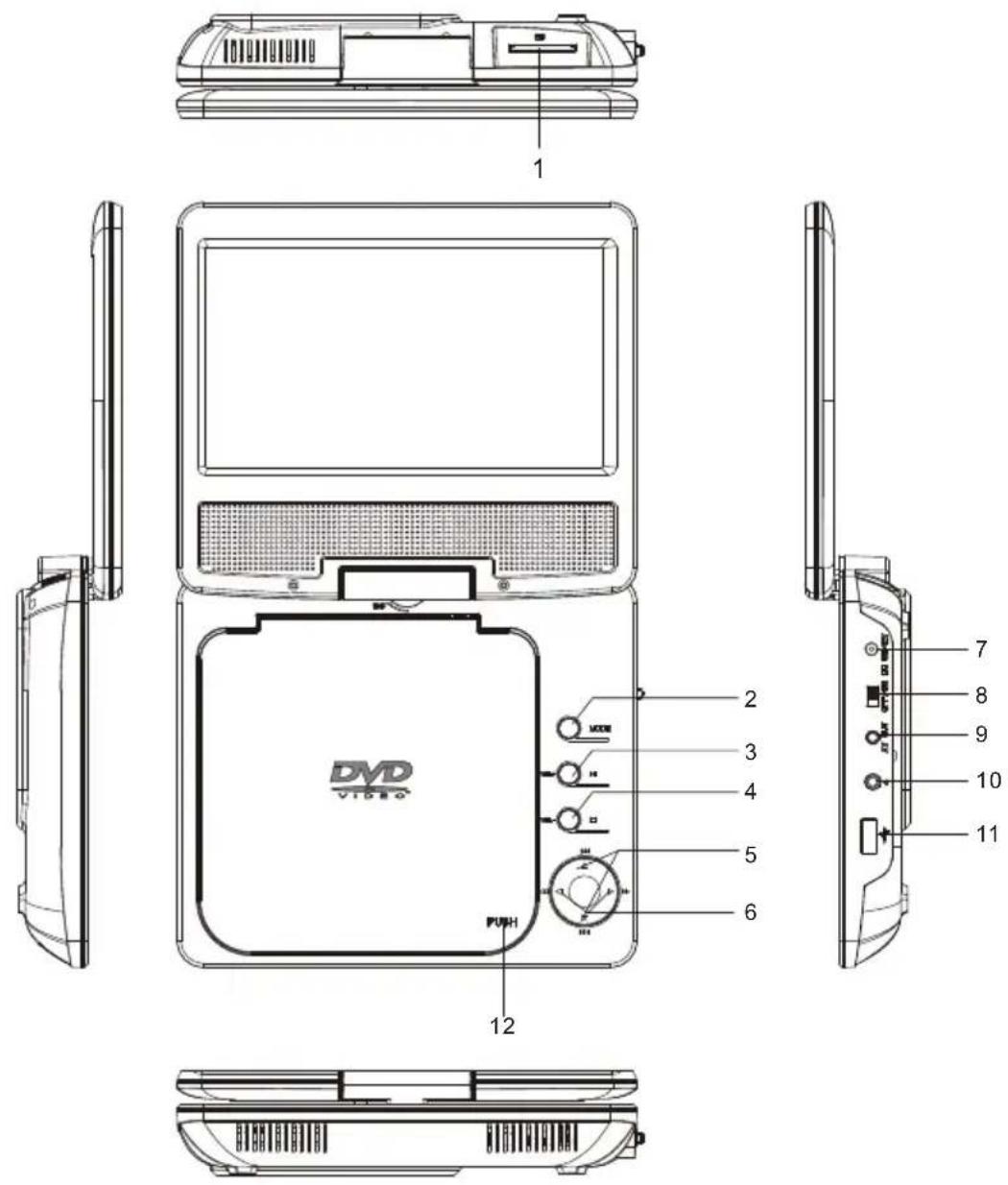

1. SD card slot
2. MODE button
3. PLAY/PAUSE button /Vol+ (Press shortly to play/pause, press longly to add volume.)
4. STOP button and Vol- (Press shortly to stop, press longly to reduce volume.)
5. ▲ (◀)/▼ (▶)

6. ◀(◀)/▶(▶)

7. DC IN 9-12V

8. Power ON/OFF switch
9. AV OUT
10. Earphone jack
11. USB Port
    12.Open knob

System Connection

Powering and installation

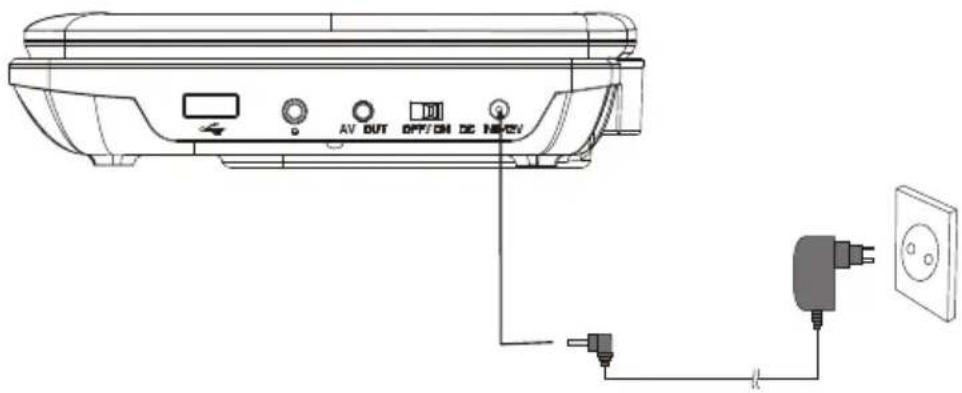

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle. Please refer to the following illustration.

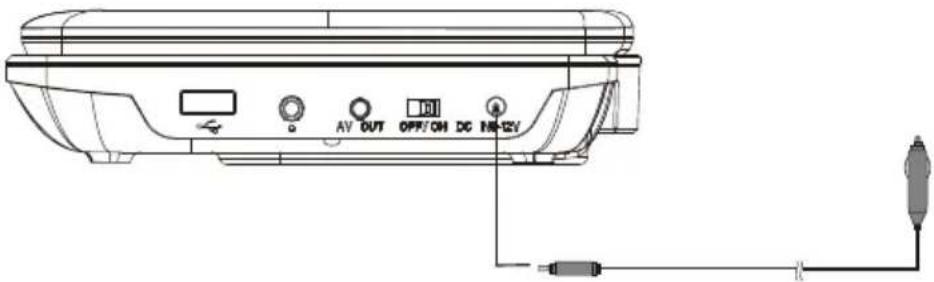

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Note:

1. Car cigarette lighter adaptor is not recommended to recharge the battery.
   2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
2. The mains plug is used as the disconnect device, the disconnect device should remain readily operable.

Connecting to TV

You can also connect the unit to TV to enjoy high quality picture and stereo sound. Please refer to the following illustration:

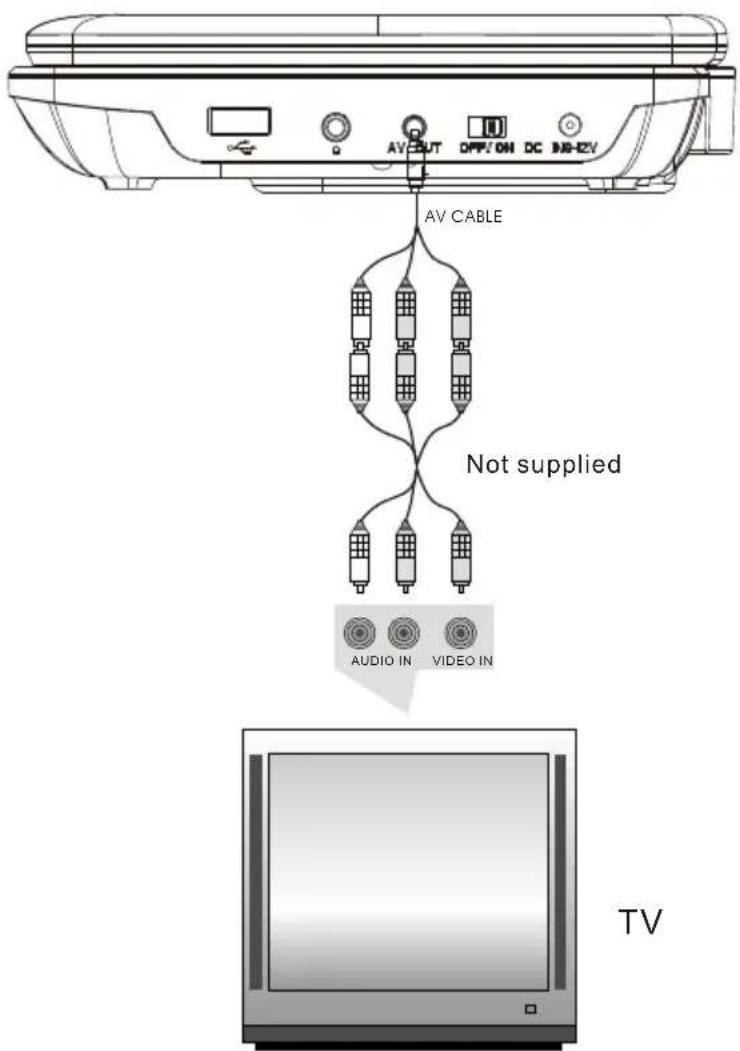

Please use AV cable to connect the machine and the TV. Make sure it is connected correctly.

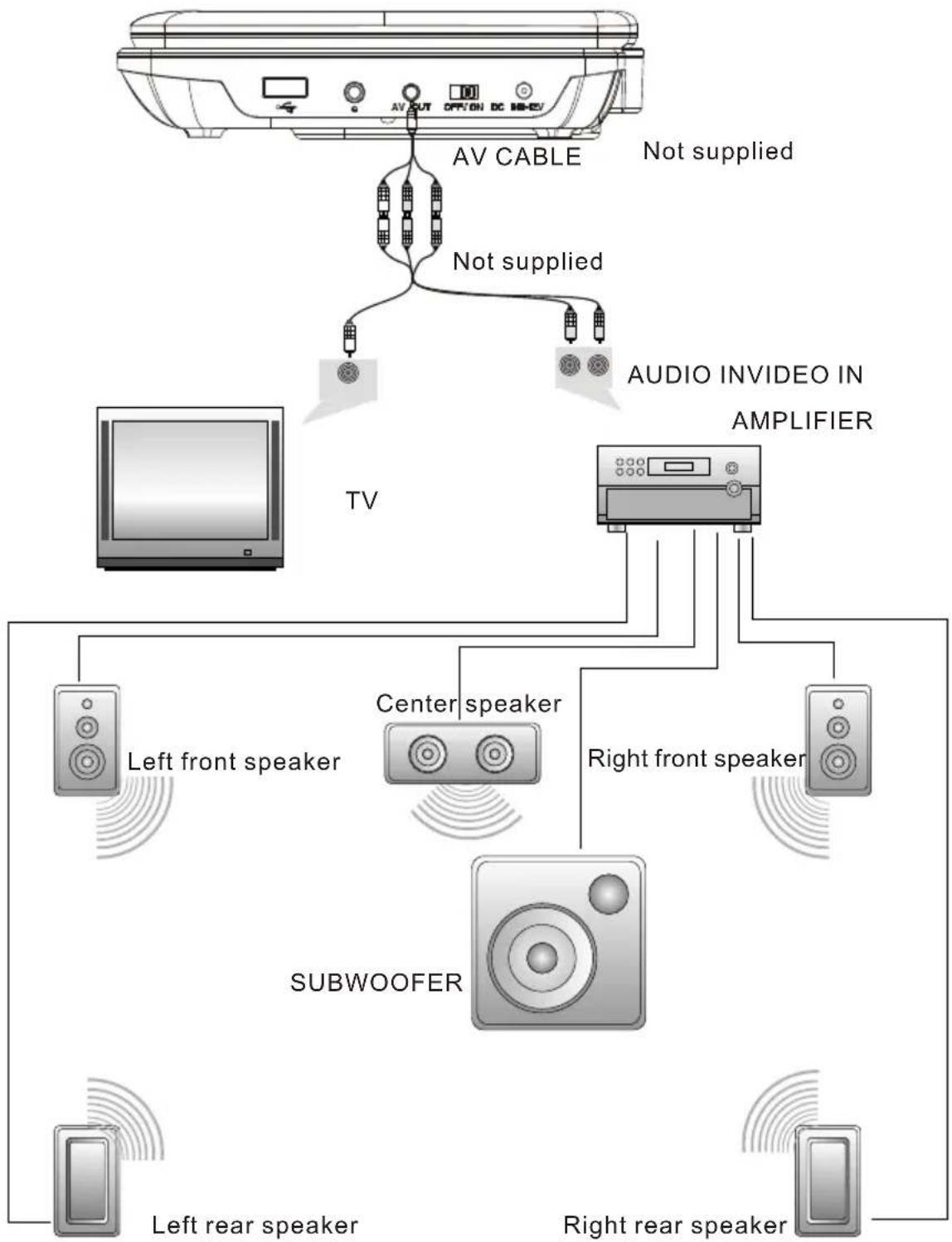

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

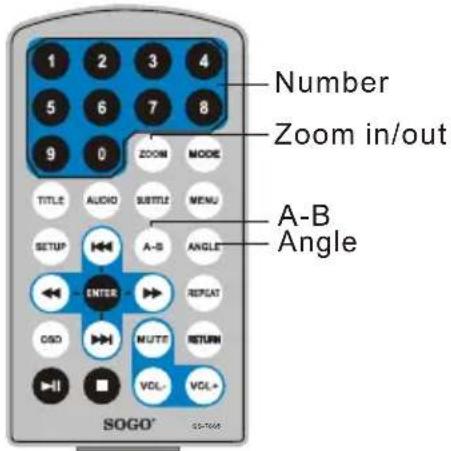

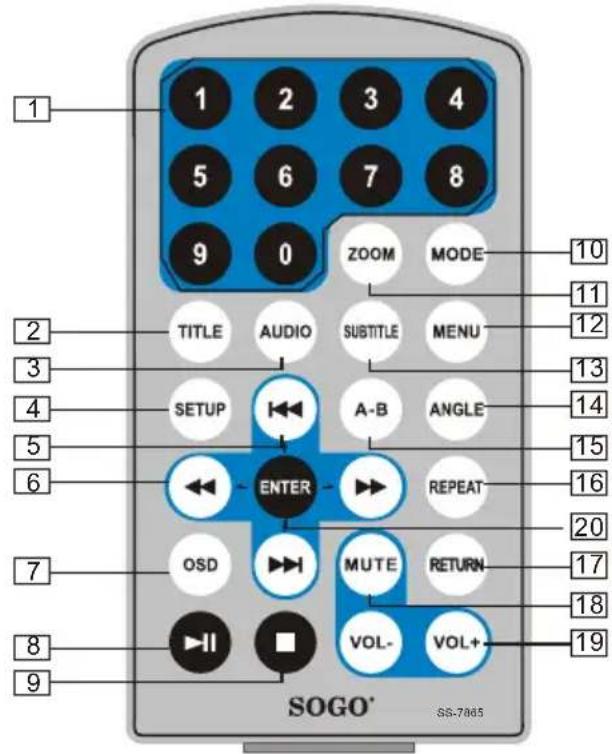

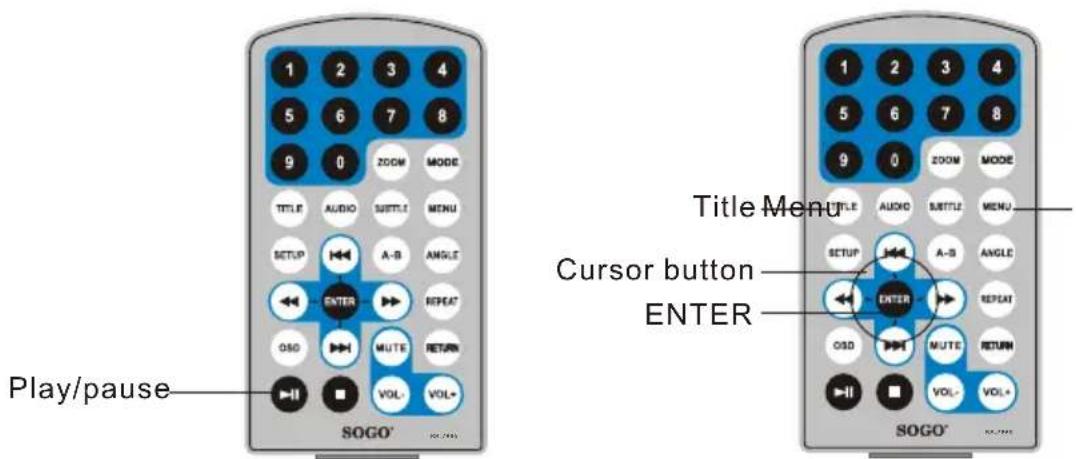

The Remote Control

1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)

4. SETUP(To go to or exit setup menu)

5. Previous/Next button(To go to previous/next chapter or scene during playing)

6. Fast forward/backward button(To scan forward/backward at 2,4,8,16,or 32 times)

7. OSD(To display disc information during playing such as elapsed and remaining time)

8. ▶ II PLAY/PAUSE

9. ■ STOP(press once to stop playback, then press ▶ to resume playback from the point where you stopped; press stop button twice to stop playback completely)

10. MODE(To select the source)

11. ZOOM(To zoom in/out the image during the playback)
12. MENU(To enter or exit root menu)
13. SUBTITLE(To select subtitle language when playing DVD disc)
14. ANGLE(To change viewing angle when playing disc with multi-angle)
15. A-B(Repeat a specific portion from point A to B, press it again to cancel repeat playing)
16. REPEAT(To repeat playing title, chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

CR2025 CR2025

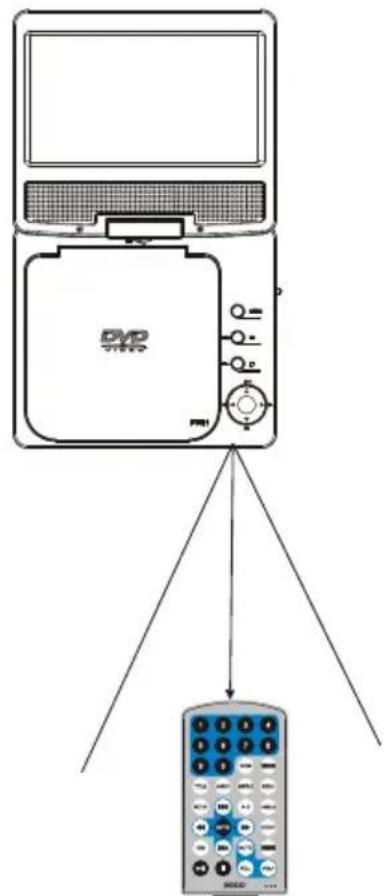

When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres. Please refer to the following illustration.

Note:

1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.

Basic Operation

Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3.

1. In the Source Mode, you can press", to select and "ENTER" key to enter the source you want.

1. Open the disc door and insert a disc into the door with the label side facing up.
2. Close the disc door. The unit will load the disc and start playing.
3. Press" ■ "once to stop playback; press" ▶ "to resume playback from the point where you stopped; press" ■ "twice to stop playback completely.
4. During playback, press "▶" to pause; press it again to resume playback.
5. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
6. For some DVD disc with Title or Chapter menu, press"MENU"button to enter menu page, and use"◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶

Note:

Please do not disconnect USB devices or plug out SD/MMC cards while they are working with the unit. Functional failure may occur in case of wrong operations.

Fast forward and fast backward

When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward.

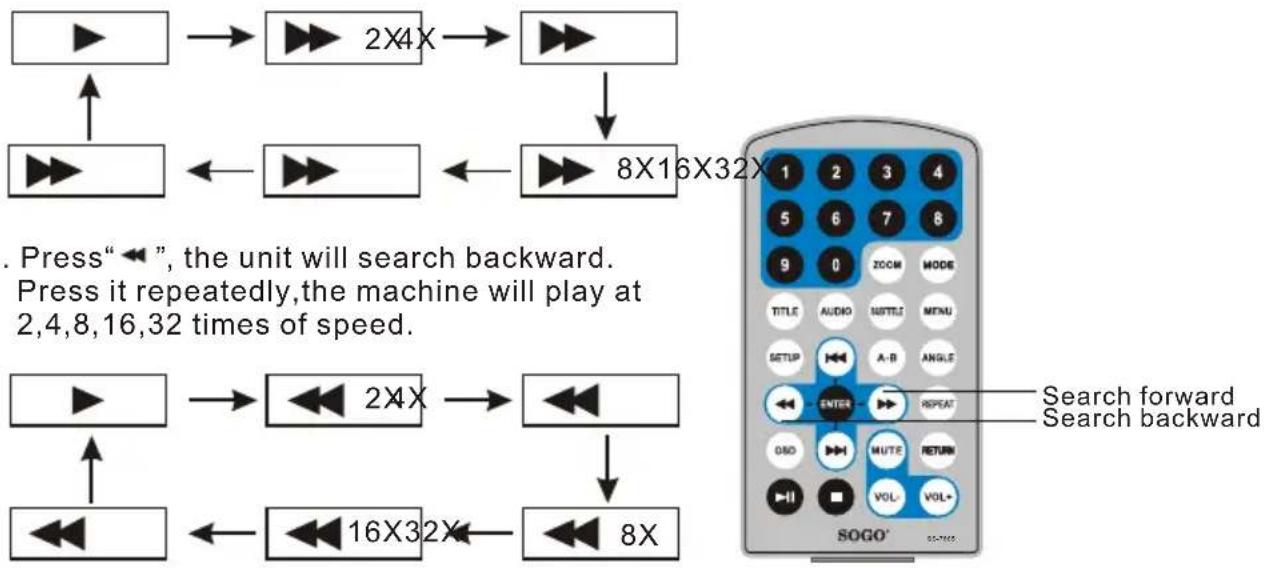

1. Press“▶”, the unit will search forward. Press it repeatedly, the machine will play at 2, 4, 8, 16, 32 times of speed.

Repeat playing

When playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, user can repeat playing one chapter, title or the whole disc.

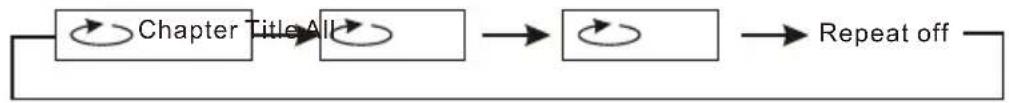

For DVD disc, press "repeat" button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

For MP3 disc, press "repeat" button to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat function.

For CD/VCD disc, press "repeat" button repeatedly to repeat the track and the whole disc.

Repeat playing of favorite scene

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between "A-B"

Press it the third time, the unit will return to normal playback.

Angle

During playing DVD disc with multi-angle, press "Angle" button to change the display angle.

Note:

The function is available only for discs with multi-angle.

Zoom in/ out

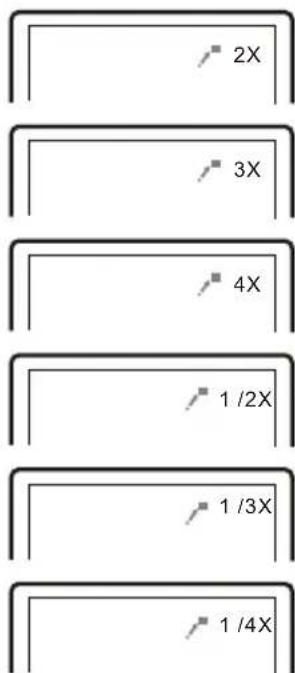

During playback, press "Zoom" button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status.

When playing disc of DVD, MPEG4, SVCD, VCD, user can zoom in or zoom out the image.

When the image is enlarged, user can press " «/»/«/»" to move the image.

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press "◀◀◀◀" to select a JPEG file and press "ENTER" button to confirm.
   Note: you can press "MENU" to return to the folder list. Press "▶II" or "ENTER" to preview the file selected.
3. To rotate the picture counter-clockwise, press◀ ";Press▶ "to rotate the picture clockwise.
4. Press "OSD" button when viewing pictures, you can select different refresh mode as follows:
5. from top to bottom
6. from bottom to top
7. from left side to right side
8. from right side to left side
9. from left top to right bottom
10. from right top to left bottom
11. from left bottom to right top
12. from right bottom to left top
13. from horizontal center to both sides
14. from vertical center to both sides
    11.from top and bottom to center
    12.from right and left to center
15. from four window's top side to bottom side
16. from four window's left side to right side

17. from 4 edges to center

18. During viewing files, "nothing" may appear when pressing "Angle" or "Subtitle" or "Audio" or "A-B" or "Title" etc; in this situation these options are unavailable to operate.

19. When viewing JPEG files, press "■", pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

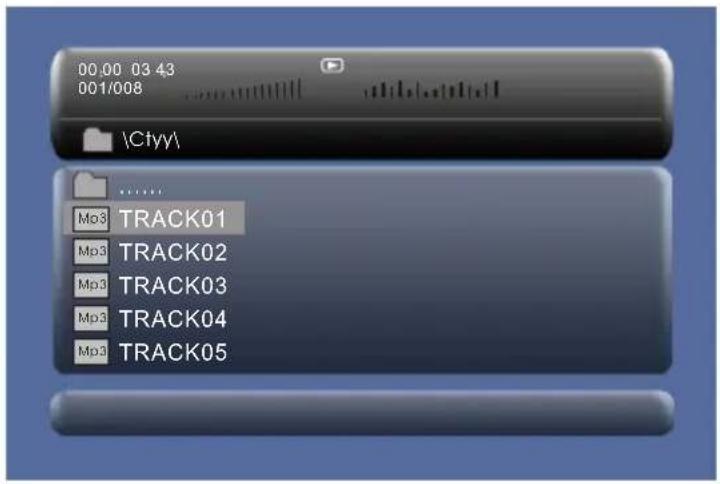

Playing MP3 files in data disc

1. Place MP3 disc into the disc door.

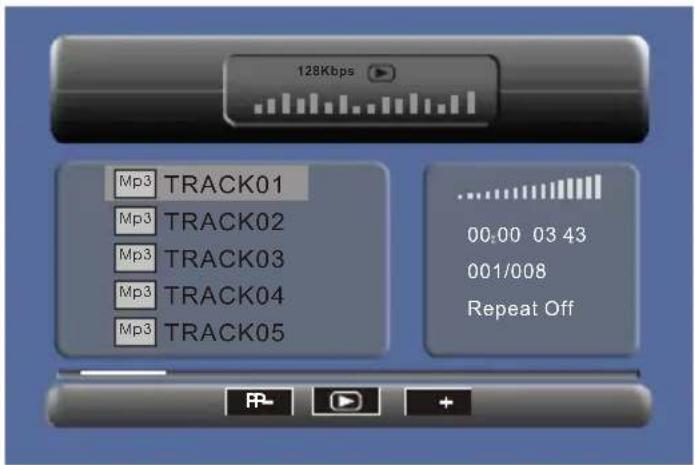

Press "◀◀◀◀" or "ENTER" button to choose an MP3 file; Press ▶II " or "ENTER" button to play the file selected.

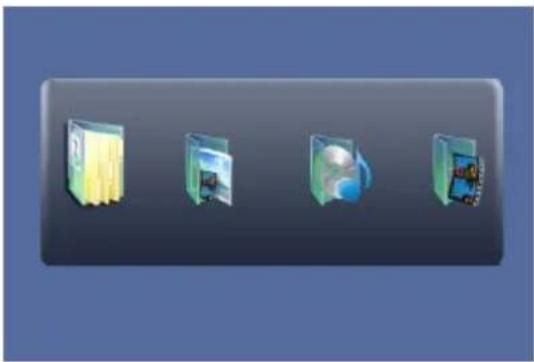

SD/MMC/USB main menu

Four stylized computer icons in a row, no text or symbols present

After entering the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by and press key to confirm. " "ENTER"

Illustration of a green folder with yellow pages and a small green icon on the cover (no text or symbols)

Browser Mode

Please refer to P39 for detail explanation

Illustration of a transparent plastic container with a landscape background and a small framed picture on the right (no text or symbols)

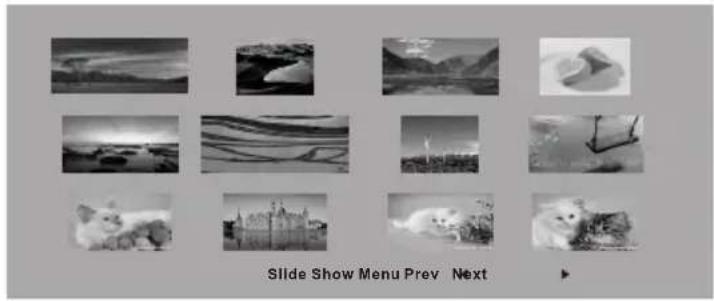

Photo Mode

Please refer to P39 -40 for detail explanation

Icon of a CD inside a green box with a blue musical note symbol (no text or symbols)

Music Mode

Please refer to P40 for detail explanation

Illustration of a film strip with a colorful abstract image on its cover (no text or symbols)

Movie Mode

Please refer to P41 for detail explanation

Note: Media cards formatted in exFAT file system are not supported.

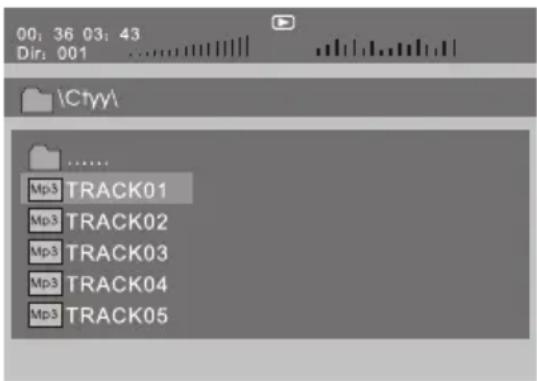

Browser mode

In the Browser Mode, the system will show the list of file and folder.

“◀◀”, “▶key:SELECTEtRand play
“▶”: Enter the folder
“◀”: Quit the folder

Note:

If you want to return to the Main Menu, please make sure the system is in list of file or folder status, then press RETURN KEY.

Photo mode

Grid of grayscale images showing various natural scenes including mountains, waves, landscapes, and cats (no text or symbols)

In the Photo Mode, the System will show the thumbnail Mode first.

“◀◀”, “▶▶”, “select and ENyER”

Slide Show: play the JPEG.

Menu: Enter the Help Menu.

Prev:Page Up.

Next:Page Down.

When playing JPEG :

1. To rotate the picture counter-clockwise, press "◀"; Press" ▶" to rotate the picture clockwise

2. Press OSD button when viewing pictures, you can select different refresh mode as follows:

3. from top to bottom

4. from bottom to top
5. from left side to right side
6. from right side to left side
7. from left top to right bottom
8. from right top to left bottom
9. from left bottom to right top
10. from right bottom to left top
11. from horizontal center to both sides
12. from vertical center to both sides
13. from top and bottom to center
14. from right and left to center
15. from four window's top side to bottom side
16. from four window's left side to right side

17. from 4 edges to center

18. During viewing files, "∅" may appear when pressing "Angle" or "Subtitle" or "Audio" or "A-B" or "Title" etc; in this situation these options are unavailable to operate.

19. When viewing JPEG files, press "■" and "RETURN" key, pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

Note :

If you want to return the Main Menu, please press "RETURN" key in the thumbnail mode.

Music mode

In the Music Mode, the system will show the list of music file, like Mp3 and so on.

Press",",select"andTpay".

Press "to fast" forward /backward MP3 during playing.

Press "to select" the function button when in stop status.

Page-:Page Up.

:play

Page+:Page Down

Note: Press "Return" Key to Return to the Main Menu.

Movie mode

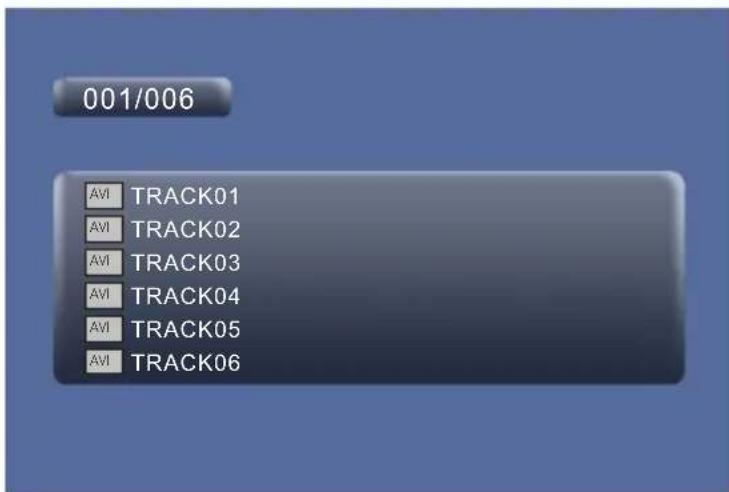

In the Movie Mode, the system will show the list of Movie file, like AVI and so on. "◀◀", "▶Key ENTeR and Play.

When playing movie you can press"MENU" and Réturn Key to back to the list of movie file status. And if you want to Return to the Main Menu, Please Press's Return key in list of Movie file status.

CD RIPPING

During playing the CD/HDCD disc, you can enter CD Ripping function. By pressing subtitle button, DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

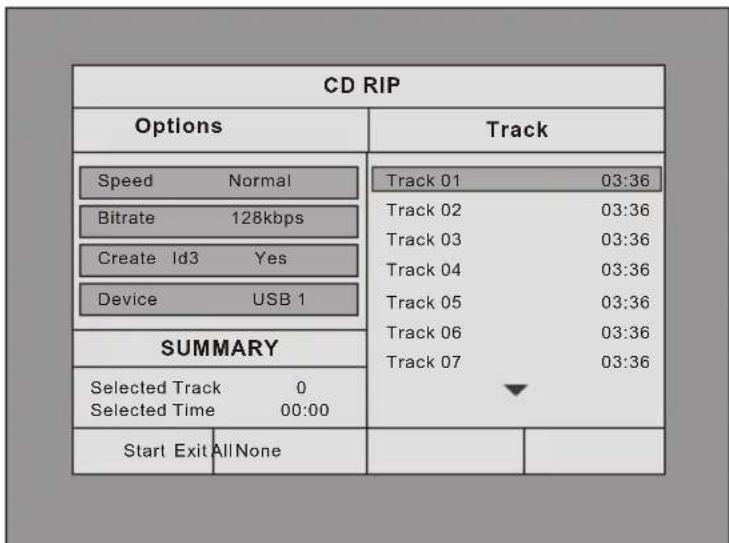

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices, 128Kbps, 192Kbps, 256Kbps, 320Kbps, 96Kbps and 112Kbps.

Create ID3: In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for conversion and storage.

None: Cancel the selection.

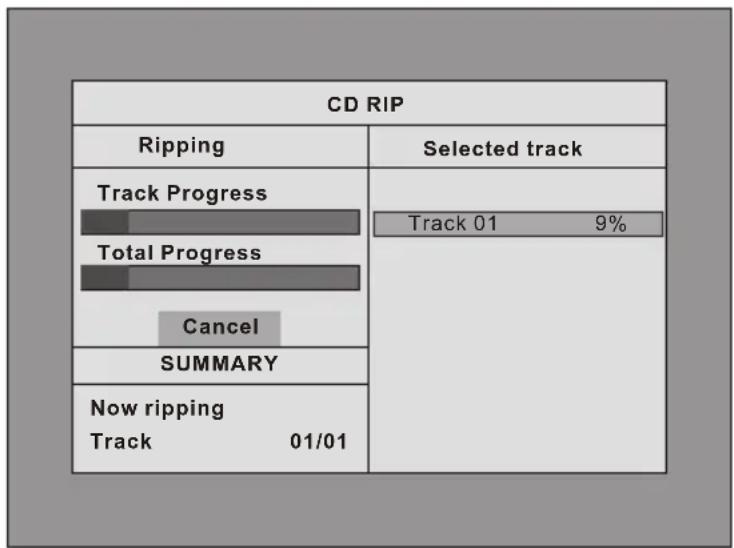

Start: Move the cursor to the item and press "ENTER" button, the conversion begins.

During the converting, you can select "CANCEL" to stop it.

System Setup


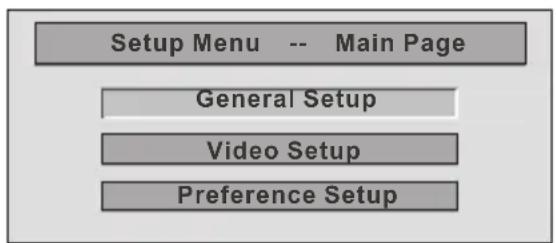

Press "Setup" button, the main menu will be displayed on the screen

In the main Page, Press "button" to highlight the item.

Press "ENTER" button to access.

Press Setup button to exit.

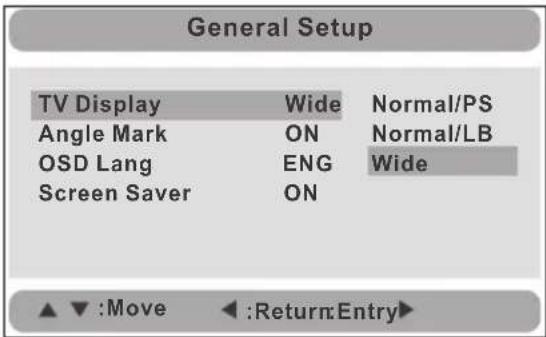

General Setup Page

	TV display:Enter this option,user can set screen display format(Nomal/PS,Nomal/LB,Wide)The default is“Wide”Note:☆ The function depends on the display ratio with which the DVD disc is recorded.☆ Please choose‘Wide(16:9) when using a 16:9 wide screen TV set.

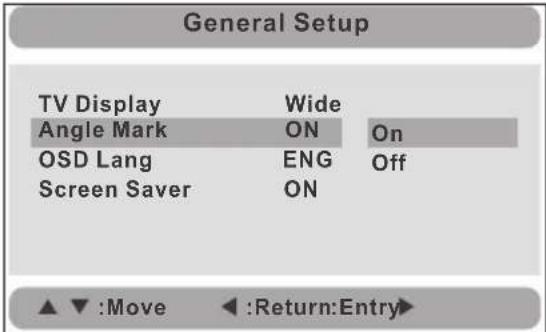

	Angle Mark:Enter this option to set the angle during playback.Optional setting:ON,OFFThe default is:ON

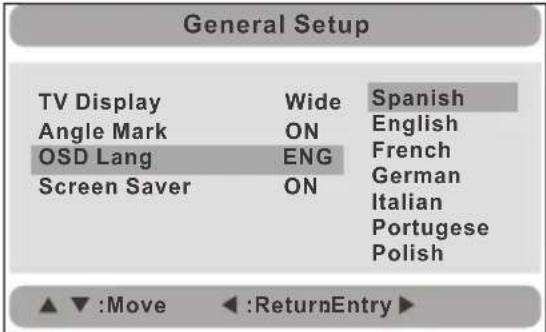

	OSD Language:In the option user can set OSD menu language(Spanish, English,French, German,Italian, Portugese, Polish).The default: Spanish

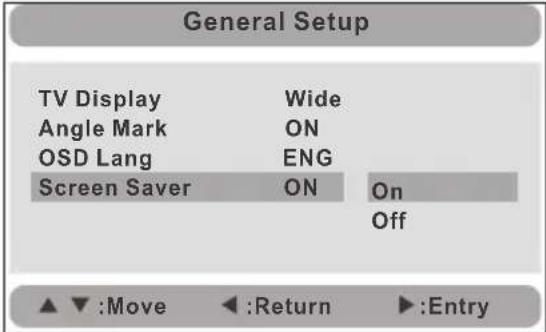

	Screen Saver:Enter this option to set whether to activate the screen saver function.The default is ON.

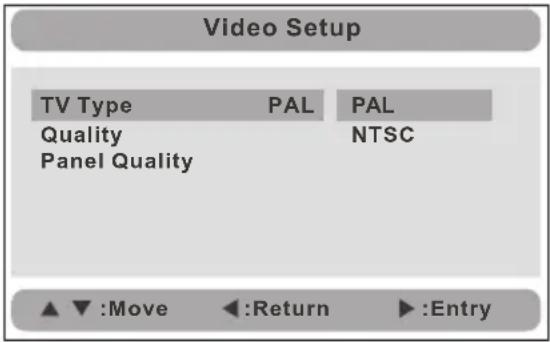

Video Setup Page

	TV Type:Enter this option to select TV type(PAL,NTSC)The default is PAL.

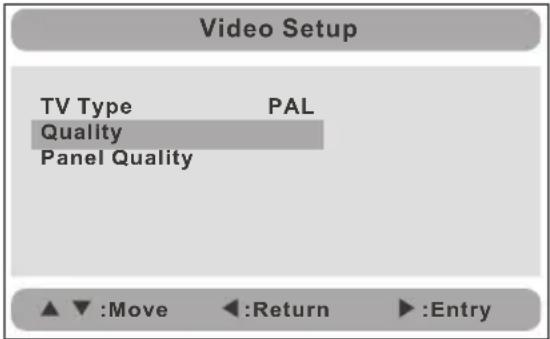

	Set the Video Quality of AV OUT

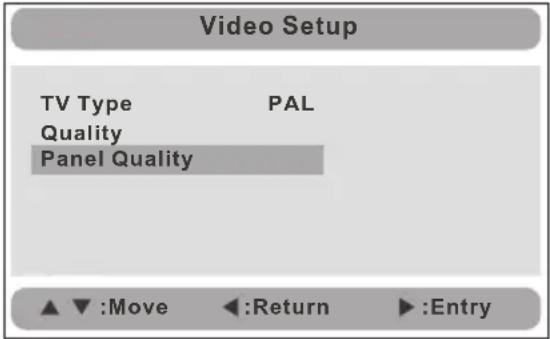

	Set the Video Quality of PANEL

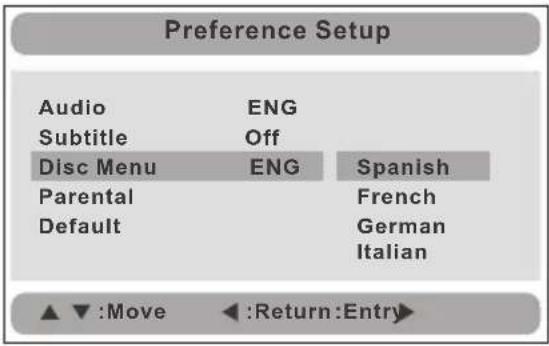

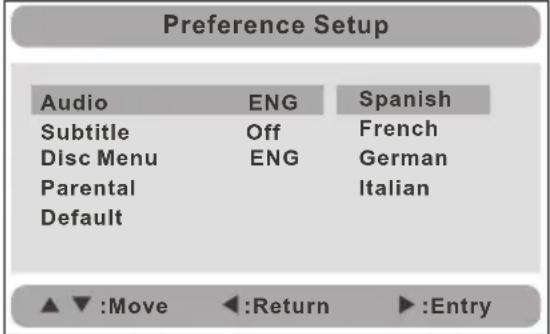

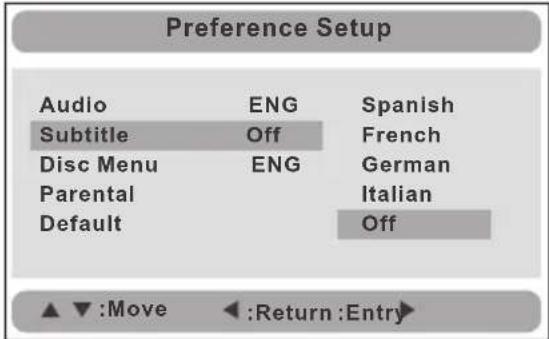

Preference Page

	Audio:Enter this option,user can select preferred audio language for DVDs.The default is Spanish.Note:☆ The audio language depend on the material on each disc.☆ User can also change the audio language during pla yback by pressing the Audio button.
	Subtitle:Select your preferred language to show the subtitles on the screen.The default is OFFThe subtitle languages depend on the information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.
	Disc Menu:This function allows you to choose the menu language stored on the disc.The default is Spanish.Note:the disc menu languages depend on the information available on the disc.

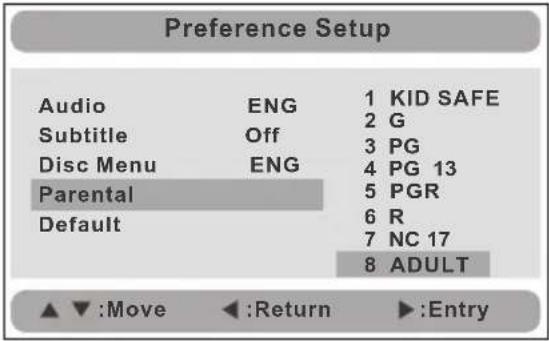

	Parental:Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.Optional parental control levels: KID SAFE, G, PG,PG 13,PGR, R, Nc17, ADULT.The default is ADULT.The default password:8888.

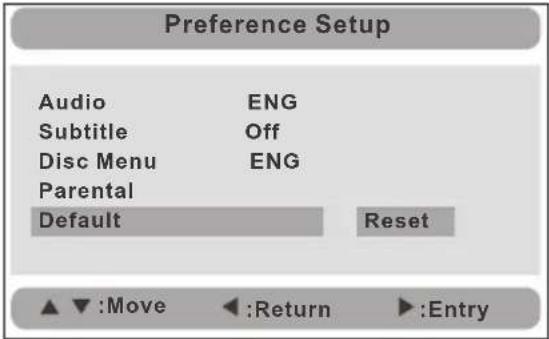

	Default:Select this item and press ENTER to reset.

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 7 inch

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80dB

Dynamic range: Better than 85dB

Laser: Semiconductor Laser, Wave Length: 650nm/795nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature: 0\~40°C

Weight(Monokg/DVD Player

Dimensions (W x D x H): 176x157x40mm

Battery Type: Li Polymer

Note:

1. The quality and speed for reading JPEG photos depend on the resolution and compression ratio of the photos. Some JPEG photo may not be played due to the disc quality and the formats.

2. Some DVD+R/RW, DVD-R/RW, CD-R/RW disc may not be played due to the quality on burning conditions.

Rechargeable battery use

The machine utilizes long-life Li polymer battery for portable power supply. The battery has no "Memory Effect" and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It's enough to recharge no longer than 3H each time, fully recharged battery can last about 2 hours with earphone.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it's fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is:0°C\~40;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing, it's normal, while avoid long time playing and unattendance;
4. Avoid having the unit collide with any objects, and place away from all possible heat sources or damp areas.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Troubleshooting

PROBLEM	SOLUTION
No sound or distorted sound	Make sure the machine is connected properly.Make sure all cables are securely inserted into the appropriate jacks.
Can't advance through a movie	You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
The icon ⓧ appears on screen	The feature or action cannot be completed at this time because:1.The disc's software restricts it.2.The disc's software doesn't support the feature (e.g.,angles)3.The feature is not available at the moment.4.You've requested a title or chapter number that is out of range.
Picture is distorted	The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.
No forward or reverse scan	Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.

Imported by:

Samini Europe S.L

CIF: B91954099

Spain

Made in P.R.C

SOGO®

Human Technology
