USER MANUAL FGC-821D Infiniton

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

Simple line drawing of a door handle with a knob and scroll (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a mechanical lever with a downward arrow indicating force or direction (no text or symbols)

1. Desenrosque la bisagra central.

Simple line drawing of a door with a hanging tool and a circular inset showing three small objects (no text or symbols)

Simple line drawing of a 3D rectangular frame with a curved top edge and a small arc at the top (no text or symbols)

Simple line drawing of a symmetrical mechanical or architectural component with no text or symbols

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

unscrew screw

Simple line drawing of a vehicle suspension system with a circular inset showing a vertical pole (no text or symbols)

Pure mechanical diagram showing a lever and bracket assembly without any text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a door handle and lever mechanism (no text or symbols)

Simple line drawing of a corner detail with an arrow indicating direction (no text or symbols)

INSTALACIÓN

Espaciador trasero

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating approval or rejection status.

Clase climática	Temperatura ambiente
SN	+10oC to +32oC
N	+16oC to +32oC
ST	+16oC to +38oC
T	+16oC to +43oC

Ubicación

Line drawing of a hand using a tool to lift or adjust a shelf panel (no text or symbols)

Diagram of a container with two upward arrows inside, no text or symbols present

Simple line drawing of a layered rectangular object with a small circular base (no text or symbols)

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

Safety information

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;
• catering and similar non-retail applications.

Safety information

⚠ WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)

• Store pre-packed frozen food in accordance with the frozen foodmanufacture8s ^1) instructions.
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use aplastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.

If the drain is blocked, water will collect in to bottom of the appliance ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

Safety information

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliancemarked by the symbol 🌐 a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

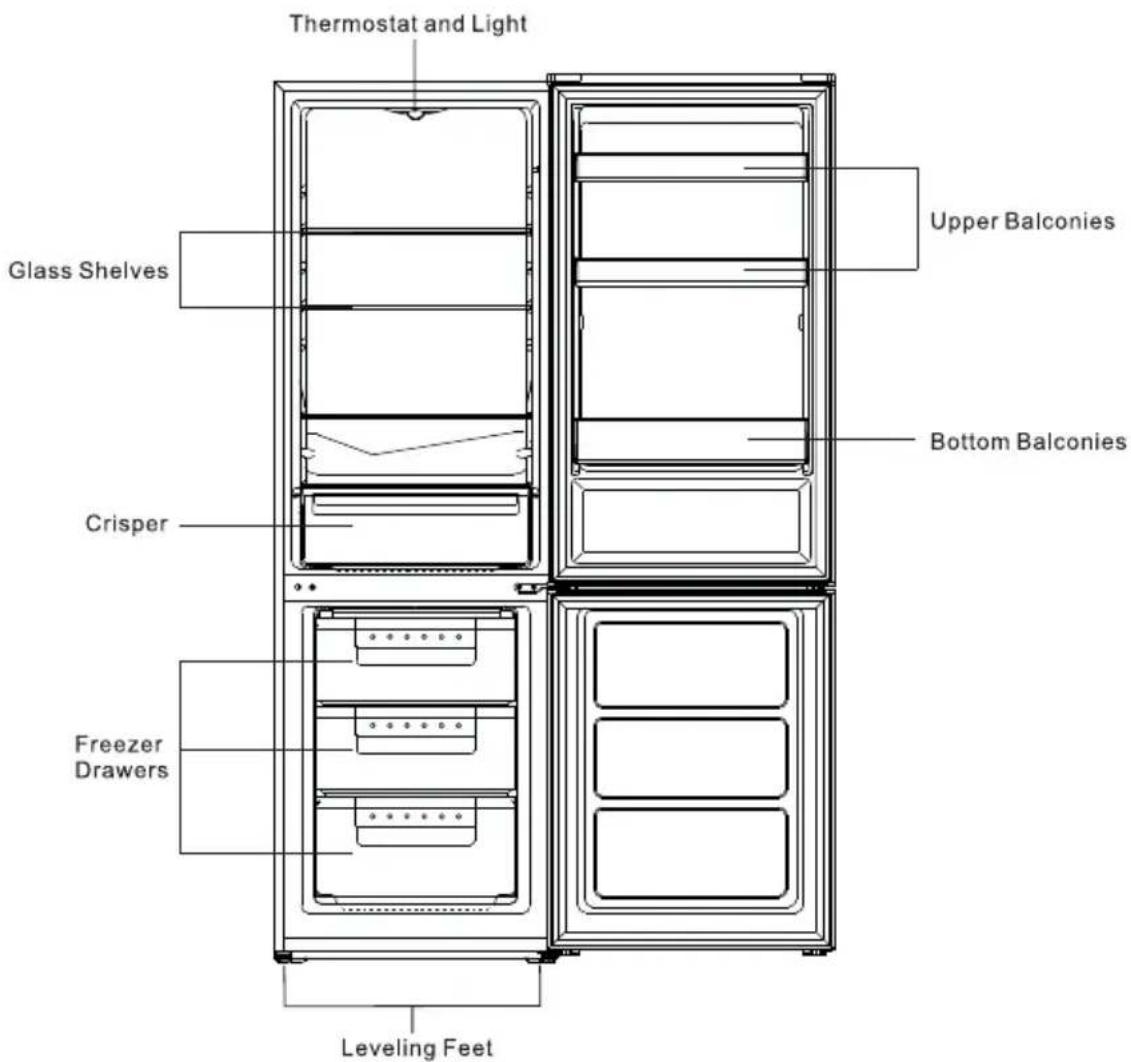

Overview

Thermostat and Light Glass Shelves Upper Balconies Crisper Bottom Balconies Freezer Drawers Leveling Feet

This illustration is only for hinting, the detail please check your appliance.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.

• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.

• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Unscrew top hinge cover and then unscrew the top hinge. Then lift upper door and place it on a soft pad to avoid scratch and damage.

Simple line drawing of a mechanical component or bracket with a knob, no text or symbols present

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

1. Remove the pin with a screwdriver and flip the hinge bracket. Then refit the pin to hinge bracket.

Technical line drawing of a mechanical bracket with a 450° angle indicator (no text or symbols)

1. Remove the top left screw cover.

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

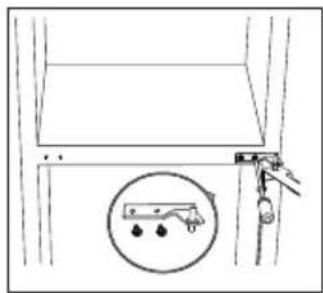

1. Unscrew middle hinge.

Simple line drawing of a door with a hanging handle and a circular inset showing three small objects (no text or symbols)

1. Move hinge hole cover in lower door to another side. Then lift lower door and place it on a soft pad to avoid scratch.

Simple line drawing of a simple roof structure with a curved roof and vertical supports (no text or symbols)

1. Move the hinge hole covers from left side to right side.

Simple line drawing of a table with chairs and a curved arrow, no text or symbols present

1. Unscrew bottom hinge. Then remove the adjustable feet from both side.

Simple line drawing of a mechanical structure with a circular inset showing a pulley system (no text or symbols)

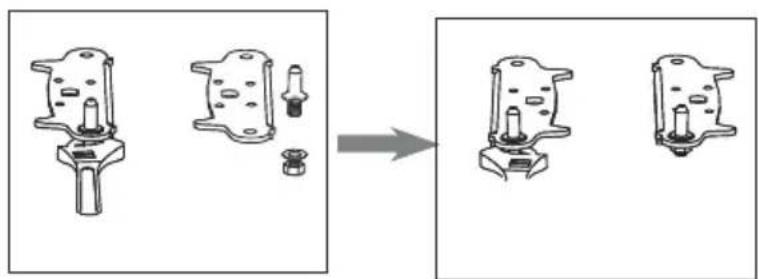

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

Mechanical assembly diagram showing a component being processed from a base to a final assembled part (no text or symbols present)

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

Simple line drawing of a mechanical lifting device with a circular inset showing a hanging weight (no text or symbols)

1. Make the middle hinge reverse the direction 180 C, then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door then tight the bolts

Pure mechanical assembly diagram without any text, numbers, or symbols

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge. Then inert the top hinge and screw it to the top of unit and then fix hinge cover (in accessory bag) by screw.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a mechanical clamp or bracket with no text or symbols

1. Fix the screw cover.

Simple line drawing of a corner edge with an arrow indicating direction (no text or symbols)

INSTALLATION

Rear spacer

Screw the rear spacers at the rear of the unit.

SODEX

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

xxxmm xxxmm

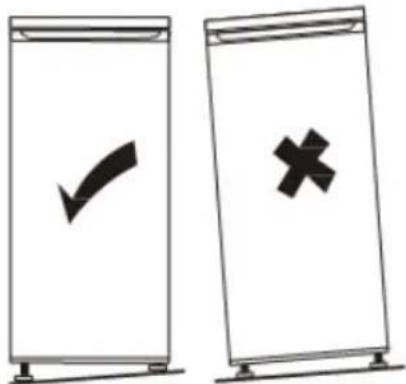

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32 °C
N	+16°C to +32 °C
ST	+16°C to +38 °C
T	+16°C to +43 °C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi- net and the wall unit must be at least 100 mm. ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supp-ly; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed,

connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives

DAILY USE

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product and then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

- Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6(8)settings . 1 is warmest setting and 5 (7)is coldest setting and 0 is off.

- The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Position different food in different compartments according to below table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments.·Do not store perishable foods.
Crisper drawer (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin.·Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf – bottom Chiller (box/drawer)	Raw meat, poultry, fish (for short-term storage)
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	·Foods for long-term storage.·Bottom drawer/shelf for raw meat, poultry, fish.·Middle drawer/shelf for frozen vegetables, chips.·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Illustration of a hand using a tool to lift or adjust a shelf (no text or symbols visible)

Simple diagram of a container with two upward arrows inside, no text or symbols present

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
  • only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
  • do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt:

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer

than absolutely necessary. Once defrosted, food

deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

- Do not store warm food or evaporating liquids in the refrigerator.

- Do cover or wrap the food, particularly if it has a strong flavour.

Hints for refrigeration

Useful hints:

- Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most

- Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.

• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.

• Do not use any abrasive cleaners.

• Remove the food from the freezer. Store them in a cool place, well covered.

• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  •After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Simple line drawing of a folder or folder icon with no text or symbols

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Temperature regulation knob is set at number "0".	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are tube corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation kno to a warmer setting temporarily.
Unusual noises	Appliance is not level.	Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked	See the Cleaning and Care section

If the malfunction shows again, contact the Service Center.

Correct Disposal of this product

Brand	INFINITON	INFINITON
Model	FGC-821D	FGC-822IX
Energy Class	A+	A+
Certification	CE	CE
Yearly Energy Consumption	273kWh / year	273kWh / year
Net Volume Refrigerator	223L	223L
Net Volume Freezer	89L	89L
No. of Stars	4	4
Defrosting System	Defrost	Defrost
Autonomy for Black Out	1300min	1300min
Freezing Capacity	4kg/24h	4kg/24h
Climatic Class	ST	ST
Noise Level	42dB	42dB
Overall Dimensions	605x605x1858 mm	605x605x1858 mm
Rated Voltage	220-240V	220-240V
Rated Current	0.65A	0.65A

INFINITON

Thermostat and Light Glass Shelves Upper Balconies Bottom Balconies Crisper Freezer Drawers Leveling Feet

Simple line drawing of a hand holding a small object near a vertical wall (no text or symbols)

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

Technical line drawing of a mechanical part with an angle标注 (120°) and a separate view showing a small component (no text or symbols present)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Simple line drawing of a cabinet with an inset showing a circular component (no text or symbols)

Simple line drawing of a simple roof structure with a curved roof and vertical supports (no text or symbols)

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a mechanical structure with a circular inset showing a pulley system (no text or symbols)

Mechanical component assembly diagram showing exploded view and assembled views (no text or labels)

Simple line drawing of a mechanical lifting device with a circular inset showing a hanging weight (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a mechanical component or bracket with no text or symbols

Simple line drawing of a corner edge with an arrow indicating direction (no text or symbols)

INSTALAÇÃO

Espaçador traseiro

Two identical signboards showing a checkmark and a cross symbol, likely indicating approval or rejection status.

Posicionamento

Climate class	Ambient temperature
SN	+10°C to +32 °C
N	+16°C to +32 °C
ST	+16°C to +38 °C
T	+16°C to +43 °C

Localização

Line drawing of a hand using a tool to lift or install a shelf panel (no text or symbols)

Simple diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Simple line drawing of a folder or folder icon with no text or symbols

Empty white rectangle with black border (no text or symbols)

Empty white rectangle with black border (no text or symbols)
